devinci SPARTAN HIGH PIVOT User manual

TECHNICAL MANUAL
SPARTAN HIGH PIVOT

68
12 14 15
4
TABLE OF CONTENT
Cable
Routing
Service
Kit
Assembly
Advices
Suspensio
Set Up
Warranty
Warranty
Conditions
Frame -
Technical
Specications

4
A
C
B
6
FRAME
* DISCLAIMER: We are testing many dierent tires to establish a clearance number that cover a wide spectrum of tires with
appropriate frame clearance. However, it is impossible for us to test all tires and rim combination available on the market,
so be mindful that some combinations may result in slight rubbing if higher than 66mm in actual width.
Technical Specications
Available sizes
S | M | L | XL
HEADTUBE DIMENSIONS
1. UPPER (S.H.I.S) ZS44 1-1/8"Zerostack
2. LOWER (S.H.I.S) ZS56 1.5"Zerostack
BOTTOM BRACKET
3. STANDARD 73MM BSA
4. ISCG MOUNT ISCG O5, xed
MECHANICAL DRIVETRAIN (1X)
5. REAR HUB SPACING O.L.D (Over Locknut Dimension) TA 12 x 157
6. AXLE STOCK IMPORTANT INFOS A. LENGHT: 197 |B. THREAD: 1.0MM |C. PITCH: M12xP1
7. MAXIMUM & MINIMUM CHAINING 38T 28T
8. RECOMMENDED CHAINLINE 56.5mm
9. MIN Q-FACTOR 173mm
SEATPOST AND SEATCLAMP
10. SEATPOST OUTSIDE DIAMETER (OD) 34.9mm
11. SEATPOST LENGTH (S.M,L, XL) 225mm, 250mm 285mm & 300mm
12. SEAT TUBE OUTSIDE DIAMETER (OD) 39.3mm
GEOMETRY INPUTS (BASED ON MEDIUM SIZE)
29er | FORK 170MM | TRAVEL 160MM
13. FRONT SUSPENSION (TRAVEL & SAG) 170mm 33%
14. FORK AXLE-TO-CROWN & OFFSET 581mm 51%
15. REAR SUSPENSION (TRAVEL & SAG) 160mm 33%
16. SHOCK LENGTH & STROKE 205 X 65mm
17. SPRING TYPE COMPATIBILITY AIR & COIL
18. UPPER (OR FRONT) SHOCK HARDWARE DIMENSION Trunnion
19. LOWER (OR REAR) SHOCK HARDWARE DIMENSION 35 X 10mm
20. FRONT & REAR WHEEL GEOMETRY 748mm / 29x2.5 748mm / 29x2.5
21. REAR WHEEL MAX DIMENSIONS 29x2.5*

5
1
10
11 & 12
5 & 6
2
3 & 4
15 & 16
19
7
17
9
8
13 & 14
FRAME
Technical Specications
Q-FACTOR

6
SPARTAN CARBON 2021+
Step 3
CABLE ROUTING
LEGEND
Housing outside the frame
Housing inside the frame
Seatpost housing
Speed housing
Brake housing
Step 1 | Pass the brake housing through the cavity on the top of the base.
Step 2 | Pull out the housing through the cavity on the outer surface of the
base, attach to the support created for this purpose, then pass the brake housing
through the left opening of the stopper located on the seat tube.
Step 4 | Remove the cap from on the guide located on the left side of the
down tube (use the upper cavity). * Do not replace the cap *
Slide the anti-impact foam tube over the housing up into the down tube.
Step 3 | Slide the brake housing into the top tube.
BRAKE HOUSING
Step 5 | Pass the speed housing through the opening located
below the base.
Step 4 | Take the speed housing out through the cavity under the
base, at the front.
Step 3 | Pass the speed housing under the pulley cap.
Step 1 | Pass the speed housing through the right opening of the stopper
located on the seat tube. Slide the speed housing into the top tube.
Step 2 | Pull out the housing through the stopper located on the left
side of the diagonal (use the lower cavity). * Put back the stop cap *
SPEED HOUSING
Step 1 | Pass the seat post housing through the stopper on the right side
of the diagonal.
Step 2 | Pull out the seat post housing through the bottom bracket cavity.
Slide the anti-impact foam tube over the housing up into the down tube.
Step 3 | Create a loop with the sleeve to reinsert it into the seat
tube. Pull out the seat post cover at the end of the tube.
SEATPOST HOUSING
Step 1
Step 2
Step 3
Step 1
Step 4 | Step 5
Step 2 | Step 4
Step 2
Step 3
Step 2
Step 1

7

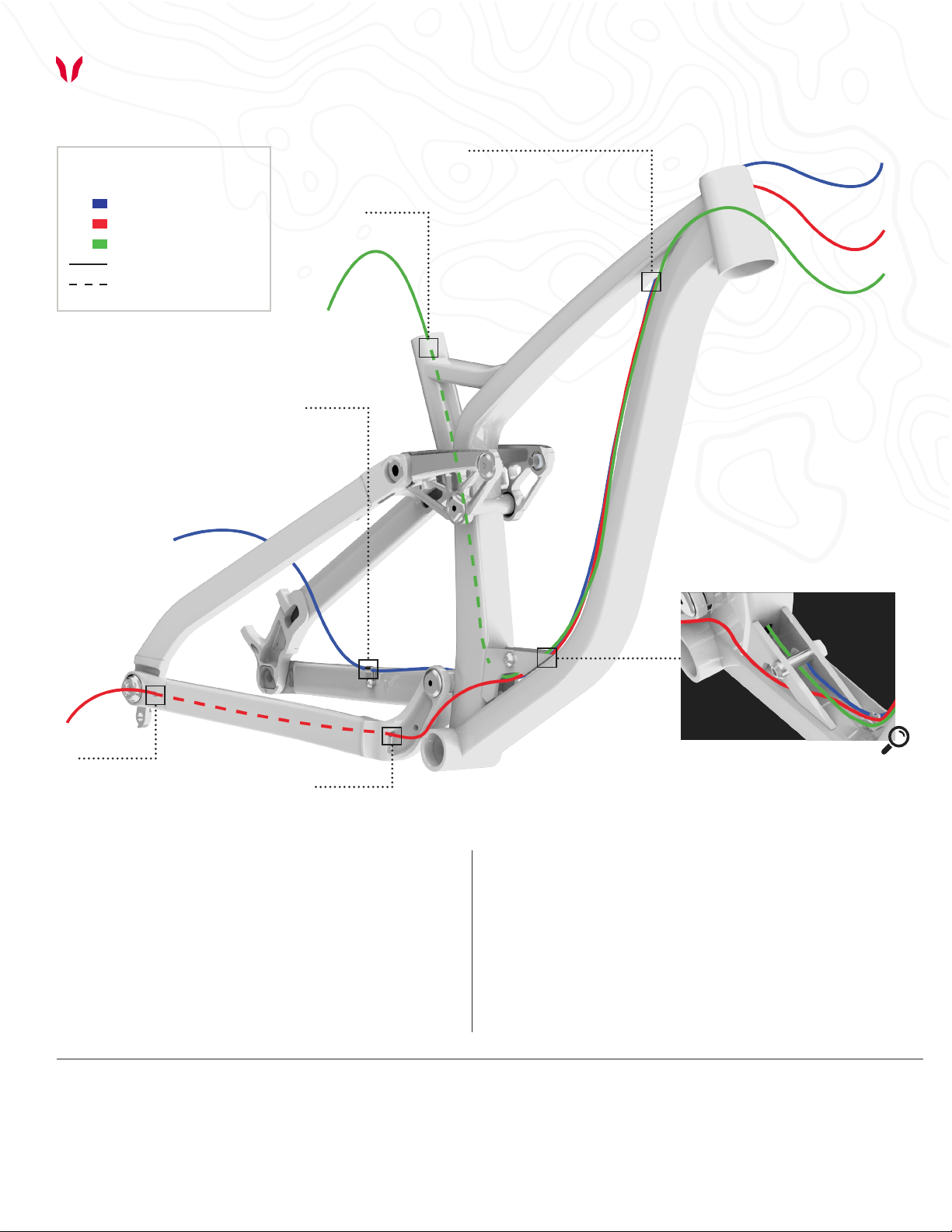

SPARTAN 2021+
CABLE ROUTING
LEGEND
Housing outside the frame
Housing inside the frame
Seatpost housing
Speed housing
Brake housing
Step 1
Step 2
Step 1
Step 2 | Step 3 | Step 1
Step 3 | Step 4 | Step 3
Step 2
Step 1 | Attach the houssing to the tie and the cavity (using a
clip) on the top of the base.
Step 2 | Pass the housing under the shock.
Step 3 | Attach the housing to the guide located on the left side
of the diagonal. Orient to the left side.
GAINE DE FREIN
Step 1 | Pass the housing through the rear opening of the base so
that it pops out at the front.
Step 2 | Secure the housing with a clip under the front of the base using
the cavity created for this purpose.
Step 3 | Pass the housing under the shock.
Step 4 | Fix the housing in the center of the stops of the
diagonal. Orient to the left side.
GAINE DE VITESSE
Step 1 | Pass the seat post housing under the shock.
Step 2 | Pass the housing through the opening located at the
bottom of the seat post all the way to the top. Pull out the housing at
the end of the seat tube.
Step 3 | Attach the housing to the guide located on the right side of
the diagonal. Orient to the right side.
GAINE DE TIGE DE SELLE
*Follow the seat post manufacturer's instructions for adjusting the length
of the housing.

8
REAR AXLE
(20 N∙m)
6.7 N∙m
2
COLLAR
6 N∙m
2
4
1
1
1
2
UPPER SHOCK BOLT
(14 N∙m)
CL PIVOT
(14 N∙m)
LOWER SHOCK BOLT
(14 N∙m)
DO PIVOT
(22 N∙m)
DERAILLEUR
HANGER
(25 N∙m)
BL PIVOT
(14 N∙m)
CHAIN GUIDE
(6 N∙m)
WL PIVOT
(14 N∙m)
6
7
6
8
1
7
9
9
9
10
7
10
7
7
7
7
7
9
9
9
9
10
10
7
7
5
5
3
5
10
WARNING:
MAKE SURE TO
CAREFULLY READ THE
ASSEMBLY
INSTRUCTIONS AND
CLEANING
INSTRUCTIONS NOTES
ON NEXT PAGE.
DO PIVOT
WL PIVOT
BL PIVOT
CL PIVOT
A
Revision
PCB-044
SPARTAN CARBON 29 HP
SERVICE KIT

9
ASSEMBLY INSTRUCTIONS:
1- THOROUGHLY CLEAN THE INTERIOR OF EACH BEARING HOUSING TO REMOVE ANY DIRT OR OLD GREASE;
2- APPLY HIGH QUALITY WATERPROOF GREASE ON THE INSIDE FACE AND INSIDE DIAMETER OF ALL BEARING
HOUSINGS BEFORE PRESS-FIT;
3- APPLY HIGH QUALITY WATERPROOF GREASE TO ALL PIVOT PARTS THAT CONTACT WITH THE INNER
DIAMETER OF THE BEARINGS.
4- APPLY HIGH QUALITY WATERPROOF GREASE TO ALL NON-THREADED METAL-TO-METAL INTERFACES (EX.:
PLANAR FACE OF THE PIVOT SPACER THAT CONTACTS THE LATERAL FACES OF THE FRONT TRIANGLE WL
PIVOT). THESE INSTRUCTIONS ALSO APPLY TO THE SHOCK ASSEMBLY;
5- UNLESS OTHERWISE SPECIFIED, APPLY BLUE LOCTITE 242 ON ALL THREADS BEFORE ASSEMBLY TO THE
SPECIFIED TORQUE VALUE;
6- TO PREVENT DAMAGE TO THE FRAME, THE SEATPOST MUST HAVE A MINIMUM INSERTION IN THE SEAT
TUBE.
CARBON FRAME:
SMALL / MEDIUM / LARGE / X-LARGE - 100mm INSERTION
*ALWAYS VERIFY CONNECTOR CLEARANCE BEFORE FULLY INSERTING A DROPPER POST.
7- FRG ADJUSTABLE : THIS DESIGN ALLOWS RIDERS TO CHOOSE BETWEEN A LOW OR HIGH POSITION. WITH
FRG ADJUSTABLE TECHNOLOGY, YOU CAN FINE-TUNE YOUR RIDE TO PERSONAL TASTES OR SPECIFIC TRAIL
TYPES USING A FLIP-FLOP PIVOT MECHANISM THAT SLIGHTLY CHANGES THE BIKE'S GEOMETRY AS SHOWN
BELOW.
CLEANING INSTRUCTIONS:
IT IS A WELL KNOWN FACT THAT A CLEAN BIKE PERFOMS BETTER. DEVINCI RECOMMENDS WASHING YOUR
BIKE REGULARLY USING A BRUSH AND SOAPY WATER. HOWEVER, DEVINCI DO NOT RECOMMEND THE USE
OF A PRESSURE WASHER, SINCE THIS MAY SIGNIFICANTLY REDUCE THE SERVICE LIFE OF BALL BEARINGS.
EVEN THOUGH OUR BALL BEARINGS ARE EQUIPPED WITH HIGH QUALITY DOUBLE-LIP SEALS, HIGH
PRESSURE WATER CAN STILL PASS THESE SEALS AND REMOVE THE GREASE INSIDE THE BEARING. THIS
MAY CAUSE PREMATURE CORROSION AND WEAR OF THE BALL BEARINGS.
A
Revision
PCB-044
SPARTAN CARBON 29 HP

SERVICE KIT

11

12
3.1 3.2 3.3
1.5 Nm
1. Idler
Make sure to insert the ange outwards when positioning the idler (green on the inside, black on the outside).
2. Caster alignment
Make sure the crank, chain
guide and idler are aligned.
3. Chain Guide
3.1 Make sure that the torque exerted on the caster is equal to 1.5 Nm.
3.2 Make sure that the chain guide is adjusted as far as possible towards the rear of the bicycle.
3.3 Make sure that the chain guide frame attachment is adjusted to the center.
4. Chain
Small / Medium: Make sure the chain has 124 links.
Large / X-Large: Make sure the chain has 126 links.
ASSEMBLY ADVICE
Côté LLB vers l'extérieur
Côté LLU vers l'intérieur

13
SHIMANO XTR
Frame Shell Interface
and Width (mm) Crankset Outer Left Spacers (mm)
Inner Left Spacer
(mm)
Inner Right Spacer
(mm)
Outer Right Spacers
(mm)
BSA 73 -2.5 1 1 -2.5 1 1 2.5
SHIMANO XT
Frame Shell Interface
and Width (mm) Crankset Outer Left Spacer (mm)
Inner Left Spacer
(mm)
Inner Right Spacer
(mm)
Outer Right Spacer
(mm)
BSA 73 Super Boost + 4.5 2.5 -4.5
SRAM GX
Frame Shell Interface
and Width (mm) Crankset Outer Left Spacer (mm)
Inner Left Spacer
(mm)
Inner Right Spacer
(mm)
Outer Right Spacer
(mm)
BSA 73 Super Boost 4.5 - - 9
5. Crankset
Make sure to follow these
instructions for each build kit :
Outer Left
Spacer(s)
Inner Left
Spacer(s)
Inner Right
Spacer(s)
Outer Right
Spacer(s)
7. Pivot Thread
Make sure not to get grease on the threads of the pins
below:
6. Top Pivot
Make sure to assemble the linkages with the seatstay before
installing them on the bike.

14
DEVINCI’S RIDE IN PEACE
WARRANTY
WARRANTY PERIOD FROM DEVINCI CYCLES INC
The frames of cycles devinci inc. are guaranteed against all manufacturing defects, for the periods specied below, as
of the date of the initial purchase. During these specic periods, devinci will replace or repair without charge, and at its
discretion, the devinci frames that display a manufacturing defect. The parts replaced or repaired in accordance with this
warranty, will be covered for a period equal to the remaining portion of the warranty of the original equipment. Replace-
ment parts are subject to availability. In certain cases, color and/or model may dier from the original parts.
BICYCLE FRAMES & WARRANTY PERIOD
Since 2006, all the frames bike model, including all mountain, freeride, downhill frames and dirt jump are guaranteed
for life. Paint and decals for all models of frame: 1 year the pivots* for double suspension frames: 1 year the components
assembled on devinci frames are guaranteed by their respective manufacturers. Please contact your authorized devinci
retailer. For more information regarding the applicable warranties.
* the pivots include the bearings, bolts and axles holding together the elements of the suspension of the rear triangle.
WARRANTY EXCLUSIONS
Each devinci bicycle was conceived for a specic use. The operational life of a bicycle varies according to its construction,
maintenance and the care provided. Intensive use or use with a heavy load, use during competitions or for activities other
than those for which the bicycle was conceived, greatly diminish its operational life. Any of these conditions may lead to
random failure. Abusive use will therefore cancel the warranty.
EXCHANGE POLICY IN CASE OF ACCIDENT
Devinci is aware that the purchase of a high performance bicycle is done with the heart. This is why our customer service
applies an exchange policy at a low price to accommodate claims that would have been refused for one of the reasons
mentioned in the section “warranty exclusions”. This policy applies only to the initial buyer. Please contact your devinci
retailer for more information.
Limitation of liability: this is an integral warranty, complete and nal, for devinci frames. Devinci does not give authoriza-
tion to any other person, including the authorized devinci retailers, to assume or grant, expressly or implicitly, any or all
addition(s) or extension(s) to the warranty specied herein. Any other obligation or responsibility expressed by any other
person(s) and any demonstration or illustration of devinci frames is in no way linked to devinci and is furthermore excluded
from this warranty.
Devinci assumes no liability in case of any property damage, moral or bodily injury to the user, the buyer or any other per-
son(s), resulting from the use of a devinci frame or one of its components.
Except as limited or expressly forbidden by law, regarding any other condition or guarantee, express or implied, based in
law, established commercial customs and usage, including, but not limited to, guarantee of merchantability or adaptation
to a specic end, devinci declines any responsibility for any amount exceeding the actual purchase price of the bicycle nor
for any particular, accessory or consecutive damages that may occur in connection with said bicycle.
With regard to the exercising of rights resulting from the present warranty, the buyer of a devinci frame agrees to elect
domicile in the judicial district of chicoutimi, in the province of quebec, canada, as an appropriate place for the hearing
of all claims or legal proceedings.
ALL OUR FRAMES ARE GUARANTEED FOR LIFE.

15
DEVINCI’S RIDE IN PEACE
WARRANTY | CONDITIONS
THIS WARRANTY DOES NOT COVER
Regular maintenance (cleaning, lubrication or inspection);
TranOptimum S or shipping charges incurred as a result of the execution of the warranty;
Cost of labour related to the assembly, disassembly, repair or replacement parts;
Damages caused by normal wear and tear including damages caused by material fatigue.
THE WARRANTY DOES NOT APPLY IF:
The damages were caused by a fortuitous event;
The bicycle was purchased from a retailer other than those authorized by devinci;
The bicycle was not entirely assembled by an authorized devinci retailer;
The bicycle was repaired by a person other than an authorized devinci retailer;
You are not the original owner of the bicycle;
The instructions contained in the user’s manual for all frames and the technical manual for frames with double sus-
pension were not respected;
The periodic inspection recommended in the user’s manual for all frames and in the technical manual for the frames
with double suspension was not carried out;
Parts not supplied by devinci with the bicycle or not indicated in the user’s manual for all frames or the technical
manual for the frames with double suspension were used;
The bike paint is damaged as a result of an adhesive frame protector installation;
The bicycle was used for an activity other than those for which it was conceived;
The bicycle and/or its components were subject to abusive use, negligence, abnormal and/or excessive use or was
implicated in an accident;
The frame is too small for you;
The frame and/or its components were modied (ex: polishing, structural or mechanical modication or addition,
stripping, sanding, strain hardening, shot peening);
You continued to use your bicycle while it was damaged.

16
©Cycles Devinci 2021
www.devinci.com
Head Oce
1555 Manic
Chicoutimi (Quebec) Canada
G7K 1G8
