Devolo Home Control Humidity Sensor User manual

Home Control Humidity Sensor
rst steps

2
Thank you for placing your trust in this devolo product.
Carefully read all instructions before setting up the device and store the instructions for later reference.
Icons
Very important note. Failure to observe this note may result in damage.
Important note that should be observed.
Background information and configuration tips for your device.
Intended use
Use the Home Control Humidity Sensor as described in these instructions and in the Home Control online help
to prevent damage and injuries.
Except for occasional battery replacement, the Home Control Humidity Sensor is
completely maintenance-free. The device contains no user-serviceable parts!
CE conformity
When used as intended, the product conforms to the basic requirements of the
directives 2014/53/EU, 2014/35/EU and the other relevant provisions of the Radio and
Telecommunications Terminal Equipment Act (FTEG) and is designed for use in the EU,
Switzerland and Norway. A printout of the CE declaration is included.

3
devolo Home Control
Home Control (also known as home automation) refers to the specific control of electrically operated indoor
household devices. The Home Control system from devolo uses the Z-WaveTM wireless standard.
A Home Control system requires a Z-WaveTM-compatible control unit such as the Home Control Central Unit
from devolo. Use its Home Control Portal to co-ordinate the Home Control Humidity Sensor and all other
Home Control devices. You can access the Home Control Central Unit through the my devolo app and at
www.mydevolo.com in a browser.
For more information about setting up the Home Control Central Unit, please refer to the instal-
lation guide and/or Home Control online help. You can find the product's installation video online
at www.devolo.eu/home-control.
Accessing the Home Control Central Unit via the my devolo app (for smartphone/tablet)
Open the my devolo app Home Control and select your Home Control Central Unit.
Accessing the Home Control Central Unit via web browser (PC/laptop)
At www.mydevolo.com Home Control select your Home Control Central Unit.
For more information on the control and configuration of all devolo Home Control devices, as well
as application examples, please refer to the Home Control online help.

4

5

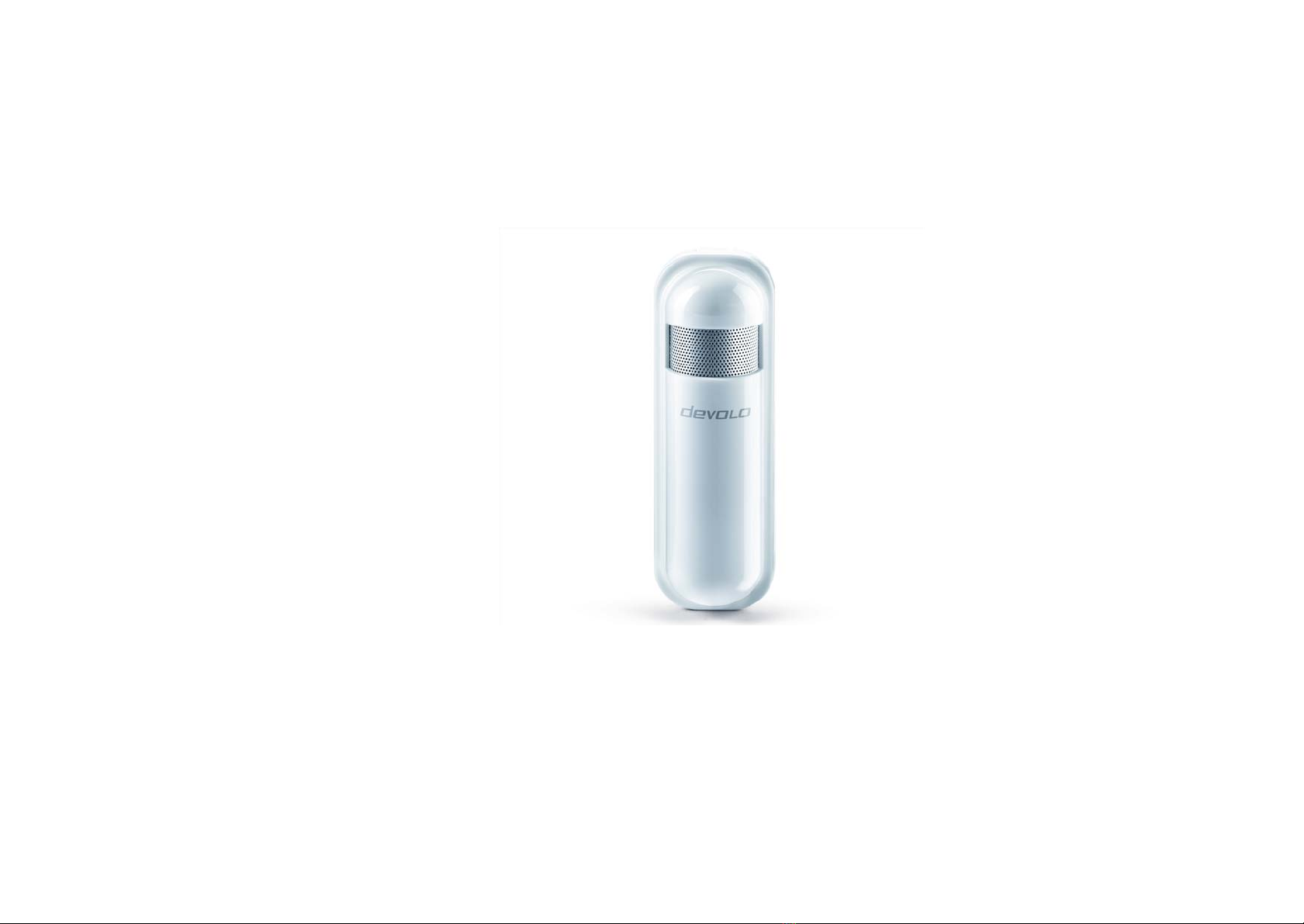

The Home Control Humidity Sensor
The Home Control Humidity Sensor measures temperature and humidity. It records their changes and thereby
helps maintain optimum humidity in living spaces. The optimal value ranges from 40 to 60 percent. The
Home Control Humidity Sensor is equipped with an integrated LED and a release button.
The Home Control Humidity Sensor can be used in various ways. Depending on the use, position the
Home Control Humidity Sensor as follows:
쑗To determine your comfortable climate, position the Home Control Humidity Sensor in your com-
fort zone, for example, in your living room near the couch.
Sensor
Red LED
Release button
(see rear side of the device)

6
쑗To determine the dew point and prevent mould growth, position the Home Control Humidity Sen-
sor in a corner of the room.
쑗To control the ventilation, position the Home Control Humidity Sensor in the bathroom.
For more detailed descriptions and application scenarios for Home Control Humidity Sensor func-
tions, refer to the Home Control online help.
Batteries
Always keep batteries away from open flame and high temperatures. Avoid direct
sunlight and radiated heat!
Always remove all batteries from battery-operated devices that are only in storage
and are not in use. Old batteries can leak and damage the device!
Do not use rechargeable batteries!
When inserting the battery, make sure the polarity is correct. Using the battery in-
correctly can damage the device!
The Home Control Humidity Sensor requires a commercially available CR123(A) lithium battery.
For information on replacing the battery, please refer to the Home Control online help.

7
Registering the Home Control Humidity Sensor on the control unit (e.g. devolo Home Control Central
Unit)
Only use the Home Control Humidity Sensor indoors.
Avoid placing the Home Control Humidity Sensor in direct sunlight or radiated heat!
To ensure the best possible wireless range for the Home Control Humidity Sensor, avoid po-
sitioning it behind objects that block the signal (attenuation) and avoid interference
sources. Weak signals due to attenuation can result from furniture, plants and especially metal
objects which are located between the devices. Possible sources of interference include electrical
devices such as a microwave or computer. In such instances, keep your device at least around 50
cm away from the source.
Place the Home Control Humidity Sensor close to the desired location of use.
When you plug in the Home Control Central Unit from devolo, follow the description in the section
devolo Home Control on page 3 to call up your Home Control Central Unit and select Devices 
Add device (plus symbol)  devolo Home Control Humidity Sensor. Follow the instructions in
the Home ControlPortal for logging into your Home Control Central Unit.

8
Installing the Home Control Humidity Sensor
Before you attach the Home Control Humidity Sensor, first check whether the sensor is displayed in the
Home Control Portal. Then test whether the values for humidity, temperature and dew point are also dis-
played on the element (widget). If they are, you can proceed with the installation.
Install the Home Control Humidity Sensor on a flat and level surface so that the black
release button on the rear of the sensor is depressed when the device is installed.
If using double-sided tape to fasten the Home Control Humidity Sensor, adhere the tape to the
centre (below the release button) on the rear of the sensor and attach the Home Control Humidity
Sensor to the desired location.
If installing on a wall using screws, make sure that no gas, water or power lines in
the wall get damaged. There is a danger of electric shock!

9
If you use screws to attach the Home Control Humidity Sensor, take apart the upper and lower
housing component of the sensor by pressing the tab down in order to release the housing compo-
nents (from top to bottom, and ).
쑗Based on the drill template on the lower housing component, drill holes into the desired location
and attach the lower component of the sensor using screws.
쑗Insert the bottom end of the upper housing component into the groove  provided for this purpose
in the lower component.
쑗Then push the entire upper housing component (from bottom to top, and ) onto the lower
component as far as it will go. This completes the installation of the Home Control Humidity Sensor.

10
From now on, you can take electronic control conveniently using the Home Control Portal of the
Home Control Central Unit. For more information on the control and configuration of all devolo
Home Control devices, as well as application examples, please refer to the Home Control online
help.

11
Service and warranty
Warranty: 3 years
If your devolo device is defective when first used or within the warranty period, please contact the supplier
where you bought the devolo product. The supplier will handle getting a replacement or repair for you from
devolo. For the complete warranty terms, please visit our website at www.devolo.com/warranty.
* Detailed information about the actual costs of the telephone calls can be found on the devolo website.
Disposal
Neither the Home Control Humidity Sensor nor the battery may be disposed of with the household waste. In-
stead, you can return these at no charge at your municipal collection point or at the retailer (e.g.
supermarket, specialist shop).
Great Britain [phone] * [email protected]
Portugal [phone] * [email protected]
Spain [phone] * [email protected]
Sweden [phone] * [email protected]
Other countries [phone] * [email protected]

devolo AG
Charlottenburger Allee 60
52068 Aachen – Germany
www.devolo.com
44299/0516
