DeWalt DCT410 User manual

If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DeWALT
Instruction Manual
Guide D’utilisation
Manual de instrucciones
DCT410, DCT411, DCT412
12V Max* Cordless Inspection Camera
Caméra de surveillance sans fil 12V max*
Cámara inalámbrica de inspección 12 V Máx*
DCT415
12V Max* Cordless Dual Lens Inspection Camera
Caméra d’inspection à lentille double sans fil 12 V max*
Cámara de inspección de lentes duales inalámbrica 12V Máx*
final page size: 8.5 x 5.5 in

ENGLISH
English (original instructions) 1
Français (traduction de la notice d’instructions originale) 15
Español (traducido de las instrucciones originales) 30

ENGLISH
1
English (original instructions)
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: To reduce the risk of injury, read the
instructionmanual.
If you have any questions or comments about this or
any
DeWALT
tool, call us toll free at:
1-800-4-
DeWALT
(1-800-433-9258).
1 12V Max* lithium Ion battery
2 Battery release button
3 Front camera with LEDs
4 Side camera with LEDs (DCT4106 only)
5 3' (0.91 m) Camera cable (DCT4106 shown)
6 Camera connector
7 Screen
8 Camera cable on/off switch / LED brightness
controlswitch
9 Handle set
10 Micro SD slot for micro SD memory cards 16 GB or less
11 Toggle switch (DCT4106 only)
Fig. A
1
3
5 6 7
89
10
11
4
2

ENGLISH
2
Important Safety Instructions
• Read theseinstructions.
• Keep theseinstructions.
• Heed allwarnings.
• Follow allinstructions.
• Only use attachments/accessories specified by
themanufacturer.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, the apparatus has been exposed to rain or moisture,
does not operate normally, or has beendropped.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE
Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Keep children and bystanders away while
operating an inspection camera. Distractions can
cause you to losecontrol.
Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating an inspection
camera. Do not use an inspection camera while
you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention
while operating the inspection camera may result in
serious personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the inspection camera in unexpectedsituations.
d ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or
long hair can be caught in movingparts.
Use and Care
a ) Store an idle inspection camera out of the
reach of children and do not allow persons
unfamiliar with the inspection camera or these
instructions to operate the inspection camera.
Inspection cameras are dangerous in the hands of
untrainedusers.
b ) Use the inspection camera, accessories and tool
bits, etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the inspection
camera for operations different from those intended
could result in a hazardoussituation.
Battery Tool Use and Care
a ) Recharge only with the charger specified by
DeWALT
. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another batterypack.
b ) When battery pack is not in use, keep it away
from other metal objects like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
c ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
Safety Information for Inspection
Cameras
WARNING: Do not disassemble or modify the
inspection camera. There are no serviceable
parts inside. If you need assistance contact
DeWALT
at 1-800-4-
DeWALT
(1-800-433-9258) or go to http://
www.
DeWALT
.com on theInternet.
• Do not operate the inspection camera in explosive
atmospheres, such as in the presence of flammable
liquids, gases, or dust. Inspection cameras create sparks
which may ignite the dust orfumes.
• The inspection camera should only be used with
specifically designated
DeWALT
batteries. Use of any
other batteries may create a risk offire.
• Store the inspection camera out of reach of children
and other untrained persons. Tools are dangerous in
the hands of untrainedusers.
• Do not disassemble the inspection camera. There are
no user serviceable partsinside.
• Do not use anywhere the unit may come into
exposure with moving parts, hazardous chemicals,
or electrical charges. Such situations may result in
serious injury or death; such as walls, pipes, automobiles,
andmachinery
• Do not operate inspection camera near moving
machinery. Can result in injury if the camera cable gets
caught into moving parts and pulls the userin.
• Do not use the inspection camera around corrosive
chemicals. Exposure to corrosive, oily environments can
ruin the plastic covering on the camera head and ruin the
picturequality.
• Do not use the camera if condensation forms inside
the lens. Let the water evaporate before usingagain.
• Do not remove or deface warninglabels.
WARNING: Do not expose camera, monitor or battery
to excessive heat such as sunshine, fire or thelike.
WARNING: Shock hazard. Do not allow the
inspection camera cable to come into contact
with live wires. Shut off circuit breakers to the entire
area to avoidinjury.

ENGLISH
3
WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or
dust mask if cutting operation is dusty. ALWAYS WEAR
CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3).
CAUTION: Do not use on humans or animals. This
is not for human or animal use and can cause injury
ifused.
CAUTION: When not in use, place inspection
camera on its side on a stable surface where it
will not cause a tripping or falling hazard. Some
tools with large battery packs will stand upright on
the battery pack but may be easily knockedover.
WARNING: Modifications not authorized by the
manufacturer may void user's authority to operate
thisdevice.

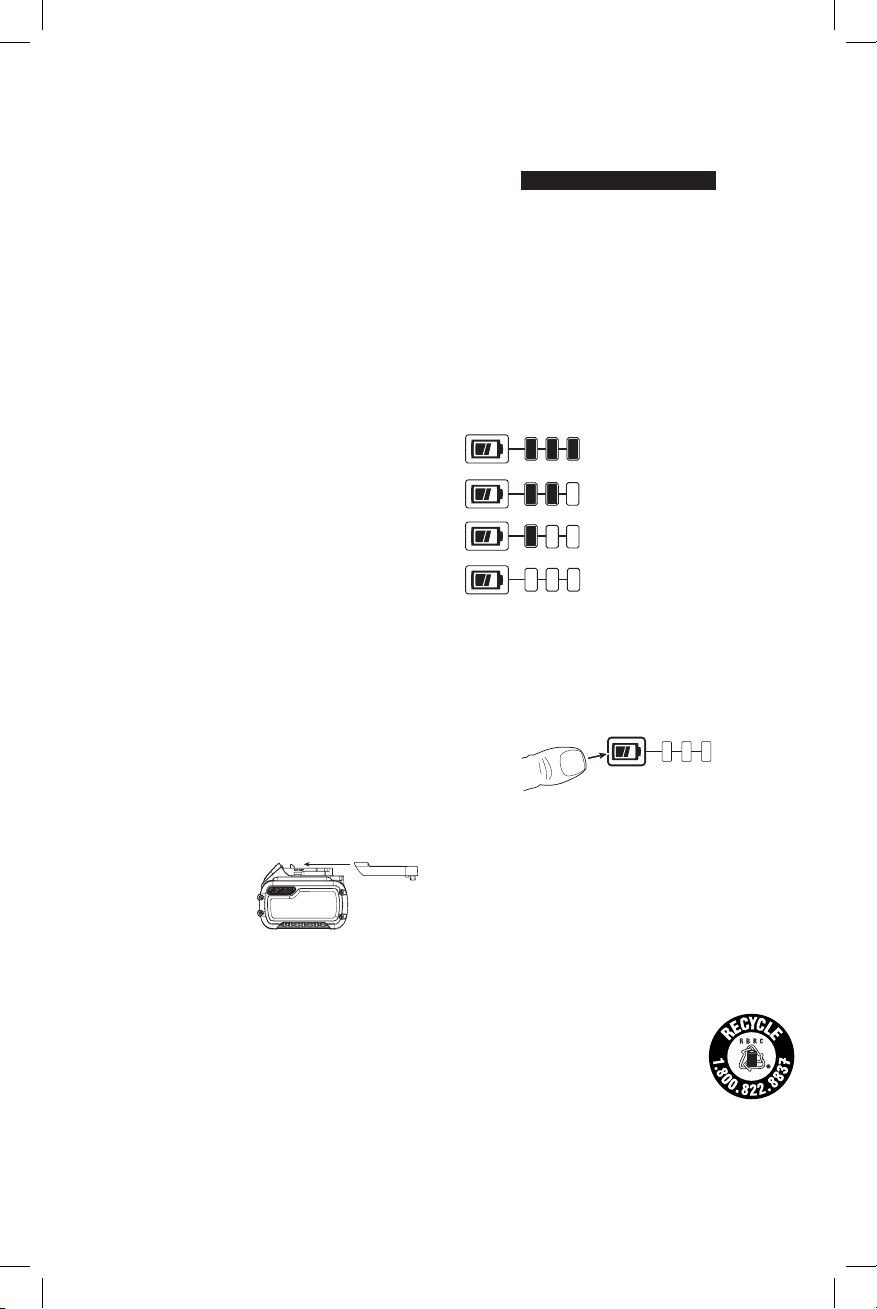

BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.
Your tool uses a
DeWALT
charger. Be sure to read all safety
instructions before using your charger. Consult the chart
at the end of this manual for compatibility of chargers and
batterypacks.
READ ALL INSTRUCTIONS
Important Safety Instructions for All
Battery Packs
WARNING: Read all safety warnings and all
instructions for the battery pack, charger and
power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or seriousinjury.
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
pack from the charger may ignite the dust orfumes.
• NEVER force the battery pack into the charger. DO
NOT modify the battery pack in any way to fit into
a non-compatible charger as battery pack may
rupture causing serious personal injury. Consult
the chart at the end of this manual for compatibility of
batteries andchargers.
• Charge the battery packs only in designated
DeWALT
chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.
• Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium ion battery packs
areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open
eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.
WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark orflame.
WARNING: Fire hazard. Never attempt to open the
battery pack for any reason. If the battery pack case
is cracked or damaged, do not insert into the charger.
Do not crush, drop or damage the battery pack. Do
not use a battery pack or charger that has received a
sharp blow, been dropped, run over or damaged in
any way (e.g., pierced with a nail, hit with a hammer,
stepped on). Damaged battery packs should be
returned to the service center forrecycling.
Transportation
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do
not place the battery pack in aprons, pockets, tool
boxes, product kit boxes, drawers, etc., with loose
nails, screws, keys, etc. Transporting batteries
can possibly cause fires if the battery terminals
inadvertently come in contact with conductive
materials such as keys, coins, hand tools and the
like. The US Department of Transportation Hazardous
Material Regulations (HMR) actually prohibit
transporting batteries in commerce or on airplanes in
carry-on baggage UNLESS they are properly protected
from short circuits. So when transporting individual
battery packs, make sure that the battery terminals
are protected and well insulated from materials that
could contact them and cause a shortcircuit.
Shipping the
DeWALT
FLEXVOLT™ Battery
The D
e
WALT FLEXVOLT™ battery has two modes: Use and
Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is
in a D
e
WALT 20V Max* product, it will operate as a 20V Max*
battery. When the FLEXVOLT™ battery is in a 60V Max* or a
120V Max* (two 60V Max* batteries) product, it will operate
as a 60V Max* battery.
Shipping Mode: When
the cap is attached to the
FLEXVOLT™ battery, the
battery is in Shipping Mode.
Strings of cells are electrically
disconnected within the pack resulting in three batteries
with a lower Watt hour (Wh) rating as compared to one
battery with a higher Watt hour rating. This increased
quantity of three batteries with the lower Watt hour rating
can exempt the pack from certain shipping regulations that
are imposed upon the higher Watt hourbatteries.

ENGLISH
4
The battery label indicates two Watt hour ratings (see
example). Depending on how the battery is shipped, the
appropriate Watt hour rating must be used to determine
the applicable shipping requirements. If utilizing the
shipping cap, the pack will be considered 3 batteries at
the Watt hour rating indicated for “Shipping”. If shipping
without the cap or in a tool, the pack will be considered one
battery at the Watt hour rating indicated next to “Use”.
USE: 120 Wh Shipping: 3 x 40 Wh
Example of Use and Shipping Label Marking
For example, Shipping Wh rating might indicate 3 x 40 Wh,
meaning 3 batteries of 40 Watt hours each. The Use Wh
rating might indicate 120 Wh (1 batteryimplied).
Fuel Gauge Battery Packs (Fig. B)
Some
DeWALT
battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
The fuel gauge is an indication of approximate levels of
charge remaining in the battery pack according to the
followingindicators:
75–100% charged
51–74% charged
< 50% charged
Pack needs to be charged
To actuate the fuel gauge, press and hold the fuel gauge
button. A combination of the three green LED lights will
illuminate designating the level of charge left. When the
level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.
Fig. B
NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.
For more information regarding fuel gauge battery packs,
please call 1-800-4-
DeWALT
(1-800-433-9258) or visit our
website www.dewalt.com.
The RBRC® Seal
The RBRC® (Rechargeable Battery
Recycling Corporation) Seal on the nickel
cadmium, nickel metal hydride or lithium-
ion batteries (or battery packs) indicates
that the costs to recycle these batteries
(or battery packs) at the end of their useful life have already
been paid by
DeWALT
. In some areas, it is illegal to place
spent nickel cadmium, nickel metal hydride or lithium-ion
batteries in the trash or municipal solid waste stream and
the Call2Recycle® program provides an environmentally
consciousalternative.
Call 2 Recycle, Inc., in cooperation with
DeWALT
and other
battery users, has established the program in the United
States and Canada to facilitate the collection of spent nickel
cadmium, nickel metal hydride or lithium-ion batteries. Help
protect our environment and conserve natural resources by
returning the spent nickel cadmium, nickel metal hydride
or lithium-ion batteries to an authorized
DeWALT
service
center or to your local retailer for recycling. You may also
contact your local recycling center for information on
where to drop off the spent battery. RBRC® is a registered
trademark of Call 2 Recycle,Inc.
Important Safety Instructions for All
Battery Chargers
WARNING: Read all safety warnings and all
instructions for the battery pack, charger and
power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or seriousinjury.
• DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.
The charger and battery pack are specifically designed to
worktogether.
• These chargers are not intended for any uses other
than charging
DeWALT
rechargeable batteries.
Any other uses may result in risk of fire, electric shock
orelectrocution.
• Do not expose the charger to rain orsnow.
• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.
• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected
to damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide
a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the greater the capacity
of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using
more than one extension to make up the total length,
be sure each individual extension contains at least the
minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.

ENGLISH
5
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
(meters)
120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
American Wire Gauge
More
Than Not More
Than
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
• Do not place any object on top of the charger or
place the charger on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger in a position away from any heat
source. The charger is ventilated through slots in the top
and the bottom of thehousing.
• Do not operate the charger with a damaged cord
orplug.
• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of
electric shock, electrocution orfire.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect 2 chargerstogether.
• The charger is designed to operate on standard
120V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
WARNING: Shock hazard. Do not allow any liquid to
get inside the charger. Electric shock mayresult.
WARNING:Burn hazard. Do not submerge the
battery pack in any liquid or allow any liquid to
enter the battery pack. Never attempt to open the
battery pack for any reason. If the plastic housing of
the battery pack breaks or cracks, return to a service
center forrecycling.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only
DeWALT
rechargeable battery packs.
Other types of batteries may overheat and burst
resulting in personal injury and propertydamage.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the charger can
be shorted by foreign material. Foreign materials
of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum
foil or any buildup of metallic particles should be
kept away from the charger cavities. Always unplug
the charger from the power supply when there is no
battery pack in the cavity. Unplug the charger before
attempting toclean.

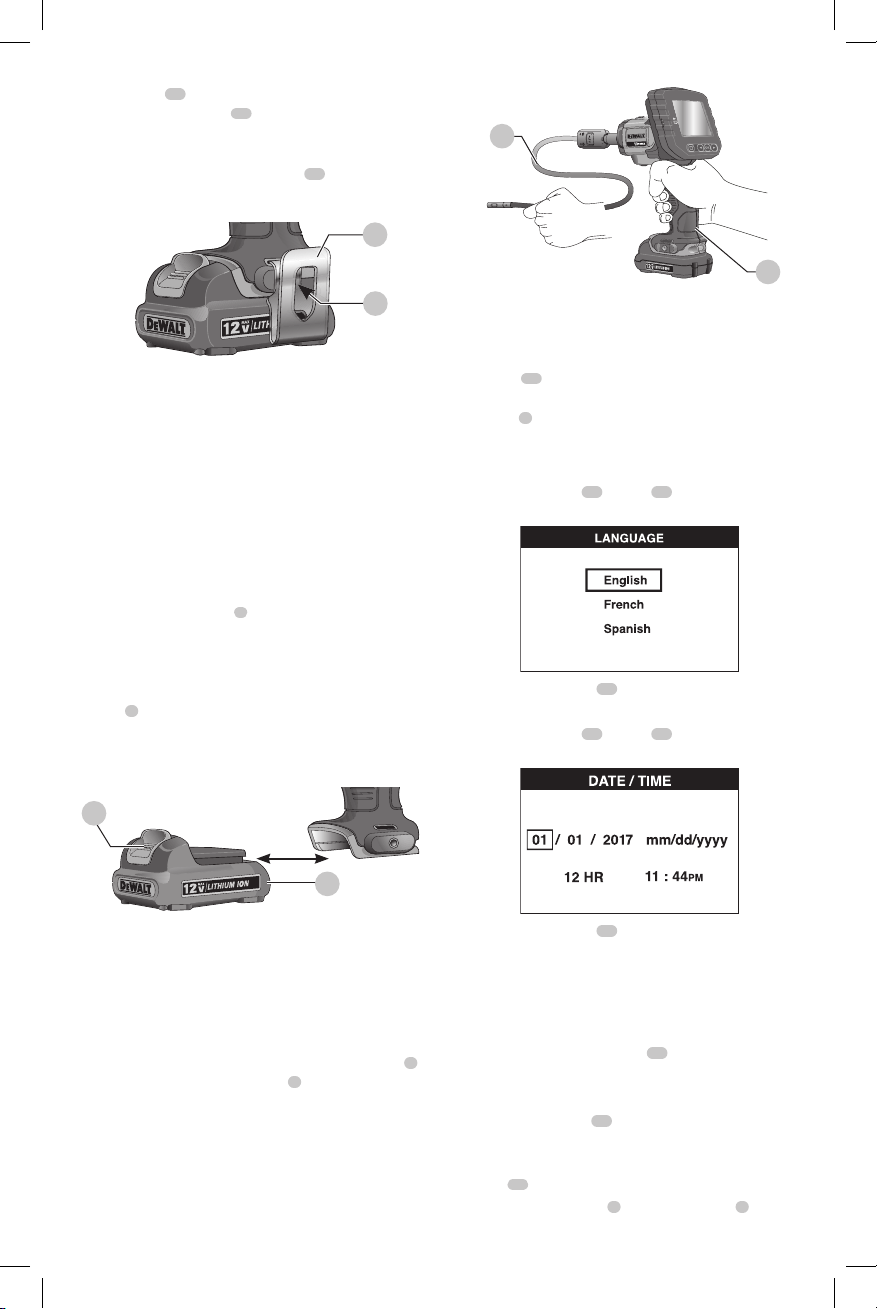

Charging a Battery (Fig. C)
1. Plug the charger into an appropriate outlet before
inserting batterypack.
Fig. C
1
2
2. Insert the battery pack 1 into the charger, making sure
the battery pack is fully seated in the charger. The red
(charging) light will blink continuously indicating that
the charging process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is
fully charged and may be used at this time or left in the
charger. To remove the battery pack from the charger,
push the battery release button 2 on the batterypack.
NOTE: To ensure maximum performance and life of lithium-
ion battery packs, charge the battery pack fully before
firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
Charging
Fully Charged
Hot/Cold Pack Delay*
*DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:
The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
yellow light will turn off and the charger will resume the
chargingprocedure.
The compatible charger(s) will not charge a faulty battery
pack. The charger will indicate faulty battery pack by
refusing to light or by displaying a problem pack or charger
blinkpattern.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and
battery pack to be tested at an authorized servicecenter.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,

ENGLISH
6
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to becooled.
Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of thecharger.
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deepdischarge.
The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium-
ion battery pack on the charger until it is fullycharged.
Wall Mounting
DCB107, DCB112, DCB113, DCB115, DCB118,
DCB132
These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which may
impede air flow. Use the back of the charger as a template
for the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9mm), screwed into wood to an
optimal depth leaving approximately 7/32" (5.5 mm) of the
screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or
any cleaningsolutions.
Important Charging Notes
1. Longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 65°F and 75°F (18°–24°C). DO NOT charge
the battery pack in an air temperature below +40°F
(+4.5°C), or above +104°F (+40°C). This is important
and will prevent serious damage to the batterypack.
2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem. To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulatedtrailer.
3. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp
or other appliance;
b. Check to see if receptacle is connected to a light
switch which turns power off when you turn out the
lights;
c. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 65°F–75°F (18°–24°C);
d. If charging problems persist, take the tool, battery
pack and charger to your local servicecenter.
4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may
also charge a partially used pack whenever you desire
with no adverse effect on the batterypack.
5. Foreign materials of a conductive nature such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil, or any buildup of metallic particles
should be kept away from charger cavities. Always
unplug the charger from the power supply when there
is no battery pack in the cavity. Unplug the charger
before attempting toclean.
6. Do not freeze or immerse the charger in water or any
otherliquid.
Storage Recommendations
1. The best storage place is one that is cool and dry, away
from direct sunlight and excess heat orcold.
2. For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged beforeuse.
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
COMPONENTS (FIG. A)
WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.
Intended Use
The inspection camera is designed to play real-time video
while looking into walls and/or tight spaces. With a micro
SD card (sold separately), the tool can then take photos or
record videos for documentationpurposes.
Photos are saved in JPG format and videos are saved as MP4.
This
DeWALT
inspection camera is compatible with micro
SD memory cards up to 16 GB.
Applications consist of automotive inspection, plumbing
inspection, HVAC inspection or cable routing. Read the
entire manual before using this inspectioncamera.
DO NOT use under wet conditions or in presence of
flammable liquids orgases. The camera cable extension is

ENGLISH
7
waterproof up to the camera connector. DO NOT USE the
handle set under wetconditions.
The inspection camera is a professional tool. DO NOT let
children come into contact with the tool. Supervision is
required when inexperienced operators use thistool.
Control Buttons (Fig. A, D)
Fig. D
27
20
19
18
17
10
12
21 13 14 15 16
Power button for the screen 12 :This
button turns on the screen only. The camera
cable needs to be turned on using the camera
cable on/off switch 8 (Fig. A).
Zoom/Delete button 13 :The button has
twofunctions:
• Zoom: This is to be used when you need a
closer look at the object (3xzoom).
• Delete: When in the folder menu, pictures
can be deleted by using thisbutton.

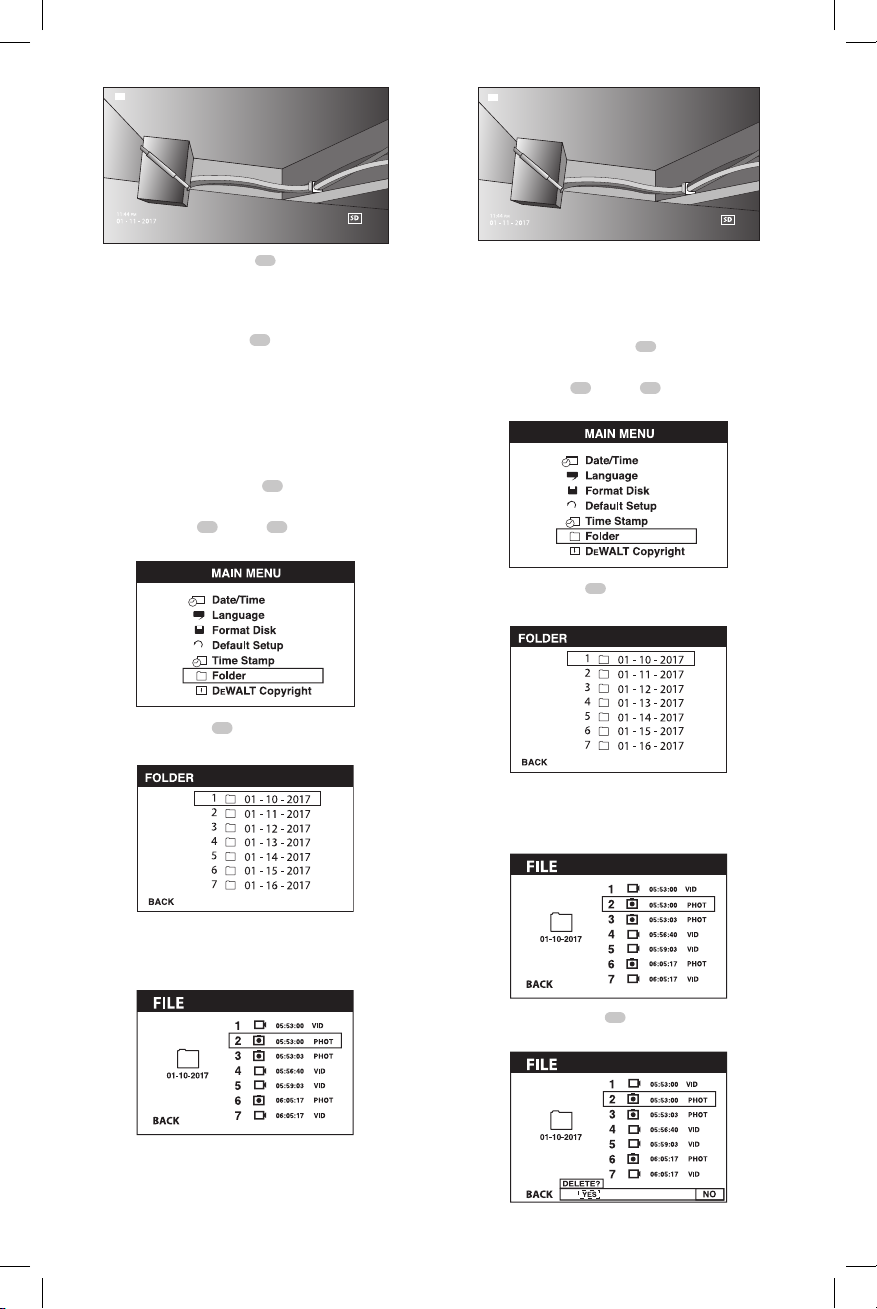

Play 14 : Press the button to go to the folder
where photos and videos aresaved.
OR
Press the button to playvideos.
Record 15 :Press this button to start and stop
recording avideo.
Camera 16 : Press this button for taking
aphoto.
Main Menu 17 :Press this button to show
a list of options for operating the inspection
camera or to exit ascreen.
Back Arrow 18 :Press this button to
navigatebackward.
OK 19 :Press this button to savechanges.
Forward Arrow 20 :Press this button to
navigateforward.
Handle Power Indicator 21 :When the green
light is on it indicates that the handle set ison.
Reset button 27
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Screen (Fig. E)
When the screen is attached to the handle set with a battery
installed, the screen will receive a charge from the battery.
Ensure the screen is fully charged beforeuse.
When the screen is disengaged from the handle set, a
battery icon appears in the upper left corner. This icon also
displays the current charge of thescreen.
To install the screen 7 into the handle set 9, align the
screen with the rails on the handle set and slide it firmly into
the handle until you hear the lock snap intoplace.
To remove the screen from the handle set, firmly slide the
screen up from the toolhandle.
The screen can be turned on and viewed when it is not
attached to the handle set, allowing easier maneuverability
of thecamera.
Fig. E
7
9
Camera Cable (Fig. F)
Align the camera cable with the camera connector 6. Push
in and turn the connector counterclockwise (camera screen
facing you) to firmlyattach.
Fig. F
6
To remove the camera cable, turn the connector clockwise
(direction ofarrow).

ENGLISH
8
Additional camera cable and extensions are available
at additional cost. Please contact
DeWALT
Industrial
Tool Co., 701 East Joppa Road, Towson, MD 21286, call
1-800-4-
DeWALT
(1-800-433-9258) or visit our website
www.
DeWALT
.com.
Dual Lens Camera Operation (Fig. G)
DCT415
Fig. G
11
4
DCT4106
3
The DCT415 comes with a dual lens camera (DCT4106) that
allows the user to switch between the front camera lens 3
and the side camera lens 4. Press the switch 11 to toggle
between the two views. The red light on the switch will
illuminate when the front lens is engaged and the green
light will illuminate when the side lens is engaged. Both
cameras have LEDs for increasedvisibility.
Hook and Magnet
DCT410 (Fig. H)
The hook is beneficial for retrieving cable or wire located in
tight spaces. The magnet is beneficial for retrieving metal
objects in tightspaces.
To attach the hook or magnet, turn the knurled part of the
camera counterclockwise until itstops.
Align the hook or magnet with the gray groove 28 then
slide it down until the tabs 29 at the top of the hook/
magnet are securely in the notches 30 located in the
cameralens.
Turn the knurled part clockwise to lock the base of the hook
andmagnet.
Fig. H
28
29
30
CAUTION: Cut Hazard. Use care when handlinghook.
Hook, Magnet and Mirror
DCT411 (Fig. I, J)
Follow the process below to assemble the hook, magnet
ormirror.
1. With the sleeve 25 on the accessory, insert the bottom
of accessory (bent wire) into the hole 26 in the
cameracable.
Fig. I
25
26
2. Make sure the accessory is in the groove 22 on the
sleeve and slide the sleeve onto the camera cable until
the sleeve covers the hole26.
Fig. J
22
25
CAUTION: Cut Hazard. Use care when handlinghook.
Belt Hook (Fig. K)
Optional Accessory
WARNING:To reduce the risk of serious personal
injury, DO NOT suspend tool overhead or
suspend objects from the belt hook. ONLY hang
tool’s belt hook from a workbelt.
WARNING:To reduce the risk of serious personal
injury, ensure the screw holding the belt hook
issecure.
IMPORTANT: When attaching or removing the belt hook,
use only the screw 23 that isprovided.

ENGLISH
9
The belt hook 24 can be be attached to either side of the
tool using only the screw 23 provided, to accommodate
left- or right- handed users. If the hook is not desired at all, it
can be removed from thetool.
To move belt hook, remove the screw 23 that holds the
belt hook in place then reassemble on the oppositeside.
Fig. K
24
23
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. L)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack 1 into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button 2 and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. L
2
1
Proper Hand Position (Fig. M)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the handle9
and one hand on the camera cable 5.
Fig. M
5
9
Getting Started (Fig. A, D)
Turning the Unit On
1. Turn the screen on by pushing the screen power
button12.
2. Turn the camera on by turning the camera cable on/off
switch8.
Initial Setup
Language Setup
1. Press the forward 20 or back 18 arrow to select
English, French orSpanish.
2. Press the OK button 19 to confirm andexit.
Date and Time Setup
1. Press the forward 20 or back 18 arrow to highlight the
field tochange.
2. Press the OK button 19 to activate the field (field
turnsgreen).
3. Press the forward or back arrow to change the
activatedfield.
4. Press the OK button to save changes (field turnsyellow).
5. Repeat above steps to change remainingfields.
6. Press the main menu button 17 toexit.
Basic Operation
NOTE: At any time during the camera operation, pressing
the main menu button 17 will return to the previousmenu.
To Record Photos or Videos
Be sure a micro SD card (sold separately) is loaded in the
card slot 10.
1. Turn both the camera 3 and the handle set 9on.
2. Aim camera atdestination.

ENGLISH
10
a. Press the camera button 16 to take a photo. A
confirmation icon will appear in the top right side
ofscreen.
OR
b. Press the record button 15 to start recording. A red
dot will appear in the top right side of the screen.To
stop recording, press the record buttonagain.
The camera will create a folder on the micro SD card for
that day. All photos or videos taken that day will be stored
in thisfolder.
To View Photos or Videos
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Folderoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select a datedfolder.
5. Press the OK button to select the datedfolder.
6. Press the forward or back arrow to select the photo
orvideo.
7. Press the OK button to view the photo orvideo.
8. Press the forward or back arrow to advance to the next
photo orvideo.
9. When finished, press the main menu button toexit.
To Delete Individual Photos or Videos
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Folderoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select a datedfolder.
5. Press the OK button to navigate to the nextscreen.
6. Press the forward or back arrow to select a photo
orvideo.
7. Press the delete button 13 . Select YES to delete the
individual photo orvideo.
8. Press the main menu button toexit.

ENGLISH
11
To Delete a Photo or Video While Viewing
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Folderoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select a datedfolder.
5. Press the OK button to navigate to the nextscreen.
6. Press the forward or back arrow to select a photo
orvideo.
7. Press the OK button toview.
8. Press the delete button 13 . Select YES to delete the
individual photo orvideo.
To Change Languages
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Languageoption.
3. Press the OK button 19 toselect.
4. Press the forward or back arrow to select English, French
orSpanish.
5. Press the OK button to savechanges.
6. Press the main menu button toexit.
To Change Date/Time
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select Date/
Timeoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to highlight a field
tochange.
5. Press the OK button to activate the field (field
turnsgreen).
6. Press the forward or back arrow to change the
activatedfield.
7. Press the OK button to savechanges.
8. Repeat above steps to change remainingfields.
9. Press the main menu button toexit.

ENGLISH
12
To Activate the Time Stamp
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Time Stampoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select OFF orON.
5. Press the OK button to savechanges.
6. Press the main menu button toexit.
To Format Micro SD Card
NOTICE: Formatting the micro SD card will erase
alldata.
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Format Diskoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select NO orYES.
5. Press the OK button to save changes andexit.
To Change Default Setup
NOTICE: Changing to default setup will erase
current settings and restore factorysettings.
1. Press the main menu button 17 to show the
MainMenu.
2. Press the forward 20 or back 18 arrow to select the
Default Setupoption.
3. Press the OK button 19 to navigate to the nextscreen.
4. Press the forward or back arrow to select NO orYES.
5. Press the OK button to save changes andexit.
Operating Tips
• Use only
DeWALT
12V Max* lithium-ionbattery.
• Ensure the
DeWALT
battery is in good working
condition. If the low battery indicator light on the screen
is flashing, the battery needs to berecharged.

ENGLISH
13
• To extend battery life, make sure to turn both the screen
and the handle set off when not inuse.
• Make sure the screen is fully charged beforeoperation.
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Troubleshooting (Fig. D)
• Make sure the 12V Max* battery ischarged.
• Make sure the screen is fullycharged.
• Make sure the screen is always attached to the handle
set. The picture may freeze if you attempt to remove
the (screen) from the handle set while taking a photo
orvideo.
-Make sure the battery is installed on the handle set
when inuse.
-Make sure the camera cable is attached to the
handle setproperly.
-Make sure the handle set is turned on as well as
thescreen.
-Make sure the back of the handle set is not covered
with debris so the screen slides on easily and no
damage to the screenoccurs.
• If the screen freezes or won't turn on, insert a small
object (i.e., paper clip end) into the reset button 27
located on the back of thescreen.
-If the picture is dim, roll the brightness control
switch to brighten the LEDlight.
Cleaning
WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performingthis.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.
Accessories
WARNING: Since accessories, other than those
offered by
DeWALT
, have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only
DeWALT
recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool
are available at extra cost from your local dealer or
authorized service center. If you need assistance in
locating any accessory, please contact
DeWALT
Industrial
Tool Co., 701East Joppa Road, Towson, MD 21286, call
1-800-4-
DeWALT
(1-800-433-9258) or visit our website:
www.dewalt.com.
Recommended Accessories
• Camera cable: 17mm diameter, DCT4101
• Camera cable: 9mm diameter, DCT4102
• Camera cable: 5.8mm diameter, DCT4015
• Camera cable, dual lens: 9mm diameter, DCT4106
• 3' (0.91 m) cable extension: 17mm diameter, DCT4103
• Hook, magnet and mirror
Repairs
The charger, battery pack, inspection camera and camera
cable are notserviceable.
WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement, when
applicable) should be performed by a
DeWALT
factory
service center or a
DeWALT
authorized service center.
Always use identical replacementparts.
Register Online
Thank you for your purchase. Register your product nowfor:
• WARRANTY SERVICE: Registering your product will
help you obtain more efficient warranty service in case
there is a problem with yourproduct.
• CONFIRMATION OF OWNERSHIP: In case of
an insurance loss, such as fire, flood or theft, your
registration of ownership will serve as your proof
ofpurchase.
• FOR YOUR SAFETY: Registering your product will
allow us to contact you in the unlikely event a safety
notification is required under the Federal Consumer
SafetyAct.
Register online at www.dewalt.com/register.
Three Year Limited Warranty
DeWALT
will repair, without charge, any defects due to
faulty materials or workmanship for three years from
the date of purchase. This warranty does not cover part
failure due to normal wear or tool abuse. For further detail
of warranty coverage and warranty repair information,
visit www.dewalt.com or call 1-800-4-
DeWALT
(1-800-
433-9258). This warranty does not apply to accessories
or damage caused where repairs have been made
or attempted by others. THIS LIMITED WARRANTY IS
GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow
limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential
damages, so these limitations may not apply to you. This
warranty gives you specific legal rights and you may have
other rights which vary in certain states orprovinces.
In addition to the warranty,
DeWALT
tools are covered
byour:
1 YEAR FREE SERVICE
DeWALT
will maintain the tool and replace worn parts
caused by normal use, for free, any time during the first year
afterpurchase.

ENGLISH
14
2 YEARS FREE SERVICE ON DEWALT BATTERY PACKS
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120,
DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361
3 YEARS FREE SERVICE ON DEWALT BATTERY PACKS
DCB200, DCB204, DCB204BT, DCB205, DCB205BT, DCB206,
DCB606, DCB609
NOTE: Battery warranty voided if the battery pack is
tampered with in any way.
DeWALT
is not responsible
for any injury caused by tampering and may prosecute
warranty fraud to the fullest extent permitted bylaw.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of
your
DeWALT
Power Tool, Laser, or Nailer for any reason, you
can return it within 90 days from the date of purchase with
a receipt for a full refund – no questionsasked.
LATIN AMERICA: This warranty does not apply to products
sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in
the packaging, call the local company or see website for
warrantyinformation.
FREE WARNING LABEL REPLACEMENT: If your warning
labels become illegible or are missing, call 1-800-4-
DeWALT
(1-800-433-9258) for a freereplacement.
SPECIFICATIONS
Camera Cable Diameter DCT410: 17mm
DCT411: 9 mm
DCT412: 5.8 mm
DCT415: 9 mm, dual lens
Cable Length 3' (0.91 m)
Resolution 320 x 480 dpi
Screen Size 3.5" (88.9 mm)
Battery Pack 12V Max*

FRANÇAIS
15
Définitions : symboles et termes d'alarmes sécurité
Ces guides d'utilisation utilisent les symboles et termes d'alarmes sécurité suivants pour vous prévenir de situations
dangereuses et de risques de dommages corporels ou matériels.
DANGER: indique une situation dangereuse imminente qui, si elle n’est pas évitée, entraînera la mort ou des
blessuresgraves.
AVERTISSEMENT: indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait entraîner la
mort ou des blessuresgraves.
ATTENTION: indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait entraîner des
blessures légères oumodérées.
(Si utilisé sans aucun terme) Indique un message propre à la sécurité.
AVIS : indique une pratique ne posant aucun risque de dommages corporels mais qui par contre, si rien n’est fait
pour l’éviter, pourrait poser des risques de dommages matériels.
AVERTISSEMENT! lire tous les avertissements de
sécurité et toutes les directives. Le non-respect
des avertissements et des directives pourrait se
solder par un choc électrique, un incendie et/ou une
blessuregrave.
AVERTISSEMENT : afin de réduire le risque de
blessures, lire le mode d’emploi del’outil.
Pour toute question ou remarque au sujet de cet outil
ou de tout autre outil
DeWALT
, composez le numéro
sans frais : 1-800-4-
DeWALT
(1-800-433-9258).
1 Pile au lithium-ion 12V max*
2 Bouton de libération du bloc-piles
3 Caméra avant avec voyants DEL
4 Caméra latérale avec voyants DEL (DCT4106 seulement)
5 Câble de la caméra 3 pi (0,91 m) (DCT4106 affiché)
6 Connecteur de la caméra
7 Écran
8 Bouton Marche/Arrêt du câble de la caméra /
Commutateur de réglage de la brillance du voyant DEL
9 Ensemble de poignée
10 Fente pour carte mémoire Micro SD 16 GO ou moins
11 Interrupteur à bascule (DCT4106 seulement)
Français (traduction de la notice d’instructions originale)
Fig. A
1
3
5 6 7
89
10
11
4
2

FRANÇAIS
16
Consignes de sécurité importantes
• Lire cesdirectives.
• Conserver cesdirectives.
• Respecter tous lesavertissements.
• Suivre toutes lesdirectives.
• Utiliser exclusivement des accessoires recommandés par
lefabricant.
• Confier l’entretien de l’appareil aux soins d’un personnel
qualifié. Faire systématiquement entretenir l’appareil
en cas de dommages quelconques, s’il a été exposé à la
pluie ou à l’humidité, ne fonctionne pas normalement ou
esttombé.
CONSERVER TOUTES CES DIRECTIVES
ET CONSIGNES À TITRE DE RÉFÉRENCE
Sécurité : aire de travail
a ) Maintenir l’aire de travail propre et bien éclairée.
Les lieux encombrés ou sombres sont propices
auxaccidents.
b ) Tenir les enfants, ou toute autre personne, à
l’écart pendant l’utilisation d’une caméra de
surveillance. Toute distraction pourrait faire perdre
la maîtrise de l’appareil.
Sécurité personnelle
a ) Rester vigilant en tout temps et faire preuve de
jugement pendant l’utilisation d’une caméra
de surveillance. Ne pas utiliser de caméra de
surveillance en cas de fatigue ou sous l’influence
de drogues, d’alcool ou de médicaments.
Tout moment d’inattention pendant l’utilisation
d’une caméra de surveillance pose des risques de
blessuregrave.
b ) Utiliser un équipement de protection individuel.
Porter systématiquement une protection
oculaire. Le fait de porter un équipement de
protection tel que masque antipoussières, chaussures
antidérapantes, casque de sécurité ou protection
auditive lorsque la situation le requiert, réduira les
risques de dommagescorporels.
c ) Ne pas effectuer de travaux hors de portée.
Les pieds doivent rester bien ancrés au sol
pour permettre de maintenir son équilibre
en permanence. Cela permet de conserver la
maîtrise de la caméra de surveillance en cas de
situationsimprévues.
d ) Porter des vêtements appropriés. Ne pas porter
de vêtements amples ni de bijoux. Maintenir
cheveux, vêtements et gants éloignés des pièces
mobiles. Les vêtements amples, bijoux ou cheveux
longs pourraient s’y faireprendre.
Utilisation et entretien
a ) Après usage, ranger la caméra de surveillance
hors de portée des enfants, et ne permettre
à aucune personne non familière avec la
caméra de surveillance (ou son manuel
d’instruction) de l’utiliser. Les caméras de
surveillance peuvent être dangereuses entre les mains
d’utilisateursinexpérimentés.
b ) Utiliser la caméra de surveillance, ses
accessoires, pièces, etc., conformément aux
présentes directives en tenant compte des
conditions de travail et du travail à effectuer.
L’utilisation d’une caméra de surveillance pour toute
opération autre que celle pour laquelle elle a été
conçue estdangereuse.
Utilisation et entretien des outils à piles
a ) Les recharger seulement avec le chargeur
spécifié par
DeWALT
. Un chargeur propre à un
type de bloc-piles peut créer des risques d’incendie
lorsqu’utilisé avec d’autres blocs-piles.
b ) Après utilisation, ranger le bloc-piles à l’écart de
tout objet métallique comme trombones, pièces
de monnaie, clés, clous, vis ou autres petits
objets susceptibles de conduire l’électricité entre
les bornes. Court-circuiter les bornes comporte des
risques de brûlures ou d’incendie.
c ) Se prémunir de tout contact avec le liquide
que le bloc-piles pourrait perdre lorsque sujet
à des conditions extrêmes. En cas de contact
accidentel, rincer abondamment à l’eau claire.
En cas de contact oculaire, consulter aussi un
médecin. Le liquide perdu par le bloc-piles peut
causer irritation oubrûlure.
Consignes de sécurité propres aux
caméras de surveillance
AVERTISSEMENT: ne pas démonter ou modifier
la caméra de surveillance. Elle ne comporte
à l’intérieur aucune pièce réparable par
l’utilisateur. Pour toute assistance, veuillez contacter
DeWALT
au 1 800 433-9258 (1 800 4-
DeWALT
) ou
visiter notre site internet http://www.
DeWALT
.com.
• Ne pas faire fonctionner la caméra de surveillance
en milieu déflagrant, en présence par exemple de
poussières, gaz ou liquides inflammables. Les caméras de
surveillance peuvent produire des étincelles qui pourraient
enflammer toute émanation ou poussièreambiante.
• Utiliser la caméra de surveillance uniquement avec
les piles
DeWALT
spécialement conçues à cet effet.
L’utilisation de toute autre pile peut comporter des risques
d’incendie.
• Ranger la caméra de surveillance hors de la portée
des enfants ou de toute personne non familière avec
cet appareil. Les outils peuvent être dangereux entre des
mainsinexpérimentées.
• Ne pas démonter la caméra de surveillance. Elle
ne comporte à l’intérieur aucune pièce réparable par
l’utilisateur.
• Ne jamais utiliser la caméra à proximité de pièces
mobiles ou de produits chimiques dangereux et la
protéger de toute décharge électrique. Les éléments

FRANÇAIS
17
suivants posent des risques de dommages corporels ou
mortels: murs, tuyaux, automobiles etmachines.
• Ne pas utiliser la caméra de surveillance à proximité
d’une machine en mouvement. Il y a risques de
dommages corporels si le câble de la caméra se prend
dans les pièces mobiles et déstabilise l’utilisateur.
• Ne pas utiliser la caméra de surveillance à proximité
de produits chimiques corrosifs. L’exposition à un
environnement corrosif ou graisseux pourrait abîmer le
revêtement plastique de la tête de caméra et altérer la
qualité de laphoto.
• Ne pas utiliser la caméra en cas de condensation
à l’intérieur de la lentille. Laisser l’eau s’évaporer
avantréutilisation.
• Ne pas retirer ou abîmer les étiquettes
d’avertissement.
AVERTISSEMENT: ne pas exposer la caméra, son
moniteur ou sa pile à une chaleur excessive comme
celle du soleil, d’un feu ouautre.
AVERTISSEMENT: risques de chocs électriques.
Ne pas laisser le câble de la caméra de
surveillance entrer en contact avec un fil à nu.
Faire disjoncter l’ensemble du circuit électrique des
lieux pour éviter tout risque de dommagescorporels.
AVERTISSEMENT: porter SYSTÉMATIQUEMENT
des lunettes de protection. Les lunettes courantes
NE sont PAS des lunettes de protection. Utiliser aussi
un masque antipoussières si la découpe doit en
produire beaucoup. PORTER SYSTÉMATIQUEMENT UN
ÉQUIPEMENT DE SÉCURITÉ HOMOLOGUÉ:
• Protection oculaire ANSI Z87.1 (CAN/CSA Z94.3).
ATTENTION: ne pas utiliser sur des humains ou
des animaux. Cette caméra n’a pas été conçue pour
être utilisée sur des humains ou des animaux et pose
des risques de dommagescorporels.
ATTENTION: après utilisation, ranger la caméra
de surveillance sur son côté, sur une surface
stable, là où elle ne pourra ni faire trébucher ni
faire chuter quelqu’un. Certains outils équipés d’un
large bloc-piles peuvent tenir à la verticale sur celui-ci,
mais manquent alors destabilité.
AVERTISSEMENT: toute modification non autorisée
par le fabricant pourra annuler le droit de l’utilisateur
de se servir de cetappareil.
BLOCS-PILES ET CHARGEURS
Le bloc-piles n’est pas totalement chargé d’usine. Avant
d’utiliser le bloc-piles et le chargeur, lire les consignes de
sécurité ci-après puis suivre la procédure de chargement
indiquée. Pour commander un bloc-piles de rechange,
s’assurer d’en inclure le numéro de catalogue et latension.
Cet outil fonctionne avec un chargeur
DeWALT
. S’assurer
de bien lire toutes les consignes de sécurité avant toute
utilisation du chargeur. Consulter le tableau en fin de
manuel pour connaître les compatibilités entre chargeurs
et blocs-piles.
LIRE TOUTES LES CONSIGNES
Consignes importantes de sécurité
les blocs-piles
AVERTISSEMENT : lire toutes les instructions et
toutes les consignes de sécurité propres au bloc-
piles, au chargeur et à l’outil électrique. Tout
manquement aux avertissements et instructions
pose des risques de décharges électriques,
d’incendie et/ou de blessures graves.
• Ne pas recharger ou utiliser un bloc-piles en milieu
déflagrant, en présence, par exemple, de poussières,
gaz ou liquides inflammables. Le fait d’insérer ou
retirer un bloc-piles de son chargeur pourrait causer
l’inflammation de poussières ou d’émanations.
• NE JAMAIS forcer l’insertion d’un bloc-piles dans un
chargeur. NE modifier un bloc-piles d’AUCUNE façon
pour le faire rentrer dans un chargeur incompatible,
car il pourrait se briser et causer des dommages
corporels graves. Consulter le tableau en dernière page
de ce manuel pour connaître les compatibilités entre
chargeurs et blocs-piles.
• Recharger les blocs-piles exclusivement dans des
chargeurs
DeWALT
.
• NE PAS éclabousser le bloc-piles ou l’immerger dans l’eau
ou dans tout autreliquide.
• Ne pas entreposer ou utiliser l’appareil et le bloc-
piles en présence de températures ambiantes
pouvant excéder 40°C (104°F) (comme dans des
hangars ou des bâtiments métalliques l’été). Pour
préserver leur durée de vie, entreposer les blocs-piles dans
un endroit frais etsec.
REMARQUE: ne pas mettre un bloc-piles dans un
outil dont la gâchette est verrouillée en position de
marche. Ne jamais bloquer l’interrupteur en position
deMARCHE.
• Ne pas incinérer le bloc-piles même s’il est
sévèrement endommagé ou complètement usagé,
car il pourrait exploser et causer un incendie.
Pendant l’incinération des blocs-piles au lithium-ion, des
vapeurs et matières toxiques sontdégagées.
• En cas de contact du liquide de la pile avec la peau,
rincer immédiatement au savon doux et à l’eau. En
cas de contact oculaire, rincer l’œil ouvert à l’eau claire
une quinzaine de minutes ou jusqu’à ce que l’irritation
cesse. Si des soins médicaux s’avéraient nécessaires, noter
que l’électrolyte de la pile est composé d’un mélange de
carbonates organiques liquides et de sels delithium.
• Le contenu des cellules d’une pile ouverte peut
causer une irritation respiratoire. En cas d’inhalation,
exposer l’individu à l’air libre. Si les symptômes persistent,
consulter unmédecin.
AVERTISSEMENT: risques de brûlure. Le liquide de la
pile peut s’enflammer s’il est exposé à des étincelles ou
à uneflamme.
AVERTISSEMENT: risques d’incendie. Ne jamais
tenter d’ouvrir le bloc-piles pour quelque raison
que ce soit. Si le boîtier du bloc-piles est fissuré ou
endommagé, ne pas l’insérer dans un chargeur. Ne

FRANÇAIS
18
pas écraser, laisser tomber, ou endommager les blocs-
piles. Ne pas utiliser un bloc-piles ou un chargeur
qui a reçu un choc violent, ou si l’appareil est tombé,
a été écrasé ou endommagé de quelque façon que
ce soit (p. ex. percé par un clou, frappé d’un coup
de marteau, piétiné). Les blocs-piles endommagés
doivent être renvoyés à un centre de réparation pour
y êtrerecyclés.
Transport
AVERTISSEMENT: risques d’incendie. Au moment
de ranger ou transporter le bloc-piles, veiller à
protéger ses bornes à découvert de tout objet
métallique. Par exemple, éviter de placer le bloc-
piles dans un tablier, une poche, une boîte à outils
ou un tiroir, etc. contenant des objets tels que clous,
vis, clés, etc. Le fait de transporter des blocs-piles
comporte des risques d’incendie, car les bornes
des piles pourraient entrer, par inadvertance,
en contact avec des objets conducteurs, tels
que: clés, pièces de monnaie, outils ou autres.
La réglementation sur les produits dangereux
(Hazardous Material Regulations) du département
américain des transports interdit, en fait, le transport
des blocs-piles dans les commerces ou dans les avions
dans les bagages de cabine, À MOINS qu’ils ne soient
correctement protégés de tout court-circuit. Aussi
lors du transport individuel de blocs-piles, s’assurer
que leurs bornes sont bien protégées et isolées de
tout matériau pouvant entrer en contact avec elles et
provoquer un court-circuit.
Expédition du bloc-piles
DeWALT
FLEXVOLTMC
Le bloc-piles D
e
WALT FLEXVOLTMC possède deux modes:
Utilisation et Expédition.
Mode Utilisation: lorsque le bloc-piles FLEXVOLTMC est par
lui-même ou dans un produit D
e
WALT 20v max*, il
fonctionnera comme un bloc-piles de 20v max*. Lorsque le
bloc-piles FLEXVOLTMC est dans un produit de 60v max* ou
120v max* (deux blocs-piles de 60v max*), il fonctionnera
comme un bloc-piles de 60v max*.
Mode Expédition: lorsque
le capuchon est inséré sur
le bloc-piles FLEXVOLTMC,
le bloc-piles est en mode
Expédition. Les modules
de cellules sont électriquement déconnectés du bloc le
faisant correspondre à trois blocs-piles d’un wattheure (Wh)
inférieur comparé à un bloc-piles de wattheure élevé. Ce
passage à trois blocs-piles à un wattheure inférieur peut
permettre au bloc-piles d’être exempté de suivre certaines
directives d’expédition imposées sur les blocs-piles de
wattheuresupérieur.
L’étiquette du bloc-piles donne deux estimations de
wattheures (se reporter à l’exemple). Selon comment le
bloc-piles est expédié, l’estimation appropriée de wattheure
doit être utilisée pour déterminer les modalités d’expédition
lui correspondant. Si le capuchon d’expédition est utilisé,
le bloc-piles sera considéré comme 3 blocs-piles au
wattheure indiqué pour «Expédition». S’il est expédié sans
le capuchon ou dans un outil, le bloc-piles sera considéré
comme un seul bloc-piles au wattheure indiqué à côté de
«Utilisation».
USE: 120 Wh Shipping: 3 x 40 Wh
Exemple d’étiquetage d’utilisation et d’expédition
Par exemple, le Wh de expédition pourra indiquer
3x40Wh, ce qui correspond à 3 blocs-piles de
40wattheures chacun. L’utilisation du Wh pourra indiquer
120Wh (sous-entendu 1bloc-piles).
Témoin de Charge du Bloc-Piles (Fig. B)
Certains blocs-piles
DeWALT
possèdent un témoin de
charge qui consiste en trois voyants Del verts indiquant le
niveau de charge du bloc-piles.
Le témoin de charge indique approximativement le niveau
de charge restant dans le bloc-piles en fonction des voyants
suivants:
Chargé de 75 à 100%
Chargé de 51 à 74%
Chargé de < 50%
Le bloc-piles doit être rechargé
Pour activer le témoin de charge, maintenez appuyé le
bouton du témoin de charge. Une combinaison des trois
voyants Del verts s’allumera indiquant le niveau de charge.
Lorsque le niveau de charge du bloc-pile atteint la limite
minimale d’utilisation, le témoin de charge reste éteint et le
bloc-piles doit êtrerechargé.
Fig. B
REMARQUE: le témoin de charge ne fait qu’indiquer
le niveau de charge du bloc-piles. Il ne donne aucune
indication quant au fonctionnement de l’outil. Son propre
fonctionnement pourra aussi varier en fonction des
composants produit, de la température et de l’application
d’utilisation.
Pour plus d’informations quant au témoin de charge du
bloc-piles, veuillez appeler le 1-800-4-
DeWALT
(1-800-433-
9258) ou vous rendre sur notre site www.dewalt.com.
Le sceau SRPRC®
Le sceau SRPRC® (Société de recyclage des
piles rechargeables du Canada) apposé
sur une pile au nickel-cadmium, à hydrure
métallique de nickel ou au lithium-ion
(ou un bloc-piles) indique que les coûts
de recyclage de ces derniers en fin d’utilisation ont déjà été
réglés par
DeWALT
. Dans certaines régions, la mise au rebut
ou aux ordures municipales des piles au nickel-cadmium, à
l’hydrure métallique de nickel ou au lithium-ion, est illégale;
le programme de l’Appel à Recycler® constitue donc une
solution pratique etécologique.
