EC‑Declaration of Conformity
Machinery Directive
o

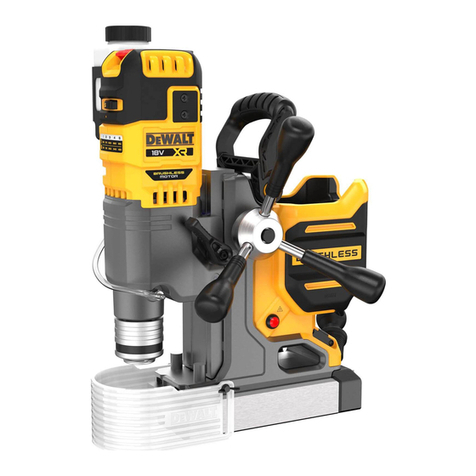

Magnetic Drill Press
DCD1623
DeWALT declares that these products described under
Technical Data are in compliance with:
2006/42/EC, EN62841‑1:2015.
These products also comply with Directive 2014/30/EU and
2011/65/EU. For more information, please contact DeWALT at
the following address or refer to the back of themanual.
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf ofDeWALT.
Markus Rompel
Vice‑President Engineering, PTE‑Europe
DeWALT, Richard‑Klinger‑Straße 11,
65510, Idstein, Germany
29.04.2022
DECLARATION OF CONFORMITY
THE SUPPLY OF MACHINERY (SAFETY)
REGULATIONS 2008
Magnetic Drill Press
DCD1623
DeWALT declares that these products described under
“technical data” are in compliance with:
EN62841‑1:2015.
These products conform to the following UK Regulations
The Supply of Machinery (Safety) Regulations, 2008, S.I.
2008/1597 (asamended).
Electromagnetic Compatibility Regulations, 2016, S.I.2016/1091
(asamended).
The Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment Regulations 2012, S.I.
2012/3032 (as amended).
For more information, please contact DeWALT at the following
address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf of DeWALT.
The vibration and/or noise emission level given in this
information sheet has been measured in accordance with
a standardised test given in EN62841 and may be used to
compare one tool with another. It may be used for a preliminary
assessment ofexposure.
WARNING: The declared vibration and/or noise emission
level represents the main applications of the tool. However
if the tool is used for different applications, with different
accessories or poorly maintained, the vibration and/or
noise emission may differ. This may significantly increase
the exposure level over the total workingperiod.
An estimation of the level of exposure to vibration and/
or noise should also take into account the times when the
tool is switched off or when it is running but not actually
doing the job. This may significantly reduce the exposure
level over the total workingperiod.
Identify additional safety measures to protect the
operator from the effects of vibration and/or noise such
as: maintain the tool and the accessories, keep the
hands warm (relevant for vibration), organisation of
workpatterns.
DCD1623
Voltage VDC 18
Type 1
Max.power output w/ 9Ah battery W1100
No load speed forward
Low gear min‑1 130–420
High gear min‑1 250–810
No load speed reverse
Low gear min‑1 350
High gear min‑1 680
Max. drill diameter with twist drill bit mm 16
Max. drill diameter with annular cutter mm 50
Max. Taping M14
Max. cutting depth in steel mm 50
Tool holder (flat shank) mm 19
Weight kg 14.4
Noise values and/or vibration values (triax vector sum) according to EN62841‑1:
LPA (emission sound pressure level) dB(A) 85
LWA (sound power level) dB(A) 94
K (uncertainty for the given sound level) dB(A) 3
Congratulations!
You have chosen a DeWALT tool. Years of experience, thorough
product development and innovation make DeWALT one of the
most reliable partners for professional power toolusers.
Technical Data
English (original instructions)
MAGNETIC DRILL PRESS
DCD1623

6
ENGLISH
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust orfumes.
c ) Keep children and bystanders away while operating
a power tool. Distractions can cause you to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of
electricshock.
b ) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if
your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electricshock.
f ) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personalinjury.
b ) Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non‑skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personalinjuries.
c ) Prevent unintentional starting. Ensure the switch
is in the off‑position before connecting to power
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTUREREFERENCE
The term “power tool” in the warnings refers to your
mains‑operated (corded) power tool or battery‑operated (cordless)
powertool.
aWARNING: To reduce the risk of injury, read the
instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
Karl Evans
Vice President Professional Power Tools EANZ GTS
270Bath Road, Slough
Berkshire, SL1 4DX
England
29.04.2022
Batteries Chargers/Charge Times (Minutes)***
Cat # VDC Ah Weight (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB116 DCB117 DCB118 DCB132 DCB119
DCB547G 18/54 9.0/3.0 1.46 75* 420 270 220 135* 110* 60 75* 135* X
DCB184G 18 5.0 0.62 75/50** 240 150 120 75 75/60** 75/50** 75/50** 75 150
*Date code 201811475B or later
**Date code 201536 or later
**Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
*Date code 201811475B or later
**Date code 201536or later
**Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition ofbatteries.
***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition ofbatteries.

7
ENGLISH
Additional Specific Safety Rules for
Drill Presses
• Keep your hands out of the drilling area while the tool is
running. Contact with rotating parts or chips may result in
personalinjury.
• Always use the drill guard. Before turning on machine ensure
the guard is closedsecurely.
• Always use the safetychain.
• The magnetic stand is suitable for use on steel with a thickness
starting from 10mm, with zero air gap between the magnet
core surface and the mounting surface. Curvature, coats of
paint and surface irregularities will create an air gap. Keep the
air gap to aminimum.
• Always place the machine on a flat surface. Do not clamp the
stand on small or irregularly shapedobjects.
surfaces do not allow for safe handling and control of the
tool in unexpectedsituations.
5) Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another batterypack.
b ) Use power tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury andfire.
c ) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation orburns.
e ) Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk
ofinjury.
f ) Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may causeexplosion.
g ) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified range
may damage the battery and increase the risk offire.
6) Service
a ) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool ismaintained.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invitesaccidents.
d ) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personalinjury.
e ) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust‑relatedhazards.
h ) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe
injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which it
wasdesigned.
b ) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrainedusers.
e ) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping

8
ENGLISH iYour DeWALTcharger is double insulated in
accordance with EN60335; therefore no earth wire
isrequired.
If the supply cord is damaged, it must be replaced only by
DeWALT or an authorised serviceorganisation.
Mains Plug Replacement
(U.K.& Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 3A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for the
power input of your charger (see Technical Data). The minimum
conductor size is 1mm2; the maximum length is30m.
When using a cable reel, always unwind the cablecompletely.
Important Safety Instructions for All BatteryChargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for compatible battery
chargers (refer to TechnicalData).
• Before using charger, read all instructions and cautionary
markings on charger, battery pack, and product using
batterypack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only DeWALT rechargeable batteries. Other types of
batteries may burst causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that
they do not play with theappliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting toclean.
• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual. The charger
and battery pack are specifically designed to worktogether.
• These chargers are not intended for any uses other than
charging DeWALT rechargeable batteries. Any other uses
may result in risk of fire, electric shock orelectrocution.
• Do not expose charger to rain orsnow.
Chargers
DeWALT chargers require no adjustment and are designed to be
as easy as possible tooperate.
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the battery pack voltage corresponds to the
voltage on the rating plate. Also make sure that the voltage of
your charger corresponds to that of yourmains.
Residual Risks
In spite of the application of the relevant safety regulations
and the implementation of safety devices, certain residual risks
cannot be avoided. These are:
• Impairment ofhearing.
• Risk of personal injury due to flyingparticles.
• Risk of burns due to accessories becoming hot
duringoperation.
• Risk of personal injury due to prolongeduse.
SAVE THESE INSTRUCTIONS
• Always place the machine on a surface that is clear of
shavings, chips, swarf and surfacedirt.
• Keep the magnet clean and free of debris andswarf.
• Do not turn on the machine until it has been mounted and
installed according to theseinstructions.
• Do not turn on the machine before having checked that
the magnetic stand has been tightened firmly to the
mountingsurface.
• Adjust the table so cutter does not extend into the workpiece
before drilling. Do not perform any design, assembly or
construction activities on the workpiece while the machine is
turnedon.
• Before turning on the machine, make sure the accessory has
been mountedcorrectly.
• Always use the recommended speed for the accessories and
thematerial.
• Do not use the machine on the same workpiece on which
electric welders are beingused.
• Use only an appropriate cutting fluid. Use a general metal
cutting coolant diluted withwater.
• Do not use liquid cutting fluids while drilling vertically
or overhead. Dip the cutter in cutting paste or apply an
appropriate spray for theseapplications.
• Do not pour cutting fluid into the reservoir while it is mounted
in the bracket. Do not allow cutting fluid to enter the
drillmotor.
• Before use, ensure movable chuck guard operatesproperly.
• Ensure that metal chips or resinous residue cannot lead to
blockage of thefunction.
• In case of jammed cutter disconnect the machine from the
power supply, remove the reason for the jam before turning on
the machineagain.

9
ENGLISH
Charge Indicators
FCharging I
GFully Charged J
HHot/Cold Pack Delay* K
*The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the pack
charging mode. This feature ensures maximum battery packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan designed to
cool the battery pack. The fan will turn on automatically when the
battery pack needs to be cooled. Never operate the charger if the
fan does not operate properly or if ventilation slots are blocked.
Do not permit foreign objects to enter the interior of thecharger.
Electronic Protection System
XR Li‑Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection
System engages. If this occurs, place the lithium‑ion battery
pack on the charger until it is fullycharged.
Wall Mounting
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate the
charger within reach of an electrical outlet, and away from a
corner or other obstructions which may impede air flow. Use
the back of the charger as a template for the location of the
mounting screws on the wall. Mount the charger securely using
drywall screws (purchased separately) at least 25.4mm long
with a screw head diameter of 7–9mm, screwed into wood to
an optimal depth leaving approximately 5.5mm of the screw
exposed. Align the slots on the back of the charger with the
exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using a
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk ofdamage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk
of fire,electric shock, orelectrocution.
• Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source. The
charger is ventilated through slots in the top and the bottom
of thehousing.
• Do not operate charger with damaged cord or plug—
have them replacedimmediately.
• Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take it
to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised service
centre when service or repair is required. Incorrect reassembly
may result in a risk of electric shock, electrocution orfire.
• In case of damaged power supply cord, the supply cord must
be replaced immediately by the manufacturer, its service agent
or similar qualified person to prevent anyhazard.
• Disconnect the charger from the outlet before attempting
any cleaning. This will reduce the risk of electric shock.
Removing the battery pack will not reduce thisrisk.
• NEVER attempt to connect two chargerstogether.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
Charging a Battery (Fig.B)
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack 29 into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button 30 on the batterypack.
NOTE: To ensure maximum performance and life of lithium‑ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.

10
ENGLISH
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from
materials that could contact them and cause a short
circuit. NOTE: Lithium‑ion batteries should not be put in
checkedbaggage.
DeWALT batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous Goods
(IMDG) Regulations, and the European Agreement Concerning
The International Carriage of Dangerous Goods by Road
(ADR). Lithium‑ion cells and batteries have been tested to
section 38.3of the UN Recommendations on the Transport of
Dangerous Goods Manual of Tests andCriteria.
In most instances, shipping a DeWALT battery pack will be
excepted from being classified as a fully regulated Class
9Hazardous Material. In general, only shipments containing a
lithium‑ion battery with an energy rating greater than 100Watt
Hours (Wh) will require being shipped as fully regulated Class 9.
All lithium‑ion batteries have the Watt Hour rating marked on
the pack. Furthermore, due to regulation complexities, DeWALT
does not recommend air shipping lithium‑ion battery packs
alone regardless of Watt Hour rating. Shipments of tools with
batteries (combo kits) can be air shipped as excepted if the Watt
Hour rating of the battery pack is no greater than 100Wh.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’s responsibility to ensure that its
activities comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The DeWALT FLEXVOLTTM battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in
a DeWALT 18V product, it will operate as an 18V battery. When
the FLEXVOLTTM battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54Vbattery.
Battery Packs
Important Safety Instructions for All
BatteryPacks
When ordering replacement battery packs, be sure to include
catalogue number andvoltage.
The battery pack is not fully charged out of the carton. Before
using the battery pack and charger, read the safety instructions
below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery from the charger may
ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non‑compatible
charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in locations
where the temperature may fall below 4˚C (39.2˚F)
(such as outside sheds or metal buildings in winter), or
reach or exceed 40˚C (104˚F) (such as outside sheds or
metal buildings insummer).
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium‑ion battery packs areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open eye
for 15minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of
liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persists, seek
medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark orflame.
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
cloth or soft non‑metallic brush. Do not use water or any
cleaning solutions. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.

11
ENGLISH
Markings on Tool
The following pictograms are shown on the tool:
a Read instruction manual beforeuse.
g Wear earprotection.
Package Contents
The package contains:
1 Magnetic drill press
1 16mm Keyed chuck attachment
1 Chuck key
1 Coolant bottle with tube
1 Chip guard
1 Safety chain
2 Ejection pins
1 Feed handle set
1 Coolant bottle bracket
1 Allen key
1 Wrench
2 Wing bolts
1 Kitbox
1 Instruction manual
NOTE: Battery packs and chargers are not included with N
models. Battery packs and chargers are not included with NT
models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by DeWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Battery Type
The following tools operate on a 18 volt battery pack: DCD1623
These battery packs may be used: DCB184G, DCB547G. Refer to
Technical Data for moreinformation.
x Discard the battery pack with due care for
theenvironment.
y Charge battery packs only with designated DeWALT
chargers. Charging battery packs other than the
designated DeWALT batteries with a DeWALT
charger may make them burst or lead to other
dangeroussituations.
z Do not incinerate the batterypack.
B USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).
Transport Mode: When the cap is attached to the FLEXVOLTTM
battery, the battery is in Transport mode. Keep the cap
forshipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack
resulting in 3batteries with a
lower Watt hour (Wh) rating as compared to 1battery with a
higher Watt hour rating. This increased quantity of 3batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
For example, the Transport
Wh rating might indicate
3x36Wh, meaning
3batteries of 36Wh each.
The Use Wh rating might
indicate 108Wh (1batteryimplied).
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the
labels on the charger and the battery pack may show the
followingpictographs:
LRead instruction manual beforeuse.
p See Technical Data for chargingtime.
q Do not probe with conductiveobjects.
r Do not charge damaged batterypacks.
s Do not expose towater.
t Have defective cords replacedimmediately
u Charge only between 4˚C and 40˚C.
v Only for indooruse.
Example of Use and Transport Label Marking

12
ENGLISH
Lubrication System (Fig. A, E)
Filling the Coolant Bottle
WARNING: Do not pour cutting fluid into the bottle
while mounted in the bracket. Do not allow cutting
fluid to enter the drill motor. Electric shock mayresult.
Assemble the Chip Guard (Fig. D)
WARNING: Always use the chipguard.
1. Hold the chip guard25 in front of the tool holder, aligning
the slots in the chip guard with the holes in themachine.
2. Fit the wing bolts39 (from the accessories bag) into the
holes located in the front of theframe.
Assembling the Feed Handle (Fig. C)
The quick‑release feed handle can be mounted in one simple
operation both to the left and the right of themachine.
1. Screw the handles6 into the hub7. Ensure that the
handles aresecure.
2. Keep the hub realease button8 depressed while inserting
the hub shaft into the hole33.
3. Release thebutton.
Installing the Machine (Fig. A, G)
1. Assemble the feedhandle.
2. Install the chipguard.
3. Fit the lubrication system asnecessary.
4. This machine features a concave base making it possible
to install on a solid surface, or a pipe with a diameter of no
less than 101mm and a thickness of no less than 9.5mm.
Remove any particles that will obstruct full contact between
the magnetic base20 and the mountingsurface.
5. Fit and tighten the safety chain26.
Transporting the Drill (Fig. A)
WARNING: To reduce the risk of serious personal
injury, turn tool off, and remove the battery pack,
before transporting, making any adjustments,
cleaning, repairing, or removing/installing
attachments or accessories. An accidental start‑up can
causeinjury.
In order to conveniently carry the tool from place to place, a
carry handle22 has been included on the top of thetool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
WARNING: Use only DeWALT battery packs andchargers.
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Description (Fig. A)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1 ON/OFF switch
2 Magnet engagement lever
3 Forward/reverse switch
4 Speed selector
5 Gear selector
6 Feed handle
7 Feed handle hub
8 Feed handle release
button
9 LED button
10 19mm Weldon
quick‑change chuck
11 16mm Keyed chuck
12 Motor height adjustment
lever
13 Coolant bottle bracket
14 Coolant bottle
15 Coolant tube
16 Coolant coupling
connector
17 Coolant flow regulator
18 Coolant bottle cap
19 Coupler nut
20 Magnetic base
21 Magnetic coolant bottle
attachment point
22 Carry handle
23 Handle release button
24 Magnet engagement and
gyro protection indicator
25 Chip guard
26 Safety chain
Intended Use
Your DCD1623 magnetic drill press has been designed for
drilling holes in steel construction surfaces. Do not drill into
non‑ferrousmetal.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This drill press is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
Date Code Position (Fig.B)
The date code 44, which also includes the year of manufacture,
is etched on the inside of batteryport.
Example:
2022XX XX
Year and Week of Manufacture
f Wear eyeprotection
n Visible radiation. Do not stare intolight.
Do not use this tool if you or any bystanders have a
cardiac pacemaker or other medicalimplants.
Always use the safety chain. Secure the tool on
theworkpiece.

13
ENGLISH
Gear Selector (Fig. J)
CAUTION: Do not change gears while motor isrunning.
The machine is equipped with a two‑gear selector to vary the
speed/torqueratio.
Magnet Engagement Lever (Fig. M)
The magnetic strength can be switched by using the magnet
engagement lever2.
Moving the magnet engagement lever towards the middle
position increases the magnetic power to 15%. This is a feature
to provide some user assistance while securing the unit
intoplace.
Moving the magnet engagement lever to the left position
increases the magnet power to 100%.
With the magnet engagement lever positioned to the right the
magnetic power is turned off. When moving the handle from
the left to the right the collar37 on the handle must be lifted
to move out of either 100% engaged or 15%engaged.
NOTE: The unit will not turn on until the magnet engagement
lever is in the left position at 100%.
Three‑Jaw Chuck (Fig.F)
A 3‑jaw chuck11 can be installed to fit the drill press for
various bit sizes. Refer to Inserting and Removing an Accessory
for installationinstructions.
1. Place chuck key27 in each of the three holes, and tighten
in clockwise direction. It’s important to tighten chuck with
all three holes to prevent slippage.
2. To release bit, turn chuck key counterclockwise in just one
hole, then loosen the chuck byhand.
NOTE: It may be necessary to adjust the motor position when
chuck is installed. Please refer to Adjusting the Motor Height
forinstructions.
Refer to the Accessories section for further information on
appropriateaccessories.
Inserting and Removing an Accessory (Fig. F)
The tool holder accepts annular cutters with a Weldon 19mm
shank with twoflats.
CAUTION: Laceration hazard. The cutter teeth
aresharp.
1. Slide the pilot pin42 through the hole in the center of the
cuttershank.
2. Push up on the 19mm Weldon quick‑change chuck11.
3. Insert the cutter43 with pilot pin and turn until the flat
meets the locking pin. When the flat meets the locking pin
the collar will snapdown.
4. Check that the cutter is securely held in thearbor.
5. Lift the 19mm Weldon quick‑change chuck to release
thecutter.
WARNING: Never attach the safety chain through the
carryhandle.
Feed the provided safety chain26 through the safety chain
opening28 of unit and around the workpiece and secure
inplace.
Fitting the Safety Chain (Fig. G)
WARNING: Always use the safetychain.
Lubrication in Vertical and Overhead
Applications
Dip the cutter in cutting paste or apply an appropriatespray.
Lubrication in Horizontal Applications (Fig.A, E)
1. Adjust the fluid flow as required using the flow
regulator17.
2. Add more cutting fluid if the shavings becomeblue.
Fitting the Lubrication System (Fig.A, E)
WARNING: Do not use the lubrication system in vertical
surfaces or overhead drillingapplications.
Only use the lubrication system for horizontal drilling
applications, as shown in FigureA.
1. Place coolant bottle14 into the magnetic coolant bottle
bracket13, then slide the magnetic coolant bottle
bracket onto the either side of the magnetic coolant bottle
attachment point21.
2. Attach the coolant tube15 to the coupling connector16
on thegearbox.
a. Unscrew the nut19 by the wrench first, and place the
nut through the end of the coolant tube15 .
b. Press the coolant tube onto the coupling connector16
first, then use a wrench to tighten thenut.
c. To remove, unscrew the nut and then pull the coolant
tube from the couplingconnector.
NOTE: After the coolant tube has been removed, tighten
the nut on the coupling connector to prevent losingit.
In order to use the lubrication system, the coolant bottle14
must be filled with a sufficient amount of cuttingfluid.
WARNING: Do not allow cutting fluid to enter
the battery port or come in contact with the
batterypack.
NOTE: If battery comes in contact with cutting fluid wipe
it off immediately. The cutting fluid used with this drill
may compromise certain battery pack housings. It is highly
recommended that battery packs with oil resistant housings
(glass filled nylon, designated by a G suffix in the model
number) beused.
NOTE: The lubrication system is designed for dispensing
cutting fluids specifically intended for drilling. Other liquids may
damage thesystem.
1. Turn the flow regulator17 counterclockwise toclose.
2. Remove coolant bottle14 from magnetic coolant bottle
bracket13.
3. Unscrew the cap18.
4. Fill the container with cutting coolant diluted withwater.
5. Screw the cap backon.
6. Place coolant bottle into magnetic coolant bottle
bracket13.

14
ENGLISH
Installing and Removing the Battery Pack
(Fig. B)
WARNING: Ensure the tool/appliance is in the off position
before inserting the batterypack.
WARNING: Keep cutting fluid away from the battery pack.
Contact with cutting fluid may cause the battery housing
to crack. If battery comes in contact with cutting fluid,
clean the batteryimmediately.
NOTE: It is highly recommended that battery packs with oil
resistant housings (glass filled nylon, designated by a G suffix
in the model number) be used. For best results, make sure your
battery pack is fullycharged.
To install the battery pack29 into the battery port31 press
and hold the carry handle release button8 and move the carry
handle22 into the vertical position. Align the battery pack
with the rails inside the battery port and slide it in until the
battery pack is firmly seated in the tool and ensure that it does
notdisengage.
To remove the battery pack from the tool, press and hold the
carry handle release button8 and move the carry handle22
into the vertical position. Press the release button30 and firmly
pull the battery pack out of the battery port. Insert it into the
charger as described in the charger section of thismanual.
NOTE: If the battery is still difficult to remove with the carry
handle in the vertical position, press and hold the carry handle
release button and push the carry handle a little further towards
the front of the tool to create more space for the battery to
beremoved.
Fuel Gauge Battery Packs (Fig.B)
Some DeWALT battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button45. A combination of the three green LED lights will
illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge
will not illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate tool functionality and is
subject to variation based on product components, temperature
and end‑userapplication.
Carry handle (Fig. I)
This carry handle has two functions:
• Carry the tool when it is in verticalposition.
• Protect the battery from dropping off in its folded position
for tool’s upside downapplication.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
Adjusting the Motor Height (Fig. H)
The motor height can be adjusted to accommodate the need
for more or less bit clearance over theworkpiece.
1. Loosen the motor slide lever12.
2. Position the motor to the desiredheight.
3. Tighten the motor slide lever firmly to secure the motor
inposition.
NOTE: There are three set screws38 along the side of the
frame that can be tigthened or loosened to adjust how
easily the motor housing moves with the feed handle6.
Forward/Reverse Button (Fig. K)
A forward/reverse control button3 determines the direction of
bit rotation.
NOTE: The reverse feature of this tool is used for tapping screw
holes. Reverse speed will be 350rpms in low gear and 680rpm
in high gear regardless of variablespeed.
To select forward rotation, release the ON/OFF switch1 and
switch the forward/reverse control button towards the forward
icon40.
To select reverse, switch the forward/reverse control button
towards the reverse icon41.
Speed Selection (Fig. A)
The tool features five speed settings for greaterversatility.
1. To select a higher RPM setting, rotate the speed selector4
to a highernumber.
2. To select a lower RPM setting, rotate the speed selector to a
lowernumber.
If the tool does not change speeds, confirm that the speed
selection switch is completely engaged in the forward or
backposition.
Refer to the Speed (RPM) and Drill Settings chart at the back of
this section for speed and cutter size recommendations.
1. Press in the gear selector button32 and rotate the gear
selector dial5 into the desiredmode.
2. LOW SPEED AND HIGH TORQUE: Rotate the gear
selector to the left for low speed and hightorque.
HIGH SPEED AND LOW TORQUE: Rotate the gear
selector to the right for high speed and lowtorque.
12345
250 370 500 660 810
130 190 260 340 420

15
ENGLISH
C
Lubrication
Your power tool requires no additionallubrication.
MAINTENANCE
Your power tool has been designed to operate over a long
period of time with a minimum of maintenance. Continuous
satisfactory operation depends upon proper tool care and
regularcleaning.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
The charger and battery pack are notserviceable.
Drilling a Hole (Fig. A)
1. Always apply an appropriate cutting fluid/coolant on the
cuttingarea.
2. Lower the guard25 so that it screens the surface to
bedrilled.
3. Make sure the drill point or cutter pilot is properly installed
over the spot to bedrilled.
4. Push the power switch1 up (I) to run thetool.
5. Slowly feed the accessory into the workpiece using the feed
handle6.
6. At the start of the cut, apply light pressure to allow the
accessory to perform the initialgroove.
7. Continue applying sufficient pressure to achieve a smooth
progressive cut. Do notforce.
8. Take extra care when the accessory is about to break
through the surface to preventsplintering.
9. Always turn off the motor, the magnet and the power,
in that particular order, when work is finished and before
removing thebattery.
Drilling Conditions
The ease with which material can be drilled is dependent
on several factors including tensile strength and abrasion
resistance. Hardness and /or strength is the usual criterion,
wide variations in machine ability can exist among material
showing similar physical properties. The drilling conditions are
dependent on requirements for tool life and surface finish. These
conditions are further restricted by the rigidity of the tool and
the workpiece, lubrication and machine power available. The
harder the material the lower the cutting speed. Some materials
of low hardness contain abrasive substances leading to rapid
cutting edge wear at high speeds. Feed rates are governed by
rigidity of set‑up, volume of material to be removed, surface
finish and available machinepower.
extremely hot and cause burns to the skin. Ensure nobody
is in the work area where the metal core isejected.
Drilling with Annular Cutters
1. Annular cutters only cut material at the periphery of the
hole, rather than converting the entire hole to shavings. As
a result the energy required to make a hole is lower than for
a twistdrill.
2. When drilling with an annular cutter, it is not necessary to
drill a pilothole.
CAUTION: Do not touch the cutter or the parts close to
the cutter immediately after operation, as they may be
E‑Clutch® System and Low Voltage Indicator
LED (Fig. A)
The DCD1623 is equipped with the DeWALT E‑Clutch® system.
This feature senses the motion of the tool and shuts the tool
down if necessary. The E‑Clutch® indicator24 will illuminate
red to indicatestatus.
The working LED on the front of the magnetic base20 will flash
to alert the user of low voltageconditions.
INDICATOR DIAGNOSIS SOLUTION
OFF Tool is functioning
normally
Follow all warnings and instructions
when operating the tool.
RED
SOLID
E‑Clutch®System
has been activated
(ENGAGED)
With the tool properly supported,
release trigger. The tool will
function normally when the trigger
is depressed again and the indicator
light will go out.
ORANGE
SOLID
The magnet
engagement lever
is not in the 100%
position with the
power switch on.
Move the magnet engagement
lever to the 100% position.
WHITE
FLASHING
Low voltage
battery conditions
Suspend use of the tool and replace
with fully charged battery.
Switching On and Off (Fig. A)
In order to operate properly, the machine has to be switched
following the procedure as describedbelow.
Switching the power on and off
WARNING: In a vertical or upside down application,
the tool will drop off from the workpiece if the magnet
engagement lever is NOT at the 100%position.
Push the power switch1 up (I) to run thetool.
NOTE: The tool will not run unless magnet is at 100%
engagement. An orange light will illuminate indicating the
magnet is not fullyengaged.
Press the switch down (0) to shut down thetool.
Prior to operation
WARNING: Inspect the chain before each use, for wear or
damage. Replace ifnecessary.
Try a few simple projects using scrap material until you develop
a “feel” for themachine.

16
ENGLISH
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails to produce
sufficient power on jobs which were easily done before. At the end
of its technical life, discard it with due care for ourenvironment:
• Run the battery pack down completely, then remove it from
thetool.
• Li‑Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.
Protecting the Environment
wSeparate collection. Products and batteries marked
with this symbol must not be disposed of with
normal householdwaste.
Products and batteries contain materials that can be
recovered or recycled reducing the demand for raw materials.
Please recycle electrical products and batteries according to local
provisions. Further information is available at www.2helpU.com.
Optional Accessories
WARNING: Since accessories, other than those offered
by DeWALT, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only DeWALT recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
Cleaning
WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non‑metallic parts of the tool. These
chemicals may weaken the plastic materials used in
these parts. Use a cloth dampened only with water and
mild soap. Never let any liquid get inside the tool; never
immerse any part of the tool into aliquid.
Tool Connect™ Chip (Fig.L)
Optional Accessory
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
Your tool is Tool Connect™ Chip ready and has a location for
installation of a Tool Connect™ Chip.
Tool Connect™ chip1 communicates with an optional
application for your smart device (such as a smart phone or
tablet) that connects the device to utilize the mobile application
for inventory management functions.
Refer to Tool Connect™Chip Instruction Sheet for
moreinformation.
Installing the Tool Connect™ Chip
1. Remove the retaining screws34 that hold the Tool
Connect™ Chip protective cover36into thetool.
2. Remove the protective cover and insert the Tool Connect™
Chip into the empty pocket35.
3. Ensure that the Tool Connect™ Chip is flush with the
housing. Secure it with the retaining screws and tighten
thescrews.
4. Refer to Tool Connect™Chip Instruction Sheet for
furtherinstructions.

17
ENGLISH
Speed (RPM) and Drill Settings (with 9Ah pack)
Cutter Size Mild Steel Iron Plate
14 mm–16 mm 600–1000 RPM 800–1200 RPM
High Gear, Speed 4–5 High Gear, Speed 5
16 mm–21 mm 480–800 RPM 640–960 RPM
High Gear, Speed 3–5 High Gear, Speed 4–5
21 mm–25 mm 400–660 RPM 530–800 RPM
High Gear, Speed 3–4 High Gear, Speed 3–5
25 mm–30 mm 320–530 RPM 420–640 RPM
Low Gear, Speed 4–5 High Gear, Speed 3–4
30 mm–35 mm 270–460 RPM 360–550 RPM
Low Gear, Speed 4–5 Low Gear, Speed 4–5
35 mm–40 mm 230–400 RPM 320–480 RPM
Low Gear, Speed 3–4 Low Gear, Speed 4–5
40 mm–45 mm 210–320 RPM 280–420 RPM
Low Gear, Speed 3–4 Low Gear, Speed 3–5
45 mm–50 mm 190–320 RPM 260–380 RPM
Low Gear, Speed 2–3 Low Gear, Speed 3–4
For 38mm diameter or thicker than 25mm and above use a 9Ahpack.

NA134683 04/21
Belgique et
Luxembourg België en Luxemburg
DeWALT ‑ Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT (Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard‑Klinger‑Str. 11
65510 Idstein
Tel: 06126‑21‑0
Fax: 06126‑21‑2770
www.dewalt.de
[email protected]
Ελλά DeWALT (Ελλάς) Α.Ε.
EΔΡΑ‑ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT (Stanley Black & Decker France SAS)
62 Chemin de la Bruyère
CS 60105,
69574 DARDILLY Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 ‑ 755 60 70
Fax: 044 ‑ 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: 00353‑2781800
Fax: [phone]
www.dewalt.ie
[email protected]
Italia DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: 800‑014353
39 039‑9590200
Fax: 39 039‑9590311
www.dewalt.it
Nederlands DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A‑1230 Wien
Tel: 01 ‑ 66116 ‑ 0
Fax: 01 ‑ 66116 ‑ 614
www.dewalt.at
[email protected]
Portugal DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
AND Kozyataği ‑ İçerenköy Mah. Umut Sok. AND Ofis Sit. No: 10‑12 / 82‑83‑84
Ataşehir/İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United Kingdom DeWALT, 270 Bath Road;
Slough, Berks SL1 4DX
Tel: 01753‑567055
Fax: 01753‑572112
www.dewalt.co.uk
[email protected]
Australia / New Zealand DeWALT
810 Whitehorse Road Box Hill
VIC 3128 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box ‑ 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
