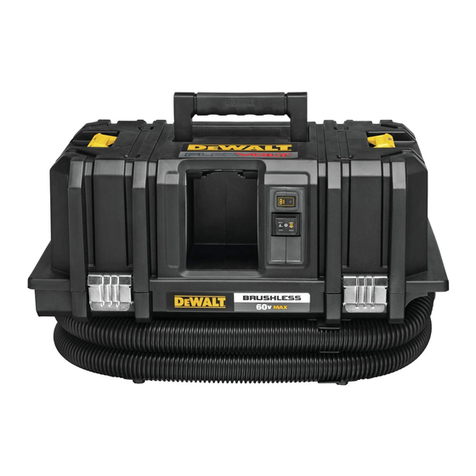

DeWalt Flexvolt DCV585 User manual

DCV585

ENGLISH
English (original instructions) 1
한국어 14

1
ENGLISH
COMPONENTS
1 Battery port
2 Dust extractor hose
3 Two position switch
4 Tank latch
5 Hose clip
6 Dust extractor head
7 Battery pack (not
included in the
DCV585N)
8 Battery release button
9 Hose inlet plug
10 TSTAK® Stacking latch
12 Fleece bag
13 Handle
15 Hose release latch
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
WARNING: To reduce the risk of injury, read the
instructionmanual.

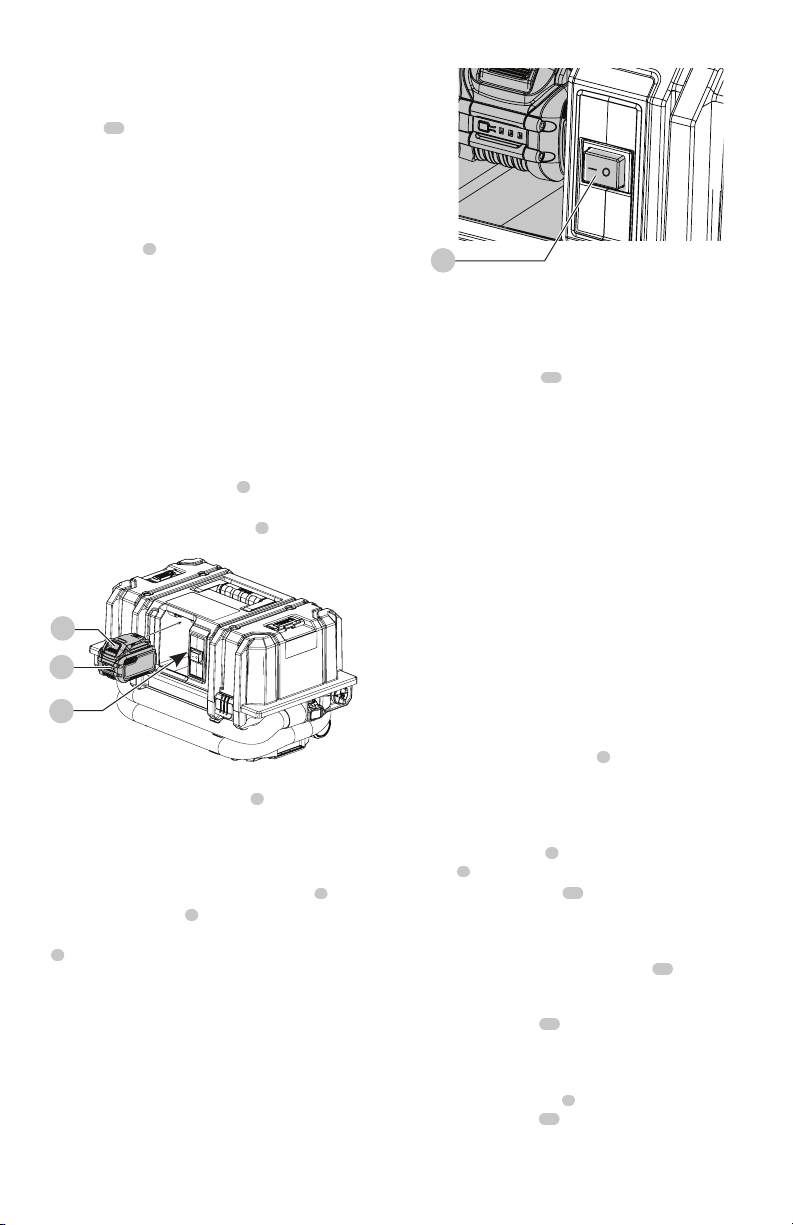

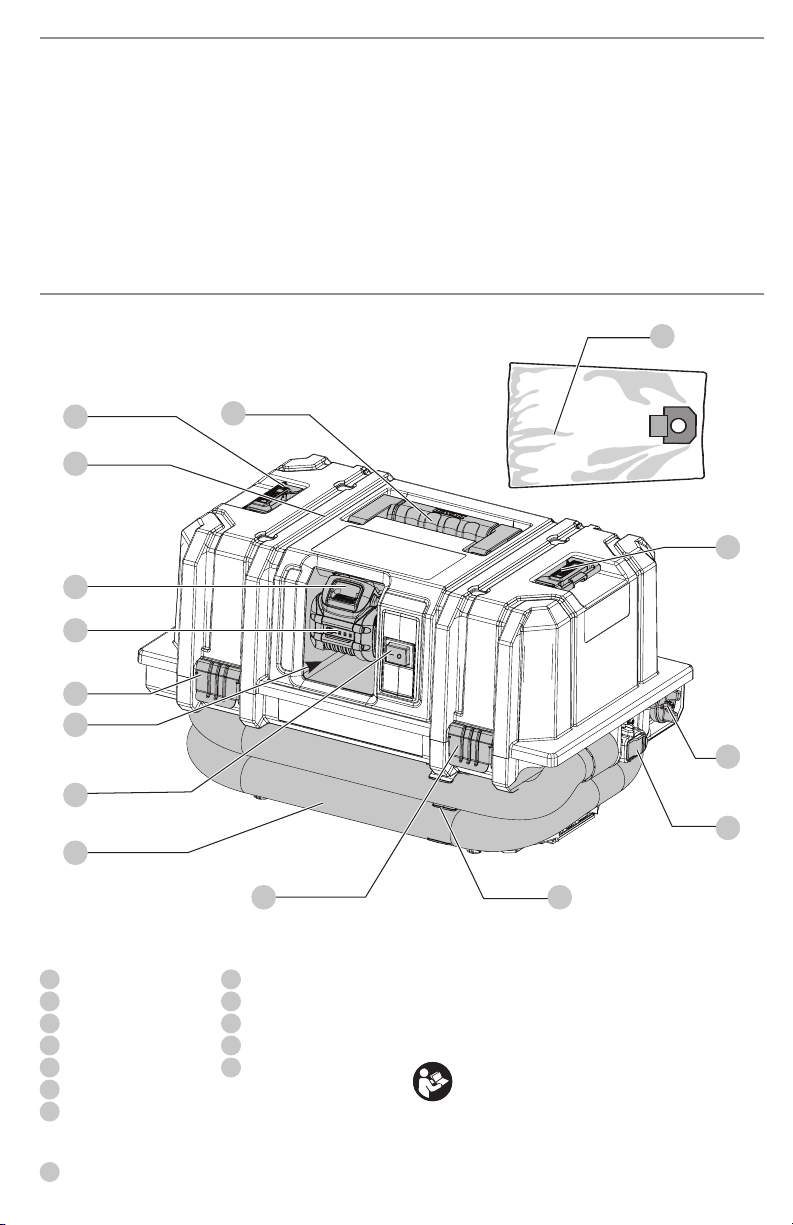

Fig. A
English (original instructions)
1
2
3
4
4 5
6
7
13
9
15
10
12
10
8

ENGLISH
2
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
When using this appliance, basic safety precautions should
always be followed including the following:
WARNING: To reduce the risk of fire,
electric shock and injury:
• Do not leave the appliance unattended when
connected to power source. Remove the battery
pack when not in use and before servicing.
• Do not expose to rain. Storeindoors.
• Do not allow appliance to be used as a toy.
Close attention is necessary when used by or
nearchildren.
• Use this appliance ONLY as described in the
manual. Use only recommended attachments.
• Do not use this appliance if it is showing
signs of malfunction in any way. If the
appliance is not working correctly, has been
dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
• Do not handle the appliance with wethands.
• Do not put any objects into the openings of
the appliance. Do not use the appliance with
any opening blocked; keep free of dust, lint, hair
and anything else that may reduce air flow.
• Keep hair, loose clothing, fingers, and all body
parts away from the openings and moving parts.
• Turn off all controls before disconnecting from
power source.
• Use extra care when cleaning on stairs.
Technical Data
DCV585
Voltage VDC 54(60 Max)
Battery type Li-Ion
Degree of protection IPX4
Negative pressure kPa 8.8
Flow rate l/s 24.7
Container capacity l11
Filling liquidmax. l7.5
Hose diameter mm 32
Hose length m2.4
Weight (without battery pack) kg 8
*Maximum initial battery voltage(measured without a workload) is 60 volts. rated voltage is 54.
Batteries Chargers / Charge Times (Minutes)
Cat# VDC Ah Weight(kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB118 DCB132 DCB119
DCB546/DCB606 18/54 (20/60 Max) 6.0/2.0 1.05 60 270 170 140 90 60 90 X
DCB547/DCB609 18/54 (20/60 Max) 9.0/3.0 1.46 75* 420 270 220 135* 75* 135* X
DCB548/DCB612 18/54 (20/60 Max) 12.0/4.0 1.44 120 540 350 300 180 120 180 X
DCB181 18 (20 Max) 1.5 0.35 22 70 45 35 22 22 22 45
DCB182/DCB204 18 (20 Max) 4.0 0.61 60/40** 185 120 100 60 60/40** 60 120
DCB183/DCB203 18 (20 Max) 2.0 0.40 30 90 60 50 30 30 30 60
DCB184/DCB205 18 (20 Max) 5.0 0.62 75/50** 240 150 120 75 75/50** 75 150
DCB185 18 (20 Max) 1.3 0.35 22 60 40 30 22 22 22 X
DCB187 18 (20 Max) 3.0 0.54 45 140 90 70 45 45 45 90
DCB189 18 (20 Max) 4.0 0.54 60 185 120 100 60 60 60 120
*Date code 201811475B or later
**Date code 201536 or later

3
ENGLISH
• This dust extractor meets the EPA lead-related
Renovations, Repair and Painting (RRP) Rule for HEPA
vacuum only when used with the two DC5151H HEPA
Filters. (included withDCV585).
Contact the United States Environmental Protection Agency
(EPA) for more information on their Renovations, Repair and
Painting (RRP)Rule.
• This dust extractor is approved for use in OSHA Silica
1926.1153 dust collection applications when properly
utilized per the OSHA 1926.1153ruling.
• Do not use to vacuum combustible explosive
materials, such as coal, grain, or other finely divided
combustiblematerial.
• Do not use to vacuum hazardous, toxic or carcinogenic
materials, such as asbestos or pesticide, unless the
vacuuming of the material is specifically identified in this
instruction manual as an approveduse.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel,
heating oil, paint thinner, etc.), acids orsolvents.
• Static shocks are possible in dry areas or when the relative
humidity of the air is low. This is only temporary and does
not affect the use of thedust extractor.
• To avoid spontaneous combustion, empty the canister
after everyuse.
• Some wood contains preservatives which can be
toxic. Take extra care to prevent inhalation and skin
contact when working with these materials. Request
and follow any safety information available from your
materialsupplier.
• NEVER STAND OR SIT ON DUST EXTRACTOR. Serious
injury could occur if the dust extractor is tipped.
• When using with a manufacturer approved cart or trolley
use caution when moving to avoid tip-over.
• When stacking, always place the dust extractor on
thebottom.
• The handle is for transport only.
• Lift and carry the dust extractor by the handle only. If
mounted on a manufacturer approved cart or trolley,
transport using the cart or trolley handle only.Additional
Safety Information
WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or
dust mask if cutting operation is dusty. ALWAYS WEAR
CERTIFIED SAFETYEQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratoryprotection.
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to the State
of California to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicalsare:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other
masonry products, and
SAVE THESE INSTRUCTIONS
Additional Safety Warnings
a ) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to battery
pack, picking up or carrying the appliance.
Carrying the appliance with your finger on the switch
or energizing appliances that have the switch on
invitesaccidents.
b ) Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such preventive
safety measures reduce the risk of starting the
applianceaccidentally.
c ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another batterypack.
d ) Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury andfire.
e ) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
f ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
g ) Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior resulting
in fire, explosion or risk ofinjury.
h ) Do not expose a battery pack or appliance to
fire or excessive temperature. Exposure to fire
or temperature above 130°C may cause explosion.
The temperature of 130°C can be replaced by the
temperature of 265°F.
i ) Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product
ismaintained.
SAVE THESE INSTRUCTIONS
Specific Safety Rules for Dust Extractors
WARNING: To reduce the risk of fire, electric shock
and injury:
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
• Do not use without filter in place.Supplemental
Safety Warnings forDust Extractors

ENGLISH
4
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.
READ ALL INSTRUCTIONS
Important Safety Instructions for All
Battery Packs
WARNING: Read all safety warnings,
instructions, and cautionary markings for the
battery pack, charger and product. Failure to
follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
pack from the charger may ignite the dust orfumes.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws, or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a fire.
• NEVER force the battery pack into the charger. DO
NOT modify the battery pack in any way to fit into
a non-compatible charger as battery pack may
rupture causing serious personal injury. Consult
the chart at the end of this manual for compatibility of
batteries andchargers.
• Charge the battery packs only in DeWALT chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.
• Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium-ion battery packs
areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open
eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.
• arsenic and chromium from chemically-
treatedlumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
filter out microscopicparticles.
• Avoid prolonged contact with dust from power
sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing
dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmfulchemicals.
WARNING: Use of this tool can generate and/
or disperse dust, which may cause serious and
permanent respiratory or other injury. Always use
NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles
away from face andbody.
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.
CAUTION: When not in use, place tool on a
stable surface where it will not cause a tripping or
fallinghazard.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be
caught in movingparts.The label on your tool may include
the following symbols. The symbols and their definitions
are asfollows:
V.........................volts
Hz .......................hertz
min.....................minutes
or DC......direct current
......................Class I Construction
(grounded)
…/min.............. per minute
BPM.................... beats per minute
IPM.....................impacts per minute
RPM.................... revolutions per
minute
sfpm ...................surface feet per
minute
SPM....................strokes per minute
OPM.................... oscillations per
minute
A.........................amperes
W........................watts
or AC........... alternating current
or AC/DC.... alternating or
direct current
......................Class II
Construction
(double insulated)
no.......................no load speed
n.........................rated speed
......................earthing terminal
.....................safety alert symbol
.....................visible radiation
.....................avoid staring at
light
.....................wear respiratory
protection
.....................wear eye
protection
.....................wear hearing
protection
.....................read all
documentation
IPXX .................... IP symbol

5
ENGLISH
WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark orflame.
WARNING: Fire hazard. Never attempt to open the
battery pack for any reason. If the battery pack case
is cracked or damaged, do not insert into the charger.
Do not crush, drop or damage the battery pack. Do
not use a battery pack or charger that has received a
sharp blow, been dropped, run over or damaged in
any way (e.g., pierced with a nail, hit with a hammer,
stepped on). Damaged battery packs should be
returned to the service center forrecycling.
Storage Recommendations
1. The best storage place is one that is cool and dry, away
from direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimal results.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged before use.
Battery Pack Cleaning Instructions
1. Dirt and grease may be removed from the exterior of
the battery using a cloth or soft non-metallic brush. Do
not use water or any cleaningsolutions.
Fuel Gauge Battery Packs (Fig. B)
Some DeWALT battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
The fuel gauge is an indication of approximate levels of
charge remaining in the battery pack according to the
followingindicators:
75–100% charged
51–74% charged
< 50% charged
Pack needs to be charged
To actuate the fuel gauge, press and hold the fuel gauge
button. A combination of the three green LED lights will
illuminate designating the level of charge left. When the
level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.
Fig. B
NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.
For more information regarding fuel gauge battery packs,
please contact 1-800-4-DeWALT (1-800-433-9258) or visit
our website www.dewalt.com
Transportation
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do
not place the battery pack in aprons, pockets, tool
boxes, product kit boxes, drawers, etc., with loose
nails, screws, keys, etc. Transporting batteries
can possibly cause fires if the battery terminals
inadvertently come in contact with conductive
materials such as keys, coins, hand tools and the
like. The US Department of Transportation Hazardous
Material Regulations (HMR) actually prohibit
transporting batteries in commerce or on airplanes in
carry-on baggage UNLESS they are properly protected
from short circuits. So when transporting individual
battery packs, make sure that the battery terminals
are protected and well insulated from materials that
could contact them and cause a short circuit.
NOTE: LI-ION batteries should not be put in
checkedbaggage.
Shipping the DeWALT FLEXVOLT™ Battery
The DeWALT FLEXVOLT™ battery has two modes: Use and
Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is
in a DeWALT 18V(20V Max) product, it will operate as a
18V(20V Max) battery. When the FLEXVOLT™ battery is in a
54V(60V Max) or a 108V(120V Max) (two 54V(60V Max)
batteries) product, it will operate as a 54V(60V Max) battery.
Shipping Mode: When
the cap is attached to the
FLEXVOLT™ battery, the
battery is in Shipping Mode.
Strings of cells are electrically
disconnected within the pack resulting in three batteries
with a lower Watt hour (Wh) rating as compared to one
battery with a higher Watt hour rating. This increased
quantity of three batteries with the lower Watt hour rating
can exempt the pack from certain shipping regulations that
are imposed upon the higher Watt hour batteries.
The battery label indicates two Watt hour ratings (see
example). Depending on how the battery is shipped, the
appropriate Watt hour rating must be used to determine
the applicable shipping requirements. If utilizing the
shipping cap, the pack will be considered 3 batteries at
the Watt hour rating indicated for“Shipping”. If shipping
without the cap or in a tool, the pack will be considered one
battery at the Watt hour rating indicated next to “Use”.
USE: 108 Wh Shipping: 3 x 36 Wh
Example of Use and Shipping Label Marking
For example, the Transport Wh rating might indicate 3x36
Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating
might indicate 108Wh (1battery implied).Important Safety
Instructions for All Battery Chargers

ENGLISH
6
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect 2 chargerstogether.
• The charger is designed to operate on standard 220-
240V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
WARNING: Shock hazard. Do not allow any liquid to
get inside the charger. Electric shock mayresult.
WARNING: Burn hazard. Do not submerge the
battery pack in any liquid or allow any liquid to
enter the battery pack. Never attempt to open the
battery pack for any reason. If the plastic housing of
the battery pack breaks or cracks, return to a service
center for recycling.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only DeWALT rechargeable battery packs.
Other types of batteries may overheat and burst
resulting in personal injury and propertydamage.
CAUTION: Under certain conditions, with the charger
plugged into the power supply, the charger can
be shorted by foreign material. Foreign materials
of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum
foil or any buildup of metallic particles should be
kept away from the charger cavities. Always unplug
the charger from the power supply when there is no
battery pack in the cavity. Unplug the charger before
attempting toclean.
Charging a Battery
NOTE: To ensure maximum performance and life of lithium-
ion battery packs, charge the battery pack fully before
firstuse.
1. Plug the charger into an appropriate outlet before
inserting batterypack.
2. Connect the charger and battery pack, making sure
the battery is fully seated. The (charging) light will
blink continuously indicating that the charging process
hasstarted.
3. The completion of charge will be indicated by the light
remaining ON continuously. The battery pack is fully
charged and may be removed and used at this time or
left in the charger.
NOTE: To remove the battery pack, some chargers require
the battery pack release button to bepressed.
Indicators
Charging
Fully Charged
Hot/Cold Pack Delay*
*DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:
The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
WARNING: Read all safety warnings,
instructions, and cautionary markings for the
battery pack, charger and product. Failure to
follow the warnings and instructions may result
in electric shock, fire and/or seriousinjury.
• DO NOT attempt to charge the battery pack with
any chargers other than a DeWALT charger. DeWALT
charger and battery pack are specifically designed to
worktogether.
• These chargers are not intended for any uses other
than charging DeWALT rechargeable batteries.
Any other uses may result in risk of fire, electric shock
orelectrocution.
• Do not expose the charger to rain orsnow.
• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.
• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected
to damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide
a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The
smaller the gauge number of the wire, the greater the
capacity of the cable, that is, 16 gauge has more capacity
than 18gauge. An undersized cord will cause a drop in
line voltage resulting in loss of power and overheating.
When using more than one extension to make up the
total length, be sure each individual extension contains at
least the minimum wire size. The following table shows
the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier
gauge. The lower the gauge number, the heavier thecord.
• Do not place any object on top of the charger or
place the charger on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger in a position away from any heat
source. The charger is ventilated through slots in the top
and the bottom of thehousing.
• Do not operate the charger with a damaged cord
orplug–have them replaced immediately.
• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of
electric shock, electrocution orfire.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of

7
ENGLISH
yellow light will turn off and the charger will resume the
charging procedure.
A charger will not charge a faulty battery pack. The charger
refusing to light could indicate a problem with the charger
or a faulty battery pack.
NOTE: If the charger refuses to light, take the charger and
battery pack to be tested at an authorized servicecenter.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack may charge at a slower rate than a
warm batterypack.
The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be cooled.
Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of the charger.
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium-
ion battery pack on the charger until it is fully charged.
Important Charging Notes
1. Longest life and best performance can be obtained if
the battery pack is charged when the air temperature
is between 65°F – 75°F (18° – 24°C). DO NOT charge
when the battery pack is below +40°F (+4.5°C), or
above +104°F (+40°C). This is important and will
prevent serious damage to the batterypack.
2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem. To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulatedtrailer.
3. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp
or other appliance;
b. Check to see if receptacle is connected to a light
switch which turns power off when you turn out
the lights;
c. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 65°F – 75°F (18° – 24°C);
d. If charging problems persist, take the tool, battery
pack and charger to your local servicecenter.
4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may
also charge a partially used pack whenever you desire
with no adverse effect on the batterypack.
5. Foreign materials of a conductive nature such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil, or any buildup of metallic particles
should be kept away from charger cavities. Always
unplug the charger from the power supply when there
is no battery pack in the cavity. Unplug the charger
before attempting toclean.
6. Do not freeze or immerse the charger in water or any
otherliquid.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or
any cleaningsolutions.
Wall Mounting
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which may
impede air flow. Use the back of the charger as a template
for the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9mm), screwed into wood to
an optimal depth leaving approximately 7/32" (5.5 mm)
of the screw exposed. Align the slots on the back of the
charger with the exposed screws and fully engage them in
theslots.Components (Fig. A)
WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.
Intended Use
This dust extractor is designed for wet/dry applications and
to operate on a DeWALT 60V FLEXVOLT™ battery pack only.
This dust extractor is for household and professionaluse.
DO NOT use in presence of flammable liquids orgases.
DO NOT let children come into contact with the appliance.
Supervision is required when inexperienced operators use
thisappliance.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.

ENGLISH
8
3
Fig. D
Wet Pick Up Applications (Fig. H)
The dust extractor is designed to perform as a wet/dry unit.
• Use seperate filters for wet and dry pick up applications
to avoid filter clogging.
• Water sense probes 27 will automatically shut off the
dust extractor when the maximum fill level has been
reached. Move the two position switch to the Off (O)
position, remove the battery pack, and empty the tank
before turning the dust extractor back on.
• It is recommended that the tank be emptied of any dry
contents prior to being used for wet pick up to facilitate
tankcleaning.
• When finished with a wet pick application, remove the
filters and allow them to dry completely. This will avoid
mildew gathering on the filters.
• Make sure the dust extractor is completely dry before
switching back to dry pick up applications.
To Empty Tank (Fig.A,F, G)
WARNING: Before emptying the dust extractor,
ALWAYS make sure the two position switch is in the
off position amd remove the battery pack.
CAUTION: Remove the dust extractor hose from any
liquid before emptying the dust extractor.
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
NOTE: During wet pick up applications it is normal for
a small amount of liquid to flow from the dust extractor
hose when the dust extractor is shutoff.
2. Unlatch tank latches 4 and remove dust extractor
head6.
3. Empty contents of tank 16 into a suitable container
ordrain.
Connecting to Power Tools (Fig.A,E)
1. Choose the correct power tool adapter 26 to fit the
power tool connection on the tool to be used, refer to
Optional Accessories under Maintenance.Attach
power tool adapter 26 to powertool.

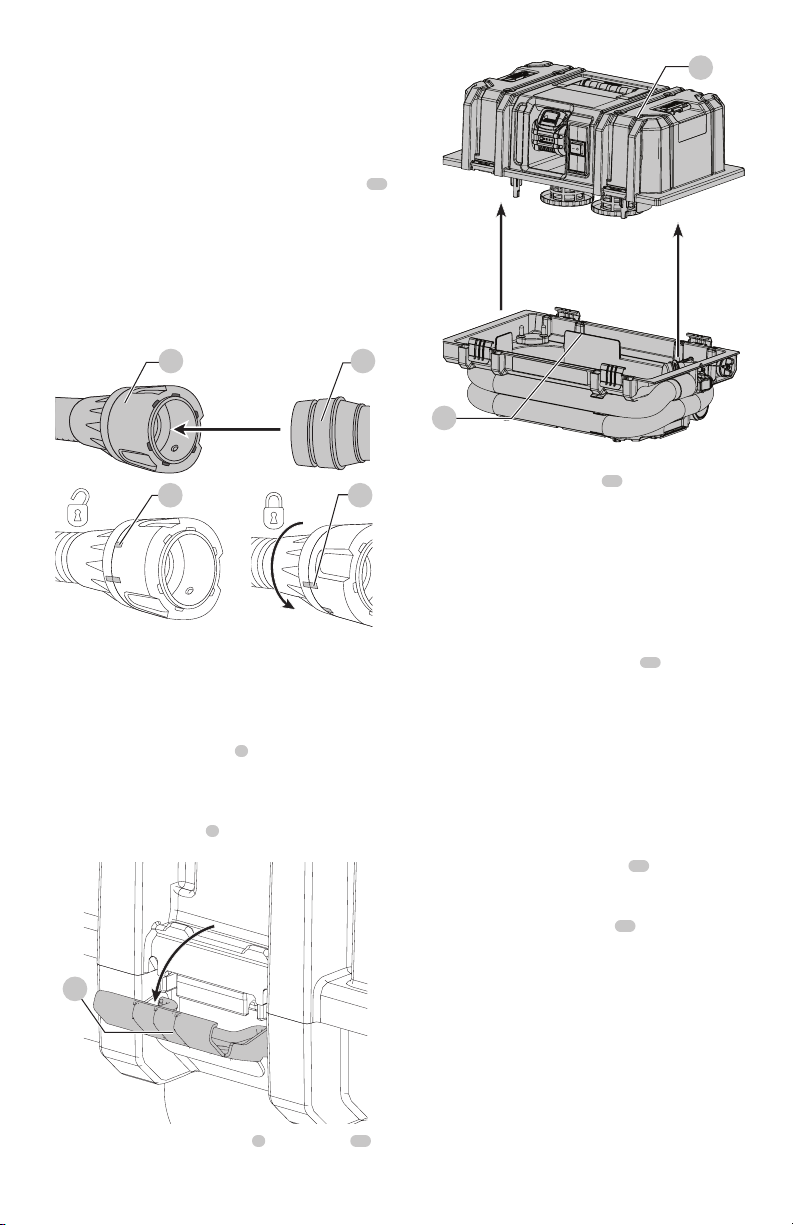

2. Your DeWALT construction dust extractor is fitted
with the DeWALT AirLock®connection system. The
AirLock®allows for a fast, secure connection between
the dust extractor hose2 and power tool. The
AirLock®connector25 connects directly to DeWALT
Attaching the Hose to the Dust Extractor
(Fig. A)
To attach the hose to the dust extractor, press the hose
release latch 15 and insert the proper end of the hose into
the hose inlet. The hose must be inserted fully before the
hose release latch isreleased.
To remove the hose, press the hose release latch and
remove the hose. The hose must be fully removed before
releasing the hose releaselatch.
The hose inlet plug 9 may be used to cover the hose inlet if
the hose is removed for transportation, cleaning,etc.
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig.C)
NOTE: Make sure your battery pack 7 is fullycharged.
1. To install the battery pack into the dust extractor, insert/
slide battery pack into battery port 1. Make sure the
battery pack is fullyseated.
Fig. C
1
7
8
2. To remove the battery pack from the dust extractor,
press and hold the battery release 8 on the battery
pack and remove. To charge the pack, insert it into your
DeWALTcharger.
Using the Dust Extractor (Fig.A,D)
1. Attach the appropriate accessory to the hose 2.
2. Insert the battery pack 7.
3. To turn dust extractor on, press the two position switch
3 to the On(–) position.
4. When finished, turn the dust extractor off by pressing
the two position switch to the Off(O) position.

9
ENGLISH
compatible tools or through the use of an AirLock®
adapter(available from your local DeWALT supplier).
Refer to the Optional Accessories section for detail on
availableadapters.
NOTE: If using an adapter, ensure it is firmly attached to
the tool outlet before following the stepsbelow.
a. Ensure the collar on the AirLock®connector is in the
unlock position. (Refer to FigureE.) Align notches17
on collar and AirLock®connector as shown for unlock
and lockpositions.
b. Push the AirLock®connector onto the adapter
connectorpoint.
c. Rotate the collar to the lockedposition.
NOTE: The ball bearings inside collar lock into slot
and secure the connection.The power tool is now
securely connected to the dustextractor.
Fig. E 25 26
1717

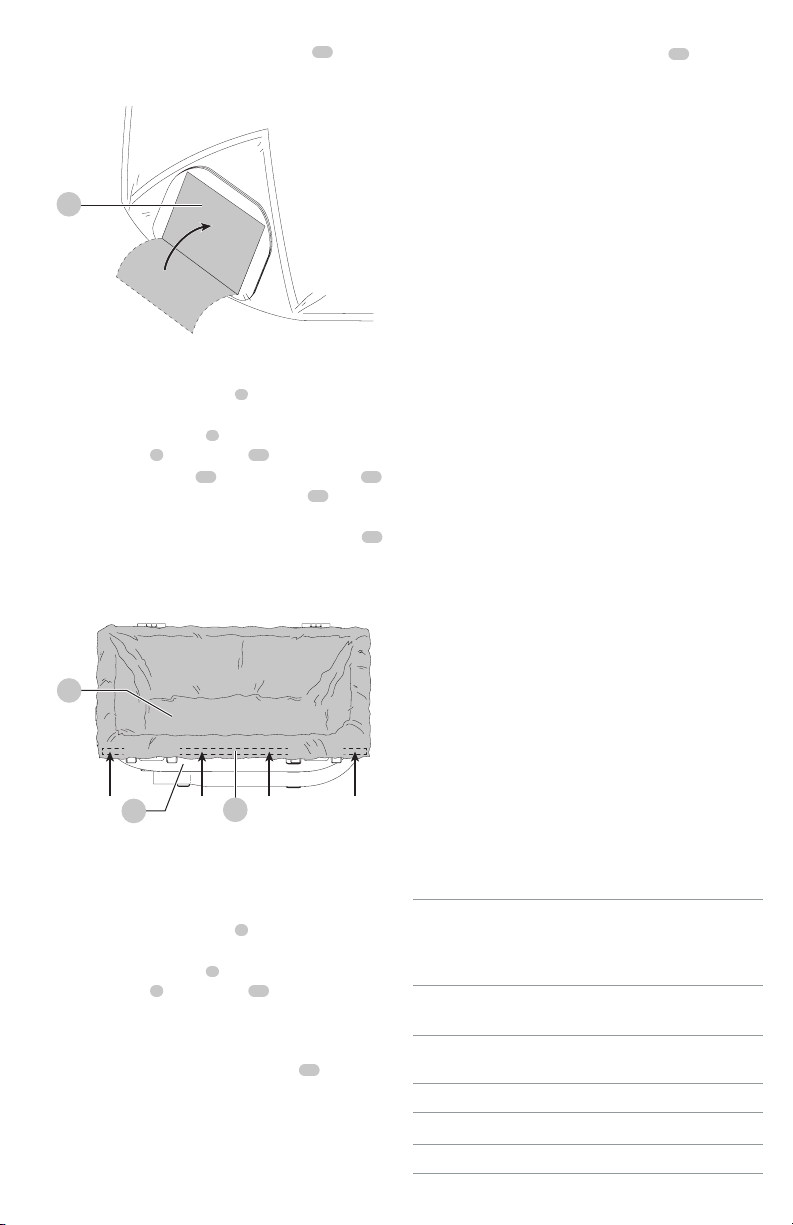

Dust Extractor Cleaning
To Empty Tank (Fig. A, F–H)
The sound of the motor changes and suction is reduced
when the tank isfull.
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
NOTE: Wait an adequate amount of time after shutting
the dust extractor off to allow dust to settle.
2. Unlatch the tank latches 4.
Fig. F
4
3. Remove the dust extractor head 6 from thetank 16.
Fig. G
6
16
4. Empty the contents of the tank into a suitablecontainer.
5. Clean or change HEPA filters 18 . Refer to HEPA Filter
section of thismanual.
6. Inspect machine for damage by foreign objects. Contact
the nearest DeWALT authorized service center for
replacement of damaged or missingparts.
7. Replace dust extractor head onto the tank.
NOTE: The dust extractor head only fits in one
orientation as shown in Fig G.
8. Latchall four latchessecurely.
NOTE: Inspect water sense probes 27 during dust
extractor cleaning. Water sense probes may become
contaminated during operation. If contamination is
present, clean water sense probes thoroughly with
damp cloth to remove any visible contamination.
Stacking Using the DeWALT TSTAK®
Stacking Latches (Fig. A)
WARNING: When stacking, always place the dust
extractor on the bottom of the stack.
The DEWALT TSTAK® stacking latches 10 allow for other
TSTAK® products to securely stack one on top of the other
for convenience and portability.
To use the TSTAK® stacking latches 10 , place a TSTAK®
compatible unit on top of the dust extractor and flip up the
two TSTAK® stacking latches so that they clip securely to the
bottom of the unit.
HEPA Filter
WARNING: The filters must always be in place
whilevacuuming.
HEPA Filter Care
The HEPA filters included with this dust extractor are long
life filters. To be effective in minimizing dust recirculation,
especially in lead paint (EPA RRP Rule) applications, the
filters MUST be installed correctly and be in goodcondition.

ENGLISH
10
Automatic Filter Cleaning System
This dust extractor has a highly effective filter cleaning
system which minimizes filter clogging. Every 20 seconds,
both filters gets automatically cleaned. The cleaning process
alternates between the filters and continues through the life
of theunit.
NOTE: It is normal to hear a clicking sound during
thisprocess.
NOTE: After extended operation, the automatic filter
cleaning system may not be effective. When this happens,
the tank should be emptied and the filters may need to be
cleaned or replaced.
To Remove Filters (Fig. A, H)
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
2. Release tank latches 4 and remove dust extractor
head6 from canister. Place dust extractor head on a
level surface on itsside.
3. Turn each HEPA filter 18 counterclockwise, and
carefully remove from dust extractor head, ensuring
debris does not fall into mountinghole.
NOTE: Use care to not damage filtermaterial.
18
Fig. H
20
27
4. Inspect filters for wear, tears or otherdamage.
NOTE: If there is any doubt on the condition of the
filters, they MUST be replaced. DO NOT continue use if
filters aredamaged.
WARNING: Never use compressed air or a brush to
clean filters, otherwise damage to the filter membrane
will occur which will allow dust to pass through the
filter. If needed, rinse with room temperature water
and let air dry. Cleaning of the filters is typically
unnecessary. Even if the filter is covered with dust,
the automatic filter cleaning system will maintain
maximum performance and continue to function. If
visual damage to the filter membrane exists, replace
filters. Filters typically last between six and twelve
months, depending on use andcare.
To Install Filters (Fig. A, H)
WARNING: The filters must always be in place
whilevacuuming.
1. Ensure filter seal 20 is in place and isnot damaged
ordirty.
2. Line up the tabs on the HEPA filter 18 to the notches
on the dust extractor head and using moderate force,
push down and turn clockwise until the filter is secure.
NOTE: Use care to not damage filtermaterial.
3. Place the dust extractor head 6 onto the tank 16 and
secure it by closing the tank latches 4.
Installing the Paper or Fleece Bag
(Fig.A,G, I)
When vacuuming fine dust, you may also use an additional
paper bag or fleece bag 12 to make emptying the
tank16easier.
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
2. Unlatch the tank latches 4 and remove the dust
extractor head 6 from thetank 16.
3. Attach the bag by passing the two tabs 21 on the bag
opening past the two notches 22 on thedust extractor.
4. Rotate the bag a quarter turn until the square edge 23
is facingupward.
Fig. I
22
23
21
5. Fit bag inside the tank ensuring it is not folded
orpinched.
6. Replace dust extractor head onto the tank and
latchsecurely.
Removing and Disposing the Bag
(Fig.A, G, J)
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
2. Unlatch the tank latches 4 and remove the dust
extractor head 6 from thetank 16.
NOTE: It is normal for there to be a small amount of
dust in the tank even with the the bag properlyinstalled.
3. Rotate the bag until the two tabs align with the two
notches on the dust extractor and remove the bag.
4. Once the bag is removed it can be sealed fordisposal.

11
ENGLISH
a. Peel the backing from the adhesive seal 24.
b. Press the adhesive seal over the opening and
properly dispose of the bag. DO NOT reuse thebag.
Fig. J
24
Installing the Plastic Liner (Fig.A,I, K)
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
2. Unlatch the tank latches 4 and remove the dust
extractor head 6 from thetank 16.
3. Attach the plastic liner 28 by passing the two tabs21
on the bag opening past the two notches 22 on
thedust extractor as shown in Fig. I.
4. Rotate the bag a quarter turn until the square edge 23
is facingupward.
5. Fold the plastic liner over the top edge of the tank.
Fig. K
28
29
16
6. Replace dust extractor head onto the tank and
latchsecurely.
Removing and Disposing the Plastic
Liner (Fig. A, I, K)
1. Press the two position switch 3 to the Off (O) position
and remove thebattery.
2. Unlatch the tank latches 4 and remove the dust
extractor head 6 from thetank 16.
NOTE: It is normal for there to be a small amount
of dust in the tank even with the the plastic liner
properlyinstalled.
3. Peel the backing from the adhesive tape 29 along the
top edge the plastic liner and seal the liner.
4. Rotate the plastic liner until the two tabs align with the
two notches on the dust extractor and remove the liner.
5. Peel the backing from the adhesive seal 24. as shown
in Fig. J.
6. Press the adhesive seal over the opening and properly
dispose of the bag. DO NOT reuse thebag.Maintenance
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.Cleaning
WARNING: Using a damp cloth, clean dust
from air vents at least once a week. Wear proper
ANSIZ87.1 (CAN/CSA Z94.3) eye protection and
proper respiratory protection as required by OSHA or
other governmental/provincial institutions for the
application beingperformed.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap.Accessories
WARNING: Since accessories, other than those
offered by DeWALT,have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only DeWALT
recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact DeWALT, call 1-800-4-DeWALT
(1-800-433-9258).
Replacement filters are available at extra cost at your local
DeWALT servicecenter.
Dust Collector
In the vacuum mode, the appliance can also function as a
dust collector for power tool applications producing dust
ordebris.
IMPORTANT! The DWV9000 dust extraction adapter is
designed to work with AirLock®Compatible DeWALT
power tools. An additional adapter will be needed with
non-compatible DeWALTtools.
Optional Accessories
DC5151H
HEPA filter: Captures 99.97% of all particles
greater than or equal to 0.3microns.
Required when picking up lead
paintdebris.
DWE46100 5"–6" (127–152 mm)
Cutting/tuckpointing shroud
DWE46101 5"–6" (127–152 mm)
Cutting/tuckpointing shroud kit
D25301D Dust extraction adapter
DWE46150 5" (127 mm) Cutting/tuckpointing shroud
DWE46152 5" (127 mm) Surfacing shroud

ENGLISH
12
DWH050K DWH050 Universal drilling dust extraction
system
DWH052K DWH052 1-1/8" Hex hammer dust
collection
DWH053K DWH053 SDSMAX and spline chipping
dust collection
DWV9316 15' (4.57m) Anti-Static Hose 1-1/4" hose
DWST17889 Cart
DWST17888 Trolley
The filter bags provide a clean, easy and quick way to
dispose of the dustcollected.
Paper filter bags: The DCV9401 filter bags are designed to
capture many types of dust including drywall, concrete and
wood. These bags should be disposed of once the airflow
becomes restricted. DO NOT reusebags.
DCV9401 Disposable paper filter bag
Fleece filter bag: The DCV9402 fleece bag is designed
to capture many types of dust including drywall, concrete
and wood. This bag should be disposed of once the airflow
becomes restricted. DO NOT reuse this bag. The fleece bag
is ideal for heavier materials such as concrete and drywall
dust where a paper filter bag maytear.
DCV9402 Disposable fleece filter bag
The DCV9400 disposable plastic liner is designed to seal
the liner to the tank inlet without being pulled into the
filter during use. The plastic disposable liner allows for easy
cleanup and disposal of dust and keeps dust from escaping
back into the atmosphere during emptying. Because this
liner is specially designed not to be pulled into the filter,
there will be a small amount of dust remaining in thetank.
DCV9400 Disposable plastic
collectionliner
Hose and Accessory Storage (Fig.A)
When the dust extractor is not in use, the hose can be
wrapped around the appliance, on the tank, and secured
with the hose clips 5 also located on thedust extractor.
Repairs
The charger and battery pack are notserviceable. There are
no serviceable parts inside the charger or battery pack.
WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement, when
applicable) should be performed by a DeWALT factory
service center or a DeWALT authorized service center.
Always use identical replacementparts.
MAINTENANCE
Your DeWALT power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper
tool care and regularcleaning.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
The charger and battery pack are notserviceable.
Lubrication
Your power tool requires no additionallubrication.
Cleaning
WARNING: Blow dirt and dust out of the main
housing with dry air as often as dirt is seen collecting
in and around the air vents. Wear approved eye
protection and approved dust mask when performing
thisprocedure.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of the
tool. These chemicals may weaken the materials used
in these parts. Use a cloth dampened only with water
and mild soap. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.
Optional Accessories
WARNING: Since accessories, other than those
offered by DeWALT, have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only DeWALT
recommended accessories should be used with
thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with
normal household waste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is
available at www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due
care for our environment:

13
ENGLISH
• Run the battery pack down completely, then remove it
from the tool.
• Li-Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will
be recycled or disposed of properly.
After Service and Repair
DEWALT service centers are staffed with trained personnel
to provide customers with efficient and reliable product
service.We do not take any responsibility when you have
repaired in unauthorized service center. You can refer to the
leaflet of CONTACT CENTER LOCATOR in product package
and contact us through hotline, website or social media to
find the nearest DEWALT service center around you.

ENGLISH
14
한국어
14
ENGLISH
1
한국어
1
구성 요소
1 배터리 포트
2 집진기 호스
3 2-포지션 스위치
4 탱크 걸쇠
5 호스 클립
6 집진기 헤드
7 배터리 팩(DCV585B에
포함되지 않음)
8 배터리 분리 버튼
9 호스 흡입구 플러그
10 TSTAK® 스태킹 래치
12 양털 가방
13 핸들
15 호스 분리 래치
정의: 안전 경고 기호 및 단어
이 사용 설명서는 다음과 같은 안전 경고 기호 및 단어를 사용하여 위험한 상황과 부상 또는 재산 피해 위험을 경고합니다.

위험: 절박한 위험 상태를 나타내며, 방지하지 않으면, 사망 또는 심각한 부상을 초래합니다.

경고: 잠재적 위험 상태를 나타내며, 방지하지 않으면 사망 또는 심각한 부상을 초래할 수 있습니다.

주의: 잠재적으로 위험한 상태를 나타내며, 방지하지 않으면 경미하거나 가벼운 부상을 초래할 수 있습니다.

(단어없이 사용) 안전 관련 메시지를 나타냅니다.
참고: 신체 부상을 초래하지 않는 행위를 나타내며 방지하지 않으면 재산상의 손해가 발생할 수 있습니다.

경고: 모든 안전 경고와 지침을 읽으십시오. 아래
설명한 모든 지시 사항을 따르지 않으면 감전, 화재 및/
또는 심각한 부상을 초래할 수 있습니다.

경고: 전동 공구 또는 전동 공구의 어떤 부품도 절대
개조하지 마십시오. 제품이 파손되거나 신체 부상을
당할 수도 있습니다.
경고: 부상 위험을 줄이려면 사용 설명서를 읽으십시오.
그림A
English (original instructions)
1
2
3
4
4 5
6
7
13
9
15
10
12
10
8

ENGLISH
15
한국어
15
ENGLISH
2
한국어
2
중요 안전 지침
이 제품을 사용하기 전에 모든 지침을 읽으십시오
이 기기를 사용할 때는 다음을 포함한 기본 안전 예방 조치를
항상 준수해야 합니다.

경고: 화재, 감전 및 부상의 위험을 줄이려면:
• 전원에 연결할 때 기기를 방치하지 마십시오.
사용하지 않을 때와 정비하기 전에 배터리 팩을
제거하십시오.
• 비에 노출하지 마십시오. 실내에 보관하십시오.
• 기기를 장난감으로 사용하지 마십시오. 어린이가
사용하거나 근처에 있을때는 세심한 주의가
필요합니다.
• 설명서에 설명된대로 이 기기 만 사용하십시오.
권장되는 부착품만 사용하십시오.
• 어떤 방식으로든 오작동 징후가 보이면 이
제품을 사용하지 마십시오. 기기가 올바르게
작동하지 않거나, 떨어 뜨리거나, 손상되었거나,
야외에 방치하거나, 물에 빠졌다면 서비스 센터에
반환하십시오.
• 젖은 손으로 제품을 취급하지 마십시오.
• 기기의 개구부에 물건을 넣지 마십시오. 개구부가
막힌 상태에서 기기를 사용하지 마십시오. 먼지,
보풀, 머리카락 및 기타 공기 흐름을 방해할 수 있는
물건이 없도록 하십시오.
• 머리카락, 헐렁한 옷, 손가락 및 모든 신체 부위를
개구부와 움직이는 부품에 가까이 두지 마십시오.
• 전원에서 분리하기전에 모든 컨트롤을 끄십시오.
• 계단을 청소할 때는 각별히 주의하십시오.
기술 데이터
DCV585
전압 VDC 54(60 Max)
배터리 유형 Li-Ion
보호 수준 IPX4
부압 kPa 8.8
유량 l/s 24.7
용기 용량 l11
충전 액 max. l 7.5
호스 직경 mm 32
호스 길이 m2.4
무게 (배터리 팩 제외) kg 8
*최대 초기 배터리 전압 (워크로드없이 측정)은 60V입니다. 정격 전압은 54입니다.
배터리 충전기/충전 시간 (분)
카탈로그 번호 VDC Ah 무게 (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB118 DCB132 DCB119
DCB546/DCB606 18/54 (20/60 Max) 6.0/2.0 1.05 60 270 170 140 90 60 90 X
DCB547/DCB609 18/54 (20/60 Max) 9.0/3.0 1.46 75* 420 270 220 135* 75* 135* X
DCB548/DCB612 18/54 (20/60 Max) 12.0/4.0 1.44 120 540 350 300 180 120 180 X
DCB181 18 (20 Max) 1.5 0.35 22 70 45 35 22 22 22 45
DCB182/DCB204 18 (20 Max) 4.0 0.61 60/40** 185 120 100 60 60/40** 60 120
DCB183/DCB203 18 (20 Max) 2.0 0.40 30 90 60 50 30 30 30 60
DCB184/DCB205 18 (20 Max) 5.0 0.62 75/50** 240 150 120 75 75/50** 75 150
DCB185 18 (20 Max) 1.3 0.35 22 60 40 30 22 22 22 X
DCB187 18 (20 Max) 3.0 0.54 45 140 90 70 45 45 45 90
DCB189 18 (20 Max) 4.0 0.54 60 185 120 100 60 60 60 120
* 날짜 코드 201811475B 또는 그 이후
** 날짜 코드 201536 또는 그 이후

ENGLISH
16
한국어
16
ENGLISH
3
한국어
3
• 이 집진기는 OSHA 1926.1153 규칙에 따라 올바르게 사용되는
경우 OSHA Silica 1926.1153 집진 애플리케이션에 사용하도록
승인되었습니다.
• 석탄, 곡물 또는 기타 미분 된 가연성 물질과 같은 가연성
폭발성 물질을 진공 청소기로 청소하는 데 사용하지
마십시오.
• 물질의 진공 청소가 이 사용 설명서에 승인 된 용도로
구체적으로 명시되어 있지 않는 한 석면 또는 살충제와 같은
유해, 독성 또는 발암 성 물질을 진공 청소기로 청소하는 데
사용하지 마십시오.
• 폭발성 액체(예 : 휘발유, 디젤 연료, 난방유, 페인트 시너
등), 산 또는 용제를 흡입하지 마십시오.
• 건조한 지역이나 공기의 상대 습도가 낮을 때 정전기 충격이
발생할 수 있습니다. 이것은 일시적이며 먼지 추출기의
사용에는 영향을 미치지 않습니다.
• 자연 발화를 피하려면 매번 사용 후 용기를 비우십시오.
• 일부 나무에는 방부제가 들어있어 독성이 있습니다. 이러한
물질로 작업 할 때 흡입 및 피부 접촉을 방지하기 위해
특별한 주의를 기울이십시오. 재료 공급 업체에서 제공하는
모든 안전 정보를 요청하고 따르십시오.
• 집진기를 세우거나 기대지 마십시오. 집진기를 기울이면
심각한 부상을 입을 수 있습니다.
• 제조업체가 승인 한 카트 또는 트롤리와 함께 사용하는 경우
넘어질 때 움직이지 않도록 주의하십시오.
• 쌓을 때는 항상 집진기를 바닥에 놓으십시오.
• 핸들은 운송 전용입니다.
• 집진기를 손잡이만 잡고 들어 올리십시오. 제조업체가 승인
한 카트 또는 트롤리에 장착 된 경우 카트 또는 트롤리 핸들
만 사용하여 운송하십시오.

경고: 항상보안경을 사용하십시오. 매일 안경은 안전
안경이 아닙니다. 절단 작업에 먼지가 많은 경우에는
얼굴 마스크 나 방진 마스크를 사용하십시오. 인증 된
안전 장비를 항상 착용하십시오:
• ANSI Z87.1 보안경(CAN/CSA Z94.3),
• 청각 보호, ANSI S12.6 (S3.19)
• NIOSH/OSHA/MSHA 호흡기 보호.

경고: 파워 샌딩, 톱질, 그라인딩, 드릴링 및 기타 건설
작업으로 생성 된 일부 먼지에는 암, 선천적 결함 또는
기타 생식 손상을 유발하는 것으로 캘리포니아 주에
알려진 화학 물질이 포함되어 있습니다. 이 화학 물질의
몇 가지 예는 다음과 같습니다:
• 납 기반 페인트의 납,
• 벽돌 및 시멘트 및 기타 벽돌 제품의 결정질 실리카
• 화학 처리 된 목재의 비소 및 크롬.
이러한 노출로 인한 위험은 이러한 유형의 작업을
수행하는 빈도에 따라 다릅니다. 이러한 화학 물질에
대한 노출을 줄이려면 통풍이 잘되는 장소에서 작업하고
미세한 입자를 걸러낼 수 있도록 특별히 설계된 방진
마스크와 같은 승인 된 안전 장비를 사용하십시오.
• 파워 샌딩, 쏘잉, 그라인딩, 드릴링 및 기타 건축 활동으로
인한 먼지와의 장기적인 접촉을 피하십시오. 보호복을
착용하고 비누와 물로 노출 된 부분을 씻으십시오. 먼지가
입, 눈 또는 피부에 닿으면 유해한 화학 물질의 흡수가
촉진될 수 있습니다.
본 지침을 잘 보관해
두십시오
추가 안전 경고
a ) 의도하지 않은 장비 가동 방지. 배터리 팩에
연결하거나기기를 줍거나 운반하기 전에 스위치가
오프 위치에 있는지 확인하십시오 스위치에 손가락을
대고 기기를 운반하거나 스위치가 켜진 기기는 사고를
유발합니다.
b ) 조정, 액세서리 변경 또는 기기 보관 전에 기기에서
배터리 팩을 분리하십시오. 이러한 예방 안전 조치는
기기를 실수로 작동 할 위험을 줄입니다.
c ) 다시 충전할 때는 제조업체에서 지정한 충전기만
사용하십시오.
하나의 배터리 팩 유형에 적합한 충전기를
다른 배터리 팩과 함께 사용할 경우 화재의 위험이
있습니다.
d ) 특별히 지정된 배터리 팩이 있는 기기 만 사용하십시오.
다른 배터리 팩을 사용하면 부상을 입거나 화재의
위험이 있습니다.
e ) 배터리 팩을 사용하지 않을 때에는 클립, 동전, 키, 못,
나사 등의 금속 물체나, 단자 간에 연결할 수 있는 작은
금속 물체가 닿지 않도록 멀리 두십시오. 배터리 단자가
단락되면 화상을 입거나 화재의 위험이 있습니다.
f ) 가혹한 조건에서 배터리에서 액체가 방출될 수
있습니다; 접촉을 피하십시오. 실수로 접촉한 경우에는
물로 씻으십시오. 액체가 눈에 들어간 경우 치료를
받으십시오. 배터리에서 나온 액체는 통증을 유발하거나
화상을 입힐 수 있습니다.
g ) 손상되었거나 개조 된 배터리 팩이나 기기를 사용하지
마십시오. 손상되거나 개조 된 배터리는 예측할 수 없는
동작을 보여 화재, 폭발 또는 부상의 위험이 있습니다.
h ) 배터리 팩이나 제품을 불이나 온도에 노출시키지
마십시오.
화재나 130°C 이상의 온도에 노출되면폭발할
수 있습니다. 130°C의 온도는 265°F의 온도로대체될 수
있습니다.
i ) 자격을 갖춘 수리 기술자가 동일한 교체 부품 만
사용하여 서비스를 받으십시오. 이렇게 하면 제품의
안전이 유지됩니다.
본 지침을 잘 보관해
두십시오
집진기에 대한 특정 안전 규칙
경고: 화재, 감전 및 부상의 위험을 줄이려면 :
• 담배, 성냥 또는 뜨거운 재와 같이 타거나 연기가
나는 것을 집어 올리지 마십시오.
• 필터를 장착하지 않은 상태로 사용하지 마십시오.
집진기에 대한 추가 안전 경고
• 이 집진기는 2 개의 DC5151H HEPA 필터와 함께 사용하는
경우에만 HEPA 진공에 대한 EPA 납 관련 RRP(혁신, 수리 및
도장) 규칙을 준수합니다. (DCV585에 포함).
RRP(혁신, 수리 및 도장) 규칙에 대한 자세한 내용은 미국 환경
보호국 (EPA )에 문의하십시오.

ENGLISH
17
한국어
17
ENGLISH
4
한국어
4
수 있습니다. 배터리 단자를 함께 단락 시키면 화상 또는
화재가 발생할 수 있습니다.
• 절대로 배터리 팩을 충전기에 억지로 밀어 넣지 마십시오.
배터리 팩이 파열되어 심각한 부상을 입을 수 있으므로
호환되지 않는 충전기에 맞도록 배터리 팩을 개조하지
마십시오. 배터리 및 충전기의 호환성에 대해서는이
설명서의 끝에 있는 차트를 참조하십시오.
• 배터리 팩은
DeWALT
충전기로만 충전하십시오.
• 물이나 다른 액체에 튀거나 담그지 마십시오.
• 온도가 40°C (104°F)에 도달할 수 있는 장소(예 : 여름철 외부
창고 또는 금속 건물)에 공구와 배터리 팩을 보관하거나
사용하지 마십시오. 시원하고 건조한 곳에 배터리 팩을
보관하십시오.
참고: 트리거 스위치가 잠긴 상태로 공구에 배터리 팩을
보관하지 마십시오. 트리거 스위치 ON 위치에 테이프로
붙이지 마십시오.
• 배터리 팩이 심하게 손상되거나 완전히 낡았더라도 절대
소각하지 마십시오. 배터리 팩은 불속에서 폭발할 수
있습니다. 리튬 이온 배터리 팩을 태울 때 유독 가스와
물질이 생성됩니다.
• 배터리 내용물이 피부에 닿으면 즉시 중성 세척제로 해당
부위를 씻으십시오. 배터리액이 눈에 들어갔을 경우, 15분
정도 또는 통증이 가실 때까지 눈을 뜨고 물로 씻어냅니다.
의학적 주의가 필요한 경우, 배터리 전해질은 액체 유기
카보네이트와 리튬 염의 혼합물로 구성됩니다.
• 열린 배터리 셀의 내용물은 호흡기 질환을 일으킬 수
있습니다. 신선한 공기를 마시십시오. 증상이 지속되면
의사의 진료를 받으십시오.

경고: 화상 위험. 불꽃이나 불꽃에 노출되면 배터리
액체가 가연성일 수 있습니다.

경고: 화재 위험. 어떤 이유로든 배터리 팩을 절대
분해하지 마십시오. 배터리 팩 케이스에 금이 가거나
손상된 경우 충전기에 넣지 마십시오. 배터리 팩을
부수거나 떨어 뜨리거나 손상시키지 마십시오. 날카로운
타격을 받았거나 떨어 뜨렸거나 넘어 지거나 손상된
방식의 배터리 팩 또는 충전기는 사용하지 마십시오 (
예 : 못을 뚫거나 망치로 부딪 히거나 밟은 경우). 손상된
배터리 팩은 재활용을 위해 서비스 센터에 반환해야
합니다.
보관 권장 사항
1. 가장 좋은 보관 장소는 직사광선 및 과도한 열 또는 냉기에서
시원하고 건조한 곳입니다.
2. 장기간 보관하려면 완전히 충전 된 배터리 팩을 충전기의
서늘하고 건조한 장소에 보관하여 최적의 결과를 얻는 것이
좋습니다.
참고: 배터리 팩은 완전히 방전된 상태로 보관해서는 안됩니다.
사용하기 전에 배터리 팩을 재충전해야 합니다.
배터리 팩 청소 지침
1. 천이나 부드러운 비금속 브러시를 사용하여 배터리 외부에서
먼지와 그리스를 제거할 수 있습니다. 물이나 세척액을
사용하지 마십시오.

경고: 이 공구를 사용하면 먼지가 생성 및/또는
분산되어 심각하고 영구적 인 호흡기 또는 기타 부상을
입을 수 있습니다. 먼지 노출에 적합한
NIOSH/OSHA 승인
호흡기 보호 장치를 항상 사용하십시오. 얼굴과 몸에서
입자가 닿지 않도록 하십시오.

경고: 사용 중에는 항상 ANSI S12.6(S3.19) 을 준수하는
적절한 개인 청각 보호 장치를 착용하십시오. 일부 조건
및 사용 기간에 따라 이 제품의 소음으로 인해 청각이
손상될 수 있습니다.

주의: 사용하지 않을 때는 공구를 걸려 넘어 지거나
떨어질 위험이없는 안정된 표면에 놓으십시오.
• 통풍구는 종종 움직이는 부품을 덮으므로 피해야 합니다.
헐렁한 옷, 장신구 또는 긴 머리는 움직이는 부품에 걸릴 수
있습니다. 공구 레이블에는 다음 기호가 포함될 수 있습니다.
기호와 그 정의는 다음과 같습니다.
V......................... 볼 트
Hz .......................헤르츠
min.....................분
or DC......직류
......................급 건설 (접지)
…/min.............. 분당
BPM.................... 분당 비트
IPM.....................분당 영향
RPM.................... 분당 회전
sfpm ...................분당 표면 피트
SPM....................분당 스트로크
OPM.................... 분당 진동
A.........................암페어
W........................와트
or AC........... 교류
or AC/DC.... 교류 또는 직류
......................II 급 구성 (이중
절연)
no.......................무부하 속도
n.........................정격 속도
......................접지 단자
.....................안전 경고 기호
.....................가시 광선
.....................빛을 응시하지
마십시오
.....................호흡기 보호구를
착용하십시오
..................... 보안경을
착용하십시오
..................... 청력 보호
장치를
착용하십시오
..................... 모든 문서를
읽으십시오
IPXX .................... IP 기호
배터리 및 충전기
배터리 팩은 포장박스에서 꺼낼 때 완전히 충전된 상태가
아닙니다. 배터리 팩과 충전기를 사용하기 전에 아래 안전 지침을
읽은 다음 설명 된 충전 절차를 따르십시오. 교체 배터리 팩을
주문할 때는 카탈로그 번호와 전압을 반드시 포함하십시오.
모든 지시 사항을 읽으십시오
모든 배터리 팩에 대한 중요한 안전 지침

경고: 배터리 팩, 충전기 및 제품에 대한 모든 안전
경고, 지침 및주의 표시를 읽으십시오. 경고 및 지침을
따르지 않으면 감전, 화재 및 / 또는 중상을 입을 수
있습니다.
• 가연성 액체, 가스 또는 먼지가 있는 곳과 같은 폭발성
환경에서 배터리 팩을 충전하거나 사용하지 마십시오.
충전기에서 배터리 팩을 삽입하거나 제거하면 먼지 나
연기가 발화될 수 있습니다.
• 배터리 팩을 사용하지 않을 때는 종이 클립, 동전, 열쇠, 못,
나사 또는 기타 작은 금속 물체와 같은 다른 금속 물체와
가까이 두지 마십시오. 한 단자에서 다른 단자로 연결할

ENGLISH
18
한국어
18
ENGLISH
5
한국어
5
잔량 표시계 배터리 팩 (그림 B)
일부
DeWALT
배터리 팩에는 배터리 팩의 남아 있는 배터리 잔량을
표시하는 세 개의 녹색 LED 등으로 구성된 연료계가 포함되어
있습니다.
연료 게이지는 다음 표시기에 따라 배터리 팩에 남아있는
대략적인 충전량을 나타냅니다.
75–100% 충전
51–74% 충전
< 50% 충전
팩을 충전해야 합니다
연료 게이지를 작동 시키려면 연료 게이지 버튼을 길게 누릅니다.
을 누릅니다. 녹색 LED 표시등 3 개가 조합되어 켜짐으로써 충전
잔량 수준을 나타냅니다. 배터리 잔량이 사용 가능한 한계치
미만이면 배터리 잔량 표시계가 켜지지 않으므로 배터리를
재충전해야 합니다.
그림 B
참고: 잔량표시계는 배터리 팩에 남아 있는 충전 레벨을 나타내는
것일 뿐입니다. 공구의 기능성을 나타내는 것이 아니며 제품
구성품, 온도 및 최종 사용자의 용도에 따라 변경될 수 있습니다.
연료 게이지 배터리 팩에 대한 자세한 내용은 1-800-4-
DeWALT
(1-800-433-9258)로 문의하거나 웹 사이트www.dewalt.com을
방문하십시오.
운반 
경고: 화재 위험. 배터리 팩을 보관하거나 휴대할
때는 노출된 배터리 단자에 금속 물체가 닿지
않도록 하십시오. 예를 들어 손톱, 나사, 열쇠 등이
느슨한 앞치마, 포켓, 도구 상자, 제품 키트 상자,
서랍 등에 배터리 팩을 두지 마십시오. 배터리 단자가
실수로 열쇠, 동전, 수공구 등과 같은 전도성 물질과
접촉하면 배터리를 운반하는 중에 화재가 발생할 수
있습니다. 미국 교통부 위험 물질 규정
(HMR) 은 실제로
단락으로부터 적절히 보호되지 않는 한 상업 또는 기내
반입 수하물로 배터리를 운반하는것을 금지합니다.
따라서 개별 배터리 팩을 운송 할 때는 배터리 단자가
접촉되어 단락 될 수있는 물질로부터 보호되고 잘
절연되어 있는지 확인하십시오.
참고:
리튬이온 배터리는 위탁 수하물에 넣지 마십시오.
DeWALT
FLEXVOLT ™ 배터리 배송
D
e
WALT FLEXVOLT™ 배터리에는 두 가지 모드가 있습니다: 사용 및
배송.
사용 모드: FLEXVOLT ™ 배터리가 독립형이거나 D
e
WALT 18V(20V
Max) 제품인 경우 18V(20V Max) 배터리로 작동합니다. FLEXVOLT ™
배터리가 54V(60V Max) 또는 108V(120V Max) (54V(60V Max) 배터리 2
개) 제품인 경우 54V(60V Max) 배터리로 작동합니다.
배송 모드 : 캡이 FLEXVOLT ™
배터리에 부착되면 배터리가
배송 모드에 있습니다. 셀
스트링은 팩 내에서 전기적으로
분리되어 와트시 등급이 높은 배터리 하나에 비해 와트시 (Wh)
등급이 낮은 배터리 3개가 생성됩니다. 와트시 등급이 낮은 3개의
배터리 수량이 증가하면 와트시 높은 배터리에 적용되는 특정
운송 규정에서 팩을 면제받을 수 있습니다.
배터리 레이블은 2개의 와트시 등급을 나타냅니다 (예 참조).
배터리 배송 방법에 따라 적절한 배송 시간 등급을 사용하여
해당 배송 요구 사항을 결정해야 합니다. 운송 캡을 사용하는
경우 팩은 "배송"에 표시된 와트시 등급의 배터리 3개로
간주됩니다. 캡이 없거나 공구로 배송 된 경우 "사용"옆에 표시된
와트시 등급의 배터리 한 개로 간주됩니다.
USE: 108 Wh Shipping: 3 x 36 Wh
사용 및 배송 라벨 표시 예제
예를 들어, 운송 Wh 등급은 3x36 Wh를 나타낼 수 있으며 이는
각각 36Wh의 배터리 3 개를 의미합니다. Wh 108 Wh (1 배터리)를
나타낼 수 있습니다.모든 배터리 충전기에 대한 중요 안전 지침

경고: 배터리 팩, 충전기 및 제품에 대한 모든 안전
경고, 지침 및 주의 표시를 읽으십시오. 경고 및 지침을
따르지 않으면 감전, 화재 및 / 또는 중상을 입을 수
있습니다.
•
DeWALT
충전기 이외의 충전기로 배터리 팩을 충전하지
마십시오.
DeWALT
충전기와 배터리 팩은 함께 작동하도록
특별히 설계되었습니다.
• 이러한 충전기는
DeWALT
충전용 배터리 충전 이외의 용도
로는 사용할 수 없습니다. 다른 용도로 사용하면 화재, 감전
또는 감전 사고의 위험이 있습니다.
• 충전기를 비나 눈에 노출시키지 마십시오.
• 충전기를 분리할 때 코드가 아닌 플러그를 잡아 당기십시오.
전기 플러그와 코드가 손상 될 위험이 줄어듭니다.
• 코드가 밟히거나 걸려 넘어 지거나 손상되거나 응력을받지
않도록 코드를 배치하십시오.
• 불가피한 경우가 아니면 연장 코드를 사용하지 마십시오.
연장 코드를 잘못 사용하면 화재, 감전 또는 감전의 위험이
있습니다.
• 충전기를 실외에서 작동 할 때는 항상 건조한 장소를
제공하고 실외용으로 적합한 연장 코드를 사용하십시오.
실외 사용에 적합한 코드를 사용하면 감전 위험이
줄어듭니다.
• 연장 코드는 안전을 위해 적절한 전선 크기(AWG 또는 미국
전선 게이지)를 가져야 합니다. 와이어의 게이지 수가
적을수록 케이블의 용량이 커집니다. 즉, 16 게이지는 18
게이지보다 용량이 더 큽니다. 크기가 작은 코드는 전원
전압을 떨어 뜨려 전력 손실 및 과열을 초래합니다. 전체
길이를 구성하기 위해 하나 이상의 연장을 사용하는 경우
각 개별 연장에 최소 와이어 크기가 포함되어 있는지
확인하십시오. 다음 표는 코드 길이 및 명판 암페어 정격에
따라 사용하기에 적합한 크기를 보여줍니다. 의심스러운
경우 다음 무거운 게이지를 사용하십시오. 게이지 번호가
낮을수록 코드가 무거워집니다.
• 충전기 위에 물건을 놓거나 통풍구를 막고 과도한 내부 열을
유발할 수있는 부드러운 표면에 충전기를 놓지 마십시오.
충전기는 열원에 가까이 두지 마십시오. 충전기는 하우징의
상단과 하단에 있는 슬롯을 통해 환기됩니다.
• 손상된 코드 나 플러그로 충전기를 작동하지 마십시오 –즉시
교체하십시오.
