Dear customer,
we congratulate you for choosing a high quality product
which will surely satisfy your expectations.
With our thanks for choosing us,
we kindly invite you to examine the present operating
instructions manual before operating your new device.
SUMMARY
WARNING:
GENERAL/MECHANICAL DANGEROUS
DANGER VOLTAGE
A TEXT IN UPPER-CASE, IDENTIFIED BY ONE OF THE SYMBOLS ABOVE, CONTAINS INSTRUC-
TIONS THAT, IF NOT FOLLOWED, MAY CAUSE HARM TO PEOPLE.
A text in lower-case, identified by this symbol, contains instructions that, if not followed, could cause
damages or malfunctions to the device, or falls in its quality.
1 IMPORTANT SAFETYMEASURES........................ 4
1.1 Technical documentation ................................ 4
1.2 Accidentprevention ........................................ 4
1.3 Damageprevention......................................... 5
1.4 Importantsuggestions .................................... 5
2 MACHINE'S MAINCOMPONENTS ........................ 6
3 TECHNICALDATA................................................. 7
3.1 Technical data and CE mark plate................... 7
3.2 Acoustic pressure .......................................... 7
4 MOVINGANDUNPACKING................................... 7
4.1 Movingmachineinitspackaging .................... 7
4.2 Unpacking...................................................... 8
5 INSTALLING ......................................................... 9
5.1 Placingyourmachine..................................... 9
5.2 Assembling.................................................... 9
5.3 Connectingtopower..................................... 10
5.4 Connecting towater supply system
(watercondensingmachines) ....................... 11
5.5 Checkingrotation ......................................... 12
6 HOW TO OPERATEYOUR MACHINE.................. 12
6.1 Controlsandindicators................................. 12
6.2 Preparingproduction .................................... 14
6.3 Programming ............................................... 14
6.4 Production ................................................... 15
6.5 Preservation(overnight) ................................ 16
7 WASHINGANDSANITATION.............................. 16
7.1 Rinse -preliminary wash .............................. 16
7.2 Partsdisassembling..................................... 17
7.3 Washing ...................................................... 18
7.4 Re-assembling ............................................. 19
7.5 Sanitation .................................................... 20
8 MAINTENANCE ................................................... 20
8.1 Standardmaintenance(operator) .................. 20
8.2 Yearlymaintenance...................................... 21
9 PERIODSOFINACTIVITY................................... 21
10 MALFUNCTIONS ................................................ 21

English
Softice-cream machine
4
Z15.069 V01
1 IMPORTANT SAFETY MEASURES
PLEASE READ THESE INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL AND OPERATE YOUR
MACHINE.
THIS MANUAL PROVIDES ALL INFORMATION REQUIRED TO INSTALL, OPERATE AND MAINTAIN
MACHINE UNDER SAFE CONDITIONS. FAILURE TO COMPLY WITH THE SAFETY MEASURES
SET OUT IN THIS HANDBOOK MAY RESULT IN SERIOUS DAMAGE TO THE MACHINE AS WELL
AS FORFEIT ANY MANUFACTURER'SGUARANTEE.
1.1 Technical documentation
— All technical documentation suppliedwiththeSOFT ICE-CREAM MACHINE (from now onreferred to as“MACHINE”)
is an ESSENTIAL PARTof the machine and therefore must be kept in a safe place for the duration of the machine's
life. Thisdocumentation, in compliance with the lawin force(EU directiveson health and safety measures), includes:
• OPERATINGINSTRUCTIONS(thismanual):itmustbereadbytheUSERaswell asanyoneauthorizedtoINSTALL
it. It providesall information requiredto correctlyinstall themachine, correctlyoperateit, for routinemaintenance
and any possible malfunctionof the machine;
• TECHNICAL HANDBOOK: it contains the machine's technical specifications (characteristics, diagrams, spare
parts etc.) It is to be referred to by the AUTHORIZED ASSISTANCE SERVICE personnel to whom any call for
assistance must begiven.
• EUDECLARATIONOF COMPLIANCE:incompliance withEUdirectivesrelevanttothemachine;
• FORM of electric runningtests.
— Incase of sale ortransferof themachinetoanotherperson, theabove documentationmust behanded overtothenew
owner in order to become acquainted with all safety norms, technical specifications as well as how to operate the
machine.
1.2 Accident prevention
ALWAYS FOLLOW THESE SAFETY MEASURES TO PREVENT PERSONAL INJURIES!
— Do not insert your fingers or any objects through the machine's grills, loopholes or drain holes.
— Do NOT remove or hide, for any reason, any label applied to the machine.
— NEVER open protective panels. Thereare no internal parts in the machinewhichcan be operated bythe user.
— The userMUST NOT carry out any operations not specified in this manual or requiring toolsnot supplied with
the machine by the manufacturer. These must be exclusively carried out by ServiceAssistance personnel.
— Always unplug machine beforeundertaking any operation requiring access to the machine's moving parts.
— Anymodification to theelectrical circuitmust beexclusivelycarried out by qualified and certifiedpersonnel.
— Themachineis designedto beoperated by adults: do not allow children to getcloseand untrained peopleto
operate it.
— Modifying or attempting to modify the machine could be dangerous as well as forfeit any manufacturer's
guarantee.
OPERATING THE MACHINE, AS ANY OTHER ELECTRICAL EQUIPMENT, ENTAILS OBSERVING
SOME VERY IMPORTANT SAFETY RULES, IN PARTICULAR:

English
Operatinginstructions 5
Z15.079 V01
— Do not touch it with wet or damp feet or hands.
— Do not operate when barefoot.
— Do not pull electrical feeding cable to unplug.
— Do not exposemachine to rain and prevent any water from entering, i.e. during washing.
— In case of failure and/or malfunction and any time there is apparent damage to the cable, cut power off and
call Assistance Service.
1.3 Damage prevention
ALWAYS comply with the followingnormsto avoid DAMAGESto the machine.
— Any use of themachine other than FROZENYOGURT andSOFT ICE-CREAM is to be considered improper.
— Do not use the cylinder when empty or with poorqualitymixtureand whenever the ice-cream runs off, quickly refill the
tub with the mixture. Indeed the ice-cream inside the cylinder oils its surface and conducts cold to the beater, that
reaches the same temperature. In case the cylinder gets empty, an ice skin will form, obstructing the beater for
mechanical overload.
— Inthe event youhave turnedon the refrigerator without inserting the beater in the cylinder first, wait for the cylinder to
warm up toroom temperaturebeforeproceedingtoinstallthebeater.
— The beater and the cylinder have been manufactured and assembled with precision: therefore they are sensitive to
changesof temperature, which could cause breakdownsor damagesto themachine's mechanical partsdue tothermal
dilation. NEVER allow suddenchanges of temperature to any refrigeratedparts: DO NOT pour water (hot or cold) in
the cylinder soon after ice-cream has been made.
— Do not drop or knock any of the machine's parts.
— Only useoriginal spare parts.
— If youare notgoing to usethemachinefor aprolongedperiod of time, orfor ever, proceed asexplainedin Chapter 9 -
Periodsof inactivity.
1.4 Importantsuggestions
— After each delivery, ice cream, make sure that the levers [16] tap [17] are placed
in the locked (up).
Otherwise the beater will soon freeze because the cylinder will get frozen and the
machine will be out of order (“oo” will appear on the display).
— Themachine includesseveral food-compatiblerubber gaskets. Replacethem ona
regular basis (ref. Chapter 8 - Maintenance) to avoidice-cream or mixture leaks.
— Each timethe machine isreassembled, check that gaskets, especially moving ones:
• thebeaters' gland
• thetap pistons' gasket
• thecarburettors' gaskets
AREINTACTANDWELLLUBRICATED. Usevaseline oranyFOOD COMPATIBLElubricant.
— Keepmachinealwaysclean, bothitsexternal surfacesandthose partscoming intocontact with the finalproduct.This
will make abetter ice-cream and will earn you the loyalty of newclients.

English
Softice-cream machine
6
Z15.069 V01
2 MACHINE'SMAIN COMPONENTS
1 Tublid
2 Spare mixture tub
3 Carburettor
4 Cones holder cap
5 Conesholder
6 Cones holder brackets' fixing
knob
7 Conesholder topbracket
8 Sidecollectionbox
9 Cones holderbottom bracket
10 Conesholder valve
11 Beater
12 Tapfixingrod
13 Cylinder
14 Smallbrush
15 Large brush
16 Controlpanel
17 Mixturelevelcontrol
18 Tap
19 Tapfixingknob
20 Front drip tray cup
21 Air condenser grill
22 Rear wheel (no brake) (only
mod. softgel 336)
23 Front wheel (with brake) (only
mod. softgel 336)

English
Operatinginstructions 7
Z15.079 V01
3 TECHNICALDATA
3.1 Technical data and CE mark plate
The technical data plate and CE marking mustnot beremoved. It islocated on the backpart of the device andidentifies:
- the name and address of the manufacturer [F];
- the machine code [CODE], the designation of themodel [MOD] and therelative series number [S/N];
- the type and quantity of freezing gascontained [GAS];
- theyear of construction [ANNO];
- the values of voltage and frequency [V], and the power [Hz] and current [Ph] consumption;
- the CE marking [9];
- dismantlesymbol[G];
3.2 Acoustic pressure
The continuous acoustic pressurelevel measured in your machine isindicatedin theTechnical Handbook (Par. Technical
Data).Allmeasurementshavebeentaken while themachinewasoperating,1 m from themachineand1.60 m from ground
level.
4 MOVING ANDUNPACKING
Keep machine in an upright position AT ALL TIMES to obtain optimal working conditions, both
during transport and installation and use. Keep to instructions on the box.
Note: it is advisable to have all moving, unpacking and installation op-
erations carried out by our Assistance Service or by authorized
personnel supplied with suitable tools.
USE SUITABLE LIFTING EQUIPMENT TO LIFT MACHINE. ITIS
DANGEROUS TO ATTEMPT TO LIFT MACHINE BY HAND.
Net and grossweight specifications are quotedonthepackaging and in thedocuments
supplied.
4.1 Moving machine in its packaging
The packaging is designed to providemaximum protection from knocks and external
agents.
Therefore it is advisable to carry the packed machine as close as possible to the site
whereit will beinstalled.
To move the packagedmachine use a lift-fork truck or a bench trolley, and insert forks
in the openingsin the base.

English
Softice-cream machine
8
Z15.069 V01
4.2 Unpacking
- WOOD PACKING: unnail the toppanel, then separatethe lateral panels.
- CARDBOARD PACKING; cut thestripsand remove the cardboardfrom thetop;
After having opened the packing, makesure the device isn’t damaged. In caseof doubt, do notuse it, and call the Seller.
THE OPENING OF THE LATERAL PANEL IS ONLY ALLOWED TO THE ASSISTANCE SERVICE OR TO
QUALIFIED TECHNICIANS AND MUST BE MADE BEFORE CONNECTING IT. MAKE SURE NOT TO DAM-
AGE THE INTERNAL PARTS OF THE DEVICE.
- Removeboththelateral panelsunscrewingtherelevant fixingscrews [A];
- Findand unscrewthe bolts [B] whichfix the device’sframe at the packing’s basement;
The outlet of the supply cable is placed on the device’s lower side. During the lifting make sure not to
damage it.
- Lift the device from the basement, possibly working on the lower side, near the wheels, and however, only on the
frame’s carryingparts. Remove thebasement, and leanthedevice onthe flooravoidingbumps;
DO NOT insert objects, ropes or brackets forthe lifting THROUGH thedevice, since these could damage
the inside parts.
- Re-closethelateral panels;
- Replace or movethe packing, which is produced with entirely recyclable materials( ).

English
Operatinginstructions 9
Z15.079 V01
5 INSTALLING
INSTALLATION MUST BE CARRIED OUT EXCLUSIVELY BY CERTIFIED AND AUTHORIZED TECH-
NICIANS, AND ACCORDING TO THE NORMS CURRENTLY IN FORCE AND FOLLOWING THE IN-
STRUCTIONS BELOW.
5.1 Placing your machine
Place machine on a flat surface.
Place machine away from sourcesof heath, avoiding direct exposure to sunlight and
allowingair to circulate aroundit.
Place machine so that the side collection box [23] can be easily pulled out to be
emptiedon a regular basis.
Machines supplied with an AIR CONDENSING system need at least 50 cm room in front of the
condenser grill to allow therefrigerator to correctlyfunction. The machine's detailed dimensions
are included in the Technical handbook (Par. Technical Data).
5.2 Assembling
ASSEMBLE ALL PARTS BEFORE PLUGGING MACHINE IN.
Some components of the machine need assembling. Youwill find them in thepackage or insidethe back-up tub.
— Cones holders:
• Fix top[6]and bottom [9] bracketsonto left side panel withfixing knobs [7]. Thetopbracket [6] is theonewith the
biggest holes;
• place cones holder valves[8] in thebottom bracket holes[9];
• put cones holders [5] throughtop bracket holes andfit them in the valves[8].
— Drip tray:
• Fix driptray holder [12] onto the front panel with fixing knobs [14];
• place front drip tray cup [13] in drip tray holder.
— Tap handle:
• Remove handle cross pin [30] ;
• hook handle [16] fork to piston pin [31];
• insert cross pin [30]. You may need to slightly adjust handle.

English
Softice-cream machine
10
Z15.069 V01
— Carburettors (in tubs)
• Checkgaskets[32] and, if necessary, lubricate them with food compatiblelubricant or vaseline;
• place carburettor [3] in the hole at the bottom of the spare mixturetubs [2].
5.3 Connecting to power
THE POWER INPUT REQUIRED BY THE MACHINE IS HIGH AND, THEREFORE, PARTICULARLY
DANGEROUS. THE MACHINE MUST BE CONNECTED TO AN ELECTRIC CIRCUIT WHICH COMPLIES
WITH THE NORMS CURRENTLY IN FORCE AND IMPLEMENTED BY CERTIFIED AND QUALIFIED
PERSONNEL. ALL SOCKETS MUST BE RELAYED BY ONE OR MORE DIFFERENTIAL CIRCUIT
BREAKERS AND EARTHED.
Themanufacturer shall not be responsible forany damages caused by a faulty electrical supply or earthing plant.
Note: If your machine requires THREE-PHASE power supply: it is STRONGLY recommended to install
THREE-PHASE MAGNETO-THERMAL SWITCHES designed to cut off power to ALL phases, even
when overload is on one phase only. Fuses, or other magneto-thermal switches, only cut off single
overloaded phases.
If currentis cut off from ONE of the THREE phases, the machinemay SEEM operating, however,
the motorswill shortlybe IRREPARABLY DAMAGED.
THE CIRCUIT MUST FEATURE THE FOLLOWING CHARACTER-
ISTICS:
— endwithanapprovedtypesocket(threepolesformonophasicinput1Nand5 poles
for three-phaseinput 3N – 3F).Thesocket'spoles must bemarked(RphaseorR-
S-T + neutral + earth);the earth polemustbe well recognizable;
A WRONG CONNECTION ON EARTH POLE CAN CAUSE SERI-
OUS DANGER.
— the socket must bedesignedtoprevent theplug from being insertedincorrectly;
— there must be a MAIN SWITCH to cut COMPLETELY off power from the socket,
this can be either included in the socket or within easy reach TO BE USED when
access to moving parts is required.
Check that the VOLTAGE and FREQUENCY written on the Technical Data plate
MATCHES thecircuit voltage and frequency.
A plug(three polesfor monophasic input 1N and5 poles for three-phaseinput3N–3F)
must be fittedonthe power supply cable'send.
The machine's power supply cable features coloured, labelled wires; these must be
connectedto the plug terminalsas from chart below.
THREE-PHASE Cable Cable Plug marking
supply (3N – 3F) colour marking (by terminal)
EARTH(3N – 3F) YELLOW/GREEN None PE or
R phase (3N – 3F) BLACK R or L1
S phase BROWN S or L2
T phase (3N – 3F) BLACK T or L3
NEUTRAL LIGHTBLUE N

English
Operatinginstructions 11
Z15.079 V01
MONOPHASIC Cable — Plug marking
supply (1N) colour — (by terminal)
EARTH YELLOW/GREEN — PE or
NEUTRAL LIGHTBLUE — N
Phase BROWN — L
ANINCORRECT CONNECTION INSIDE THE PLUG MAY POSE ASERIOUS RISK AND CAUSE
DAMAGE TO THE MACHINE (ELECTRONIC CARDS). HAVE ALL ELECTRICAL CONNECTIONS
CARRIED OUT ONLY BY CERTIFIED TECHNICAL PERSONNEL.
5.4 Connecting to water supply system
(water condensing machines)
If your machine is supplied with a water condensing system, supply and waste pipes must be set up.
Pipe unions are placed on the machine's rear panel, they are labelled [A] and marked:
IN: freshwater INLET
OUT: wastewaterOUTLET
Use linen-rubber pipessuitable to bear 15 bar pressure, placing a valve or faucet [B] BEFORE inlet pipe; use a 3/4rubber
holder [C] tightly fixed with a band [D] to connect pipesto the machine'sunions.
Follow these precautions:
— Do not reverse tubes and avoid tight bends and bottlenecks.
— The machine has been built to use WELL or AQUEDUCT water, at a MAXIMUM temperature of + 25…+28°C.
Don’t put hotter water (i.e. TOWER TANK water) in your machine if it hasn’t got the SPECIAL system to use
it (supplied only if asked): in thiscase, in the Technical Handbook, Par. Technical Data, it is indicated the right
water temperature to use your machine.
— Unsuitablepipes and joints may cause leaks and cause damage to your workroom and, in case of majorleaks
and splashes,to your machine. You can easily find household appliances' pipes (i.e. washing machines') on
the market, which have all therequirements, including rubber holders, as well as being economical.
— If the local water is hard and contains impurities, have a suitable water softener system or a filter fitted at the
top of the inlet pipe.
— Unless otherwise specified in the Technical Handbook, inlet water pressure must be 1.5 to 6 Bar (optimal
pressure: 3 Bar). If water pressure and quantity are inadequate, the machine will have CONDENSING PROB-
LEMS and will stop. If water pressure is higher, it is necessary to fit a pressure limiting device, appropriately
adjusted, above the delivery pipe, otherwise machine will be DAMAGED or anywayit will stop working.
IMPORTANT: When room temperature isbelow 0°C, remove any water from machine in order to
avoid freezing inside the condenser or pipes and causing SERIOUS DAMAGES. Please call the
authorizedAssistance Service.

English
Softice-cream machine
12
Z15.069 V01
5.5 Checking rotation
At the end of the installation and whenever the socket needs being replaced, check the beater
direction of rotation.
SWITCH MACHINE OFF OR CUT OFF POWER AND CHECK THAT GREEN INDICATOR POWER
IS NOT ON!
— unscrewfixing knobs[19] toremovetap [15];
— remove beaterS [21] from cylinderS;
— plug machine in and switch socket on;
— only POWER indicator must come on the control panel;
— pressON-OFF .Thedisplaywillcomeon;

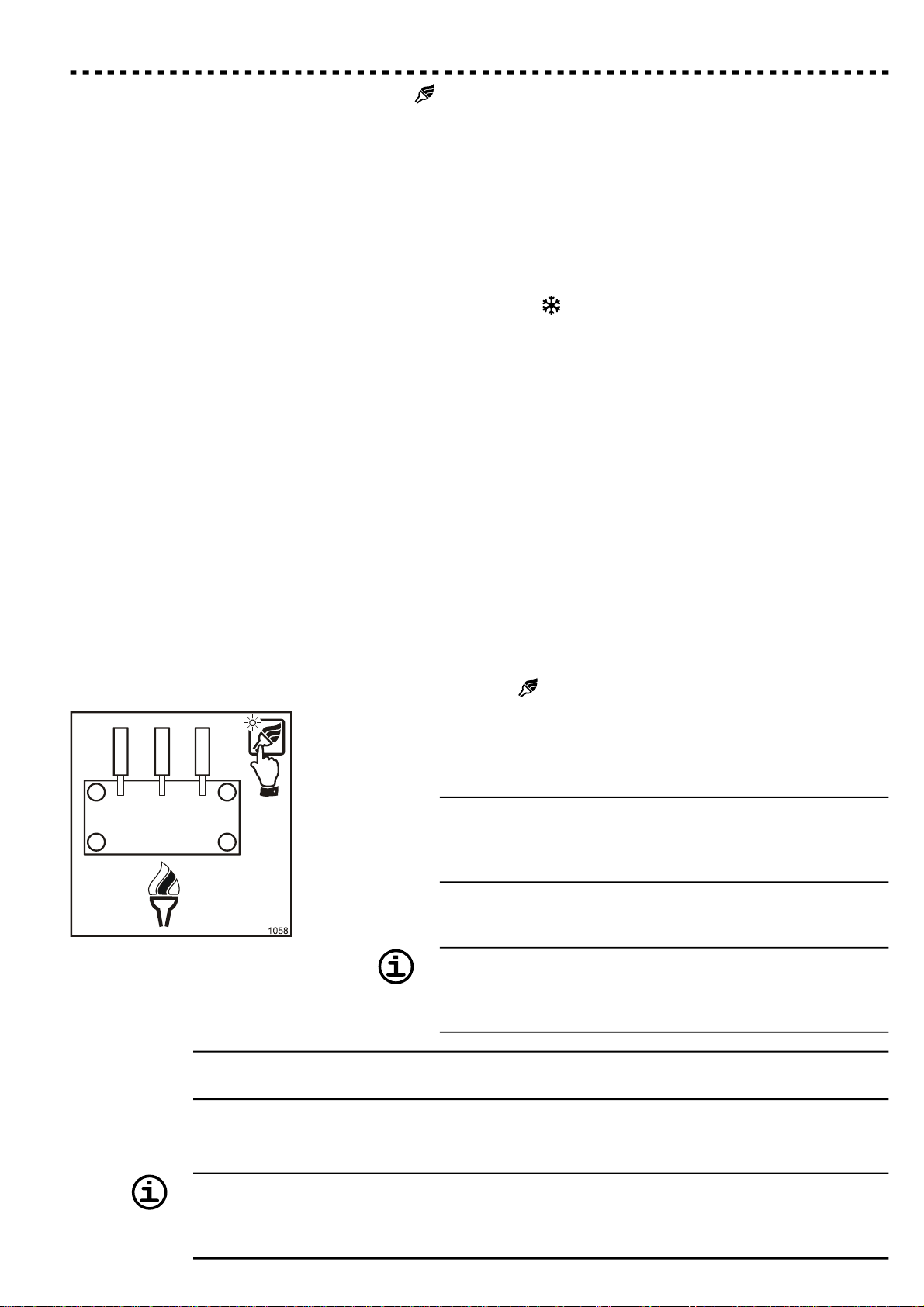

— press WASH and check that the beater socket [33] at the bottom of the cylin-
der CORRECTLYrotateCLOCKWISE(if necessary, useatorch). PressWASH
againto stop rotation;
— pressON-OFF toturnmachineoff;
— in case of a correct rotation (CLOCKWISE), your machine is ready to be
used: place beaters [21] in the cylinders, replace tap [15] and tighten fixing
knobs [19];
IMPORTANT: Progressively, EVENLY tighten knobs [19] cross-
wise to seal tap. Do not EXCESSIVELY force knobs. Failure to
do so may result in leaks and damages.
TURN THESOCKET'SMAIN SWITCH TO“0”ANDUNPLUG.
— openplugandreverse TWO out of THREE wires connectedtoPHASES(R-S, R-T
orS-T);
— closeplug, turn machine onand repeat test.
6 HOW TO OPERATE YOUR MACHINE
ALWAYSFOLLOWSAFETYMEASURES(REF.CHAPTER1).
6.1 Controls and indicators
All controls and indicators for the use of the device are grouped in a single control
panel placedon thefront panel. Itsfunctioning is low-voltageelectronically managed.

English
Operatinginstructions 13
Z15.079 V01
ON-OFF pushbutton and POWER indicator
By pressing the pushbutton the machine turns on and off. When power is on, thelight is alwayson.
SET UP/ RESET pushbutton
Bypressingthepushbutton,Thedisplayshowsthemachine'sthreeoperativemodes. Formoredetails,seePar. 6.3 - Setting
Up.
Pressing the button after the display appeared 2 small squares, it restore its function after the intervention of protection
circuits.
ADJUSTMENT pushbuttons
These pushbuttons are enabled only after pressing SET UP. They increase or decrease set values. For more details on
their use, see Par. 6.3 - Setting Up
PRODUCTION pushbuttonand indicator
If youpressthe button, the respective indicator light will turnon, the machine will preparethe ice-cream in the cylinder and
willkeepitreadytobeservedatthe programmedsubstanciality.Duringthe ice-cream preparation,the degreeof substanciality
will appear on thedisplay.
PRESERVATION pushbuttonand indicator
Thisfunctionaimsatpreserving boththemixtureandtheice-cream duringthe night.ThesettingTHICKNESSICE-CREAM
will appear on thedisplay during thenight aswell.
WASHpushbutton and indicator
When you press the WASH button, the beater will work, whereas the refrigerating sistem won’t, so that water doesn’t
freeze. The respective indicator light will turn on and PULwill appear on the display.
Display
The display turnson only when machine is on.
A) Duringtheice-creamfreeze(PRODUCTION )andduringthedistribution(PRO-
DUCTION ),thenumberindicatingtheICECREAMCONSISTENCYSETTING
in the cylinder for preservation will appear.
B) During the PRESERVATION the number indicating the ICE CREAM
CONSISTENCYSETTING inthecylinder for preservation will appear.
C) Pressing the"+" pushbutton, the temperature of the mixturein tubs, will appearon
thedisplay.
Note: During Setting up, the display shows several values. For detailed
information, see Par. 6.3 - Programming

English
Softice-cream machine
14
Z15.069 V01
6.2 Preparing production
To avoid damages, do not operate machine in dry conditions.
The beaters’ packing gland must be positioned correctly onto the beaters' shaft, otherwise the
machine internal components will get dirty with mixture or ice-cream.
Check that side collection box [23] isin place to prevent water, mixtureor ice-cream from leaking
insidethe machine.
— checkthat tapfixing knobs [19] are firmly fastened;
— check that tap handles[16] are in an UPRIGHT position by pushing them upwards;
— in case of machinessupplied with water condensing, check that water condensing faucet is open;
— check that POWER ison. If not, check plug andsocket switch;
— pressON-OFF ;
— before undertaking production, themachinemust be thoroughly washedand sanitized (see Chapter 7);
— pour mixture in tubsmakingsureNOT to completely cover carburettors [3];
— wait a fewminutesformixture todrip down in thecylinders. You canfacilitate mixture to fill thecylinders by BRIEFLY
spinning beaters(ONLYpressBEATING ).Duringthisphase,tubslevelsdecreaseslightly(approx.2cm);doNOT
attempt tospeedupthemixtureflowbyremovingcarburettors;
— replenish cones holders with cones or wafers.
6.3 Programming
The device is programmed with optimal average values during the final factory inspection phase.
Do not alter the programme unless it is absolutelynecessary.
Note: The device memorises the last programming operation performed and automatically exits the
Programming mode after 7or 8 seconds.

English
Operatinginstructions 15
Z15.079 V01
P1: ICECREAMCONSISTENCY(PRODUCTION)
• press button P and the “P1” message will start flashing on the display;
• pressbuttonPagainandanumberindicatingtheICECREAMCONSISTENCYSETTINGwillappearonthedisplay.
THREE-PHASE input machines: the manufacturer's setting is 65, if this needs to be adjusted, press the + or
buttons.Theadjustmentrangeis10…90(lowernumbers=thinnerconsistency,highernumbers=thickerconsistency),
but we suggest that a practical range of 60 to 70 is adopted.
MONOPHASIC input machines: the manufacturer's setting is 90, if this needs to be adjusted, press the + or
buttons. The adjustment range is 10…100 (lower numbers = thinner consistency, higher numbers = thicker
consistency), but we suggest that a practical range of 90 to 95 is adopted.
P2: CONSERVING ICE CREAMINTHECYLINDER"OVERNIGHT"
• pressbutton P and the “P2” message will start flashing on the display;
• press buttonP again and a temperature indicatingtheEXTENDED ICE CREAM CONSERVATIONin thecylinder
setting will appear on thedisplay.The factory settingis-5°C. If thisneedsto be adjusted, press the + or buttons
(lower numbers = thicker consistency, higher numbers = thinner consistency). The adjustment range is between
+6°Cand -16°C, but we suggest that a practical range of -4°C to -6°C is adopted.
P3: Reserve mix TUB TEMPERATURE
• press button P and the “P3” message will start flashing on the display;
• pressbuttonPagainandthePROGRAMMEDTUBTEMPERATURE(°C)messagewill appearonthedisplay.Ifthis
needs to be adjusted, press the + or buttons. The factory setting is +5°C. The adjustment range is from +1 to
+30°C, but we suggest this islimited to between +5°C and +6°C.
Po: cosφice-cream consistency (value can not be changed by the operator)
— To save new settingsandterminatea programmingoperation, press buttonPagain (or wait fora fewseconds).
6.4 Production
— Pressthe PRODUCTION pushbutton. The beater and therefrigeratingsystem
of the cylinder will come into operation.Display shows ice-cream THICKNESS,
which is going to increase;
— wait for the ice-cream to reach set THICKNESS. The beaters and the refrigerator
will stop. Nowthe ice-cream isreadyto be served.
Note: Before serving the ice-cream, it is recommended to check its
quality by pressingthe tap handle andcollectinga little of it. Please
put a container under the tap because of the potential splashes of
the ice-cream.
— Position an ice-cream cone or cup under the tap handle, then press it. After
servingthe ice-cream, BRING the taphandle toitsrest position.
After serving the ice-cream bring the tap handle EXACTLY to
its rest position. Otherwise the beater and the refrigerating
system will not stop automatically and the machine will block
for freezing.
Note: Also when the handle is up, the cylinders refrigerating system and the beater will work until the ice-
cream thickness the programmed substantiality again.
In order to get the most out of your machine:
— check regularly mixture level in the tubs;
In case that you need more than one consecutive release, constantly check the ice-cream
thickness on the Display. In order to avoid serving too soft an ice-cream, wait a few seconds
between releases, and/or alternate flavours. Mod. 320 can supply a maximumof one 75gr cone
every 18 seconds, mod. 336 a maximum of one cone every 10 seconds;

English
Softice-cream machine
16
Z15.069 V01
Promptly replenish tubs with mixture, if necessary. Failure to do this will cause the formation of
ice and subsequent blockage ofthe beater inside the cylinder.
— empty regularly side collectionbox [23]. If it becomesfull, water will overflowthrough its hole;
It isnot unusual to find tracesof mixture inthe sidecollection tray. However, if theyINCREASE in
quantity, replace beaters' packing gland gasket AS SOON AS POSSIBLE (Ref. Par. 7.2 - Parts
disassembling). Failure to do so, would cause mixture to leak inside machine and DAMAGE it.
Use PRESERVATION modeovernight (ref. Par. 6.5)to preserve mixture andice-cream insidemachine.
FATSINTHEICE-CREAMMIXTUREAREIDEALGROUNDFORTHEBREEDINGOFBACTERIA.WHENNOTIN
USE,WERECOMMENDTODISASSEMBLE,WASHANDSANITIZEALL MACHINEPARTSWHICHCOME
INTO CONTACTWITHTHE PRODUCT(REF.CHAPTER7)ANDDISCARDANYREMAININGMIXTURE.
6.5 Preservation (overnight)
ITISREQUIREDTOREMOVEALLREMAININGMIXTURE AND ICECREAMFROM MACHINEBYTHEINGREDI-
ENTS’USE-BYDATE ANDTODISASSEMBLE,WASHANDSANITISETHOROUGHLYANYPARTSWHICH
IS INDIRECTCONTACTWITH THEPRODUCT(REF.CHAPTER7).THIS IS ALSO REQUIREDWHEN USING
ONLYPRESERVATIONMODE.
• Thisallowsstoppingthereproductive cycleof bacteria, which must,ATALLTIMES,belowerthanthelimitsrequired
by the law.
• Only the FIRST ingredients’ use-by date is to be taken into account after sanitation evenif fresh ingredients were
successively addedto the original mixture.
1. SHUTTING DOWN operations:
• pressPRESERVATION pushbutton;
• check that releasehandlesand tubs' lid are FIRMLY CLOSED. If an indicator light appears on the display next to
the right hand side digit, the handle is not completely closed.
Note: the preservation temperature allows to maintain almost liquid ice-cream in the cylinder, because the
machine stirs it without damaging it.
2. OPENING UPoperations:
INCASE THE PRESERVATION TEMPERATURE IS TOO HIGH, OR AN ALARM CODE APPEARS,
THE MIXTURE IN THE MACHINE HAS NOT BEEN CORRECTLY PRESERVED. THE MIXTURE
MUST BE DISCARDED, ALL MACHINE PARTS WHICH COME INTO CONTACT WITH THE MIXTURE
MUST BE DISASSEMBLED, WASHED AND SANITIZED (REF. CHAPTER7)BEFORE MACHINE
CAN BE USED AGAIN.
• pressPRODUCTION pushbutton;
• before serving, wait for ice-cream to reach required thickness.
7 WASHING AND SANITATION
7.1 Rinse -preliminary wash
— PressPRODUCTION or PRESERVATION tostopmachine.Relevant indicator light will comeoff;f;
— wait until the cylinder defrosts.
— Eliminate as muchmixtureas possible bypositioning acontainer under the tap. Then pressthe handle andenablethe
beater for ashort timeby pressingthe BEATING button ;
Do not operate beaters for prolonged periods as lack of lubrication would cause damage to
either the beaters or cylinders.
— removecarburettors;
— fill tubswithclean, warm water(MAX. 30°C),MUST CERTAINLY NOT BEANYHOTTER!;

English
Operatinginstructions 17
Z15.079 V01
THE TEMPERATURE OF THE WATER USED FOR WASHING AND SANITISING SHOULD
NEVER EXCEED 30°CAND MUST CERTAINLY NOT BE ANY HOTTER! OTHERWISE THE
POLYMER COMPOSITE COMPONENTS MAY BE DAMAGED.
DO NOT press PRODUCTION orPRESERVATION as thiswould freezewaterin thecylinder..
— pressWASH and pull handlesdown to discharge water (when all water hasbeen discharged, stop beaters);
— repeat operation with FOOD COMPATIBLE DETERGENT and then with water only until water runs clean from taps.
While water and detergent flow down the cylinders, clean carburettors sockets on the bottom with the small brush
suppliedand wipe tubs' walls.
When using the brush, make sure that beater is NOT MOVING.
— OpenALLTHREE handlesto check that all the water hascome out from the cylinders.
7.2 Parts disassembling
Tomakewashingandsanitationeasy,allpartscomingintocontactwiththeproductcanbeeffortlesslyandquicklydisassembled
bytheoperator.
— Carry out preliminary washing operations (ref. Par. 7.1) for easy access to all parts.
— Remove carburettors from tubs and remove gaskets [32].
DONOT CARRY OUT THE FOLLOWING OPERATIONS WHEN MACHINE IS POWERED. SWITCH
SOCKET OFF BEFORE PROCEEDING.
— Disassembletap:
• unscrew fixing knobs [19];
• carefully remove tap, holding central handle with one hand, andthe lowerpart with the other;
If the tap is stuck, do not pull it, but gently release it.
• removelargegaskets[36].
Do not insert sharp objects in their seatings to remove gaskets (O-rings) to avoid damaging
parts and causing mixture or ice-cream leaks.
— Disassemble tap'sparts:
689b
37
35
• position the tap on the bench and
pressthehandlecompletely (sothat it
will be easy to remove the piston);
• emovethetransversespindle[30]and
thenthe handle [16];
• removethepiston[35]andthebreather
piston [45] from the tap body [15];
• removegaskets [37] from piston [35];

English
Softice-cream machine
18
Z15.069 V01
— Disassemble beaters:
• Remove beaters [21] from cylin-
ders[20];
• unthread the spring-guides[39], [39B]
and the springs [40];
• removethegaskets[41] and[42]from
the spring-guides [39];
— Remove and clean cones holder
regularly:
• pull out tubes[5]from valves [8] from
thetop;
• loosen knobs [7] and remove brack-
ets [6] and [9].
7.3 Washing
You mustthoroughly washandsanitize all partswhich come into contact withtheproduct to comply with thecurrent norms
in force:
DONOT CARRY OUT THE FOLLOWING OPERATIONS WHEN MACHINE IS POWERED.
— Wash separately all those parts disassembled according to instructions in Par. 7.2. Use warmwater and food
compatible detergent, then rinse with fresh water.
Note: To ensure a long life for your machine, do not use too hot water, solvents, abrasive detergents or hard
sponges, particularly on plastic parts.
• Remove side drip tray [23], wash it and replace it.
• Clean vent holes[50] with a toothpick or a pointed object.
• Use the small tube-brush[28] to clean the ice-cream issueholes [43] and the inside partsof the carburettors [3].
• Use the big tube-brush [29] to clean the pistonsseats[44].
— Thoroughly wash machine's fixed parts with water and detergent:
• cleantop andinsidespare mixturetub;
• clean inside cylinders;
• cleanfront panel anditsfeatures;
• clean side and rear panels.
DONOTALLOWWATERORANYLIQUID INSIDE MACHINE.
— Wipe dry.

English
Operatinginstructions 19
Z15.079 V01
7.4 Re-assembling
DONOTCARRYOUTTHE FOLLOWINGOPERATIONS WHENMACHINEIS POWERED.
— Re-assemble beater:
• reassemble the gaskets[41] and [42]
on the spring-guide [39];
• Reassemble the spring [40] and the
spring-guide [39], [39B] on thebeater
shaft [21], by pressing it completely
on the blades. The inside gasket [41]
is likely to do strenght to the spring
runner slipon the shaft.
The gaskets [41] and [42] areimportantcomponents and are subjected to continuous movement.
When worn they may TEAR. Check that all gaskets are INTACT before assembling them and
don't hesitate to replace them if necessary.
LUBRICATE each gaskets (even those in good conditions to be re-utilized) and their seatings
when re-assembling. UseFOOD COMPATIBLE lubricant, e.g. vaseline.
Assemble the spring and the beaters’ packing gland EXACTLY like in the previous picture. An
incorrectassemblage would SERIOUSLY DAMAGEthe machine.
• insert beaters[21] in the cylinders [20], turning them until shaft fits initsseating in the cylinder bottom (thebeaters
will protrude out of the cylinder edge by 1 cm pushed by the springs).
— Re-assemble tap:
1022
30
35
16
15
31
• put gaskets [37] and [48] backon pis-
tons [35] (only the central piston has
an obliquegasket [48]);
• iInsert the pistons [35] in the tap body
[15] by carefully positioning the
handleshole.
• position the handles [16] so that the forkhooksthe pistonsspindle [31];
• Insert thetransversespindle [30] (slightly movethe handle if necessary).
— Mount tap back on machine:
• placelarge gasket [36];
• place tap and tighten knobs [19] on
crosswise.
IMPORTANT: Progressively, EVENLY tighten knobs [19] crosswise to seal tap. Do not EXCES-
SIVELY force knobs. Failure to do so may result in leaks and damages.
