Diamond 350/MKD-C Operating instructions

Mod: 350/MKD-C
Production code: 15359002S
01/2019

1
Professional slicer CE
Operating and Maintenance Manual
GRAVITA’
RFL 330-350-370
Ed. 10/2015

3
INTRODUCTION
This manual has been re-presented to provide the Client with all the
information on the machine and its safety regulations, and also the use and
maintenance instructions which permit using the machine in the best way and
maintaining its efficiency throughout time.
This manual must be kept in its entirety until the machine is disposed of.
This manual should be given to personnel in charge of the use and periodic
maintenance of the machine.
INDEX OF CHAPTERS
CHAP. 1 - RECEIVING THE MACHINE page 5
1.1 - PACKAGE
1.2 - CHECKING THE PACKAGE UPON DELIVERY
CHAP. 2 - INSTALLATION page 7
2.1 - UNPACKING
2.2 -
POSITIONING
2.3 - ELECTRICAL CONNECTION
2.3.1 - Slicer with single-phase motor
2.3.2 - Slicer with 400 V. three-phase motor.
2.3.3 - Slicer with 230 V. three-phase motor
2.3.4 - Blade rotation direction
2.3.5 - Electrical connection modification
2.4 - 115 V. ELECTRICAL DIAGRAM - SINGLE-PHASE 230 V. -
THREE-PHASE 230 V. - THREE-PHASE 400 V.
2.4.1 - 115 V. tension selection
2.4.2 - Single-phase 230 V. tension selection
2.4.3 - Three-phase 230 V. tension selection
2.4.4 - Three-phase 400 V. tension selection
2.5 - PRELIMINARY CHECK
CHAP. 3 - INFORMATION ON THE MACHINE page 12
3.1 - GENERAL PRECAUTIONS
CHAP. 4 - CONSTRUCTION FEATURES page 14
4.2 - SAFETY DEVICES INSTALLED ON THE MACHINE
4.2.1 - Mechanical safety
4.2.2 - Electrical safety
4.3 - DESCRIPTION OF THE MACHINE
4.4 - OVERALL DIMENSIONS, WEIGHT, FEATURES….

4
CHAP. 5 - MACHINE USE page 19
5.1 - OPERATIONAL CHECK
5.2 - LOADING AND CUTTING THE PRODUCT
5.3 - SHARPENING THE BLADE
CHAP. 6 - ROUTINE CLEANING page 22
6.1 - GENERALITIES
6.2 - CLEANING THE MACHINE
6.2.1 - Cleaning the goods holder plate
6.2.2 - Cleaning the blade, the blade guard and the ring
6.2.3 - Cleaning the sliceguard
6.2.4 - Cleaning the sharpener
6.3 - SLIDE GUIDES LUBRICATION
CHAP. 7 - MAINTENANCE page 26
7.1 - GENERALITIES
7.2 - BELT
7.3 - FEET
7.4 -
FEEDING
CABLE
7.5 - BLADE
7.6 -
GRINDERS
7.7 - SLIDE GUIDES LUBRICATION
7.8 - PUSH-BUTTON PANEL LABEL
CHAP. 8 - DISMANTLING page 27
8.1 - PUTTING OUT OF SERVICE
8.2 - WEEE Waste of Electric and Electronic Equipment

5
CHAP. 1 - RECEIVING THE MACHINE
1.1 - PACKAGE
The slicer is shipped in a package which consists of (Fig. n°1): cardboard box,
wooden pallets and protective nylon. They should be disposed of separately and
according to the norms in force in the country of installation.
Dimensions
AxBxC Gross weight (Kg)
RFL 330 760x640x700 46
RFL 350 760x640x700 47
RFL 370 760x640x700 48
Do not place more than one of the
same package on top (Fig. n°3).
WARNING! B
A
C
Fig. n°1
Fig. n°2
Fig. n°3

6
When the package is received, if there is no
external damage proceed to opening it, ma-
king sure that all material is inside. If the
package upon delivery shows signs of tam-
pering (Fig. n°8), impact or fall, it is
necessary to present the damage to the
carrier, and within 3 days of the delivery da-
te, indicated on the documents, make a
precise report of the damage. Do not over-
1.2 - CHECKING THE PACKAGE UPON DELIVERY
Heavy package. Do not lift manually
unless with help of at least three people
(Fig. n°5).
Move the package only by electrical
trolleys or manually, equipped with
lifting straps (Fig. n°6).
Do not expose the package to humidity
or rain (Fig. n°4).
Since the center of gravity is not in the
middle of the package, moving it su-
spended by chords or similar systems
is not advisable (Fig. n°7).
Fig. n°4
Fig. n°6
Fig. n°5
Fig. n°8
Fig. n°7

7
turn the package!! When transporting it make sure that it is firmly held by the four
corners (keeping it parallel to the floor).
All operations must be carried out by
specialized personnel (Fig. n°9).
WARNING!
2.1 - UNPACKING
Remove the straps from the package
(Fig. n°10) and lift the cardboard (h).
The package should be:
a) the machine on the pallet (Fig. n°11
detail a);
b) blade extractor (Fig. n°11 detail e);
c) 4 feet (Fig. n°11 detail f);
d) Case, if present (Fig. n°11 detail b).
If it present, check inside the suitcase,
and find the following components:
(Fig. n°11)
1. Instruction booklet (detail d) ;
2. CE compliance certificate (detail c);
3. Audio-visual cassette;
4. Liquid detergent with sprayer;
5. Oil tube;
6. Sharpening and burring grinders;
7. Socket wrench to remove grinders;
8. Grinders
brush;
9. Large and small screwdrivers;
10. Pliers.
CHAP. 2 - INSTALLATION
Fig. n°9
Fig. n°10
h
a b
Fig. n°11
c
d
e f

8
2.2 - POSITIONING
Position the pallet, with the slicer, on a
flat surface and take off (a) the sharpe-
ner from the slicer (Fig. n°12).
At this point turn the machine on its
side (Fig. n°13) and unscrew, with the
proper wrench provided, the 4 nuts
which fasten the slicer. Remove the 4
washers and unscrew the 4 fastening
tie rods on the wooden pallet. Take off
the pallet and fasten the 4 feet provi-
ded. Finally, put the sharpener in its
place.
Position the slicer in the predestined
place.
The dimensions indicated in Tab. 1
(according to the model) must be kept
in mind for the plane where the slicer
will be installed, therefore it must be
wide enough, well-levelled, dry, smo-
oth, robust, stable about 80 cm high off
the ground and at least 20 cm from
walls, objects, shelves, etc. (Fig. n°14)
in respect to the space necessary for
its use and safeguarding.
Furthermore the machine must be pla-
ced in an environment with a maximum
humidity of 75%, not salty and with a
temperature between +5°C and +35°C;
in any case in environments which do
not lead to deviations of the above.
Make sure the graduated handgrip is in
posiion “0”.
Check the alignment of the blade-plane
thickness gauge by running a finger
(Fig. n°16) from the blade towards the
thickness gauge plane (never in the op-
posite direction). Unscrew and screw
the foot (1) until the correct alignment is
found (Fig. n°17), then screw the rub-
ber part (2) to fix everything (Fig. n°17).
a
Fig. n°12 Fig. n°13
~ 80cm
20cm
Fig. n°14
Fig. n°15
Fig. n°16 Fig. n°17
20cm20cm
20cm
1
2

9
2.3 - ELECTRICAL CONNECTION
Check that the data reported on the
technical-part number plate (Fig. n°18),
the delivery documents and the order,
correspond; contact the supplier for cla-
rification if they do not.
At this point make sure that the system
is standard and that the cable and
grounding system perfectly operate.
2.3.1 - Slicer with single-phase motor
The slicer is equipped with a feeding cable with a cross section area of 3x1mm²;
length 1.5m and a “SHUKO” plug. Connect the 230 V. - 50 Hz slicer,
interposing a magnetothermic differential switch of 10A,= 0.03A.
2.3.2 - Slicer with 400 V. three-phase motor
The slicer is equipped with a feeding cable with a cross section area of 5x1mm²,
length1.5m and a red 15A 3F + T CEI plug. Connect the slicer to the 400 V. -
50Hz three-phase supply mains, interposing a magnetothermic differential switch
of 10 A, =0.03A.
2.3.3 - Slicer with 230 V. three-phase motor
The slicer is equipped with a feeding cable with a section area of 5x1mm²; length
1.5m and a blue 15A 3F + T CEI plug.
Connect the slicer 230 V. - 50 Hz three-phase supply mains, interposing a
magnetothermic differential switch of 10A,= 0.03A.
Check that the direction of the blade rotation is counter-clockwise looking at the
slicer from the side of the bladeguard. If not proceed as in par. 2.3.4.
2.3.4 - Blade rotation direction
Check the direction of the blade
rotation with a pulse of the “I” push-
button (ON), immediately followed by
the “0” push-button OFF.
The direction of the blade rotation must
be counter-clockwise when looking at
the slicer from the bladeguard side (Fig.
n°19). In the case that the rotation
direction is not exact, invert (Fig. n°20)
Fig. n°18
Fig. n°19

10
Fig. n°20
2.3.5 - Electrical connection modification
Unless otherwise specified, the slicers are equipped with 400 V. three-phase
connection. To modify the connection carefully follow these instructions:
-remove the plug from the electric network;
-turn the slicer on the side opposite the trolley;
-take off the yellow cover from the electrical box;
-remove the motor cables from the electronic card;
-connect wires from the motor that have the same colour (white-white, blue-
blue, etc.);
-reconnect them to the electronic card;
-check the positioning of the feed selection plugs on the electronic card (Fig. n°
21);
-close the box, reposition the slicer and proceed as in par. 2.3.3.

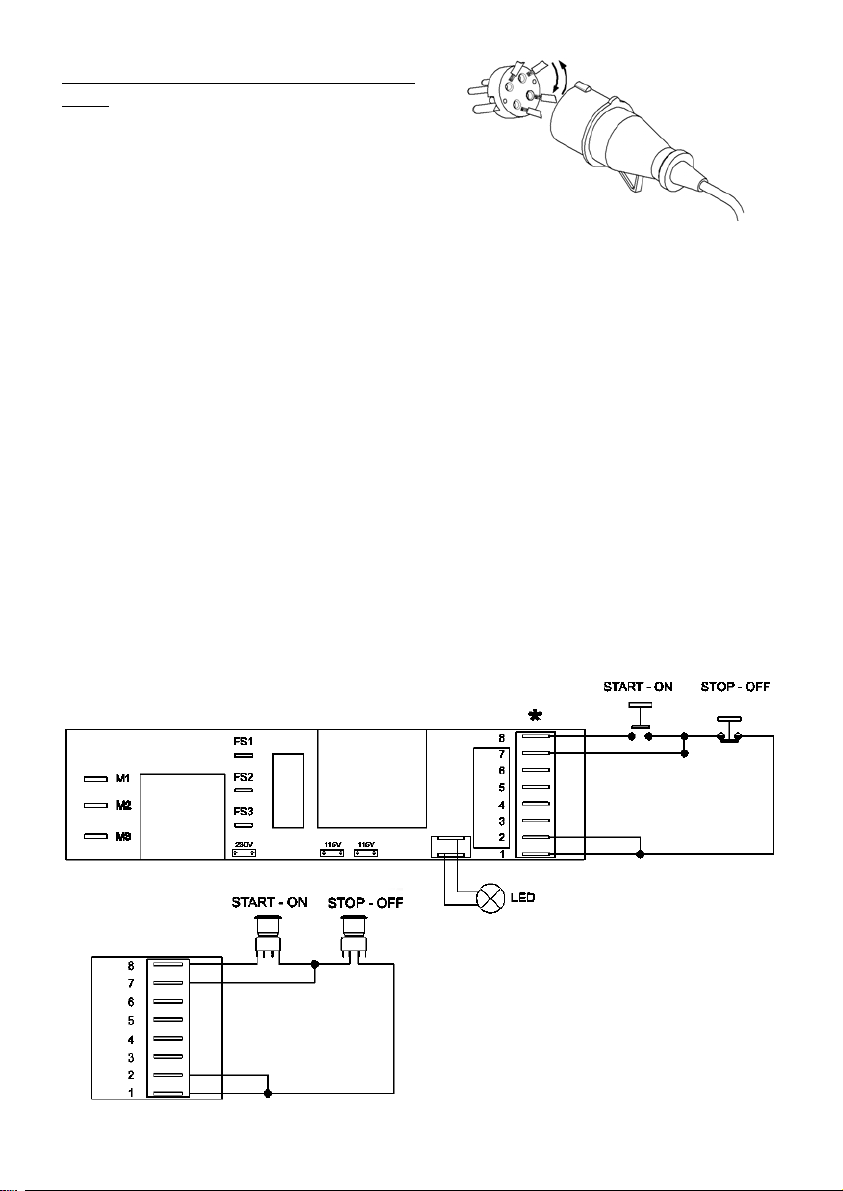

2.4 - 115 V. ELECTRICAL DIAGRAM - 230V. SINGLE-PHASE - 230V.
THREE-PHASE - 400V. THREE-PHASE
Fig. n°21
the position of two of the three phase
wires (black, gray or brown) in the plug.

11
2.4.1 - 115 V. tension selection
2.4.2 - Single-phase 230 V. tension selection
2.4.3 - Three-phase 230 V. tension selection
2.4.4 - Three-phase 400 V. tension selection
OUTPUT DIAGRAM
Fig. n°21a
Fig. n°21b
Fig. n°21c
Fig. n°21d

12

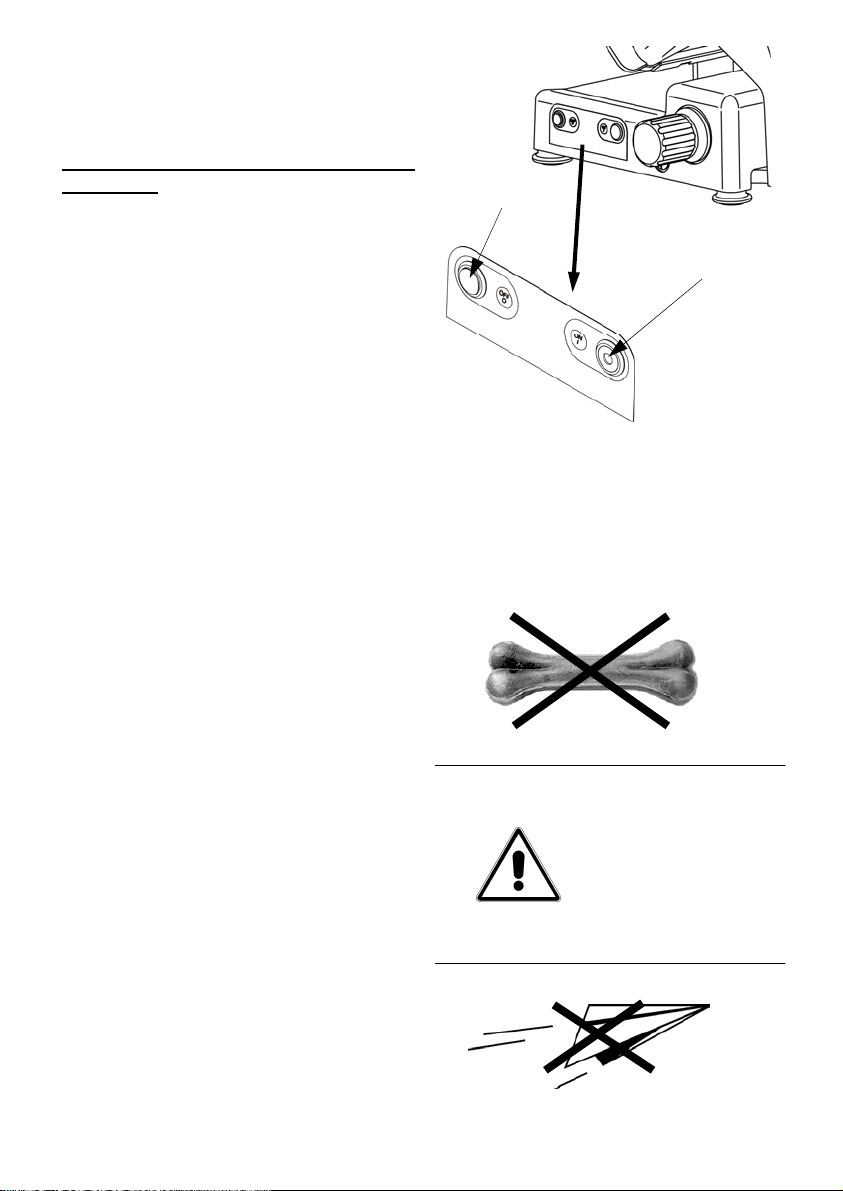

2.5 - PRELIMINARY CHECK
Before testing make sure the goods
holder plate is well-blocked, after which
test functioning with the following
procedure:
-Push the “ON” push-button and the
“OFF” push-button (Fig. n°22);
-Check if the machine does not start
automatically by removing the plug
and reinserting it while the machine is
running.
CHAP. 3 - INFORMATION ON THE MACHINE
3.1 - GENERAL PRECAUTIONS
The general precautions, even though they appear obvious, are fundamental for
the installation, use, maintenance and possible inconveniences with their
respective solutions.
Fig. n°22
Push-button
“ON”
Push-button
“OFF”
The slicer has been designed to cut
fresh boneless meats and pork pro-
ducts (Fig. n°23). Any other use, in-
cluding cutting vegetables, is conside-
red unappropriate and therefore dan-
gerous.
The Manufacturer is not responsible
in the following cases:
 the machine is tampered with by
unauthorized personnel;
 components are substituted with
unoriginal parts;
 the instructions in this manual
are not followed carefully;
 the surfaces of the machine are
treated with inappropriate
products.
Keep this manual in a safe place for
future information or consultation (Fig.
n°24).
WARNING!
Fig. n°23
Fig. n°24

13

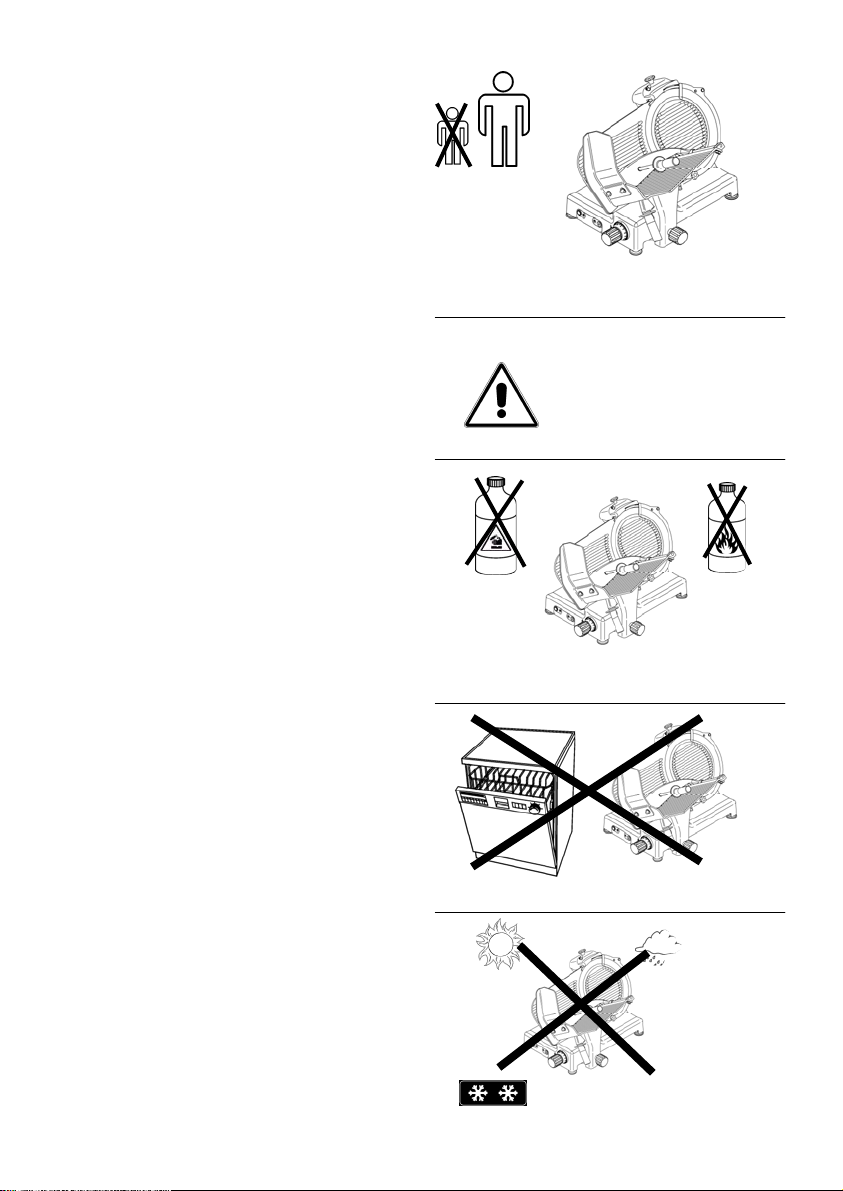

The slicer must only be used by
trained personnel who know the
safety norms contained in this manual
perfectly.
In the case of an alteration in
personnel, give time for training.
Do not allow the slicer to be used by
children or by untrained people
(Fig. n°25).
Before carrying out any cleaning or-
maintenance operation, disconnect
the machine plug from the electrical
network.
When carrying out routine mainte-
nance or cleaning of the slicer (and
therefore the guards are removed),
carefully evaluate the residual risks.
During maintenance or cleaning stay
concentrated on the operations.
Do not use corrosive or flammable
substances to clean the slicer (Fig. n°
26); only use the product provided.
To clean the slicer carefully follow the
instructions in the chapter: “Routine
cleaning”.
Do not wash the slicer in a dishwa-
sher (Fig. n°27) or with water jets, do
not immerge it in water or in other li-
quids.
Do not leave the slicer exposed to
damaging agents: sun, rain, sprays,
humidity, ice (Fig. n°28).
WARNING!
Fig. n°26
Fig. n°27
Fig. n°28
Fig. n°25

14
Do not pull the slicer or the feeding
cable (Fig. n°29) to unplug it.
Regularly check the state of the fee-
ding cable; a worn out cable or in any
case not intact represents a serious
electrical danger.
If the machine remains unused for
long periods of time, before using it
again have it checked by a “Service
Center”.
If the slicer should show signs of
malfunctioning it is advisable to turn it
off and to not use it, to not directly in-
tervene for repairs, and to contact the
“Service Center”, shown on the back of this manual.
Do not leave the slicer uselessly plugged in. Unplug the machine when it is not
being used.
Even if safety devices are installed on dangerous points of the machine, avoid
placing hands near the blade and other moving parts.
Never cut the product, by now finished, without the aid of the goods
pressing arm.
Do not assume positions that bring body parts in direct contact with the
blade.
CHAP. 4 - GETTING TO KNOW THE SLICER
4.1 - CONSTRUCTION FEATURES
The slicer is made of an anodized alluminum alloy (Peraluman AlMg5). It
guarantees contact with food-stuffs (hygienic) and is resistant to acids and salts
apart being highly resistant to oxidation.
The blade is in 100 Cr6 rectified, chromium-plated and hardened steel assuring a
precise and net cut of the product even after being sharpened. The majority of
the other components present are in:
-ABS:
-Shockproof plastic (handguard);
-AISI 430 or 304 steel.
Fig. n°29

15
LEGEND:
1 Sharpener knob 12 Blade cover knob
2 Sharpener 13 Base
3 Thickness gauge plate 14 Bladeguard
4 Handguard 15 Product grip
5 Push-button panel 16 Blade protection ring
6 Foot 17 Product grip knob
7 Graduated handgrip 18 Locking blade cover knob
8 Stem handgrip 19 Slice deflector knob
9 Stem 20 Slice guard
10 Stem knob 21 Support cover knob
11 Product plate 22 Thickness plate support cover
16
20
19
18
17
Fig. n°30
15
5
7 8 9
11
12
13
14
6
4
3
2
1
10

16
4.2 - SAFETY DEVICES INSTALLED ON THE MACHINE
4.2.1 - Mechanical safety
As far as mechanical safety is concerned, the slicer described in this manual
responds to:
-CEE 2006/42 machine directives.
4.2.2 - Electrical safety
As far as electrical safety is concerned, the slicer described in this manual re-
sponds to:
-the CEE 2006/95 low tension directive;
-the electromagnetic compatibility directive 2004/108.
Safety is made possible by the:
(Fig. n°31 )
-Thickness gauge plane (ref. n°1);
-Ring (ref. n°2);
-Sharpener (ref. n°3);
-Goods presser (ref. n°4);
-Goods presser handgrip (ref. n°5);
-Handguard (ref. n°6);
-Trolley transported only when thick-
ness gauge plane is at “0”, at the end
of the run and towards operator side.
-A relay in the control circuit, that re-
quires the machine to start up again
in case of an accidental loss of electri-
city (Fig. n°32).
Relay in circuit Fig. n°32
Fig. n°31
6
4
1
3 2
5

17
Even though the professional CE slicers are equipped with the standard mea-
sures for electrical and mechanical protection (both while operating and during
cleaning and maintenance), RESIDUAL RISKS which cannot be completely eli-
minated in any case exist, highlighted in this manual under the form of WAR-
NING. They concern the danger of cutting, bruising and other caused by the bla-
de or by other machine parts.
4.3 - DESCRIPTION OF THE MACHINE
Professional CE slicers have been designed and made by our company with the
precise purpose of cutting food products (like lunch meat and meats) and they
guarantee:
-maximum safety in use, cleaning and maintenance;
-maximum hygiene, thanks to a meticulous selection of materials that come in
contact with the food products, and with the elimination of the edges in the
parts of the slicer that come into contact with the product, in a way that it can
be easily and totally cleaned not to mention easily disassembled;
-maximum cutting precision thanks to the cam mechanism;
-all components are robust and stable;
-maximum silence thanks to the belt transmissions;
-very easy to handle.
4.4 - OVERALL DIMENSIONS, WEIGHT, FEATURES ...
WARNING:
The electrical features of the machine are shown on a plate on the back of the
machine.

18
TAB. n°1 - DIMENSION MEASUREMENTS AND TECHNICAL FEATURES
Fig. n°33
Model U.m. mod. 330 - 350 - 370
Blade diameter mm 330 350 370
Motor Watt/Hp 275/0,37 370/0,50 370/0,50
Cut thickness mm 23 23 23
Run of carriage mm 355 355 355
Hopper mm 330X307 330X307 330X307
A x B mm 513X340 513X340 513X340
C x D x E mm 690x560x475 715x570x480 735x580x470
F x D x G mm 840X560x595 840X570X595 840x580x590
Net weight Kg 37 38 39
Power source 1ph
3ph 230V / 50 Hz
230-400V / 50 Hz
Noise level dB 60
X Y H W mm 307 205 260 240 307 220 275 250 307 230 285 260
L mm 725 715 715

19
CHAP. 5 - MACHINE USE
5.1 - OPERATIONAL CHECK
For the 1° use follow these
instructions:
-check that installation has been car-
ried out correctly as in chapter 2;
-check that the plate is well fastened
with the lock handgrip (Fig. n°34
ref.1);
-check the sliding of the plate and that
it is free of obstacles on the work
counter for all of its run (Fig. n°35
ref.a);
-check that the goods pressing arm
easily rises and lowers so that it is not
impeded in all its movement (Fig. n°
35 ref.b);
-check the opening of the thickness
gauge plane by making the numbered
handgrip turn clockwise and counter-
clockwise (Fig. n°36 ref.c);
-check that the sharpener is well
fastened to the machine and that it is
easy to extract and free of obstacles
(Fig. n°37 ref.d).
Fig. n°37
d
Fig. n°34
Fig. n°35
1
a
b
b
c Fig. n°36

20
Adhere to the following procedure:
1.Lift the goods presser, load the goods
on the plate, bringing it close to the
thickness gauge, block it with the pro-
per toothed arm;
2.regulate the desired thickness of the
cut with the graduated handgrip;
3.assume a correct position to avoid
accident: place the right hand on the
goods presser handgrip and, then the
left hand next to the slice guard to
take the cut product (without tou-
ching the blade); the body must be
perpendicular to the work plane (Fig.
n°38).
WARNING: Do not assume positions
which bring body parts in direct
contact with the blade (ex. Fig. n°
39);
4. then push the “ON” push-button;
5. push the carriage (plate + goods
presser arm + stem) gently towards
the blade, without applying excessi-
ve pressure on the product with the
goods presser arm. The goods will
easily enter the blade, and the slice
guided by the proper sliceguard will
detach and fall on the plane (Fig. n°
40);
6. avoid running the slicer when empty;
7. t the end of the cutting operation,
stop the machine by putting the
switch in the “OFF” position and put the graduated handgrip at “0”;
8. Carry out resharpening the blade as soon as the cut product has a threaded
or rough surface, therefore the cutting effort increases (chapter 5.3).
5.2 - LOADING AND CUTTING THE PRODUCT
WARNING: The goods to be cut are loaded on the plate only with the graduated
handgrip at “0” and the motor stopped, being careful with the blade and the
points.
Fig. n°39
Fig. n°40
Fig. n°38
