DICE Silverline iPod Kit User manual

DICE interface for iPod
for selected BMW/Mini Cooper vehicles
Installation Guide/User Manual

2
Copyrights and Trademarks
Copyright 2008 DICE Electronics, LLC.
The DICE Electronics logo is a trademark of DICE Electronics, LLC.
iPod is a trademark of Apple, Inc.
All rights reserved.
Printed in the U.S.A

Table of contents
Copyrights and trademarks 2
Icon legends 3
Warning and safety 4
Product registration 5
Integration kit contents 6
DIP switches 8
DIP switch settings 9
Installation 10
DSP installation 13
iPod audio source 14
Text display settings 14
Charging 15
iPod hierarchy 15
Operating the interface 16
Browsing function 18
Auxiliary audio source 19
Troubleshooting 21
Disclaimer and warranty 23
Supported iPod models 7
3

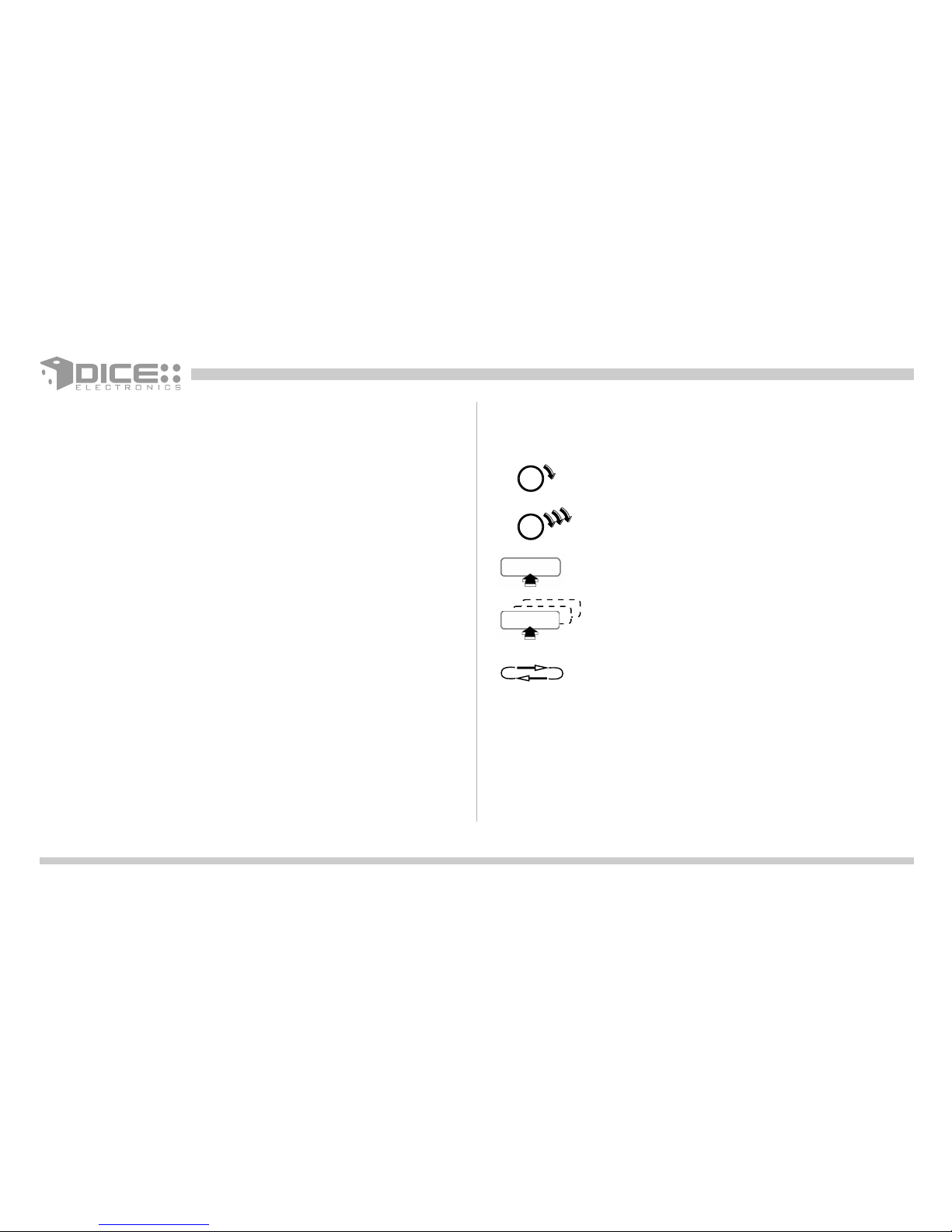

Icon legends
Press button
Turn jog dial
Turn jog dial repeatedly
Scroll
Press button repeatedly

4
Warning and safety!
Please read these instructions carefully before proceeding. Failure to follow instructions may result in improper operation
or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional offices, distributors or resellers take any responsibility for
any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod away from fluids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled and
components may become loose from vibration and heat. Small components and packaging materials may be a chocking
hazard when handled by children.

Congratulations on your purchase
Thank you for purchasing the DICE integration kit for iPod. Please review our user manual and installation guide before
operating the unit. This interface was designed and manufactured to seamlessly integrate with your vehicle's factory
entertainment system.
5
In order to validate your warranty period and to receive telephone or online support, you MUST register your DICE
product.
To register your DICE product, please complete the following steps:
1. Visit http://www.diceelectronics.com/register
2. Complete the product registration form.
3. Submit the form.
4. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via Internet, Please call DICE Electronics at 1-888-342-3999
Product registration

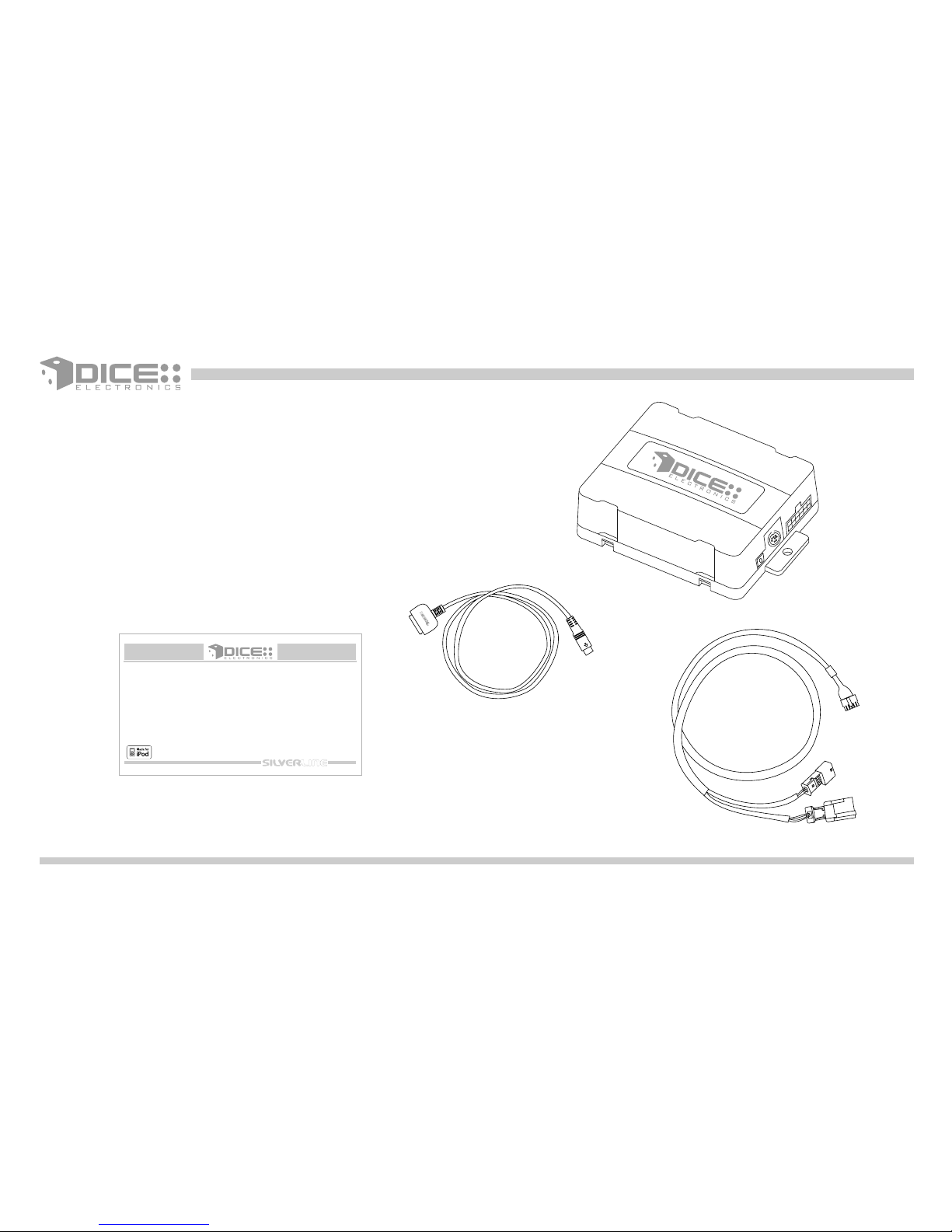

Integration kit contents
1 Vehicle specific interface unit
1 Vehicle specific harness
1 iPod docking cable
1 User manual
DICE interface for iPod
for selected BMW/Mini Cooper vehicles
Installation Guide/User Manual
6

7
FW:3.1.1 FW:1.2.1
FW:1.2.1 FW:1.4.1
FW:1.3.1 FW:1.1.3 FW:1.1.1
FW:1.0.3
FW:1.0.3

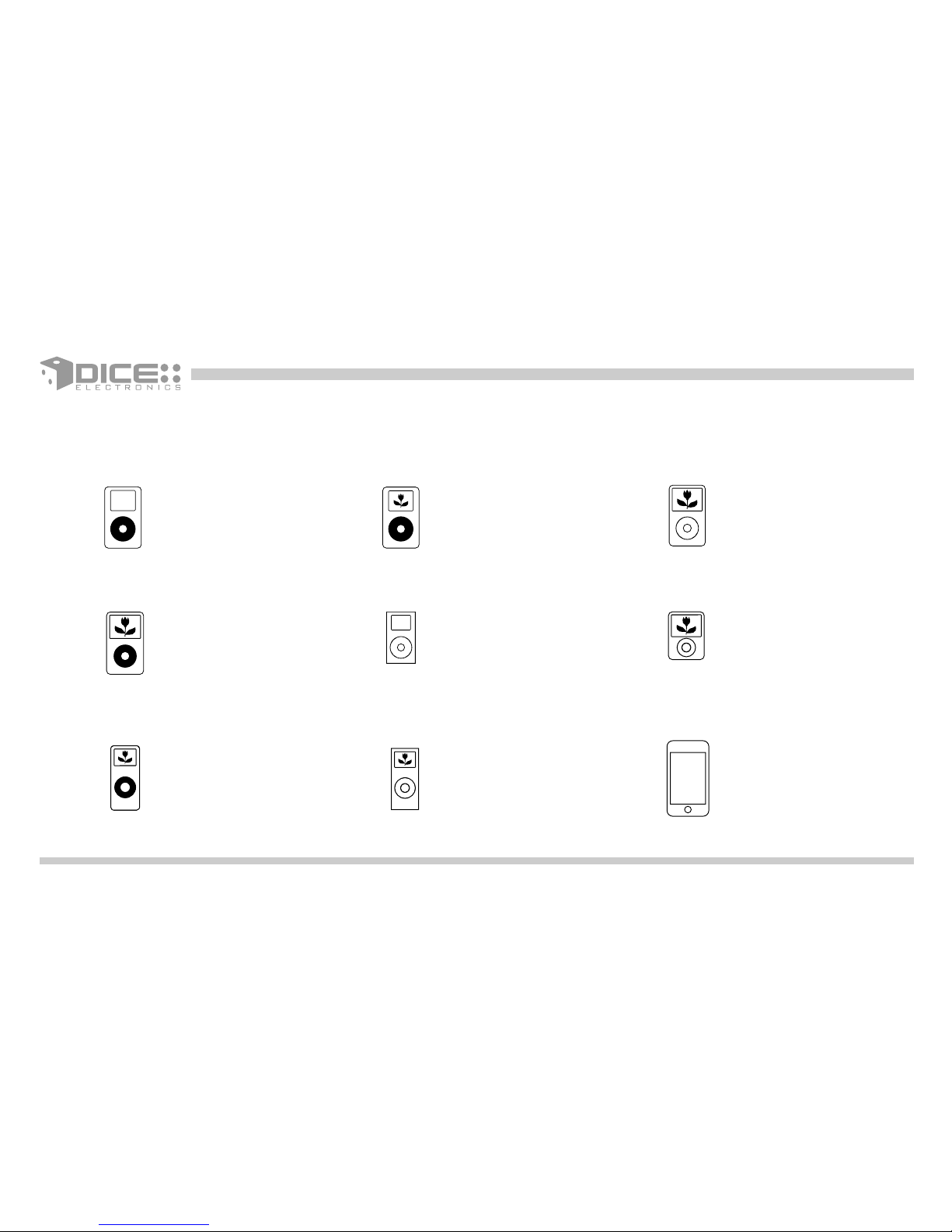

Supported iPod models and firmware version requirements
iPod
4th generation
20GB 40GB
iPod
4th generation color display
20GB 30GB 40GB 60GB
iPod classic
80GB 160GB
iPod
5th generation (video)
30GB 60GB 80GB
iPod mini
4GB 6GB
iPod nano
3th generation (video)
4GB 8GB
iPod nano
1st generation
1GB 2GB 4GB
iPod nano
2nd generation (aluminum)
2GB 4GB 8GB
iPod touch
8GB 16GB 32GB
For the latest firmware versions and models not listed, please contact your authorized dealer or DICE Electronics, LLC.

8
Dip switches
ON 1 2
"iPod Config.
Switch"
"Car Config.
Switch"
DICE Module
ON/OFF Switch Positions
ON 1 2
ON
1 2
OFF
The configuration switches located on the DICE module are used to set the operation of the interface by the installer.
Incorrect dip switch settings may cause the DICE interface not to work properly or not to operate at all. Disconnect the
vehicle harness from module and cycle ignition off for 50 seconds after changing the switches!

Car configuration switches
Selected emulation
CD changer 1 CD changer 2
Dip switch 1
OFF OFF ON OFF
Recommended for late model
Business CD and Navigation radio
systems.
This setting is to be used on early
model Business CD and Business
cassette head units. This mode
provides slower text refreshing to
allow flawless operation of these
radios. Note: The 1st button
press only clears the Text from
the radio, the 2nd executes the
command.
iPod configuration switches
Selected emulation
"Locked" "iPod"
OFF OFF ON ON
It is best selected when Text
display is supported by the radio.
After connecting the iPod you will
see the DICE logo on the screen.
After the initialization the iPod will
be locked for an increased
interface functionality.
It is best selected when Text
display is not supported by the
radio. Track numbers and times are
not synchronized between the iPod
and radio. Because there is less data
transfer between the iPod and
radio, this mode has the fastest
response time. Content is selected
on the iPod.
Dip switch 2 Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2

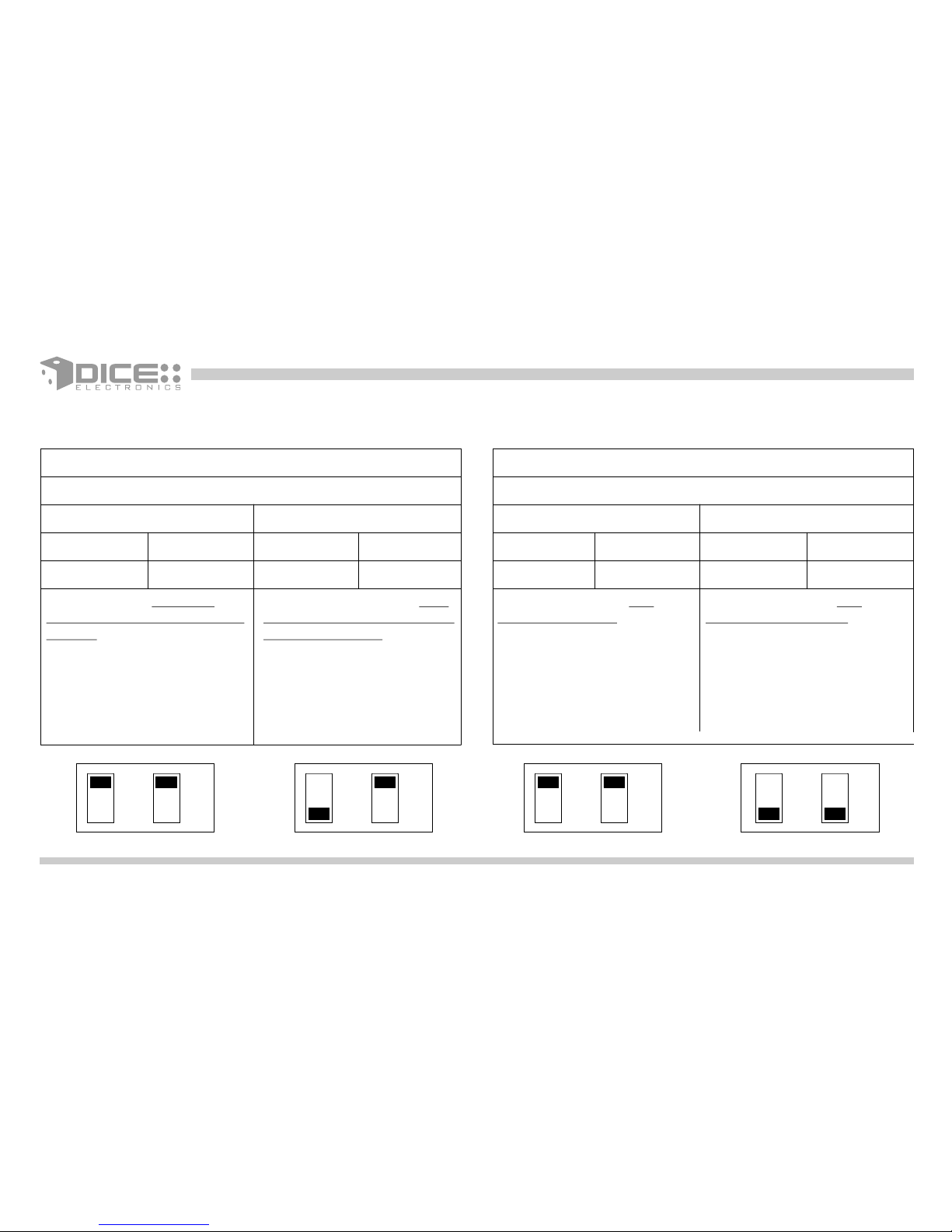

Dip switch settings
OFF OFF
ON
OFF OFF OFF
ON ON
9
Default Default

Installation
Installation should only be performed by a qualified professional. Beware of sharp edges to avoid injury and exercise
caution when removing trims as they may break. The module should be placed at an accessible location to allow AUX cable
to be connected, such as in the glove box, the center consoles, under the front seat or in the trunk.
1Pull vehicle into service bay.
2 Open trunk and access trunk area.
3Disconnect both battery terminals. These cables must be disconnected during installation to ensure proper
initialization of the DICE module when it is connected.
4CD changer cable will be on left hand side on most models (in trunk).
Some models are different:
X3 CD Changer cable is located underneath carpeting under the center console.
Z4 CD Changer interface is located between seats, underneath subwoofer.
Mini Cooper/Cooper S CD Changer interface is located on right hand side of vehicle (trunk area).
5Remove carpet and side cover to gain access to CD Changer BUS harness. If CD Changer is present, it
will need to be disconnected and/or removed.
10

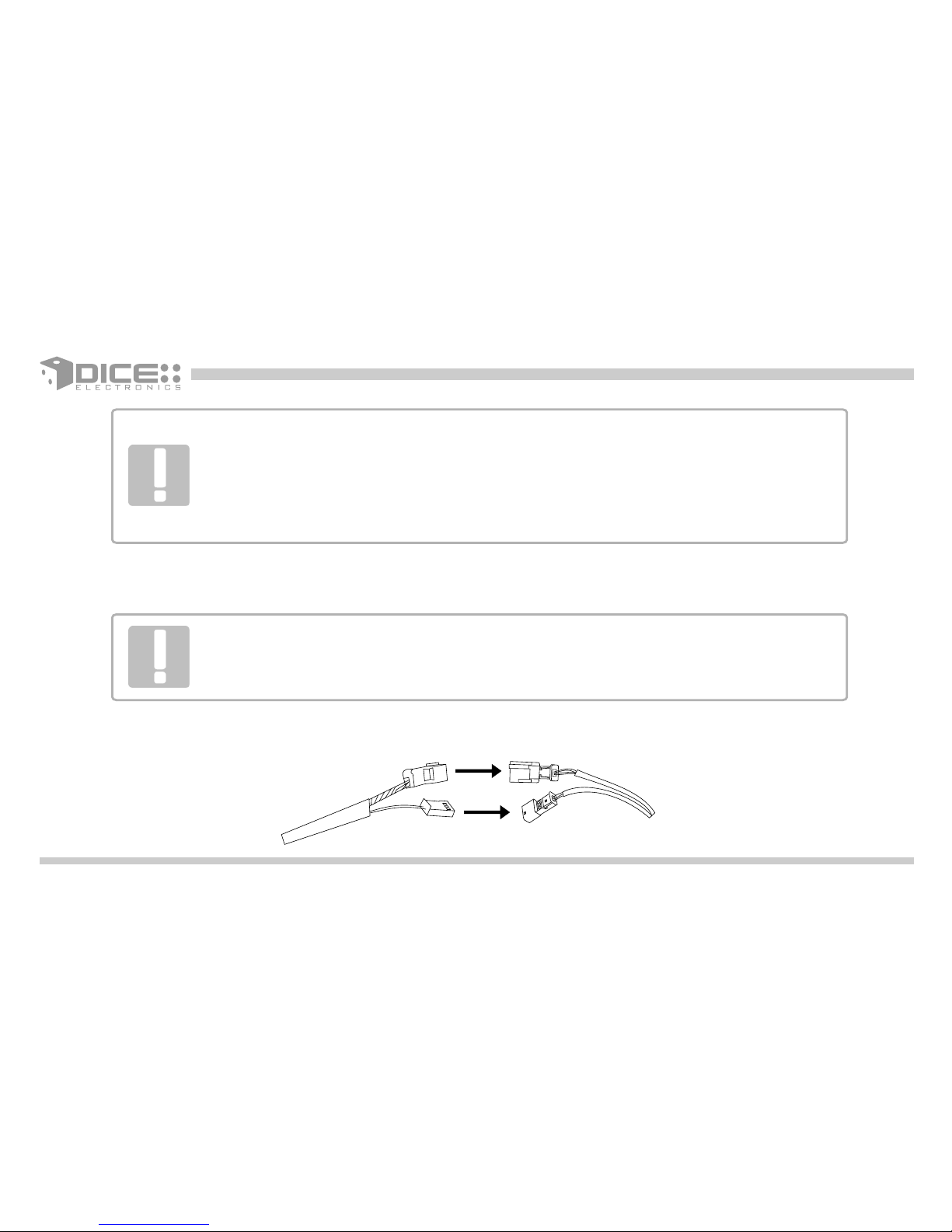

During installation, make sure that the 3 pin connector from the vehicle does not have a
brown wire in the middle. The 3 pin connector of the phone pre-wiring is identical looking to
the 3 pin connector of the CD changer pre-wiring! Do not use the 3pin connector that has a
brown wire in the middle, but locate the one that has the brown wire on the side! Incorrect
connection will result in permanent damage to the unit and will not be covered by warranty!
6Locate both the 3-pin & 6-pin connectors in the trunk area. If the CD Changer is present, disconnect the cables
and set aside. If no CD Changer is present, the cables will be bundled and tucked away in the rear trunk area.
Some vehicles will have the CD Changer wiring in a protective sheath which may make it
more difficult to locate. Cars sold outside the USA may not be pre-wired for trunk install.
7Connect both 3-pin and 6-pin cables to the BMW specific harness.
Vehicle specific harness3-pin and 6-pin BMW cables
11

8Fold down rear seats (if applicable) and route the 5m extension cable to the rear seat bottom cushion.
9Remove bottom seat cushion by lifting up and route wiring underneath.
10 Route the remainder of the interface cable in the best possible location (e.g. under the door sill or under the
drivers seat.
11 Connect the vehicle specific connector and the iPod docking cable to the module. Apply cable ties to secure the
cables.
1/8"
AUX
input
iPod
dock
cable
input
vehicle
specific
connector vehicle specific connectoriPod docking cable
receptacle receptacle
12

If your vehicle has Digital Signal Processing (DSP), the purchase of a DICE DSP kit may be necessary.
To see if your vehicle has DSP look for a bare metal coax cable and a 3-pin connector. If you don't find a coax cable and find a
6-pin connector along with a 3-pin connector, your vehicle doesn't need this DSP kit.
DSP integration
Connector location
BMW 5 series and X5 BMW Z4 BMW X3
3-pin connector
DSP amplifier
13

iPod audio source
Make sure to select the appropriate text display setting during the initial setup of the DICE kit. To configure text display on
BMW radios, press DISC 6 then select a Track number that corresponds to the designated display:
Track #
01
02
03
04
05
06
99
07
08
09
Text Displayed On
Radio
Navigation
Cluster/OBD
MID
Alternate Location
Alt Locat.(large font)
No Text
Resume Text
Motorcycle
No Text
Application
3-Series/Z3/Z4/X3/'04-K1200
All with nav.
5-Series/7-Series/X5 w/o nav.
alternate for 5-Series/7-Series/X5
All with nav.
All with nav.
All
Use if text does not resume after phone call
05+ K1200
All
Characters
12
15
20
11
8
8
----
----
12
----
Text display settings
14

The interface automatically charges the battery of the iPod when
connected and the key is in the ACC/ON position.
Charging
iPod hierarchy
By default, the interface creates a Playlist having a name that is the same as the name
of the iPod. This Playlist is the very first on the list of Playlists shown while browsing in
Playlist mode. This Playlist contains all the songs on the iPod. Once another Playlist is
active an Artist may be selected within that Playlist using the Artist Mode. Albums by
the selected Artist and within the selected Playlist may be selected in Album Mode.
"ALL ARTIST" and "ALL ALBUM" designate all available content in those categories.
Playlist
Artist
Album
Song
t
n
e
t
n
o
c
e
l
b
a
s
w
o
r
b
s
s
e
L
More browsable content
15
Charging icon will appear
on the upper right corner
of the iPod screen to
indicate charging.

Source indicator
Use button 1 - 6
to change
between DISC
numbers.
123456- -
SC MODE
AM FM
m
+
Press the MODE button to
access the interface.
Press and hold the Track
buttons to RW or FFW. On some
older BMW radios the m button
must be engaged perform the
same action.
CDC 1 Song * Artist *Album RND TP
Use Random
toenable Shuffle
Songs.
Operating the interface
Press the MODE button to access the DICE interface for iPod and its features. Pressing this button repeatedly will cycle
through sources present in your vehicle. When the iPod audio source is active (DISC 5, Track 1), use the Track button to
select next/previous Song.
BMW business CD radio
16

INFO
1 4
2 5
3 6
FM AM
MODE
TONE SELECT
MENU
CDC 2-01 PLAYLIST NAME
* DICE *
01/02/2008
Press the MODE
button to access the
interface.
Turn the jog dial to change Track. Note that a 9 second timeout is engaged once any of the
alternate display buttons are pressed. If exiting from any of these sub-screens without waiting
for the normal timeout, you MUST wait for 9 seconds before being able to use the jog dial again
to navigate content.
Press this button
to change Track,
press and hold it
to RW or FFW.
Use button 1 - 6 to
change between
DISC numbers.

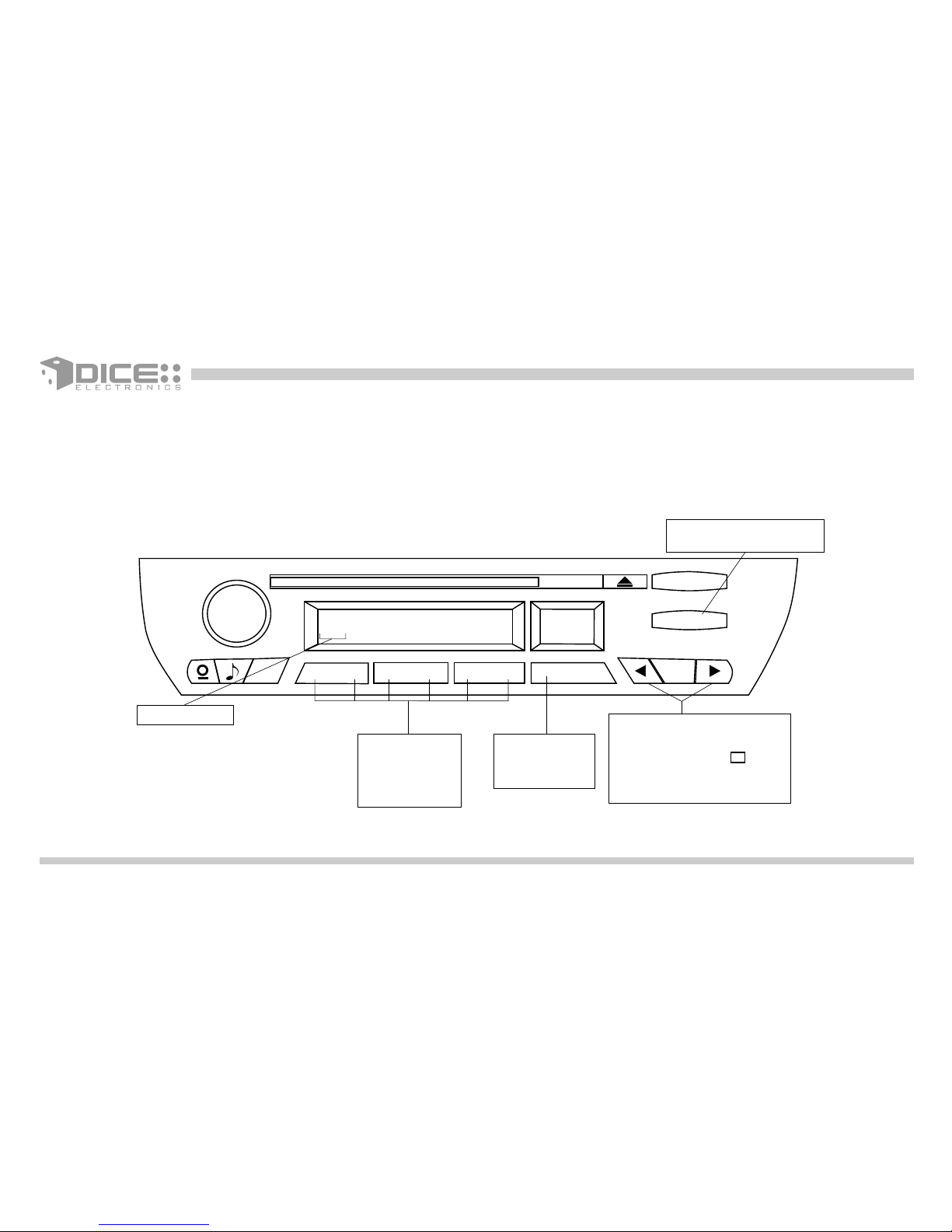

BMW radio with Navigation
17

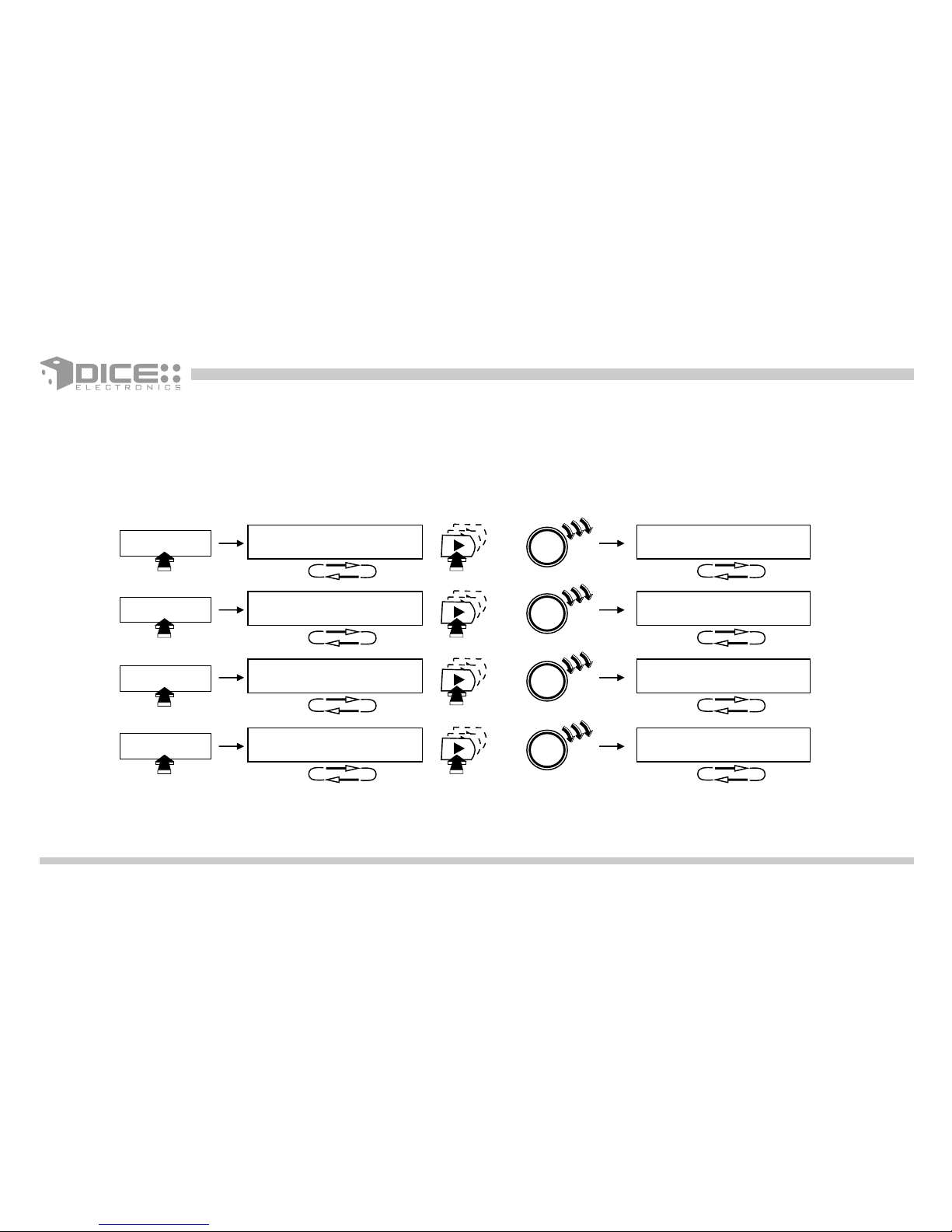

DICE Silverline browsing function - DISCS
The DICE Silverline integration kit features content browsing. After connecting the iPod, select the desired browsing mode
by pressing the appropriate DISC button. Press or turn the Track button repeatedly to browse contents; 1 second after
releasing the button, your selection is executed.
1 CDC 1 Song(1) * Artist * Alb
2
3
4
or CDC 1 Song(25) * Artist * Al
CDC 2 Playlist(1) name or CDC 2 Playlist(15) name
CDC 3 Artist(1) name or CDC 3 Artist(8) name
CDC 4 Album(1) name or CDC 4 Album(20) name
In DISC 5, you can select the audio source (iPod/AUX1), in DISC 6, you can set Text display and view firmware version
information.
18

Auxiliary audio source
19
The interface is equipped with a 1/8” AUX jack connection to connect an auxiliary device, such as an MP3 player, DVD player
or other audio source. To access the AUX audio source, select DISC 5, Track 2 or Preset 5, Channel 2.
1/8" mini stereo jack, not included
1/8" AUX
input
Connections
Tip (Left audio) Ring (Right audio) Sleeve (Ground)
Making the adjustments
While listening to the auxiliary device, adjust the volume (gain), bass, mid and treble by turning the Tune dial or pressing
the Seek button. DISC/Preset 1-4 modes select what adjustment the Tune/Seek buttons perform. See illustration on page
20.

AUX Source Settings
The auxiliary input has settings for gain, bass, mid and treble in order to optimize sound.
Volume (Gain) should be adjusted if the audio level from the auxiliary device is too low or to high. If you hear distorted
audio while playing the auxiliary device, you need to reduce (-) the gain. If you notice that the audio is too quiet then the
gain setting should be increased (+). Default settings are "50" ("68" for gain) and values may be adjusted in increments
between 01-99. Bass, Mid and Treble should be adjusted to compensate for the acoustic presets of the radio.
Note: If you are using an AUX device that is using the vehicle’s power source and not its own battery, you may have to use a
GROUND-LOOP isolator to avoid grounding and engine noise.
20
DISC 1 DISC 2 DISC 3 DISC 4
Volume
setting
Bass EQ
setting
Mid EQ
setting
Treble EQ
setting
