DICE Silverline DUO Troubleshooting guide

for selected Mazda vehicles
Installation Guide/User manual

2
Copyrights and Trademarks
Copyright 2011 DICE Electronics, LLC.
The DICE Electronics logo is a trademark of DICE Electronics, LLC.
iPod is trademark of Apple, Inc.
All rights reserved.
Printed in the U.S.A.

3
Warning and safety
Product registration
Silverline DUO kit contents
Dip switch setting
Compatible iPod & iPhone Models
Installation
Connection diagram
iPod content browsing
How the iPod’s hold button works with Silverline DUO
Basic operation
Selecting Silverline DUO as an audio source
USB memory operation
USB iPod operation
AUX operation
Sirius ConnectTM operation
Pairing Silverline DUO with your cell phone via Bluetooth
Answering / making a phone call
Playing music from a cell phone
through Silverline DUO via Bluetooth
Bluetooth & MAT conguration
Troubleshooting
Firmware update
Disclaimer & warranty
..........................................................4
.........................................................5
.................................................6
.............................................................7
..................................8
.......................................................................9
......................................................10
...................................................12
..13
.............................................................14
.......................15
.................................................19
......................................................20
...............................................................21
............................................22
..............23
...................................23
..........................24
.....................................25
.............................................................26
...........................................................29
....................................................30
Table of Contents

4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
improper operation or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional ofces, distributors or
resellers take any responsibility for any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod away from uids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled
and components may become loose from vibration and heat. Small components and packaging materials
may be a chocking hazard when handled by children.
Warning and safety!

5
Thank you for purchasing the DICE integration kit for iPod. Please review our user manual and installation
guide before operating the unit. This interface was designed and manufactured to seamlessly integrate with
your vehicle’s factory entertainment system.
We recommend registering your DICE product so you can receive news about important rmware updates
and have unlimited access to our online support system.
To register your DICE product, please complete the following steps:
1. Visit http://www.register.diceelectronics.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999.
Congratulations on your purchase!
Product registration

6

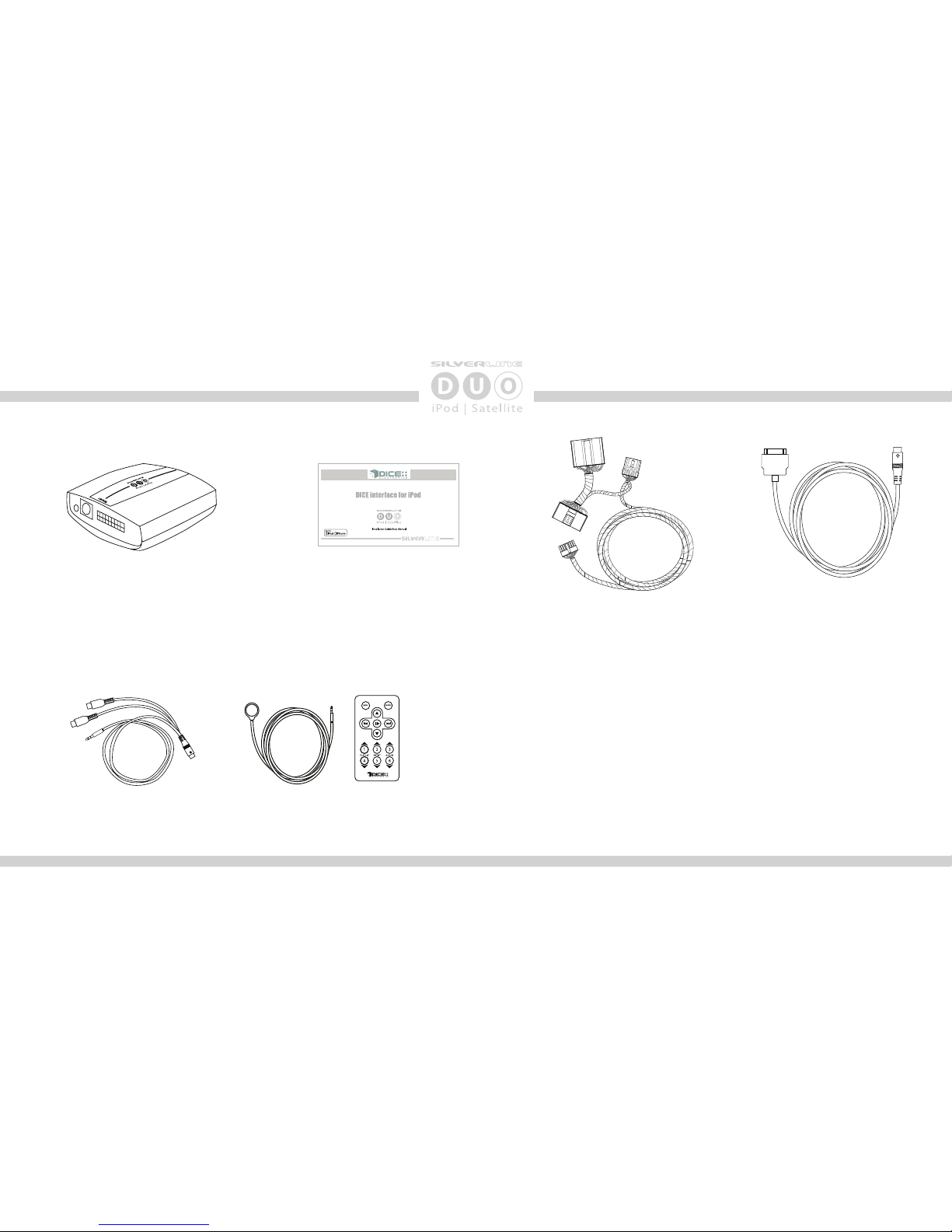

Silverline DUO kit contents
Optional accessories (sold separately):
Silverline DUO module
IR Receiver &
Remote controller
AUX connector
user manual
Vehicle bus
connector
(SAT)
iPod docking
cable

7

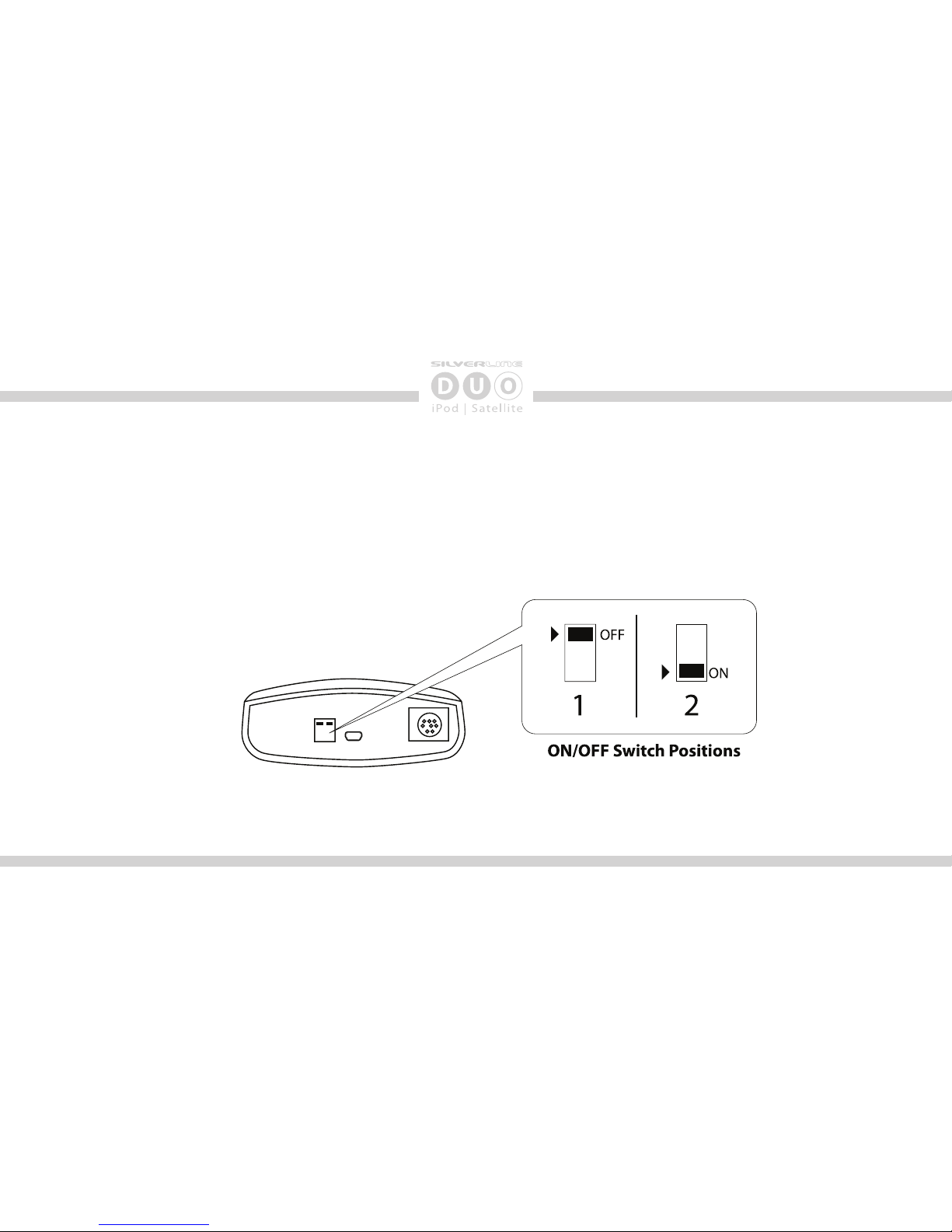

Dip switches
The conguration switches located on the Silverline DUO module are used to set various operation modes of
the interface. Incorrect dip switch settings may cause the DICE interface to not work properly or to not operate
at all. Disconnect the vehicle harness from the module and cycle ignition off for 50 seconds after
changing the switches!
Silverline DUO module

8

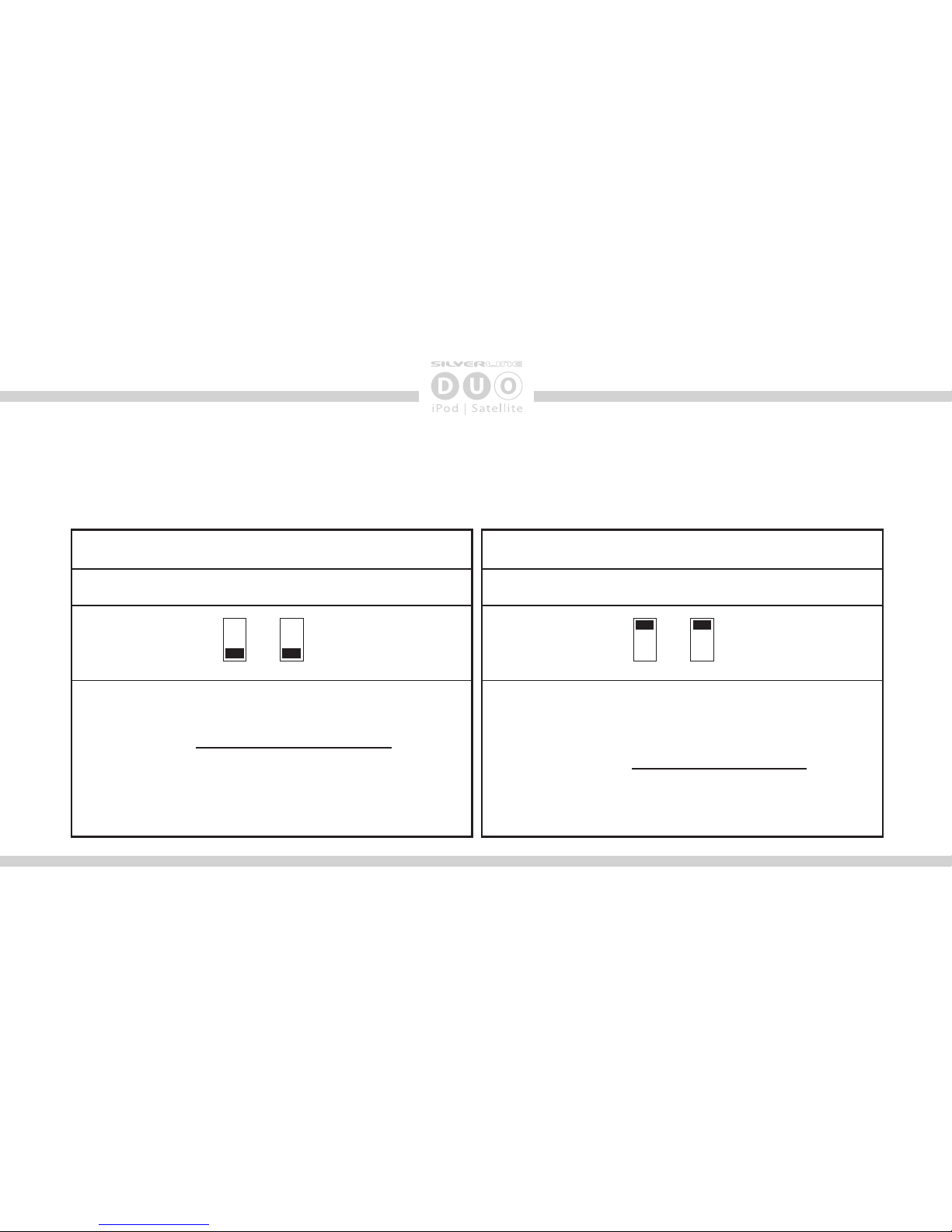

Dip switch setting
Car conguration switches
Use this setting for best user experience. Only
available on SAT capable radios. To enable
usage of the SIRIUS ConnectTM tuner, SAT
emulation must be used.
ON ON
Car conguration switches
Use this setting when the SAT emulation is not
available due to the limitation of the radio.
- Radio does not display text in CDC mode
- Connection of SIRIUS Connect tuner is not
available in this mode.
SAT Emulation CDC Emulation
OFF OFF
The dip switch positions will congure the Silverline DUO module to interface with the ve-
hicle’s radio in various emulation modes. Depending on which conguration is chosen, you
will need to refer to the instructions in this manual specic to that emulation mode.

9
Supported iPod models and rmware version requirements
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano 4G touch
iPod touch 6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 4.3.5
1.1.2 iOS 4.3.5
1.1.3 iOS 4.3.5
iOS 3.1.3 1.0
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 4.3.5

10

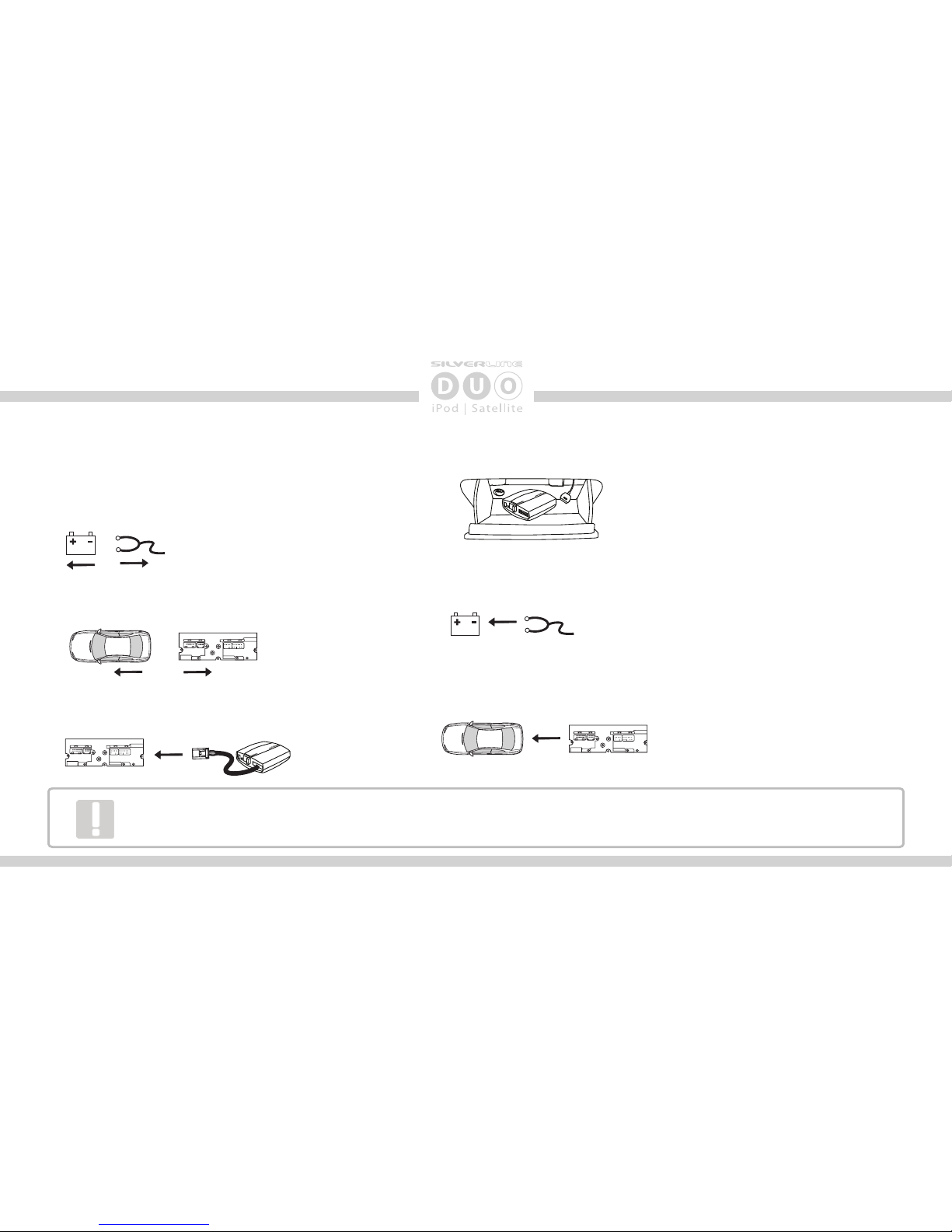

Installation
1. Verify compatibility 5. Route kit to glove box or other accessible location
6. Connect battery & test
7. Complete install by re-installing radio
2. Disconnect battery
3. Remove radio from car
4. Install Silverline DUO cable
Some radios will enter an anti-theft security mode and will lock requiring the radio’s security code
to be entered to unlock it. This code can be requested from the vehicle’s dealership.

11
Connection Diagram
* Do not connect the iPod dock cable under any circumstance to the SIRIUS module
connector! Improper connection can cause permanent damage to iPod/SIRIUS module.
IR receiver
(optional)
Silverline DUO module
(front)
Silverline DUO module
(back)
Update port
(USB to PC) iPod dock cable*
iPod/iPhone
(not included)
Vehicle BUS
connector
SIRIUS SAT radio
(not included)
Auxiliary device
(not included)
AUX connector
(optional)
SIRIUS connector*

12
Attention installer! Please read the following!
DICE Electronics strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the DICE interface module is installed.)
Installing the DICE module behind the radio will make it difcult to:
-Add possible future upgrades, changing software, adding new features, improving operation;
-Access the AUX input on the module to attach any audio device;
-Access the DIP switches located on the module;
-Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

13

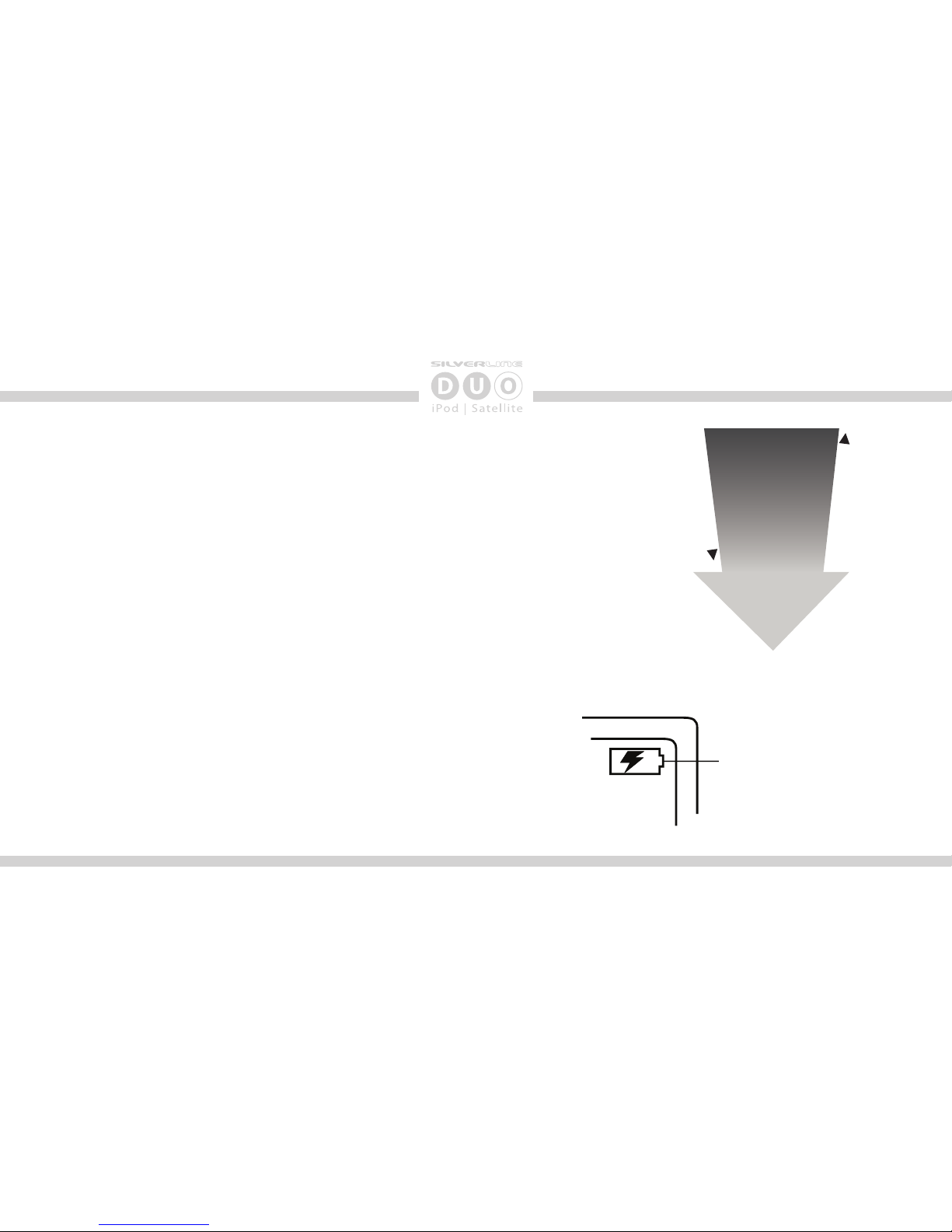

By default, the interface creates a Playlist having a name that is the same
as the name of the iPod. This Playlist is the very rst on the list of Playlists
shown while browsing in Playlist mode. This Playlist contains all the songs
on the iPod. Once a Playlist is selected an Artist may be selected within
that Playlist using the Artist Mode. Albums by the selected Artist within
the selected Playlist may be selected in Album Mode. “ALL ARTIST” and
“ALL ALBUM” designate all available content in those categories.
The interface automatically charges the battery of the iPod when
connected and your vehicle ignition key is in the ACC/ON position.
Charging may be shown by an
icon that appears on the upper
right corner of the iPod screen.
May vary by model.
Less browsable content
More browsable content
iPod content browsing
Charging
Playlist
Artist
Album
Song

14
Radio control Limited
iPod control
For iPod touch and iPhone, when the screen is not active (as shown on the left), the
iPod/iPhone is locked (Press the power button to lock the iPhone/iPod Touch).
Before connecting the iPod to the DICE
module, turn the hold switch ON to fully
control and browse the songs from the
wireless remote. The iPod is locked in this
state.
Note: Setting the iPod’s hold switch must be done prior to connecting it to the dock cable.
iPod nano 6th generation will always be in locked mode since it does not have a lock switch.
Before connecting the iPod to the DICE
module, turn the hold switch OFF to fully
control and browse the songs from iPod.
Browsing capabilities are limited from the
wireless remote.
How the iPod’s Hold Button Works with Silverline DUO
slide to unlock

15
SAT emulation: Basic operation
Accessing the DUO as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the Silverline DUO is integrated to be
part of the vehicle’s audio system. To access the DUO source, press the SAT button on the radio.
DUO source selection:
The DUO adds additional audio sources including iPod, SIRIUS Satellite Radio* and auxilliary audio input*. To
cycle between these sources, use the SEEK, TRACK or TUNE buttons within the rst 5 seconds of accessing
the DUO as the audio source.
*These sources require additional parts/accessories/service from DICE and/or third parties.
Note: When changing source, radio may temporarily display “UPDATING” when switching between iPod and
SIRIUS Connect sources.
Silverline DUO Interface settings (within rst 5 seconds of accessing the DUO as the audio source):
Press remote button 2 to set the time iPod will charge after vehicle ignition is turned OFF.
Press remote button 3 to change DUO audio gain setting.
Press remote button 4 to enable/disable scrolling text.
Press remote button 5 to set radio line display type.
Press remote button 6 to view Silverline DUO rmware version.
Press remote button 1 to apply settings and resume audio playback.

16
SAT Emulation: Selecting Silverline DUO as an Audio Source
1Radio source selector (SAT / Silverline DUO)
2Press for Next / Previous track.
3
Press to toggle between available text elds.
TURN to scroll text.
T
U
N
E
P
U
S
H
A
U
T
O
-
M
-
D
I
S
P
-
E
S
N
P
U
S
H
A
U
D
I
O
C
O
N
T
PUSH
PWR
1
2
3
SAT
4
4
Press to enter/exit shufe and repeat settings.
Press track up to cycle between random
song, random albums, random OFF.
Press track down to cycle between repeat
song, repeat all or repeat OFF.
Press SCAN to save settings and exit.

17
• Stations can be saved to PRESET 1-6 by holding a preset or remote button (1-6).
• TEXT or DISP button will toggle between the text elds.
• If a Sirius Connect compatible tuner is not detected, then an “AUX” message will be displayed. Please refer
to the factory manual of your radio system about operating the Satellite mode.
• Go to Channel 000 to view the Sirius Tuner ID for activation. The 12 digit SID display format is in two halves
as SID “123456-” followed by “-789ABC”.

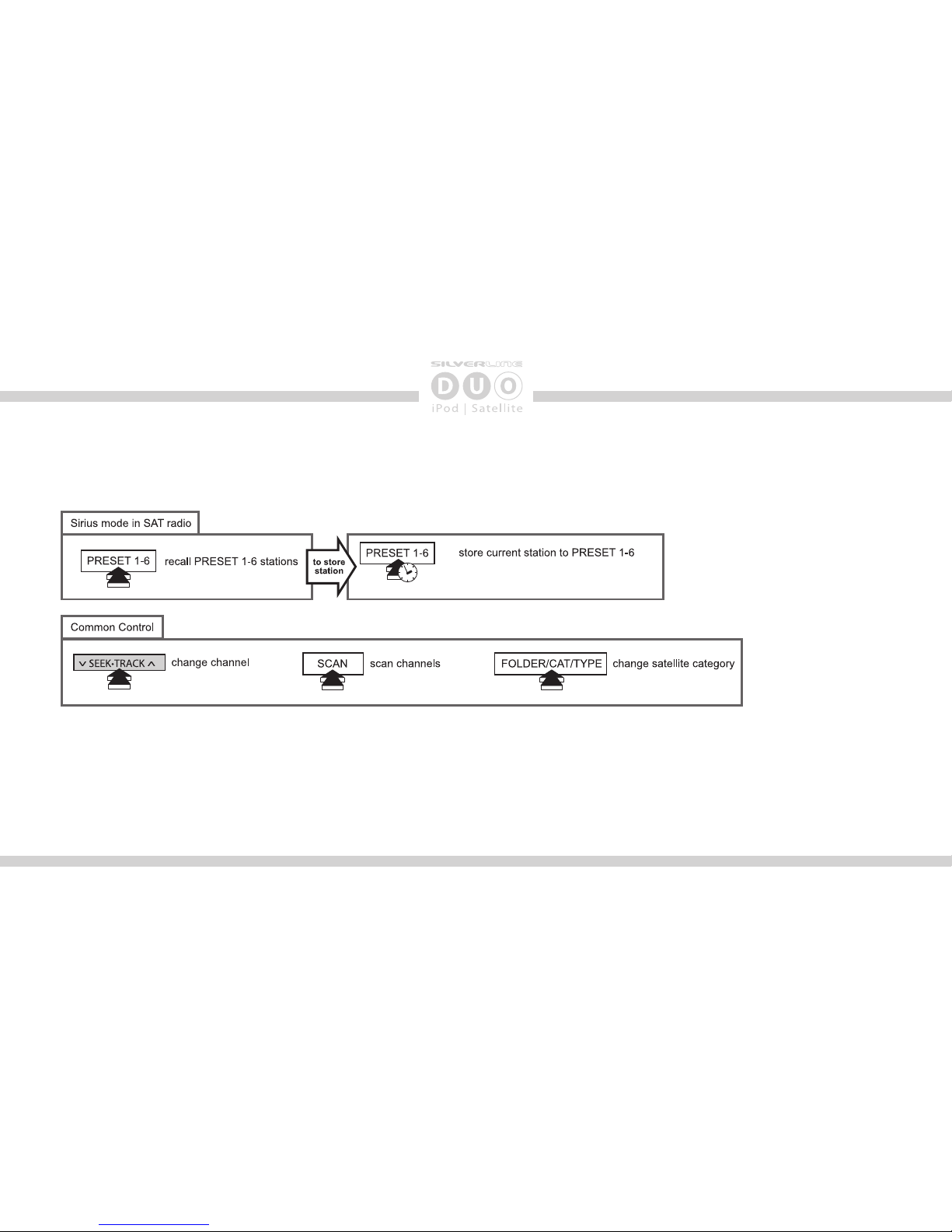

SAT Emulation: Sirius ConnectTM Operation
Press
Press Press Press
Press & Hold
NOTE: It may be possible to tune
to an invalid channel number with
certain radios. Invalid channel
numbers are indicated by an
“INVALID” message on the radio.

18
CDC emulation: Basic operation
Accessing the DUO as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the Silverline DUO is integrated to be
part of the vehicle’s audio system. To access the DUO source in CDC emulation mode, press the CD button
on the radio. Pressing this button repeatedly will cycle through the available sources (CD > DUO).
DUO source selection:
The DUO adds additional audio sources including iPod, SIRIUS Satellite Radio* and auxilliary audio input*. To
cycle between these sources, use the SEEK, TRACK or TUNE buttons within the rst 5 seconds of accessing
the DUO as the audio source.
*These sources require additional parts/accessories/service from DICE and/or third parties.
Silverline DUO Interface settings (within rst 5 seconds of accessing the DUO as the audio source):
Select DISC 2 to set the time iPod will charge after vehicle ignition is turned OFF.
Select DISC 3 to change DUO audio gain setting.
Select DISC 4 to enable/disable scrolling text.
Select DISC 5 to set radio line display type.
Select DISC 6 to view Silverline DUO rmware version.
Select DISC 1 to apply settings and resume audio playback.

19
CDC Emulation: Selecting Silverline DUO as an Audio Source
1Radio source selector (CDC / Silverline DUO)
2Press for Next / Previous track
3
T
U
N
E
P
U
S
H
A
U
T
O
-
M
-
D
I
S
P
-
E
S
N
P
U
S
H
A
U
D
I
O
C
O
N
T
PUSH
PWR
1
2
SAT
3
Press to FFW or RW currently playing track
4
Change iPod browsing mode

20

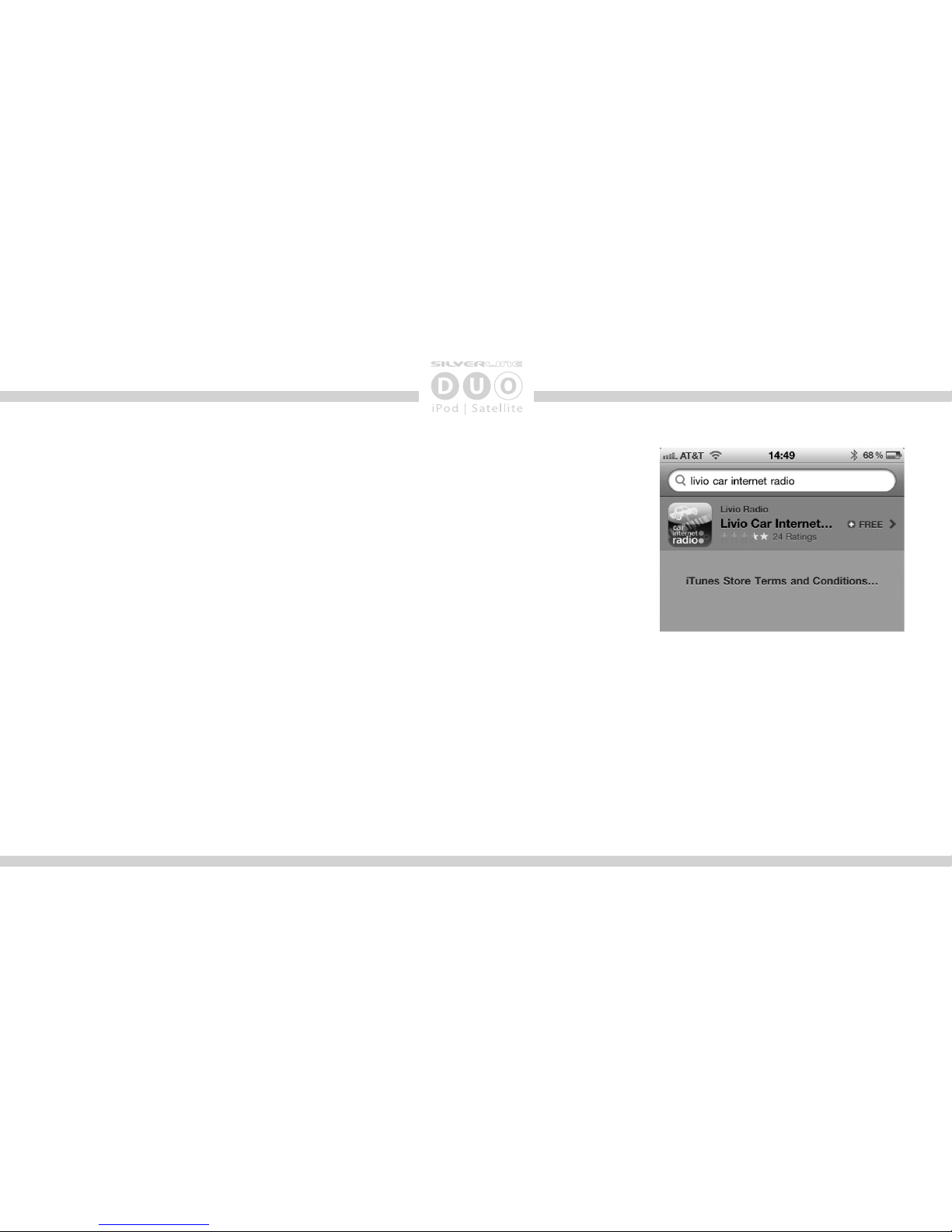

This DICE integration kit includes support for the Livio Car Internet Radio
application. It’s available on the iTunes® Store, try the FREE app and listen
to hundreds of Internet-based radio programming options streamed through
the 3G/ Edge or Wi-Fi connection. Download the upgraded Livio Car Internet
Radio application for a fee to stream more than 45,000 AM/ FM and Internet-
only radio streams from around the world.
Help is available for the Livio Radio application by calling 1-877-97-LIVIO or
going on the web to http://support.livioradio.com. You can also visit http://
www.livioradio.com/iphonecarhelp. If you do not have version 2.2.0 or
newer of the Livio Car Internet Radio application, please visit the App Store
to download it for free.
Users must have an active wireless data connection in order to stream music from the Car Internet radio App
while driving. Data connections including “3G” or “4G” through wireless carriers, or a third party wireless Internet
access point connected to your mobile device thru WiFi will work. Because this app requires a data connection,
it will only work on the iPhone and iPod touch.
The Livio Car Internet Radio application (iPhone/iPod touch)
Data connection requirements (3G/4G/WiFi)
