DICE MediaBridge MB-1500 User manual

for select Nissan/Inniti vehicles
Installation Guide/User manual

2
Copyrights and Trademarks
Copyright 2012 DICE Electronics, LLC.
The DICE Electronics logo is trademarks of DICE Electronics, LLC.
iPod and iPhone are trademarks of Apple, Inc.
All Trademarks and Logos are the property of their respective owners.
All rights reserved.
Printed in the U.S.A.

3
Warning and safety
Product registration
MediaBridge kit contents
DIP switch overview
DIP switch settings
Supported iPod models
Note to Installer
Connection diagram
Installation
iPod content browsing
Charging
iPod locked/unlocked settings and features
Preset conguration
Basic operation
Operating MediaBridge as an audio source
Controlling the MediaBridge iPod source
Controlling the MediaBridge USB memory source
Repeat and random settings
Controlling the MediaBridge SIRIUS source
Bluetooth & MAT
Paring MediaBridge with your cell phone
Answering / making a phone call
Playing music from a cell phone
Accessing the auxiliary input
Internet Radio Application support
Data connection requirements
Controlling Internet Radio Apps
Text display from the Internet Radio App
Terminating the Internet Radio App
Firmware update
Troubleshooting
Warranty
..........................................................4
.........................................................5
..................................................6
.........................................................7
...........................................................8
....................................................9
..............................................................10
.......................................................11
......................................................................12
....................................................13
.......................................................................13
...................14
.......................................................15
..............................................................16
...................17
......................21
.............22
..............................................23
......................24
.................................................................25
...........................26
.......................................26
........................................26
..............................................27
.....................................28
...........................................28
.........................................29
..........................30
....................................31
.................................................................32
..................................................................33
.............................................................................36
Table of Contents

4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
improper operation or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional ofces, distributors or
resellers take any responsibility for any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod/iPhone to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod/iPhone away from uids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled
and components may become loose from vibration and heat. Small components and packaging materials
may be a choking hazard when handled by children.
Warning and safety!

5
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This
interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
Congratulations on your purchase!
Product registration
Prior to installation make sure the module’s rmware is up to date to ensure compatibility
with the latest features and enhancements. Please refer to page 32 to update rmware.
We recommend registering your DICE product so you can receive news about important rmware updates
and have unlimited access to our online support system.
To register your DICE product, please complete the following steps:
1. Visit http://www.register.diceelectronics.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999.

6
MediaBridge kit contents
MediaBridge module user manual
For more accessories, visit www.diceelectronics.com
Optional accessories (sold separately):
MediaBridge
connector
Cradle
(DCR-150-USB)
Microphone USB
extension
for select Nissan/Inniti vehicles
Installation Guide/User manual

7
DIP switches
The conguration switches located on the MediaBridge module are used to set various operation modes of the
interface. Incorrect DIP switch settings may cause the interface to not work properly or to not operate at all.
Disconnect the vehicle harness from the module and set the ignition to the off position for 60 seconds
after changing the switches then reconnect the module!
MediaBridge Module

8
The following DIP switch settings are used to congure the MediaBridge module to interface with
the various vehicle radios. Before installation, set the DIP switch to the position shown for the
corresponding radios.
DIP switch settings
Car conguration switches
Setting for SAT capable radios,
retaining factory SIRIUS/XM
module (compatible harness and
specic installation required).
Satellite (SAT) Retaining Factory SAT
Setting for SAT capable radios,
without having a factory SIRIUS/
XM module.
ON
OFF OFF OFF

9
Supported iPod models and rmware version requirements
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano
4G touch
iPod touch
6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 5
1.1.2 iOS 5
1.1.3
iOS 5
iOS 3.1.3
1.2
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 5
iPhone 4S iOS 5

10
Attention installer! Please read the following!
DICE strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the interface module is installed.)
Installing the module behind the radio will make it difcult to:
-Add possible future upgrades, changing software, adding new features, improving operation;
-Access the AUX input on the module to attach any audio device;
-Access the DIP switches located on the module;
-Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

11
Connection diagram
*Do not connect the iPod dock cable under any circumstance to the SIRIUS module
connector! Improper connection can cause permanent damage to iPod/SIRIUS module.
MENU
Sirius SC-C1 SAT tuner
AUX audio device
Microphone MediaBridge module
Nissan SAT radio
USB thumb drive
iPod
cable receptacle*
MediaBridge vehicle connector
AUX connector
Sirius SC-C1 factory cable USB cable or iPod docking cable
*If factory harness present, connect to receptacle.

12
Installation
1. Verify compatibility 5. Route kit to glove box or other accessible location
6. Connect battery & test
7. Complete install by re-installing radio
2. Disconnect battery
3. Remove radio from car
4. Install vehicle interface harness
Some radios will enter an anti-theft security mode and will lock requiring the radio’s security code
to be entered to unlock it. This code can be requested from the vehicle’s dealership.

13
By default, the interface creates a Playlist having a name that is the same
as the name of the iPod. This Playlist is the very rst on the list of Playlists
shown while browsing in Playlist mode. This Playlist contains all the songs
on the iPod. Once a Playlist is selected an Artist may be selected within
that Playlist using the Artist Mode. Albums by the selected Artist within
the selected Playlist may be selected in Album Mode. “ALL ARTIST” and
“ALL ALBUM” designate all available content in those categories.
The interface automatically charges the battery of the iPod when
connected and your vehicle ignition key is in the ACC/ON position.
Charging may be shown by an
icon that appears on the upper
right corner of the iPod screen.
May vary by model.
Less browsable content
More browsable content
iPod content browsing
Charging
Playlist
Artist
Album
Song

14
Radio control Limited
iPod control

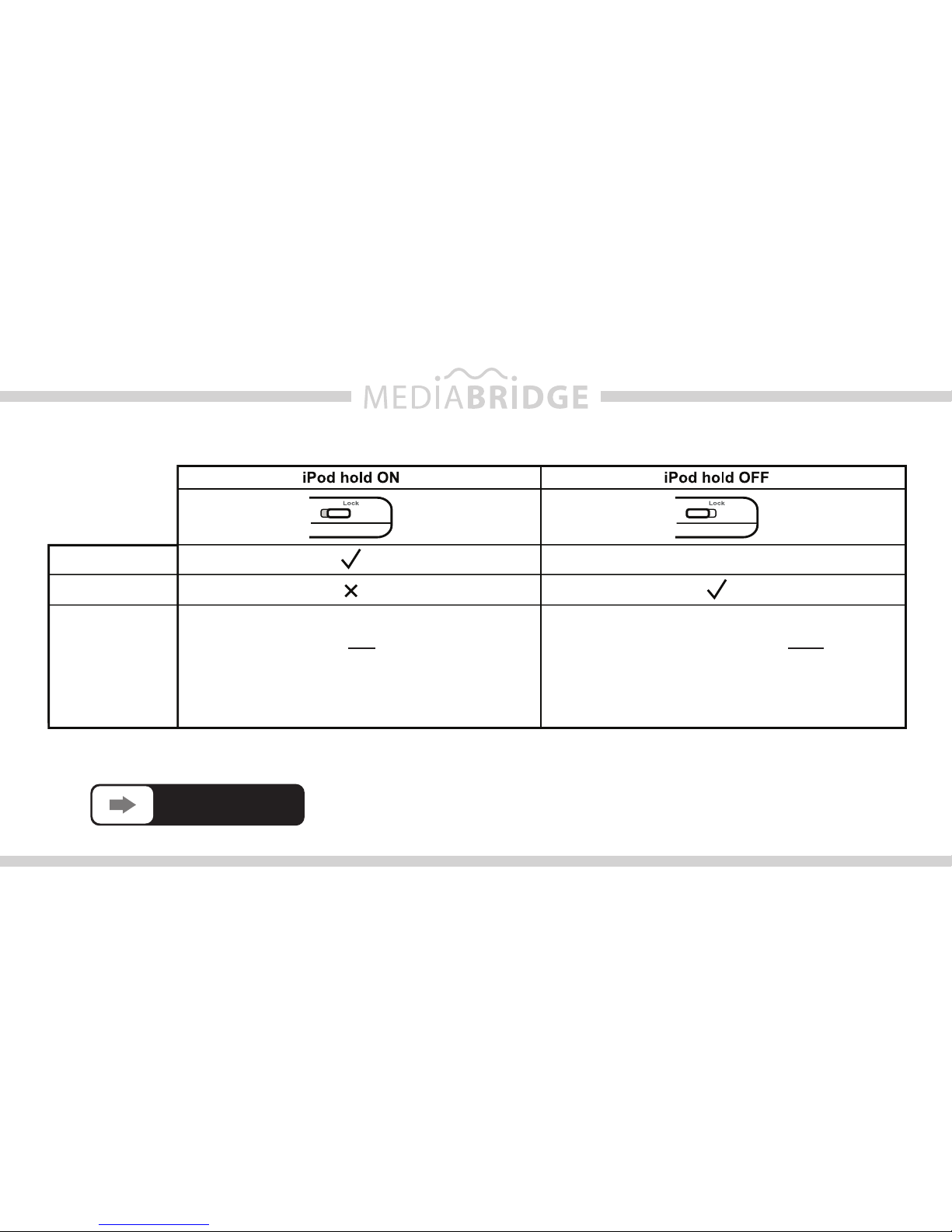

For iPod touch and iPhone, when the screen is not active (as shown on the left), the
iPod/iPhone is locked (Press the power button to lock the iPhone/iPod Touch).
Before connecting the iPod to the module,
turn the hold switch ON to fully control and
browse the songs from the wireless remote.
The iPod is locked in this state.
Note: Setting the iPod’s hold switch must be done prior to connecting it to the dock cable.
iPod nano 6th generation will always be in locked mode since it does not have a lock switch.
Before connecting the iPod to the
module, turn the hold switch OFF to fully
control and browse the songs from iPod.
Browsing capabilities are limited from the
wireless remote.
iPod locked/unlocked settings and features
slide to unlock

15
Preset Conguration
To enable full functionality of the MediaBridge with your radio, step 1-3 must be perform.
1. Means you have 3-banks of 6-PRESETS each (A, B and C). You must assign one bank for
MediaBridge operation.
2. Once a preset-bank (A,B or C) has been selected, tune the radio into “SAT” mode by pressing the
or button.
3. Once the radio is in “SAT” mode, assign the functions to the presets 1-6 by pressing and holding each
preset for 3-seconds (one preset at a time).
Note: the preset functions should be as follows for iPod:
1= SONG, 2= PLAYLISTS, 3= ARTISTS, 4= ALBUMS, 5= PODCASTS, 6= AUDIOBOOKS
PRESET
A B C
RADIO
SAT

16
Basic operation
Accessing the MediaBridge as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the MediaBridge is integrated to be
part of the vehicle’s audio system. To access the MediaBridge source, press the SAT/RADIO button on the
radio. Pressing this button repeatedly will cycle through sources present in the vehicle (CD > MediaBridge).
MediaBridge source selection:
The MediaBridge adds additional audio sources that include USB iPod/Memory, auxiliary audio input, SIRIUS
Satellite Radio* and Bluetooth. To cycle between these sources, use the SEEK/TUNE buttons within the rst 5
seconds of accessing the MediaBridge as the audio source.
*These sources require additional parts/accessories/service from DICE and/or third parties.
MediaBridge Interface settings (within rst 5 seconds of accessing it as the audio source):
Select PRESET 1 to apply settings and resume audio playback.
Select PRESET 3 to change default volume level; use track up/down to adjust between Min and Max.
Select PRESET 6 to view MediaBridge rmware version.
PRESET 2, 4 and 5 have no settings available.

17
Operating MediaBridge as an audio source
Radio source selector (CD/AUX/MediaBridge)
Press to change Categories (SIRIUS), Mode (USB
iPod).
Presets (1-6) direct Browse-by selection (in USB,
iPod mode). Station Presets 1-6 in SIRIUS modes
Press to change tracks/channels.
Toggle between available TEXT elds.
Press to enter Random / Repeat selection (iPod /
USB), or scan channels (SIRIUS).
Switch Preset Bank (A/B/C).
1
2
3
4
5
6
PUSH
PWR
PRESET
A•B•C
DISP CD RADI UX RDM
RPT SCAN
AUX IN
CLOCK
VOL
LOAD
CAT CH
SEEK
TRACK
TUNE
FF•REW
1
2
3
4
56
7
7
SAT radio
O
AUDIO
2136
45

18
Operating the MediaBridge in SAT emulation mode (non-NAV radio)
SEEK
TRACK
TUNE
REW•FF
PRESET
A•B•CCD
LOAD
FM AM SA
CAT
RPT PREV
ENTER
PAUSE
MUTE SETTING
TRIP ROUTE GUIDE
VOICE
DEST MAP
1
7
4
5
6
3
4
2
SAT radio Radio source selector (CD/AUX/MediaBridge)
Press to change Categories (SIRIUS), Mode (USB
iPod).
Presets (1-6) direct Browse-by selection (in USB,
iPod mode). Station Presets 1-6 in SIRIUS modes
Press to change tracks/channels.
Press to enter Random / Repeat selection (iPod /
USB), or scan channels (SIRIUS).
Press to select Categories/Mode.
Switch Preset Bank (A/B/C).
1
2
3
4
5
6
7
2136
45
SCAN
T

19
Operating the MediaBridge in SAT emulation mode (NAV radio)
Radio source selector (CD/AUX/MediaBridge)
Press to change Categories (SIRIUS), Mode (USB
iPod).
Presets (1-6) direct Browse-by selection (in USB,
iPod mode). Station Presets 1-6 in SIRIUS modes
Press to change tracks/channels.
Press to enter Random / Repeat selection (iPod /
USB), or scan channels (SIRIUS).
Press to change display.
Switch Preset Bank (A/B/C).
1
2
3
4
5
6
7
SAT radio
PRESET
A • B • C CLOCK
CAT
FOLDER
DISP
SCAN
RPT
RADIO
CD
REAR AV
SEEK
TRACK
LOAD
PUSH
PWR
PUSH
AUDIO
TUNE
TRACK
VOL
MP3 / 6CD CHANGER
126
7
3
45
2136
45

20
PRESET
A • B • C PAUSE
MUTE
SEEK
TRACK
PUSH
PWR VOL
12 3
45 6
TUNE
4
2
AUDIO
LOAD CD
CLOCK
SCAN CAT RPT
1
2
5
3
7
SAT radio
Radio source selector (CD/AUX/MediaBridge)
Press to change Categories (SIRIUS), Mode (USB
iPod).
Presets (1-6) direct Browse-by selection (in USB,
iPod mode). Station Presets 1-6 in SIRIUS modes
Press to change tracks/channels.
Press to enter Random / Repeat selection (iPod /
USB), or scan channels (SIRIUS).
Press to cycle through: name, title, bass, mid,
treble, fade, balance, SSV, display mode, then use
to select additional options.
Switch Preset Bank (A/B/C).
1
2
3
4
5
6
7
6
213
6
45
SAT
FMAM
6
FF•REW
