DICE Silverline iPod Kit User manual

DICE interface for iPod
for selected Honda/Acura vehicles
Installation Guide/User Manual

2
Copyrights and Trademarks
Copyright 2008 DICE Electronics, LLC.
The DICE Electronics logo is a trademark of DICE Electronics, LLC.
iPod is a trademark of Apple, Inc.
All rights reserved.
Printed in the U.S.A

Table of contents
3
Copyrights and trademarks 2
Icon legends 3
Warning and safety 4
Product registration 5
iPod hierarchy 7
Charging 7
Honda R2 integration kit 8-16
Integration kit contents 9
DIP switches 10
DIP switch settings 11
Installation 12
iPod audio source 15
Controls in CDC emulation 15
Operating modes 16
Honda R3/R4 integration kit 17-30
Integration kit contents 18
DIP switches 19
DIP switch settings 20
Installation 21
Supported iPod models 6
Icon legends
Press button
Turn jog dial
Turn jog dial repeatedly
Scroll
Press button repeatedly
iPod audio source 24
Controls in CDC emulation 24
Browsing function in CDC emulation 25
Controls in SAT emulation - Non-Nav. radio 26
Controls in SAT emulation - Nav. radio 27
Text display fields 28
Browsing function in SAT emulation 29
Scrolling feature 30
Auxiliary audio source 31
Troubleshooting 33
Disclaimer and warranty 35

4
Warning and safety!
Please read these instructions carefully before proceeding. Failure to follow instructions may result in improper operation
or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional offices, distributors or resellers take any responsibility for
any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod away from fluids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled and
components may become loose from vibration and heat. Small components and packaging materials may be a chocking
hazard when handled by children.

Congratulations on your purchase
Thank you for purchasing the DICE integration kit for iPod. Please review our user manual and installation guide before
operating the unit. This interface was designed and manufactured to seamlessly integrate with your vehicle's factory
entertainment system.
5
In order to validate your warranty period and to receive telephone or online support, you MUST register your DICE
product.
To register your DICE product, please complete the following steps:
1. Visit http://www.diceelectronics.com/register
2. Complete the product registration form.
3. Submit the form.
4. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999.
Product registration

6
FW:3.1.1 FW:1.2.1
FW:1.2.1 FW:1.4.1
FW:1.3.1 FW:1.1.3 FW:1.1.1
FW:1.0.3
FW:1.0.3
Supported iPod models and firmware version requirements
iPod
4th generation
20GB 40GB
iPod
4th generation color display
20GB 30GB 40GB 60GB
iPod classic
80GB 160GB
iPod
5th generation (video)
30GB 60GB 80GB
iPod mini
4GB 6GB
iPod nano
3th generation (video)
4GB 8GB
iPod nano
1st generation
1GB 2GB 4GB
iPod nano
2nd generation (aluminum)
2GB 4GB 8GB
iPod touch
8GB 16GB 32GB
For the latest firmware versions and models not listed, please contact your authorized dealer or DICE Electronics, LLC.

The interface automatically charges the battery of the iPod when
connected and the key is in the ACC/ON position. Charging icon will appear
on the upper right corner
of the iPod screen to
indicate charging.
Charging
iPod hierarchy
By default, the interface creates a Playlist having a name that is the same as the name
of the iPod. This Playlist is the very first on the list of Playlists shown while browsing in
Playlist mode. This Playlist contains all the songs on the iPod. Once a Playlist is active
an Artist may be selected within that Playlist using the Artist Mode. Albums by the
selected Artist and within the selected Playlist may be selected in Album Mode. "ALL
ARTIST" and "ALL ALBUM" designate all available content in those categories.
Playlist
Artist
Album
Song
t
n
e
t
n
o
c
e
l
b
a
s
w
o
r
b
s
s
e
L
More browsable content
7

Honda R2 integration kit

Integration kit contents

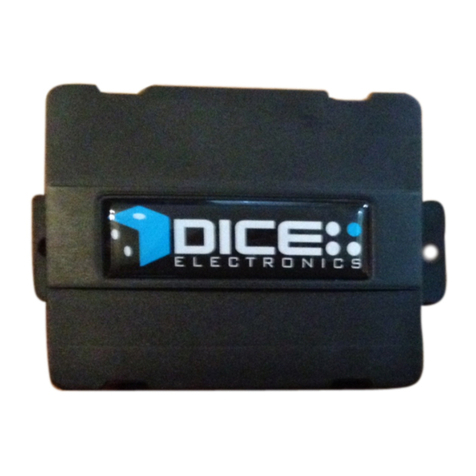

1 Vehicle specific interface unit
1 Vehicle specific harness (R2)
1 iPod docking cable
1 User manual
DICE interface for iPod
for selected Honda/Acura vehicles
Installation Guide/User Manual
9

10
Dip switches
ON 1 2
"iPod Config.
Switch"
"Car Config.
Switch"
DICE Module
ON/OFF Switch Positions
ON 1 2
ON
1 2
OFF
The configuration switches located on the DICE module are used to set the operation of the interface by the installer.
Incorrect dip switch settings may cause the DICE interface not to work properly or not to operate at all. Disconnect the
vehicle harness from module and cycle ignition off for 50 seconds after changing the switches!

Car configuration switches
Settings
CD changer (CDC)
Dip switch 1
OFF OFF
Switches should remain in the default OFF
position.
Dip switch 2
Dip switch settings
OFF OFF
It is best selected when Text display
is NOT supported by the radio.
Track numbers and times are not
synchronized between the iPod and
radio. Because there is less data
transfer between the iPod and radio,
this mode has the fastest response
time. Content is selected on the
iPod.
11
iPod configuration switches
Settings
"Locked" "iPod"
OFF OFF ON ON
It is best selected when Text
display is supported by the radio.
After connecting the iPod you will
see the DICE logo on the screen.
After the initialization the iPod will
be locked for an increased
interface functionality.
Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2
OFF OFF
ON ON
DefaultDefault

Installation
12
Installation should only be performed by a qualified professional. Beware of sharp edges to avoid injury and exercise
caution when removing trims as they may break. The module should be placed at an accessible location to allow AUX cable
to be connected, such as in the glove box, the center console or under the front seat.
1 Pull vehicle into service bay.
2 Make sure that the radio code is available before disconnecting battery. Disconnect both battery terminals. These cables
must be disconnected during installation to ensure proper initialization of the module when it is connected.
3Pull out the radio by removing surrounding trims and screws to access the CD changer connector. Most
trims can be removed by carefully pulling on the piece or using trim removal tools. Trim is usually held in place by
snap-in clips. Consult your dealership if additional information is needed on removing the radio.

Honda R2 BUS connector
13
Reconnect all the other harnesses as they were if removed. External CD changer cannot be used together with the integration kit.
4You can access the CD changer connector located on the back of the radio. If the factory CD changer is connected,
unplug it and plug the vehicle specific cable into the receptacle. The connector should securely lock.

5Connect the vehicle specific connector and the iPod docking cable to the DICE module. Apply cable ties to secure
the cables.
1/8"
AUX
input
iPod
dock
cable
input
vehicle
specific
connector vehicle specific connectoriPod docking cable
receptacle receptacle
6
T
Verify that all connections have been properly made.
7 Reconnect the car's battery. est the unit before seating the cables and reinstalling the panels/trim.
14

iPod audio source
15
Controls in CDC emulation
discdisc
COMPACT
DIGITAL AUDIO
AM
FM
CD
TAPE
VOL
PUSHPWR
REW
1
PLAY/PROG
2
FF
3
NR
4
DISC-
5
DISC+
6
H M R
CLOCK TUNE
PUSHMODE
SCAN
RPT
A.SEL
RDM
DISC
SEEK
SKIP
Source selector
Press to change
Track, press and
hold it to RW or
FFW.
Press to change
DISC.
CDC D -05 T- 01
Press the CD/CDC button to access the interface and its features. Pressing this button repeatedly will cycle through sources
present (internal CD if present, followed by external) in your vehicle. When the iPod audio source is active (DISC 5, Track 1),
use the Track button to select next/previous Song.

Operating modes
After connecting the iPod, select the desired browsing mode by selecting the appropriate DISC. To change Track press the
Seek button. The illustration below shows operation with default dip switch settings. When dip switches are set to "iPod"
mode, only Track and Audio source modes are available.
DISC 1
16
DISC 2
DISC 3
DISC 4
CDC D -01 T- 03 CDC D -01 T- 06
CDC D -02 T- 15 CDC D -02 T- 18
CDC D -03 T- 25 CDC D -03 T- 28
CDC D -04 T- 02 CDC D -04 T- 05
TRACK MODE -
PLAYLIST MODE -
ALBUM MODE -
Album within the
selected Playlist
AUDIOBOOK MODE -
DISC 5
CDC D -05 T- 01 CDC D -05 T- 02
iPod audio source AUX audio source - see pp.31-32
AUDIO SOURCE -

Honda R3/R4 integration kit

Integration kit contents
1 Vehicle specific interface unit
1Vehicle specific harness (R3 or R4)
1 iPod docking cable
1 User manual
18
R3 harness R4 harness
(regular harness that is used for
non-nav Honda/Acura and disables
XM (if equipped))
(Y-harness required for navigation-
equipped Honda/Acura and/or to
retain factory XM)
or
DICE interface for iPod
for selected Honda/Acura vehicles
Installation Guide/User Manual

19
Dip switches
ON 1 2
"iPod Config.
Switch"
"Car Config.
Switch"
DICE Module
ON/OFF Switch Positions
ON 1 2
ON
1 2
OFF
The configuration switches located on the module are used to configure the operation of the interface by the installer.
Incorrect dip switch settings may cause the interface not to work properly or not to operate at all. Disconnect vehicle
harness from module and cycle ignition off for 50 seconds after changing the switches!

Car configuration switches
Settings
CD changer (CDC) Satellite (SAT)
Dip switch 1
OFF OFF ON ON
Recommended for radios NOT
supporting Satellite (XM) or if
factory SAT is installed and user
wishes to retain it.
Recommended for Satellite (XM)
capable radios. This type of
emulation provides full Text
display on the radio. If Satellite
(XM) is equipped it must be
disconnected to operate flawlessly
in this mode.
Dip switch 2 Dip switch 1 Dip switch 2
Dip switch settings
20
OFF OFF
ON
OFF OFF
ON ON ON
Default Default
It is best selected when Text display
is NOT supported by the radio.
Track numbers and times are not
synchronized between the iPod and
radio. Because there is less data
transfer between the iPod and radio,
this mode has the fastest response
time. Content is selected on the
iPod.
iPod configuration switches
Settings
"Locked"
(recommended in SAT emulation)
"iPod"
(recommended in CDC emulation)
OFF OFF ON ON
It is best selected when Text
display is supported by the radio.
After connecting the iPod you will
see the DICE logo on the screen.
After the initialization the iPod will
be locked for an increased
interface functionality.
Dip switch 1 Dip switch 2 Dip switch 1 Dip switch 2
