Digi TransPort WR11 User manual

Test a WR11 Router
How to test a WR11 router step by step.
Technical Support
December 2018

Contents
1 Introduction .......................................................................................................................................... 3
1.1 Outline .......................................................................................................................................... 3
1.2 Assumptions................................................................................................................................. 3
1.3 Corrections................................................................................................................................... 3
1.4 Version.......................................................................................................................................... 3
2 Physical Configuration .......................................................................................................................... 4
2.1 Equipment Required.................................................................................................................... 4
2.1.1 Diagram .................................................................................................................................... 5
3 Step by Step Instructions ...................................................................................................................... 6
3.1 Install FlashWriter ........................................................................................................................ 6
3.2 Download the .ALL file: ................................................................................................................ 6
3.3 Make the initial connections........................................................................................................ 6
3.4 Launch FlashWriter ...................................................................................................................... 7
3.5 Reviewing Flashwriter error messages......................................................................................11
4 Check LEDs ..........................................................................................................................................12
4.1 Check Service LED......................................................................................................................12
5 Check USB Bus.....................................................................................................................................13
6 Check W-WAN connectivity ................................................................................................................14
6.1 Test SIM detection switch..........................................................................................................14
6.2 Test SIM 1....................................................................................................................................15

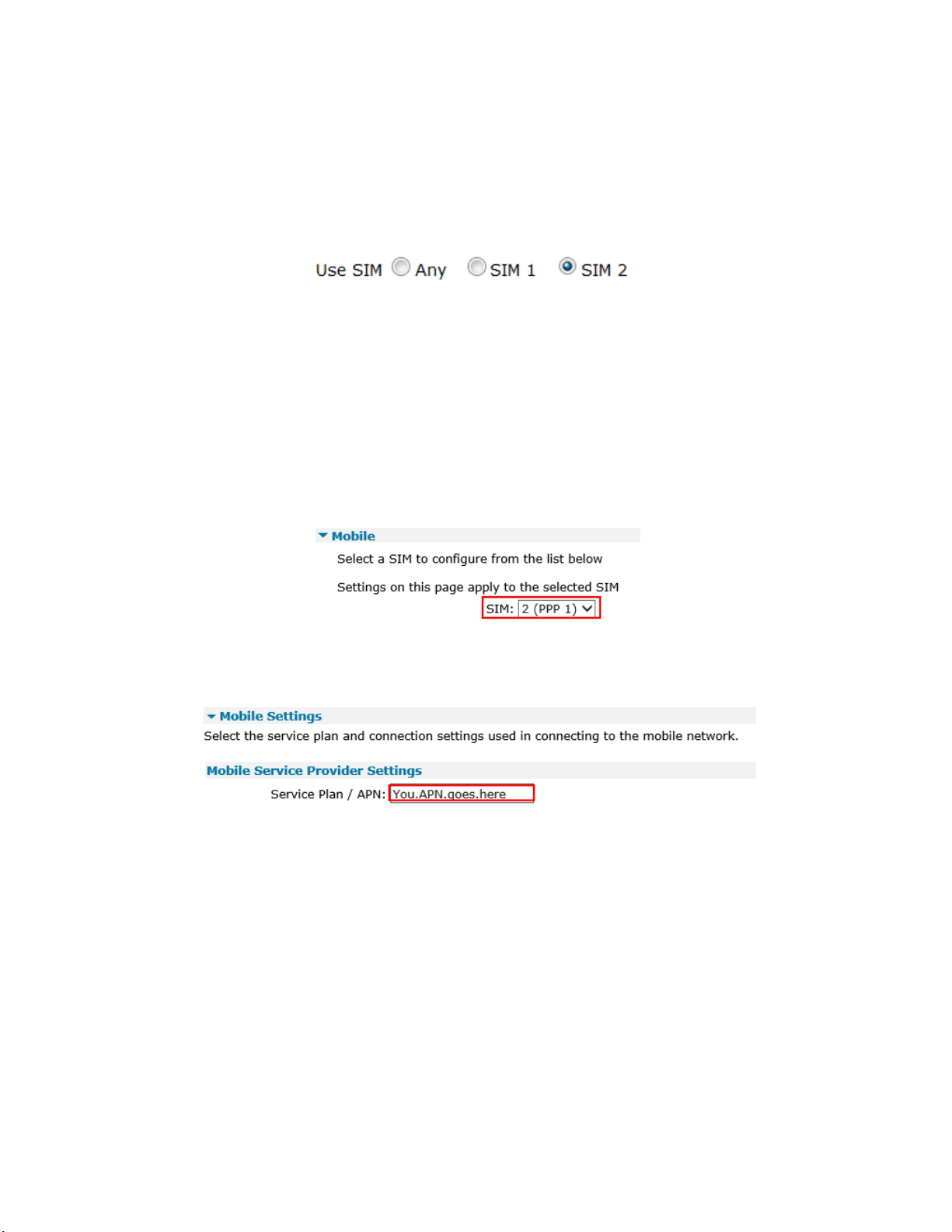

6.3 Test SIM 2....................................................................................................................................17
7 Check W-WAN Signal Strength ...........................................................................................................19
8 Check ETH port....................................................................................................................................20

How to test a WR11 router step by step.
Page | 3
1INTRODUCTION
1.1 Outline
Should it happen that the boot loader becomes corrupted on a WR11 product, it is possible for an end
user to re-load the boot loader by following this guide.
The symptoms of a corrupted boot loader are usually as follows. When applying the power, the only
LED to illuminates is the power LED. It is also possible that other “unusual” LED patterns may occur
depending upon how “damaged”the boot loader is.
1.2 Assumptions
This guide has been written for use by technically competent personnel with a good understanding of
the communications technologies used in the product and of the requirements for their specific
application.
This quick note applies only to:
Model: Digi Transport WR11
1.3 Corrections
Requests for corrections or amendments to this documentation are welcome and should be
addressed to: tech.suppor[email protected]
Requests for new quick notes can be sent to the same address.
1.4 Version
Version Number
Status
0.1
Draft
1.0
Completed 15/06/2015
1.1
Rebranding + screenshot update
1.2
Module list update

How to test a WR11 router step by step.
Page | 4
2PHYSICAL CONFIGURATION
2.1 Equipment Required
A PC running a Microsoft WindowsTM based operating system.
1. A PC connected to the Internet running a Microsoft WindowsTM operating system.
4. An Ethernet switch/hub to connect the PC to the WR11 (usually your normal office Ethernet
switch/hub will be fine if there is a spare port)
5. CAT 5 cables to connect the WR11 and PC to the Ethernet switch.

How to test a WR11 router step by step.
Page | 5
2.1.1 Diagram
The following diagram represents how the equipment will be connected during the repair process:
WR11 with
broken boot
loader
Internet
Office Ethernet switch LAN
Ethernet
PC running Microsoft Windows TM
Ethernet
Reset
Button
The internet connection is not essential but may be useful during troubleshooting. It is essential that
the PC’s Ethernet communication interface is configured correctly (e.g. it has an IP address)
Also note that the Ethernet switch/hub used must have spanning tree protocol disabled.

How to test a WR11 router step by step.
Page | 6
3STEP BY STEP INSTRUCTIONS
3.1 Install FlashWriter
Install the latest version of FlashWriter from the following link:
http://ftp1.digi.com/support/firmware/FlashWriter.msi
3.2 Download the .ALL file:
Download the following zip file to your PC and extract all the contents to a single folder
http://ftp1.digi.com/support/firmware/transport/flashwriter/latest/wr11-flashwriter-x.x.x.x.zip
Click: http://ftp1.digi.com/support/firmware/transport/flashwriter/latest/
where X.X.X.X is the current firmware version.
3.3 Make the initial connections
1. Connect the WR11’s Ethernet (LAN 0) port to your “office network”.
2. Ensure the PC is also connected to the same “office network”

How to test a WR11 router step by step.
Page | 7
3.4 Launch FlashWriter
Launch Flashwriter from the start menu. Select “ETH” as the communications port number. Leave the
other settings at their default values (TFTP and Event driven mode ONLY ticked):
Click Load
If your PC has more than one network adapter, be sure to select the one that represents the
connection to “Office Network” illustrated in 0.
If your PC only has a single network adapter this screen will not appear:

How to test a WR11 router step by step.
Page | 8
In the file dialogue, select the “ALL” file you extracted from the ZIP earlier:
And click “Open”.
The following message will appear:
It is critical that the correct selection is made at this point.
Note 1: Since FlashWriter version 1.0.525 characters 6 and 7 are included in the W-WAN module name,
see above.
Note 2: characters 6 and 7 of the part number (SKU) on the approval label. In the example below these
are “L7”:

How to test a WR11 router step by step.
Page | 9
Refer to the following table to determine which selection to make:
Characters 6 & 7
Flashwriter Selection
00
100 No module
G1
5 Cinterion/Siemens MC75i/TC63i/MC75/Triorail
E1
5 Cinterion/Siemens MC75i/TC63i/MC75/Triorail
H0
9 Option HSDPA/HSUPA modules
H1
9 Option HSDPA/HSUPA modules
H2
9 Option HSDPA/HSUPA modules
C0
10 CMotech CDMA module
C1
11 Sierra Wireless CDMA module
C2
11 Sierra Wireless CDMA module
C3
10 CMotech CDMA module
C4
10 CMotech CDMA module
C6
10 CMotech CDMA module
C7
10 CMotech CDMA module
U0
9 Option HSDPA/HSUPA modules
U1
9 Option HSDPA/HSUPA modules
U2
13 Ericsson F3507g/F3607gw/F3307/F5521gw HSDPA module
U3
7 Sierra Wireless 3G module
U4
13 Ericsson F3507g/F3607gw/F3307/F5521gw HSDPA module
U5
17 Gobi UMTS or 18 Gobi CDMA
U6
13 Ericsson F3507g/F3607gw/F3307/F5521gw HSDPA module
U7
13 Ericsson F3507g/F3607gw/F3307/F5521gw HSDPA module
U8
17 Gobi UMTS
U9
24 Telit 3G
L1
28 Huawei LTE
L2
23 Novatel LTE
L3
23 Novatel LTE
L4
26 Sierra Wireless 4G/LTE module
L5
26 Sierra Wireless 4G/LTE module
L6
29 Telit LTE Version 1
L7
29 Telit LTE Version 1
L8
29 Telit LTE Version 1
L9
26 Sierra Wireless 4G/LTE module
M2
31 Cellient LTE
M3
32 Telit LTE Version 2
M4
29 Telit LTE Version 1
M5
32 Telit LTE Version 2
M6
32 Telit LTE Version 2
M7
32 Telit LTE Version 2
M8
26 Sierra Wireless 4G/LTE module
M9
29 Telit LTE Version 1

How to test a WR11 router step by step.
Page | 10

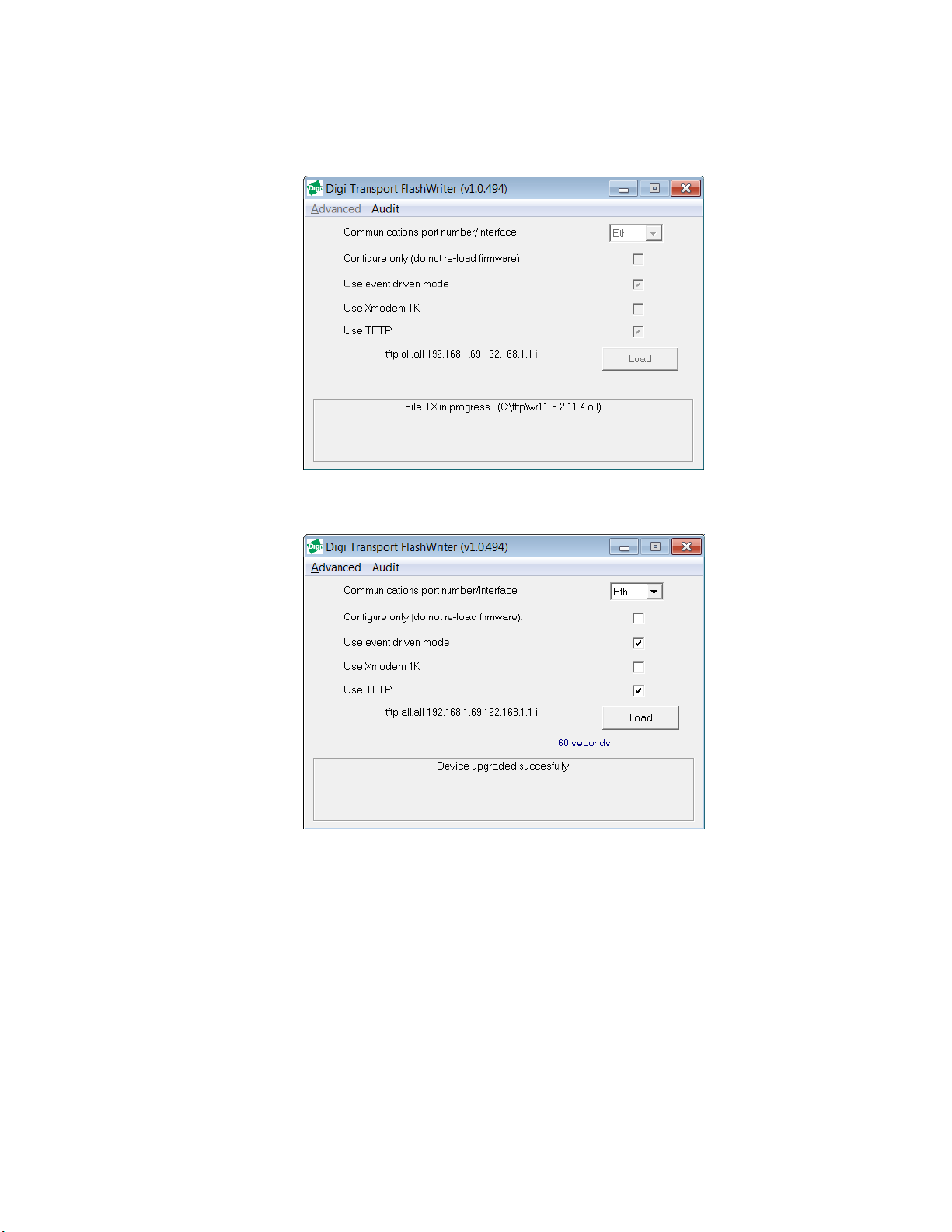

After programming in the W-WAN counter and other options, next the .ALL file will start to
load:
1. After reboot and checks, the following message should be displayed:
This means the WR11 has been successfully recovered.
At this stage the following hardware components (and more) have been successfully tested:
FLASH
SDRAM
SRAM
ETHERNET 0
Interface to radio module

How to test a WR11 router step by step.
Page | 11
3.5 Reviewing Flashwriter error messages
If during the previous session an error occurred, please check the table below for the recommended
course of action:
Error Message
Recommendation
sbios upload not confirmed by unit.
Check that this repeatedly fails and that you can carry out the procedure
correctly on a known working router. If so then please create an RMA with
reason Flashwriter sbios upload not confirmed by unit.
Scan failed DO NOT remove power from unit.
Ignore the message, remove the power try again. Check that this repeatedly
fails and that you can carry out the procedure correctly on a known working
router. If so then please create an RMA with reason Flashwriter scan failed.
Error re-accessing bootloader, >> prompt not
received after sending password.
Check that this repeatedly fails and that you can carry out the procedure
correctly on a known working router. If so then please create an RMA with
reason Error re-accessing bootloader, >> prompt not received after sending
password.
Unit did not reboot successfully after loading
bootloader.
Check that this repeatedly fails and that you can carry out the procedure
correctly on a known working router. If so then please create an RMA with
reason Flashwriter: Unit did not reboot successfully after loading
bootloader.
Unable to start TFTP
Check that the Ethernet cable is connected correctly and the LAN LED is on.
This error can often be “user error” or “network issues”. However if this error
is repeatable on the suspected bad router but does not occur on a known
good router then request an RMA with reason. “Flashwriter TFTP failed to
start”
Blue progress bar moves, but slowly and with
lots of re-tries and eventually fails.
This suggests a hardware problem or a network issue on your LAN. Check
again that this works on a known good router, if it does and it still fails with
this error on the suspected bad router then request an RMA with reason.
“Flashwriter TFTP failed to complete”
Unable to communicate with device after
reboot
Check to see if the router is continuously rebooting. Please contact Digi
technical support for help.
W-WAN module failed check - please check
you selected the correct module!
Be very careful to check that you are selecting the correct radio module
when you launch FlashWriter. This is the number one cause of this error! If
you are unsure of the type of radio module fitted open the case.
If you are sure you are selecting the correct radio module and if this error is
repeatable on the suspected bad router yet works fine on a known good
router, please request an RMA with reason: “Flashwriter radio check failed.”

How to test a WR11 router step by step.
Page | 12
4CHECK LEDS
The POWER LED should be illuminated when the device is turned on. If there is an LED fault with,
please request an RMA with code:
“POWER LED failure”
The SIGNAL LED will be illuminated after 1-2 minutes from boot if the cellular module is working and
configured properly. If the device obtains an IP address but the LED is faulty, please request an RMA
with code:
“SIGNAL LED failure”
4.1 Check Service LED
Connect the Ethernet port to a switch.
Access the CLI (Command Line Interface) –this can be achieved:
Via a telnet or SSH connection
Via the “execute a command” page of the web user interface.
Issue the “flashleds” command and check that the SERVICE LED is illuminated/blinking. If there is an
LED fault please request an RMA with code:
“SERVICE LED failure”

How to test a WR11 router step by step.
Page | 13
5CHECK USB BUS
Check that the W-WAN module is shown on the USB BUS of the unit
Access to the CLI (Command Line Interface) –this can be achieved:
Via a telnet or SSH connection
Via the “execute a command” page of the web user interface.

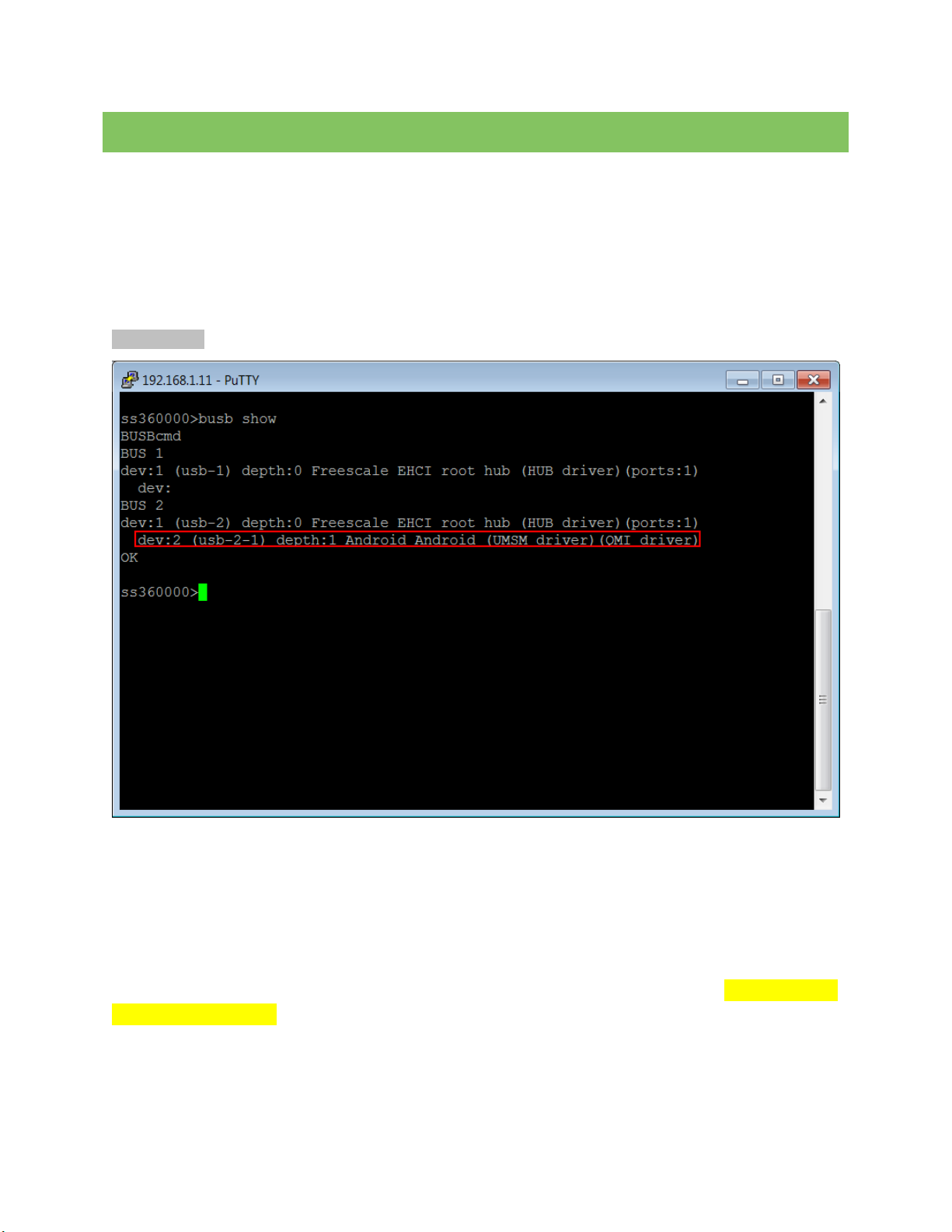

And issue the following command:
busb show
2 devices should normally be present:
Device in “BUS 1, dev1, depth 0”
Device in “BUS 2, dev1, depth 1” (This is the radio module, if it is missing, the module may be
mid power cycle, wait a few seconds and issue that command again. The text of this will vary
based upon the type of module fitted. )
If the device in BUS 2, dev1, depth 0 is not present, please request an RMA with code: “Cellular module
not shown on USB BUS”

How to test a WR11 router step by step.
Page | 14
6CHECK W-WAN CONNECTIVITY
6.1 Test SIM detection switch
With the router powered off, insert a SIM card into BOTH SIM slots of the WR44V2 and open the CLI
interface.
Access to the CLI (Command Line Interface) –this can be achieved:
Via a telnet or SSH connection
Via the “execute a command” page of the web user interface.
Issue the following command:
simconn ?
This command tells you which SIM slots are populated and also the SIM that is currently in use. The
value before the comma is SIM 1 and the value after the comma is SIM 2. 1000 means that the SIM is
present. 1001 means that the SIM is present and the active SIM. Here is a summary:
1 = SIM not present
1000 = SIM present
1001 = SIM present and connected
The output should be as follows:
simconn ?
simconn: 1001,1000
OK
Showing that SIM 1 is present and active and SIM 2 is present.
If the SIM cards are physically inserted but do not show as present please request an RMA with reason
“SIM DETECTION FAIL”

How to test a WR11 router step by step.
Page | 15
6.2 Test SIM 1
Ensure that an antenna (or both if using an LTE unit) is connected and the router is located in an area
with good signal strength.
Navigate to:
Configuration - Network > Interfaces > Advanced > PPP 1 > Mobile
Change W-WAN SIM: from “Any” to “SIM 1”
Click Apply.
Next navigate to
Configuration - Network > Interfaces > Mobile
And select SIM 1
Under “Mobile Settings”
Enter the correct APN for the SIM card installed in slot 1
Click Apply.

How to test a WR11 router step by step.
Page | 16
Navigate to:
Management - Connections > PPP Connections > PPP 1
Wait for up to 5 minutes and check for a valid IP address
You may need to refresh the page for the new address to appear (click on >PPP 1)
If a valid IP address is NOT found, please download the debug.txt and email this to Digi Technical
Support ([e-mail]) or open a case at http://www.digi.com/support/eservice/ for
assistance.
Instructions on how to extract the debug.txt can be found in the following application note:
http://ftp1.digi.com/support/documentation/QN_024_Extracting%20the%20debug.txt%20file%20fro
m%20a%20Digi%20TransPort%20or%20Sarian%20router.pdf

How to test a WR11 router step by step.
Page | 17
6.3 Test SIM 2
Navigate to:
Configuration - Network > Interfaces > Advanced > PPP 1 > Mobile
Change “W-WAN SIM: from “SIM 1”to “SIM 2”
Click Apply.
Next navigate to
Configuration - Network > Interfaces > Mobile
And select SIM 2
And under “Mobile Settings”
Enter the correct APN for the SIM card installed in slot 2
Click Apply

How to test a WR11 router step by step.
Page | 18

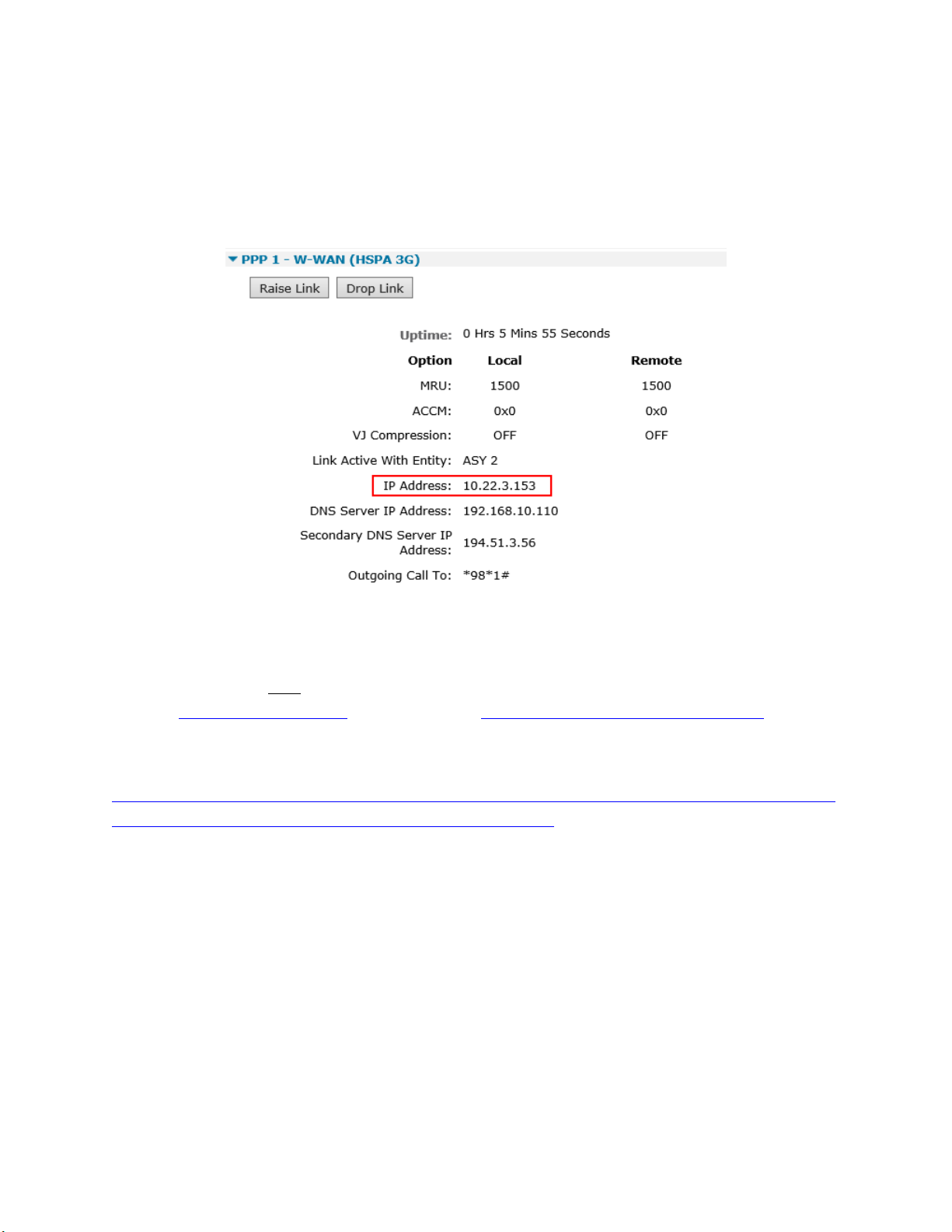

Now Navigate to:
Management - Connections > PPP Connections > PPP 1
Click “Drop Link” and refresh the page by clicking >PPP 1
You may need to wait up to 5 minutes
A valid IP address for SIM 2 should be seen –Notice it is different to the one assigned for SIM 1
If a valid IP address is NOT found, please download the debug.txt and email this to Digi Technical
Support ([e-mail]) or open a case at http://www.digi.com/support/eservice/ for
assistance.
Instructions on how to extract the debug.txt can be found in the following application note:
http://ftp1.digi.com/support/documentation/QN_024_Extracting%20the%20debug.txt%20file%20fro
m%20a%20Digi%20TransPort%20or%20Sarian%20router.pdf

How to test a WR11 router step by step.
Page | 19
7CHECK W-WAN SIGNAL STRENGTH
Whilst the internet link is still connected from step 5, access the CLI (Command Line Interface)
Access to the CLI (Command Line Interface) –this can be achieved:
Via a telnet or SSH connection
Via the “execute a command” page of the web user interface.
And issue the following command:

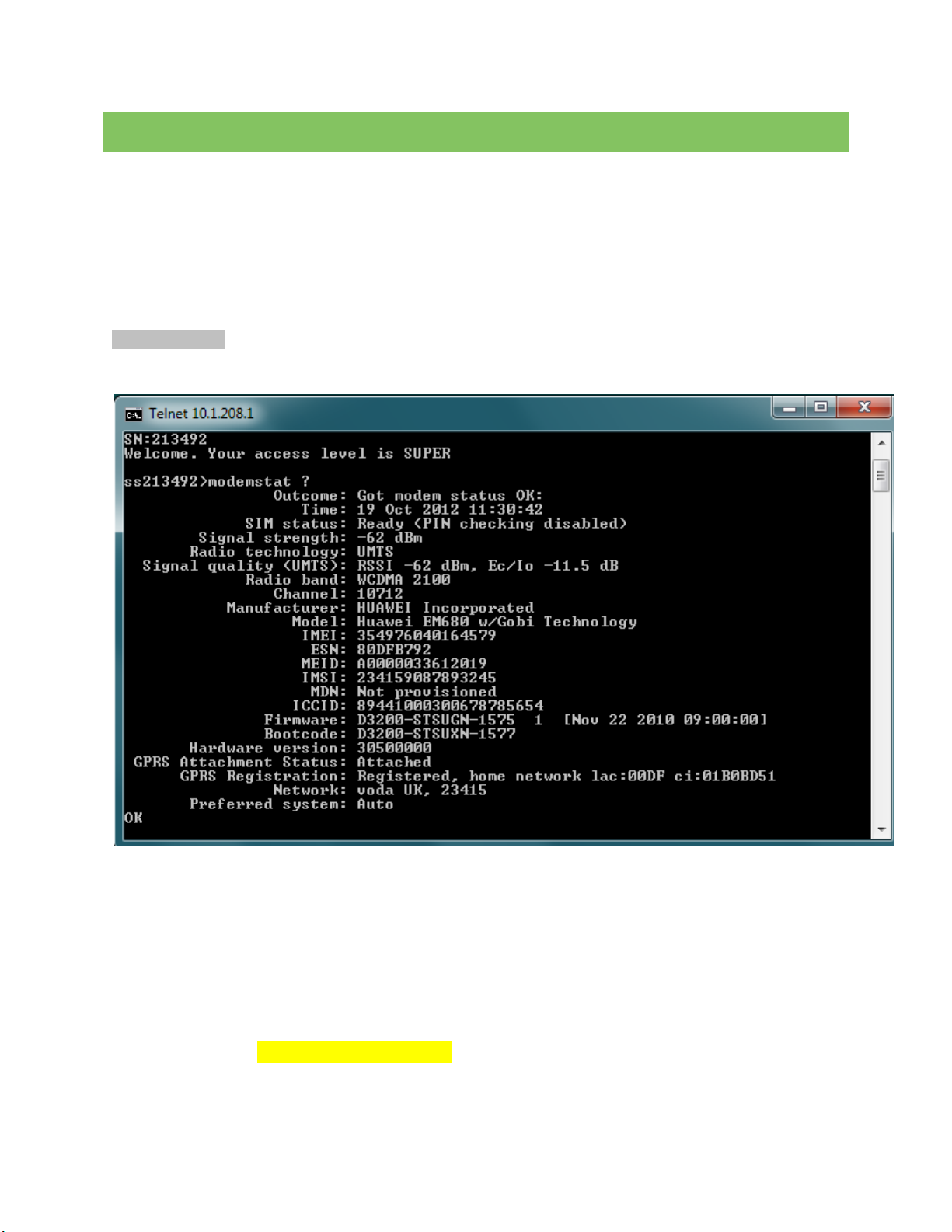

modemstat ?
Check that the signal strength is roughly what you normally get (+/- 10dB) with the same antenna in
the test location.
If the signal strength is much worse than normal, make a note of the cell ID (lac:00DF ci:01B0BD51 in
above example) and repeat the test on a known working WR11 that contains the same type of radio
module in the same location. Ensure the known working WR11 is connected using the same antenna
and connects to the same cell ID (lac:00DF ci:01B0BD51 in above example). If it does and the signal
strength is much better (+ 10dB) than the suspected bad router, request an RMA from Digi technical
support with code: “Cellular signal strength low”

How to test a WR11 router step by step.
Page | 20
8CHECK ETH PORT
Note that it is not necessary to test Eth port 0. This was testing during the flashing process. However if
you observe intermittent issues, it might be necessary to run several tests.
Configure eth port 0 with a valid and free IP address on the same subnet as your test PC, e.g.
eth 0 ipaddr 10.1.208.11
From your PC, first clear the ARP table, from the windows command prompt and issue this command:
arp –d *
Then check that you can ping this IP address. If an intermittent issue is observed, let the ping run for a
longer period (-t option)
If it is not possible to ping this addresses and if you repeat this test on a known good WR11 and it
works fine, please request an RMA with code “ETH 0 test failed”.
