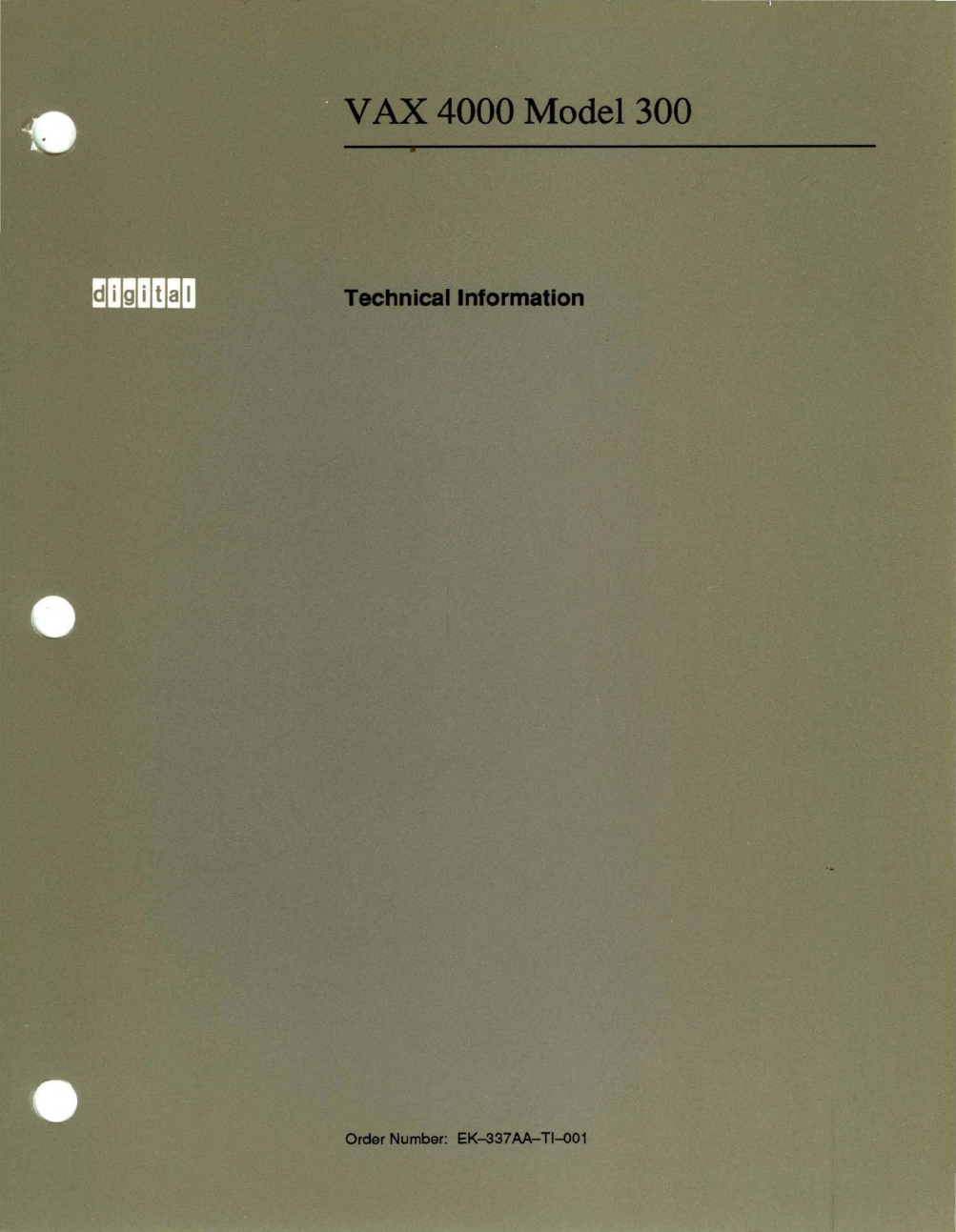

Digital Equipment VAX 4000 300 Manual

VAX 4000 Model 300
Technical Information
Order Number: EK-,337 AA- TI-001

VAX 4000 Model 300
Technical Information
Order Number EK-337AA-TI-001
digital equipment corporation
maynard, massachusetts

First Printing, March 1990
The information in this document is subject to change without notice and should not be
construed as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that may appear in
this document.
The software, if any, described in this document is furnished under a license and may be used
or copied only in accordance with the terms of such license. No responsibility is assumed
for the use or reliability of software or equipment that is not supplied by Digital Equipment
Corporation or its affiliated companies.
Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c)(l)(ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013.
© Digital Equipment Corporation 1990. All rights reserved.
Printed in U.S.A
The Reader's Comments form at the end of this document requests your critical evaluation to
assist in preparing future documentation.
The following are trademarks of Digital Equipment Corporation.
COMPACTape
DDCMP
DEC
DEC
direct
DECnet
DECserver
DECsystem 5400
DECUS
DECwrlter
DELNI
DELQA
DEQNA
DESTA
DSSI
!VIS
Letterprinter
Letterwriter
MicroVAX
PDP
Professional
Q-bus
ReGIS
RQDX
ScriptPrinter
ThinWire
ULTRIX
UNffiUS
VAX
VAX 4000
VAXcluster
VAX DOCUMENT
VAXELN
VAXlab
VMS
VT
mOmOOmD
lM
Amphenol is a trademark of Amphenol Corporation. Bell is a trademark of Bell telephone
companies. CHAMP is a registered trademark of AMP Inc. POSTSCRIPT is a registered
trademark of Adobe Systems Incorporated. Proprinter is a trademark of International
Business Machines Corporation. Tektronix is a registered trademark of Tektronix, Inc.
FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio
frequency energy. The equipment has been type tested and found to comply with the limits for
a
Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed
to provide reasonable protection against such radio frequency interference when operated in
a commercial environment. Operation of this equipment in a residential area may cause
interference, in which case the user at his own expense may be required to take measures to
correct the interference.
$1351
This document was prepared using VAX DOCUMENT, Version 1.2.

Contents
Preface vii
Chapter 1 Base System Description
1.1 System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Firmware Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.3 Power-On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.4 Console 110 Mode Overview ................... , . . . . . . 1-4
1.4.1 Control Characters in Console 1/0 Mode. . . . . . . . . . . . . . 1-4
1.4.2 Console 110 Mode Commands. . . . . . . . . . . . . . . . . . . . . . . 1-6
1.5 Digital Storage System Interconnect (DSSI) ............. 1-13
1.6 KA670-AAIBA CPU Specifications. . . . . . . . . . . . . . . . . . . .. 1-14
1.7 MS670-BA Memory Specifications. . . . . . . . . . . . . . . . . . . .. 1-17
Chapter 2 Option Specifications
2.1
2.1.1
2.2
2.2.1
2.2.2
2.2.3
2.2.4
2.2.5
2.2.6
Options Overview ................................. .
Configuration
.................................. .
Mass Storage Options ............................. .
KDA50 Controller .............................. .
KFQSA Storage Adapter ......................... .
nESI Controller ............................... .
RA60 Disk Drive
RAB1 Disk Drive
RAB2 Disk Drive
2-2
2-2
2-3
2-4
2-5
2-6
2-7
2-B
2-10
2.2.7 RA90 Disk Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-11
2.2.B RF71 Integrated Storage Assembly (ISA). . . . . . . . . . . . .. 2-12
2.2.9 RF31 Integrated Storage Assembly (ISA). . . . . . . . . . . . .. 2-13
2.2.10 RRD40 Compact-Disk Subsystem. . . . . . . . . . . . . . . . . . .. 2-14
2.2.11 TK70 Tape Drive ................................ 2-16
iii

2.2.12
2.2.13
2.2.14
2.2.15
2.3
2.3.1
2.3.2
2.3.3
2.3.4
2.3.5
2.3.6
2.3.7
2.3.8
2.4
2.4.1
2.4.2
2.4.3
2.4.4
2.4.5
2.4.6
2.4.7
2.4.8
2.4.9
2.5
2.5.1
2.5.2
2.5.3
2.5.4
2.5.5
2.5.6
2.5.7
2.5.8
2.5.9
2.5.10
2.5.11
2.5.12
iv
TQK70 Controller ............................... 2-18
TSV05 Tape Drive .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-19
TSV05 Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-21
TU81-Plus Tape Drive. . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-22
Communications Options ........................... .
CXA16 Asynchronous Multiplexer (16 lines) .......... .
CXB16 Asynchronous Multiplexer (16 lines) .......... .
CXY08 Asynchronous :rvlultiplexer (8 Lines) ........... .
DESQA Ethernet Controller ...................... .
DFAOI Asynchronous Controller with Integral Modem .. .
DPVll Synchronous Controller .................... .
DSRVB DECserver 200 .......................... .
DSVII Synchronous Controller .................... .
Real-TIme Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AAV11-S Digital-to-Analog
Converter ............... .
ADQ32 Analog-to-Digital Converter
................. .
ADVll-S Analog-to-Digital Converter ............... .
AXVII Controller ............................... .
DRQ3B
Parallel Interface ........................ .
DRVIW Parallel Interface ........................ .
IBQO 1 Controller ............................... .
IEQ11 Controller
............................... .
KWV11-S
Programmable Real-Time Clock ........... .
2-24
2-25
2-28
2-31
2-33
2-34
2-36
2-38
2-40
2-42
2-43
2-45
2-47
2-49
2-51
2-53
2-55
2-56
2-58
Printer Options ................................... 2--61
LA75 Companion Printer .......................... 2~2
LAI00 Letterwriter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2~4
LA120 PrinterlTerminal (DECwriter III) .............. 2~6
LA210Letterprinter. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2~8
LGO 1 Text Printer . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .. 2-70
LG02 Text and Graphics Printer . . . . . . . . . . . . . . . . . . .. 2-72
LG31 Printer ................................... 2-74
LJ2501LJ252 Companion Color Printers .............. 2-76
LN03-Series Laser Printers . . . . . . . . . . . . . . . . . . . . . . .. 2-78
LP29 Printer .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2--80
LPVl1-SA Printer Interface ....................... 2--82
LQP02 Printer .................................. 2--83

2.5.13
2.6
2.6.1
LQP03 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-85
Memory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-87
MRVI1-D Programmable Read-Only Memory Module. . .. 2-87
Chapter 3 System Expansion
3.1 Planning Your System Expansion ..................... 3-1
3.2 Completing the Configuration Worksheet. . . . . . . . . . . . . . .. 3-1
Index
Examples
1-1 SHOW QBUS Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1-2 SHOW DEVICE Display ............................ 1-10
1-3 SHOW ETHERNET Display ......................... 1-10
1-4 SHOW LANGUAGE Display . . . . . . . . . . . . . . . . . . . . . . . .. 1-11
1-5 SET LANGUAGE Command . . . . . . . . . . . . . . . . . . . . . . . .. 1-11
1-6
SET BOOT Command
1-12
Figures
1-1 VAX 4000 Model 300 Block Diagram . . . . . . . . . . . . . . . .. . . 1-2
3-1 VAX 4000 Model 300 Configuration Worksheet. . . . . . . . . . . 3-3
Tables
1-1
1-2
1-3
3-1
Console 1/0 Mode Control Characters
Console 110 Mode Commands ........................ .
Device
Names ................................... .
Power Requirements .............................. .
1-5
1-7
1-12
3-4
v

(

Preface
This manual provides a summary of technical information about the VAX
4000 Model 300 system.
The manual is organized as follows:
• Chapter 1 describes the base system and lists specifications for the
KA670-AA/-BA CPU module and MS670-BA memory module.
• Chapter 2 describes optional components available for your system and
lists their specifications.
• Chapter 3 contains information on expanding your system.
NOTE: You will find a Glossary in the Operation Manual to help with word
definitions
and acronyms.
Conventions
The following conventions are used in this manual:
Convention
BOLD
NOTE
CAUTION
WARNING
Meaning
A key name is shown enclosed to indicate that you press a named
key on the keyboard.
A
sequence such as ICtrl/xl indicates that you must hold down the
key labeled Ctrl while you press another key.
This bold type indicates user input. For example:
»> BOOT MUAO
This line shows that the user must enter BOOT MUAO at the
console prompt.
Notes provide general information about the current topic.
Cautions provide information to prevent damage to equipment
or software. Read these carefully.
Warnings provide information to prevent personal injury. Read
these carefully.
vii

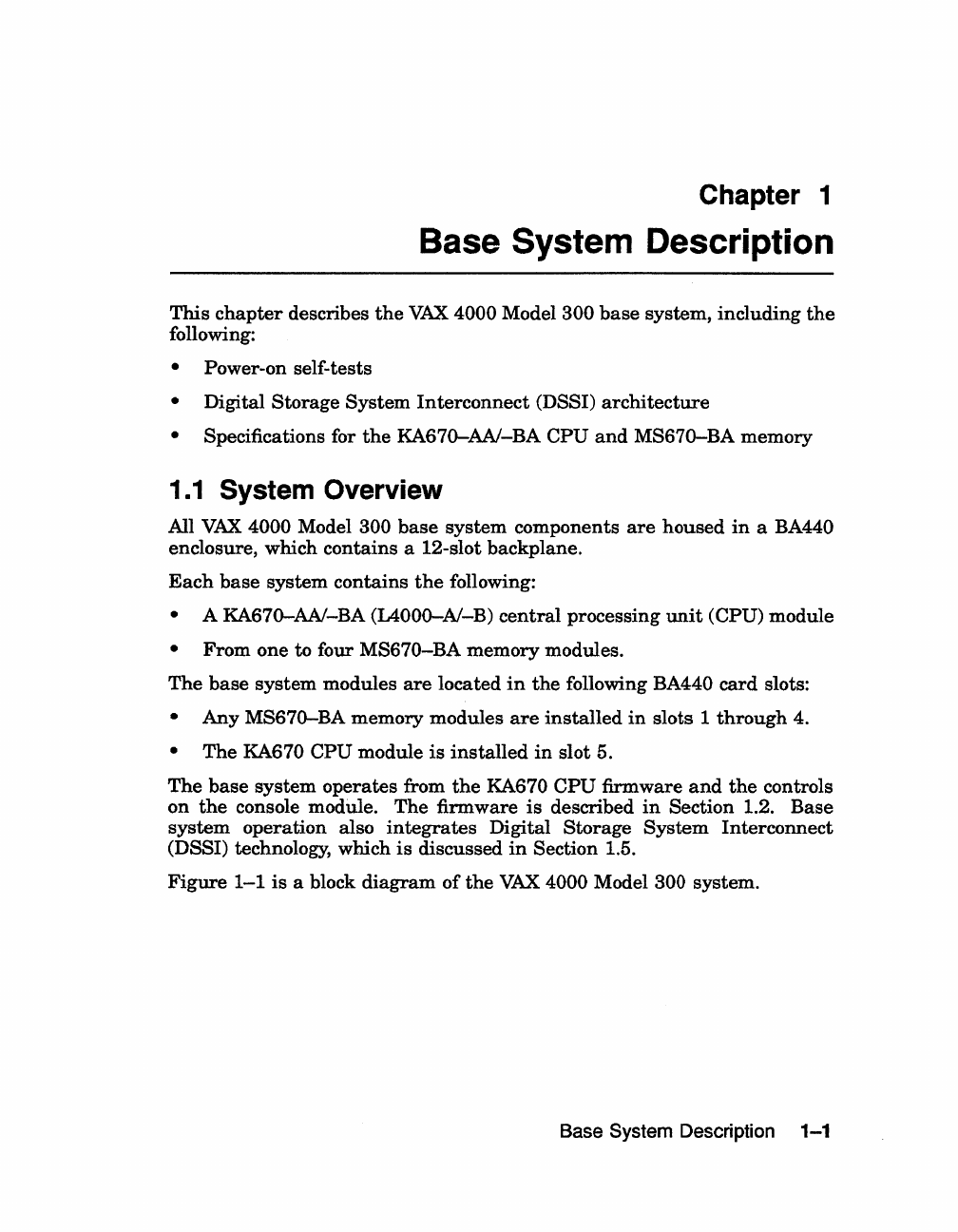

Chapter 1
Base System Description
This chapter describes the VAX 4000 Model 300 base system, including the
following:
• Power-on self-tests
• Digital Storage System Interconnect (DSSI) architecture
• Specifications for the KA670-AA/-BA CPU and MS670-BA memory
1.1 System Overview
All VAX 4000 Model 300 base system components are housed in a BA440
enclosure, which contains a 12-slot backplane.
Each base system contains the following:
• A KA670-AA/-BA (IAOOO-Al-B) central processing unit (CPU) module
• From one to four MS670-BA memory modules.
The base system modules are located in the following BA440 card slots:
• Any MS670-BA memory modules are installed in slots 1 through 4.
• The KA670 CPU module is installed in slot 5.
The base system operates from the KA670 CPU firmware and the controls
on the console modUle. The firmware is described in Section 1.2. Base
system operation also integrates Digital Storage System Interconnect
(DSSI) technology, which is discussed in Section 1.5.
Figure 1-1 is a block diagram of the VAX 4000 Model 300 system.
Base System Description 1-1

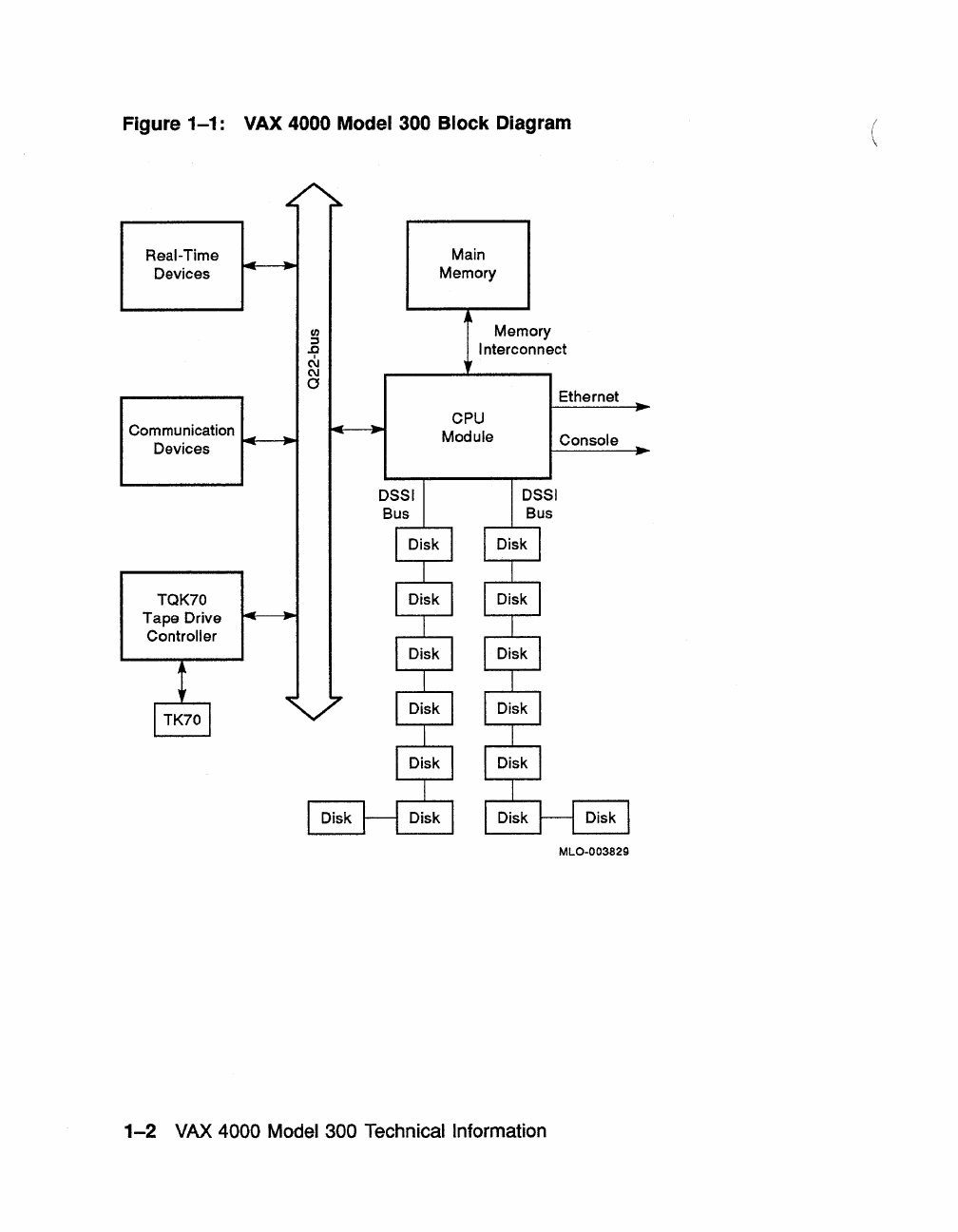

Figure 1-1: VAX 4000 Model 300 Block Diagram
Real-Time Main
Devices Memory
1/1
:::s
.0
Memory
Interconnect
Communication
Devices tc-----I'"
TQK70
Tape Drive
Controller
N
C\I
o
CPU
Module
1-2 VAX 4000 Model 300 Technical Information
Ethernet
Console
MLO-003829

1.2 Firmware Overview
Two electrically programmable read-only memory (EPROM) chips on the
KA670 CPU module contain the firmware. This firmware consists of the
following three major programs, which perform the system power-on self-
tests and diagnostics:
• A console program
• A set of self-tests for the CPU and memory
• A primary bootstrap program (VMB)
The console program receives control whenever the processor halts. In
a processor halt, processor control passes to the console program and
instruction execution continues. The standard VAX console functionality
is emulated whenever you execute a program in ROM.
Control passes to the firmware under any of the following conditions:
• You power-on the system.
• You press the Restart button.
• You assert the Q22-bus BHALT signal by pressing the Halt button.
• You enter a break when the Break EnablelDisable switch is set to
enable.
• A HALT instruction is executed.
• A system error occurs.
Base System Description 1-3

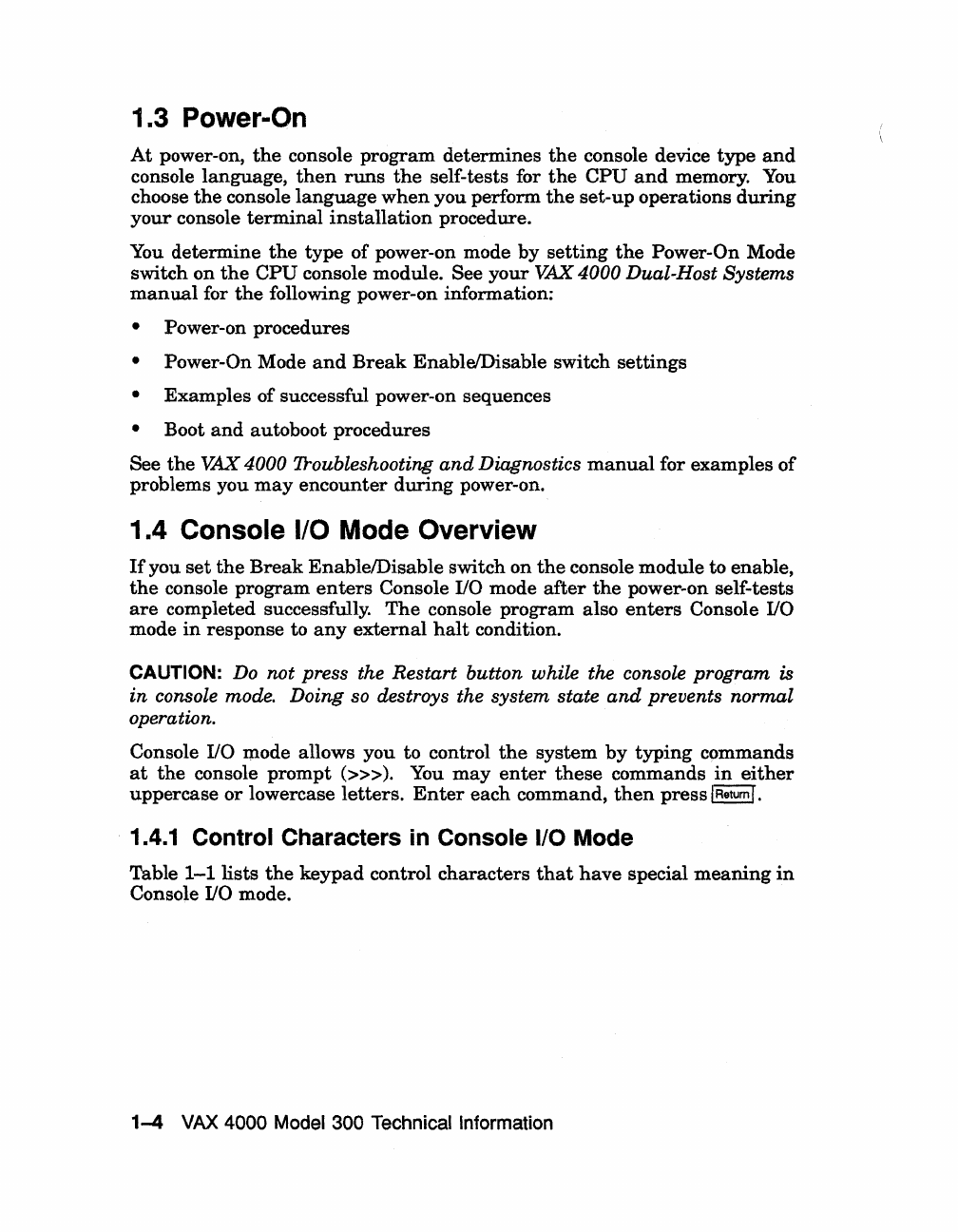

1.3 Power-On
At power-on, the console program determines the console device type and
console language, then runs the self-tests for the CPU and memory. You
choose
the console language when you perform the set-up operations during
your console terminal installation procedure.
You determine
the type of power-on mode by setting the Power-On Mode
switch on
the CPU console module. See your VAX 4000 Dual-Host Systems
manual for the following power-on information:
• Power-on procedures
• Power-On Mode and Break Enable1Disable switch settings
• Examples of successful power-on sequences
• Boot and autoboot procedures
See
the VAX4000 '1}-oubleshooting and Diagnostics manual for examples of
problems you may encounter during power-on.
1.4 Console 1/0 Mode Overview
If you set the Break EnablelDisable switch on the console module to enable,
the console program enters Console 110 mode after the power-on self-tests
are completed successfully. The console program also enters Console 110
mode in response to any external halt condition.
CAUTION: Do not press the Restart button while the console program is
in console mode. Doing so destroys the system state and prevents normal
operation.
Console I/O mode allows you to control the system by typing commands
at the console prompt (»». You may enter these commands in either
uppercase or lowercase letters. Enter each command, then press IRetum!.
1.4.1 Control Characters in Console I/O Mode
Table 1-1 lists the keypad control characters that have special meaning in
Console I/O mode.
1-4 VAX 4000 Model 300 Technical Information

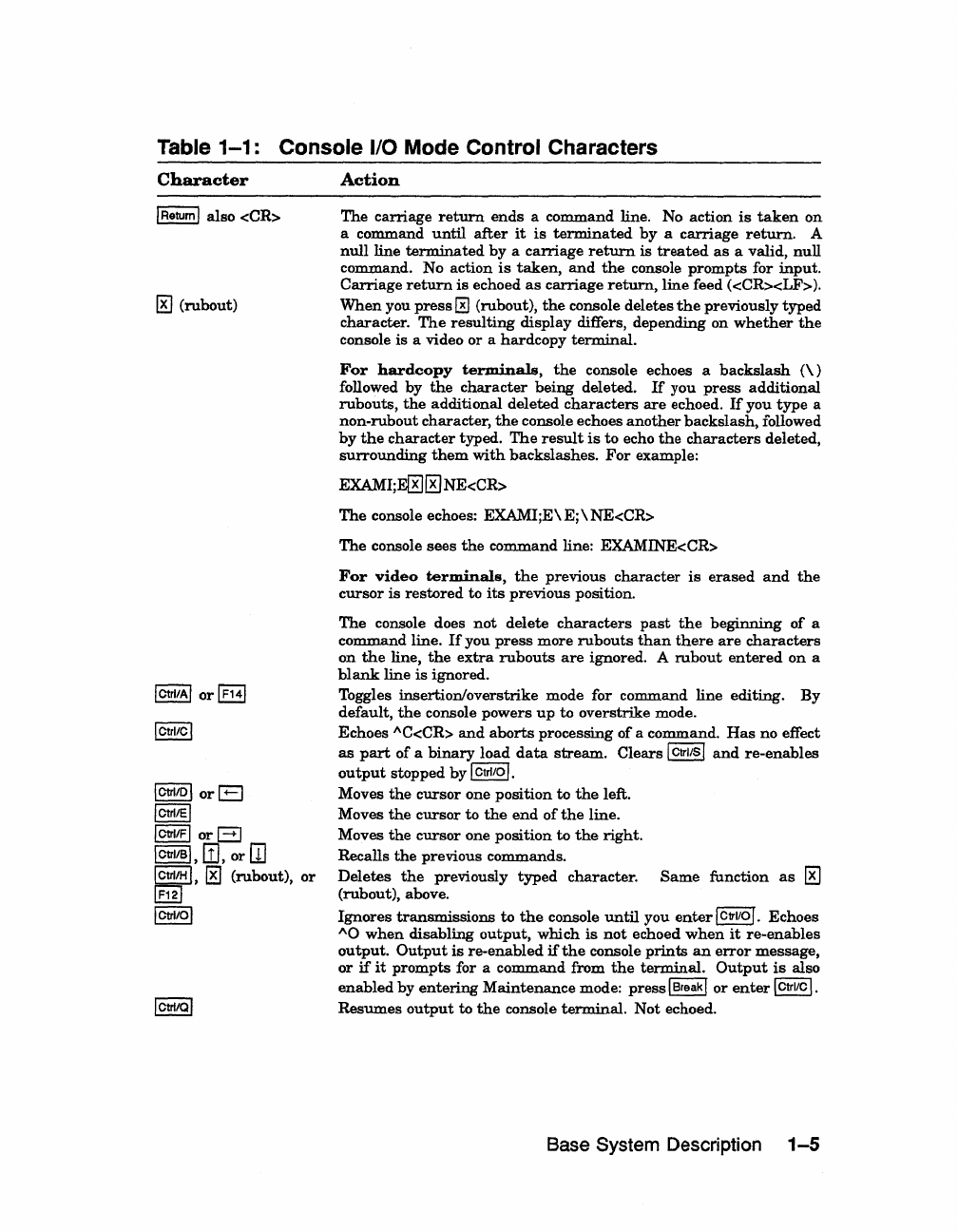

Table 1-1: Console 1/0 Mode Control Characters
Character Action
IRetumIalso <CR>
~ (rubout)
ICtrl/AI or l£E]
Ictrllcl
Ictrllo\ orB
ICtri/EI
Ictri/FI or El
Ictrllsl, [Ij, or m
ICtrl/H I, I!J (rubout), or
[ffiJ
Ictrllol
The carriage return ends a command line. No action is taken on
a command until after it is terminated by a carriage return. A
null line termlnated by a carriage return is treated as a valid, null
command. No action is taken, and the console prompts for input.
Carriage return is echoed as carriage return, line feed «CR><LF».
When you press 0 (rubout), the console deletes the previously typed
character. The resulting display differs, depending on whether the
console is a video or a hardcopy terminal.
For hardcopy terminals, the console echoes a backslash (\)
followed by the character being deleted. If you press additional
rubouts, the additional deleted characters are echoed. If you type a
non-rub out character, the console echoes another backslash, followed
by the character typed. The result is to echo the characters deleted,
surrounding them with backslashes. For example:
EXAMI;E0!!1 NE<CR>
The console echoes: EXAMI;E\E;\NE<CR>
The console sees the command line: EXAMINE<CR>
For video terminals, the previous character is erased and the
cursor is restored to its previous position.
The console does not delete characters past the beginning of a
command line. If you press more rub outs than there are characters
on the line, the extra rubouts are ignored. A rubout entered on a
blank line is ignored.
Toggles insertion/overstrike mode for command line editing.
By
default, the console powers up to overstrike mode.
Echoes I\C<CR>
and aborts processing of a command. Has no effect
as part of a binary load data stream. Clears Ictrllsi and re-enables
output stopped by I cwo I.
Moves the cursor one position to the left.
Moves the cursor to the end of the line.
Moves
the cursor one position to the right.
Recalls the previous commands.
Deletes the previously typed character. Same function as !!I
(rub out), above.
Ignores transmissions to the console until you enter ICtrilO I. Echoes
1\0 when disabling output, which is not echoed when it re-enables
output. Output is re-enabled if the console prints an error message,
or if it prompts for a command from the terminal. Output is also
enabled by entering Maintenance mode: press IBreakI or enter ICtri/C I.
Resumes output to the console terminal. Not echoed.
Base System Description 1-5

Table 1-1 (Cant.): Console I/O Mode Control Characters
Character Action

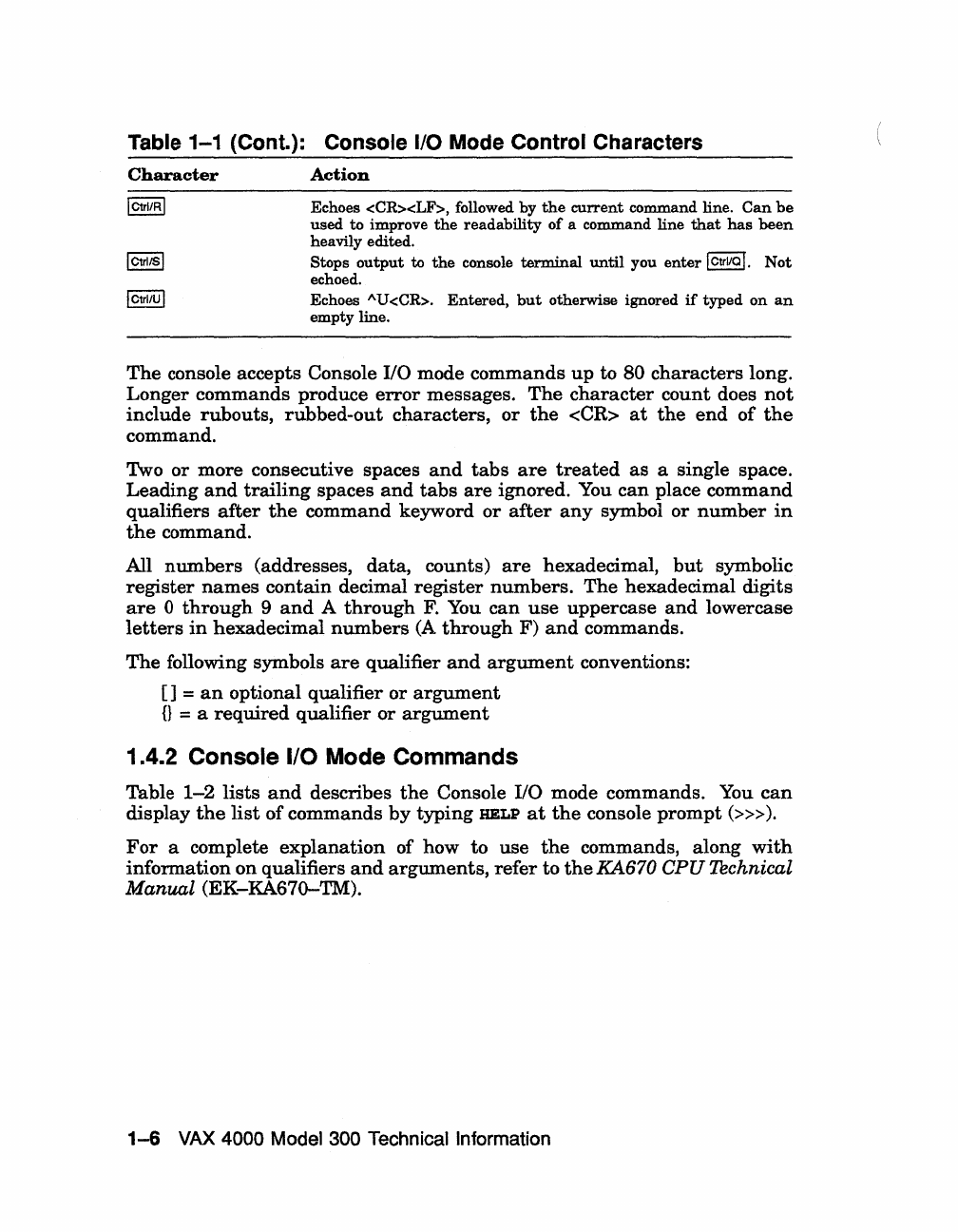

Echoes <CR><LF>, followed by the current command line. Can be
used to improve the readability of a command line that has been
heavily edited.
Stops output to the console terminal until you enter Ictrllol. Not
echoed.
Echoes AU<CR>.
Entered, but otherwise ignored if typed on an
empty line.
The console accepts Console I/O mode commands up to 80 characters long.
Longer commands produce
error messages. The character count does not
include rubouts, rubbed-out characters, or the <CR> at the end of the
command.
Two
or more consecutive spaces and tabs are treated as a single space.
Leading and trailing spaces and tabs are ignored. You can place command
qualifiers
after the command keyword or after any symbol or number in
the command.
All
numbers (addresses, data, counts) are hexadecimal, but symbolic
register names contain decimal register numbers. The hexadecimal digits
are 0 through 9 and A through F. You can use uppercase and lowercase
letters in hexadecimal numbers (A through F) and commands.
The following symbols are qualifier and argument conventions:
[] = an optional qualifier or argument
{} =a required qualifier or argument
1.4.2 Console 1/0 Mode Commands
Table 1-2 lists and describes the Console I/O mode commands. You can
display the list of commands by typing HELP at the console prompt (»».
For a complete explanation of how to use the commands, along with
information on qualifiers and arguments, refer to the KA670 CPUTechnical
Manual (EK-KA670-TM).
1-6 VAX 4000 Model 300 Technical Information

Table 1-2:
Console 1/0 Mode Commands
Command
BOOT
CONFIGURE
CONTINUE
DEPOSIT
EXAMINE
FIND
HALT
HELP
INITIALIZE
MOVE
NEXT
REPEAT
SEARCH
SETBFLAG
SET BOOT
SET CONTROLP
SET HOST
SET LANGUAGE
SET HALT
SET RECALL
Action
Initializes the processor and transfers execution to the VMB.
Invokes
an interactive mode that permits you to enter Q22-bus
device
names, then generates a table of Q22-bus I/O page device
CSR addresses and interrupt vectors.
Causes the processor to begin instruction execution at the address
currently contained in the program counter (PC). Does not perform
a processor initialization.
Deposits
data into the address you specify. If you do not specify
an address space or data size qualifier, the console uses the last
address space and data size used in a DEPOSIT, EXAMINE,
MOVE, or SEARCH command.
Examines the contents of the memory location or register of the
address you specify. If you do not specify an address, + is assumed.
Searches main memory starting at address 0 (zero) for a page-
aligned 128-Kbyte
segment of good memory, or a restart parameter
block (RPB).
The HALT
command has no effect. It is included for compatibility
with other VAX consoles.
Displays
the correct syntax for all console commands.
Performs a processor initialization.
Copies
the block of memory starting at the source address to a
block beginning at the destination address.
Executes the number of macro instructions you specify. If you do
not specify a number, 1 (one) is assumed.
Repeatedly displays and executes the command you specify. Press
IcwcI to stop the command. You can specify any valid console
command except the REPEAT command.
Finds all occurrences of a pattern and reports the addresses where
the pattern was found. If you include the !NOT qualifier, the
command reports all addresses for which the pattern did not
match.
Sets the default R5 boot flags. The value must be a hexadecimal
number of up to eight digits.
Sets the default boot device. The value must be a valid device
name.
Sets Control-P as the console halt condition, instead of a BREAK.
Connects
to the DUP or MAINTENANCE driver on the node or
device you specify.
Sets the console language and keyboard type.
Sets the halt action you define. Acceptable values are the following
keywords: default,
restart, reboot, halt, restartJeboot, or a
number in the range 0 to 4 inclusive.
Sets command recall state to either ENABLED (1) or DISABLED
(0).
Base System Description 1-7

Table 1-2 (Cont.):
Command
SHOWBFLAG
SHOW BOOT
SHOW CONTROLP
SHOW DEVICE
SHOW
DSSI
SHOW ETHERNET
SHOW LANGUAGE
SHOW MEMORY
SHOWQBUS
SHOW RECALL
SHOW HALT
SHOWRLV12
SHOW SCSI
SHOW TRANSLATION
SHOWUQSSP
SHOW VERSION
START

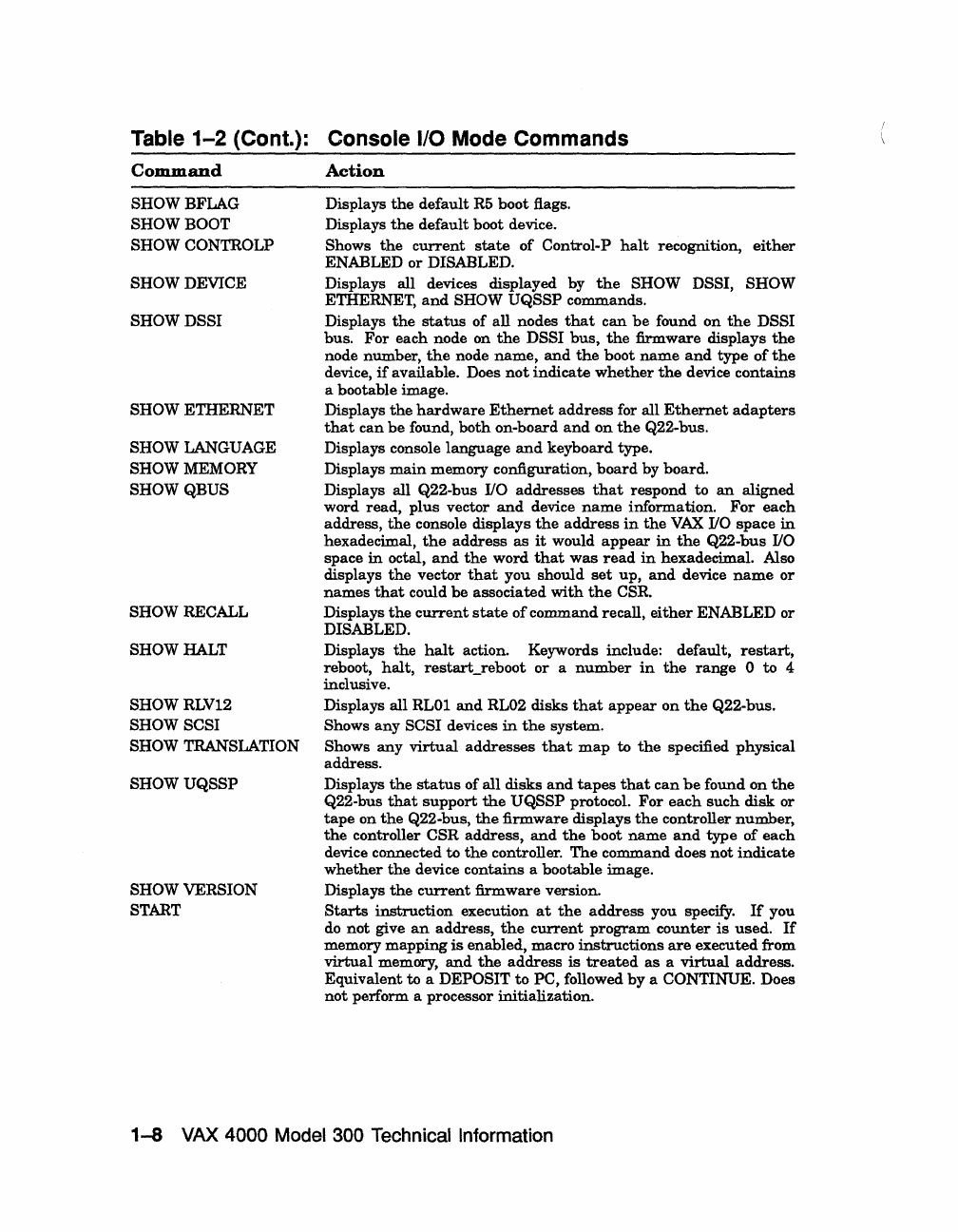

Console 1/0 Mode Commands
Action
Displays the default R5 boot flags.
Displays
the default boot device.
Shows the current state of Control-P halt recognition, either
ENABLED or DISABLED.
Displays all devices displayed by the SHOW DSSI, SHOW
ETHERNET, and SHOW UQSSP commands.
Displays
the status of all nodes that can be found on the DSSI
bus. For each node on the DSSI bus. the firmware displays the
node number, the node name. and the boot name and type of the
device, if available. Does not indicate whether the device contains
a bootable image.
Displays
the hardware Ethernet address for all Ethernet adapters
that can be found, both on-board and on the Q22-bus.
Displays console
language and keyboard type.
Displays
main memory configuration, board by board.
Displays all Q22-bus lIO addresses
that respond to an aligned
word read,
plus vector and device name information. For each
address, the console displays the address in the VAX lIO space in
hexadecimal, the address as it would appear in the Q22-bus lIO
space in octal, and the word that was read in hexadecimal. Also
displays
the vector that you should set up, and device name or
names that could be associated with the CSR.
Displays the current state of command recall, either ENABLED or
DISABLED.
Displays the halt action. Keywords include: default, restart,
reboot, halt, restart_reboot or a number in the range 0 to 4
inclusive.
Displays all RLOl
and RL02 disks that appear on the Q22-bus.
Shows any SCSI devices in the system.
Shows any virtual addresses that map to the specified physical
address.
Displays
the status of all disks and tapes that can be found on the
Q22-bus that support the UQSSP protocol. For each such disk or
tape on the Q22-bus, the firmware displays the controller number.
the controller CSR address. and the boot name and type of each
device connected to the controller. The command does not indicate
whether the device contains a bootable image.
Displays
the current firmware version.
Starts instruction execution at the address you specify. If you
do
not give an address. the current program counter is used. If
memory mapping is enabled, macro instructions are executed from
virtual memory, and the address is treated as a virtual address.
Equivalent to a DEPOSIT to PC, followed by a CONTINUE. Does
not perform a processor initialization.
1-8 VAX 4000 Model 300 Technical Information

Table 1-2 (Cont.): Console I/O Mode Commands
Command
TEST
UNJAM
X
Action
Invokes a diagnostic test program specified by the test number
you enter. If you enter a test number of 0 (zero), all tests allowed
to be executed from the console terminal are executed. The
console accepts an optional list of up to five additional hexadecimal
arguments.
Performs an 110 bus reset, by writing a 1 (one) to IPR 55 (decimal).
Loads
or unloads (that is, writes to memory or reads from memory)
the specified number of data bytes through the console serial line
(regardless of console type), starting at the specified address. For
use by automatic systems communicating with the console.

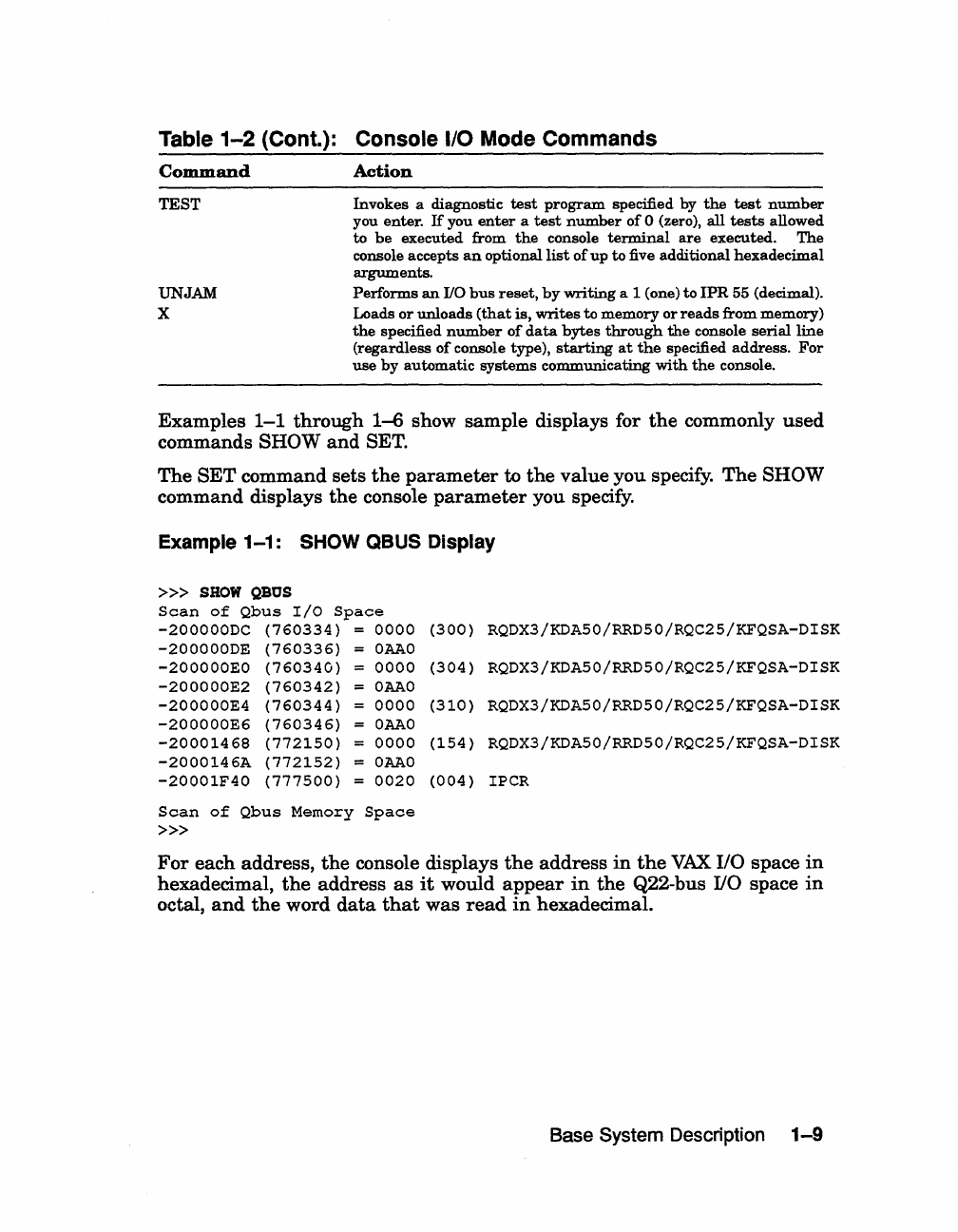

Examples 1-1 through 1-6 show sample displays for the commonly used
commands SHOW and SET.
The SET command sets the parameter to the value you specify. The SHOW
command displays the console parameter you specify.
Example 1-1: SHOW QBUS Display
»> SHOW gBOS
Scan of Qbus I/O Space
-200000DC (760334 ) 0000 (300)
RQDX3/KDA50/RRD50/RQC25/KFQSA-DISK
-200000DE (760336) OAAO
-200000EO
(760340)
0000 (304 ) RQDX3/KDA50/RRD50/RQC25/KFQSA-DISK
-200000E2
(760342)
OAAO
-200000E4 (760344) 0000 (310)
RQDX3/KDA50/RRD50/RQC25/KFQSA-DISK
-200000E6 (760346) OAAO
-20001468 (772150)
0000
(154)
RQDX3/KDA50/RRD50/RQC25/KFQSA-DISK
-2000146A (772152)
OAAO
-20001F40 (777500) 0020 (004 ) IPCR
Scan of Qbus Memory Space
»>
For each address, the console displays the address in the VAX 1/0 space in
hexadecimal, the address as it would appear in the Q22-bus I/O space in
octal, and the word data that was read in hexadecimal.
Base System DeSCription 1-9

Example 1-2: SHOW DEVICE Display
»>SHOW DEVICE
DSSI Bus 0 Node 0 (BARNEY)
-DIA10 (RF7l)
DSSI Bus 0 Node 1 (BETTY)
-DIAll (RF7l)
DSSI Bus 0 Node 2 (FRED)
-DIA12 (RF71)
DSSI Bus 0 Node 7 (*)
DSSI Bus 1 Node 0 (SNEEZY)
-DIBO (RF71)
DSSI Bus 1 Node 1 (DOPEY)
-DIBl (RF71)
DSSI Bus 1 Node 2 (SLEEPY)
-DIB2 (RF71)
DSSI Bus 1 Node 3 (GRUMPY)
-DIB3 (RF71)
DSSI Bus 1 Node 4 (BASHFUL)
-DIB4 (RF71)
DSSI Bus 1 Node 5 (HAPPY)
-DIB5 (RF71)
DSSI Bus 1 Node 6 (DOC)
-DIB6 (RF71)
DSSI Bus 1 Node 7 (*)
UQSSP Tape Controller 0 (774500)
-MUAO (TK70)
Ethernet Adapter
-EZAO (OB-00-2B-06-10-42)
For each device, the console displays the controller, the node, and the
address on the first line, and the device name and option on the second
line. .
Example 1-3: SHOW ETHERNET Display
»> SHOW ETHERNET
Ethernet Adapter
-EZAO (OB-00-2B-OB-29-14)
1-10 VAX 4000 Model 300 Technical Information

Example 1-4: SHOW LANGUAGE Display
»> SHOW LANGUAGE
English (United States/Canada)
»>
Example 1-5: SET LANGUAGE Command
»> SET LANGUAGE 5
»>
In this example, selection 5 is English, chosen from the language selection
menu that displays at power-on.
Base System Description 1-11
