Digitus DN-651139 User manual

8-Port Gigabit + 4G Combo
Industrial Fast Ring Managed
Switch
Quick Installation Guide
DN-651139 & DN-651145

2
Table of Contents
1Introduction ................................................................................3
2Features ......................................................................................3
2.1 Product Overview...........................................................3
2.2 Product Features ............................................................4
2.3 Product Advantage .........................................................4
3Package Contents ........................................................................6
4Specifications ..............................................................................6
4.1 Technical Specifications..................................................6
4.2 Software Specification....................................................8
5Product Appearance Description...............................................11
5.1 Front Panel ...................................................................11
5.2 LED Indicator ................................................................13
5.3 Side Plate......................................................................14
6Installation Guide ......................................................................15
6.1 Installation Precautions ................................................15
6.2 Installation Environment ..............................................16
6.3 Installation....................................................................16

3
1Introduction
The DN-651139, DN-651145 Industrial network switch provide 8 x 10/
100/ 1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports
from 1-8 support PoE power supply with a maximum of 30W for each
port. DN-651139, DN-651145 offers excellent security policy, QoS policy,
and rich VLAN function. Additionally, it has a ring network function that
allows you to set up a ring network. With this feature, the switches
form a ring network topology manually. The ring network is redundant,
highly reliable, and won't affect data forwarding in case a link is broken.
The device is designed with a no-fan, low power consumption design,
making it easy to use, compact, and beautiful. It is also simple to install.
The product meets Ethernet standards, has lightning protection, static
protection mechanisms, and operates in a temperature range of -40°C
to 75°C. This guarantees stable performance, safety, and reliability. V1
can be widely used in various broadband data transmission fields such
as intelligent transportation, telecommunications, security, financial
securities, and customs, among others.
2Features
2.1Product Overview
8-Port Gigabit + 4G Combo Is a ring-network industrial-grade Managed
PoE Switch independently developed by our company, providing
8*10/100/1000Mbps adaptive RJ45 ports and 4*1000Mbps Combo
ports. Each RJ45 port supports MDI/MDIX automatic rollover and wire-
speed forwarding. Ports 1-8 support PoE power supply. PoE ports
automatically detect PD devices and supply power to PD devices that
comply with IEEE 802.3af/at standards. Each port can provide up to
30W power.
The device offers perfect security policies, QoS policies and extensive
VLAN functions as well as a ring network function. A ring network can
be set up, the switches form a ring network topology by hand. Its
redundancy, high reliability and other functions can be set in the ring
network. When a connection is broken, data forwarding in the
network is not affected.

4
2.2Product Features
Operating temperature: -40°C ~ 75 °C
Low power consumption fanless, high energy aluminum alloy
roof heat conduction, groove shell design
DIN-Rail type installation
Industrial grade components
Support IEEE 802.3af/at standards (DN-651139 only)
Single port output power up to 30W (DN-651139 only)
IEEE 802.3x full-duplex flow control and Backpressure half-
duplex flow control
Support one-key ring network, one-key storm suppression
function, with redundancy design, high reliability
Highly reliable design, supporting traditional STP/MSTP/RSTP
Layer 2 link protection technology.
Support static convergence and dynamic convergence (LACP) 2
convergence modes, effectively increase the link bandwidth,
improve the reliability of the link, and at the same time can
achieve load balancing, link backup.
Flexible and convenient management and maintenance Supports
various management modes, such as Console, Telnet, and SSH.
Support WEB management, simple and efficient, convenient for
installation and debugging of engineering and maintenance
personnel
Supports file upload and download management through TFTP.
2 power inputs, redundant backup, greatly improve product
power supply reliability.
2.3Product Advantage
1. -40°C ~ 75 °C operating temperature design
-40℃~75℃operating temperature design, which ensures the
use of natural heat dissipation to ensure that the switch can
achieve long-term stable operation within the temperature range
to meet all types of operating environment.

5
2. High energy aluminum alloy roof heat conduction groove shell
design
Housing size 145*109*62mm, compact and lightweight, full
aluminium alloy high energy roof heat conduction groove shell
design, better effect of heat dissipation.

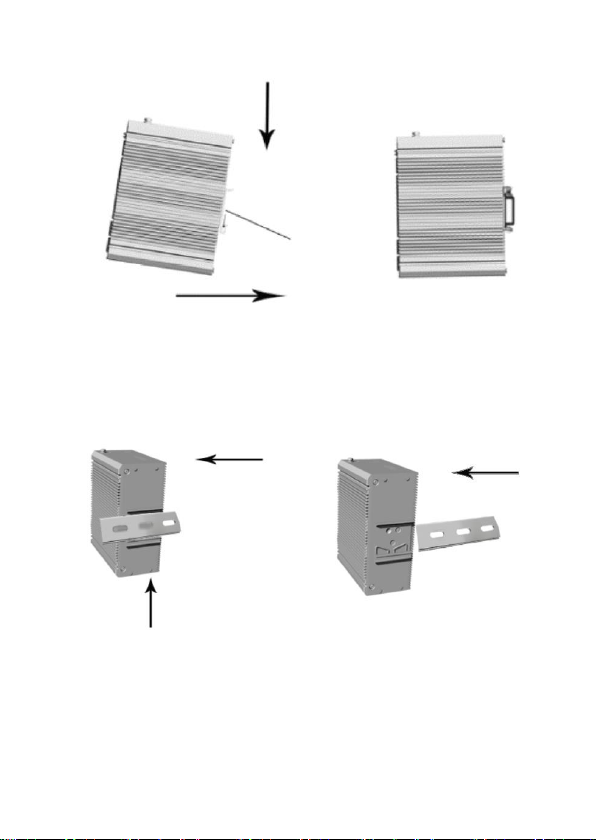

3. DIN-Rail installation, simple and flexible
DIN rail installation design, easy and quick installation, allowing
users to reduce unnecessary installation time to save time.
4. Select industrial grade components
Chemical nickel-gold circuit board, with high corrosion resistance,
oxidation resistance. Select high specification capacitor to
improve product life.
5. Supports one-click ringnetwork andone-click storm suppression
Supports one-click loop networks, prevents broadcast storms,
improves network reliability and strengthens data protection.
Thanks to its high adaptability to environmental conditions and
fast topology self-healing, it can be used in many security,
surveillance and other scenarios.
6. Supports WEB management, which is simple and efficient
Provides WEB management functions and supports basic network
functions such as 802.1Q VLAN, port monitoring and port
aggregation. You can manage and maintain the network via the
WEB UI.
7. Supports relay alarm function
Support system startup abnormal and power alarm function. If
the system startup or input power abnormal, can be timely output
alarm signal.

6
3Package Contents
Network Switch
*1
User Guide
*1
Terminal Block *1
Note: Precision devices are built in the device, please handle them
carefully to avoid violent vibration, which may affect the performance
of the device. If you find that the equipment is damaged or any parts
are lost in the process of transportation, please inform us, we will give
you a proper solution as soon as possible.
Statement
Product specifications and information mentioned in this manual are
for reference only and are subject to change without prior notice.
Unless otherwise agreed, this manual is for use only and does not
constitute any form of warranty.
Convention
The product pictures in this document are for illustration only. The
number and positions of ports depend on actual models. This
document helps you correctly use the Switch. It describes the
performance characteristics of the Switch and describes how to install
the Switch. Read this manual carefully before operating the Switch.
4Specifications
4.1Technical Specifications
Model
DN-651139 PoE Switch
DN-651145 non-PoE Switch
Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE
802.3z, IEEE 802.3x,IEEE 802.1X,
IEEE 802.1q,IEEE 802.1p, IEEE 802.1d, IEEE
802.1w,IEEE 802.3ad, (DN-651139 support
IEEE802.3af,IEEE802.3at)

7
Network Media
(Cable)
10BASE-T: UTP category 3,4,5 cable
（≤100m）
100BASE-TX: UTP category 5, 5e cable
（≤100m）
1000BASE-T: UTP category 5e, 5 cable
（≤100m）
1000BASE-X: MMF, SMF
MAC Address
Table
8K, Auto-learning, Auto-update
Transfer Mode
Store-and-Forward
Jumbo Frame
9216Byte
Packet Buffer
4.1M bit
Packet Forward
Speed
17.86Mpps
Input Power
Supply
DC:48-57V DN-651139 (PoE version)
DC:12-55V DN-651145
Switching
Capacity
24Gbps
Dimensions
(L*W*H)
145*109*62mm
Fan
Fanless
PoE Power
Budget
185W (DN-651139 only)
PoE Port
Port1~8 (DN-651139 only)
PoE Power On
RJ45
Mode A 1/2（-）， 3/6（+）
(DN-651139 only)
PoE Output
30W(Max) (DN-651139 only)
Temperature
Operating Temperature: -40°C ~ 75 °C
(-40 °F ~167°F )
Storage Temperature: -40 °C ~ 80°C
(-40 °F ~176°F )
Humidity
Operating Humidity: 5% ~ 95%
non-condensing

8
Storage Humidity: 0% ~ 95%
non-condensing
Surge
Protection
Differential mode ±2KV,
Common mode ±6KV
MTBE
>100000hours
4.2Software Specification
spanning Tree
IEEE 802.1D -Spanning Tree
IEEE 802.1w -Rapid Spanning Tree
IEEE 802.1s -Multiple Spanning Tree
BPDU Guard
STP Root Guard
Loop Detection
VLAN
Management VLAN
Private VLAN
Voice VLAN
Surveillance-VLAN
Q-in-Q (Double Tag)
802.1v Protocol VLAN
MAC-Based VLAN
Port
IEEE 802.3ad witch LACP(Dynamic)
Static Trunk
EEE
Jumbo Frame
Error-Disable
IGMP Snooping
IGMP Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
QoS Features
Hardware Queues

9
Class Of
Service
Port Based
802.1p
CoS
DSCP
IP Precedence
TCP/UDP (IPv4/IPv6)
Rate Limiting
Ingress
Egress
Priority Queue
Scheduling
WRR
Strict Priority
DSCP & CS
IPv4 QoS (QCEs)
IPv6 QoS (QCEs)
Security
Port Security
Port Isolation
IEEE802.1x AAA
ACLs
L2+/L3/L4
IPv6 Support
Management Access List
Management ACL/Management ACE
IP Source Guard
(IP-MAC-Port-VALN Binding)
IP Source Guard (IP-MAC-Port Binding)
Dynamic ARP Inspection
Storm Control
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
DDoS Prevention
HTTPs and SSL (Secured Web)

10
SSH v1.5/v2.0 (Secured Telnet Session)
DHCP Snooping
DHCP Relay
Management
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 groups)
Software Upgrade
Configuration Export/Import
DHCP
Client
Option 82
Option 66
Option 67
Event/Error Log
Syslog
Management Access
Filtering
Console
SNMP
HTTP/HTTPS
Telnet
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Traceroute
Ping
Cable Test
DDMI
NTP/ SNTP (RFC2030)
IPv6 Support
Dual IPv6/IPv4 stack
IPv6 Web/SSL
IPv6 SNTP

11
(Simple Network Time Protocol)
IPv6 Telnet / SSH
IPv6 Ping/Trace route
IPv6 TFTP
IPv6 RADIUS/TACACS+
IPv6 SNMP
PoE Management
Port Config
Alive Checking for PD
PoE Delay
PoE Schedule
ONVIF
ONVIF Detection
ONVIF Server(NLM)
5Product Appearance Description
5.1Front Panel
The front panel consists of 8*10/100/1000Mbps adaptive RJ45 ports,
4*1000Mbps Combo ports and related indicators, as shown below:
Front panel of the 8-Port Gigabit + 4G Combo Switch

12
8-Port Gigabit + 4G Combo Port description:
10/100/1000Mbps RJ45 Ports
Supports 10Mbps, 100Mbps, or 1000Mbps rate adaptation, auto-MDI
/MDIX, and each port has a corresponding indicator, that is, port
indicators 1-8 as shown on the panel in the figure above.
1000Mbps Combo Ports
The Combo ports is located at the right and upper part of the
panel. It is an optical multiplexing port. Each port has a
corresponding indicator, that is, the port indicator 9-12 shown on
the panel in the figure above.
Console Port
The Console port is used to connect to the serial port of a
computer or other terminal device and manage or configure
Switches.
SCP
One-touch broadcast storm suppression: limits broadcast packets,
unicast packets, and multicast packets to a certain rate.
Fast Ring
To enable the ERPS function, set the last 2 SFP slots as the sub-
network ports of the ring network.

13
5.2LED Indicator
The LED indicators of the Switch are shown in the following table.
Users can monitor the work and running status of the Switch
conveniently and quickly through the following indicators:
LED
Color
Function
PWR
Green
Off: No Power supply.
Light: Indicates the Switch has power.
DATA
Green
Off: No device is connected to
the corresponding port.
Light: Indicates the link through
that port is successfully
established at
10/100/1000Mbps.
Blink: Indicates that the Switch is
actively sending or receiving data
over that port.
PoE
Orange
**DN-651139 only**
Off: No PoE powered device (PD)
connected.
Light: There is a PoE PD
connected to be port, which
supply power successfully.
Blink: Indicates port abnormal
PoE supply.
SYS
Green
Blinking: The system is working
properly
Off: The system is being started
or is abnormal

14
5.3Side Plate
Side panel of 8-Port Gigabit + 4G Combo Switch
The side panel of the Switch provides 5-position industrial wiring
terminals and power input DC: The DC power input of the Switch is
redundant. The PWR1 and PWR2 power supplies can be used
individually or connected to 2 independent DC power supply
systems. When any power supply system fails, the device can run
normally without interruption, which improves the reliability of
network operation.
Relay port：Alarm port, support machine abnormal alarm function.
This interface needs to be connected to an external alarm device.
When the machine starts abnormally or when the power is on, the
internal relay will close and output the alarm signal in time, which
has the function of automatic alarm, safety protection and isolation
conversion in the circuit.

15
6Installation Guide
This chapter helps users correctly install and safely use Switches.
6.1Installation Precautions
Precautions: To avoid equipment damage and personal injury, observe
the following precautions:
The Switch room should be dry and ventilated, free from corrosive
gases and strong electromagnetic interference.
The humidity of the Switch equipment room should be 5% to 95%.
Install proper equipment if possible.
The grounding of the Switch shall comply with the grounding
requirements described in this manual, and shall be separately
and well grounded.
Keep a proper distance between the Switch and other devices. Do
not stack other devices with the Switch.
The connection cable between the Switch and the distribution
frame should be standardized and reasonable, and the
distribution frame (box) jumper wire should be concise and clear
to prevent the phenomenon of parallel lines and wires.
To avoid the danger of electric shock, do not open the chassis
without authorization; If any fault occurs, contact professional
maintenance personnel.
Safety Tips:
Ensure that the PGND cable of the power socket is properly
grounded;
Ensure sufficient space for heat dissipation and ventilation of the
Switch. Do not place heavy objects on the Switch.

16
6.2Installation Environment
Before installation, make sure that the proper working environment
is available, including power requirements, adequate space,
proximity to other equipment to be connected, and other equipment
in place. Please confirm the following installation requirements:
Ensure the stability of the workbench and good grounding
Check whether cables and connectors required for installation
are in place (less than 100m)
The product does not provide installation components. Prepare
components of the selected installation type, such as screws,
nuts, and tools, to ensure reliable installation
Power supply: 48V to 57V DC (DN-651139)
12V to 55V DC (DN-651145)
Environment: operating temperature: -40°C to 75 °C relative
humidity: 5% to 95%.
6.3Installation
DIN-Rail Installation
The 45mm standard DIN-Rail installation is very convenient for most
industrial applications. The installation steps are as follows:
Check whether the installation accessories of DIN-Rail guide
tools are available (installation accessories are provided for this
product).
Check whether DIN-Rail is firmly fixed, whether there is a
suitable place to install the product.
Clamp the lower part of the DIN-Rail connecting seat of the
product accessories into the DIN-Rail (lower part with spring
support), and then clamp the upper part of the connecting seat
into the DIN-Rail (lower part clamp a little, slightly force to keep
the balance of the equipment stuck into the upper part).

17
Figure 4-1 Schematic diagram of industrial machine guide rail
installation
Note: Aluminum alloy DIN-Rail hooks have been fixed to the rear panel
of the Switch.
Figure 4-2 Schematic diagram of industrial machine guide rail
disassembly
DIN-Rail

18
Power on
Power on: First insert the power terminal of the power cable into
the power port of the device, then plug in the power plug and
power on. After the Switch is started, the Switch automatically
initializes. If all port indicators are on and then off, the system is
successfully reset, and the power LED indicator is always on.
Power off operation: Unplug the power plug first, and then
remove the wiring part of the terminal. Please pay attention to
the above operation sequence.
Wall Mount Installation
The following describes how to install a Switch on the wall.

19

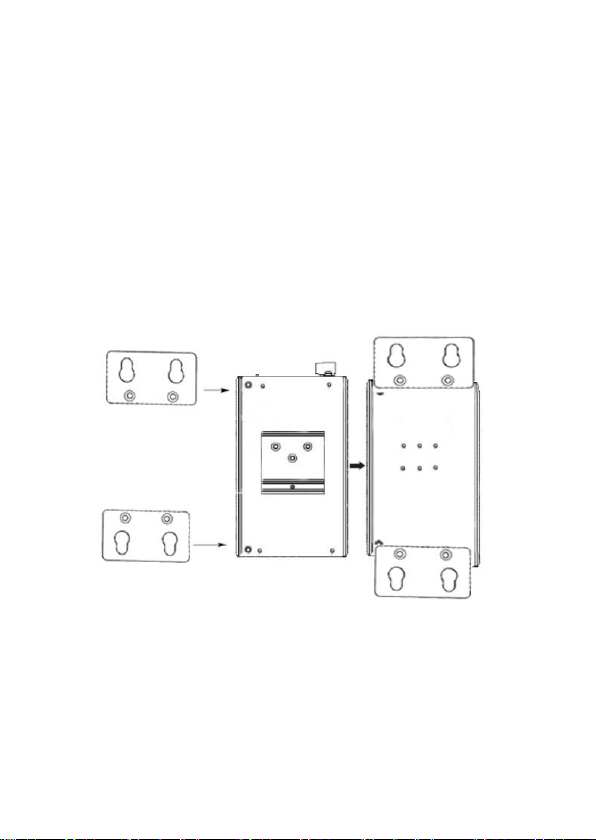

Schematic diagram of wall mounted installation of industrial machine
Remove the DIN-Rail mounting plate on the rear board of the
Switch;
Install the wall mounting board on the Switch as shown below.
Four wall screws are required to mount the Switch on the wall, as
shown in the figure above.
When fixing the screws to the wall, do not screw the screws into
the wall completely. Leave a space of about 2 mm for sliding the
wall panel between the wall and the screws.
After securing the screws to the wall, place the 4 screw heads
through most of the keyhole, then place the Switch vertically and
tighten the screws to increase stability.

20
Hereby Assmann Electronic GmbH, declares that the Declaration of
Conformity is part of the shipping content. If the Declaration of
Conformity is missing, you can request it by post under the below
mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
