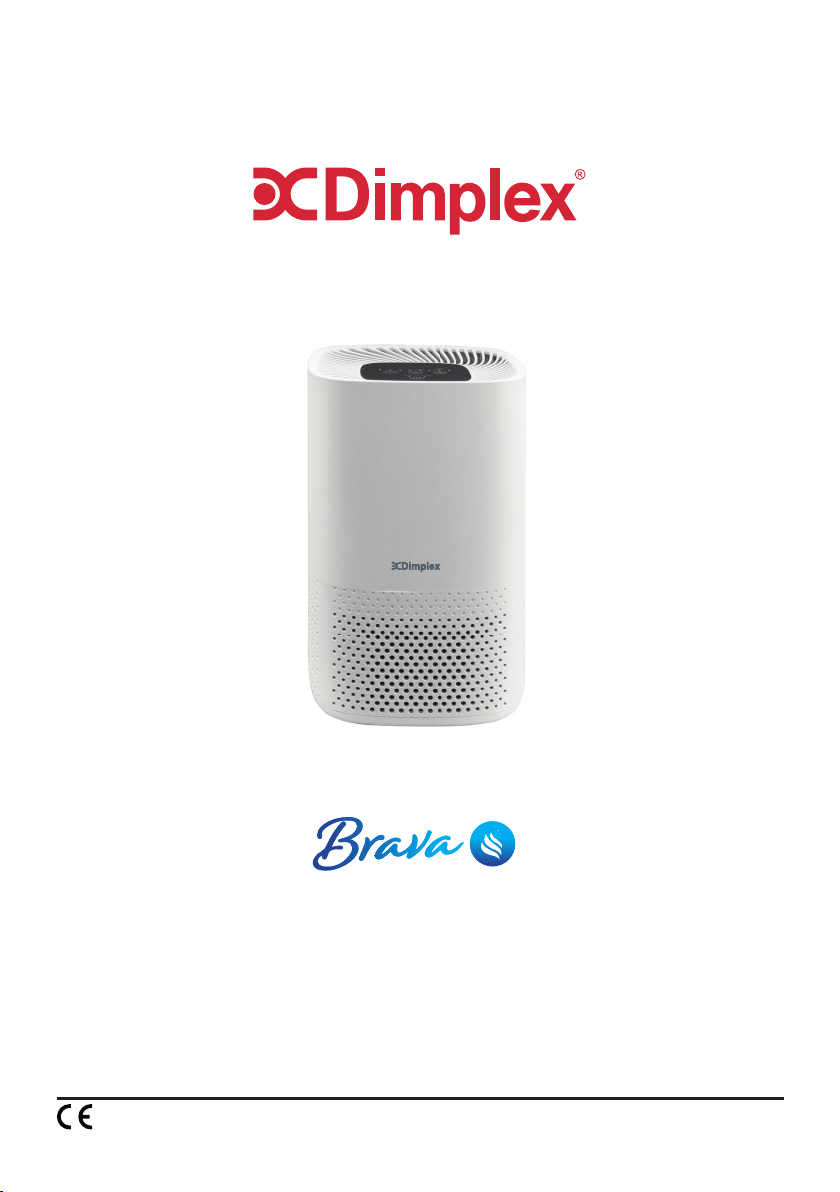

Dimplex Brava DXBRVAP4 User manual

DXBRVAP4
08/54725/0 Issue 1
This product complies with all the required European Product Safety, Electromagnetic Compatibility and Environmental Standards.
They are fully compliant with the LVD, EMC, RoHS and Eco Design Directives
4 Stage Desktop Air Purier
IMPORTANT - Please ensure the bag protecting the lter is removed before use
Make your air good again

This product should be used only in accordance with the specications
outlined in this manual. Usage other than as specied in these
instructions may result in serious injury, risk of re or electric shock.
DO NOT attempt to repair or adjust any electrical or mechanical
functions on this unit. Doing so will void your guarantee. The inside
of the unit contains no user serviceable parts. All servicing should be
performed by qualied personnel only.
IMPORTANT - To reduce the risk of electric shock, the plug is intended
to t in a standard polarized 13Amp socket outlet, only plug the
appliance directly into a proper electrical outlet.
WARNING: To avoid danger of suffocation please remove all packaging
materials particularly plastic and EPS and keep these away from
vulnerable people, children and babies.
Use this product on a horizontal and stable surface with the feet
securely tted or x to the wall as applicable.
WARNING - To avoid the risk of accidental strangulation from the supply
cord all children and vulnerable people must be supervised when in the
vicinity of the product whether it is working or not.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed in
its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
DO NOT place the product directly below a xed socket outlet.
DO NOT use this product if it has been dropped

DO NOT use this product in the immediate surroundings of a bath, a
shower or a swimming pool.
DO NOT use if there are visible signs of damage to the product.
WARNING: Do not use this product in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
WARNING: To reduce the risk of re, keep textiles, curtains or any other
ammable material a minimum distance of 1m from the air outlet.
DO NOT pull, carry or move the appliance using the power cable.
WARNING - To avoid re hazard - keep the cord out of heavy trafc
areas, DO NOT cover cord with carpeting, throw rugs, runners, or
similar coverings, DO NOT route cord under furniture or appliances,
NEVER put the cord near heat registers, radiators, stoves or heaters.
Take care to position the cord away from trafc areas where it will not be
a tripping hazard.
The socket-outlet must be accessible at all times to enable the mains
plug to be disconnected as quickly as possible.
WARNING - Risk of re - Do not use this appliance connected through
an extension lead or any external switching device such as a plug in
timer or remote control plug in adapter, any weakness in the design,
connections or components in these devices can easily result in
overheating of the connection points resulting in melting, distortion and
even the risk of re.
DO NOT COVER or obstruct the air inlet and outlet openings in any
way.
NEVER drop or insert any object into any openings.
This instruction leaet belongs to the appliance and must be kept in a
safe place. If changing owners, the leaet must be surrendered to the
new owner.

Improve your indoor air quality with your new Brava air purier. It features a 3 in 1
pre-lter, true HEPA lter, active carbon lter and a UV-C Light.
3 IN 1 PRE-FILTER: Captures big particles, initial dust and allergen particles.
TRUE HEPA FILTER: Captures micro particles, dust, smoke, pollen and other
allergens.
ACTIVE CARBON FILTER: Removes odours and bad smells
UV-C LIGHT: Destroys micro-organisms such as germs, viruses, bacteria and
fungi (such as mold toxins).
Operating Instructions
BEFORE OPERATING THE AIR PURIFIER:
1. Carefully remove your air purier from box and plastic bag.
2. You must remove the PE bag from the lter before using, please dispose of it
safely away from vulnerable people, children and babies.
IMPORTANT: When moving the air purier, always lift unit rmly by your hands.
3. Plug-in power cord to AC power supply.
4. Select a rm, level and at location for the air purier.
*For proper air ow, locate the unit at least 1 foot from any wall or furniture.
4 Stage Air Purication System
Product Overview

*Make sure none of the grills are blocked.
1. “POWER” BUTTON:
Press this button to turn on or switch off the unit.
Note: Press and hold POWER Button for 5 seconds to reset Filter Replace
Indicator.
2. “SPEED” BUTTON:
The fan speed of the unit can be adjusted when the unit is in operation. Each
time that you press on the (SPEED) button, the speed is adjusted from Low (I)
to Medium(II) to High (III) to Turbo (I, II and III). Turbo function is very useful to
remove odours from your kitchen after cooking. Low is ideal for night time use in
the bedroom.
3. “UV-C/LIGHTS OUT SLEEP” BUTTON:
First press this button to turn on UV-C lamp.
A second press of this button turns on Sleep mode (and keeps UV-C lamp on).
The indicator ickers 10 times before all lights go out. Press any button to activate
the lights again and deactivate sleep mode.
A third press of this button turns off the UV-C lamp. The sleep mode indicator will
icker 10 times before entering sleep mode.
A forth press of this button will turn off Sleep mode.
Note: If you unplug the air purier during sleep mode it will come out of Sleep setting.
4. “TIMER” BUTTON:
1) By pressing this button, the purier can be timed to operate for intervals of 2
hours, 4 hours and 8 hours, stopping automatically when the selected operating
time has elapsed.
2) Press this button to select the required operating time. An indicator light
indicates the timer period.
SLEEP
Operating the Air Purier

3) To select the continuous operating mode, press the timer button repeatedly
until there is no timer indicator lit up.
Important note: When the unit is not in use, please switch it off and unplug it.
FILTER REPLACEMENT INDICATOR
A continuous red FILTER RESET light indicates that it is time to replace the lter. Replace the lter
according to the directions below then press and hold the POWER button for 5 seconds to restart
the program system. The FILTER RESET light will turn off.
*The 3 in 1 lter will last approximately 6 months depending on how dirty the air is.
1. Unplug the product.
2. Turn the product Upside down.
3. Remove the xing knob below the base by turning anti clockwise then remove the base.
4. Take out dirty lter and insert new lter into the unit.
5. Re-attach the base to the unit and fasten it by the xing knob.
FILTERS
HEPA and activated carbon lter should be cleaned once every month by vacuum cleaner.
Note: Filters should be replaced at least once every 6 months. More frequent cleaning and replacing
may be required depending on environmental conditions.
UV-C LAMP REPLACEMENT
Filter and UV-C Lamp Removal / Replacement
1. Follow steps outlined above to remove 3 in 1
lter to obtain access to the UV-C lamp.
2. Remove the lamp cover screw with a small
phillips screwdriver.
3. Carefully twist the lamp cover anti clockwise
and lift off to remove.
4. Unscrew the UV-C lamp and replace.
5. Re-attach lamp cover ensuring guide aps
are located correctly turning clockwise and re-
insert lamp cover screw and tighten.
6. Replace 3 in 1 lter, base and re fasten
securely.
Note: Do not look into the UV-C lamp when it is ON.
Note: You can obtain replacement lters and
UV-C lamps at www.dimplex.co.uk

Cleaning and Maintenance
WARNING ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE
APPLIANCE
The appliance should be cleaned at least once every month as dust may accumulate which would
affect performance. Do not use detergents, abrasive cleaning products or polish of any kind on the
appliance. Wipe with a clean, dry, soft cloth to remove dust and a damp cloth (not wet) to clean off
stains. Be careful not to allow moisture into the appliance. Use a vaccum cleaner to remove any uff
which does accumulate.
NOTE:
• Do NOT stick any foreign objects or your ngers inside of the unit.
• Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning
as they will damage the product.
• NEVER use alcohol or other solvents.
Technical Specication
DXBRVAP4 Symbol Value Unit
Clean Air Delivery Rate CADR 100 m³/hr
Fan Power Input P 45 W
Standby Power Consumption PSB 0.5 W
UV Light Power P3W
Fan Sound Power Level LWA 60 dB(A)
Rated Voltage V230 V (AC)
Rated Frequency Hz 50 Hz
Standards application EN 60335-1; EN 60335-2-65
Recycling
For electrical products sold within the European Community.
At the end of the electrical products useful life it should not be disposed of within
household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice in your country.
Mini Troubleshooting Guide
Before carrying out any of the following service checks, unplug the unit from the mains.
Insufcient air ow:
Unit will not start:
Excessive noise:
Check that the lters are clean/lter bag has been removed.
Check for any obstructions in the air inlet and outlet
Check the power supply and electric fuses
Check that the Front Cover is latched rmly in place and the lter is rmly in
place.
Check for any foreign objects in contact with the fan. The lter may be clogged
and ready for replacement.
The foam sealing gaskets have been installed incorrectly.
Uneven positioning.

[c] Glen Dimplex.
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex.
Guarantee
What does a Dimplex Guarantee cover?
Dimplex products deliver reliable service for normal, household use in domestic settings. All Dimplex products are individually
tested before leaving the factory.
If you are a consumer and you experience a problem with your Dimplex product, which is found to be defective due to faulty
materials or workmanship within the Guarantee Period, this Dimplex Guarantee will cover repair or - at the discretion of Dimplex –
replacement with a functionally equivalent Dimplex product.
Your product is under guarantee for 1 year from the date of purchase or the date of delivery of the product, if later. The 1 year
guarantee is extended for an additional 2 years when you register the product with Dimplex, within 28 days of purchase. If you
do not register the product with Dimplex within 28 days, your product will remain guarranteed for 1 year only. To validate your
extended guarantee register with us online at: http://register.dimplex.co.uk. N.B. Each qualifying product needs to be registered
with Dimplex individually. Please note that the extended guarantee is only available in the UK and Ireland.
The Dimplex Guarantee is conditional upon you providing the original purchase receipt as proof of purchase. Please therefore
retain your receipt as proof of purchase.
If you do experience a problem with your Dimplex product please call the Helpline on +44 [0]344 879 3588 or visit https://
www.dimplex.co.uk/support. For ROI please email [email protected] or call +353(0)1 842 4833. We will need
details of your Dimplex product and a description of the fault which has occurred. Once we receive your information and proof
of purchase we will contact you to make the necessary arrangements. If your Dimplex product is not covered by this Dimplex
Guarantee there may be a charge to repair your product. However, we will contact you for agreement to any charges before any
chargeable service is carried out.
What is not covered by a Dimplex Guarantee?
The Dimplex Guarantee does not cover any of the following:
Any fault or damage to your Dimplex product due to faulty materials or workmanship occurring outside the Guarantee Period.
Normal wear and tear including parts that might wear out over time or consumables, such as lters.
Any fault or damage occurring to any pre-owned Dimplex product or to any other equipment or property.
Accidental damage to your Dimplex product or damage to your Dimplex product from external sources (for example, transit,
weather, electrical outages or power surges).
Fault or damage to your Dimplex product which is:
•Not due to faulty materials or workmanship or which is due to circumstances outside Dimplex’s control.
•Caused by use of your Dimplex product for anything other than normal domestic household purposes in the country where
it was purchased.
•Caused by any misuse, abuse or negligent use of the Dimplex product, including but not limited to any failure to use it in
accordance with the Operating Instructions supplied with the product.
•Caused by any failure to assemble, install clean and maintain your Dimplex product in accordance with the Operating Instructions
supplied with the product unless this was carried out by Dimplex or its authorised dealers.
•Caused by repairs or alterations to your Dimplex product not carried out by Dimplex service personnel or its authorised dealer(s).
•Caused by use of any consumables or spare parts for your Dimplex product which are not Dimplex - specied.
Terms and Conditions
The Dimplex Guarantee is valid for 1 calendar year, plus 2 if registered, from the date of purchase of your Dimplex product
from a recognised retailer in the country of purchase and use, or the date of delivery of the product if later, always provided
the original receipt has been retained and is produced as proof of purchase.
You must provide to Dimplex or its authorised agents on request the original receipt as proof of purchase and - if required by
Dimplex - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
Any repair work under the Dimplex Guarantee will be carried out by Dimplex or its authorised dealer(s) and any parts that
are replaced will become the property of Dimplex. Any repairs performed under the Dimplex Guarantee will not extend the
Guarantee Period.
Any replacement of your Dimplex product by Dimplex during the Guarantee Period will start the 3 year Guarantee Period afresh
from the date of delivery of the replacement Dimplex product to you. (*Please keep original online guarantee registration email and
sales receipt for your original purchase as proof of the additional 2 years, in case of the unlikely event you experience an issue).
The Dimplex Guarantee does not entitle you to recovery of any indirect or consequential loss or damage including but not
limited to loss or damage to any other property.
The Dimplex Guarantee is in addition to your statutory rights as a consumer and your statutory rights are not affected by this
Dimplex Guarantee.
Contact Dimplex A brand of the Glen Dimplex UK Limited, trading as Glen Dimplex Heating & Ventilation
If you have any questions about what the Dimplex Guarantee covers and does not cover or how to claim under the Dimplex
Guarantee, please contact us:
Glen Dimplex Heating & Ventilation, Grange Drive, Hedge End, Southampton SO30 2DF
Telephone: 0344 879 3588
Visit: www.dimplex.co.uk
This manual suits for next models
1
Table of contents
Other Dimplex Air Cleaner manuals

Dimplex
Dimplex DCEVP6BW User manual

Dimplex
Dimplex DXAPV3 User manual

Dimplex
Dimplex DCEVP10 User manual

Dimplex
Dimplex DCEVP20W User manual

Dimplex
Dimplex BRAVA DXBRVAP5 User manual

Dimplex
Dimplex DXAPV3N User manual

Dimplex
Dimplex DCEVP20W User manual

Dimplex
Dimplex GDDEYS40 User manual

Dimplex
Dimplex GDC-ET4RS User manual

Dimplex
Dimplex DEVA-20 User manual
