Dimplex DCEVP6WT User manual

For domestic household use
only.
INSTRUCTION MANUAL
6L Evaporative Cooler w/Air
Purifier
Model: DCEVP6WT

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your evaporative cooler
for the first time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a
shower or a swimming pool.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a firm, flat surface to avoid the risk of water leakage.
Ensure that the unit is kept upright at all times.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after
appliance malfunction or if the appliance was dropped or is otherwise damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers service
agent or a similarly qualified person in order to avoid a hazard.
• Please ask a professional service agent to repair the product. Improper repair may
cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, filling it and before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that
you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This evaporative cooler is only intended for INDOOR RESIDENTIAL applications.
This evaporative cooler should not be used for commercial or industrial or leisure
applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat registers,
radiator, stoves or heaters.
• DO NOT touch the power cord with wet hands to avoid the risk of electric shock.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord
away from traffic areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection
may lead to a risk of fire or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away
from walls, furniture and overhanging objects such as curtains or a shelf.
2

• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• To prevent spillage, empty the water tank before lifting or relocating the appliance.
• WARNING: To avoid danger of suffocation please remove all packaging materials
particularly plastic and EPS and keep these away from vulnerable people, children
and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or other flammable liquids
are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour sprays on or around
the unit.
• Always switch off the unit and take the plug out of the socket:
• If you are not using the unit
• Before you clean or carry out maintenance on the unit
• If a fault occurs
• During filling
• In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
• Never insert objects or fingers into the air inlet and outlet, it may lead to current
leakage, short circuit and product damage.
• DO NOT use this appliance with an extension lead or power board.
3

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical
burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery immediately
call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764
766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be
dangerous.
CAUTION: No obvious symptoms
Unfortunately, it is not obvious when a button or coin battery is stuck in a child's
oesophagus (food pipe).
There are no specific symptoms associated with this. The child might:
• cough, gag or drool a lot
• appear to have a stomach upset or virus
• be sick
• point to their throat or stomach
• have a pain in their abdomen, chest or throat
• be tired or lethargic
• be quieter or more clingy than usual or otherwise 'not themselves'
• lose their appetite or have a reduced appetite
• not want to eat solid food/be unable to eat solid food
These types of symptoms vary or fluctuate. with the pain increasing and then sub-
siding.
A specific symptom to button and coin battery ingestion is vomiting fresh (bright
red) blood. If the child does this seek immediate help. The lack of clear symptoms
is why it is important to be vigilant with 'flat' or spare button or coin batteries in the
home and the products that contain them.
4

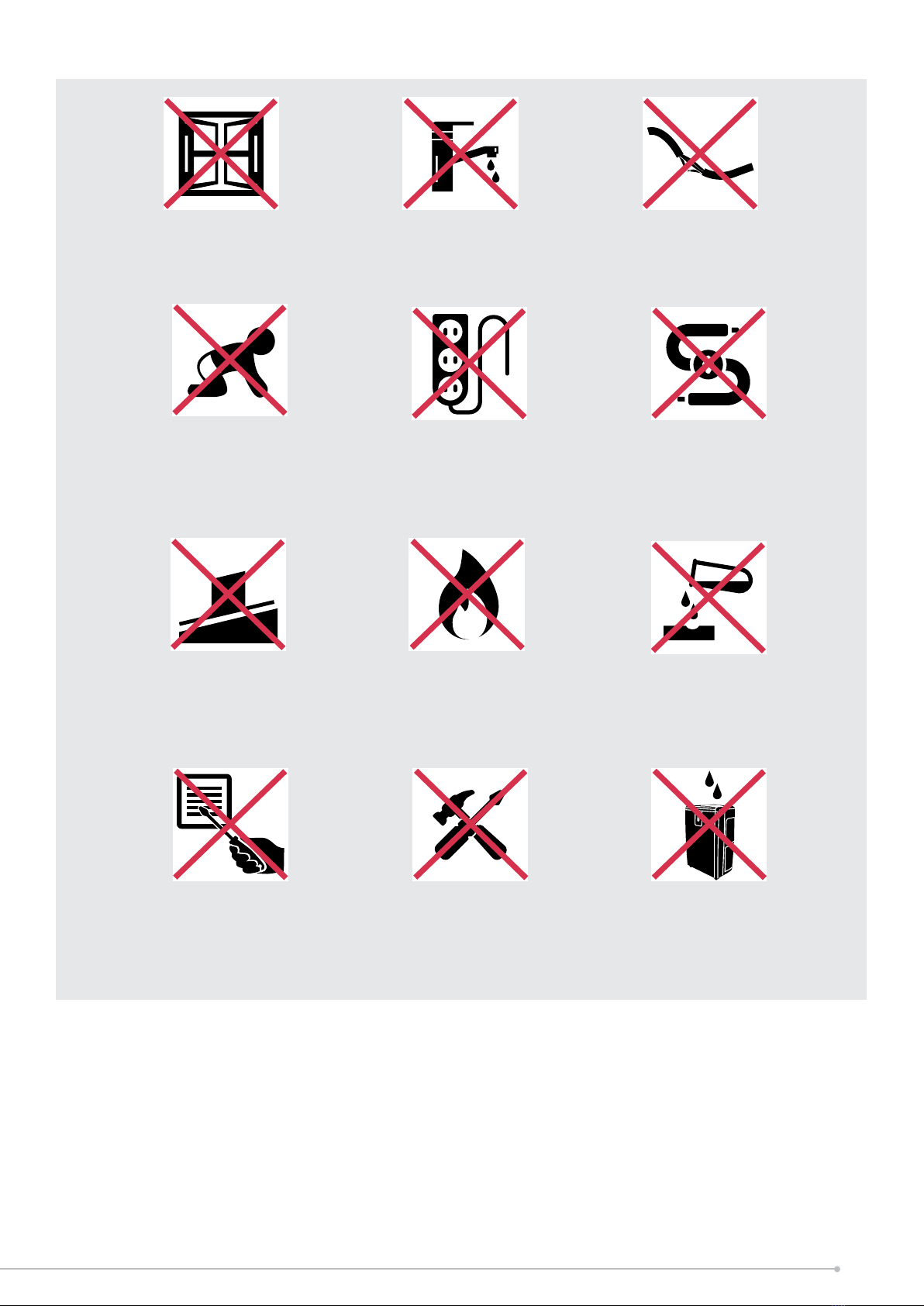

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension
leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
5

Model no. DCEVP6WT
Colour
White
Power supply
220-240V~50Hz
Rated power 85W
Speed settings
6
(3 for cooling, 3 for purify-
ing)
Modes 3 (natural, normal & sleep)
Turbo air speed 250m/s
Water tank capacity 6L
Remote control Y
CADR Rate 140m3/h
Timer 24 hours
Filter H13 HEPA
Swing function Y
Suggested Room Size
Air Cooler: 40m2
Air Purifier: 14m2
Controls Button & Remote Control
Water consumption 0.8L/h
Weight (net) 6.3kg
Specification
• For greater precision, please always refer to the rating label placed on the product.
• The H13 filter effectively blocks PM2.5 suspended particles, and filters 99.97% of
pollutants as small as 0.3 microns.
Dimensions (w x d x h) 328 x 278 x 673mm
6

Parts
Ice packRemote
(1) Air outlet
(2) Head sover
(3) Control panel buttons
(4) Front shell
(5) Display
(6) Horizontal louvre
(7) Fixed Horizontal louvre
(8) Front castor
(9) Back shell
(10) Remote control storage
(11) Rear cover
(12) Power cord
(13) Back Filter
(14) Water tank bracket
(15) Water tank
(16) Back castor
7

Display & Control Panels
Control Panel
Display Panel
Remote Control
Wind Speed Cooling/Humidifier
Purifier Function
Swing Function
Mode
On/Off
Timer Function
AI Purification
Fan SpeedTimer
Purifier
AI Purification
Cooling/HumidifierMode
Swing Function
On/Off
Swing
Purifier
Timer
Fan Speed
AI Purification
Sleep Mode
Natural
Mode
Cooler/humidifer
Filter
Replacement
warning
8

Functions
Note: The buzzer beeps twice when the power supply is first turned on. The unit
is in ‘standby’ until the On/Off button is pressed.
The horizontal louvres need to be opened manually by hand.
ON/OFF
Press the ON/OFF button to turn the unit ON. The default settings when first turned
on are low fan speed, normal wind mode, and no timer. When turning the unit back
on after powering it off, the state upon turning it off will be memorised, excluding
the timer setting. If the sleep wind mode was on before turning off, the mode will
not be memorized after turning it on again, but the normal wind mode will start. To
turn the unit OFF press this button again. It may take a few seconds to power off
completely.
WIND SPEED
Press the Wind speed key to adjust the wind speed on the device. The device has
3 wind speed settings being low, medium and high. After high speed, pressing the
button again will bring the appliance back to low speed. For the drying function,
press the Wind Speed key for 3 seconds.This will cause the unit to enter high wind
speed for 20 minutes. After this 20 minutes, the device will automatically shut down
and enter standby mode.
SWING
Press the Swing key to turn the swing function on or off. The device will swing left to
right when this function is switched on.
TIMER
The TIMER can be set in 1 hour increments up to the maximum timer of 24 hours.
The set time will be indicated on the display panel before switching back to the wind
speed. Press the Timer Function button to set your desired time.
COOLER / HUMIDIFIER
Press this button once to turn on the COOLER / HUMIDIFIER function, the pump will
start and the COOLER / HUMIDIFIER LED will illuminate. Press this button again to
turn off the cooling function, and to use as a fan only.
9

Functions
MODE
The default mode after turning “On” is normal. Press this button to select modes
in this sequence: normal > natural > sleep. The MODE indicator light will illuminate
accordingly. There is no indicator for the normal wind mode.
Normal: The fan runs at a fixed speed for the wind speed selected, without any
change.
Natural: Changing wind speeds (the indicator lights only show the initial wind speed
when the speed changes, and other changes are not indicated).
Sleep: In natural sleep mode, the wind speed LED changes with the 30-minute cycle
change, but does not indicate with the change of natural wind.
High: 30 minutes high speed natural wind > 30 minutes medium level natural
wind > 30 minutes low level natural wind (until turned off).
Medium: 30 minutes medium level natural wind > low level natural wind (until
turned off).
Low: Low level natural wind (until turned off).
PURIFICATION
Press the Purification button to turn on the purification function. When this function
is turned on, an indicator light will show the quality of the air. A green light indicates
excellent air quality, a yellow light indicates medium air quality and a red light
indicated poor air quality. It takes the device 60 seconds to detect this, and in
between the light will flash between green and red whilst determining the actual air
quality. This setting requires manual adjustment of the wind speed. The purification
function cannot be used in conjuntion with the swing and mode functions.
AI PURIFICATION
Press the AI Purification button to turn on the AI purifying function. When this
function is turned on, the default operation is high wind speed. The wind speed
changes in conjunction with the air quality automatically. A green indicator light
indicates excellent air quality, and the machine will run at a low wind speed. A yellow
indicator light represents medium air quality, and the machine will run on medium
speed. A red indicator light indicates poor air quality, and the machine will operate
on high wind speed. This function can not be used in conjunction with the swing and
mode functions.
10

Other Functions
Water level protection function:
When the cooling function is first turned on, the water pump works for 50 seconds.
If low water is detected, the pump will stop working and a buzzer alarm beeps 10
times. It is also fitted with a fast water level detection function. Within 10 seconds
after powering on, press and hold the COOLER button to start the fast water level
detection program. After hearing two beep press the COOLER button and the unit
will detect the water level in 3 seconds. If there is no water, the cooling function will
be turned off and the alarm beeps 10 times. The fast water level detection function is
cancelled after pressing the shutdown button or power failure.
Uninterrupted power memory function:
When the power is restored after a power outage, the fan will start in the state
before shutting down when it is turned on again. The unit will restore to the previous
settings. Note: the previous function will be restored (except if in sleep mode). The
timer is not memorised either.
Auto power off function:
The unit will automatically shut down after working continuously for 15 hours. If you
want to cancel this function, press and hold the LEFT / RIGHT SWING button for 3
seconds, the buzzer will emit three beeps and the automatic shutdown function will
be cancelled. If you wish to restore this function, press and hold the LEFT / RIGHT
SWING button for 3 seconds and the automatic shutdown function will be restored.
HEPA Filter replacement prompt
The appliance will alert you when the HEPA filter needs to be replaced. After a cer-
tain amount of hours of use on the Purification/AI Purification modes, the filter re-
placement indicator will flash on the digital display. Press the Purification button for
3 seconds to turn off this display.
Screen Off function
When the unit is switched on, press the Timer button for 3 seconds if you would like
to turn off the display screen.
11

Operation & Set Up
1. Remove the unit from its packaging
2. To begin using the COOLER/HUMIDIFIER function, rotate the Cord winding
frame clips 90° and remove the water tank located at the back of the unit and fill
to the MAX fill line. Replace the water tank and secure the clips.
3. For extra cooling power, place an ice pack (supplied) into the water tank.
4. Open the horizontal louvres.
5. Plug into a power supply and press the ON/OFF button to start the appliance.
6. The unit will operate initially on a continual basis. If a set period of operation is
required, please follow the TIMER instructions.
7. Select the operation MODE as required, by pressing the MODE button.
8. Select the desired WIND SPEED by pressing the WIND SPEED button.
9. To use the Purification function, press the PURIFICATION button.
10. To use the AI Purification function, press the AI PURIFICATION button.
11. To switch the unit off at any time, press the ON/OFF button.
Precautions
• Do not overfill the water tank (check the MAX fill line).
• Only fill the water tank half full, when using the ice packs.
• Use only cold, clean filtered water.
• The unit is equipped with a number of safety devices, including a water level
protection, uninterrupted power memory function & auto power off function.
• Do not allow the same water to sit in the machine for a prolonged period.
• It is recommended that any water left in the machine for 3 days or more be re-
moved and replaced with clean water.
• The control panel must not come in contact with water or any other liquids.
Using the Remote Control
1. Unscrew and open the battery cover of the remote control, and insert a 3V
CR2032 battery.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover and replace with a
new battery (CR2032). Then replace the battery cover.
12

Cleaning
Your unit is designed to remove dirt and other atmospheric impurities by drawing air
through the wet curtain. DO NOT block the air filter, as this will impair the efficiency
of the unit.
Water Tank
The water tank should be cleaned regularly, especially in hard water areas. If not
cleaned, deposits may build up affecting the efficiency of the unit. Cleaning the tank
with mild soapy water once every month is recommended. To do this, follow the
steps below:
1. Disconnect the appliance from the main supply.
2. Completely remove the water tank from the unit by rotating the Cord winding
frame clips 90° and removing the water tank.
3. Remove any deposits or dirt from the tank with a mild, soapy detergent and
cloth. Note: for hard water areas use a citric acid solution to descale & clean the
tank. Mix 1 part citric acid to 20 parts water.
4. Flush the tank with clean water.
5. Replace the tank and make sure to secure it back in place by reversing the steps
in point 2.
Outside Cabinet
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a stiff brush to clean the
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
13

If the unit fails to operate efficiently, is broken or other problems arise, unplug and
do not operate. Ask for advice by calling your local after sales service agent or the
Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Maintenance
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Storage
If not using the unit for an extended period of time. After cleaning please:
• Turn the unit off, unplug and take care of the mains lead & plug.
•
Cover the unit and store it upright in a location where it will not receive direct
sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.
14

15

Customer Care: 1300 556 816
[e-mail]
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
DCEVP5BW REV1DCEVP5BW REV1DCEVP5BW REV1
DCEVP6WT V1
16
