Dimplex CDFI-BX1000 User manual

Owner’s Manual
Model
CDFI-BX1000
6909910100
7215020100R00
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use the Opti-myst®Pro Box Heater. For
your safety, always comply with all warnings and safety instructions
contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this unit.
!NOTE: Procedures and
techniques that are considered
important enough to
emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result in
damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations .................. 3
IMPORTANT INSTRUCTIONS ................ 4
Installation ................................ 6
Operation ................................ 11
Maintenance ............................. 12
Warranty................................. 13
Technical Support ......................... 15

3
Welcome & Congratulations
Thank you and congratulations for purchasing an Opti-myst Pro Box
Heater from Dimplex. Please use our convenient online registration
page to record your model and serial numbers for future reference at
www.dimplex.com/register
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
In order to better serve you, please have your model and serial number
ready or register your product online before calling (See above)
Model Number
and Serial
Number
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in
a possible electric shock, re hazard and will void the warranty.

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using the heater.
②The heater is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
The surface around the heater
outlet becomes hot during heater
operation.
DANGER: High temperatures
may be generated under certain
abnormal conditions. Do not
partially or fully cover or obstruct
the front of this heater.
③Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④Always disconnect the heater
when not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by
a reputable electrician before
reusing.
IMPORTANT INSTRUCTIONS
⑥ Do not operate any unit with a
damaged cord or if the heater has
malfunctioned, or if the heater
has been dropped or damaged
in any manner, contact
Dimplex Technical Service at
1-888-346-7539.
⑦Do not use outdoors.
⑧The heater is not intended for
use in bathrooms, laundry areas
and similar indoor locations.
Never locate heater over a
bathtub or other water container.
⑨To disconnect the unit, turn
the controls OFF, disconnect
power at the service panel.
⑩Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑪ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑫All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.

5
SAVE THESE INSTRUCTIONS
⑬Do not modify the heater. Use
it only as described in this manual.
Any other use not recommended
by the manufacturer may cause
re, electric shock or injury to
persons.
⑭ Always use a certied
electrician should new circuits or
outlets be required.
⑮Always use properly
grounded, fused and polarized
outlets.
⑯ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
⑰ When transporting or storing
the unit, keep in a dry place, free
from excessive vibration and
store so as to avoid damage.
!NOTE: Changes or
modications not expressly
approved by the party responsible
for compliance could void
user's authority to operate the
equipment.

6 www.dimplex.com
Installation
WARNING: ANY
INSTALLATION AND
SERVICE WORK SHOULD BE
PERFORMED BY QUALIFIED AND
AUTHORIZED PERSONNEL. ALL
INSTALLATIONS MUST COMPLY
WITH ALL LOCAL CODES AND
BY-LAWS, AND INSPECTED AND
APPROVED FOR OPERATION BY
LOCAL GOVERNING AUTHORITY
PRIOR TO USE.
WARNING: Construction and
electrical wiring must comply with
local building codes and other
applicable regulations to reduce the
risk of re, electric shock and injury
to persons.
Opti-myst Cassette
The Opti-myst Pro Box Heater works
exclusively with the
Opti-myst Cassette (CDFI1000-
PRO). Controls for the heater are
found on the cassette.
New Construction
When determining a location for
the Opti-myst®Pro Box Heater,
ensure that the unit will not be
susceptible to drafts, vents, ceiling
fans and other air currents. Similar
to a candle, large movements of
air will affect the unit's ability to
create and maintain the ame effect.
Hardwire Installation
The Opti-myst Pro Box Heater is
supplied in an assembled state
and is designed to be permanently
installed. The unit comes ready for
hardwire installation.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
!
NOTE: Please read all
instructions before installing.
1. For rough in framing, the
opening should follow the
recommended dimensions
located in Figure 1.
!
NOTE: Dimensions provided
are minimum clearances and will
vary depending on type of support
framing and nishing options.
!
NOTE: Framing should be
constructed to support 160 lbs
(73 kg)
WARNING: To reduce the risk of
re, do not store or use gasoline or
other ammable vapours or liquids
in the vicinity of the unit.
2. Allow at least 4 ft. (122 cm) of
service cable for connecting

7
Installation
!NOTE: Use minimum 14 AWG supply
cable with two insulated copper conductors
(white and black) and one bare ground wire.
A B C D E F G H I
CDFI-
BX1000
44.9"
(114 cm)
31.75"
(80.5 cm)
14.7"
(37.3 cm)
9.5"
(24 cm)
4.8"
(12.2 cm)
15.5"
(39.3 cm)
16.2"
(41.2 cm)
45.2"
(115.2 cm)
32.3"
(82 cm)
Figure 1
a power supply wire to the
Opti-myst Cassette when installing before
nishing wall.
!
NOTE: A 15 amp, 120 volt alternating
current (VAC) circuit is required. A dedicated
circuit is preferred but not essential in all
cases. A dedicated circuit will be required if,
after installation, the circuit breaker trips or the
fuse blows on a regular basis when the heater
is operating. Additional appliances on the
same circuit may exceed the current rating of
the circuit breaker.
C
E
B
D
A
G
F
H
I
Mounting
Flanges Heater
Exhausst

8 www.dimplex.com
Installation
Do not use cable with aluminum
conductors.
!
NOTE: It is recommended
that all drywall installation and
nishing be completed after
unit is fully installed.
3. The Opti-myst Pro Box Heater
can be installed to be two sided
or one sided. For one sided
installations remove the 4
anges on the back if there is
not enough depth in the framing
for them. Using the same
screws, replace the back panel.
See Figure 2. For two sided
installations, remove anges and
back panel and using the same
screws, replace the anges.
!
NOTE: The heater only exhausts
from one direction. Note this
direction when installing in a 2
sided conguration"
CAUTION: When inserting the
unit take care not to damage or
pinch any of the power cables that
are concealed in the wall.
4. Mount the Opti-myst Pro Box
Heater to the framing with
the mounting brackets using
appropriate screws for the
application (Figure 1).
5. Feed the wire through the
opening on the back left of
the Opti-myst Pro Box Heater.
Remove the outer jacket and
strip the individual conductors ½
in. (1.3 cm) from the end.
6. Do not remove cardboard
backing from the Opti-myst Pro
Flange
Back
Panel
Plumbing
Routing
Wire
Routing
Figure 2

9
Installation
Box Heater until the Opti-myst
Cassette is installed. This will
help prevent scratches and
damage to the sides of the Opti-
myst Pro Box Heater.
7. Follow the installation
instructions provided with the
Opti-myst Cassette to install
within the Opti-myst Pro Box
Heater. Use the provided
screws to fasten the cassette to
the Opti-myst Pro Box Heater
through the holes in the cassette
(Figure 3).
8. In the back left corner of the
Opti-myst Cassette (Figure 3),
locate and remove the electrical
cover plate by removing the two
securing screws.
9. Install a cable connector (not
included) suitable for mounting
in a ⅞ in. (22 mm) hole, to the
cable plate and feed the supply
cable through the connector.
The cable plate can be removed
by removing the two securing
screws on either side, to allow
for easier access.
CAUTION: Use two conductor,
non-metallic sheath cable with
ground wire (3 wires total) for the
incoming power supply on the
cassette. Use appropriate wire to
meet local and national electrical
codes for rated power.
10. Connect the black wires (live)
from the Opti-myst Cassette and
Opti-myst Pro Box Heater to the
live from the power supply.
11. Connect the white wires
(neutral) from the Opti-myst
Cassette and Opti-myst Pro Box
Heater to the neutral wire from
the power supply.
12. Connect the green wires
(ground) from the Opti-myst
Cassette and Opti-myst Pro Box
Heater to the ground wire from
the power supply.
13. Place all connectors inside the
Opti-myst Cassette and secure
the cable clamp to unit, making
sure that the cable clamp grips
only the jacket of service cable.
CAUTION: Ensure the wire
connectors are securely tightened,
so no bare wires (live or neutral) are
exposed.

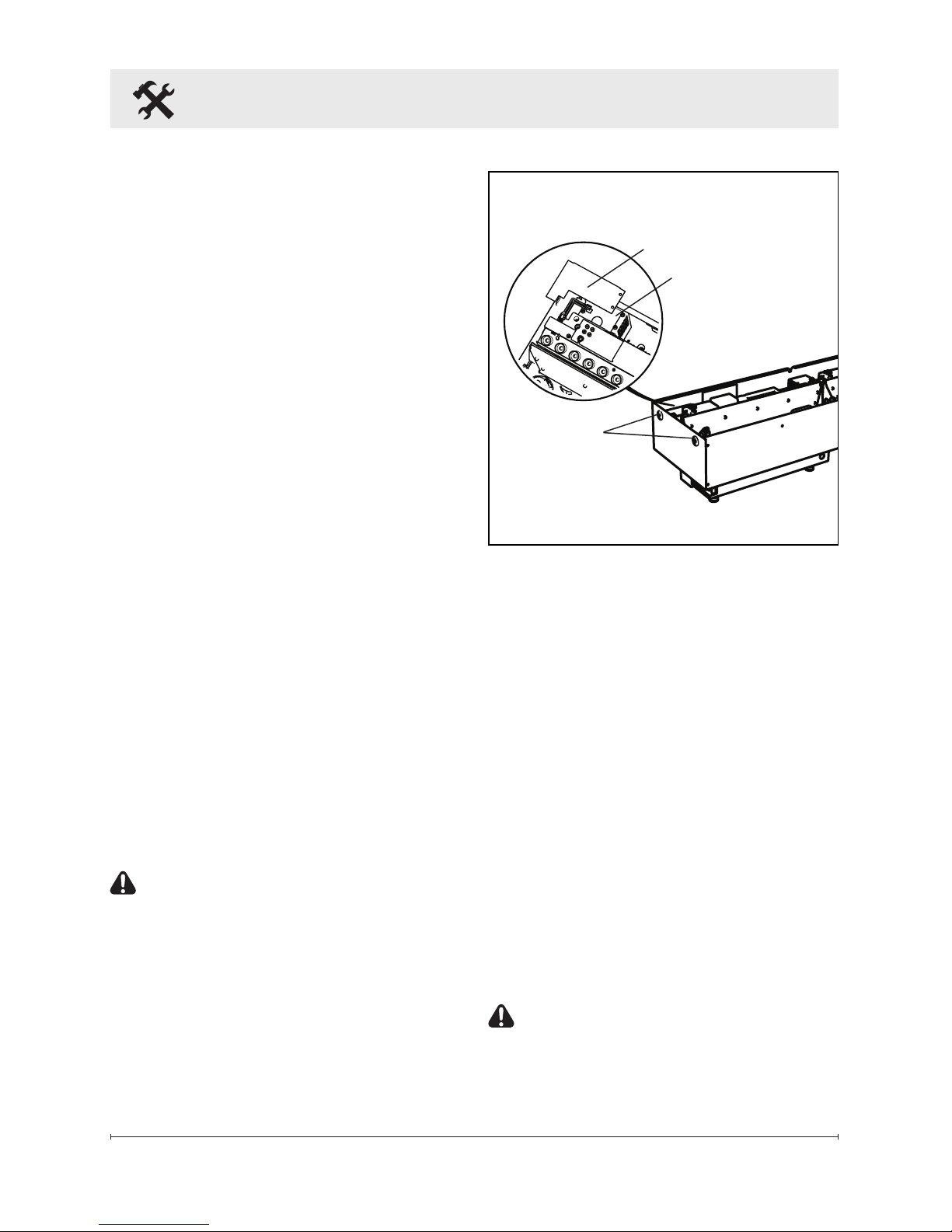

Figure 3
Cable Plate
Electrical Cover Plate
Holes for
securing to
framing

10 www.dimplex.com
14. Connect the 2 pin connector
from the Opti-myst Cassette to
the Opti-myst Pro Box Heater
(Figure 4).
15. Finish surrounding wall. There
are 3 different options for
nishing the wall:
• Permanent - install drywall
right up to the ange that
surrounds the opening.
• Semi Permanent - nish
around edge using ashing
material (not included)
• Flexible - create opening big
enough to access mounting
anges and a false front that
can be removed.
Installation
Figure 4
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of re, electric
shock or damage to persons.
16. The media plate that came
with the Opti-myst Cassette is not
required and can be discarded.
After completing installation, place
the media tray that came with the
Opti-myst Pro Box Heater in position
over the Opti-myst Cassette. The
tray can be used to hold a variety
of media. Please note that the tray
gets warm, so choose materials
appropriately.

11
Operation
The heater can be controlled by
remote, or the tethered controller
through the Opti-myst Cassette.
Please refer to cassette User's
Guide for details.
!NOTE: The Opti-myst Pro
Box Heater cannot be operated
independently from the Opti-myst
Cassette.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic switch will turn the
heater off and it will not come
back on without being reset. The
temperature cutoff switch can be
reset by disconnecting power to
the unit, waiting 5 minutes and
reconnecting power to the unit.
CAUTION: If you need to
continuously reset the heater,
disconnect power to the unit
and call Dimplex North America
Limited at 1-888-346-7539 for
technical support. Please have
your model and serial number
ready when calling.

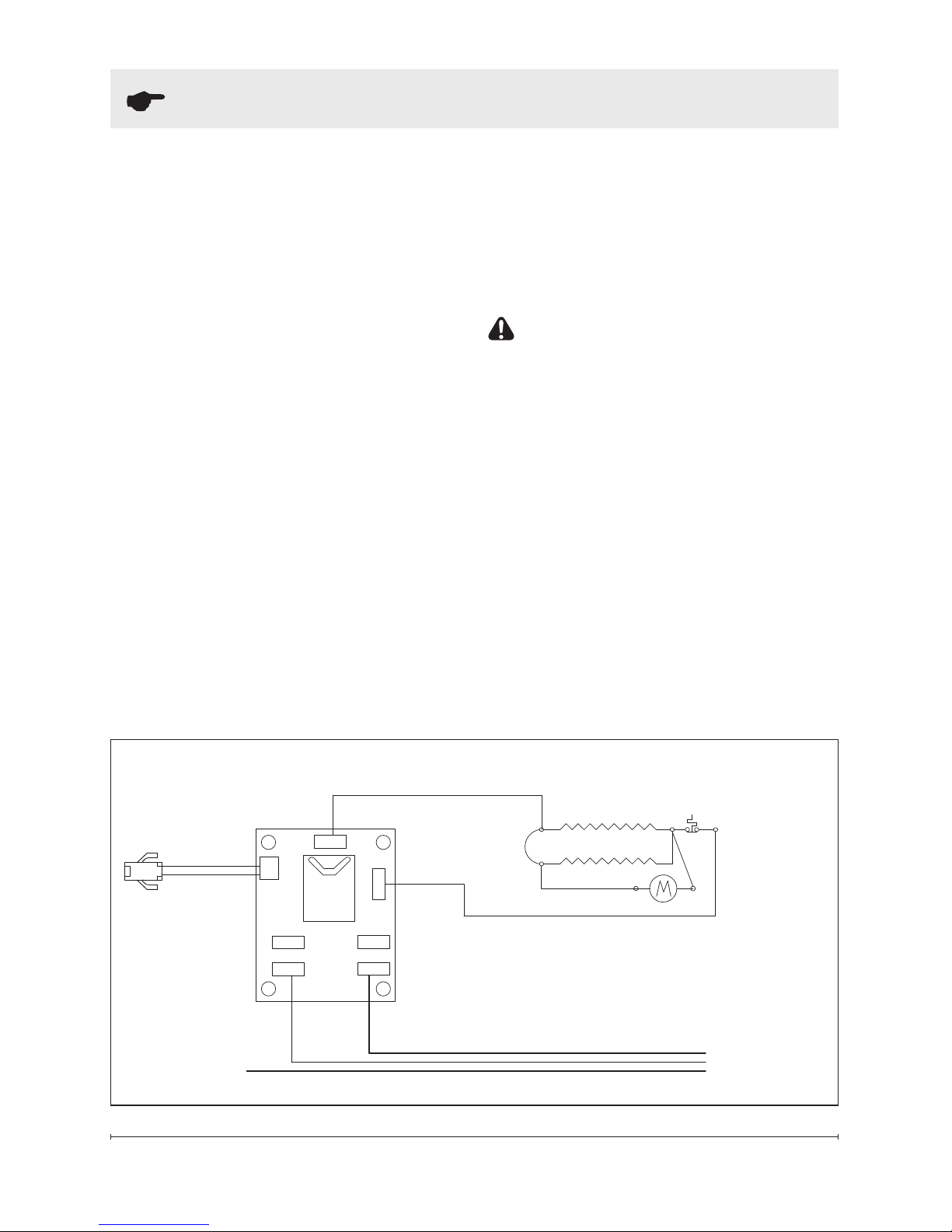

L
N
G
120 V AC SUPPLY
N
JUNCTION BOX
GND
Heater
N
Heater
L
RL Y2
+
24V
Neutral Live
WIRING DIAGRAM

12 www.dimplex.com
Maintenance
Opti-myst Pro Box Heater
Surface Cleaning
To remove ngerprints or other
marks, the exterior nish can be
cleaned with a damp cloth with a
mild detergent. The surface should
be completely dried with a lint free
cloth to prevent water spots.
Servicing
Except for installation and cleaning
described in this manual, an
authorized service representative
should perform any other servicing.
!
NOTE: The heater should not
be operated with an accumulation
of dust or dirt on or in the unit, as
this can cause a build up of heat
and eventual damage. For this
reason the heater must be inspected
regularly, depending upon conditions
and at least at yearly intervals.

13
Warranty
2 YEAR LIMITED WARRANTY
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex heater. This limited
warranty applies only to purchases made
in any province of Canada except for
Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of
the USA (and the District of Columbia)
except for Hawaii and Alaska. This limited
warranty applies to the original purchaser
of the Product only and is not transferable.
Products excluded from this limited
warranty
Products purchased in Yukon Territory,
Nunavut, Northwest Territories, Hawaii,
or Alaska are not covered by this limited
warranty. Products purchased in these
States, provinces, or territories are sold
AS IS without warranty or condition of
any kind (including, without limitation,
any implied warranties or conditions of
merchantability or tness for a particular
purpose) and the entire risk of as to the
quality and performance of the products is
with the purchaser, and in the event of a
defect the purchaser assumes the entire
cost of all necessary servicing or repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in
material and workmanship in respect of
the heater components of the Product for
a period of 12 months from the date of the
rst purchase of the Product.
This limited warranty period also applies
to any implied warranties that may exist
under applicable law. Some jurisdictions
do not allow limitations on how long an
implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
Products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling,
operation with an incorrect power source,
re or other circumstance outside of
Dimplex's control including, without
limitation, an Act of God.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-
346-7539), or 1367 Industrial Road,
Cambridge Ontario, Canada N3H 4W3.
Please have proof of purchase, catalogue/
model and serial numbers available when
calling. Limited warranty service requires
a proof of purchase of the Product.
What Dimplex will do in the event of a
defect
In the event the Product or part covered
by this limited warranty is proven to be
defective in material or workmanship
during, in the One Year Warranty period,
as applicable, you have the following
rights:
• Dimplex will in its sole discretion either
repair or replace such defective Product
or part without charge. If Dimplex is
unable to repair or replace the Product
or part, or if repair or replacement is
not commercially practicable or cannot
be timely made, Dimplex may, in lieu of

14 www.dimplex.com
Warranty
repair or replacement, choose to refund
the purchase price for the Product or
part.
• Limited warranty service will be
performed solely by dealers or service
agents of Dimplex authorized to provide
limited warranty services.
• This limited warranty does not entitle
the purchaser to on-site or in-home
services. On-site or in-home services
may be performed at the purchaser's
specic request and expense at
Dimplex’s then-current rates for such
services.
• Dimplex will not be responsible for,
and the limited warranty services shall
not include, any expense incurred for
installation or removal of the Product
or part (or any replacement Product
or part) or any labour or transportation
costs. Such costs shall be the
purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN
CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT,
SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL
LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH
THE SALE, MAINTENANCE, USE, OR
INABILITY TO USE THE PRODUCT,
EVEN IF DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH LOSSES, COSTS OR DAMAGES,
OR IF SUCH LOSSES, COSTS, OR
DAMAGES ARE FORESEEABLE. IN
NO EVENT WILL DIMPLEX, OR ITS
OFFICERS, DIRECTORS, OR AGENTS
BE LIABLE FOR ANY DIRECT LOSSES,
COSTS, OR DAMAGES THAT EXCEED
THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to
jurisdiction. The provisions of the United
Nations Convention on Contracts for
the Sale of Goods shall not apply to this
limited warranty or the sale of Product
covered by this limited warranty.

15
Technical Support
Technical and troubleshooting support, as well as a list of
replacement parts can be found on
www.dimplex.com/customer_support.
© 2017 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N3H 4W3

Manuel du
propriétaire
Modèle
CDFI-BX1000
6909910100
7215020100R00
CONSIGNES DE SÉCURITÉ IMPORTANTES : Toujours lire le présent
manuel avant d’essayer d’installer ou d’utiliser l'appareil de chauffage
Opti-mystMD Pro Box. Pour votre sécurité, toujours respecter tous
les avertissements et suivre les consignes de sécurité compris dans
le présent manuel an de prévenir les blessures ou les dommages
matériels.
Pour découvrir la gamme complète de produits Dimplex, visitez
www.dimplex.com

2 www.dimplex.com
Table des matières
Toujours recourir aux services
d’un technicien qualié ou
d’une entreprise de services
d'entretien pour faire
réparer cet appareil.
!NOTA : Marches à suivre
et techniques considérées
sufsamment importantes pour
qu'on les souligne.
MISE EN GARDE : Marches
à suivre et techniques dont le
non-respect pourrait causer
des dommages matériels.
AVERTISSEMENT : Marches
à suivre et techniques qui,
si elles ne sont pas bien
respectées, exposeront
l’utilisateur à des risques
d’incendie, de blessure grave
ou de décès.
Bienvenue et félicitations ..................... 3
INSTRUCTIONS IMPORTANTES .............. 4
Installation ................................ 6
Utilisation ................................ 11
Entretien................................. 12
Garantie ................................. 14
Service d’assistance technique ............... 15

3
Bienvenue et félicitations
Merci et félicitations pour l'achat d'un appareil de chauffage Opti-myst Pro
Box de Dimplex. Veuillez utiliser notre page d'inscription en ligne pour
inscrire votre modèle et vos numéros de série à des ns de référence
ultérieure à l'adresse
www.dimplex.com/register
IL N'EST PAS NÉCESSAIRE D'ALLER AU MAGASIN
Des questions à propos de l'utilisation ou du montage? Besoin d'information sur les
pièces? Besoin d'information à propos d'un produit sous une garantie du fabricant?
Communiquer avec nous au : www.dimplex.com/customer_support
Pour le dépannage et le Service d'assistance technique
OU Sans frais au 1 888 DIMPLEX (1 888 346-7539)
Du lundi au vendredi, de 8 h à 16 h 30 (HE)
An que nous puissions mieux vous servir, veuillez avoir votre modèle et votre numéro de série
à portée de main ou veuillez inscrire votre produit en ligne avant de téléphoner (voir ci-dessus).
Numéros de
modèle et de
série.
Lire ces consignes attentivement et les conserver.
MISE EN GARDE : Lire attentivement toutes les consignes et tous les
avertissements avant de procéder à l'installation. Le non-respect de ces
consignes pourrait entraîner un risque de décharge électrique ou d'incendie
et annulera la garantie.

4 www.dimplex.com
Lorsqu’un appareil électrique est
utilisé, il est important de toujours
prendre des précautions de base
pour réduire les risques d’incendie,
de décharges électriques et de
blessures, notamment :
①Lire toutes les instructions
avant d'utiliser l'appareil de
chauffage.
②L'appareil de chauffage devient
chaud lorsqu’il est en marche.
Pour éviter les brûlures, ne pas
toucher les surfaces chaudes. La
surface autour de la bouche de
chaleur devient chaude lorsque
l'appareil de chauffage fonctionne.
DANGER : Dans certaines
conditions, des températures
anormalement élevées peuvent
être générées. Ne pas couvrir
ni obstruer partiellement ou
complètement la partie frontale de
cet appareil de chauffage.
③Faire preuve d’une grande
prudence lorsque l’appareil
de chauffage est utilisé par
des enfants ou des personnes
handicapées, s’il est en marche
à proximité d’eux, ou s’il est en
marche et laissé sans surveillance.
④ Toujours débrancher l'appareil
de chauffage lorsqu’il n’est pas
utilisé.
INSTRUCTIONS IMPORTANTES
⑤ Ne pas utiliser un appareil de
chauffage après une défaillance.
Interrompre le courant au tableau
de commande et faire inspecter
l'appareil de chauffage par un
électricien qualié avant de le
réutiliser.
⑥ Ne pas se servir de l’appareil
si le cordon est endommagé, si
l'appareil fonctionne mal ou si
l'appareil de chauffage est
tombé ou est
endommagé de quelque manière
que ce soit. Communiquer avec
le service technique de Dimplex
au 1 888 346-7539.
⑦ Ne pas utiliser à l’extérieur.
⑧ L'appareil de chauffage n’est
pas conçu pour être utilisé dans
une salle de bain, une salle
de lavage ou d'autres endroits
semblables à l’intérieur. Ne jamais
placer l'appareil de chauffage
au-dessus d'une baignoire ou d'un
autre contenant d'eau.
⑨ Pour débrancher l'appareil,
l'éteindre, puis couper le courant à
la boîte électrique.
⑩Ne pas introduire ou permettre
l'introduction de corps étrangers
dans la prise d’air de ventilation ou
la bouche de sortie d’air, car cela
peut occasionner des décharges

5
CONSERVER CES INSTRUCTIONS
électriques, provoquer un incendie
ou endommager l'appareil.
⑪Pour éviter un incendie,
n'obstruer l’entrée ou la sortie d’air
d’aucune façon.
⑫Tous les appareils de
chauffage électriques contiennent
des pièces qui chauffent et
produisent un arc électrique ou des
étincelles. Ne pas faire fonctionner
l'appareil dans des endroits où de
l’essence, de la peinture ou des
liquides inammables sont utilisés
ou entreposés.
⑬ Ne pas apporter de
modications à l'appareil de
chauffage. Se servir de l'appareil
de chauffage uniquement de la
façon décrite dans le présent
manuel. Toute autre utilisation non
recommandée par le fabricant peut
causer un incendie, des décharges
électriques ou des blessures.
⑭ Toujours faire appel à un
électricien certié pour l’installation
INSTRUCTIONS IMPORTANTES
MISE EN GARDE
RISQUE DE DÉCHARGE ÉLECTRIQUE
NE PAS OUVRIR
AUCUNE PIÈCE DONT L'ENTRETIEN PEUT ÊTRE
EFFECTUÉ PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR
de nouveaux circuits ou de
nouvelles prises de courant.
⑮ Toujours utiliser des prises
correctement mises à la terre,
polarisées et protégées par un
fusible ou un disjoncteur.
⑯ Fermer toute source
d’alimentation électrique de
l'appareil de chauffage avant de
le nettoyer, de le réparer ou de le
déplacer.
⑰ Pendant le transport ou
l’entreposage de l'appareil, le
conserver dans un endroit sec et à
l’abri de vibrations excessives, et
le ranger de façon à éviter qu’il ne
s’endommage.
!
NOTA : Les changements
ou les modications n’ayant pas
fait l’objet d’une approbation
expresse de la partie responsable
de la conformité auront pour effet
d’annuler le droit d’utilisation de
l’appareil par l’utilisateur.
