Dimplex CFS30E User manual

08/80458/0 ISSUE: 5
INSTRUCTION MANUAL
Installation and Operating
CFSE Commercial Fan Heater
Model: CFS30E
This product is supplied and operated with a Wireless Remote Control handset

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
IMPORTANT SAFETY ADVICE
DO NOT COVER OR OBSTRUCT the air inlet or outlet grille.
IMPORTANT – Disconnect from the mains supply before carrying out maintenance
work.
THIS APPLIANCE MUST BE EARTHED
This heater must not be located immediately above or below a fixed socket outlet
or connection box.
Keep combustible materials such as drapes and other furnishings clear from the front,
sides and rear of the heater.
DO NOT use this heater in the immediate surrounding of a bath, a shower or a
swimming pool.
DO NOT use this heater in areas where excessive dust exists.
DO NOT store or use any flammable materials or sprays in the vicinity of the appliance
– FIRE HAZARD.
DO NOT insert any foreign objects into the appliance openings. Risk of injury, electric
shock or damage to the appliance may occur.
This product should be mounted safely to a solid wall.
Ensure the supply cables are of adequate current carrying capacity and are protected
by a suitable fuse.
This appliance should only be connected to the fixed wiring of the premises by means
of conduit.
This product must not be subjected to water spray or immersion.
If the appliance is mounted in a toilet or washroom, the appliance should be mounted
such that no part of it can be touched by a person using a fixed bath or shower.
If the appliance is mounted in a toilet or washroom an isolating switch must be
provided outside the washroom adjacent to the entrance door.
2

DO NOT use heater to dry your laundry.
DO NOT operate the heater with the mains lead overhanging the front outlet grille.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the appliance
provided that it has been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or perform user
maintenance.
CAUTION — Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
The instruction leaflet belongs to the appliance and must be kept in a safe place. If
changing owners, the leaflet must be surrendered to the new owner. Ensure proper
manual handling procedures are observed at all times.
CAUTION – In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance MUST NOT be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and o by the
utility.
WARNING -Do not use this heater in small rooms where they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is provided.
WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a battery go straight to a
hospital emergency room.
• Examine devices and make sure the battery compartment is correctly
secured, i.e. that the battery cover is fitted securely. Do not use if the
compartment is not secure.
• Dispose of used batteries immediately and safely. Flat batteries can still be
dangerous.
3

Model Identifier(s): CFS30E
Nominal heat output Pnom 3.0 kW
Height (mm) 262
Width (mm) 306
Depth (mm) 530
Minimum heat
output (indicative) Pmin N.A.
Maximum continuous heat output Pmax,c 3.0
Auxiliary electricity Consumption
At nominal heat output elmax 0.00
At minimum heat output elmin 0.00
In standby mode elSB <0.0005
This product meets the Ecodesign requirements for an electric fixed local space heater.
Commission Regulation (EU) 2015/1188.
Energy Related Product Directive
Technical Details
Type of heat output/ room temperature control
Electronic room temperature control plus week timer Yes
With open window detection No
With adaptive start control Yes
Contact details
Glen Dimplex Heating and Ventilation
Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF
Tel: [phone]
4

All Models
Controls
Digitally controlled, Electronic Thermostat
Timer modes:
7 Day Programmable User Timer
Continuous heat modes:
Manual, Runback, Fan Only, O
Controller UI O-board control only. Requires pairing with Wireless remote.
Controller Functions
• Heat Selection: High, Low, Fan Only
• Adaptive-Start
• Advance time period
• Adjustable SP range (7-30°C)
• Wireless for control
Construction Steel case with plastic mouldings
Fan Type Axial
Element Metal sheathed (CFS30E)
Installation Supplied with wall mounting bracket
Safety Electric reset cut-out (115°C)
Battery Backup
None. Time and date must be re-programmed in event of power loss to
the product
Supply
Requires: 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz
Class I, with earth wire
Colour / Finish Trac White (RAL 9016) with black grille and bracket
Approvals UKCA & CE
IP Rating IP24
Guarantee 2 years
Country of Origin British Isles
Manufacturer Glen Dimplex Heating & Ventilation (Glen Dimplex UK Limited.)
5

Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5
L
H
500 mm
Min.
500 mm
Min.
1000 mm
Min. 1000 mm
Min.
D2
D1
2.1 m MIN
45° Max
70 mm
70 mm
12
3a. 3b.
‘y’
a
b
1
yx
6

General
A robust, durable wall mounting fan heater designed to coordinate with the Dimplex
range of Air Curtains, providing environmental heating in commercial and light
industrial environments.
The heater works by gradually raising the air temperature in the building and should
be positioned so as best to achieve an even temperature distribution. The product
has an output of 3kW
Wall Mounting
Remove the wall mounting bracket from the back of the heater and using it as a
guide (see Fig. 2) mark o the hole positions on a suitable wall (a minimum height
of 2.1 metres is required from the floor level to the bottom of the bracket). Solid
brick or concrete block walls must be drilled and plugged. Fix the wall mounting
bracket to the wall and assemble the heater to the extension tube using a bolt and
wing nut fitted into hole 1 shown in Fig. 3a. Rotate the heater as shown in Fig. 3b,
and fix the heater into position using the remaining bolt and wing nut in hole 2. Pivot
and rotate the heater into the desired position and tighten all three wing nuts. A
6mm Allen key can be used as an aid to tightening the bolts.
Model
Heat
Output
(kW)
Electrical Sup-
ply
Electrical Load
(per phase)
(A)
Weight (kg) Min installed
Height (M)
CFS30E 1.5 / 3 230-240V ~1PN 12.7 7.6 2.1
Electrical Connections
The installation of this appliance should be carried out by a competent electrician
and be in accordance with the current IEE wiring regulations.
Only cable with a minimum CSA (cross sectional area) of 2.5mm must be used on
this appliance.
Electrical power and control connections are made by removing the control housing.
The control housing (‘Y’ in Fig. 4 and Fig. 5) is detached by removing the two screws
and hinging the housing as shown (see step 1 and Fig. 5).
NOTE:
A suitable local isolating switch must be provided in the electrical
supply circuit as close as possible to the heater with at least 3mm
clearance on each pole
7

Thermal Safety Cut-Out
The power supply to the heating elements will be interrupted if one or a
combination of the following abnormal events occurs:
1. Air inlet grilles are obstructed.
2. Internal ventilation is impaired due to build up of dust and flu.
3. Blower unit stalls.
The CFS30E has an electrical reset cut-out which requires the power supply to be
removed for a short period of time to allow the cut-out to cool down. On return of
the power supply, the heater should operate normally.
NOTE:
Before re-setting the reason for activation must be
determined and corrective action taken.
Feed appropriate supply cable (see ‘a’ in Fig. 4) to terminal block (see ‘b’ Fig. 4).
Make electrical connections as shown in Fig. 6 and fix cable in back panel using
cable gland.
8

Wiring Diagram
Fig. 6



 








9

The product is supplied with a Wireless remote control, the remote control should be con-
tained in the carrier bag along with these instructions. This remote control is required to
operate the appliance. When paired with the remote control various operational modes
and features can be accessed.
IMPORTANT NOTE:
The remote control is required to operate the appliance. It is important
that the remote control remains near the appliance at all times.

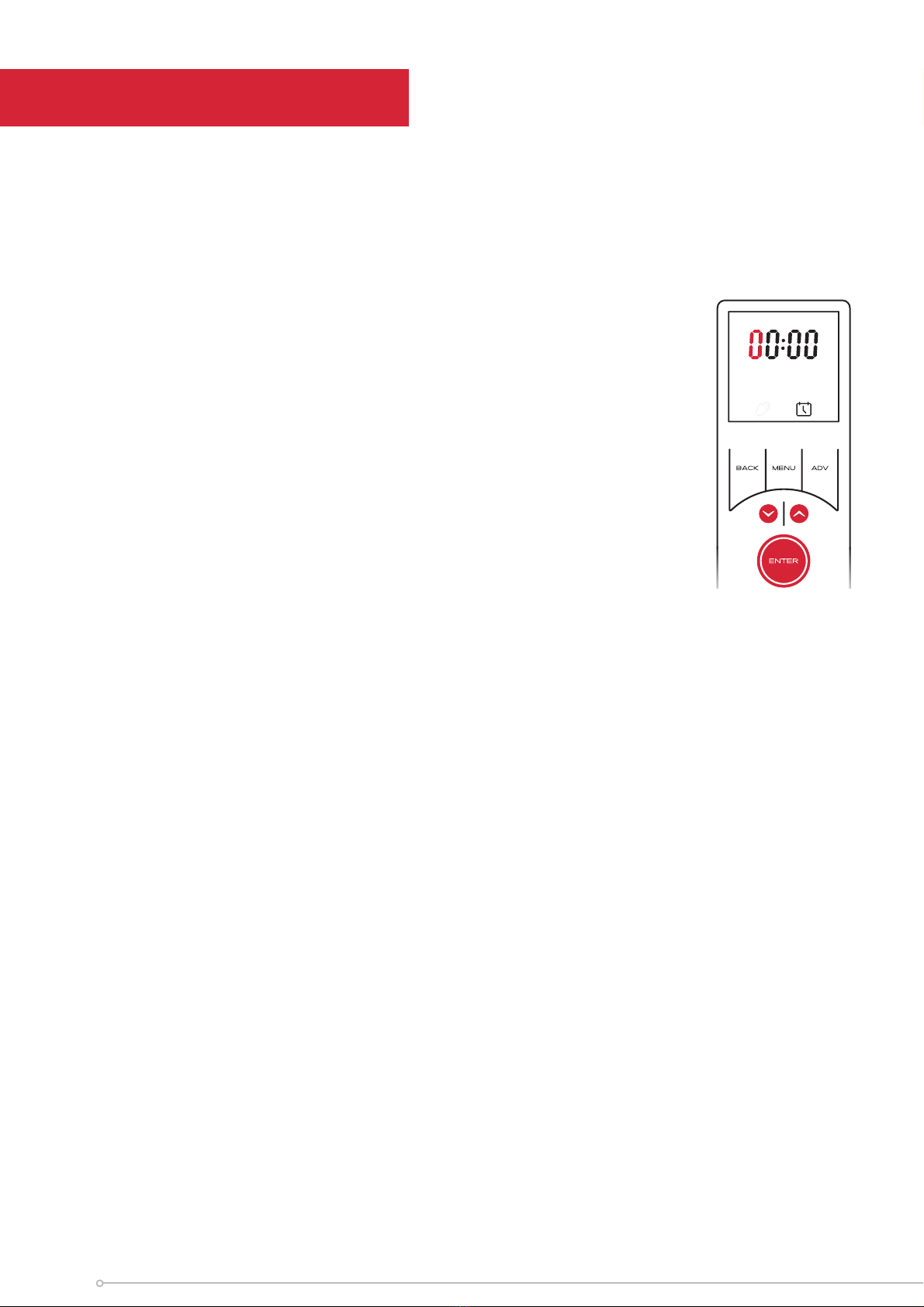

Remote Control
1Display Screen
2‘Menu’ Button
3‘Back’ Button
4‘Advance’ Button
5‘Up and Down’ Arrows
6‘Enter’ Button
1
3
6
2
4
5
10

Fitting the Batteries:
The remote requires two AA batteries, these are supplied with the product contained
in the bag along with the instructions and remote.
To fi t the batteries:
1. On the rear of the remote, remove the
battery cover by pushing the catch
downwards and pulling outwards in one
motion.
2. It should be possible to completely remove
the battery cover to reveal the battery
cavity.
3. Carefully insert the new batteries, ensuring
the polarity is correct. Ensure the ‘+’ and
‘-‘ signs on the batteries match the signs
marked inside the battery cavity.
4. Once the batteries are in place, replace the cover, ensuring the clip has engaged fully.
Once the batteries have been successfully fitted the remote control will immediately
start scanning for a product to control. At this stage it is necessary to complete the
pairing process, see Remote Pairing Instructions.
Remote control cradle:
The remote control is supplied with a wall
mounting cradle. If desired, mount the cradle in
a suitable location. The cradle can be mounted
using suitable screws and the appropriate wall
fixing solution, not supplied.
Mark and drill the wall accordingly to mount
the remote control cradle. The remote control
can also be fixed to the cradle using the
bottom fixing screw. The use of this screw is
optional, particularly if the remote will be used
as a portable device.
NOTE:
If the remote cradle is not initially required, please store in a suitable
location in case of future use. The bottom fixing screw should also be
stored with the cradle
11

To pair the product to the Wireless remote:
1. The product, once installed and turned on, will emit a beep and begin to broadcast
a signal to be paired with the Wireless remote.
2. Wake the remote by briefly holding the ENTER
button.
Once awake the remote will then immediately
search for the product. This is indicated by the
rotating loading graphic and flashing connectivity
icon on the remote followed by the pairing
sequence.
NOTE:
The remote will attempt to pair with the first product it finds. Please
ensure that no other products are broadcasting within the vicinity to
prevent pairing to the incorrect product.
3. The remote will search for devices for 1 minute. If no product can be found, the
remote will display ‘NO PROD’ before returning to a sleep state. If this happens,
please repeat steps 1 and 2.
4. If connection is successful the product will emit a second beep and the remote
screen will show a solid connectivity icon for 4 seconds then revert to the home
screen.
NOTE:
After initial pairing the Time and Date must be set before the remote
will revert to the home screen.
Solid icon
Remote Pairing Instructions
NOTE:
If no remote pairs within 2 minutes, the product will stop broadcasting.
flashing icon
loading
graphic
12

13

Setting Time & Date
After initial remote control start up and after replacing the batteries it is required to
set the time and date. It is not possible to navigate to the home screen and product
settings until the time and date have been set.
It is possible to modify these settings at any stage from within the menu structure,
see page 19.
Setting Time
It is required to set the hour and minute digits independently.
1. The first digit of the Hour setting will be blinking. Use the
arrow key to set the first digit of the time.
2. Confirm the selection by pressing the ENTER button, the
second digit of the Hour can then be set.
3. Once the hour digits have been set and confirmed, step 1
& 2 should be repeated to set the minute.
Setting Date
Once the time has been set the remote will automatically move to the date setting.
1. After confirming the last time digit ‘Day’ will blink three times and then change to
a two-digit number with the first digit blinking. This two-digit number represents
the day of the month.
2. Use the arrow key to set the first digit of the date and confirm using the ENTER
button.
3. The second digit will then blink and can be set as per step 2.
4. After the day has been confirmed it is necessary to set the month, this is indicated
by ‘1-12’ blinking on the screen.
5. A numerical value for the month can be set using steps 2 & 3 above.
6. Once the month has been set the year can be set. Each digit must be set and
confirmed individually.
7. Finally the remote will oer an option to turn on or o day light saving settings.
‘On’ and ‘O’ can be selected using the arrow keys and confirmed by pressing enter.
Once the time and date have been set the remote will revert to the home screen and
normal operation can resume.
14

15

Operation
The product is controlled using the remote control. The remote consists of a display
screen and six touch sensitive buttons. The function of each button and the meaning of
each screen icon is explained in the graphic below. The remote oers fully programmable
time and temperature control with a host of additional useful control features.
It is possible to control the appliance in various operational modes including Manual
operation mode, User timer and frost protection mode. There are also advanced
operating modes such as a runback mode and also a landlord PIN protected function. .
Button Functions
1. MENU - enters the main product
menu.
2. ENTER - used to confirm
selections & settings.
3. BACK - returns to the previous
screen. If held for 2 seconds,
the heater will enter Comfort
O mode.
4 & 5. Arrow keys - used to
navigate through the menus and
adjust the room temperature
set-point.
6. ADV - use depends on the active
mode and settings, typically
used to advance the program
in timer mode or to initiate a
runback period in Manual/ PIN
mode.
Advanced button functions & Shortcut keys
Comfort O - Press and hold for 2 seconds
Temp Settings - Press and hold for 2 seconds
Heating Settings - Press and hold for 2 seconds
Service Info - Press and hold for 2 seconds
Advance Menu - Press and hold both and for 2 seconds
Factory Reset - Press and hold both and for 5 seconds
Heating On
Heating O
Adaptive Start
Timer Schedule
Manual Mode
Frost Protection
Connectivity
Pin Lock
Advance
Set Time & Date
Days of the week
Time Numerals
Symbol Key
NOTE:
All setting changes and communications between the remote control and the
appliance are signified with an audible ‘beep’ from the appliance. This beep
signifies that connection is successful and the appliance has received a command
from the remote control.
16

Waking from Standby Mode
When in standby mode, holding ENTER for two seconds will wake the remote and
attempt to reconnect to the product, this will be signified by the connectivity icon
and loading graphic appearing on the screen.
The remote control provides the option of a number of standard control modes,
• Timer Mode: provides the greatest flexibility to the user. Four heating periods are
available throughout each day and these can be customised for every day of the
week. The desired set temperature can be set for each time slot independently
• Manual Mode: Maintains the displayed temperature for an undetermined period.
The default ‘comfort’ temperature in manual mode is set to 21°C however this can
be adjusted to suit.
• Frost Protect: maintains a room temperature of 7°C. This mode should be used to
provide protection against frost.
• Comfort O: no room temperature control
There are also a number of advanced control options and features available
• Runback Mode: This is an additional feature available to manual mode, with this
mode active the manual mode will operate for a determined time period and then
revert to Comfort O mode.
• Setback Mode: This is an additional feature available to timer mode, with this mode
active the appliance will control the room to a pre-set temperature during timer
‘o’ periods.
• Adaptive start Mode: This is a predictive mode that functions alongside the timer
mode. When activated it will automatic calculate when the appliance needs to switch
on so that the desired room temperature has been achieved from the start of a heat
on time period. If not active the appliance will only switch on at the programmed
on time.
• PIN Lock Mode: This mode will lock the appliance in the existing mode and will only
allow some basic functions to operate. Once activated, in order to change settings
the user must input a pre-set PIN. This is ideal where it is desired to limit the use
and functionality of the appliance.
Operating Modes
17

Typically the Home Screen will display the active operational mode, the desired room
temperature set-point and the heating status. Any of the Advance function which are
active will also be displayed on the home screen. Pressing ENTER while on the Home
screen will display the current time.
Target room temperature (set-point)
display, this is not an actual room
temperature display.
Product heating status display, this
indicates when the appliance is actively
heating or maintain a room temperature,
‘ON’ will be displayed. Otherwise, ‘OFF’
will be displayed
Active mode display, the active mode of
operation is displayed at the bottom of
the screen
Sleep mode, when the remote is left
inactive, the remote display will sleep,
turning the screen o. Briefly hold ENTER
to wake the remote back up.
The remote control will enter sleep mode if left idle for the following intervals
Home Screen – Sleep after 10 seconds
Menu Screens – Sleep after 15 seconds
Settings – Sleep after 30 seconds
NOTE:
When the remote wakes, it must search for and re-connect with the heater. This
happens automatically and is indicated by the connectivity icon and the pairing
graphic. Once pairing is complete the product will beep and the remote home
screen is visible.
Home Screen
18

The remote control and menus are navigated using the six button keypad. In order to
select/ change operational mode, press the MENU button. The remote will then enter
the basic menu structure, this menu provides the option to quickly select the following
options, each option is represented by an icon.
• Timer Mode: Activate mode or set/alter the
program times and temperatures,
• Manual Mode: Activate manual heating mode,
• Frost Protect: Activate frost protection mode,
• Time & Date: change the time and date settings
• OFF: Activate Comfort o mode
The primed mode for selection will be indicated by the flashing icon, use the Arrow
keys to navigate to the desired icon and confirm selection using the ENTER key.
Depending on the mode selected you may be prompted for further action, see relevant
section relating to this mode.
The heater is fitted with an adjustable electronic thermostat enabling the room
temperature to be controlled in all the operational modes. The minimum controllable
room temperature available is 7°C and the maximum temperature is 30°C.
A temperature of 21°C represents a normal ‘Comfort’ room temperature and this is set
as default in manual mode. Frost protect has a default value of 7°C. Temperatures in
Timer mode can be set to suit the application.
The temperature set point can be adjusted at any stage by using the Up & Down
arrows when the home screen is active.
Thermostat Control
Navigation and Selecting Modes
Timer
Schedule
Manual
Mode
Frost
Protect
Time/Date
Comfort
O
19

The remote control oers the facility to select the heat output from the appliance
between HI, LO heat and FAN settings. HI heat is set by default. This is a global heat
setting and once set all other operational modes will operate with this setting.
In order to set/change the heat setting,
• From the home screen press and hold the ADV button for 2 seconds. The remote
will enter the heat selection screen.
• Use the arrow keys to navigate to the desired setting and confirm using the
ENTER key. The FAN is on a separate screen that is accessed by continuously
pressing the arrow keys.
• The remote will return to the home screen and all heating modes will function
with the selected heat output.
NOTE:
If FAN output is selected FAN will be visible on the home screen instead of time.
Heat Output Selection
NOTE:
The HI temperature setting will modulate the heat output to optimise the eciency
of the product. As the room temperature approaches the set-point the heater will
automatically switch to the LO heat setting.
20
