Dimplex Winterwarm WWFH20E User manual

08/54001/0 ISSUE: 2
Base Unit Heater
Model: WWFH20E
INSTRUCTION MANUAL
Installation and Operating
This product is supplied and operated with a Bluetooth Remote Control handset

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
DO NOT COVER OR OBSTRUCT the air inlet or outlet grille.
The heater carries the Warning symbol indicating that it must not be covered.
A ‘Do Not Cover’ warning alerts the user to the risk of re that exists if the
heater is accidentally covered.
DO NOT use this heater in the immediate surroundings of a bath, shower or
swimming pool.
DO NOT place heater immediately below a socket outlet.
WARNING: The supply circuit to the heater must incorporate a double pole
isolating switch having a contact separation of at least 3mm in all poles.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience or
knowledge if they have been given supervision or instruction concerning the use
of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the hazards involved. Children
aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
DO NOT use this heater in areas where excessive dust exists.
CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
Momentary contact with any part of the heater should not cause injury. However
aged, inrm persons or young children should not be left unsupervised in the
vicinity of the heater.
CAUTION - In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and o by
the utility.
CAUTION: FAILURE TO FOLLOW THESE ISTRUCTIONS MAY CAUSE INJURY
AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
2

When connecting this recessed appliance it is necessary that the xed wiring
electrical supply is routed through an accesible switch in accordance with the
latest IEE wiring regulations.
If the supply cord is damaged it must be replaced by the manufacturer or service
agent or a similarly qualied person in order to avoid a hazard.
WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a battery go straight to a
hospital emergency room.
• Examine devices and make sure the battery compartment is correctly
secured, i.e. that the battery cover is tted securely. Do not use if the
compartment is not secure.
• Dispose of used batteries immediately and safely. Flat batteries can still be
dangerous.
3

Model Identifier(s): WWFH20E
Nominal heat output Pnom 2.0kW
Front Cover Chassis
Height (mm) 100 88
Width (mm) 400 368
Depth (mm) - 203
Minimum heat
output (indicative) Pmin 1.0kW
Maximum continuous heat output Pmax,c 2.0kW
Auxiliary electricity Consumption
At nominal heat output elmax 0.00
At minimum heat output elmin 0.00
In standby mode elSB <0.0005
Type of heat output/ room temperature control
Electronic room temperature control plus week timer Yes
With open window detection No
With adaptive start control Yes
This product complies with Lot20 of the Energy Eciency Directive (2015/1188).
Energy Related Product Directive
Technical Details
4

All Models
Controls
Digitally controlled, Electronic Thermostat
Timer modes:
7 Day Programmable User Timer
Continuous heat modes:
Frost Protest, Runback, Comfort O
Controller UI Button to initiate pairing with Bluetooth remote
Controller Functions
• Adaptive-Start
• Advance time period
• Adjustable SP range (7-30°C)
• Bluetooth for control
Construction Durable epoxy-polyester powder coated grille with moulded body
Element Modulating heat output via 2 stage stitched element with integral
thermal cut-out
Installation Screwed location to the plinth, Adjustable foot support at the rear
Safety Electrical reset, self-hold cut-out
IP Rating No Rating
Battery Backup
None. However all programmed timer proles will be retained during
short term power losses. In order to ensure their correct operation, it is
necessary to restore the time and date settings,this happens automatically
once paired with the remote.
Supply ~230-240 V, 50Hz Class II
Colour / Finish Trac White (RAL 9016)
Approvals CE
Warranty 1 Year
Country of Origin British Isles
Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)
5

General
This heater has been designed for tting in the space behind the plinth of oor standing
kitchen units or other tted furniture units. It is recommended that the heater is not
installed under cupboards used for storing perishable goods. It can be accommodated
in plinths with a minimum height of 120mm, and is suitable for cupboards of 500mm
width and above.
Installation
Before undertaking installation work, ensure the electricity supply is disconnected
from any relevant xed wiring.
The heater is more easily tted during the installation of new furniture units, or on
existing furniture units if they can be temporarily moved from their position against
the wall. If an existing furniture unit cannot be moved, then it may be necessary to
remove the back of the unit in order to gain access to carry out the wiring installation.
Before installing the unit consider the location with respect to the following;
• The electrical supply and cable length.
• Position heater to deliver heat eectively without causing personal discomfort
from overheating while standing at work surfaces etc.
• Minimum plinth height of 120mm and minimum furniture unit width of 500mm.
WARNING: The installation of this appliance should be carried out by a competent
electrician and be in accordance with the current IEE wiring regulations
and any local or insurance regulations.
6

500 Min
203
Side View
500 Min
368
88 120
Min
14 Min
*
500 Min
400
100
7

1. Cutting the aperture in the Plinth
Cut aperture in furniture unit plinth to dimensions shown. This must be positioned so
that the minimum distance from the bottom of the aperture to the TOP surface of any
oor covering is not less than 14mm.
If an overhang above the heater is greater than 75mm, then a distance of at least
100mm must be maintained between the overhang and the uppermost part of the
heater
NOTE:
If tted in corner with adjacent cupboards to left hand side of heater
then a distance of at least 150mm must be maintained between the left
hand end of the heater and the front of the adjacent cupboard door
*This dimension must be maintained above the top surface of any oor covering
material. All dimensions in millimetres
2. Power Supply Connection
Check that the supply voltage details on the heater are in accordance with your
electricity supply. The appliance is tted with 1.4 metres of exible cable type
H05VV-F size 2 x 1.0mm for electrical connection. The cable may be used to connect
the heater to the xed wiring of the premises through a suitable connection box. The
supply circuit to the heater must incorporate a double pole isolating switch having a
contact separation of at least 3mm. The power supply cable should be routed from
the furniture unit to the connection box, ensuring that the cable is left with enough
slack to allow removal of the appliance for maintenance. The cable must be protected
from any sharp edges. The isolating switch must be accessible after installation of the
unit and the furniture.
3. Fitting the Rear Support Bracket
The heater is supplied with a rear support bracket. Fit to the back of the appliance
with the two screws supplied. Adjust the rear support bracket so that unit is level. The
slots in the rear support bracket allow it to be adjusted to the required height.
4. Marking the Fixing Positions
Slide the heater into position in the plinth aperture. Mark the six xing holes, two on
each side and two on the top. Remove the heater and drill 2mm pilot holes.
5. Mounting the Heater into the Plinth
When the cable connection has been made and the rear support bracket adjusted,
slide the heater into the aperture ensuring that it is adequately supported and that
the inlet grille is not obstructed. Use the six screws provided to secure the heater to
the plinth.
8

9

The product is supplied with a Bluetooth remote control, the remote control should be
contained in the carrier bag along with these instructions. This remote control is required
to operate the appliance. When paired with the remote control various operational modes
and features can be accessed.
IMPORTANT NOTE:
The remote control is required to operate the appliance. It is important
that the remote control remains near the appliance at all times.

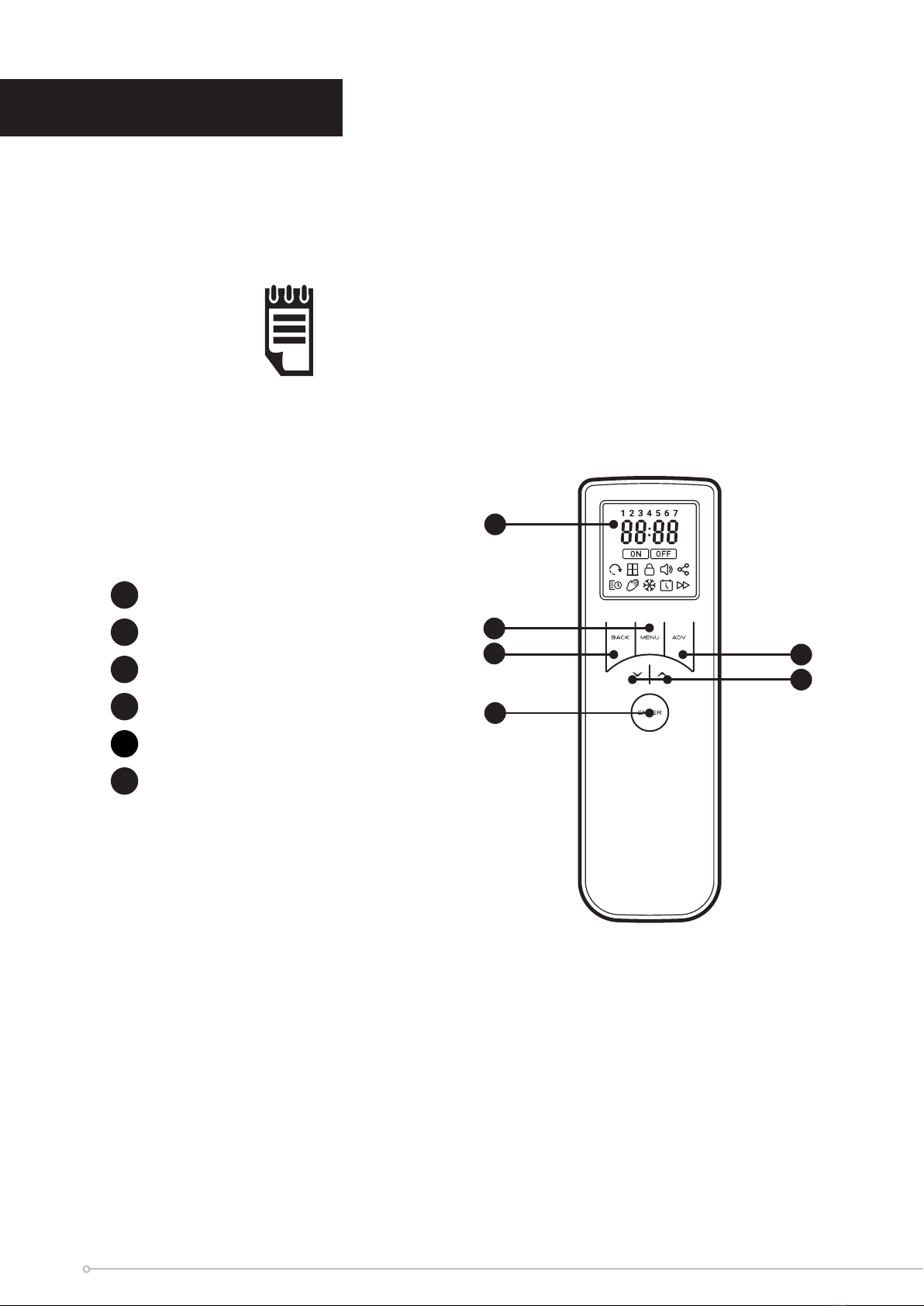

Remote Control
1Display Screen
2‘Menu’ Button
3‘Back’ Button
4‘Advance’ Button
5‘Up and Down’ Arrows
6‘Enter’ Button
1
3
6
2
4
5
10

Fitting the Batteries:
The remote requires two AA batteries, these are supplied with the product contained
in the bag along with the instructions and remote.
To t the batteries:
1. On the rear of the remote, remove the
battery cover by pushing the catch
downwards and pulling outwards in one
motion.
2. It should be possible to completely remove
the battery cover to reveal the battery
cavity.
3. Carefully insert the new batteries, ensuring
the polarity is correct. Ensure the ‘+’ and
‘-‘ signs on the batteries match the signs
marked inside the battery cavity.
4. Once the batteries are in place, replace the cover, ensuring the clip has engaged fully.
Once the batteries have been successfully tted the remote control will immediately
start scanning for a product to control. At this stage it is necessary to complete the
pairing process, see Remote Pairing Instructions.
Remote control cradle:
The remote control is supplied with a wall
mounting cradle. If desired, mount the cradle in
a suitable location. The cradle can be mounted
using suitable screws and the appropriate wall
xing solution, not supplied.
Mark and drill the wall accordingly to mount
the remote control cradle. The remote control
can also be xed to the cradle using the
bottom xing screw. The use of this screw is
optional, particularly if the remote will be used
as a portable device.
NOTE:
If the remote cradle is not initially required please store in a suitable
location in case of future use. The bottom fixing screw should also be
stored with the cradle
11

To pair the product to the Bluetooth remote:
1. Press the Bluetooth button which is located on the front of the product. The product
will emit a beep and begin to broadcast a signal to be paired via Bluetooth.
2. Wake the remote by briey holding the ENTER
button.

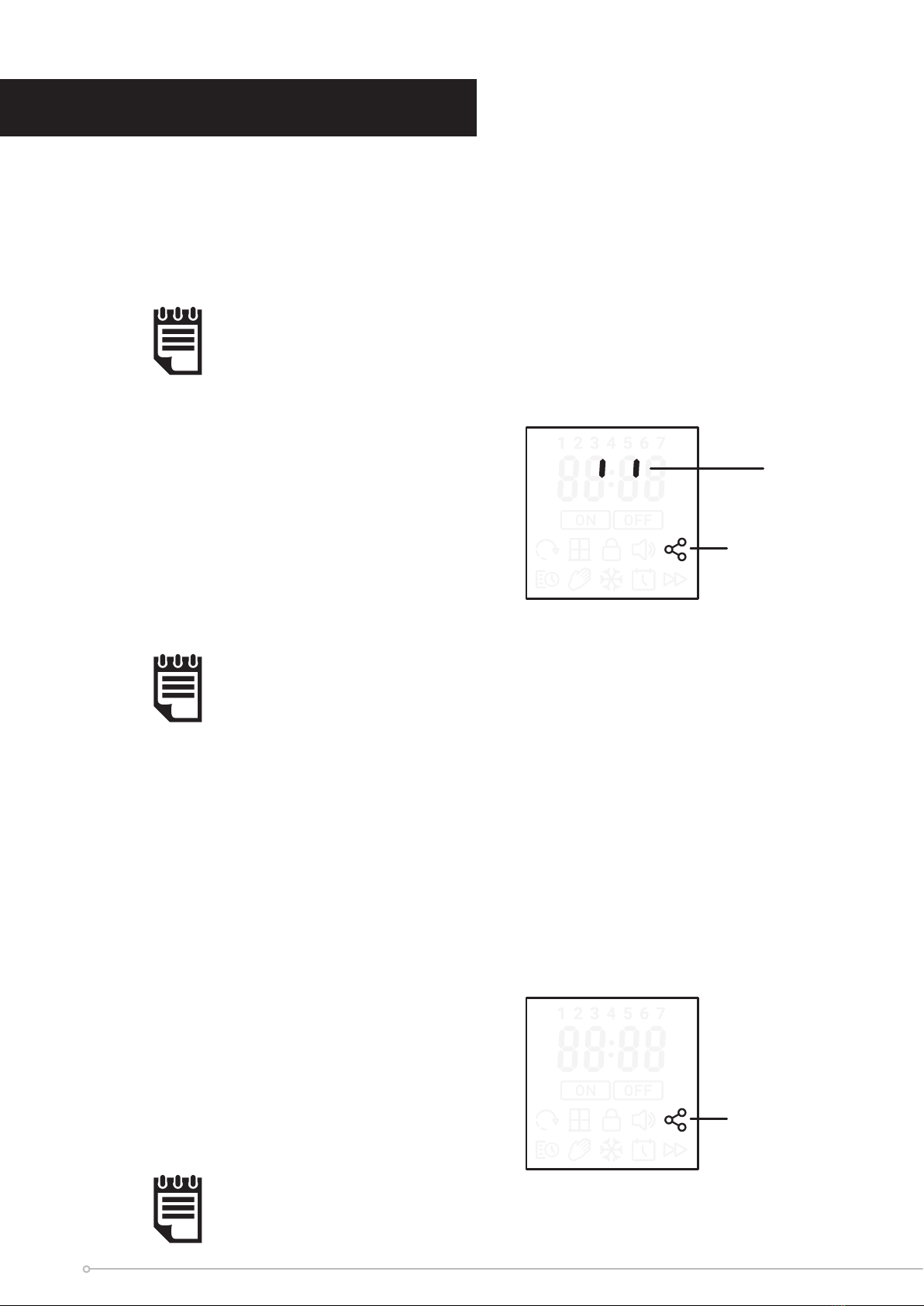

Once awake the remote will then immediately
search for the product. This is indicated by the
rotating loading graphic and ashing connectivity
icon. on the remote followed by the pairing
sequence.
NOTE:
The remote will attempt to pair with the first product it finds. Please
ensure that no other products are broadcasting within the vicinity to
prevent pairing to the incorrect product.
3. The remote will search for devices for 1 minute. If no product can be found, the
remote will display ‘NO PROD’ before returning to a sleep state. If this happens,
please repeat steps 1 and 2.
4. If connection is successful the product will emit a second beep and the remote
screen will show a solid connectivity icon for 4 seconds then revert to the home
screen.
NOTE:
After initial pairing the Time and Date must be set before the remote
will revert to the home screen.
Solid icon
Remote Pairing Instructions
NOTE:
If no remote pairs within 2 minutes, the product will stop broadcasting.
ashing icon
loading
graphic
12

Setting Time & Date
After initial remote control start up and after replacing the batteries it is required to
set the time and date. It is not possible to navigate to the home screen and product
settings until the time and date have been set.
It is possible to modify these settings at any stage from within the menu structure,
see page 19.

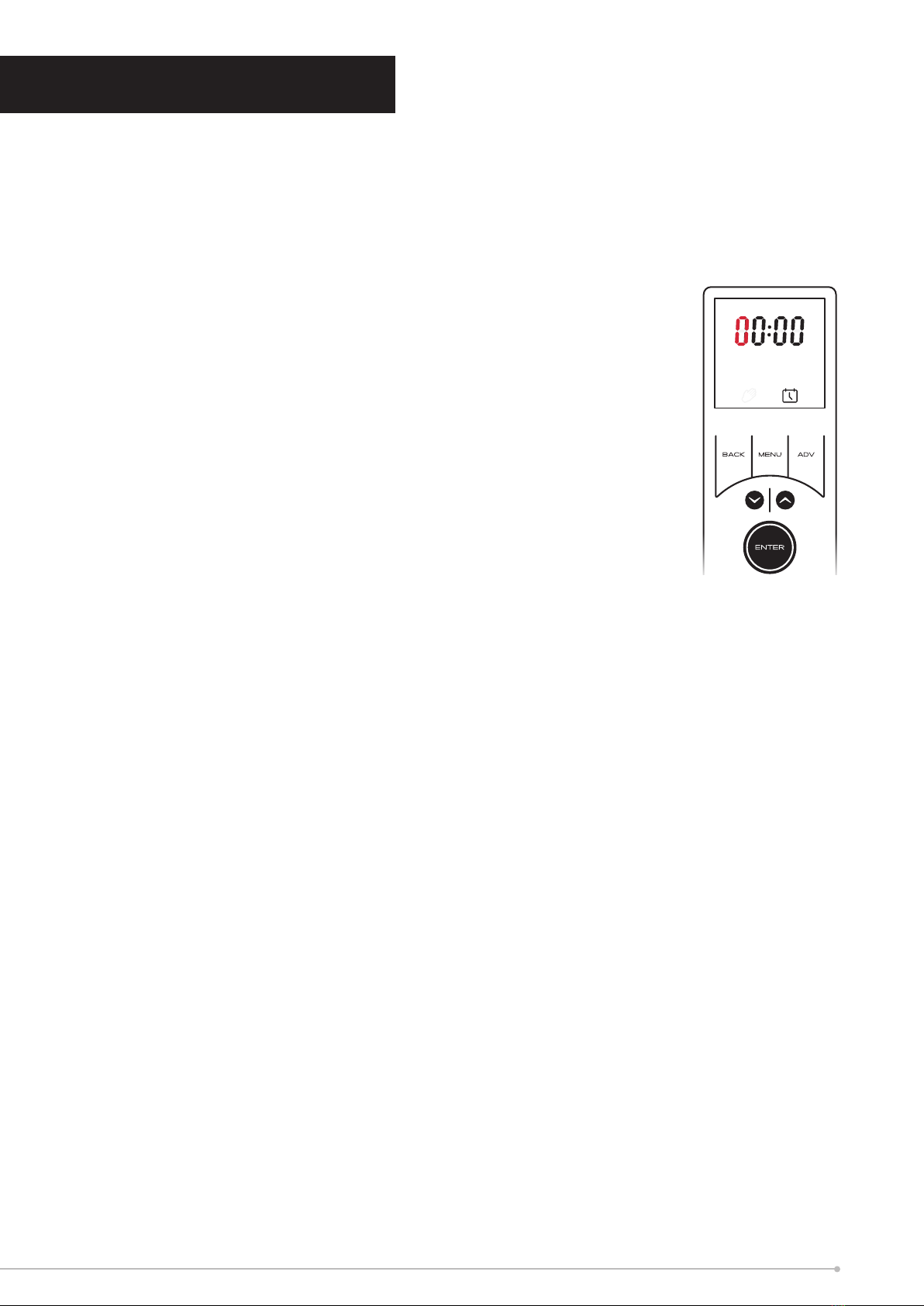

Setting Time
It is required to set the hour and minute digits independantly.
1. The rst digit of the Hour setting will be blinking. Use the
arrow key to set the rst digit of the time.
2. Conrm the selection by pressing the ENTER button, the
second digit of the Hour can then be set.
3. Once the hour digits have been set and conrmed, step 1
& 2 should be repeated to set the minute.

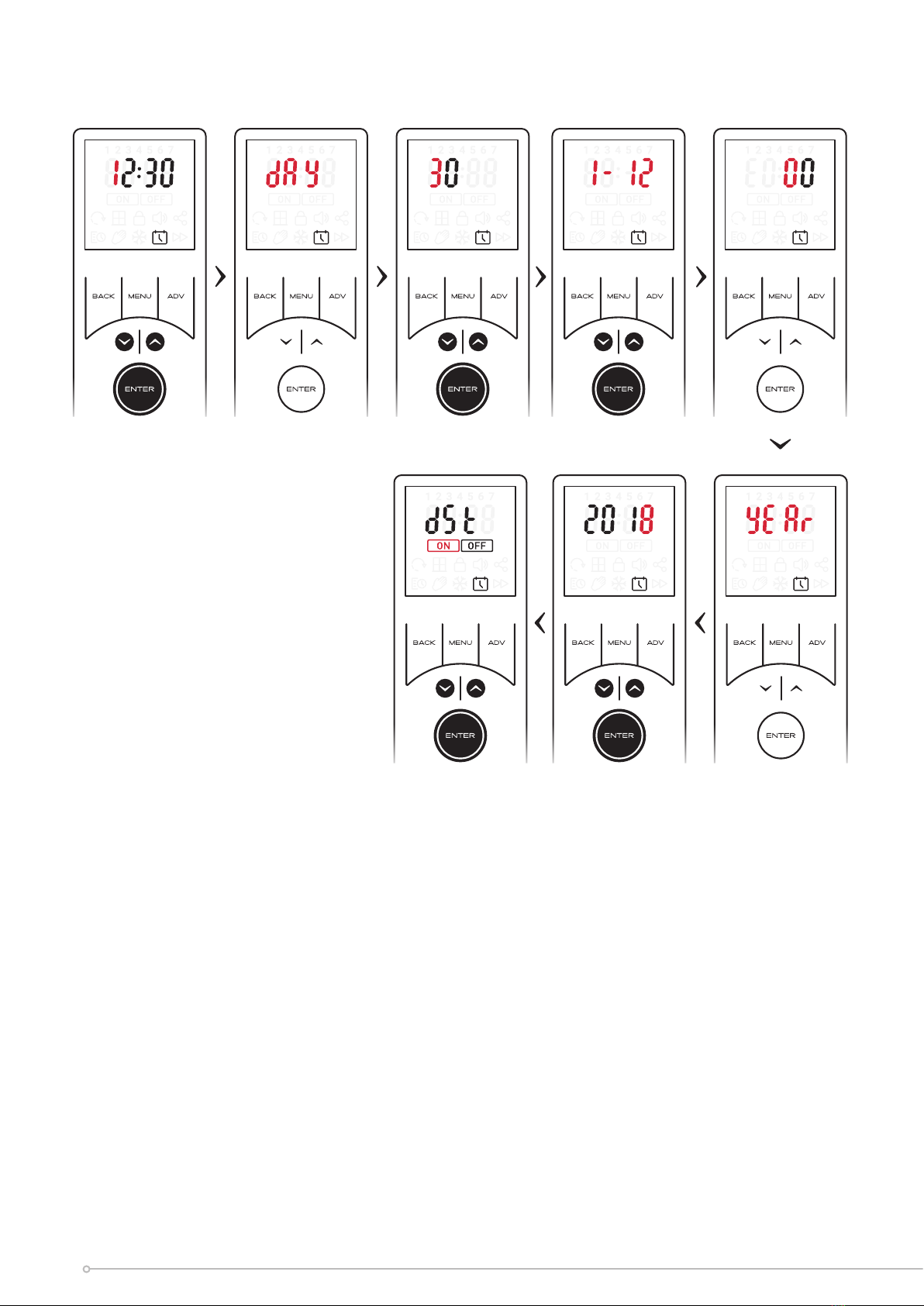

Setting Date
Once the time has been set the remote will automatically move to the date setting.
1. After conrming the last time digit ‘Day’ will blink three times and then change to
a two digit number with the rst digit blinking. This two digit number represents
the day of the month.
2. Use the arrow key to set the rst digit of the date and conrm using the ENTER
button.
3. The second digit will then blink and can be set as per step 2.
4. After the day has been conrmed it is necessary to set the month, this is indicated
by ‘1-12’ blinking on the screen.
5. A numerical value for the month can be set using steps 2 & 3 above.
6. Once the month has been set the year can be set. Each digit must be set and
conrmed individually.
7. Finally the remote will oer an option to turn on or o day light saving settings. ‘On’
and ‘O’ can be selected using the arrow keys and conrmed by pressing enter.
Once the time and date have been set the remote will revert to the home screen and
normal operation can resume.
13

14

The product is controlled using the remote control. The remote consists of a display
screen and six touch sensitive buttons. The function of each button and the meaning of
each screen icon is explained in the graphic below. The remote oers fully programmable
time and temperature control with a host of additional useful control features.
It is possible to control the appliance in various operational modes including Manual
operation mode, User timer and frost protection mode. There are also advanced
operating modes such as a runback mode and also a landlord PIN protected function. .
Button Functions
1. MENU - enters the main product
menu.
2. ENTER - used to conrm
selections & settings.
3. BACK - returns to the previous
screen. If held for 2 seconds,
the heater will enter Comfort
O mode.
4 & 5. Arrow keys - used to
navigate through the menus and
adjust the room temperature
set-point.
6. ADV - use depends on the active
mode and settings, typically
used to advance the program
in timer mode or to initiate a
runback period in Manual/ PIN
mode.
Advanced button functions & Shortcut keys
Comfort O - Press and hold for 2 seconds
Temp Settings - Press and hold for 2 seconds
Heating Settings - Press and hold for 2 seconds
Service Info - Press and hold for 2 seconds
Advance Menu - Press and hold both and for 2 seconds
Factory Reset - Press and hold both and for 5 seconds
Heating On
Heating O
Adaptive Start
Timer Schedule
Manual Mode
Frost Protection
Connectivity
Pin Lock
Advance
Set Time & Date
Days of the week
Time Numerals
Symbol Key
NOTE:
All setting changes and communications between the remote control and the
appliance are signified with an audible ‘beep’ from the appliance. This beep
signifies that connection is successful and the appliance has received a command
from the remote control.
Operation
15

Waking from Standby Mode
When in standby mode, holding ENTER for two seconds will wake the remote and
attempt to reconnect to the product, this will be signied by the connectivity icon
and loading graphic appearing on the screen.
The remote control provides the option of a number of standard control modes,
• Timer Mode: provides the greatest exibility to the user. Four heating periods are
available throughout each day and these can be customised for every day of the
week. The desired set temperature can be set for each time slot independantly
• Manual Mode: Maintains the displayed temperature for an undetermined period.
The default ‘comfort’ temperature in manual mode is set to 21°C however this can
be adjusted to suit.
• Frost Protect: maintains a room temperature of 7°C. This mode should be used to
provide protection against frost.
• Comfort O: no room temperature control
There are also a number of advanced control options and features available
• Runback Mode: This is an additional feature available to manual mode, with this
mode active the manual mode will operate for a determined time period and then
revert to Comfort O mode.
• Setback Mode: This is an additional feature available to timer mode, with this mode
active the appliance will control the room to a pre-set temperature during timer
‘o’ periods.
• Adaptive start Mode: This is a predictive mode that functions alongside the timer
mode. When activated it will automatic calculate when the appliance needs to switch
on so that the desired room temperature has been achieved from the start of a heat
on time period. If not active the appliance will only switch on at the programmed
on time.
• PIN Lock Mode: This mode will lock the appliance in the existing mode and will only
allow some basic functions to operate. Once activated, in order to change settings
the user must input a pre-set PIN. This is ideal where it is desired to limit the use
and functionality of the appliance.
Operating Modes
16

Typically the Home Screen will display the active operational mode, the desired room
temperature set-point and the heating status. Any of the Advance function which are
active will also be displayed on the home screen. Pressing ENTER while on the Home
screen will display the current time..
Target room temperature (set-point)
display, this is not an actual room
temperature display.
Product heating status display, this
indicates when the appliance is actively
heating or maintain a room temperature,
‘ON’ will be displayed. Otherwise, ‘OFF’
will be displayed
Active mode display, the active mode of
operation is displayed at the bottom of
the screen
Sleep mode, when the remote is left
inactive, the remote display will sleep,
turning the screen o. Briey hold ENTER
to wake the remote back up.
The remote control will enter sleep mode if left idol for the following intervals
Home Screen – Sleep after 10 seconds
Menu Screens – Sleep after 15 seconds
Settings – Sleep after 30 seconds
NOTE:
When the remote wakes, it must search for and re-connect with the heater. This
happens automatically and is indicated by the connectivity icon and the pairing
graphic. Once pairing is complete the product will beep and the remote home
screen is visible.
Home Screen
17

The remote control and menus are navigated using the six button keypad. In order to
select/ change operational mode, press the MENU button. The remote will then enter
the basic menu structure, this menu provides the option to quickly select the following
options, each option is represented by an icon.
• Timer Mode: Activate mode or set/alter the
program times and temperatures,
• Manual Mode: Activate manual heating mode,
• Frost Protect: Activate frost protection mode,
• Time & Date: change the time and date settings
• OFF: Activate Comfort o mode
The primed mode for selection will be indicated by the ashing icon, use the Arrow
keys to navigate to the desired icon and conrm selection using the ENTER key.
Depending on the mode selected you may be prompted for further action, see relevant
section relating to this mode.
The heater is tted with an adjustable electronic thermostat enabling the room
temperature to be controlled in all the operational modes. The minimum controllable
room temperature available is 7°C and the maximum temperature is 30°C.
A temperature of 21°C represents a normal ‘Comfort’ room temperature and this is
set as default in manual mode. Frost protect has a default value of 7°C. Temperatures
in Timer mode can be set to suit the application.
The temperature set point can be adjusted at any stage by using the Up & Down
arrows when the home screen is active.
Thermostat Control

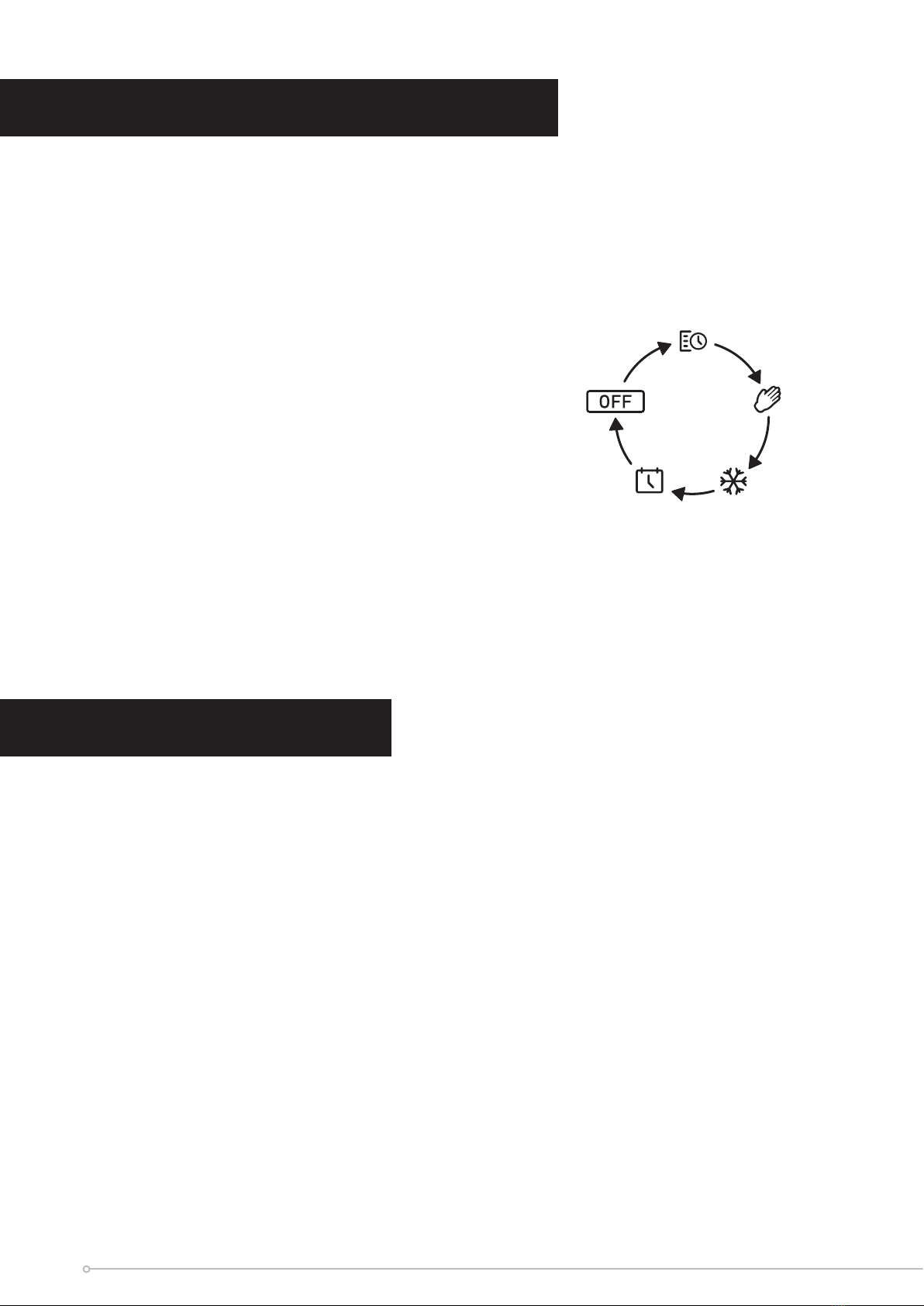

Navigation and Selecting Modes
Timer
Schedule
Manual
Mode
Frost
Protect
Time/Date
Comfort
O
18

The remote control oers the facility to select the heat output from the appliance
between HI and LO heat settings, HI heat is set by default. This is a global heat setting
and once set all other operational modes will operate with this setting.
In order to set/change the heat setting,
• From the home screen press and hold the ADV button for 2 seconds. The remote
will enter the heat selection screen.
• Use the arrow keys to navigate to the desired setting and conrm using the
ENTER key.
• The remote will return to the home screen and all heating modes will function
with the selected heat output.
NOTE:
The HI temperature setting will modulate the heat output to optimise the eciency
of the product. As the room temperature approaches the set-point the heater will
automatically switch to the lo heat setting.
Heat Output Selection
19

The Timer oers the most ecient mode of operation for a predictable heat demand.
The user has the exibility program up to four distinct time and temperature proles
per day, per week. The user has the ability to adjust the temperature during any heating
period and additional functions such as ‘Advance’ and set back add to the exibility
and comfort of this heating mode.

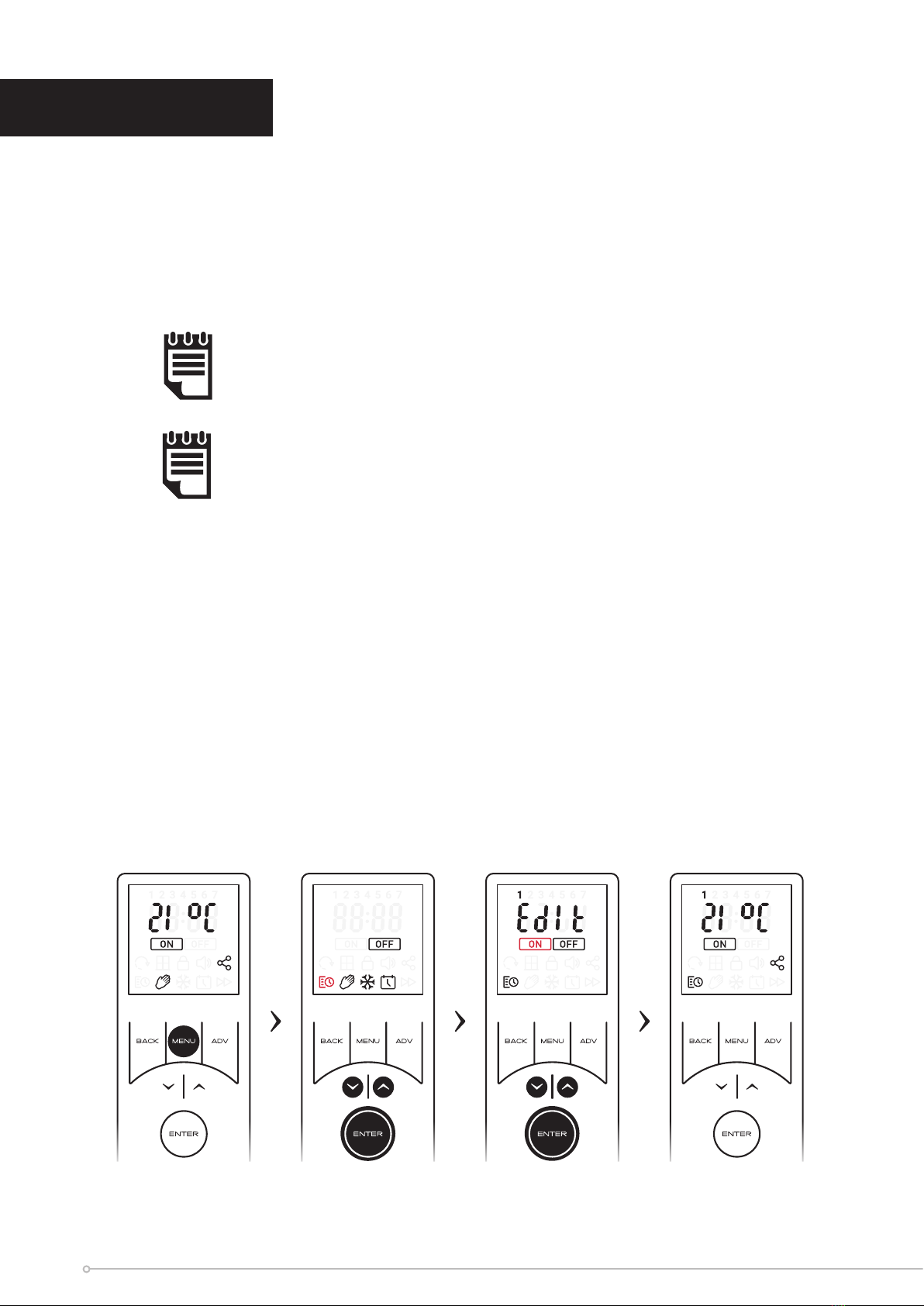

Activating the Timer
To activate the Timer mode:
• Press the MENU key from the home screen.
• Use the arrow keys to highlight the Schedule Icon,
• Press ENTER to enter Timer Settings.
• Ensure ‘On’ is highlighted and Press ENTER again to activate timer mode.
The active settings and target set temperature will be displayed on the home screen.
Timer Mode
NOTE:
If Adaptive Start is enabled, the heater may operate outside the
programmed heating period. This is normal and is required to ensure the
adaptive start function operates correctly.
NOTE:
If Set back mode is enabled, the heater will not revert to o outside the
programmed ‘On’ periods. The appliance will remain active and control to
the pre-set setback temperature.
20
