PARTS AND SERVICE INSTRUCTIONS
FOR THE
ELECTRIC FIREPLACE
MODEL NUMBERS:
BF33STP/DXP
BF39STP/DXP
Valued Customer,
We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Ltd.
Over the years, valuable memories will occur around the warmth and
comfort of your hearth. Thank you for allowing our product to be the backdrop
for those special moments.
70000000REV01

2
TABLE OF CONTENTS
OPERATION PAGE3
PARTS DRAWING PAGE 6
PARTSLIST PAGE7
WIRING DIAGRAM PAGE 8
MAIN ON/OFF SWITCH REPLACEMENT PAGE 9
PURIFIRE SWITCH REPLACEMENT PAGE 10
HEATER ON/OFF SWITCH REPLACEMENT PAGE 11
FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 12
VOLTAGE SELECTOR SWITCH REPLACEMENT PAGE 14
HEATER ELEMENT REPLACEMENT PAGE 17
BLOWER MOTOR REPLACEMENT PAGE 19
TEMPERATURE LIMIT SWITCH REPLACEMENT PAGE 23
REMOTE CONTROL KIT PAGE 27

3
OPERATION
MANUAL CONTROLS
(WITHOUT REMOTE OPTION)
The fireplace can be controlled by the manual
switches located on the fireplace (FIGURE 1).
Main Power Switch
Main ON/OFF switch, activates the flame effect.
Heater Control Switch
Heater ON/OFF switch, activates heater to the high
level.
MANUAL CONTROLS
(WITH REMOTE OPTION)
The fireplace can also be controlled in a similar
manner to the remote control with the manual
switches located on the fireplace (FIGURE 2).
(refer to initialization instructions on page 2)
Main Power Switch
Main ON/OFF switch supplies power to the circuit
board. When the Main ON/OFF switch is switched to
the ON position the Level 1 indicator light will flash.
On Switch
1. Pressing once on the remote control board “ON
SWITCH” activates the Level 1 function.
Level 1: The flame effect is turned on and the first
red indicator light is activated.
2. Pressing twice on the remote control board “ON
SWITCH” activates the Level 2 function.
Level 2: The flame effect remains on, the Purifire
is activated if Purifire switch is in the “-“ position.
Heater remains off.
3. Pressing three times on the remote control board
“ON SWITCH” activates the Level 3 function.
Level 3: The flame effect remains on, the Purifire
is activated if Purifire switch is in the “-“ position.
the heater is set to the high heat setting.
Off Switch
Pressing this button ONCE will turn the unit OFF.
OFF
SWITCH
ON
SWITCH
LEVEL 1
INDICATOR
LEVEL 2
INDICATOR
LEVEL 3
INDICATOR

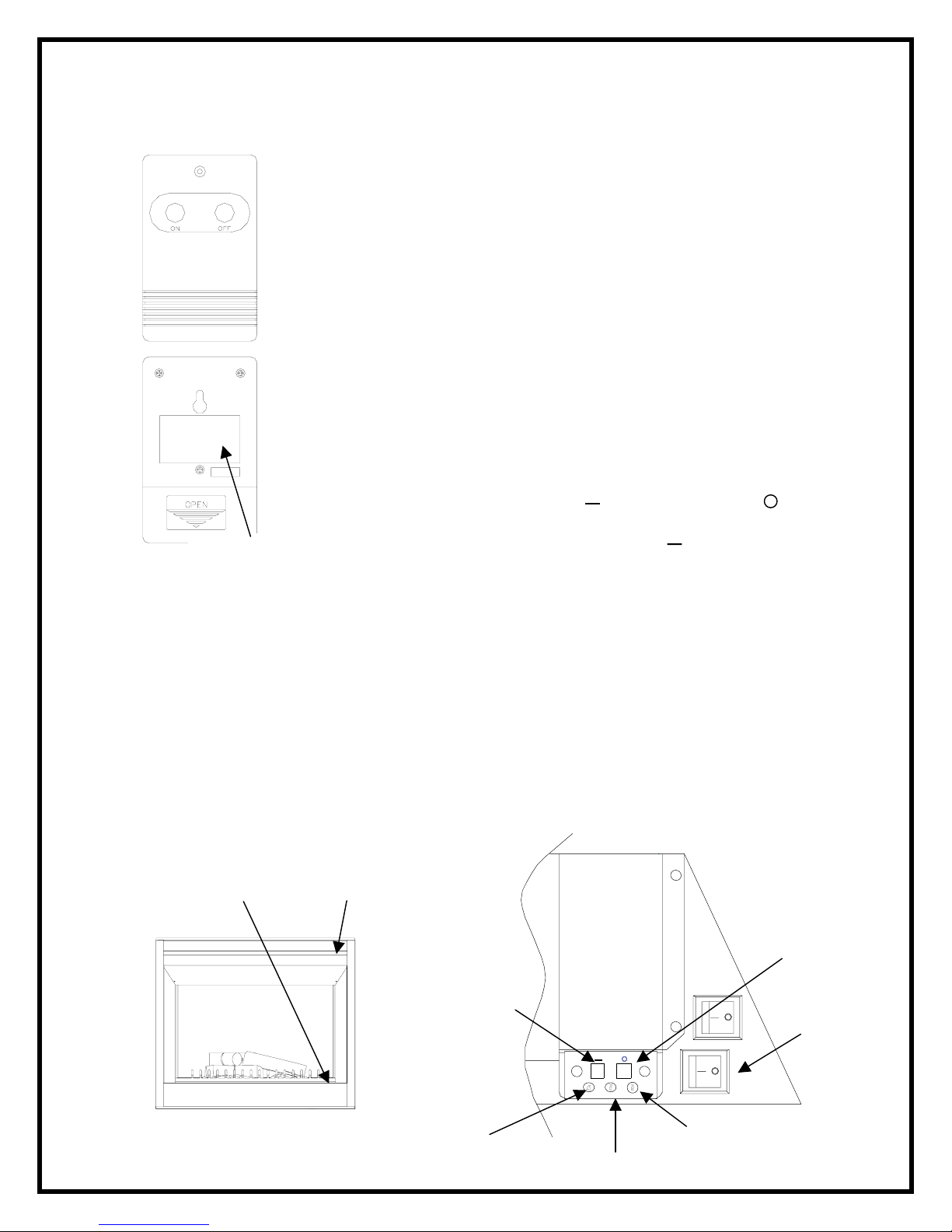

FIGURE 2
HEATER CONTROL
SWITCH
FIGURE 1
MAIN POWER
SWITCH
MAIN POWER
SWITCH
BFRC
KIT
PURIFIRE
SWITCH
PURIFIRE
SWITCH

4
Main Power
Switch
BF33STP, BF33DXP, BF39STP, BF39DXP
REMOTE CONTROL
The remote control has a range of approximately 50ft. (15.25m). It
does not have to be pointed at the fireplace and can pass through
most obstacles (including walls). It is supplied with one of 243
independent frequencies to prevent interference with other units.
The frequency designation is indicated on the back of the
transmitter (FIGURE 3).
Remote Control Initialization
This procedure is required every time there is a loss of power to the
remote control in the fireplace (i.e. power failure, breaker tripped,
main power switch is turned off)
1. Ensure that power is supplied through main service panel.
2. Access the manual controls, (remove glass doors if applicable)
pull the right hand steel curtain to the side of the unit.
(FIGURE 4)
3. Locate manual controls refer to FIGURE 5.
4. Activate main power switch, (“ ” position is “ON”, “ ” position
is “OFF”) red Level 1 indicator light will flash.
5. Press and hold the ON switch marked “ ” for five seconds.
The red Level 2 indicator light will flash.
6. Press the ON button located on the remote control transmitter
(FIGURE 3). This will synchronize the remote control
transmitter and receiver.
Remote Control Usage
The remote control operates the fireplace levels sequentially. The level is increased
every time the ON button on the transmitter is pressed. The fireplace can be turned off
at any point by pressing the OFF button on the remote control transmitter.
Level 1: The flame effect is turned on and the first red indicator light is activated.
Level 2: The flame effect remains on, the Purifire is activated if Purifire switch is in the
“-“ position. Heater remains off.
Level 3: The flame effect remains on, the Purifire is activated if Purifire switch is in the
“-“ position. the heater is set to the high heat setting.
FIGURE 3
MANUAL
CONTROLS
Level 1 Indicator
Level 2 Indicator
Level 3 Indicator
On Switch
Off Switch
FIGURE 4
Frequency
Code
FIGURE 5
OVERHEAT
INDICATOR

5
BF33STP, BF33DXP, BF39STP, BF39DXP
RESETTING THE TEMPERTURE CUTOUT SWITCH
The heater on this fireplace is protected with a safety device to prevent overheating.
Should the heater overheat, a red light (Fig. 4) will be activated and an automatic cut
out will turn the heater off. The heater will re-activate once the heater has cooled. The
overheat cutout will be triggered if the filter is dirty.
WALL MOUNTED CONTROLS
The fireplace can be installed with wall mounted controls. These controls include wall
switches and thermostats. (see installation guide for details)
A. Wall Mounted Switches
This model may be installed such that a wall mounted switch activates the flame effect
and a wall mounted heater switch activates the heater. A wall mounted switch can also
be installed to operate the heater independent of the flame.
B. Wall Mounted Thermostat
This unit may be installed such that a wall mounted thermostat can adjust the heat
temperature to your individual requirements. Turn the thermostat control clockwise all
the way to turn on the heater. When the room reaches the desired temperature, turn
the thermostat knob counter clockwise until you hear a click. Leave in this position to
maintain the room temperature at this setting. For additional heat, turn the thermostat
clockwise until you hear the click again and the heater will turn on. To turn the heater
off, turn the thermostat counter clockwise all the way, and/or turn the manual heater
switch on the unit to the OFF position.
VOLTAGE SELECTOR SWITCH LOCATION
IMPORTANT:
Ensure that the incoming power supply voltage
matches the setting of the voltage selector
switch.
NOTE:
The voltage selector switch is located
inside the exhaust panel on the top
right hand corner (FIGURE 6).
CAUTION:
When changing the voltage selector
switch from 240 volts to 120 volts
ensure that the power supply is turned
off.
NOTE:
Carefully insert a flat headed screwdriver inside the exhaust panel to change the switch
from 240 volts (230 position) to 120 volts (115 position).

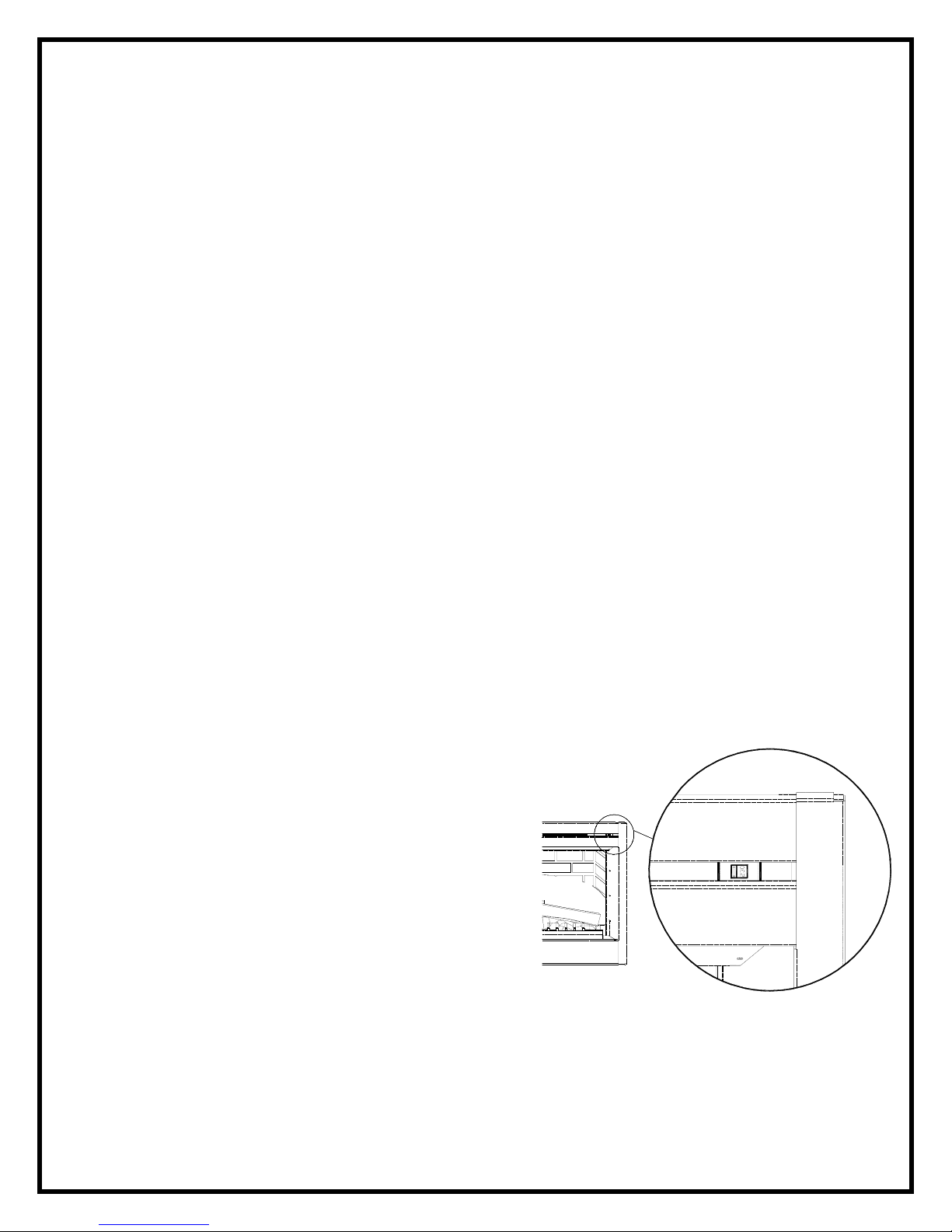

FIGURE 6

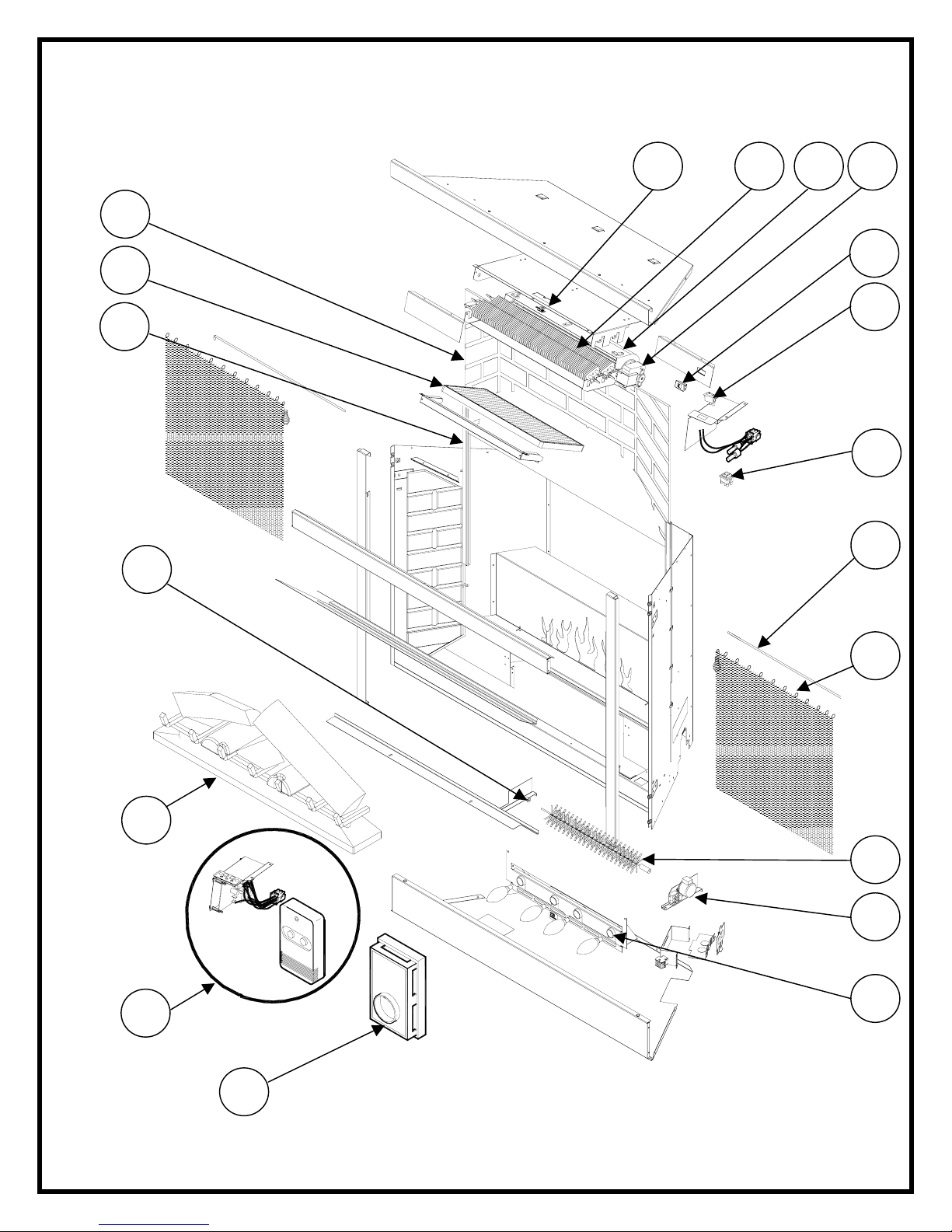

6
9
1
5
15
13
12
18
11
10
19
2
4
16
14
3
6 7 8
17
BF33STP, BF33DXP, BF39STP, BF39DXP

7
BF33STP, BF33DXP, BF39STP, BF39DXP
REPLACEMENT PARTS
DIMPLEX BUILT IN FIREPLACE
REPLACEMENT PART BF33ST BF33DX
1. LOG SET 0438200300RP 0439230100RP
2. REFLECTOR ROD 5900081000RP 5900081000RP
3. GROMMET 8500000400RP 8500000400RP
4. FLICKER ASSEMBLY 6901811200RP 6901811200RP
5. BLOWER ASSEMBLY 5300110300RP 5300110300RP
6. BLOWER MOTOR 5300110400RP 5300110400RP
7. HEATER ELEMENT 2200510100RP 2200510100RP
8. CUTOUT 2300260300RP 2300260300RP
9. VOLTAGE SELECTOR 2500320200RP 2500320200RP
10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP
11.HEATER SWITCH 2800070700RP 2800070700RP
12.MIRROR SEMI-SILVERED 5900161000RP 5900161100RP
13.EXTRUSION 0438650200RP 0438650200RP
14.STEEL CURTAIN 8800240403RP 8800240403RP
15.STEEL CURTAIN ROD 8800250300RP 8800250300RP
16.LOWER LIGHT HARNESS 2500370200RP 2500370200RP
17.FILTER, PURIFIRE 0439060100RP 0439060100RP
REPLACEMENT PART BF39ST BF39DX
1. LOG SET 0438550200RP 0439070100RP
2. REFLECTOR ROD 5900080900RP 5900080900RP
3. GROMMET 8500000400RP 8500000400RP
4. FLICKER ASSEMBLY 6901811200RP 6901811200RP
5. BLOWER ASSEMBLY 5300110300RP 5300110300RP
6. BLOWER MOTOR 5300110400RP 5300110400RP
7. HEATER ELEMENT 2200510100RP 2200510100RP
8. CUTOUT 2300260200RP 2300260200RP
9. VOLTAGE SELECTOR 2500320200RP 2500320200RP
10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP
11.HEATER SWITCH 2800070700RP 2800070700RP
12.MIRROR SEMI-SILVERED 5900160600RP 5900160700RP
13.EXTRUSION 0438650100RP 0438650100RP
14.STEEL CURTAIN 8800240103RP 8800240103RP
15.STEEL CURTAIN ROD 8800250100RP 8800250100RP
16.LOWER LIGHT HARNESS 2500370200RP 2500370200RP
17.FILTER, PURIFIRE 0439060100RP 0439060100RP
OPTIONAL ACCESSORIES
18. REMOTE CONTROL KIT BFRC-KIT
19. WALL THERMOSTAT TS521W

8
BF33STP, BF33DXP, BF39STP, BF39DXP

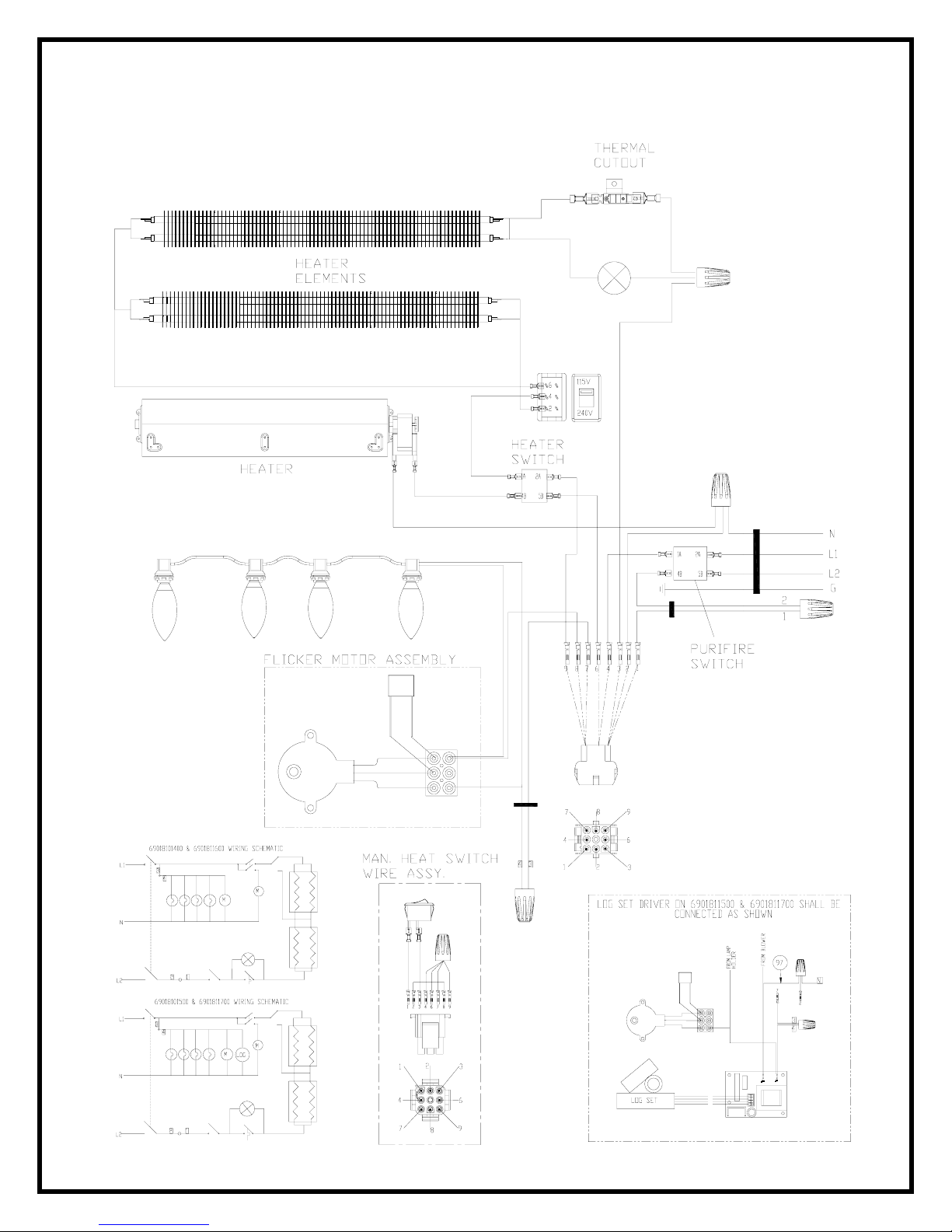

WIRING DIAGRAM

9
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE MAIN ON/OFF SWITCH
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
4. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
5. Remove the light bulb closest to the main on/off switch for easier access.
6. Locate the switch cover plate and remove the mounting screws.
7. Remove the switch cover plate by releasing assembly from the quick connect
connection.
8. Reach hand into the opening and locate the main on/off switch.
9. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom cover.
10.Disconnect the wiring connections noting their original locations.
11.Properly orientate the new switch and connect all of the wiring connections.
12.Reassemble in the reverse order as above.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.

10
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE PURIFIRE SWITCH
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
4. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
5. Remove the light bulb closest to the main on/off switch for easier access.
6. Locate the switch cover plate and remove the mounting screws.
7. Remove the switch cover plate by releasing assembly from the quick connect
connection.
8. Reach hand into the opening and locate the Purifire switch.
9. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom cover.
10.Disconnect the wiring connections noting their original locations.
11.Properly orientate the new switch and connect all of the wiring connections.
12.Reassemble in the reverse order as above.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.

11
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE HEATER ON/OFF SWITCH (without remote control option)
NOTE: Remote control kit does not have individual heater switch. Refer to page 27
for remote control kit replacement instructions.
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
4. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
5. Remove the light bulb closest to the heater on/off switch for easier access.
6. Locate the switch cover plate and remove the mounting screws.
7. Remove the switch cover plate by releasing assembly from the quick connect
connection.
8. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom cover.
9. Disconnect the wiring connections noting their original locations.
10.Properly orientate the new switch and connect all of the wiring connections.
11.Reassemble in the reverse order as above.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.

12
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
4. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
5. Remove all lower light bulbs.
6. Remove the retaining screws on the light assembly retaining plate and set aside
retaining plate.
7. Reach hand into the opening created by removing the light assembly retaining
plate and locate the flame assembly mounting bracket screw.
NOTE:
Flame assembly bracket screw is secured to flame panel on the same side as the
manual control switches.
8. Remove the flame assembly mounting bracket screw using a ¼” hex head
wrench or socket.
9. Remove the flame rod from the flame assembly by pulling the rubber channel
section of the rod away from the flame motor.
10.Rotate the flame assembly down releasing the mounting tab from the rear panel.
NOTE:
In order for the mounting tab to release from the rear panel, the flame assembly
mounting bracket needs to be rotated a complete 90° down. Cutting of the wire tie
wraps may be required to move wires out of the way.
11.Disconnect the wiring connections noting their original locations.
12.Reassemble in the reverse order as above.
NOTE:
Ensure to secure the flame rod to the end of the flame motor prior to securing flame
motor assembly bracket to flame panel.

13
BF33ST, BF33DX, BF39ST, BF39DX, BF45ST, BF45DX
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.
WARNING: Ensure wires do not come in contact with moving parts by securing wires in
wire wraps.

14
BF33STP, BF33DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE VOLTAGE SELECTOR SWITCH
(UNIT IS PERMENANTLY INSTALLED IN WALL)
1. Remove the log grate retaining screws and remove the log grate.
2. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
3. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
4. Release the steel curtains from the side panels by opening the retainers on the
sides of the fireplace using needle nose pliers.
5. Remove the steel curtains by lifting up on the curtain mounting rod releasing it
from the side mounting tab, and pulling out.
6. Remove the heater cover mounting screws from inside the firebox and remove
the heater cover by lifting it up from the back, bowing it slightly in the center and
pulling out by one end.
7. Hold the mirror and use a sharp utility knife to cut the lip off of the rubber channel
(one side only) that holds the mirror in place.
8. Remove mirror by pulling it out of the cut rubber channel being careful not to
bump or drop it.
9. Remove the cut channel from the firebox.
10.Remove the heater assembly mounting screws from top panel.
11.Locate the voltage selector switch inside the exhaust panel on the top right hand
corner, and cut the wire tie wraps securing the voltage selector switch wires.
12.Remove the voltage selector wire connections from the heater elements noting
their original locations.
13.Cut and strip the brown and orange wires from the voltage selector switch along
the back panel allowing enough room to cut, strip and reconnect wiring.
14.Depress the retainer clips on the rear of the voltage selector switch and push the
switch out of the light block.

15
BF33STP, BF33DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE VOLTAGE SELECTOR SWITCH
(UNIT IS PERMENANTLY INSTALLED IN WALL)
15.Properly orientate the new switch and connect all of the wiring connections to the
heater elements.
NOTE: Ensure there is enough wire length to wire connect the wires together.
16.Cut and strip the brown and orange wires from the new voltage selector switch.
17.Use (2) wire connectors to connect the 4 stripped wire with their matching colour.
(brown wire with brown wire, orange wire with orange wire)
WARNING: Ensure wires do not come in contact with moving parts by securing
wires in wiring tie wraps.
18.Using a sharp utility knife, cut 3.22” off of the length of the new rubber channel so
the overall length is 17.33”.
19.Reassemble in the reverse order as above.
NOTE: Prior to installing the mirror, cut the one end off of the T-shaped groove on
the supplied rubber channel with a sharp utility knife as indicated in diagram below.
NOTE: To install the mirror after the factory installed rubber channel has been cut,
use the channel that was supplied with the replacement motor / blower. Slide the
channel onto the edge of the mirror and push the other side of the mirror into the
existing rubber channel in the firebox, carefully press mirror into the mounting slot on
the firebox.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.
Remove the shaded area
from rubber channel with
sharp utility knife

16
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE VOLTAGE SELECTOR SWITCH
(UNIT CAN BE REMOVED FROM WALL)
1. Remove unit from installed wall. (remove trim surround if applicable)
2. Remove a total of 4 screws from both side trims on unit.
3. Remove the 6 top panel mounting screws and position heater assembly upright
being careful not to damage any wires.
4. Locate the voltage selector switch inside the exhaust panel on the top right hand
corner, and cut the wire tie wraps securing the voltage selector switch wires.
5. Disconnect voltage selector switch wire connections from heater elements noting
their original locations.
6. Cut and strip the brown and orange wires from the voltage selector switch along
the back panel allowing enough room to cut, strip, and reconnect wiring.
7. Depress the retainer clips on the rear of the voltage selector switch and push the
switch out of the light block.
8. Properly orientate the new switch and connect all of the wiring connections to the
heater elements.
NOTE: Ensure there is enough wire length to wire connect the wires together.
9. Cut and strip the brown and orange wires from the new voltage selector switch.
10.Use (2) wire connectors to connect the 4 stripped wires with their matching
colour. (brown wire with brown wire, orange wire with orange wire)
WARNING: Ensure wires do not come in contact with moving parts by securing
wires in wiring tie wraps.
11.Reassemble in the reverse order as above.

17
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE HEATING ELEMENTS
(UNIT IS PERMENANTLY INSTALLED IN WALL)
NOTE: The fireplace is equipped with two heating elements. The same removal &
installation instructions apply to both elements.
1. Remove the log grate retaining screws and remove the log grate
2. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
3. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
4. Release the steel curtains from the side panels by opening the retainers on the
sides of the fireplace using needle nose pliers.
5. Remove the steel curtains by lifting up on the curtain mounting rod releasing it
from the side mounting tab, and pulling out.
6. Remove the 10 heater cover mounting screws from inside the firebox and
remove the heater cover by lifting it up from the back, bowing it slightly in the
center and pulling out by one end.
7. Locate the elements mounted to the top cover and disconnect the connections
noting their original locations.
8. Remove the 2 element cover hex head screws using a ⅜” hex head socket.
9. Remove the 3 remaining element cover mounting screws and remove element.
10.Properly orientate the replacement element and connect all of the wiring
connections in their original locations.
11.Reassemble in the reverse order as above.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.

18
BF33STP, BF33DXP, BF39STP, BF39DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE HEATING ELEMENTS
(UNIT CAN BE REMOVED FROM WALL)
NOTE: The fireplace is equipped with two heating elements. The same removal &
installation instructions apply to both elements.
1. Remove unit from installed wall. (remove trim surround if applicable)
2. Remove a total of 4 screws from both side trims on unit.
3. Remove top panel mounting screws and position heater assembly upright being
careful not to damage any wires.
4. Locate the elements mounted to the top cover and disconnect the connections
noting their original locations.
5. Remove the 2 element cover hex head screws using a ⅜” hex head socket.
6. Remove the 3 remaining element cover mounting screws and remove element.
7. Properly orientate the replacement element and connect all of the wiring
connections in their original locations.
8. Reassemble in the reverse order as above.

19
BF33ST, BF33DX
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE BLOWER MOTOR / BLOWER
(UNIT IS PERMENANTLY INSTALLED IN WALL)
1. Remove the log grate retaining screws and remove the log grate.
2. Pull the rear edge of the log set forward by grasping the ember bed by the sides
(handle the log set only by the ember bed and not the logs) and pulling firmly
until the rear tab pops out from under the back ledge, then lift out.
3. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)
4. Release the steel curtains from the side panels by opening the retainers on the
sides of the fireplace using needle nose pliers.
5. Remove the steel curtains by lifting up on the curtain mounting rod releasing it
from the side mounting tab, and pulling out.
6. Remove the 10 heater cover mounting screws from inside the firebox and
remove the heater cover by lifting it up from the back, bowing it slightly in the
center and pulling out by one end.
NOTE: A new rubber channel that holds the mirror in place is supplied with the new
blower motor.
7. Hold the mirror and use a sharp utility knife to cut the lip off of the rubber channel
(one side only) that holds the mirror in place.
8. Remove mirror by pulling it out of the cut rubber channel being careful not to
bump or drop it.
9. Remove the cut channel from the firebox.
10.Remove the (3) heater assembly mounting screws from top panel.
11.Lower heater assembly and remove wiring connections from blower motor noting
their original locations.
12.Remove the (6) blower motor assembly screws and set aside blower motor
assembly.
13.Properly orientate the replacement blower assembly and connect all of the wiring
connections in their original locations.

20
14.Using a sharp utility knife, cut 3.22” off of the length of the rubber channel so the
overall length is 17.33”.
15.Reassemble in the reverse order as above.
NOTE: To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.
