Dimplex MILANOef EDS7001F Quick start guide

MILANO
ef
MODEL EDS7001F
PARTS & SERVICE MANUAL

2
TABLE OF CONTENTS
OPERATION PAGE 3

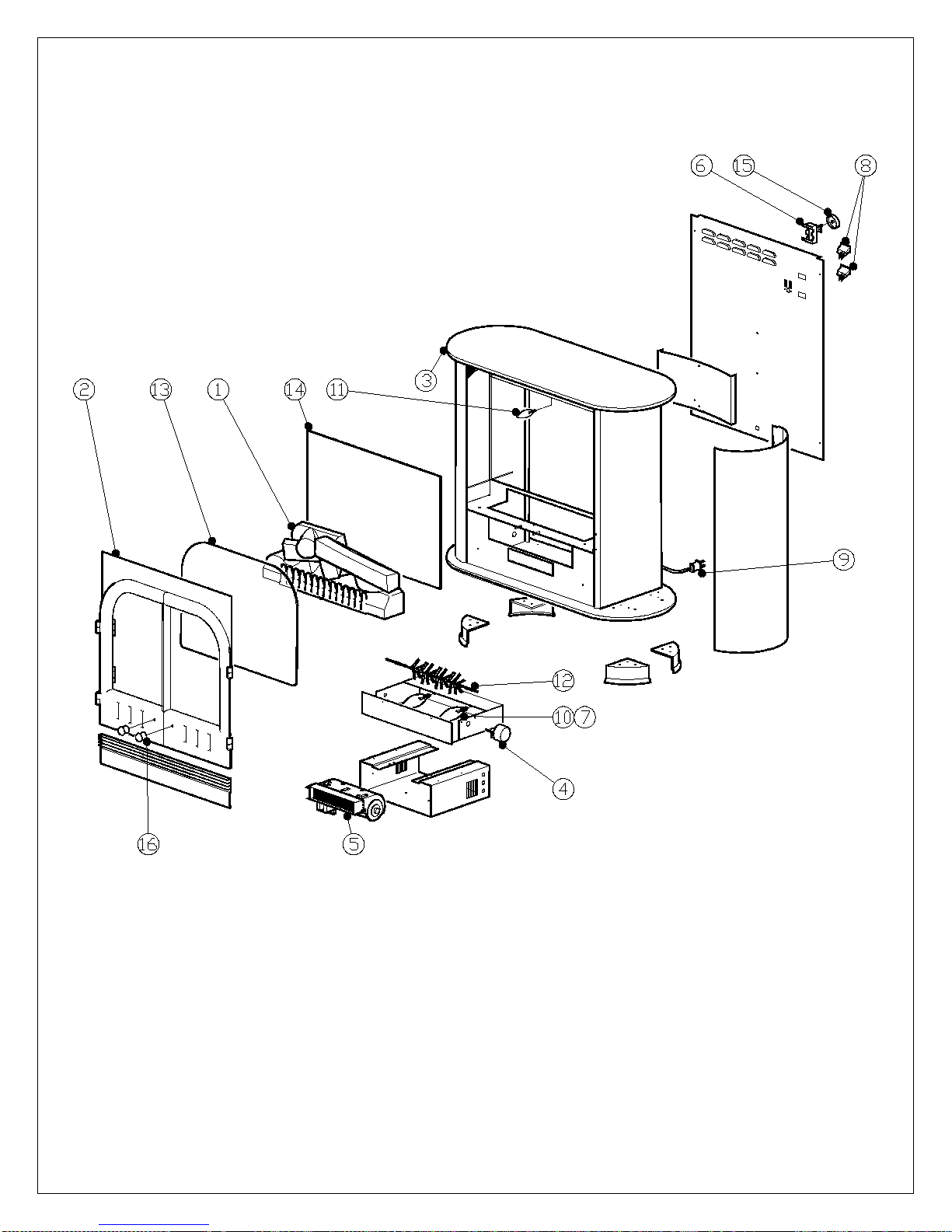

PARTS DRAWING PAGE 5

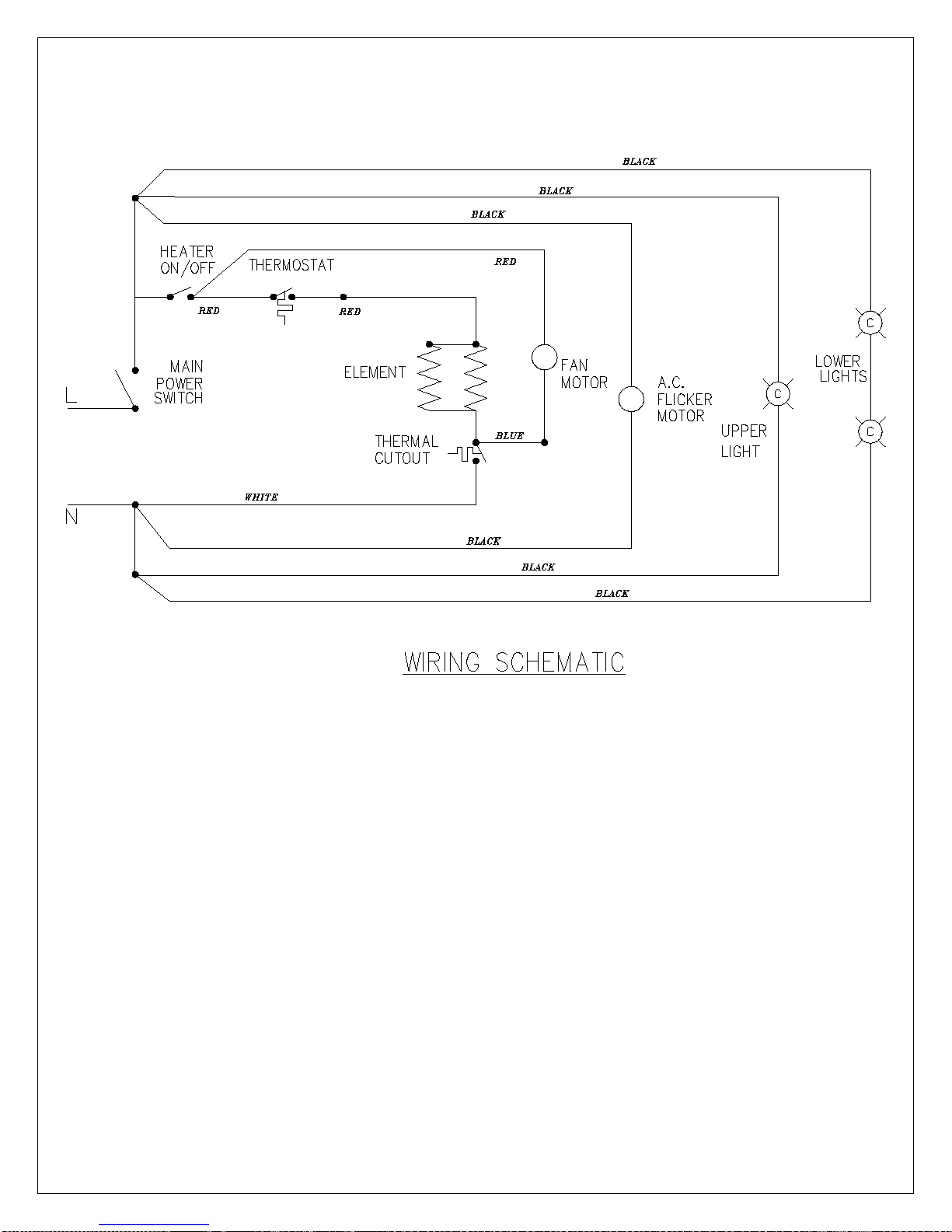

WIRING SCHEMATICS PAGE 6
PARTS LIST PAGE 7
LIGHT BULB REPLACEMENT PAGE 8
MAIN POWER ON/OFF SWITCH REPLACEMENT PAGE 9
FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 10
HEATER ON/OFF SWITCH PAGE 12
HEATER THERMOSTAT REPLACEMENT PAGE 13
POWER CORD REPLACEMENT PAGE 14
HEATER ASSEMBLY REPLACEMENT PAGE 15

3
EDS7001F MILANO
ef
NOTE
A 15amp, 120 volt circuit is required. A dedicated circuit is preferred but not
essential in all cases. A dedicated circuit will be required if, after installation, the
circuit breaker trips or fuse blows on a regular basis when the heater is
operating. Additional appliances on the same circuit may exceed the current
rating of the circuit breaker.
WARNING
Ensure the power cord is not installed so that it is pinched or against a sharp
edge and ensure that the power cord is stored or secured to avoid tripping or
snagging to reduce the risk of fire, electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local building codes
and other applicable regulations to reduce the risk of fire, electric shock and
injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire,
electric shock or injury to persons, always use a licensed electrician.
MILANO
ef
INSTALLATION
1. Make sure the unit is switched OFF (refer to operating instruction section).
2. Plug the unit into a 15Amp/120volt outlet. If the cord does not reach, you
may use an extension cord rated for a minimum of 1875 watts.
OPERATION
To access the controls go to the back of the milano
ef
.
A. MAIN ON/OFF SWITCH
The on/off switch supplies power to all unit functions (heat/flame)
B. HEATER ON/OFF SWITCH
The HEATER ON/OFF SWITCH supplies power to the heater fan and the
heater element.
C. HEATER THERMOSTAT CONTROL
To adjust the temperature to your individual requirements, turn the thermostat
control clockwise all the way to turn on the heater. When the room reached the
desired temperature, turn the thermostat knob counter clockwise until you hear
a click. Leave in this position to maintain the room temperature at this setting.
For additional heat, turn clockwise until you hear the click again and the heater
will turn on. To turn the heater off, switch the HEATER ON/OFF SWITCH to
the OFF position.
NOTE:- When the heater is switched ON, the heater fan will operate. The heater
element may or may not be on, depending on the thermostat control setting (SEE
“HEATER THERMOSTAT CONTROL”).
back of the milano
ef

4
EDS7001F MILANO
ef
RESETTING THE TEMPERATURE CUTOFF SWITCH
This unit is equipped with a thermostat that controls the temperature of the room.
It does this by turning the heater on and off. The heater is protected with a safety
device to prevent overheating. Should the heater overheat, an automatic cut out
will turn the heater off and it will not come back on without being reset. To reset
the temperature cutoff switch turn the main power switch to the OFF position and
wait five minutes before switching the unit back on.
OPTIONAL REMOTE CONTROL USAGE
1. Plug the stove into the outlet located on the
side of the receiver.
2. Plug the receiver into the wall outlet.
3. Install a 9 volt battery into the transmitter.
4. Turn the stove main power switch to the on
position prior to using the remote control.
5. The remote control works up to 50 feet away.
6. Push the ON button to turn stove on, push the
OFF button to turn the stove off.
NOTE:
To prevent the risk of fire, the stove plug must be
inserted fully into the receiver.
NOTE:
The remote control and receiver use one of 243
independent frequencies. When replacing the
remote control or the receiver they must be
replaced as a set to ensure proper operation.
The frequency of the remote is located on the
back of the remote on a label. (Figure 1)
Figure 1

5
EDS7001F MILANO
ef

6
EDS7001F MILANO
ef

7
EDS7001F MILANO
ef
REPLACEMENT PARTS
MILANO
DIMPLEX
CATALOGUE NO.
EDS7001F
PART NO.
6900840000
MOD. LEVEL
REPLACEMENT PART
1. LOG SET 0438270100RP
2. FRONT DOOR 0438390100RP
3. STOVE TOP 1103740104RP
4. A.C. MOTOR ASSEMBLY 2000140300RP
5. HEATER ASSEMBLY 2000170300RP
6. THERMOSTAT 2300150100RP
7. LOWER LIGHT HARNESS 2500170100RP
8. HEATER ON/OFF SWITCH, MAIN ON/OFF SWITCH 2800070200RP
9. CORDSET 4100040300RP
10. LOWER LIGHT BULBS 60 WATT (2 PER UNIT) 4200020100RP
11. UPPER LIGHT BULBS 7 WATT (1 PER UNIT) 4200020400RP
12. REFLECTOR ROTISSERIE 5900080600RP
13. FRONT DOOR GLASS 5900200100RP
14. MIRROR 5900210100RP
15. THERMOSTAT KNOB 8800000300RP
16. FRONT DOOR KNOB 8800320100RP

8
EDS7001F MILANO
ef
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame or
when the clarity and detail of the log exterior disappears. There is one bulb at
the top of the opening that illuminates the log set exterior and two bulbs under
the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the
end of their rated life. Group replacement will reduce the number of times you
need to open the unit to replace the light bulbs.
TO REPLACE THE UPPER LIGHT BULB
1. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
2. Grasp onto the front door, gently lift up and pull the door off of the unit.
3. Unscrew the bulb counter clockwise.
4. Insert new bulb.
5. Install the front door over the rods, gently lifting up to engage the door into the
slot in the roof.
6. Screw the two black knobs clockwise until tightened.
TO REPLACE THE LOWER LIGHT BULBS
1. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
2. Grasp onto the front door, gently lift up and pull the door off of the unit.
3. Remove the screw from the logset located in the center of the emberbed and
remove the logset from the unit.
4. Locate and examine the bulbs to determine which bulb(s) required
replacement.
5. Unscrew the bulb(s) counter clockwise.
6. Insert new bulb(s).
7. Install the logset into the unit, pushing firmly against the glass. Replace the
logset retaining screw into the ember bed.
8. Install the front door over the threaded rods, gently lifting up to engage the door
into the slot in the roof.
9. Screw the two black knobs clockwise until tightened.
LOWER LIGHT BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket
base, 60 watt rating. Example GE 60BC of Philips 60 CTC.
Do not exceed 60 watts.
UPPER LIGHT BULB REQUIREMENTS
Quantity of 1 clear chandelier or candelabra bulbs with an E-12 (small) socket
base, 7 watt rating. Do not exceed 7 watts.

9
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE MAIN ON/OFF SWITCH
1. Remove the stove pipe kit (if equipped).
2. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
3. Grasp onto the front door, gently lift up and pull the door off of the unit.
4. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
5. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
6. Grasp the top at both sides and gently pull to release the top.
7. Locate the main on/off switch mounted on the rear panel and disconnect
the wiring clips and connections noting their original locations.
8. Depress the retainer clips on the rear of the switch and push the switch
out of the rear cover.
9. Properly orientate the new switch and connect all of the wiring clips and
connections.
10.Reassemble in the reverse order as above.

10
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
1. Do to the partial disassembly of the stove care must be taken not to
scratch any surfaces or damage any components during the repair.
2. Remove the stove pipe kit (if equipped).
3. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
4. Grasp onto the front door, gently lift up and pull the door off of the unit.
5. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
6. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
7. Grasp the top at both sides and gently pull to release the top.
8. Locate and remove the mirror by pulling it out of the slots being careful not
to bump or drop it.
9. Locate the flame motor and flame rod assembly, remove the motor
mounting screws with a short handled screw driver.
10.Remove the four screws from the rear panel.
11.Locate the main on/off switch mounted on the rear panel and disconnect
the wiring connections noting their original locations.
12.Slide the rear panel up approximately three inches, locate and disconnect
the wiring for the motor.
13.Remove the mounting bracket screws and pull the flame motor and flame
rod assembly out of the mounting bracket.
NOTE: When removing the flame motor some damage may occur to the
flame rod. If flame rod is damaged replace to insure proper operation.

11
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
14.To remove the flame rod attach needle nose pliers to the spring on the
motor shaft and pull while rotating in the opposite direction of the spring
winding.
15.To replace the flame rod attach needle nose pliers to the flame rod spring
and push onto the flame motor shaft while rotating in the opposite
direction of the spring winding.
16. Properly orientate the flame motor and connect all of the wiring clips
connections in their original locations.
17. Reassemble in the reverse order as above.

12
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE HEATER ON/OFF SWITCH
1. Remove the stove pipe kit (if equipped).
2. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
3. Grasp onto the front door, gently lift up and pull the door off of the unit.
4. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
5. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
6. Grasp the top at both sides and gently pull to release the top.
7. Locate the heater on/off switch mounted on the rear panel and disconnect
the wiring clips and connections noting their original locations.
8. Depress the retainer clips on the rear of the switch and push the switch
out of the rear cover.
9. Properly orientate the new switch and connect all of the wiring clips and
connections.
10. Reassembly in the reverse order as above.

13
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE HEATER THERMOSTAT
1. Remove the stove pipe kit (if equipped).
2. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
3. Grasp onto the front door, gently lift up and pull the door off of the unit.
4. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
5. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
6. Grasp the top at both sides and gently pull to release the top.
7. Locate the heater thermostat mounted on the rear panel and disconnect
the wiring clips and connections noting their original locations.
8. Pull off the thermostat control knob to expose the mounting screws.
9. Remove the mounting screws and remove the heater thermostat.
10.Properly orientate the new heater thermostat and connect all of the wiring
clips and connections.
11.Reassembly in the reverse order as above.

14
EDS7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE POWER CORD
1. Remove the stove pipe kit (if equipped).
2. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
3. Grasp onto the front door, gently lift up and pull the door off of the unit.
4. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
5. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
6. Grasp the top at both sides and gently pull to release the top.
7. Remove the four screws from the rear panel.
8. Locate the main on/off switch mounted on the rear panel and disconnect
the wiring connections noting their original locations.
9. Slide the rear panel up approximately three inches.
10.Locate and remove the wiring connections for the power cord.
11.With needle nose pliers grasp the power cord strain relief grommet from
inside the rear cover and push while twisting to remove.
12.Pull the old power cord out through the rear cover.
13.Install the new power cord through the hole in the rear cover and connect
all of the wiring connections in their original locations.
14.Install the power cord retaining grommet on the power cord and insert into
the hole in the rear cover.
15.Reassemble in the reverse order as above.

15
7001F MILANO
ef
If the stove was operating prior to servicing allow at least 10 minutes for light
bulbs and heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE THE HEATER ASSEMBLY
1. Do to the partial disassembly of the stove care must be taken not to
scratch any surfaces or damage any components during the repair.
2. Remove the stove pipe kit (if equipped).
3. Unscrew the two black knobs on the front of the unit by turning
counterclockwise.
4. Grasp onto the front door, gently lift up and pull the door off of the unit.
5. Remove the upper light bracket mounting screws from the top and remove
the light bracket assembly from the unit.
6. Locate the four cam locks on the side panels inside the upper corners of
the stove and turn with a large slot screwdriver so the triangle on the cam
lock is pointing up towards the top of the stove.
7. Grasp the top at both sides and gently pull to release the top.
8. Locate and remove the mirror by pulling it out of the slots being careful not
to bump or drop it.
9. Remove the four screws from the rear panel.
10.Locate the main on/off switch mounted on the rear panel and disconnect
the wiring connections noting their original locations.
11.Grasp the rounded side panels and pull straight up to remove both panels.
12.Locate and remove the two screws on the steel plate in front of the logset.
13.Slide the logset assembly out through the front of the stove and remove.
14.Locate and remove the two screws in front of the light bulbs, but behind
the flame rod/flame motor assembly.
15.Remove the flame rod/flame motor assembly thru the rear of the unit.

16
16.Locate and remove all of the heater assembly retaining screws from the
bottom panel.
17.Disconnect the wiring clips and connections noting their original locations
and remove the heater assembly.
18. Properly orientate the flame motor and connect all of the wiring clips
connections in their original locations.
19.Reassemble in the reverse order as above.
