Directed Directechs DB3 User manual

DB3 403.GM10
v4.27
2016 Buick Verano
THGM610D, THGMD1 Compatible
(Sold Separately)

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Installation 6
Wiring diagram with T-Harness (THGMD1 Rev. 1) 6
Wiring diagram with T-Harness (THGMD1 Rev. 3) 7
Wiring diagram with T-Harness (THGM610D Rev. 1 & 2) 8
Wiring diagram with T-Harness (THGM610D Rev. 3) 9
Wiring diagram 10
Locating components in the vehicle 11
Vehicle connections 12
Module programming 14
Key2GO 15
Connecting the module 15
LED diagnostics and troubleshooting 16

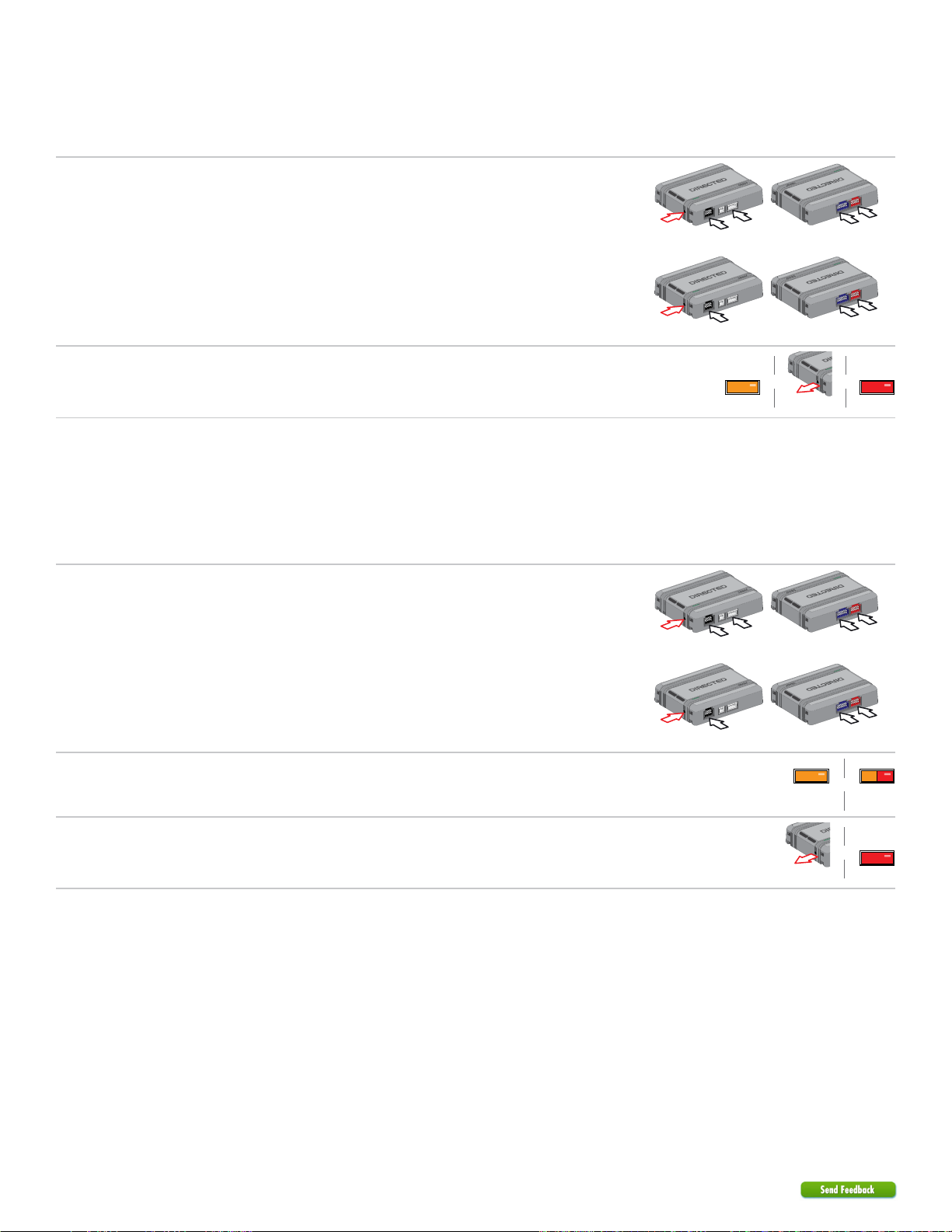

Soft reset 18
Hard reset 18
Feature programming 19
Feature and option list 20
Limited one year consumer warranty 21
Quick Reference Guide (customer copy) 22
Contents

3403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Fuel level/EV battery level
Key2GO
* Odometer
Immobilizer Bypass-Data No Key Req'd
OEM Remote Start Activation using XL-202 or RF kit
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Brake Status (foot brake)
E-Brake Status

5403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible THGMD1 or THGM610D Keys required for programming 1Keys required for operation 0
Key2GO is mandatory to control the immobilizer override in this firmware.
The optional Plug & Play THGMD1 or THGM610D T-Harnesses are sold separately.
Heated Seat Activation is ONLY available in compatible vehicles (See "Feature programmming" for more information).
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
connector.
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Refer to the "Vehicle connections" following the installation diagram.
General notes: This section highlights important information for this specific firmware.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] If the RAP Off wire is NOT connected, the radio will turn OFF but some lights will remain ON in the center console for 10
minutes. Connect the Green/Black wire, pin 2/12 to the vehicle driver door input to avoid the issue. The RAP Off/Door
input color and location can be found in the "Vehicle connections" section.

6403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
The Remote Start Safety Override
Switch MUST be in the ON position.
THGMD1 Rev. 1 (Optional T-Harness)
Ignition Switch
(black or white connector)
HS CAN Low: Pin 14
HS CAN High: Pin 6
HS CAN High: Tan/Black
HS CAN Low: Tan
SW CAN: Pin 1
SW CAN: Lt. Green
Ignition Barrel 16
8
9
1
OBDII Diagnostic
(connector side view)
(-) RAP Off Output: Green/Black
Hood: White/Black Hood Pin
Note: The Hood Pin is
only required on
vehicles that are not
equipped with a
factory hood pin.

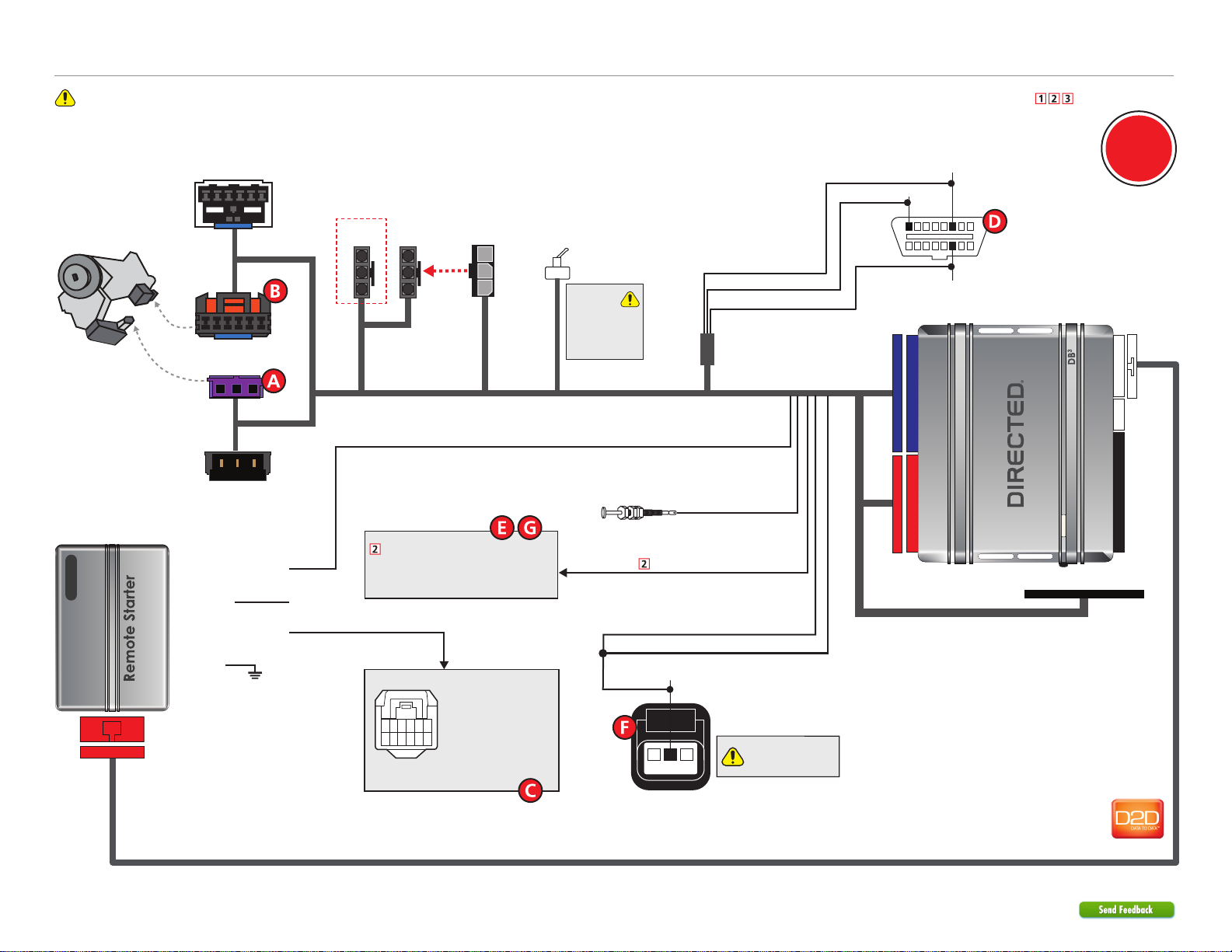

Wiring diagram with T-Harness (THGMD1 Rev. 1)
Type 2
NOT USED
CONNECT
To
Immobilizer Control Module
(violet connector
under ignition switch)
Away from
Immobilizer Control Module
(vehicle side)
D2D
only
D2D Port
XKD2D65
(+) 12V
(+) 12V Input
(-) Parking Lights Output
(-) Ground
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle connections
section for the
corresponding
connector, pin and
wire color of your
vehicle.
(+) Ignition Input/Output
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
Remote Start Safety
Override Switch
(-) Driver’s Door Trigger
Refer to the Vehicle connections
section for the corresponding
connector, pin and wire color. ABC
ONLY required for
manual transmission
applications.
Clutch: Yellow, pin B
Clutch Switch
(black 3-pin connector)
Do not connect
12
1412
10 42
Type 1
Tap on to the
Yellow wire of this
3-pin connector and
connect it to the
Ignition Input of the
Remote Starter.

7403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
The Remote
Start Safety
Override
Switch MUST
be in the ON
position.
THGMD1 Rev. 3 (Optional T-Harness)
Ignition Switch
(black or white connector)
HS CAN Low: Pin 14
HS CAN High: Pin 6
HS CAN High: Tan/Black
HS CAN Low: Tan
SW CAN: Pin 1
SW CAN: Lt. Green
Ignition Barrel 16
8
9
1
OBDII Diagnostic
(connector side view)
(-) RAP Off Output: Green/Black
Hood: White/Black
Hood Pin
Note: The Hood Pin is only required on vehicles
that are not equipped with a factory hood pin.
Wiring diagram with T-Harness (THGMD1 Rev. 3)
Type 2
NOT USED
Type 1
To
Immobilizer Control Module
(violet connector
under ignition switch)
Away from
Immobilizer Control Module
(vehicle side)
(+) Ignition Input: Pink
D2D
only
D2D Port
XKD2D65
(+) 12V
(+) 12V Input
(-) Parking Lights Output
(-) Ground
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle connections
section for the
corresponding
connector, pin and
wire color of your
vehicle.
(+) Ignition Input/Output
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
Remote Start Safety
Override Switch
(-) Driver’s Door Trigger
Refer to the Vehicle connections section
for the corresponding connector, pin
and wire color of your vehicle.
ABC
ONLY required for
manual transmission
applications.
Clutch: Yellow, pin B
Clutch Switch
(black 3-pin connector)
Do not connect
12
1412
10 42

8403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
D2D
only

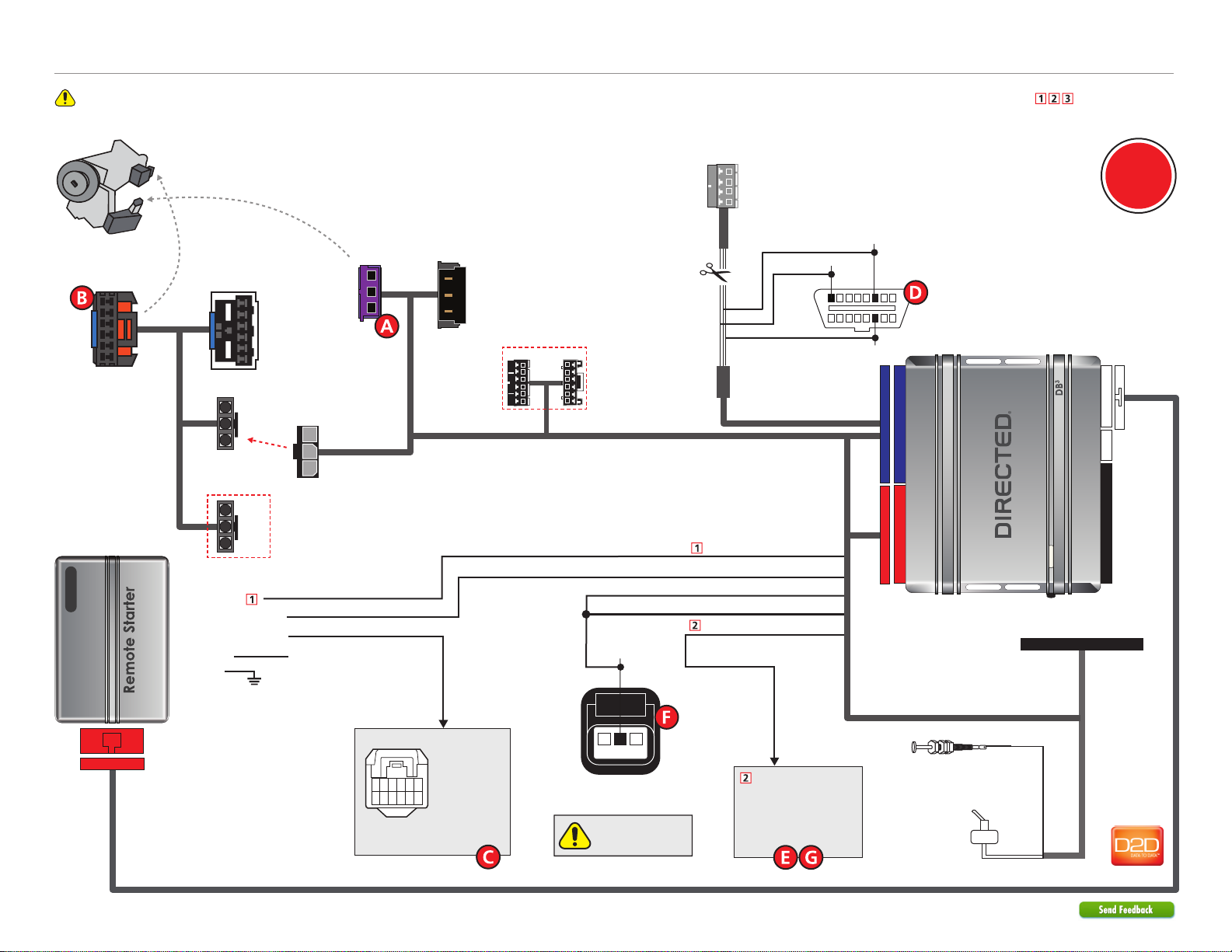

Wiring diagram with T-Harness (THGM610D Rev. 1 & 2)
THGM610D Rev. 1 & 2 (Optional T-Harness)
Use connectors
labeled GM10
3-pin
connectors
GM 10 GM 10
NOT USED
Hood Pin
Note: The Hood Pin is only required
on vehicles that are not equipped
with a factory hood pin.
Remote Start Safety
Override Switch
Ignition Switch
(black or white
connector)
To
Immobilizer
Control Module
(violet connector
under ignition
switch)
Away from
Immobilizer
Control Module
(vehicle side)
Ignition Barrel
NOT USED
HS CAN Low: Pin 14
HS CAN High: Pin 6
SW CAN: Pin 1
16
8
9
1
OBDII Diagnostic
(connector side view)
Cut
4-pin
White
Connector
Cut away the 4-pin
connector and connect
the three wires to the
OBDll 16-pin connector.
HS CAN High: Tan/Black
HS CAN Low: Tan
SW CAN: Lt. Green
3-pin
connectors
T-01
T-02
(+) 12V
(+) 12V Input
(-) Parking Lights Output
ABC
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
ONLY required for
manual transmission
applications.
Clutch: Yellow, pin B
Clutch Switch
(black 3-pin connector)
(+) Ignition Input: Pink
(+) Ignition Input/Output
(-) Driver’s Door Trigger
(-) RAP Off Output: Green/Black
Refer to the Vehicle
connections section for
the corresponding
connector, pin and wire
color of your vehicle.
(-) Ground
(AC) Tach Output: Violet/White
(AC) Tach Input
Do not
connect
D2D Port
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle
connections
section for the
corresponding
connector, pin
and wire color
of your vehicle.
XKD2D65
To
Vehicle
To
Ignition
1412
10 42

9403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
D2D
only
Wiring diagram with T-Harness (THGM610D Rev.3)
THGM610D Rev.3 (Optional T-Harness)
Use connectors
labeled GM10
3-pin
connectors
GM 10 GM 10
NOT USED
Hood Pin
Note: The Hood Pin is only required
on vehicles that are not equipped
with a factory hood pin.
Remote Start Safety
Override Switch
Ignition Switch
(black or white
connector)
To
Immobilizer
Control Module
(violet connector
under ignition
switch)
Away from
Immobilizer
Control Module
(vehicle side)
Ignition Barrel
(+) 12V
(+) 12V Input
(-) Parking Lights Output
ABC
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
ONLY required for
manual transmission
applications.
Clutch: Yellow, pin B
Clutch Switch
(black 3-pin connector)
(+) Ignition Input: Pink
(+) Ignition Input/Output
(-) Driver’s Door Trigger
(-) RAP Off Output: Green/Black
Refer to the Vehicle
connections section for
the corresponding
connector, pin and wire
color of your vehicle.
(-) Ground
(AC) Tach Output: Violet/White
(AC) Tach Input
Do not
connect
D2D Port
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle
connections
section for the
corresponding
connector, pin
and wire color
of your vehicle.
6-pin
connectors
T-01
T-02
NOT USED
HS CAN Low: Pin 14
HS CAN High: Pin 6
SW CAN: Pin 1
16
8
9
1
OBDII Diagnostic
(connector side view)
HS CAN High: Tan/Black
HS CAN Low: Tan
SW CAN: Lt. Green
XKD2D65
To
Vehicle
To
Ignition
1412
10 42

10 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

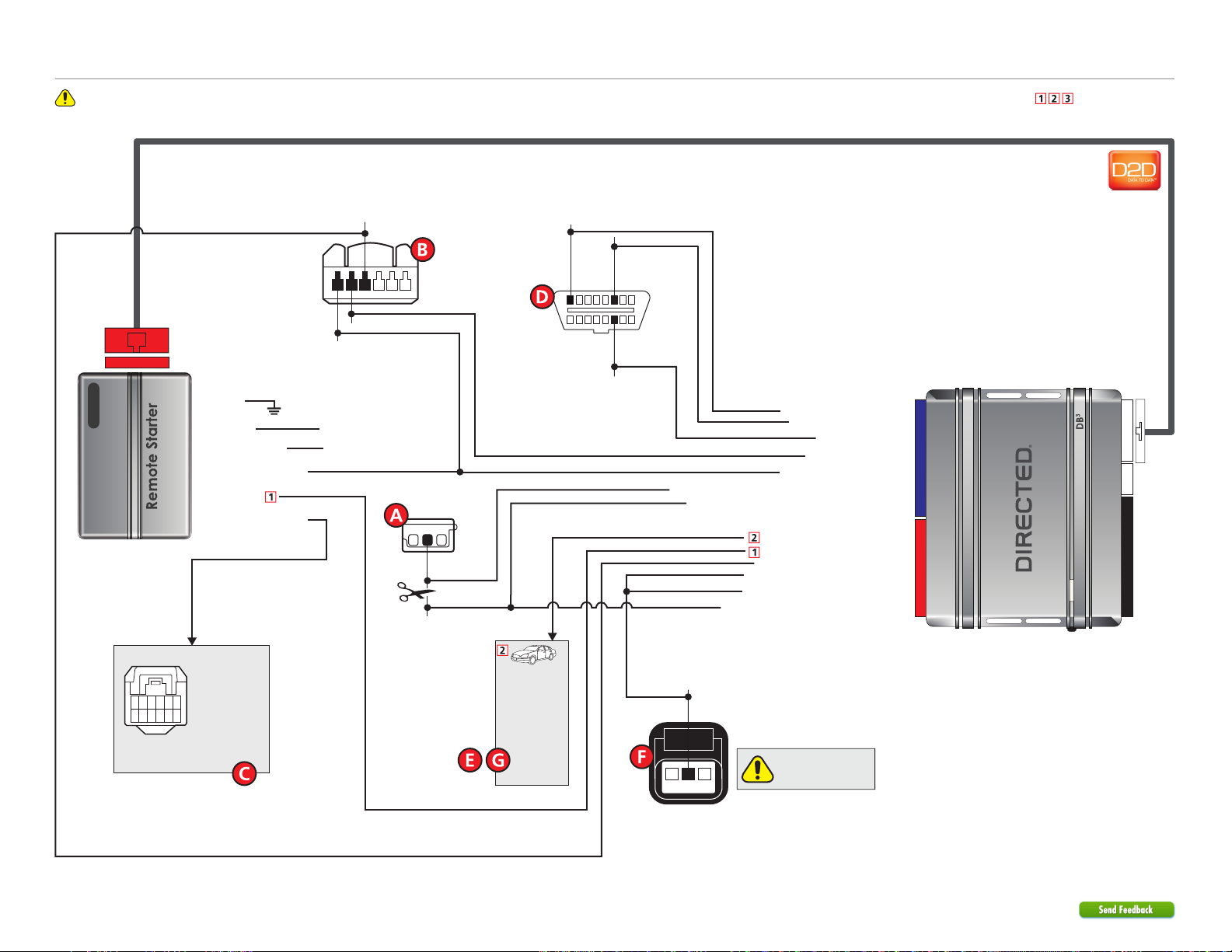

Wiring diagram
16
8
9
1
(+) 12V
(+) 12V Input
(-) Parking Lights Output
ABC
(MUX) Clutch Output: Violet/Green: 8
ONLY required for
manual transmission
applications.
Clutch: Yellow, pin B
Clutch Switch
(black 3-pin connector)
(+) Ignition Input/Output
(MUX) Clutch Output: Violet/Brown: 9
(-) RAP Off Output: Green/Black: 2
(AC) Tach Output: Violet/White: 5
123
Immo.
Data: pin 2
Single Wire CAN: Lt. Green: 1
HS CAN Low: Tan: 4
HS CAN High: Tan/Black: 3
HS CAN Low:
Tan or White
pin 14
HS CAN High:
Tan/Black or Blue
pin 6
SW CAN: Green, pin 1
OBDII Diagnostic
(connector side view)
Cut
Immo. Data Interrupt (connector side): Orange/Red: 10
Immo. Data Interrupt (vehicle side): Yellow/Red: 11
(+) 12V Input: Brown: 7
(+) Ignition Output: Yellow: 8
(+) Accessory Output: Gray/Black: 7
Immo. Data (vehicle side): Orange/Black: 11
15432
(+) Ignition: Pin 1
(+) 12V: Pin 2
(+) Accessory: Pin 3
Ignition Switch
(black or white connector)
Immobilizer
Control
Module
(violet 3-pin
connector
below ignition
switch)
(-) Driver
Door Trigger
D2D Port
XKD2D65
6
(AC) Tach Input
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle
connections
section for the
corresponding
connector, pin
and wire color
of your vehicle.
(-) Ground
Refer to the
Vehicle
connections
section for the
corresponding
connector, pin
and wire color
of your vehicle.
(-) Hood Pin
(-) Hood Status Input
1412
10 42

11 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

12 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2016 Buick Verano. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green (DATA) Single Wire CAN OBD-Data Link Connector, black 16 pin plug, pin 1 Data Green
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High OBD-Data Link Connector, black 16 pin plug, pin 6 Data Blue
H1/4 Tan (DATA) HS CAN Low OBD-Data Link Connector, black 16 pin plug, pin 14 Data White
H1/5 Orange/Green No Connection No Connection
H1/6 Orange/Brown No Connection No Connection
H1/7 Brown Relay N.O. - (+) 12 Volt Ignition Switch, white 6 pin plug, pin 2 + Red/White (2A only)
H1/8 Yellow Relay COM - (+) Ignition Output Ignition Switch, white 6 pin plug, pin 1
Remote Starter
+ Violet/Black
H1/9 Orange/Yellow Relay N.C. - (+) Ignition Input/Output No Connection
H1/10 Orange/Red Relay N.C. - Immo. Data Interrupt (conn. side) Immobilizer Control Module on ignition switch, violet 3 pin plug, pin 2 Data Green/Violet
H1/11 Yellow/Red Relay COM - Immo. Data Interrupt (vehicle side) Immobilizer Control Module on ignition switch, violet 3 pin plug, pin 2 Data Green/Violet
H1/12 Brown/Red Relay N.O. - No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Ignition Switch, white 6 pin plug, pin 2 + Red/White (2A only)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black (-) RAP Off Output [2] Driver Window Motor, black 7 pin plug, pin 6 - Gray
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [1] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black (+) Accessory Output Ignition Switch, white 6 pin plug, pin 3 + Violet/Yellow
H2/8 Violet/Green (MUX) Clutch Activation Output Clutch Switch, black 3 pin plug, pin B
ONLY required for manual transmission applications.
Resistor
s
Yellow
H2/9 Violet/Brown (MUX) Clutch Activation Output Clutch Switch, black 3 pin plug, pin B
ONLY required for manual transmission applications.
Resistor
s
Yellow
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black Immo. Data (vehicle side) Immobilizer Control Module on ignition switch, violet 3 pin plug, pin 2 Data Green/Violet
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter

13 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet (-) W2W Only - Window Roll Up Remote Starter
H3/5 Violet/Black (-) W2W Only - Window Roll Down - If applicable see
firmware function compatibilities
Remote Starter
H3/6 White/Black (-) W2W Only - Heated Seat Activation Vehicle - If
applicable see firmware function compatibilities
Remote Starter
H3/7 Pink/White No Connection No Connection
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink No Connection No Connection
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue
H4/2 Black
H4/3 Green
H4/4 Red
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
Ground (chassis ground)
Hood Pin BCM on passenger side of center dash, black 26 pin plug, pin 24 - brown/green
Ignition Ignition Switch, white 6 pin plug, pin 1 + Violet/Black
Parking Lights - Headlight Switch, black 12 pin plug, pin 3 - Green/Gray
Second 12 Volts Ignition Switch, white 6 pin plug, pin 2 + Red/White (2A only)
Tachometer top front of engine, black 12 pin plug, pins 1, 2, 3, or 4 ac brown, blue, green, or lt. blue

14 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
1
Wait until the LED turns ON solid red.
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. Wait until the LED turns ON solid orange for 3 seconds, then
proceed to step 2.
2
Press Unlock on the OEM remote or the door to wake up the CAN bus. The LED starts
flashing orange quickly.
If the transponder programming was skipped, the LED turns ON solid orange for 3 seconds,
then turns OFF when programming is completed.
3Insert and turn the key to the ON position, then leave it there for 5 seconds. The LED starts
flashing green quickly.
4Turn the key to OFF and remove it from the ignition barrel. The LED will keep flashing green
quickly.
5Important! This operation must happen within 5 seconds.
Insert the key back into the ignition barrel. The LED keeps flashing green quickly.
6Turn the key to the ON and leave it there. Within 15 seconds, the LED will start flashing
orange slowly.
7When the LED starts flashing orange slowly, turn the ignition OFF, remove the module from
the vehicle, and reconnect it to your computer. The web site will automatically recognize that
you are moving onto the second phase of the programming sequence.
8Click on Submit Key2GO Request.
9Once the configuration is completed, reconnect the module. The LED turns ON solid green for
3 seconds, then shuts OFF.
You have successfully completed the module programming sequence.

15 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Key2GO
This feature is required if only one key is available. You can program the interface without the need for Key2GO if two keys are
present.
Key2GO has been designed and developed to bypass the advanced encryption layers found in modern vehicles. It uses an array of servers
to generate a duplicate of the original key, allowing the installation of a remote starter without having to give up a key.
The advantage is that this feature allows you to use one original key and the server to configure the bypass in the vehicle.
All Key2GO-compatible firmware are clearly indicated in the function list of each vehicle search result page and will also appear on the
flash page. Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the
registration process, such as your Directed account number and store name.
Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application.
Refer to the Module Programming section of this guide for instructions on how to program features using Key2GO.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
D2D installation
Recommended: Connect the 10-pin, 12-pin and 14-pin harnesses to the module, then
connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
4th
(D2D)
2nd
(12-pin)
OR
W2W installation
If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin
harness to the module. 3rd
(14-pin)
1st
(10-pin)
2nd
(12-pin)

16 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted. Ensure
the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

17 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.

Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

18 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Soft reset
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

19 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

20 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at
www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this
page.
* Default option
Feat
.Operation Flashes / Option Description
1 RFTD Output Type 1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Unlock Driver Priority 1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is pressed a second
time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
3 Trunk 1. Trunk* Will pop the trunk if available.
2. Tail Glass Opening Will open the tail glass if available.
4
5 Comfort Closure with
Lock
1. Disabled* No action.
2. Enabled for Windows Module will perform windows roll up upon lock command.
3. Enabled for Windows
and Sunroof Module will perform windows roll up and close sunroof upon lock command.
6 Heated Seats 1. Disabled* No operation.
2. Enabled When the feature is enabled, it will activate the Heated Seats and heated steering wheel.
7 Heated
Seats/Defroster
Temperature Control
1. 32 °F (0 °C)* When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 32 °F (0 °C).
2. 23 °F (-5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 23 °F (-5 °C).
3. 41 °F (5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 41 °F (5 °C).
4. Always ON When Heated Seats or Defroster feature is enabled, it will activate the feature at any temperature.
8 Smart OEM Alarm
Control
1. Disabled The OEM alarm will not be controlled by the interface upon remote start. No disarm or arm command will be
executed at the beginning or end of the sequence; it must be controlled by the Remote Starter.
2. Safelock Smart OEM Alarm Control will behave like a standard Safelock feature on a remote starter. It will unlock at the
beginning of the sequence, and relock after start and shutdown.
3. Enabled*
Smart OEM Alarm Control will synchronize with the OEM alarm so that it will disarm and rearm the vehicle in the
remote start sequence, only when required. Smart OEM Alarm Control will monitor the alarm and door lock
status to detect if the disarm or rearm is required. If the vehicle is unlocked or is not equipped with factory alarm,
the disarm/rearm will not be executed.
