Directed Directechs DB3 User manual

Designed by Installers for Installers
INSTALLATION GUIDE
DB3
2005 Lincoln LS. 403.FORD1 4.21
© 2020 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.

Introduction 4
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Wiring diagram 5
Locating components in the vehicle 7
Vehicle connections 8
Key2GO 11
Disarm testing 12
Connecting the module 12
Module programming 14
2-Key programming NO Key2GO 14
1-Key programming using Key2GO 15
LED diagnostics and troubleshooting 16
Soft reset 18
Hard reset 18
Feature programming 19
Feature and option list 20
Limited one year consumer warranty 20
Quick reference guide 21
Contents

3403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Warning! Safety first
The following safety warnings must be observed at all times:
• Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer.
• When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never
operate the system in an area that does not have adequate ventilation.
The following precautions are the sole responsibility of the user; however, authorized Directed dealers should:
• Never use a test light or logic probe when installing this unit. Always use a multimeter.
• Never operate the system in an enclosed or partially enclosed area without ventilation (such as a garage).
• When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote start system must
be disabled using the installed toggle switch. It is the user’s sole responsibility to properly handle and keep out of reach from
children all remote controls to assure that the system does not unintentionally remote start the vehicle.
• USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.
ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE
STORAGE AREA MUST REMAIN CLOSED AT ALL TIMES.
Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or
death. Except when performing the Safety Check outlined in this installation guide, (1) Never remotely start the vehicle with
the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user is responsible for having the
neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in this product
installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the user to fix the problem
immediately.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF
OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE
OR PERSONAL INJURY. IMMEDIATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE INSTALLED REMOTE
START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.
Remote starters for manual transmission pose significant risks if not properly installed and operated. When testing to ensure the
installation is working properly, only remote start the vehicle in neutral gear, on a flat surface and with a functional, fully engaged
parking brake. Do not allow anyone to stand in front of or behind the vehicle.
This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such
vehicles may pose certain risk.

4403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Disarm Factory Security
Ford Key2Go (40-bit keys only)
Key2GO
Immobilizer Bypass-Data No Key Req'd
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart

5403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Keys required for
programming 1 or 2 Keys required for operation 0
Key2GO is required if only one master key is available. You can program the interface without the need for Key2GO if
two master keys are present.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
connector.
Refer to the "Vehicle connections" following the installation diagram.
General notes: This section highlights important information for this specific firmware.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[3] If present, CAN connections are ONLY required is using in conjunction with SmartStart.
[4] Warning: To avoid vehicle damage, refer to 'Vehicle connections' for parking light and Configuration.

6403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
RX: Orange/Black: 11
TX: Yellow/Black: 10 9: Pink: (+) Ignition Input
1412
10 42
Connect to vehicle
Go to
www.directechs.com
for more information
on vehicle-specific
wiring connections.
(-) Ground
(+) 12V Input
(+) Accessory 1,2,3 Outputs
(-) Factory Alarm Arm Output
(-) Factory Alarm Disarm Output
(programmed for double pulse)
(-) Trunk/Hatch Release Output
(+) Starter Output
(+) Brake Input
(+) Ignition Output
D2D Port
XKD2D65
(AC) Tach Input
HS CAN Low: Orange/Brown: 6
HS CAN High: Orange/Green: 5
16
8
9
1OBDII Diagnostic Connector,
under Driver Dash
(connector side view)
(-) Hood Pin Input
(-) Parking Lights Output
HS CAN Low: Blue/Red, pin 14
HS CAN High: Gray/Red, pin 6
4
3
2
1
RX: Gray/Red, pin 4
TX: White/Red, pin 3
PATS Transceiver
(black conn.
on ignition switch)
RAP Off Interrupt (veh. side): Orange/Red: 10
RAP Off Interrupt (conn. side): Yellow/Red: 11
Driver
Door Trigger
Cut

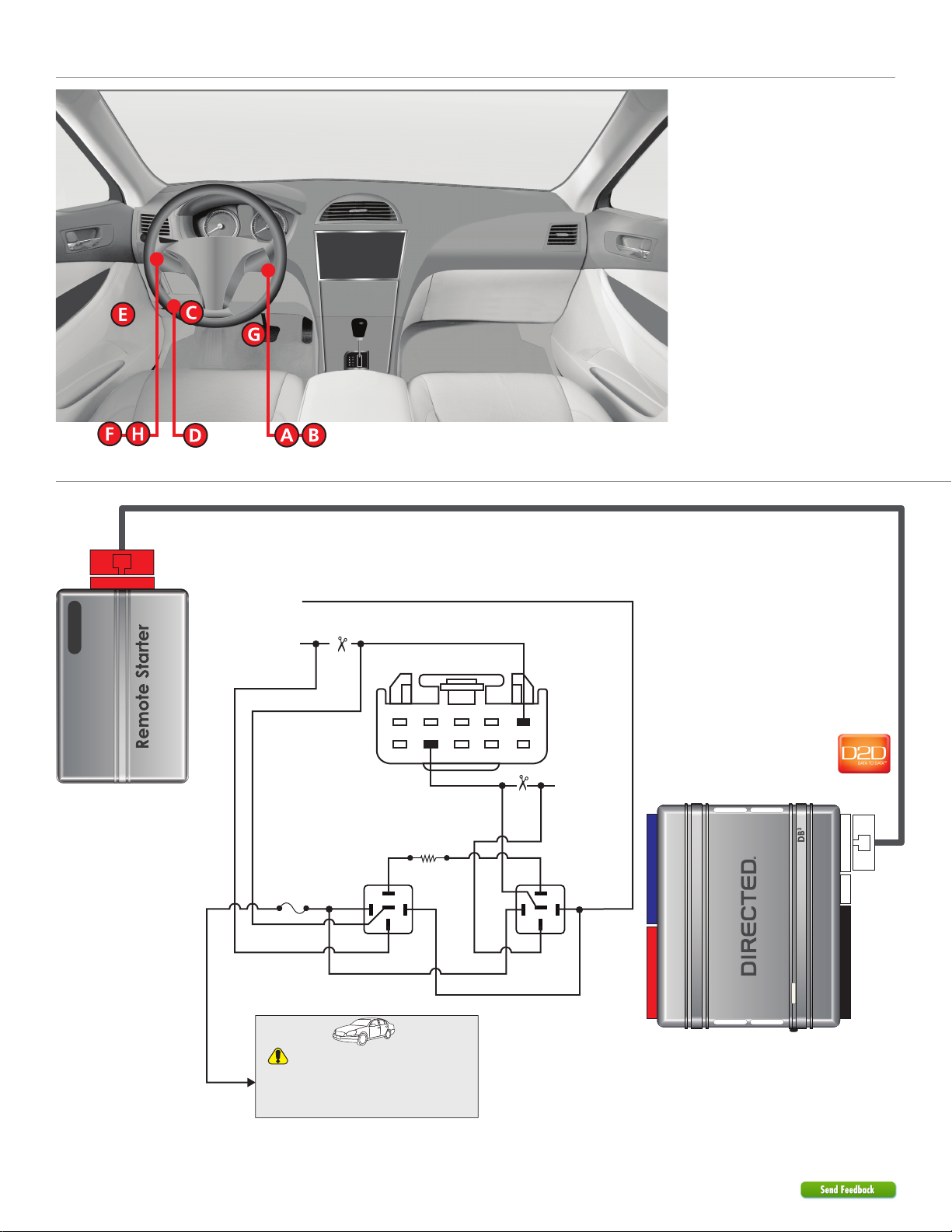

Wiring diagram
(+) Ignition Output: Yellow: 8
(+)12V Input: Brown: 7
Hood Pin
OR

7403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Locating components in the vehicle
Parking light connections
30
86 85
87
87a
30
86 85
87
87a
Fuse 10A
Refer to Vehicle Connections or
go to www.directechs.com for more
information on vehicle-specific
wiring connections.
Resistor 1800Ω
51
106
CUT
CUT (-) Parking Lights: White/Blue or White/Green, pin 5
(-) Parking Lights:
Brown/Green, pin 7
1412
10 42
D2D Port
XKD2D65
(-) Parking Lights Output

8403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2005 Lincoln LS. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black No Connection No Connection
H1/4 Tan No Connection No Connection
H1/5 Orange/Green (DATA) HS CAN High [3] OBD-Data Link Connector, black 16 pin plug, pin 6 Data Gray/Red
H1/6 Orange/Brown (DATA) HS CAN Low [3] OBD-Data Link Connector, black 16 pin plug, pin 14 Data Blue/Red
H1/7 Brown Relay N.O. (+) 12 Volt Input Ignition Switch, black 8 pin plug, pins 1, 7 + Red (x2) (common 20A)
H1/8 Yellow Relay COM (+) Ignition Output Ignition Switch, black 8 pin plug, pin 5
Remote Starter
+ Green/Black
H1/9 Orange/Yellow Relay N.C. No Connection No Connection
H1/10 Orange/Red Relay N.C. RAP Off Interrupt (vehicle side) FEM in driver kick, 20 pin plug, pin 8 - N.C. black/yellow
H1/11 Yellow/Red Relay COM RAP Off Interrupt (conn. side) FEM in driver kick, 20 pin plug, pin 8 - N.C. black/yellow
H1/12 Brown/Red Relay N.O. No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Ignition Switch, black 8 pin plug, pins 1, 7 + Red (x2) (common 20A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White No Connection No Connection
H2/2 Green/Black No Connection No Connection
H2/3 Green/White No Connection No Connection
H2/4 Red/Black No Connection No Connection
H2/5 Violet/White No Connection No Connection
H2/6 Gray No Connection No Connection
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black (DATA) TX PATS Transceiver on ignition switch, green 4 pin plug, pin 3 Data White/Red
H2/11 Orange/Black (DATA) RX PATS Transceiver on ignition switch, green 4 pin plug, pin 4 Data Gray/Red
H2/12 Blue/Red No Connection No Connection
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color

9403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
Must use a diode.
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
Must use a diode.
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
Must use a diode.
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink (+) Ignition Input Ignition Switch, black 8 pin plug, pin 5
Remote Starter
+ Green/Black
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

10 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts Ignition Switch, black 8 pin plug, pins 1, 7 + Red (x2) (common 20A)
Accessory Ignition Switch, black 8 pin plug, pin 2 + Pink/White
Brake Wire brake pedal switch + orange/blue
Factory Alarm Arm Driver Door Module, 20 pin plug, pin 16 - black/blue
Factory Alarm Disarm Driver Door Module, 20 pin plug, pin 17 double - black/white
Ground (chassis ground)
Hood Pin FEM in driver kick, 12 pin plug, pin 3 - N.C. white
Ignition Ignition Switch, black 8 pin plug, pin 5 + Green/Black
Parking Lights - see Tech Doc 1095
Second Accessory Ignition Switch, black 8 pin plug, pin 6 + Pink/Yellow
Starter Ignition Switch, black 8 pin plug, pin 3 + Gray/Black
Tachometer any ignition coil or fuel injector ac brown or brown/stripe
Third Accessory Ignition Switch, black 8 pin plug, pin 4 + Yellow
Trunk/Hatch Release FEM in driver kick, 26 pin plug, pin 4 - white

11 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Key2GO
This feature is required if only one key is available. You can program the interface without the need for Key2GO if two keys
are present.
Key2GO has been designed and developed to bypass the advanced encryption layers found in modern vehicles. It uses an array
of servers to generate a duplicate of the original key, allowing the installation of a remote starter without having to give up a key.
The advantage is that this feature allows you to use one original key and the server to configure the bypass in the vehicle.
All Key2GO-compatible firmware are clearly indicated in the function list of each vehicle search result page and will also appear
on the flash page. Any first-time user must re-register to gain access to Key2GO, and some additional information will be required
to complete the registration process, such as your Directed account number and store name.
Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application.
Refer to “Module programming” of this guide for instructions on how to program features using Key2GO.

12 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Disarm testing
It is important to read through all the steps before proceeding.
Note: This testing is to be done if you want to use the DB3 to disarm the factory alarm on unlock and trunk release. This install
type can only be done on low current ignition switch and on vehicles that do not disarm using the key to unlock the driver's door. If
using a one-button system or door locks are not being connected, the disarm will automatically be done upon remote start.
1Position the key next to the ignition barrel in a way that you can free your hands, and have
a few jumpers ready for the next steps.
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
Key Near the Ignition Barrel
2Arm the factory alarm on your vehicle.
Arm Factory Alarm
3Trigger the factory alarm by opening a door. Open Door to
Trigger alarm
4
You must now try to power up the ignition, accessory and keysense wires with jumpers in order to determine what is
required to disarm the system. It can be a combination of two wires.
Note: The key must be near (but not inserted into) the ignition barrel during the entire length of the testing.
Common scenarios include Ignition only, Ignition + Accessory or Ignition + Keysense, but may differ.
5When you have found what combination works to disarm the system, refer to the
installation wiring diagram to make the proper connections to the DB3 module.
Connect to DB3

13 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
D2D installation
Recommended: Connect the 10-pin, 12-pin and 14-pin harnesses to the module, then
connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
4th
(D2D)
2nd
(12-pin)
OR
W2W installation
If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin
harness to the module. 3rd
(14-pin)
1st
(10-pin)
2nd
(12-pin)

14 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
2-Key programming NO Key2GO
1
Wait until the LED turns ON solid red.
Note: To skip the transponder programming and use convenience features only, press
the programming button 5 times. When the LED turns ON solid orange, proceed to the
next step. (This feature can only be used with vehicles that are NOT equipped with an
OEM alarm.)
2Insert the first key and turn it to the ON position, wait at least 3 seconds but no more
than 10 seconds, then remove it. The LED turns ON solid red.
3Insert the second key and turn it to the ON position, wait at least 3 seconds but no
more than 10 seconds, then remove it. The LED now flashes orange, otherwise repeat
steps 2 & 3.
4
Wait for at least 3 seconds, but no more than 10 seconds, and press and hold the
module programming button. The vehicle ignition turns ON. The LED turns ON solid
green for 3 seconds, then turns OFF.
Note: Release the program button as soon as the orange LED stops flashing orange. If
you wait to long to release the programming button, you will have to restart the
programming sequence.
5Turn vehicle ignition OFF once the module is successfully programmed.
You have successfully completed the module programming sequence.

15 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
1-Key programming using Key2GO
1Do NOT connect other harnesses to the DB3 module.
Connect the module to your computer using the XKLoader.
2Open an Internet Explorer browser (version 6 or higher), and go to
www.directechs.com. The detail of the platform and firmware that is currently saved on
the interface module will be indicated in the top left corner of the page.
3Flash your module with the firmware corresponding to FORD1 Key2GO.
4Connect the module wiring to the vehicle first, and only then, plug the harnesses to the
DB3 without pressing the programming button. The LED turns ON solid red.
5
Insertthe key andthen turn the ignition ON and OFF twice. The LEDnow
flashesorange.
If the transponder programming was skipped, the LED turn ON solid orange 3 seconds
then shuts OFF. The programming is now complete.
6Remove the module from the vehicle and reconnect it to your computer. The web site
will automatically recognize that you are moving onto the second phase of the
programming sequence.
7Click on Submit Key2GO Request.
8Once the configuration is completed, reconnect the module. The LED flashes orange
once, turns ON solid green for 3 seconds, then turns OFF.
You have successfully completed the module programming sequence.

16 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black
wires. If 12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green &
red
Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact
Technical Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset
the and reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO
programming.
Solid green x 3
secs
Module was successfully programmed
with all functions. Normal operation.
Solid orange x 3
secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus
by turning the ignition on and try again. If your installation does not require this connection, skip
this step by pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try
again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the
ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted.
Ensure the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please
contact Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams
& vehicle wiring reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams
& vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to
“Installation (wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

17 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red &
orange
Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green
quickly
Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired
in takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

18 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Soft reset
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)

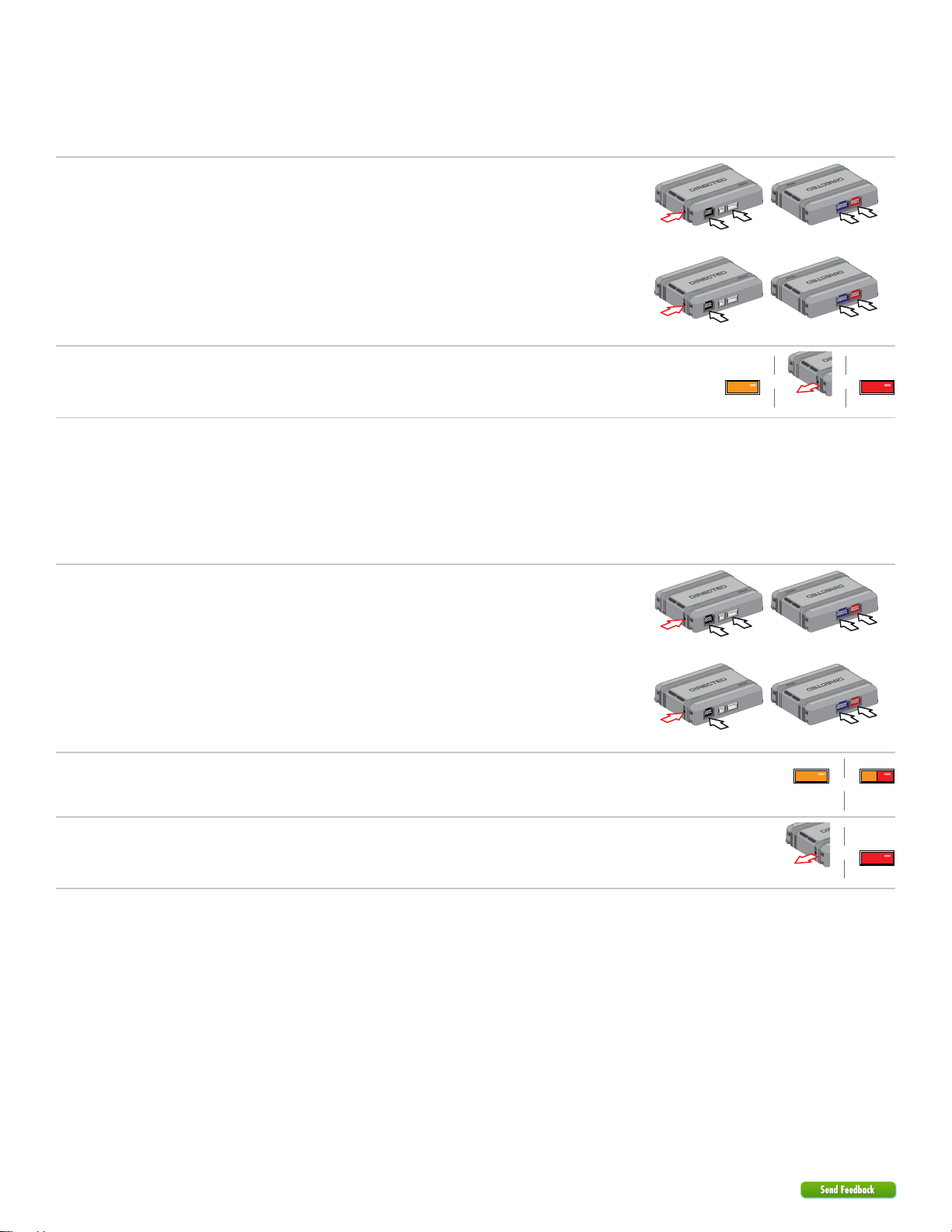

2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

19 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

20 403.FORD1 4.21 2005 Lincoln LS
© 2020-06-02 Directed. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing
page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the
information on this page.
* Default option
Feat. Operation Flashes / Option Description
1 RFTD Output
Type
1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 OEM Security
Equipped
1. Without OEM
alarm* The hood sensing feature is not available.
2. With OEM
alarm The hood sensing feature is available.
