Directed Directechs DB3 User manual

Functions compatible with the 2018 Toyota RAV4 Hybrid (Smart Key)
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Locks Status
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Driver Door Pin
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Fuel level/EV battery level
Ignition Status
Immobilizer Bypass-Data No Key Req'd
Remote Start Ready
SmartStart
Tach / RPM Output
Trunk / Hatch Release
403.TL6
v2.26
2018 Toyota RAV4 Hybrid (Smart Key)

Introduction 3
Pre-installation and application warnings 4
OEM remote starter information 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 10
IMPORTANT!Before programming your module, you must first check if your vehicle is equipped with an OEM remote
starter and disable it. If the vehicle is equipped with an OEM remote starter, whether Active or Inactive, itMUSTbe
temporarily disabled or permanently disconnected depending on the vehicle Please refer to the "OEM remote starter
information" section of the guide for additional details.Note:In some cases, the module will program to the vehicle even
if equipped with an OEM starter, but will prevent the aftermarket remote start from functioning properly. 9
Connecting the module 11
LED diagnostics and troubleshooting 12

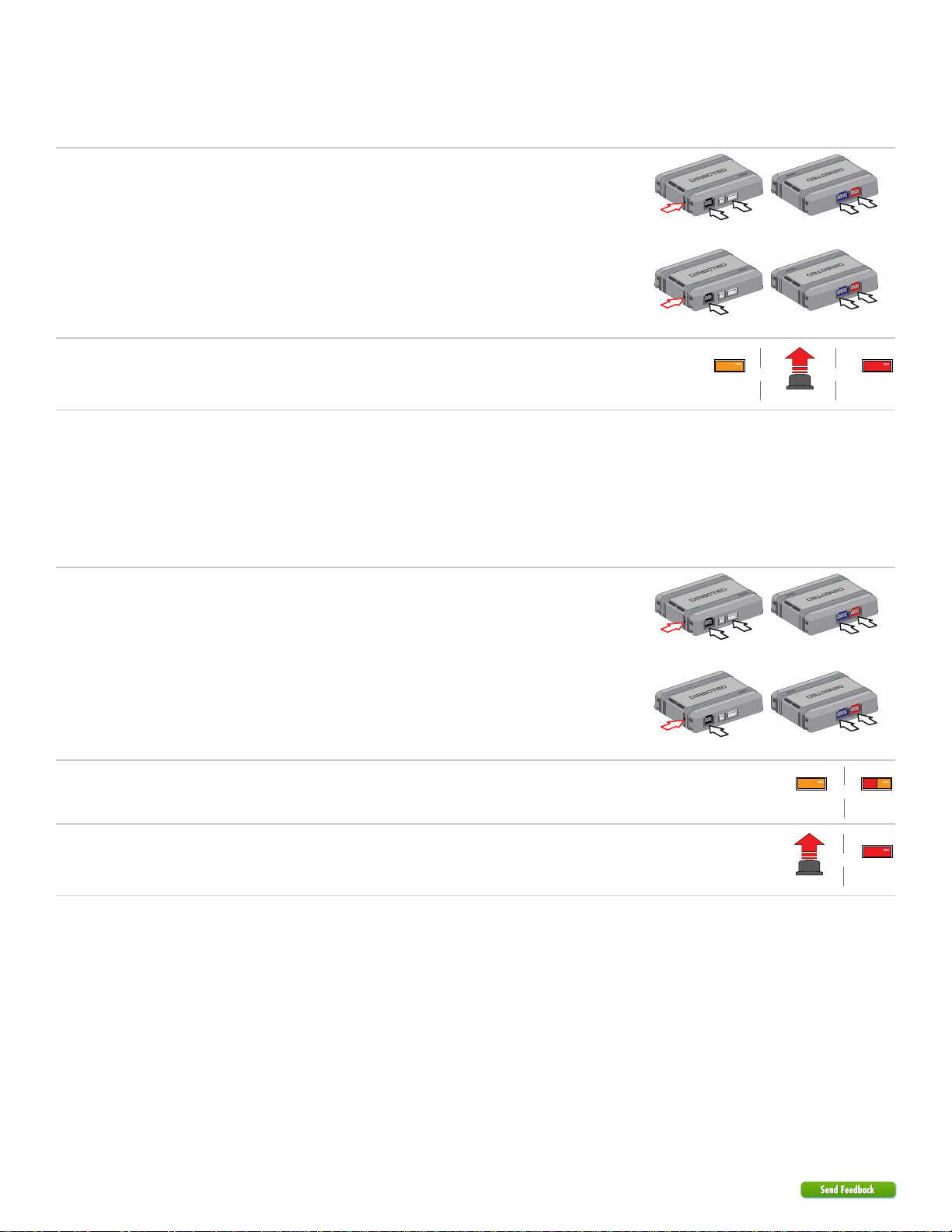

Soft reset 14
Hard reset 14
Feature programming 15
Feature and option list 16
Limited one year consumer warranty 17
Quick reference guide 18
Contents

3403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible .T-Harness is not compatible.
AUX
Keys
required for
programming 1Keys required
for operation 0
Vehicle Takeover Takeover feature is not available on Push-to-Start vehicles. Engine will shut off when door is opened.
Firmware notes
OEM Remote Starter: Before programming your module, you must first check if your vehicle is equipped with an OEM remote
starter and disable it. If the vehicle is equipped with an OEM remote starter, whether Active or Inactive, it MUST be temporarily
disabled or permanently disconnected depending on the vehicle. Please refer to the “OEM remote starter information” section of the
guide for additional details.
Note: In some cases, the module will program to the vehicle even if equipped with an OEM starter, but will prevent the aftermarket
remote start from functioning properly.
Keyless and Smart Key: will remain functional during remote start.
All connectors are displayed from the wire side (unless specified otherwise).
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Tach wire: This is an optional connection required on some remote starters, which do not support a tach signal in D2D. Also, by
default, the tach is set to 1000 rpm on hybrid vehicles
[3] Pit Stop/Idle mode: This connection is only required for Pit Stop/Idle mode in manual transmission vehicles.
[4] Autolights: This connection is only required if vehicle is equipped with autolights..

5403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
OEM Remote Starter Information
If the vehicle has an active OEM remote starter, it will program in to Convenience-Only (no immobilizer bypass). This will allow aftermarket
security to be installed while keeping the factory remote starter active. If you wish for the interface to control the remote start sequence,
perform one of the following actions:
How to determine if a vehicle is equipped with an OEM remote starter?
If the vehicle is equipped with an Add-On Lexus/Toyota OEM remote starter: Some Lexus/Toyota vehicles may have an Add-
On OEM remote starter. If the OEM unit is installed, whether Active or Inactive, it MUST be permanently disconnected as both modules
cannot coexist. Refer to the chart below and always physically inspect and disconnect any OEM remote starter before programming any
Directed products.
Physical OEM remote start locations
Make Model Year Fuse Location
Toyota Avalon (Smart Key) 2013-2016 Behind glovebox upper right hand side.
Toyota Avalon Hybrid 2013-2016 Behind glovebox upper right hand side.
Toyota Camry (Smart Key) 2013-2016 Behind glovebox upper left hand side.
Toyota Camry Hybrid 2013-2016 Behind glovebox upper left hand side.
Toyota RAV4 (Smart Key) 2013-2015 High above drivers kick panel.
If the vehicle is equipped with a BCM Enabled Lexus/Toyota OEM remote starter: The vehicle does not have a physical remote
starter and only one module can be programed at a time. In this case, temporally disable the OEM remote start system using the following
process:
1. Remove the fuse powering the OEM Remote Starter (see chart below for fuse locations).
2. Perform a "Soft reset" or "Hard reset".
3. Perform the "Module programming".
4. After programming is successful, re-insert the fuse powering the OEM Remote Starter.
OEM remote start fuse locations
Make Model Year Fuse Location Fuse
Name
Fuse
Value
Lexus ES 300h (Smart Key) 2013-2015 Engine room relay box, left side of engine compartment. Mayday 5A
Lexus ES 350 (Smart Key) 2013-2015 Engine room relay box, left side of engine compartment. Mayday 5A
Lexus GS 200t (Smart Key) 2017 Bottom of luggage room junction box, left rear quarter panel. DCM 7.5A
Lexus GS 350 (Smart Key) 2013-2016 Engine room relay box, right side of engine compartment. DCM 7.5A
Lexus GS 350 (Smart Key) 2019-2020 Bottom of luggage room junction box, left rear quarter panel. DCM 7.5A
Lexus GS 450h (Smart Key) 2013-2018 Bottom of luggage room junction box, left rear quarter panel. DCM 7.5A
Lexus GS F (Smart Key) 2017-2020 Bottom of luggage room junction box, left rear quarter panel. DCM 7.5A
Telematics Interrupt
Depending on your vehicle, a telematics interrupt may be required. A status output must be assigned and an external relay must be used.
Refer to Directwire on www.directechs.com for vehicle-specific telematics interrupt wire color and location.

6403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram
D2D Port
(+) Ignition Input/Output
(+) 12V Input
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Autolight Interr. (conn. side): Yellow: 8
Autolight Interr. (veh. side): Orange/Yellow: 9
Immo Data 1: Yellow/Black: 10
Immo Data 2: Orange/Black: 11
1412
10 42
TX
(+) 12V
(-) Ground
RX
9: Pink:
(+) Ignition Input
(-) Parking Light Output
XKD2D65
(-) Ground
(-) SLP:
Lt. Green, pin 4
HS CAN High: Green, pin 14
Body ECU
(white 30-pin
conn. on back
of dash fusebox)
BRX: Red, pin 26
BTX: Blue, pin 25
(-) Autolights:
Green, pin 28
(-) Parking Light:
White, pin 30
(+) Ignition Status Output: Gray/Black: 7
(AC) Tach Output: Violet/White: 5
(-) SLP Output: Yellow/Red: 11
(AC) Tach Intput
Do not connect these wires:
accessory and ignition from
the remote starter to the vehicle.
(-) Push-to-Start Output: Green/Black: 2
(-) PTS:
Green, pin 1
Engine Start/Stop switch
(black 10-pin
connector)
HS CAN Low: White, pin 13
89 7
2021 19
56
1718 16
29
4
27
1415 13 11
12 10
2324 22
283030 2526
23 1
Cut
(+) Starter Output
Certification ECU
(white 18-pin connector
behind glove box)
(+) Start Enable:
Lt. Blue, pin 7
1
6 5
1314
4 3
1112
87
1516
10 9
1718
2
FUSES
BODY ECU
(+) 12V:
White,
pin 1
Dash Fuse Box
(white conn.)
1
(-) Ground: Brown/Red: 12
Steering Lock
(black 7-pin connector)
1234567
(-) Hood Pin Input
Hood Pin

7403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Locating components in the vehicle

8403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2018 Toyota RAV4 Hybrid (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High Body ECU on back of dash fuse box, white 30 pin plug, pin 14 or Steering
Sensor, black 5 pin plug, pin 3
Data Green or Pink
H1/4 Tan (DATA) HS CAN Low Body ECU on back of dash fuse box, white 30 pin plug, pin 13 or Steering
Sensor, black 5 pin plug, pin 2
Data White
H1/5 Orange/Green (DATA) HS CAN High No Connection
H1/6 Orange/Brown (DATA) HS CAN Low No Connection
H1/7 Brown Relay N.O. No Connection No Connection
H1/8 Yellow Relay COM. Auto Light Interrupt (connector side) [4] Body ECU on back of dash fuse box, white 30 pin plug, pin 28 Cut Green
H1/9 Orange/Yellow Relay N.C. Auto Light Interrupt (vehicle side) [4] Body ECU on back of dash fuse box, white 30 pin plug, pin 28 Cut Green
H1/10 Orange/Red Relay N.C. No Connection No Connection
H1/11 Yellow/Red Relay COM. (-) SLP Output Steering Lock Actuator on steering column, black 7 pin plug, pin 4 - Lt. Green
H1/12 Brown/Red Relay N.O. (-) Ground (chassis ground)
H1/13 Red (+) W2W Only - 12 Volt Input Dash Fuse Box, white 1 pin plug (3A), pin 1 + White (120A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black (-) PTS Output [3] Engine Start Stop Switch, black 10 pin plug, pin 1 - Green
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black (+) Ignition Status Output Remote Starter
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown (MUX) W2W Only - Hood Output Remote Starter
H2/10 Yellow/Black (Data) Immo Data 1 Body ECU on back of dash fuse box, white 30 pin plug, pin 25 Data Blue (BTX)
H2/11 Orange/Black (Data) Immo Data 2 Body ECU on back of dash fuse box, white 30 pin plug, pin 26 Data Red (BRX)
H2/12 Blue/Red (-) Lock Output No Connection

9403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet (-) W2W Only - Pk Light Input Remote Starter
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) Ignition Input Data 14-pin blue connector - Pin 4
Remote Starter
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue
H4/2 Black
H4/3 Green
H4/4 Red
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A
H5/2 N/A
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts Dash Fuse Box, white 1 pin plug (3A), pin 1 + White (120A)
Hood Pin [1] above driver kick, white 5 pin plug, pin 4 - red (with remote start only)
Parking Lights - Body ECU on back of dash fuse box, white 30 pin plug, pin 30 - White
Starter Certification ECU behind glove box, white 18 pin plug, pin 7 + Lt. Blue
Tachometer [2] (program engine checking off)

10 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
IMPORTANT! Before programming your module, you must first check if your vehicle is equipped with an OEM
remote starter and disable it. If the vehicle is equipped with an OEM remote starter, whether Active or Inactive,
it MUST be temporarily disabled or permanently disconnected depending on the vehicle Please refer to the
"OEM remote starter information" section of the guide for additional details.
Note: In some cases, the module will program to the vehicle even if equipped with an OEM starter, but will
prevent the aftermarket remote start from functioning properly.
1Wait until the LED turns ON solid red.
2Wait 4 seconds before turning the ignition ON.
The LED flashes orange if an OEM remote starter is detected. Refer to "OEM remote starter
detection" for more information.
3Press the Push-to-Start (PTS) button twice to turn the ignition ON. The LED turns ON solid
green for 3 seconds, thenshuts OFF.
4If the LED flashes orange, press the programming button 5 times. The LED turns ON solid
orange for 3 seconds to indicatethe programming is completed. Otherwise, proceed to the
next step.
5Press the PTS button once more to turn the ignition OFF.
You have successfully completed the module programming sequence.

11 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double-check to ensure everything is in order before
moving onto the programming.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
To flash a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select Flash Module.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. When you have configured the firmware options, click FLASH.
To flash a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the onscreen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
D2D installation
Recommended: Connect the 10-pin, 12-pin and 14-pin harnesses to the module, then connect the
4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
4th
(D2D)
2nd
(12-pin)
OR
W2W installation
If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin
harness to the module. 3rd
(14-pin)
1st
(10-pin)
2nd
(12-pin)

12 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted. Ensure
the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

13 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.

Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

14 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Soft reset
A module reset will only erase the steps perfomed in “Module Programming”. The firmware and settings flashed to the module will not be
affected.
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module.
Press and hold the programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module.
Press and hold the programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid Solid
Release
Hard reset
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings may need to be
reconfigured. Connect your module to a computer and use the web configuration tool to edit its programmable features.
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the LED starts
to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Solid
Release

15 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the programming button.
The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the
current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing sequence will repeat
until a new command is entered.
Changing feature options:
4. Press the lock/arm or unlock/disarm button on the aftermarket transmitter to change the option of the selected feature.
The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green slowly the
number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
4. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly to indicate
the current option of the current feature. The flashing sequence will repeat until a new command is entered. When the maximum number
of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
4. To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30
seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

16 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Feature and option list
Depending on your vehicle, some of the features and options listed below may need to be configured using the configuration tool found on
the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible
using the information on this page.
* Default option
Feat
.Operation Flashes / Option Description
1 RFTD Output Type 1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Unlock Driver Priority 1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is pressed a second
time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.

17 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Limited 12 Months Consumer Warranty
VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date
of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter for a vehicle security or remote start system is warranted for
12 months from he date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), authorization number, specication of defect(s), transportation prepaid, to an approved
warranty station. This warranty is not transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs incurred for the installation, removal or
reinstallation of the product. This Warranty does not cover batteries, broken LCD transmitter display screens, nor apply
to any product or part thereof which, in the opinion of the Company, has su󰀨ered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal
rights and you may also have other rights which vary from state to state.
VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824

18 403.TL6 2.26 2018 Toyota RAV4 Hybrid (Smart Key)
©2023 Directed. All rights reserved.
Quick Reference Guide
List of available commands
Note that the information below is for many Viper, Clifford, Python, Avital, Automate,
Autostart and AstroStart models. Icons and commands may differ depending on the
model and options purchased. Refer to your authorized installation center for more
specific information.
Button(s) Actions
Press & hold for 1 second to lock.
Press & hold for 1 second to unlock.
* Press & hold for 1 second to remote start.
* Press & hold for 5 seconds to activate the trunk release (optional).
* Icon and remote appearance may differ depending on the model purchased.
Notes
Sending commands to your vehicle
Whether you want to remote start the engine, lock/unlock the doors or pop the trunk,
there are 3 possible ways you can send commands to your vehicle, using the:
• Factory remote.
• Aftermarket remote.
• Directed SmartStart application via your smartphone.
If applicable, you can also start the engine remotely by pressing the Lock button 3
times quickly on your factory remote.
Vehicle takeover
The vehicle takeover feature is not available in this firmware. The vehicle engine will
shut down as soon as a door is opened.
Pit stop/idle mode
1Stop the vehicle in a safe parking spot and put the
gear in Park (P).
Put
gear in
Park
2
Press the Remote Start button on the transmitter.*
The parking lights will flash once to indicate the
vehicle is now in Pit Stop Mode. Parking lights flash x1
14:36
Press Remote
Start button*
&
3
It is safe to leave the engine running and exit the
vehicle with the factory remote in hand.
Note: We recommend that you always lock the
doors of your vehicle when leaving it unattended.
14:36
Exit vehicle
with remote
* Icon and remote appearance may differ depending on the model purchased.
