Directed Directechs DB3 User manual

DB3 403.HONDA56
v3.40
2013 Acura RDX (Smart Key)

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 11
Module programming for convenience only (skip transponder) 12
Connecting the module 12
LED diagnostics and troubleshooting 14
Soft reset 16
Hard reset 16
Feature programming 17
Feature and option list 18
Limited one year consumer warranty 19
QRG (customer copy) 20
Contents

3403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Introduction

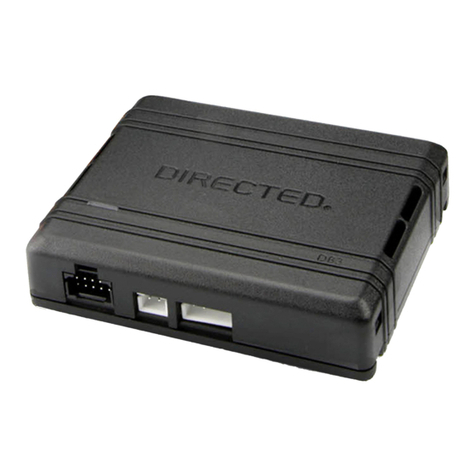

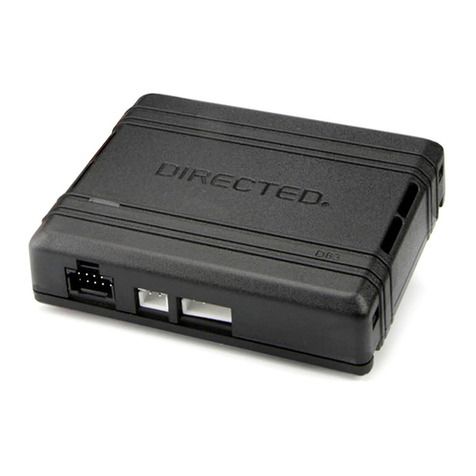

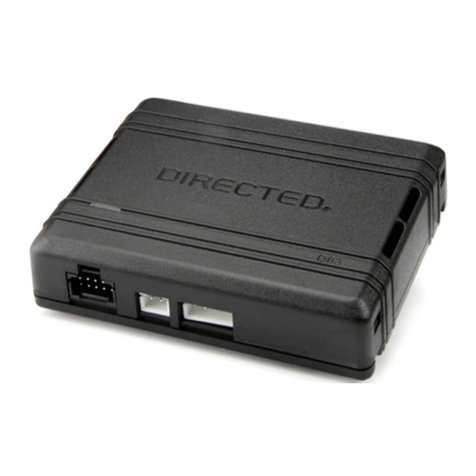

DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Immobilizer Bypass-Data No Key Req'd
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Driver Door Pin
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible.
AUX
Keys required for
programming 1Keys required for operation 0
Vehicle Takeover No takeover feature is available on Push-to-Start vehicles, the engine will stop when a door is opened.
Firmware notes
Warnings about Remote Start!
•To remote start the engine, all doors must be closed.
•Make sure the wipers are turned off before remote starting.
Restarting: Wait at least 2 seconds before restarting the engine or an error message can appear in the vehicle information display.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the Vehicle connections section following the wiring diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Tach: An optional connection required on some remote starters, which do not support a tach signal in D2D.
[3] Keyless Entry: Optional but required for OEM Remote Keyless Entry to operate when vehicle is remote started.
[4] Autolights: Connect the Autolight OFF wire only if the vehicle is equipped with automatic headlights.

6403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Wiring diagram
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
F-CAN High: White, pin 6
F-CAN Low: Red, pin 14
B-CAN Low:
Blue, pin 2
B-CAN High: Pink, pin 3
19
(+) Starter: Gray or Orange, pin 9
Cut
Power Control Unit
(Lt. Blue conn. behind
cluster or right of steering column)
D2D Port
OBDII
Diagnostic
Connector
(+) Accessory Output
(+) Starter Output
(+) 12V Input
HS CAN 2 High: Tan/Black: 3
HS CAN 2 Low: Tan: 4
HS CAN 1 High: Orange/Green: 5
HS CAN 1 Low: Orange/Brown: 6
Ignition Interrupt (conn. side): Yellow: 8
Ignition Interrupt (vehicle side): Orange/Yellow: 9
Immobilizer Data: Orange/Black: 11
1412
10 42
(-) Ground (-) Ground
(-) Parking Lights Output
(+) Ignition 2 Output
(+) Ignition 1 Output
(-) Factory Alarm Rearm
XKD2D65
16
8
9
1
(AC) Tach Input
(AC) Tach Output: Violet/White: 5
(-) Push-to-Start Output: Green/Black: 2
Power Control Unit
(Green & White connectors right
of steering column
or behind the cluster)
(-) Parking Lights, Gray, pin 8
79101112
123456
8
Headlight Switch
(White or Blue conn.
at headlight switch)
(-) Autolights, Orange, pin 1
1
2
3
4
1
(+) Accessory:
Orange, pin 4
(+) Ignition 2:
Green or Red, pin 2
(+) Ignition 1:
Blue, pin 1
(+) 12V:
White, pin 1
313334
1314151617
35
18
36 32 252728
7891011
29
12
30 26 192122
12345
23
6
24 20
Immobilizer Data:
Lt. Green, pin 28
Ignition:
Yellow, pin 32
Keyless Access
Control Unit
(Gray conn. right of
steering column)
272930
1112131415
31
16
32 28 212324
56789
25
10
26 22 1718
123
19
4
20
(-) Push-to-Start: Gray or Brown, pin 12
(-) Hood Input
Hood Pin

7403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

8403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2013 Acura RDX (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High 2 Power Control Unit right of steering column, blue 36 pin plug, pin 3 Data Pink (B-CAN)
H1/4 Tan (DATA) HS CAN Low 2 Power Control Unit right of steering column, blue 36 pin plug, pin 2 Data Blue (B-CAN)
H1/5 Orange/Green (DATA) HS CAN High 1 OBD-Data Link Connector, 16 pin plug, pin 6 Data White (F-CAN)
H1/6 Orange/Brown (DATA) HS CAN Low 1 OBD-Data Link Connector, 16 pin plug, pin 14 Data Red (F-CAN)
H1/7 Brown Relay N.O. - No Connection No Connection
H1/8 Yellow Relay COM - Ignition Interrupt (conn. side) [3] Keyless Access Control Unit right of steering column, gray 32 pin plug, pin
32
Optional but required for OEM Remote Keyless Entry to operate when vehicle
is remote started.
Cut Yellow
H1/9 Orange/Yellow Relay N.C. - Ignition Interrupt (veh. side) [3] Keyless Access Control Unit right of steering column, gray 32 pin plug, pin
32
Optional but required for OEM Remote Keyless Entry to operate when vehicle
is remote started.
Cut Yellow
H1/10 Orange/Red Relay N.C. - No Connection No Connection
H1/11 Yellow/Red Relay COM - No Connection No Connection
H1/12 Brown/Red Relay N.O. - No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Power Control Unit right of steering column, green 1 pin plug, pin 1 + White (50A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) Lock Output No Connection
H2/2 Green/Black (-) PTS Output Power Control Unit right of steering column, blue 36 pin plug, pin 12 - Brown
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
An optional connection required on some remote starters, which do not
support a tach signal in D2D.
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black (+) W2W Only - Ignition Output Remote Starter
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black W2W Only - E-Brake Output Remote Starter
H2/11 Orange/Black (Data) Immo. Data Keyless Access Control Unit right of steering column, gray 32 pin plug, pin 28 Data Lt. Green (S-NET)

9403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet (-) W2W Only - Aux1 Input Remote Starter
H3/5 Violet/Black (-) W2W Only - Aux2 Input Remote Starter
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) W2W Only - Ignition Input Remote Starter
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Green (Data) TX
H4/2 Black (-) Ground
H4/3 Blue (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

10 403.HONDA56 3.40 2013 Acura RDX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts Power Control Unit right of steering column, green 1 pin plug, pin 1 + White (50A)
Accessory Power Control Unit right of steering column, white 4 pin plug, pin 4 or
1
+ Orange
AutoLights headlight switch, 12 pin plug, pin 1 - orange (ground to turn off autolights)
Ground (chassis ground)
Ignition Power Control Unit right of steering column, white 4 pin plug, pin 1 or
4
+ Blue
Parking Lights - headlight switch, 12 pin plug, pin 8 - gray
Second Ignition Power Control Unit right of steering column, white 4 pin plug, pin 2 or
3
+ Red
Starter Power Control Unit right of steering column, blue 36 pin plug, pin 9 + Gray
Tachometer Camshaft Position Sensor, engine driver side front, 3 pin plug, pin 3 ac gray
