Directed DS3+ User manual

DS3+ / DS4+ 933.FORD1
v4.22.198.12
2005 Ford Taurus

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 12
2-Key programming NO Key2GO 12
1-Key programming using Key2GO 14
Module programming for security-only installations 15
Pairing remotes 16
Connecting the module 16
8556T Temperature Sensor 16
8504D Combo Sensor 16
RF Systems 16
When used in conjunction with SmartStart 17
D2D port configuration 17

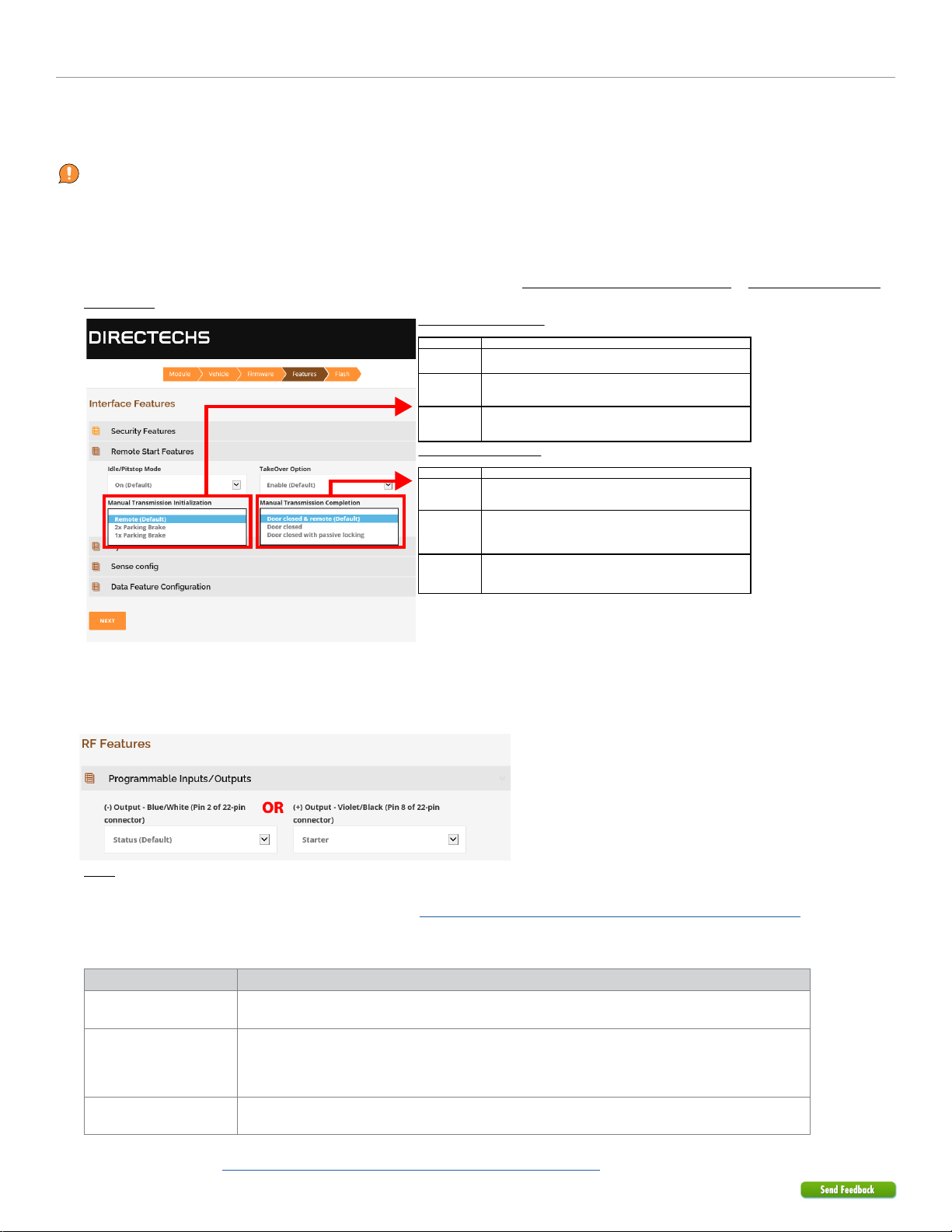

Manual transmission 18
LED diagnostics and troubleshooting 19
Soft reset 21
Hard reset 21
Tach learning procedure (not needed with Virtual Tach) 22
Initializing Virtual Tach (not needed with hardwired or data tach applications) 22
Limited lifetime consumer warranty 23
Quick reference guide 24
Contents

3933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Introduction
This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a
digital configuration requires the module to be flashed with vehicle-specific firmware. Refer to our website (www.directechs.com) and click
on the DIRECTLINK text in the header for additional information.
DS3/DS3+ and DS4/DS4+ modules provide an all-in-one solution for most modern vehicles, and include remote start, keyless entry, security,
and immobilizer bypass capabilities. T-harnesses may also be used in many applications for easy installation.
The following methods are available to configure modules:
• Web: www.directechs.com (DS3/DS3+ and DS4/DS4+)
• Desktop application: Directlink DT (DS3/DS3+ and DS4/DS4+)
• Mobile device: Directlink App (DS4/DS4+ only)
When flashing via Directlink DT (desktop app) or via the Web, an XKloader2 will be required.
To configure via Web or DirectLink DT (desktop app):
1. Disconnect the main module from any (+) 12V power source.
2. Connect the module to your computer using the XKLoader2.
3. Follow the steps in the pop-up window that will be displayed when the module is detected.
Notes:
•Flashing via web is only possible using Internet Explorer on Windows 8, 8.1, and 10.
•This method is not compatible with any other browser (Edge, Chrome, Firefox, etc.).
•When using Windows 11 or newer, Directlink DT is mandatory.
The DS4/DS4+ module is designed to be configured using the DirectLink application through mobile devices.
To download the DirectLink mobile application, visit the Google Play or Apple store. They can also be
configured via Web and DirectLink DT. The DS4/DS4+ features are built in Bluetooth® 4.0, allowing you to
configure and control your system. The DS3/DS3+ module is not equipped with Bluetooth®, therefore is not
compatible with the DirectLink app for mobile devices.
To configure via DirectLink mobile app (Android/iOS):
1. Follow and complete the wiring diagram(s) related to your installation through the app.
2. When installation is complete, select Configure DS4/DS4+.
3. Follow the on-screen instructions.
FLASH REQUIRED!
FLASH REQUIRED!
4 White

4933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Disarm Factory Security
DS4+/DS3+/VSM3 Only
Ford Key2Go (40-bit keys only)
Fuel level/EV battery level
Key2GO
Immobilizer Bypass-Data No Key Req'd
Accessory Activation
Ignition Activation
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart
Start (Crank) Activation

5933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in pricing
accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Keys
required for
programming 1 or 2 Keys required
for operation 0
Important: This firmware has negative outputs for the door locks function. Vehicles with positive and/or 5-wire/ reverse circuit
requires an optional relay. Refer to Tech Tip 1041 - Door lock wiring guide for relay assistance.
Important! A DS4+ module is required for this installation, as the Relay harness (H2), 10-pin white connector is used.
Key2GO is required if only one master key is available. You can program the interface without the need for Key2GO if two master
keys are present.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each wiring
diagram.
Refer to the "Vehicle connections" following the installation diagram.
General notes: This section highlights important information for this specific firmware.
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[2] The siren is ONLY required when enabling the security features during module flashing.
[3] The Green wire is ONLY required for starter disable and antigrind applications.
[4] If present, CAN connections are ONLY required if using in conjunction with SmartStart.
[5] Required ONLY when enabling the security features during module flashing or Remote Start Only installs in vehicles with manual
transmission.
[6] Connections ONLY required on vehicles with (+) Accessory 3.

6933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram
Siren
Hood Pin
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
HS CAN High: Orange/Green: 4
HS CAN Low: Orange/Brown: 3
TX: Yellow/Black: 8
RX: Orange/Black: 7
(-) Ground: Black: 10
(-) RAP Off Output: Lt. Green: 8
(-) Ground: Lt. Green/Red: 7
(+) Parking Lights: White: 5 & 11
(+) Accessory 3 Output: Blue: 3
(+) 12V Input: Blue/Red: 2
(AC) Tach Input: Violet/White: 22
(-) Unlock Output: Dk.Blue/Black: 9
(-) Lock Output: Dk.Green/Black: 3
(-) Trunk Release Output: Red/White: 4
(+) Brake Input: Brown: 14
(-) Trunk Input: Blue: 19
(+) 12V Input: Red: 6 & 12
(+) Ignition Input/Ouput: Pink: 10
(+) 12V Input: Red: 5
(+) Accessory 1 Output: Orange: 8
(+) 12V Input: Red/Black: 2
16
8
9
1
HS CAN Low, pin 14
(-) Driver Door
Trigger
HS CAN High, pin 6
OBDII Diagnostic Connector,
under Driver Dash
(connector side view)
Passive Anti-Theft Security System (PATS) connectors
See Vehicle Connections for more details.
Ignition
RX
TX Ground
43
2
1
4 3 2 1
Ignition
RX
TX
Ground
4
1
2
3
4
1
2
3
Ground
TX
RX
Ignition
31
3
2
1
4
2
4
RX
4
TX
3
Ground2
Ignition1
4
3
2
1
(-) Door Input: Green: 20
(+) 12V Input: Red/White: 9
(+) Accessory 2 Output: Pink/White: 4
Refer to Vehicle Connections or
go to www.directechs.com for
more information on
vehicle-specific wiring
connections.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
(+) Starter Output (veh. side): Violet: 7
Starter Input (conn. side): Green: 6
CUT
IMPORTANT:
Position the
fuses correctly!
Slide to open
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
5
30
20
20
15

7933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Locating components in the vehicle

8933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2005 Ford Taurus. Refer to “Pre-installation and application warnings” for a list of important notes.
Data harness, 8-pin white connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H1/1 Tan No Connection No Connection
H1/2 Tan/Black No Connection No Connection
H1/3 Orange/Brown (Data) HS CAN Low [4] OBD-Data Link Connector, black 16 pin plug, pin 14
Not present in all vehicles.
Data Pink/Orange (HS CAN) Optional
H1/4 Orange/Green (Data) HS CAN High [4] OBD-Data Link Connector, black 16 pin plug, pin 6
Not present in all vehicles.
Data White/Orange (HS CAN) Optional
H1/5 Lt. Green No Connection No Connection
H1/6 Violet/Brown No Connection No Connection
H1/7 Orange/Black (Data) RX PATS Transceiver on ignition switch, green 4 pin plug, pin 3 Data Gray/Orange Remote Start
Only
H1/8 Yellow/Black (Data) TX PATS Transceiver on ignition switch, green 4 pin plug, pin 4 Data White/Lt. Green Remote Start
Only
Analog input/output harness, 22-pin white connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/1 Lt. Green/Black (-) Factory Alarm Arm Output No Connection
H2/2 Blue/White (-) Ground When Running (Status) Output No Connection
H2/3 Dk. Green/Black (-) Door Lock Output dr kick or GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin
18
Must use a relay.
Must use a 1N4002 diode or larger.
This firmware has negative outputs for this function. Vehicles with positive
and/or 5-wire/reverse circuits REQUIRE an optional relay
- pink/yellow Mandatory
H2/4 Red/White (-) Trunk Release Output switch or GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin 3
Must use a relay.
Must use a 1N4002 diode or larger.
This firmware has negative outputs for this function. Vehicles with positive
and/or 5-wire/reverse circuits REQUIRE an optional relay
Refer to Tech Tip 1041 - Door lock wiring guide for relay assistance.
- violet/yellow Mandatory
H2/5 Brown/Black (-) Horn Output switch or SJB/dash fuse box, bottom plug, pin 1 - dk. blue Optional
H2/6 Brown/White (-) AUX 1 Output No Connection
H2/7 White (+) AUX 1 Output No Connection
H2/8 Violet/Black (+) AUX 2 Output No Connection

9933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/9 Dk. Blue/Black (-) Door Unlock Output dr kick or GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin
6
Must use a relay.
Must use 1N4002 diode or larger.
This firmware has negative outputs for this function. Vehicles with positive
and/or 5-wire/reverse circuits REQUIRE an optional relay
Refer to Tech Tip 1041 - Door lock wiring guide for relay assistance.
- pink/lt. green Mandatory
H2/10 Lt. Blue/Black (-) Factory Alarm Disarm Output No Connection
H2/11 Brown/Red (+) Siren Output [2] Security Only
H2/12 Pink (+) Ignition Sense Input No Connection
H2/13 Violet (+) Door Input No Connection
H2/14 Brown (+) Brake Input brake pedal switch + red/lt. green Remote Start
Only
H2/15 White/Blue (-) Activation Input No Connection
H2/16 Red/Blue (-) Headlight Detection No Connection
H2/17 Black/White (-) E-Brake Input No Connection
H2/18 Orange/Black (+) Instant Alarm Input No Connection
H2/19 Blue (-) Trunk Pin Input [5] pin switch or light in trunk; GEM on bottom rear of SJB/dash fuse box,
26 pin plug, pin 21
- black/pink (sedan);
white/purple (wagon)
Security Only
H2/20 Green (-) Door Pin Input (4 doors) [5] driver kick or GEM on bottom rear of SJB/dash fuse box, 26 pin plug,
pin 5
GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin 19
GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin 20
GEM on bottom rear of SJB/dash fuse box, 26 pin plug, pin 7
For vehicle door trigger inputs, use Tech Tip 1076, refer to Directwire
for more information.
-
-
-
-
yellow/black
gray/red
lt. green/yellow
pink/lt. blue
Security Only
H2/21 Gray (-) Hood Input [1]
H2/22 Violet/White (AC) Tach Input ign coil/coil pack or fuel injector ac NOT red Remote Start
Only
Main harness, 12-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H3/1 Blue/White Relay N.C. - No Connection No Connection
H3/2 Blue/Red Relay N.O. - (+) 12 Volt Input [6] Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Remote Start
Only
H3/3 Blue Relay COM. - (+) Accessory 3 Output [6] Not Applicable Remote Start
Only
H3/4 White/Brown Relay N.C. - No Connection No Connection
H3/5 White Relay COM. - (+) Parking Light Output switch or SJB/dash fuse box, bottom plug, pin 31 + brown Mandatory
H3/6 Red (+) 12 Volt Input Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Mandatory

10 933.FORD1 4.22.198.12 2005 Ford Taurus
©2023 Directed. All rights
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H3/7 Lt. Green/Red Relay N.O. - (-) Ground (chassis ground) Remote Start
Only
H3/8 Lt. Green Relay COM. - (-) RAP Off Output driver kick or GEM on bottom rear of SJB/dash fuse box, 26 pin plug,
pin 5
- yellow/black Remote Start
Only
H3/9 Lt. Green/White Relay N.C. - No Connection No Connection
H3/10 Black (-) Ground (chassis ground) Mandatory
H3/11 White Relay COM. - (+) Parking Light Output switch or SJB/dash fuse box, bottom plug, pin 31 + brown Mandatory
H3/12 Red (+) 12 Volt Input Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Mandatory
Relay harness, 10-pin white connector (H4)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H4/1 N/A No Connection No Connection
H4/2 Red/Black (+) 12 Volt Input Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Mandatory
H4/3 Pink/Black Flex Relay (pin 87A) No Connection
H4/4 Pink/White (+) Accessory 2 Output Ignition Switch, black 15 pin plug, pin A1 or black 13 pin plug, pin 3 + Black/Lt. Green Remote Start
Only
H4/5 Red (+) 12 Volt Input Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Remote Start
Only
H4/6 Green Starter Input (conn. side) [3] Ignition Switch, black 15 pin plug, pin STA or black 13 pin plug, pin 5
Connection required for Starter Disable ONLY.
+ Red/Lt. Blue Mandatory
H4/7 Violet (+) Starter Output (vehicle side) Ignition Switch, black 15 pin plug, pin STA or black 13 pin plug, pin 5 + Red/Lt. Blue Mandatory
H4/8 Orange (+) Accessory 1 Output Ignition Switch, black 15 pin plug, pin A4 or black 13 pin plug, pin 8 + Gray/Yellow Mandatory
H4/9 Red/White (+) 12 Volt Input Ignition Switch, black 15 pin plug, pins B4, B5, B1, B3 or black 13 pin
plug, pins 9, 2, 7, 12
+ Lt. Green/Violet (X4)
(common 40A)
Remote Start
Only
H4/10 Pink (+) Ignition Input/Output Ignition Switch, black 15 pin plug, pin I1 or black 13 pin plug, pin 1 + Red/Lt. Green Mandatory
RF Port harness, 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A RF Loop
H5/2 N/A RF Loop
D2D harness, 4-pin white (1) and black (2) connectors (H6)
Module
Conn./Pin Color Description
H6/1 Blue (Data) TX
H6/2 Black (-) Ground
H6/3 Green (Data) RX
