Introduction
DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote
Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x
OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System
or SmartStart (all sold separately).
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Parking Lights Control
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Fuel level/EV battery level
* Odometer
Universal RF Bypass- Key Req'd
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible. Keys required for
programming 1Keys required for operation 1
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Immobilizer bypass: This firmware does not support Immobilizer bypass. One (1) programmed OEM key must be wired into the
vehicle to complete the installation of a remote starter.
RSR:
•RSR installations are not compatible with vehicles equipped with a manual transmission.
•Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely on its own
Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in
Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory
hood pin, or if not supported in data
[2] Key Wrap: Refer to the Immobilizer Interface section for more information about the Key Wrap.

6403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
6
13
8
5
10
6

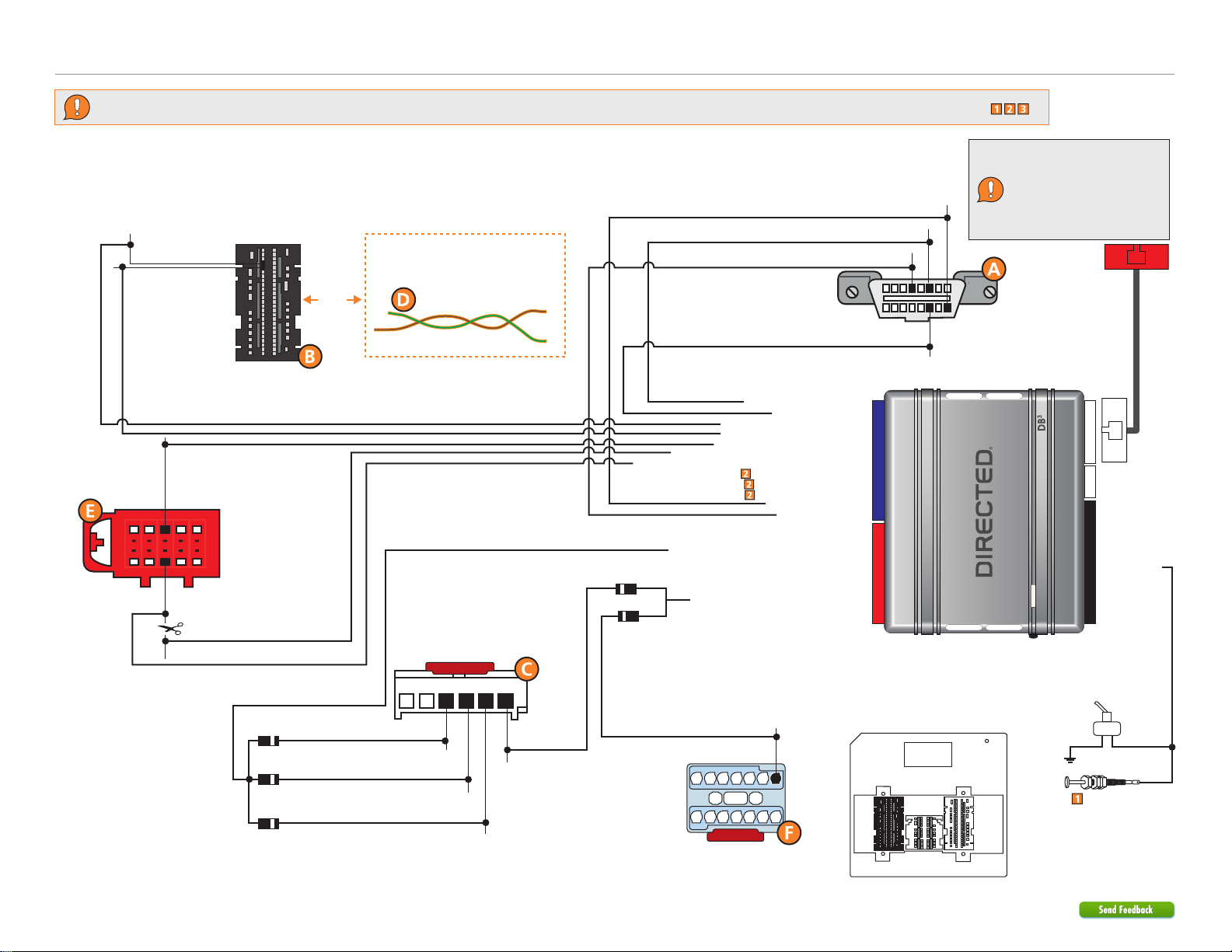

Wiring diagram
1412
10 42
(+) Brake:
Black/Red, pin 7
Brake Connector
(blue connector at
driver kick)
14
7
13
6
12
5
11
4
10
3
9
2
8
1
15 16 17
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
Parking Light Interrupt (veh. side): Yellow: 8
Parking Light Interrupt (conn. side): Orange/Yellow: 9
(+) Parking Light Output: Brown: 7
Key Wrap: Orange/Red: 10
Key Wrap: Yellow/Red: 11
Key Wrap: Brown/Red: 12
(+) Ignition 1 & 2 / Keysense Output: Gray: 6
(+) Starter / Brake Output: Gray/Black: 7
(+) 12V Input: Red: 13
(-) Ground: Black: 14
2 x 1A Diodes
(+) Parking Lights:
Gray/Yellow, pin 3
Parking Lights:
Red/Blue, pin 8
Red Connector
(at parking
light switch)
Cut
VESCM:
Vehicle Electrical
System Control Module
(high above driver’s kick)
A1 A2 A3
HS CAN 2 High:
Orange/Green, pin 16
HS CAN 2 Low:
Orange/Brown,
pin 17
A1
113
12 37 62
73
38 63
Black VESCM
Connector A1
(above driver’s kick)
(+) Ignition 1: Black, pin 4
(+) Ignition 2: Black/Gray, pin 3 (+) Starter:
Red/Black, pin 6
(+) Keysense: Violet/Red, pin 5
654321
OR
OBDII
Diagnostic Connector
1 8
169
HS CAN 1 Low:
Orange/Brown, pin 14
(-) Ground: Brown, pin 4
(+) 12V: Red/Blue, pin 16
3x 1A Diodes
Twisted pair
(in driver kick, door harness)
Alternative HS CAN 2 connections
HS CAN 2 High: Orange/Green
HS CAN 2 Low: Orange/Brown
6: White/Black:
(-) Hood Input
Remote Start Safety
Override Switch
You can connect to either a
XL202 RFTD OR a SmartStart
module.

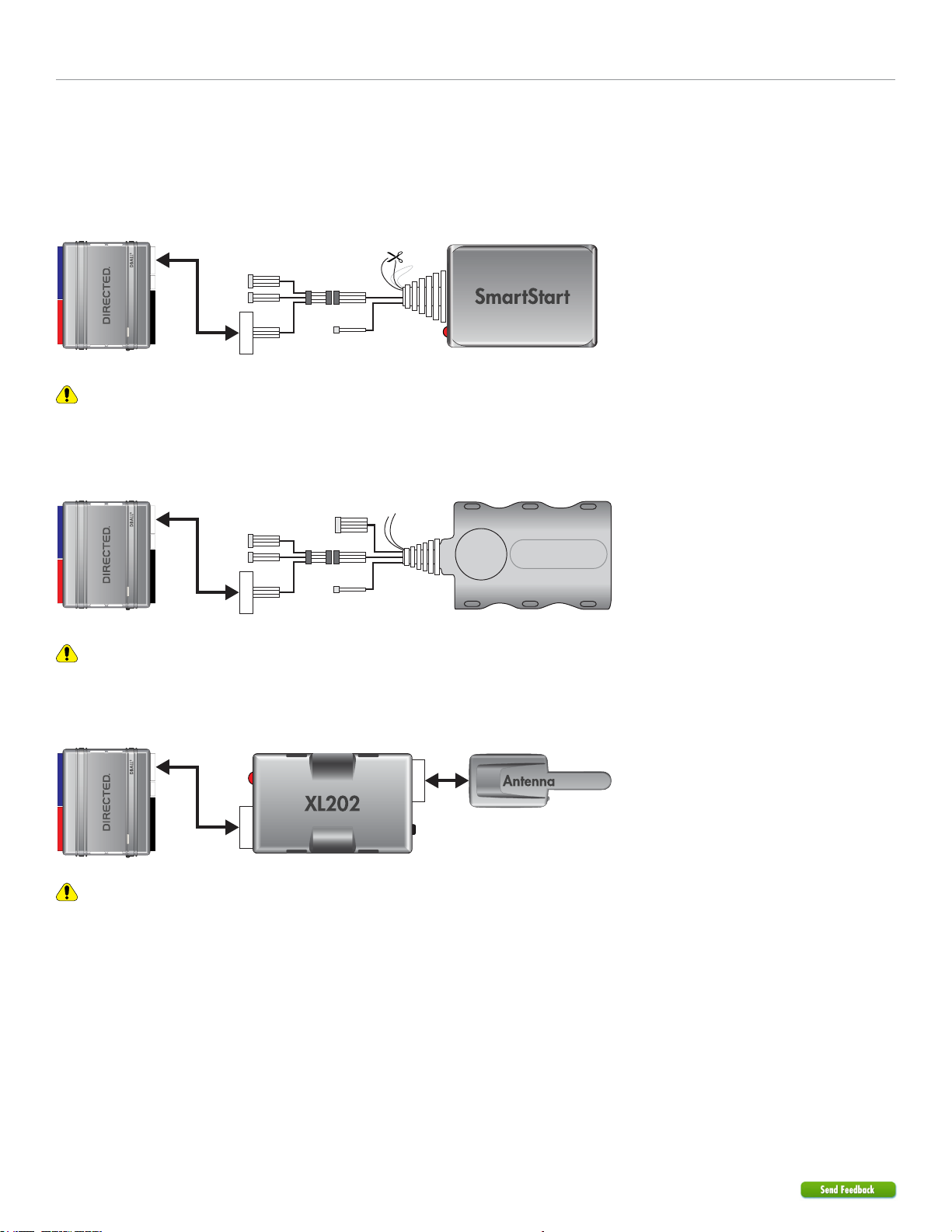

Refer to the SmartStart/XL202
Installation Notes for more
information.
HS CAN 1 High: Orange/Red, pin 6
Ignition Connector
(black conn.
at ignition switch)
Hood Pin

7403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

8403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Immobilizer interface
For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from the models shown in
the illustrations).
- Your OEM remote may differ from the model shown in the illustrations.
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
- Remove Battery from OEM FOB prior to performing the Key Wrap.
1412
10 42
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12

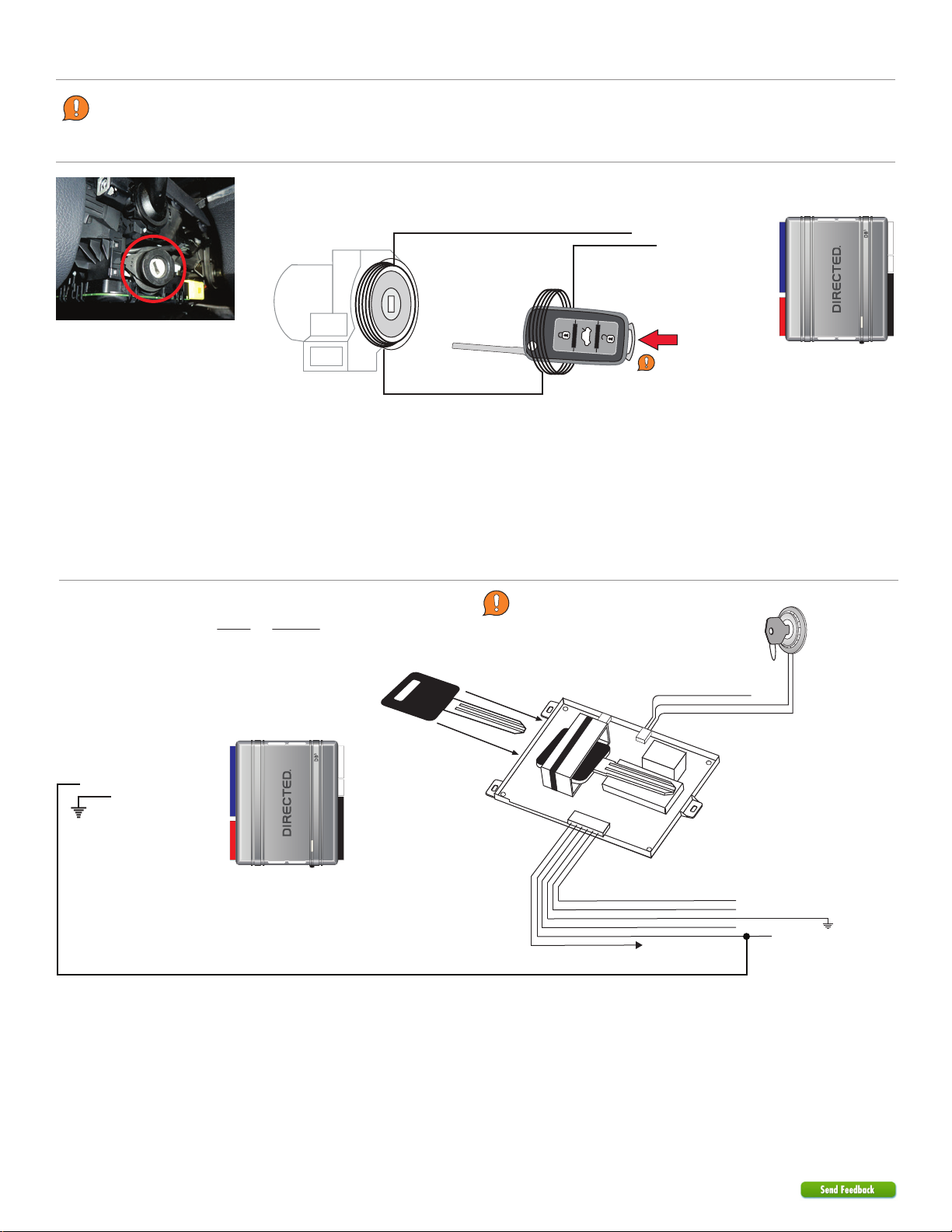

Method 1: Key Wrap
Notes:
Remove battery from
OEM Remote Control
4-6 loops
4-6loops
Method 2: Immobilizer interface using 556UXL
IMPORTANT! Not all OEM remotes can be inserted in 556UXL because of their size. Make sure the key will fit, otherwise it is recommended
to use a different method.
Move 556UXL loop as close to the
front of ignition cylinder (OEM
Immobilizer Receiver) as possible.
Test and secure mounted loop
before reassembling the vehicle.
OEM
Immobilizer
Receiver
N/A: Green, pin 6
Black/White - NOT USED
Black/Red
Black
N/A: Violet, pin 5
N/A: Pink, pin 3
(-) GWR: Blue, pin 2
(+)12V : Red, pin 1 (+)12V
(-) Ground: Black, pin 4
1412
10 42
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12
Notes:
•The discontinued 556U or 556UW can
still be used for the installation.
•556UXL is sold separately.

9403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
4-6loops
Method 3: Immobilizer interface with OEM Immobilizer Receiver
1412
10 42
4-6 loops
Remove battery from
OEM Remote Control
Common Relay 2: Yellow/Red: 11
NC Relay 2: Orange/Red: 10
NO Relay 2: Brown/Red: 12
Immobilizer ECU
- Your OEM remote may differ from the model shown in the illustrations.
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
- Remove Battery from OEM FOB prior to performing the Key Wrap.
Note:

10 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2020 Volkswagen Tiguan. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN 1 High OBD-Data Link Connector, black 16 pin plug, pin 6 Data Orange/Red
H1/4 Tan (DATA) HS CAN 1 Low OBD-Data Link Connector, black 16 pin plug, pin 14 Data Orange/Brown
H1/5 Orange/Green (DATA) HS CAN 2 High VESCM above driver kick, black 73 pin plug, pin 16 --or-- Driver Kick, door
harness
Data Orange/Green
H1/6 Orange/Brown (DATA) HS CAN 2 Low VESCM above driver kick, black 73 pin plug, pin 17 --or-- Driver Kick, door
harness
Data Orange/Brown
H1/7 Brown Relay N.O. (+) Parking Light Output Headlight Switch, red 10 pin plug, pin 3 + Gray/Yellow
H1/8 Yellow Relay COM. Parking Light Interrupt (veh. side) Headlight Switch, red 10 pin plug, pin 8 Cut Red/Blue
H1/9 Orange/Yellow Relay N.C. Parking Light Interrupt (conn. side) Headlight Switch, red 10 pin plug, pin 8 Cut Red/Blue
H1/10 Orange/Red Relay N.C. Key Wrap [2] Immobilizer Reader Coil on ignition switch, black 2 pin plug, pin 1 RF Green
H1/11 Yellow/Red Relay COM. Key Wrap [2] Immobilizer Reader Coil on ignition switch, black 2 pin plug, pin 1 RF Green
H1/12 Brown/Red Relay N.O. Key Wrap [2] Immobilizer Reader Coil on ignition switch, black 2 pin plug, pin 1 RF Green
H1/13 Red (+) 12 Volt Input OBD-Data Link Connector, black 16 pin plug, pin 16 + Red/Blue (10A)
H1/14 Black (-) Ground OBD-Data Link Connector, black 16 pin plug, pin 4 - Brown
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White No Connection No Connection
H2/2 Green/Black No Connection No Connection
H2/3 Green/White No Connection No Connection
H2/4 Red/Black (-) Trunk Output No Connection
H2/5 Violet/White No Connection No Connection
H2/6 Gray (+) Ignition 1 & 2/Keysense Output Ignition Switch, black 6 pin plug, pin 4
Ignition Switch, black 6 pin plug, pin 3
Ignition Switch, black 6 pin plug, pin 5
Must use three 1A diodes.
+
+
+
Black
Black/Gray
Violet/Red
H2/7 Gray/Black (+) Starter/Brake Output Ignition Switch, black 6 pin plug, pin 6
Driver Kick, blue 17 pin plug, pin 7
Must use two 1A diodes.
+
+
Red/Black
Black/Red
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black No Connection No Connection

11 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/12 Blue/Red No Connection No Connection
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green No Connection No Connection
H3/2 Blue No Connection No Connection
H3/3 Red/White No Connection No Connection
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black (-) Hood Switch Input [1]
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink No Connection No Connection
H3/10 Blue/White No Connection No Connection
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Green (Data) TX
H4/2 Black (-) Ground
H4/3 Blue (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

12 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.

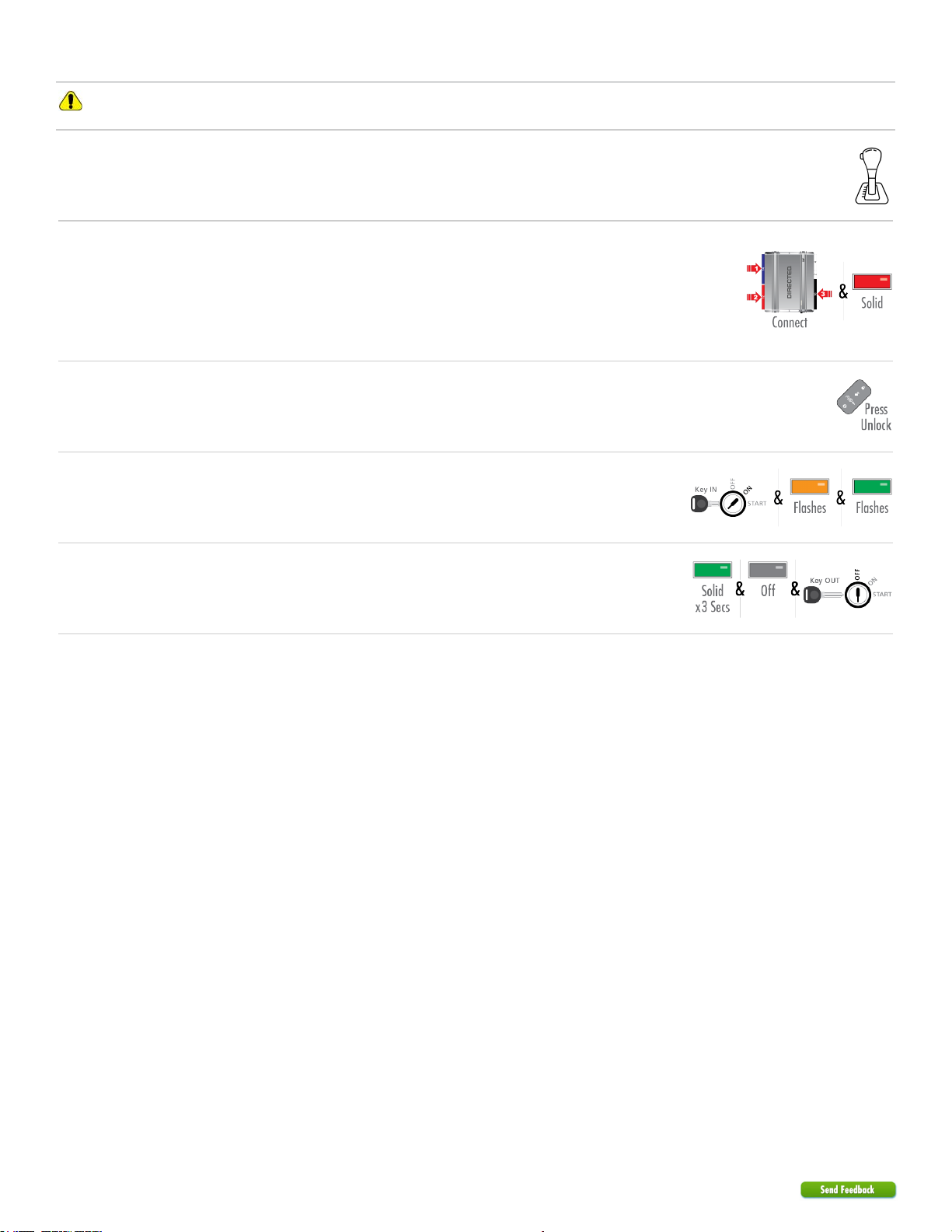

Module programming

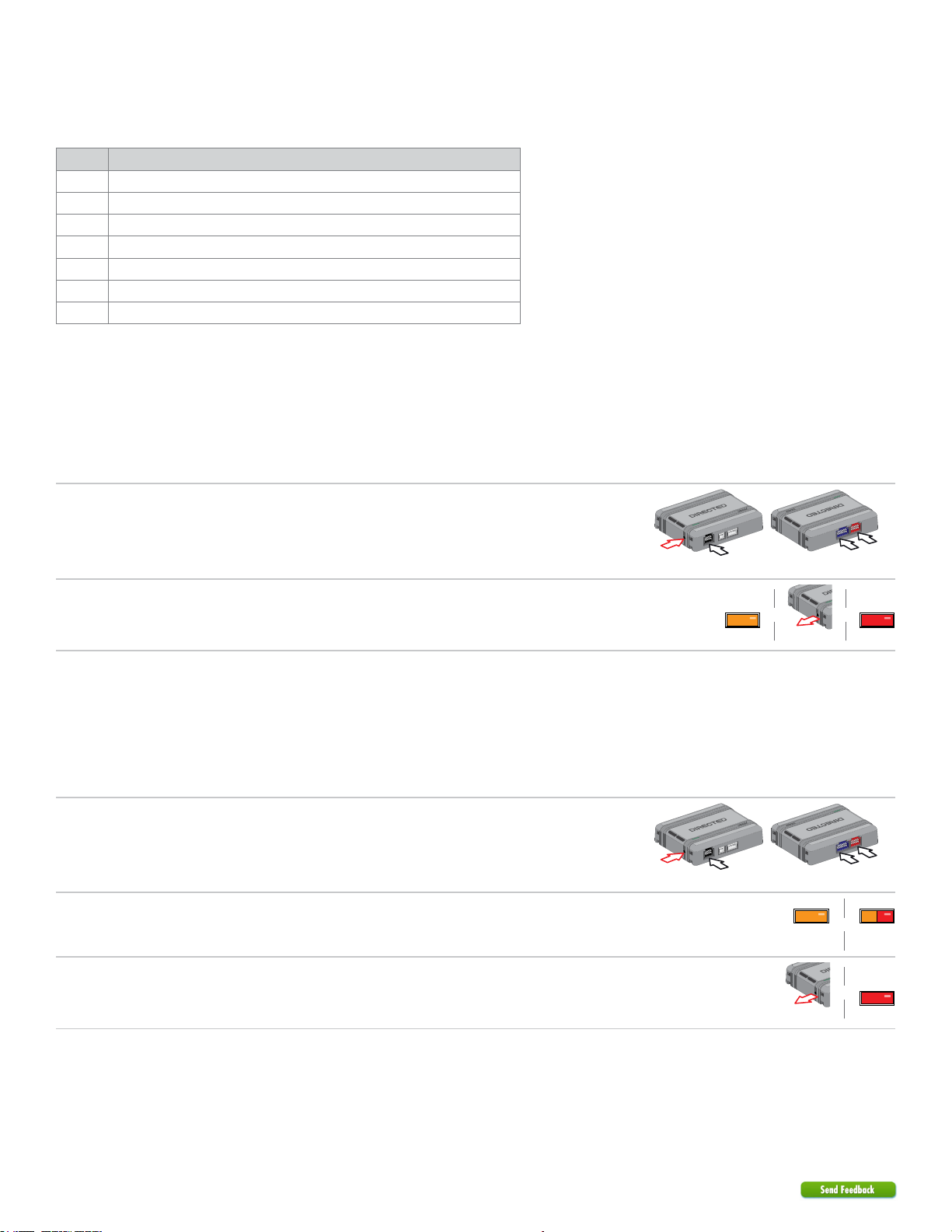

Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
1Ensure vehicle is in a safe location and cannot move forward during programming.
2
The harnesses must be connected in this exact order:

Connect the 14-pin.1.
Connect the 12-pin.2.
Connect the 10-pin.3.
When the LED turns on solid red, proceed with the next step.
3Pressthe Unlock button on the OEM remote.
4Insert and turn the key to the ON position.
The LED flashes orange, and then flashes green.
5The LED turns ON solid green for 3 seconds, then turns OFF.Turn the key to OFF, and then
remove it from the ignition barrel.
You have successfully completed the module programming sequence.

13 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
SmartStart/XL202 installation notes
The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote
Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and
XL202.
SmartStart revision A
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
SmartStart revision B
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
RF System
The optional XL202 and antenna are not included and MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
RF System & PKE combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF System, PKE & SmartStart BT combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DB3 package.
2. The modules must be connected in a specific order. Refer to “Module programming” for more information.

14 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and
function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version
of the application.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.

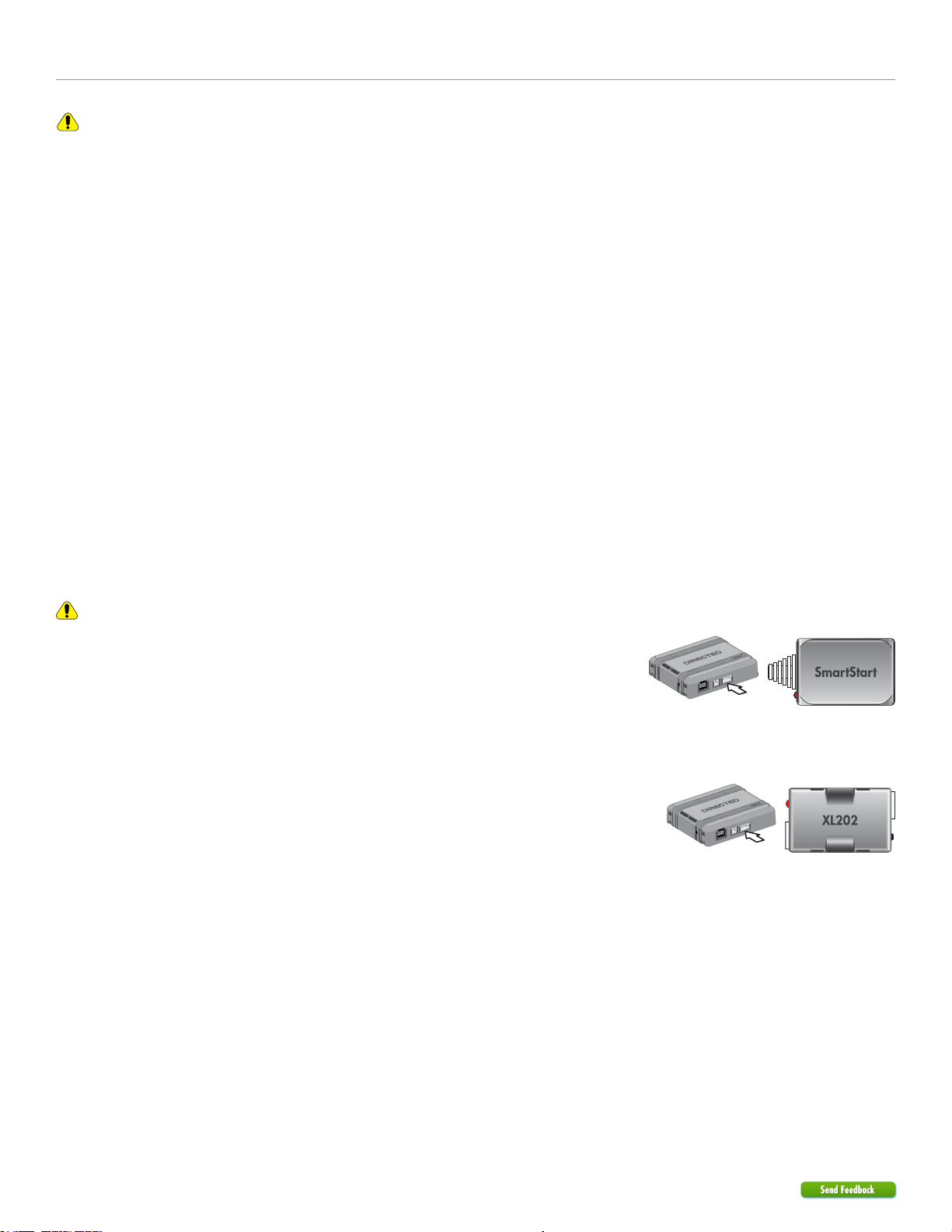

SmartStart installation
The DB3 module must be disconnected from any power source before SmartStart can
be connected to it. Failing to do so could damage DB3.
1. To ensure that the D2D communication between SmartStart and DB3 works properly,
connect the Gray wire to a ground source (Rev B SmartStart), and cut the Brown or
Blue loop (Rev A SmartStart).
2. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be
provided by the DB3 D2D connector.
3. Connect SmartStart to DB3 using the D2D port.
D2D
D2D
OR
XL202 installation
Connect XL202 to DB3 using the D2D port.
D2D
D2D

15 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted. Ensure
the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected.
The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” on page “Installation (wiring diagrams & vehicle wiring reference
charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
Flashes red x 11 Skip programming. If the BCM programming still fails after making sure doors are unlocked, press on the programming
button 5 times to skip this step.
Flashes red x 12 BCM programming. Failed to program the BCM. Check if doors are locked. They need to be unlocked to solve the problem.

16 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.

External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.
Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

17 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.

RSR Error Codes
LED Description Troubleshooting
Flashes red x 7 RFTD disabled. 3x OEM Lock Remote Start Activation was attempted when the RFTD feature is disabled. Make sure 3x
Lock Start is selected from the web in the flashing process.
Flashes red x 9 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support.

18 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Parking light error codes
The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each
flashing pattern is described below.
Flashes Diagnostic
1 Runtime expired.
2 Over-rev shutdown.
3 Low or no RPM.
4 Shutdown without remote.
5 Brake shutdown.
6 Hood shutdown/Remote start safety override switch is ON.*
7 Remote start safety override switch is ON.*
* If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes.
Soft reset
1Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

19 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When
installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press
lock/unlock to change the options of the selected feature. Tapping the green or blue lock/unlock wires on the black 10-pin
harness to ground will change the option for the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

20 403.VW15 2.00 2020 Volkswagen Tiguan
©2022 VOXX•DEI LLC. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at
www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this
page.
* Default option
Feat
.Operation Flashes / Option Description
1 RFTD Output Type 1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Unlock Driver Priority 1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is pressed a second
time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
3 Heated Seats 1. Disabled* No operation.
2. Enabled When the feature is enabled, it will activate the Heated Seats and heated steering wheel.
4 Defroster 1. Disabled* No operation.
2. Enabled When the feature is enabled, it will activate the rear defroster and heated mirrors.
5 Heated
Seats/Defroster
Temperature Control
1. 32 °F (0 °C)* When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 32 °F (0 °C).
2. 23 °F (-5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 23 °F (-5 °C).
3. 41 °F (5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 41 °F (5 °C).
4. Always ON When Heated Seats or Defroster feature is enabled, it will activate the feature at any temperature.
6 Heated Seats
Temperature Level
1. High* When Heated Seats are activated, they will be set to HIGH.
2. Med When Heated Seats are activated, they will be set to MEDIUM.
3. Low When Heated Seats are activated, they will be set to LOW.
