Directed Directechs DB3 User manual

403.VW10
v2.01
2008 Volkswagen Passat
Functions compatible with the 2008 Volkswagen Passat
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Locks Status
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Fuel level/EV battery level
Ignition Status
RAP Shut Down (Retained ACC Power)
Remote Start Ready
SmartStart
Tach / RPM Output
Trunk / Hatch Release
Universal RF Bypass- Key Req'd

Introduction 3
Pre-installation and application warnings 4
Wiring diagram 5
Immobilizer interface with OEM immobilizer receiver 6
Locating components in the vehicle 8
Vehicle connections 9
Module programming 11
SmartStart Pro/Digital RF Kit/XL202 installation notes 12
LED diagnostics and troubleshooting 13
Parking light error codes 16
Soft reset 16
Hard reset 16
Limited one year consumer warranty 17
Quick Reference Guide (customer copy) 18
Contents

3403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Introduction

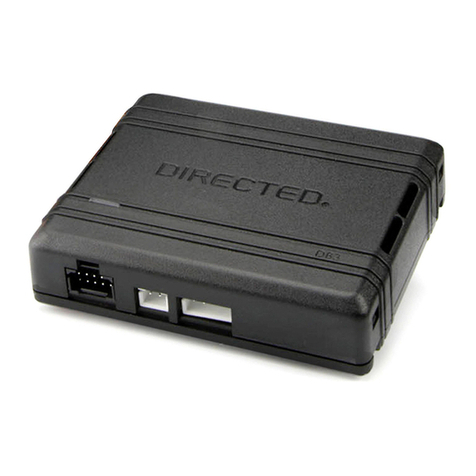

This guide supports the installation of a DB3, which is an all-in-one door lock and override interface module in Remote Start Ready (RSR)
mode. RSR is a function that enables the DB3 to remote start the vehicle completely on its own. Consequently, there is no need for an
aftermarket or an OEM remote starter in order to start the vehicle from a distance.
This solution may offer up to four (4) configuration options to control your system (all sold separately):
• 3x OEM Lock Remote Start Activation: if applicable, refer to the “Vehicle function compatibilities” section.
• SmartStart Pro Compatible: SmartStart Pro is equipped with D2D, which means it can be connected to an interface module and used
in RSR mode without the use of a remote starter. See “Module programming” for more information.
• Digital RF Kit Compatible: This firmware supports D2D 2.0, which means Digital RF kits can be connected to the interface module and
used when in RSR mode (compatible with firmware version ending with .101 or higher only).
• XL202 & Analog RF Kit
Notes
• This module can only be flashed and configured using DirectLink at www.directechs.com.
• RSR mode is not compatible with vehicles equipped with a manual transmission.

4403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible. Keys required for
programming 1Keys required for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Remote Start Ready (RSR):
•RSR installations are not compatible with vehicles equipped with a manual transmission.
•RSR is a function that enables the interface module to remote start the vehicle completely on its own.
Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
SmartStart compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in
Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Key Wrap: For Key Wrap instructions, refer to "Immobilizer interface with OEM immobilizer receiver".
[3] Starter, diodes and brake: Starter connection is mandatory. Diodes and brake connections only required on vehicles where brake
needs to be depressed to start.

5403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
OBDII
Diagnostic
Connector
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
FT CAN High: Orange/Green: 5
FT CAN Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
Parking Lights Interr. (veh. side): Yellow: 8
Parking Lights Interr. (conn. side): Orange/Yellow: 9
Key Wrap: Orange/Red: 10
Key Wrap: Yellow/Red 11
Key Wrap: Brown/Red: 12
1 8
169
Wiring diagram
1
2
4
5
6
7
9
10
3
8
Headlight switch
(black conn. at
light switch)
CUT
HS CAN High:
Orange/Black, pin 6
(-) Ground: Brown, pin 4
HS CAN Low:
Orange/Brown, pin 14
(+) Ignition: Red/Violet, pin 11
(+) Starter:
Red/Gray, pin 1
(+) 12V:
Red/White, pin 1
Ignition Switch Port
(black conn.
at keyport)
Ignition Switch Plug
(at Key Port)
8
16
7
15
6
14
5
13
4
12
3
11
2
10
1
9
CUT
16
8
9
1
10 11
3
12
4
13
5
14
6
15
27
30
86 85
87
87a
30
86 85
87
87a
FT CAN Low: Orange/ Brown,pin 7
Keysense: Green,
pin 16
(+) 12V Interrupt: Green/Red, pin 3
FT CAN High: Orange/Green, pin 8
6542 31
12
11
10
87 9
Fuse 5A
Fuse 5A
2
E plug
at VESCM
(under
drivers dash)
G plug
at VESCM
(under drivers dash)
VESCM Connector L
(under drivers dash)
2210 4
1
6
3
1
FH GE
VESCM (under drivers dash)
Parking Lights Interrupt:
Red/White or Red/Black, pin 8
(+) Parking Lights: Gray/Yellow, pin 3
1412
10 42
(-) Key Release Output: Blue/Red: 12
(+) Starter / Brake Activation Output: Gray: 6
(+) Ignition Output: Gray/Black: 7
(+)12V Input: Red: 13
(-) Ground: Black: 14
6: White/Black:
(-) Hood Input
Remote Start Safety
Override Switch
You can connect to either a
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
Diode 1A
(+) Brake: Black/Red, pin 2
Hood Pin

6403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Immobilizer interface
When possible use valet key for key wrap. If a blade key is used or if the vehicle is equipped with Keyless Entry, the battery must be
removed from OEM key (the OEM remote may differ from the models shown in the illustrations).
Make sure to test and secure the loops before reassembling the vehicle.
The OEM immobilizer
receiver is located on the
underside of the steering
column, where the ignition
switch would normally be.
- Your OEM remote may differ from the model shown in the illustrations.
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
1412
10 42
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12
Method 1: Key Wrap
Note:
4-6 loops
4-6 loops
Move 556UXL loop as close to the
front of ignition cylinder (OEM
Immobilizer Receiver) as possible.
Test and secure mounted loop
before reassembling the vehicle.
OEM
Immobilizer
Receiver
N/A: Green, pin 6
Black/White - NOT USED
Black/Red
Black
N/A: Violet, pin 5
N/A: Pink, pin 3
(-) GWR: Blue, pin 2
(+)12V : Red, pin 1 (+)12V
(-) Ground: Black, pin 4
1412
10 42
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12
Remove battery from
OEM Remote Control
Not all OEM remotes can be inserted in 556UXL because of their size.
Make sure the key will fit, otherwise it is recommended to use a different method.
Note: The discontinued 556U or 556UW can still be used for the installation.
Method 2: Immobilizer interface using 556UXL (sold separately)

7403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Method 3: Immobilizer interface with OEM Immobilizer Receiver
1412
10 42
4-6 loops
OEM
Immobilizer
Receiver Common Relay 2: Yellow/Red: 11
NC Relay 2: Orange/Red: 10
NO Relay 2: Brown/Red: 12
Immobilizer ECU
- Your OEM remote may differ from the model shown in the illustrations.
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
Note:
Remove battery from
OEM Remote Control

8403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Locating components in the vehicle

9403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2008 Volkswagen Passat. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High data link connector, black 16 pin plug, pin 6 data orange/black
H1/4 Tan (DATA) HS CAN Low data link connector, black 16 pin plug, pin 14 data orange/brown
H1/5 Orange/Green (DATA) FT CAN High VESCM, relay box under driver dash, 12 pin plug (G), pin 8 data orange/green
H1/6 Orange/Brown (DATA) FT CAN Low VESCM, relay box under driver dash, 12 pin plug (G), pin 7 data orange/brown
H1/7 Brown Relay N.O. (+) Parking Light Output headlight switch, black 10 pin plug, pin 3 + gray/yellow
H1/8 Yellow Relay COM. Parking Light Interrupt (vehicle side) headlight switch, black 10 pin plug, pin 8 cut red/white
H1/9 Orange/Yellow Relay N.C. Parking Light Interrupt (connector side) headlight switch, black 10 pin plug, pin 8 cut red/white
H1/10 Orange/Red Relay N.C. Key Wrap [2] electronic ignition switch, black 16 pin plug, pin 1
For Key Wrap instructions, refer to "Immobilizer interface with OEM
immobilizer receiver".
RF brown
H1/11 Yellow/Red Relay COM. Key Wrap [2] electronic ignition switch, black 16 pin plug, pin 1
For Key Wrap instructions, refer to "Immobilizer interface with OEM
immobilizer receiver".
RF brown
H1/12 Brown/Red Relay N.O. Key Wrap [3] electronic ignition switch, black 16 pin plug, pin 1
For Key Wrap instructions, refer to "Immobilizer interface with OEM
immobilizer receiver".
RF brown
H1/13 Red (+) 12 Volt Input VESCM, relay box under driver dash, 2 pin plug (L), pin 1 + red/white (50A)
H1/14 Black (-) Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) Hazard Light Output No Connection
H2/2 Green/Black (-) Trunk Output No Connection
H2/3 Green/White (-) Accessory Output No Connection
H2/4 Red/Black No Connection No Connection
H2/5 Violet/White No Connection No Connection
H2/6 Gray (+) Starter/Brake Activation Output [3] Must use two 1A diodes.
VESCM, relay box under driver dash, 12 pin plug (G), pin 1
VESCM, relay box under driver dash, 16 pin plug (E), pin 2
+
+
red/gray
black/red (functions with
ignition on only)
H2/7 Gray/Black (+) Ignition Output VESCM, relay box under driver dash, 12 pin plug (G), pin 11 + red/violet
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown (MUX) Door Lock Toggle Output No Connection
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black No Connection No Connection

10 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/12 Blue/Red (-) Key Release Output Must use a relay.
electronic ignition switch, black 16 pin plug, pin 16
+ green
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green No Connection No Connection
H3/2 Blue No Connection No Connection
H3/3 Red/White No Connection No Connection
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black (-) Hood Switch Input [1]
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink No Connection No Connection
H3/10 Blue/White No Connection No Connection
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Green (Data) TX
H4/2 Black (-) Ground
H4/3 Blue (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

11 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
1Ensure vehicle is in a safe location and cannot move forward during programming.
2
The harnesses must be connected in this exact order:
 1. Connect the 14-pin.
 2. Connect the 12-pin.
 3. Connect the 10-pin.
When the LED turns ON solid red, proceed with the next step.
3Press unlock on the OEM fob, then insert the key into the key switch and turn the ignition on.
The LED will flash green.
4Wait for LED to turn solid green for 3 seconds, then off.
5Turn the ignition off.
You have successfully completed the module programming sequence.

12 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
SmartStart Pro/Digital RF Kit/XL202 installation notes
The DB3 Remote Start Ready (RSR) solution offers four (4) configuration options to control your system: 3x OEM Lock Remote Start
Activation (if applicable, refer to the "vehicle function compatibilities" section), SmartStart Pro, Digital RF Kit, XL202 & Analog RF Kit (all sold
separatly). This section provides specific installation information for these solutions.
SmartStart Pro
Must have the Gray wire grounded before connecting to the D2D port.
D2D
Cable
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
Note: The SmartStart Pro is optional and must be purchased separately.
Digital RF Kit
The DB3 must be programmed to the vehicle before pairing.
This configuration requires the remote and the antenna to be paired by following the pairing procedure provided with the Digital RF Kit.
D2D
Cable
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
Note: The Digital RF Kit is optional and must be purchased separately.
XL202 & Analog RF Kit
Use the D2D Crossover (XOVER) cable that is provided with XL202 (not the one in the DB3 package)
Follow the XL202 Programming Guide to pair the remote to the XL202.
D2D
Cable
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
Note: The XL202 and antenna are optional and must be purchased separately.

13 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted. Ensure
the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected.
The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” on page “Installation (wiring diagrams & vehicle wiring reference
charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
Flashes red x 11 Skip programming. If the BCM programming still fails after making sure doors are unlocked, press on the programming
button 5 times to skip this step.
Flashes red x 12 BCM programming. Failed to program the BCM. Check if doors are unlocked. If so, unlock them to solve the problem.

14 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights

External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.
Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

15 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights

RSR Error Codes
LED Description Troubleshooting
Flashes red x 7 RFTD disabled. 3x OEM Lock Remote Start Activation was attempted when the RFTD feature is disabled. Make sure 3x
Lock Start is selected from the web in the flashing process.
Flashes red x 9 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support.

16 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Parking light error codes
The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern
is described below.
Flashes Diagnostic
1 Runtime expired.
2 Over-rev shutdown.
3 Low or no RPM.
4 Shutdown without remote.
5 Brake shutdown.
6 Hood shutdown/Remote start safety override switch is ON.*
7 Remote start safety override switch is ON.*
* If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes.
Soft reset
A module reset will only erase the steps perfomed in “Module Programming”. The firmware and settings flashed to the module will not be
affected.
1Connect the 10-pin & 12-pin harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid Solid
Release
Hard reset
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings may need to be
reconfigured. Connect your module to a computer and use the web configuration tool to edit its programmable features.
1
Connect the 10-pin & 12-pin harnesses to the module.
Press and hold the programming button, then connect the 14-pin harness to the
module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Solid
Release

17 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Limited 12 Months Consumer Warranty
VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date
of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter for a vehicle security or remote start system is warranted for
12 months from he date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), authorization number, specication of defect(s), transportation prepaid, to an approved
warranty station. This warranty is not transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs incurred for the installation, removal or
reinstallation of the product. This Warranty does not cover batteries, broken LCD transmitter display screens, nor apply
to any product or part thereof which, in the opinion of the Company, has su󰀨ered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal
rights and you may also have other rights which vary from state to state.
VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824

18 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
Quick Reference Guide (customer copy)
Pit stop/idle mode
1Stop the vehicle in a safe parking spot and put the gear
in Park (P).
Put
gear in
Park
2
Press the Remote Start button on the transmitter.*
The parking lights will flash once to indicate the vehicle is
now in Pit Stop Mode. Parking lights flash x1
14:36
Press Remote
Start button*
&
3
Exit the vehicle with the factory remote in hand (it is safe
to leave the engine running).
Notes: We recommend that you always lock the doors of
your vehicle when leaving it unattended.
14:36
Exit vehicle
with remote
* Icon and remote appearance may differ depending on the model purchased.
Remote Start Ready (RSR)
Remote Start Ready (RSR) is a function that enables the interface module
to remote start the vehicle completely on its own. Consequently, there is
no need for an aftermarket or an OEM remote starter in order to start the
vehicle from a distance.
3x OEM Lock Remote Start Activation
This solution includes the option to remote start your vehicle by pressing the Lock button
3 times consecutively. If your vehicle allows the OEM remote to remain active while the
engine is running, you may shut down your remote starter by pressing the Lock button 3
times once more.
Note: The range offered by OEM remotes is limited and typically requires you to be within
eyesight of the vehicle to control it.
Sending commands to your vehicle
Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there
are 3 possible ways you can send commands to your vehicle, using the:
1. Factory remote.
2. Aftermarket remote.
3. Directed SmartStart®application via your smartphone.
If applicable, you can also start the engine remotely by pressing the Lock button 3 times
quickly on your factory remote.
Vehicle takeover with regular key
1Close the vehicle doors, hood and trunk, then send the
Remote Start command to start the vehicle.*
14:36
Press Remote
Start button*
2Send the Unlock command on the factory or aftermarket
remote.*
14:36
Press Unlock on
either remote*
3Enter the vehicle, insert your key in the ignition barrel, and
turn it to the ON position.
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
Enter
vehicle
&
4Depress the brake pedal, put the car in gear and drive
off.
Ready to
drive off
* Icon and remote appearance may differ depending on the model purchased.

19 403.VW10 2.01 2008 Volkswagen Passat
©2023 Directed. All rights
List of available commands
Note that the information below is for many Viper®, Clifford®, Python®, Avital®, Automate®,
Autostart®and AstroStart®models. Icons and commands may differ depending on the
model and options purchased. Refer to your authorized installation center for more specific
information.
Button(s) Actions
Press & hold for 1 second to lock.
Press & hold for 1 second to unlock.
* Press & hold for 1 second to remote start.
* Press & hold for 5 seconds to activate the trunk release (optional).
* Icon and remote appearance may differ depending on the model purchased.
SmartStart compatible
This system is compatible with Directed SmartStart. For a complete list of supported features,
please visit www.mysmartstart.com.
What is SmartStart?
Now you can remote start, lock and unlock your car just by pushing a button on your
mobile device; using the SmartStart App from Directed, the leader in vehicle security and
remote start. The simple graphical interface gives you control over the following features of
your installed remote start or security with remote start system:
Lock/Arm
Unlock/Disarm
Remote Car Starter
Trunk Release
Panic
AUX Channels
You can also control multiple vehicles – great for families – and assign more than
one user to control a vehicle. It’s easy with Directed SmartStart®! But, this is only the
beginning! Directed SmartStart®is loaded with additional features including GPS tracking,
SmartSchedule, vehicle status, roadside assistance, parked car finder and more.
The application enables a “Cloud-Connected Car” like never before, providing 2-way
interaction with your vehicle. Connectivity is managed through the Directed Cloud Services
(DCS) network linking car, app, end user, and the Internet.
For more information, visit www.mysmartstart.com.
Notes
