Directed Directechs DB3 User manual

DB3 403.NISS14
v1.04
2022 Mitsubishi Outlander (Smart Key)

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Pre-Installation Module Programming Test 6
Activating 8-Channel Gateway 7
Wiring diagram 8
Locating components in the vehicle 9
Vehicle connections 10
Module programming 12
If the Pre-Installation Module Programming was successful, skip Step 1 trough 2 and proceed with Step 3 (key2GO).
Otherwise perform a soft reset and reprogram your module. 11
Module programming for convenience only (skip transponder) 13
Connecting the module 13
LED diagnostics and troubleshooting 15
Soft reset 17
Hard reset 17
Feature programming 18
Feature and option list 19
Limited one year consumer warranty 20
Quick Reference Guide (customer copy) 21
Contents

3403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Parking Lights Control
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Fuel level/EV battery level
Key2GO
* Odometer
Immobilizer Bypass-Data No Key Req'd
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible.
AUX
Keys required for
programming 1Keys required for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
8-Channel Gateway: This Firmware requires the vehicle's 8-Channel Gateway status to be Enabled. Before proceeding with
the complete installation, a pre-installation & module programming test is required. If the test is unsuccessful, you must have the
8-Channel Gateway enabled by the Nissan dealer. See the "Pre-Installation Module Programming Test" section fro more details.
Unlock and Unlock all: For driver priority unlock or unlock all, this feature must be selected in the vehicle's settings menu by the user.
Autolights: Shutdown time will depend on the vehicle's setting selected by the user.
Remote start: All vehicle doors must be closed and vehicle must be locked for the remote start to be operational.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory
hood pin, or if not supported in data.
[2] Tach: The tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[3] Power liftgate: This connection is only required if equipped with power liftgate. Doors must be unlocked for proper
operation of the power liftgate.
[4] Hazards light: This connection is optional but is required for vehicles without autolights. It is also required for shutdown
diagnostics and/or hybrid system installations as well as using CAR FINDER.

6403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
16
8
9
1
(-) Ground:
Black, pin 4
Pre-Installation Module Programming Test
To test your module, make the connections as shown on the wiring diagram below. When the connections are done, refer to the following section to program your module.
This Firmware requires the vehicles "8-Channel Gateway" to be Enabled. Before proceeding with the complete install, it is recommended that the following test is performed.
If the test programming is unsuccessful, you must have the gateway enabled by the Nissan dealer.
BCM
(behind
dash fuse box)
Solid
Connect
1412
10 42
OBDII
Diagnostic
(black conn.)
HS CAN High: Tan/Black: 3
HS CAN Low: Tan : 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
HS CAN Low: Lavender/Pink, pin 27
HS CAN High: Lavender/Blue, pin 26
HS CAN 2 Low:
White, pin 14
(+) 12V: Green, pin 16
HS CAN 2 High:
Blue, pin 6
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 8
97 6 54321BCM
(gray conn. behind
dash fusebox)
(+) 12V Input: Red: 13
(-) Ground: Black: 14
1412
10 42
All connections
are mandatory.

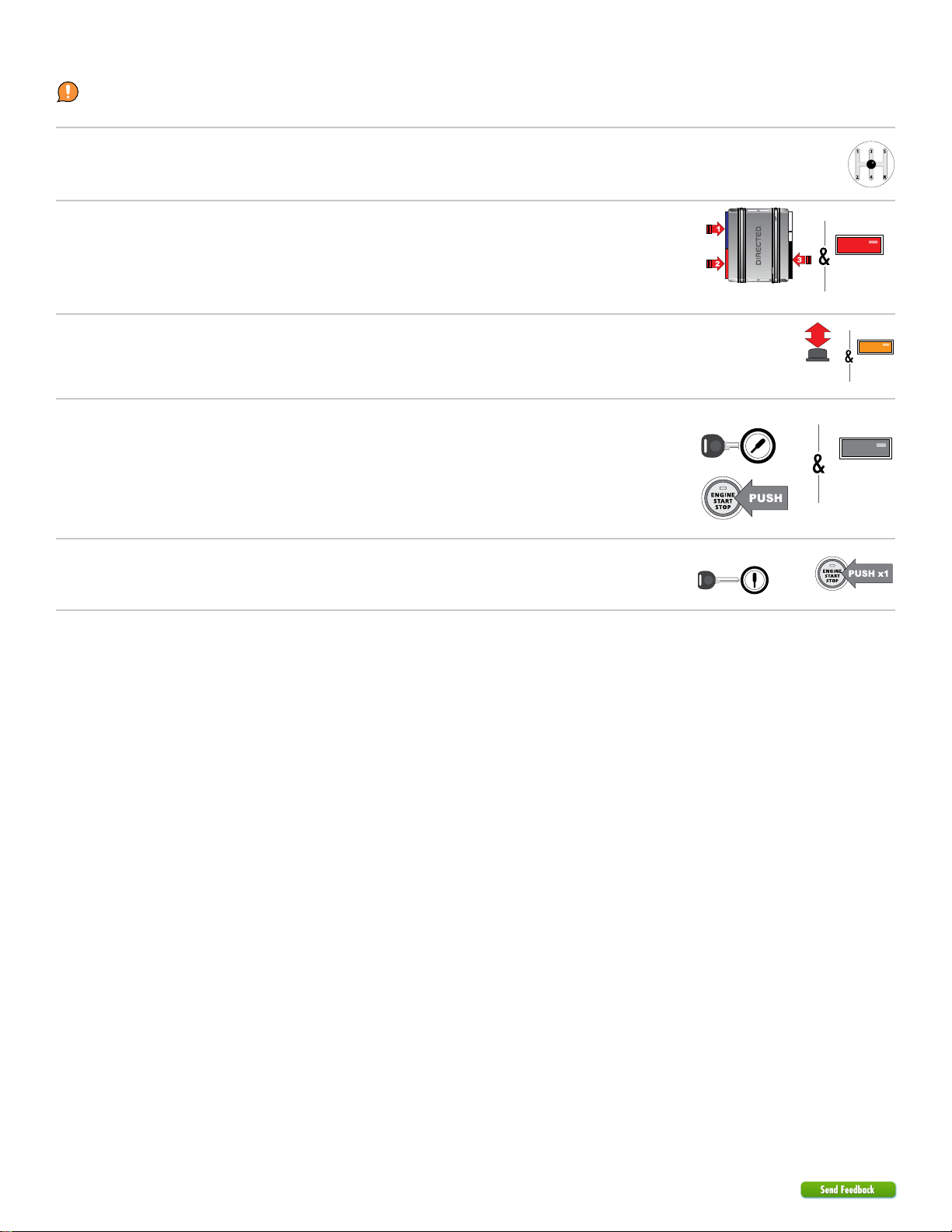

Module Programming Test
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
equipped with a manual transmission, make sure the gearshift is in the neutral position.
Press the Push-to-Start (PTS) button once (1) to turn the ignition on.
The LED quickly flashes orange and turn green for one second, then slowly flashe orange.
1
Connect the 14-pin harness.
When the LED turns ON solid red, proceed with the next step.
2
3
If the LED slowly flashes orange, you can proceed with a full installation as your vehicle does not require scan tool modifications from the
Nissan dealer. However, if the LED flashes red 3 times, you must visit the Nissan dealer and have them enable the “8-Channel Gateway.”
Please refer to the “Activating 8-Channel Gateway” section for additional details.
Note: If you are unable to have the vehicle return to the dealership, or they are unwilling to make the changes, you may use the
NISSRS01 Firmware (see installation guide for more details).

7403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Activating 8-Channel Gateway
Note: If the Pre-Installation Module Programming Test was successful, skip this page
and proceed with the full installation.
To set the 8-Channel Gateway to Open Mode:
1. Click .
A new page will appear with a CGW Information tab, and a
Restricted Mode tab directly under it.
2. In the bottom right corner of the screen, click to change the
status from Restricted to Open.
A new page will appear requesting your credentials.
3. Enter your credentials and click Submit/Soumettre.
A new page will appear as the system changes the status from
Restricted Mode to Open Mode. The circle next to CGW
Information will be green instead of red.
You are now able to program your module.
Note: Print this page for the customer for them to bring it to the
dealership, in order for them to follow the proper steps.

8403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Dash Fuse Box
(gray conn. rear of dash fusebox)
2
1
D2D Port
(-) Ground
(+) Ignition Input/Output
(+) Starter Output
(-) Trunk Release Output
(+) 12V Input
HS CAN High: Tan/Black: 3
HS CAN Low: Tan : 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
(-) Hazards Output: Red/Black: 4
1412
10 42
Wiring diagram
XKD2D65
(AC) Tach Input
(AC) Tach Output: Violet/White: 5
(+) Ignition Status Output: Gray/Black: 7
HS CAN Low:
Lavender/Pink, pin 27
HS CAN High:
Lavender/Blue, pin 26
BCM
(gray conn. behind
dash fusebox)
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 8
97 6 5 4 3 21
Smart Key Interrupt (conn. side): Yellow/Red: 11
Smart Key Interrupt (veh. side): Orange/Red: 10
HS CAN 2 Low: White, pin 14
HS CAN 2 High: Blue, pin 6(-) Ground: Black, pin 4
(+) Brake: Lt. Green, pin 6
(-) Hazards: Lavender/Yellow, pin 13
18 1524 20 16 1322 1921 17 1423
6312 8 4 110 79 5 211
BCM
(black conn. behind dash fusebox)
16
8
9
1OBDII Diagnostic
(black conn. )
(+)12V: White, pin 2
(-) Power Liftgate:
Lt. Green, pin 3
Power Liftgate Switch
(gray conn.)
4321
Smart Key Interrupt:
Lavender/Pink, pin 6
7 456
16 131415
1
32
CUT
1112 9 810
BCM
(behind
dash fuse box)
(-) Hood Pin Input
Hood Pin
Dash Fuse Box
(white conn. rear of dash fusebox)

9403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

10 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2022 Mitsubishi Outlander (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High 1 BCM behind dash fuse box, gray 40 pin plug, pin 26 Data Lavender/Blue
H1/4 Tan (DATA) HS CAN Low 1 BCM behind dash fuse box, gray 40 pin plug, pin 27 Data Lavender/Pink
H1/5 Orange/Green (DATA) HS CAN High 2 OBD-Data Link Connector, black 16 pin plug, pin 6 Data Blue (DIAG CAN)
H1/6 Orange/Brown (DATA) HS CAN Low 2 OBD-Data Link Connector, black 16 pin plug, pin 14 Data White (DIAG CAN)
H1/7 Brown Relay N.O. - No Connection No Connection
H1/8 Yellow Relay COM - No Connection No Connection
H1/9 Orange/Yellow Relay N.C. - No Connection No Connection
H1/10 Orange/Red Relay N.C. - Smart Key Interrupt (Vehicle side) Dash Fuse Box, rear, white 16 pin plug, pin 6 Cut Lavender/Pink
H1/11 Yellow/Red Relay COM - Smart Key Interrupt (Connector side) Dash Fuse Box, rear, white 16 pin plug, pin 6 Cut Lavender/Pink
H1/12 Brown/Red Relay N.O. - No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Dash Fuse Box, rear, gray 2 pin plug, pin 2 + White (100A)
H1/14 Black (-) W2W Only - Ground OBD-Data Link Connector, black 16 pin plug, pin 4 - Black
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black No Connection No Connection
H2/3 Green/White (-) W2W Only - Door / Trunk Output Remote Starter
H2/4 Red/Black (-) Hazard Light Output [4] BCM behind dash fuse box, gray 40 pin plug, pin 13 - Lavender/Yellow
H2/5 Violet/White (AC) W2W Only - Tach Output [1] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black (+) Ignition Status Output Remote Starter
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color

11 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Output Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White (+) W2W Only - Pk Light Input Remote Starter
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) W2W Only - Ignition Input Remote Starter
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
Brake Wire BCM behind dash fuse box, black 24 pin plug, pin 6 + Lt. Green
Hood Pin IPDM E/R-Underhood Fuse Box, brown 8 pin plug, pin 4 - Lt. Blue
OBD Ground OBD-Data Link Connector, black 16 pin plug, pin 4 - Black
Power Liftgate Power Liftgate Switch, gray 4 pin plug, pin 3 - Lt. Green
Second 12 Volts Dash Fuse Box, rear, gray 2 pin plug, pin 2 + White (100A)
Tachometer Camshaft Position Sensor, engine driver side, black 3 pin plug, pin 3 AC Lavender/White

12 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
If the Pre-Installation Module Programming was successful, skip Step 1 trough 2 and proceed with Step 3 (key2GO). Otherwise perform a
soft reset and reprogram your module.
1Wait until the LED turns ON solid red.
2
Press the PTS button one time (1x) to turn the ignition ON.
The LED flashes orange rapidly, turns green for 1 second, then flashes orange slowly.
1.
Turn the ignition OFF and proceed with the next step.2.
3
Remove the module from the vehicle, and reconnect it to your computer.
The website will automatically recognize that you are moving onto the second phase of the
programming sequence.
4Click Submit Key2GO Request.
5
When the configuration is completed, reconnect the module.
The LED flashes oranges rapidly.
1.
Press the unlock button twice (2x) on the OEM remote.
The LED turns ON solid green for 3 seconds, then turns OFF.
2.
You have successfully completed the module programming sequence.

13 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module programming for convenience features only (skip transponder)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
1Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
equipped with a manual transmission, make sure the gearshift is in the neutral position.
2
The harnesses must be connected in this exact order:
a) Connect the 14-pin.
b) Connect the 12-pin.
c) Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Solid
Connect
1412
10 42
3Press the programming button five (5) times.
The LED turns ON solid orange.
Solid
Press &
Release x5
4Turn ignition ON and wait until the LED turns OFF.
START
Key IN
ON
OFF
Off
5Turn ignition OFF. START
Key OUT
ON
OFF
You have successfully completed the module programming sequence.

14 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
D2D installation
Recommended: Connect the 10-pin, 12-pin and 14-pin harnesses to the module, then
connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
4th
(D2D)
2nd
(12-pin)
OR
W2W installation
If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin
harness to the module. 3rd
(14-pin)
1st
(10-pin)
2nd
(12-pin)

15 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Module programming failed, therefore 8-Channel Gateway MUST be enabled by the Nissan dealer's
scan tool.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

16 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.

Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

17 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Soft reset
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

18 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

19 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at
www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this
page.
* Default option
Feat
.Operation Flashes / Option Description
1 RFTD Output Type 1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Smart OEM Alarm
Control
1. Disabled The OEM alarm will not be controlled by the interface upon remote start. No disarm or arm command will be
executed at the beginning or end of the sequence; it must be controlled by the Remote Starter.
2. Safelock Smart OEM Alarm Control will behave like a standard Safelock feature on a remote starter. It will unlock at the
beginning of the sequence, and relock after start and shutdown.
3. Enabled*
Smart OEM Alarm Control will synchronize with the OEM alarm so that it will disarm and rearm the vehicle in the
remote start sequence, only when required. Smart OEM Alarm Control will monitor the alarm and door lock
status to detect if the disarm or rearm is required. If the vehicle is unlocked or is not equipped with factory alarm,
the disarm/rearm will not be executed.
3

20 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Limited 12 Months Consumer Warranty
VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date
of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter for a vehicle security or remote start system is warranted for
12 months from he date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), authorization number, specication of defect(s), transportation prepaid, to an approved
warranty station. This warranty is not transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs incurred for the installation, removal or
reinstallation of the product. This Warranty does not cover batteries, broken LCD transmitter display screens, nor apply
to any product or part thereof which, in the opinion of the Company, has su󰀨ered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal
rights and you may also have other rights which vary from state to state.
VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824
