Directed Directechs DB3 User manual

403.CHRYSLER
v7.36
2013 Chrysler 200
CHTHD2, THCHD2 Compatible
(Sold Separately)
Functions compatible with the 2013 Chrysler 200
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Fuel level/EV battery level
Ignition Status
Immobilizer Bypass-Data No Key Req'd
Parking Lights Control
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Trunk / Hatch Release

Introduction 3
Pre-installation and application warnings 4
Installation 5
Wiring diagram with T-Harness CHTHD2 (R1-R6 & R9-R10) or THCHD2 (R1) 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 10
Key-type Vehicles 10
Push-to-Start (PTS) Vehicles 11
SmartStart Pro/Digital RF Kit/XL202 installation notes 12
LED diagnostics and troubleshooting 13
Parking light error codes 15
Soft reset 15
Hard reset 15
Limited one year consumer warranty 16
Quick Reference Guide (customer copy)
17
Contents

3403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Introduction

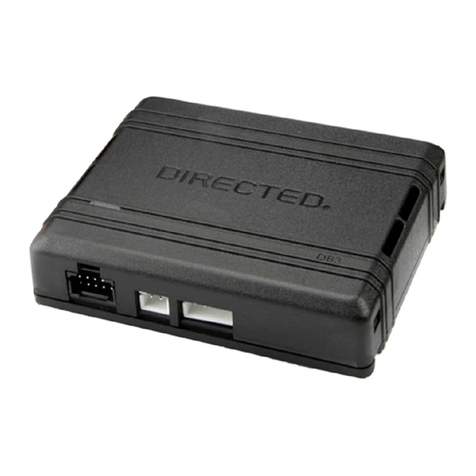

This guide supports the installation of a DB3, which is an all-in-one door lock and override interface module in Remote Start Ready (RSR)
mode. RSR is a function that enables the DB3 to remote start the vehicle completely on its own. Consequently, there is no need for an
aftermarket or an OEM remote starter in order to start the vehicle from a distance.
This solution may offer up to four (4) configuration options to control your system (all sold separately):
• 3x OEM Lock Remote Start Activation: if applicable, refer to the “Vehicle function compatibilities” section.
• SmartStart Pro Compatible: SmartStart Pro is equipped with D2D, which means it can be connected to an interface module and used
in RSR mode without the use of a remote starter. See “Module programming” for more information.
• Digital RF Kit Compatible: This firmware supports D2D 2.0, which means Digital RF kits can be connected to the interface module and
used when in RSR mode (compatible with firmware version ending with .101 or higher only).
• XL202 & Analog RF Kit
Notes
• This module can only be flashed and configured using DirectLink at www.directechs.com.
• RSR mode is not compatible with vehicles equipped with a manual transmission.

4403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible CHTHD2/THCHD2 Keys required for
programming 1Keys required for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Remote Start Ready (RSR):
•RSR installations are not compatible with vehicles equipped with a manual transmission.
•RSR is a function that enables the interface module to remote start the vehicle completely on its own.
Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
•SmartStart compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in
Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
T-Harness CHTHD2/THCHD2 notes:
•All T-Harness wires not listed in the diagram are not required for the installation.
•The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
•The optional Plug & Play T-Harness is sold separately
All connectors are displayed from the wire side (unless specified otherwise).
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.

5403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram with T-Harness CHTHD2 (R1-R6 & R9-R10) or THCHD2 (R1 & R11)
1412
10 42
(-) Parking Light Output: Green/Black
Remote Start Safety
Override Switch
(-) Driver Door
Trigger
CHTHD2 (R1-R6 & R9-R10) or THCHD2 (R1 & R11)
(optional T-Harness)
86 85
30
87a
87
Fuse 15A
(+) 12V
(-) RAP Off Output: Yellow/Black
(+) Parking lights
Sentry Key Module
(black 8-pin conn.)
To vehicle
male 8-pin connector
at the ignition switch
Refer to the
“Vehicle connections” section
for wire and connector details.
(+) 12V Input
16
8
9
1
Diagnostic
Connector OBDII
(connector side view)
HS CAN 2 High: Orange/Green
HS CAN 2 Low: Orange/Brown
CAN C Low: Orange or
White/ Dk. Blue, pin 14
CAN C High: Green
or White/ Lt. Blue, pin 6
The Remote Start
Safety Override
Switch MUST be in
the ON position.
To 8-pin female connector
at the ignition switch
You can connect either a
SmartStart Pro, XL202, or Digital
RF Kit (requires version .101+).
Refer to the SmartStart/Digital RF
Kit/XL202 Installation Notes for
more information.

6403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
1 8
Wiring diagram
(+) 12V Input: Red: 13
(-) Ground: Black: 14
1412
10 42
6: White/Black:
(-) Hood Input
86 85
30
87a
87
Fuse 15A
(+) 12V
Ignition Output: Yellow: 8
(-) RAP Off Output: Yellow/Black: 10
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
(-) Parking Light Output: Green/Black: 2
(+) 12V Input: Brown: 7
(-) Ground: Black or
Black/striped, pin 4
(+) 12V:
Red or
Red/Striped,
pin 5
(-) Driver Door Trigger
(+) Parking light
Refer to the
“Vehicle connections” section
for wire and connector details.
(+) 12V Input
16
8
9
1
Diagnostic
Connector OBDII
(connector side view)
(+) Ignition: Pink or Pink/White, pin 3
(MUX) Ignition:
Violet/Brown, pin 1
Sentry Key Module
(black 8-pin conn.,
connector side view)
(MUX) Ignition Output: Violet/Brown: 9
(MUX) Ignition Output: Violet/Green: 8
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
CAN B High: White/Orange, pin 6
CAN B Low: White or White/Pink, pin 7
CAN C Low: Orange or
White/ Dk. Blue, pin 14
CAN C High: pin 6
Remote Start Safety
Override Switch
Hood Pin
You can connect either a
SmartStart Pro, XL202, or Digital
RF Kit (requires version .101+).
Refer to the SmartStart/Digital RF
Kit/XL202 Installation Notes for
more information.

7403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Locating components in the vehicle

8403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2013 Chrysler 200. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN 1 High Sentry Key Module on ignition switch, black 8 pin plug, pin 6 data white/orange (CAN B BUS)
H1/4 Tan (DATA) HS CAN 1 Low Sentry Key Module on ignition switch, black 8 pin plug, pin 7 data white (CAN B BUS)
H1/5 Orange/Green (DATA) HS CAN 2 High OBD-data link connector, black 16 pin plug, pin 6 data white/lt. blue (Diagnostic CAN
C)
H1/6 Orange/Brown (DATA) HS CAN 2 Low OBD-data link connector, black 16 pin plug, pin 14 data white/dk. blue (Diagnostic
CAN C)
H1/7 Brown Relay N.O. - 12 Volt Input above driver kick, green 43 pin plug, pin 4 + red (40A)
H1/8 Yellow Relay COM. - Ignition Output Sentry Key Module on ignition switch, black 8 pin plug, pin 3 + pink
H1/9 Orange/Yellow Relay N.C. - Ignition Interrupt No Connection
H1/10 Orange/Red Relay N.C. - No Connection No Connection
H1/11 Yellow/Red Relay COM. - Starter OutputNo Connection No Connection
H1/12 Brown/Red Relay N.O. - No Connection No Connection
H1/13 Red (+) 12 Volt Input above driver kick, green 43 pin plug, pin 4 + red (40A)
H1/14 Black (-) Ground Sentry Key Module on ignition switch, black 8 pin plug, pin 4 - Black
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White No Connection No Connection
H2/2 Green/Black (-) Parking Light Output Must use a relay.
15A fuse to 12V.
driver kick, harness to rear
+ white/violet
H2/3 Green/White No Connection No Connection
H2/4 Red/Black No Connection No Connection
H2/5 Violet/White No Connection No Connection
H2/6 Gray No Connection No Connection
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green (MUX) Ignition Output Sentry Key Module on ignition switch, black 8 pin plug, pin 1 MUX violet/brown
H2/9 Violet/Brown (MUX) Ignition Output Sentry Key Module on ignition switch, black 8 pin plug, pin 1 MUX violet/brown
H2/10 Yellow/Black (-) RAP Off Ouput under driver dash, lt. gray 43 pin plug, pin 14 - violet
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red No Connection No Connection

9403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green No Connection No Connection
H3/2 Blue No Connection No Connection
H3/3 Red/White No Connection No Connection
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black (-) Hood Switch Input [1] The installation of an aftermarket hood pin is only required on vehicles that
are not equipped with a factory hood pin, or if not supported in data.
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink No Connection No Connection
H3/10 Blue/White No Connection No Connection
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

10 403.CHRYSLER 7.36 2013 Chrysler 200
©2023 Directed. All rights
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
Key-type Vehicles
1Ensure vehicle is in a safe location and cannot move forward during programming.
2
The harnesses must be connected in this exact order:
 a) Connect the 14-pin.
 b) Connect the 12-pin.
 c) Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
3
Insert the key into the ignition barrel and turn it to the ON position. It is important to wait for
the LED to start flashing green.
Note: Refer to the "LED Diagnostics" section for troubleshooting if the LED does not flash
green within 15 seconds.
4Turn the key to the OFF position and remove it from the ignition barrel.
5
IMPORTANT: The module will control door locks only if you follow the WITH factory keyless
method.
WITHOUT factory keyless or if OEM remote is unavailable:
Press and release the programming button.
The LED will turn ON solid green OR orange for 3 seconds and then shut off.
WITH factory keyless:
Press Lock or Unlock on the factory transmitter.
The LED will turn ON solid green OR orange for 3 seconds and then shut off.
You have successfully completed the module programming sequence.
