DirectOut Technologies MADI.SRC User manual

MADI.SRC
User's Manual
Version 2.0

page 2 of 44
MADI.SRC Manual - Version 2.0
Copyright
All rights reserved. Permission to reprint or electronically reproduce any document or
graphic in whole or in part for any reason is expressly prohibited, unless prior written
consent is obtained from the DirectOut GmbH.
All trademarks and registered trademarks belong to their respective owners. It cannot
be guaranteed that all product names, products, trademarks, requisitions, regulations,
guidelines, specifications and norms are free from trade mark rights of third parties.
All entries in this document have been thoroughly checked; however no guarantee for
correctness can be given.
DirectOut GmbH cannot be held responsible for any misleading or incorrect
information provided throughout this manual.
DirectOut GmbH reserves the right to change specifications at any time without notice.
DirectOut Technologies® is a registered trademark of the DirectOut GmbH.
© DirectOut GmbH, 2017

page 3 of 44
MADI.SRC Manual - Version 2.0
Table of contents
About This Manual 5
How to Use This Manual............................................................................... 5
Conventions .................................................................................................. 5
CHAPTER 1: Overview 6
Introduction ................................................................................................... 6
Feature Summary.......................................................................................... 6
How it works................................................................................................. 7
Applications................................................................................................... 7
CHAPTER 2: Legal issues & facts 8
Before Installing This Device......................................................................... 8
Defective Parts/Modules ............................................................................. 8
First Aid (in case of electric shock)................................................................ 9
Updates ....................................................................................................... 10
Conditions of Warranty ............................................................................... 10
Intended Operation .................................................................................... 10
Conformity & Certificates ........................................................................... 11
Contact........................................................................................................ 11
Contents...................................................................................................... 12
CHAPTER 3: Installation 13
Installing the Device .................................................................................... 13
Chapter 4: Operation 17
Introduction ................................................................................................. 17
Global Control.............................................................................................. 18
Device Lock................................................................................................. 19
Firmware Update......................................................................................... 19
Input Section ............................................................................................... 20
SRC Section ................................................................................................ 22
Output Section ............................................................................................ 24
Connecting Video / Word clock ................................................................... 27
Connecting MADI ....................................................................................... 28
Chapter 5: Operating Modes 29
Introduction ................................................................................................. 29
Normal Mode .............................................................................................. 30
Split Mode................................................................................................... 31
Auto Clock Range Select (ACRS) ................................................................ 32
Serial Data ................................................................................................... 33

page 4 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 6: Troubleshooting and Maintenance 34
Troubleshooting........................................................................................... 34
Maintenance................................................................................................ 35
CHAPTER 7: Technical Data 36
Appendix A: Clocking to MADI 38
Index 40

page 5 of 44
MADI.SRC Manual - Version 2.0
About This Manual
About This Manual
How to Use This Manual
This manual guides you through the installation and operation of the device.
Use the Table of Contents at the beginning of the manual or Index Directory at the
end of the document to locate help on a particular topic. You can access more
information and latest news by visiting on the DirectOut website at
www.directout.eu.
Conventions
The following symbols are used to draw your attention to:
TIPS!
indicate useful hints and shortcuts.
NOTES!
are used for important points of clarification or cross references.
WARNINGS!
alert you when an action should always be observed.
This document relates to:
• MADI.SRC (BNC / SC)
• MADI.SRC (SC / SC)

page 6 of 44 MADI.SRC Manual - Version 2.0
CHAPTER 1: Overview
CHAPTER 1: Overview
Introduction
The MADI.SRC enables real time sample rate conversion of a complete MADI
stream. It includes 32 high quality stereo sample rate converters, and supports all
source and destination sample rates from30 kHz to 50 kHzand their multiples, for
all MADI formats (48k/96k Frame, 56/64 channels, S/MUX).
With one RU height, two redundant power supplies and excellent sounding sample
rate converters the device offers best and reliable audio quality at a minimal need
of rackspace.
Feature Summary
MADI Ports 1 x SC-Socket multi/single-mode &
1 x coaxial BNC connector, 75 Ω (BNC/SC)
or
2 x SC-Socket multi/single-mode (SC/SC)
MADI Formats 56/64 channel, 48k/96k Frame, S/MUX 2/4
Sample Rates 32 kHz to 50 kHz and their multiples
Clock Inputs 1 x Word clock,
coaxial BNC, 75 Ω termination switchable
This input also accepts an AES3 frame (AES11).
1 x Video
coaxial BNC, 75 Ω termination switchable,
black burst (PAL, NTSC)
Operating Modes Normal Mode: one input active, outputs parallel
Split Mode: inputs and outputs combined
USB Port USB 2.0 port for firmware updates
Power Supply This device is equipped with two wide range power
supplies (84 V to 264 V AC / 47 Hz to 63 Hz / safety
class 1)

page 7 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 1: Overview
How it works
The MADI input signal is buffered and routed via the sample rate converters
(32 stereo SRCs) to the output. The output signal is reclocked by the selected
reference (internal, MADI, Video, word clock or AES3id). The output format
(56/64ch, 48k/96kFrame of the MADI input signal can be also modified with the
SRCs switched off.
By activating theSplit Mode, the inputs and outputs can be used in combination to
make use of all 32 stereo SRCs at higher sample rates. Depending on the SRC's
setting this allows for conversion of more than 32 (@96 kHz) or 16 (@192 kHz)
channels.
Applications
The MADI.SRC is designed for use in environments where the highest possible
quality sample rate conversion is at a premium. The stream is processed in real
time and all output channels are phase and sample accurate to each other.
Further the MADI.SRC can be used as a decoupling device to connect two
asynchronous systems without any loss of audio quality.
With the SRC switched off, the device works as a simple format converter, and
provides different MADI formats at the output ports (48k/96k Frame, 56/64
channel).
Typical applications include:
• Broadcast environments using different clock masters.
• Dubbing of multichannel signals for archiving
• Combination of two high sample rate streams to a single lower sample rate
stream (e.g. 2 x 32 channels @ 96 kHz into 1 x 64 channels @ 48 kHz).
• Format conversion of signals (e.g. 48k Frame S/MUX into 96kFrame).
• ...

page 8 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 2: Legal issues & facts
CHAPTER 2: Legal issues & facts
Before Installing This Device
WARNING!
Please read and observe all of the following notes before installing
this product:
• Check the hardware device for transport damage.
• Any devices showing signs of mechanical damage or damage from the
spillage of liquids must not be connected to the mains supply, or
disconnected from the mains immediately by pulling out the power lead.
• All devices must be grounded. The device is grounded through its
IEC power connections.
• All devices must be connected to the mains using the three-cord power
leads supplied with the system. Only supply electrical interfaces with the
voltages and signals described in these instructions.
• Do not use the device at extreme temperatures. Proper operation can
only be guaranteed between temperatures of 5ºC and 45ºC and a
maximum relative humidity of 80%, non-condensing.
• The cabinet of the device will heat up. Do not place the device close
to heating sources (e.g. heaters). Observe the environmental conditions.
Defective Parts/Modules
WARNING!
This device contains no user-serviceable parts. Therefore do not open the device.
In the event of a hardware defect, please send the device to your DirectOut
representative together with a detailed description of the fault.
We would like to remind you to please check carefully whether the failure is
caused by erroneous configuration, operation or connection before sending parts
for repair.

page 9 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 2: Legal issues & facts
First Aid (in case of electric shock)
WARNING!
• Do not touch the person or his/her clothing before power is turned off,
otherwise you risk sustaining an electric shock yourself.
• Separate the person as quickly as possible from the electric power source
as follows:
- Switch off the equipment.
- Unplug or disconnect the mains cable.
• Move the person away from the power source by using dry insulating
material (such as wood or plastic).
• If the person is unconscious:
- Check their pulse and reanimate if their respiration is poor.
- Lay the body down and turn it to one side. Call for a doctor immediately.
• Having sustained an electric shock, always consult a doctor.

page 10 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 2: Legal issues & facts
Updates
DirectOut products are continually in development, and therefore the information
in this manual may be superseded by new releases. To access the latest
documentation, please visit the DirectOut website:
www.directout.eu.
WARNING!
No compensation can be claimed for damages caused by operation of this unit
other than for the intended use described above. Consecutive damages are also
excluded explicitly. The general terms and conditions of business of DirectOut
GmbH are applied.
Conditions of Warranty
This unit has been designed and examined carefully by the manufacturer and
complies with actual norms and directives.
Warranty is granted by DirectOut GmbH over the period of two years for all
components that are essential for proper and intended operation of the device. The
date of purchase is applied for this period.
Consumable parts (e.g. battery) are excluded from warranty claims.
WARNING!
All claims of warranty will expire once the device has been opened or modified, or
if instructions and warnings were ignored.
For warranty claims please contact the dealer where your device was acquired.
This document refers to firmware version 2.5.
Intended Operation
The MADI.SRC is designed for conversion of format and sample rate of MADI
signals (AES10).

page 11 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 2: Legal issues & facts
Conformity & Certificates
CE
This device complies with the basic requests of applicable EU guidelines. The
appropriate procedure for approval has been carried out.
RoHS
(Restriction of the use of certain Hazardous Substances)
This device was constructed fulfilling the directive on the restriction of the use of
certain hazardous substances in electrical and electronic equipment 2002/95/EC.
WEEE
(Directive on Waste Electrical and Electronic Equipment)
Due to the directive 2002/96/EC for waste disposal this device must be recycled.
For correct recycling please dispatch the device to:
DirectOut GmbH,
Leipziger Str. 32
09648 Mittweida
Germany
Only stamped parcels will be accepted!
WEEE-Reg.-No. DE 64879540
Contact
DirectOut GmbH
Leipziger Str. 32, 09648 Mittweida, Germany
Phone: [phone]
Fax: [phone]
Mail: [email protected]
www.directout.eu

page 12 of 44 MADI.SRC Manual - Version 2.0
CHAPTER 2: Legal issues & facts
Single-Mode / Multi-Mode
The SC ports are multi-mode as default. It is possible to equip the device with
single-mode SC ports. The housing of single-mode ports is colored blue.
Contents
The contents of your MADI.SRC package should include:
• 1 x MADI.SRC (19’’, 1 RU)
• 2 x power chord
• 2 x fixing unit for power plug
• 1 x User's Manual
Two different MADI I/O configurations are available:
1 x SC-Socket & 1 x BNC coaxial (Version BNC / SC)
2 x SC-Socket (Version SC / SC)
multi-mode single-mode

page 13 of 44MADI.SRC Manual - Version 2.0
CHAPTER 3: Installation
Retain the protective cap if the optical port is unused. This will protect against
soiling which can lead to malfunction.
Avoid damage from condensation by waiting for the device to adapt to the
environmental temperature. Proper operation can only be guaranteed between
temperatures of 5ºC and 45ºC and a maximum relative humidity of 80%, non-
condensing.
Ensure that the unit has sufficient air circulation for cooling.
CHAPTER 3: Installation
Installing the Device
1. Open the packaging and check that the contents have been delivered
complete and undamaged.
2. Fix the device in a 19’’ frame with four screws, or place it on a non-slip
horizontal surface.
WARNING!
3. Remove the protective cap from the optical MADI port(s) before use.
(Version BNC / SC)
(Version SC / SC)
NOTE

page 14 of 44 MADI.SRC Manual - Version 2.0
CHAPTER 3: Installation

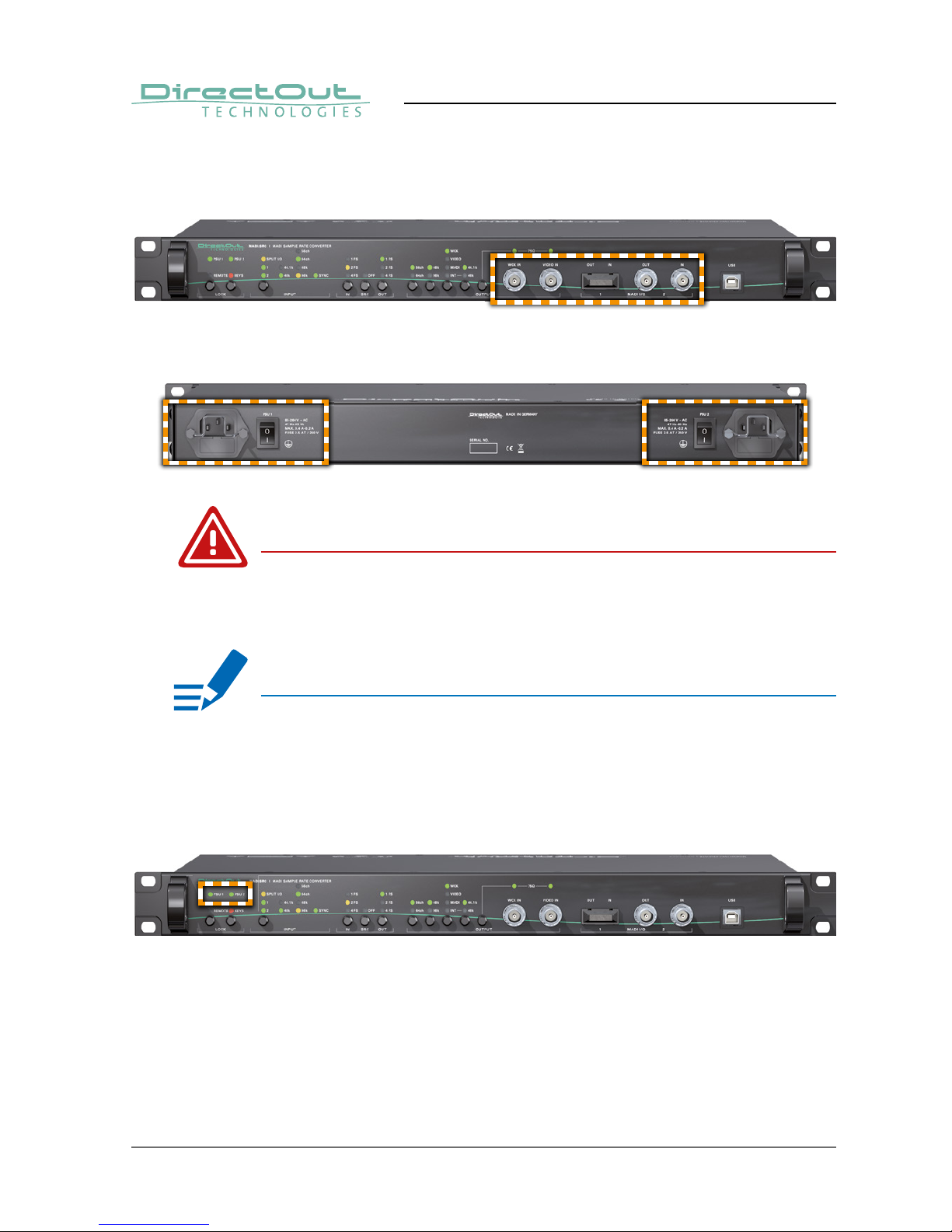

This device may operate with only one power supply. To provide power supply
redundancy, it is recommended to connect both PSU1 and PSU 2 to independent
power supplies with separate fuses.
This device must be connected to the mains using the three-cord power leads
supplied with the system. Only supply the voltages and signals indicated (84 V –
264 V).
4. Connect the signal cables for the MADI and clock signals to the device.
5. Using the power cord provided connect the PSU to a matching power supply.
WARNING
NOTE
6. Turn on the power switch and check the status of PSUs on the front panel:

page 15 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 3: Installation
Keep any packaging in order to protect the device should it need to be dispatched
for service.
To update the firmware an installed USB Serial driver (Windows®) and the Update
Tool are necessary. The software and the installation instructions are available at
www.directout.eu.
While the device is booting the currently installed firmware is indicated in the
display - e.g. firmware version 2.5.
7. Check if the latest firmware is installed on the device. It is recommended to
use the latest version that is available on the product page at
www.directout.eu.
NOTE
TIP

page 16 of 44
MADI.SRC Manual - Version 2.0
CHAPTER 3: Installation
This page is left blank intentionally.

page 17 of 44
MADI.SRC Manual - Version 2.0
Chapter 4: Operation
Introduction
This chapter describes the basic operation of the device.
Note that throughout this manual, the abbreviation FS refers to sample rate or
sample frequency. So, when dealing with scaling factors, the following sample
rates can be written as:
• 44.1 kHz or 48 kHz = 1 FS
• 88.2 kHz or 96 kHz = 2 FS
• 176.4 kHz or 192 kHz = 4 FS
Chapter 4: Operation

page 18 of 44 MADI.SRC Manual - Version 2.0
Chapter 4: Operation
The green LEDs (PSU 1 & PSU 2) indicate that a working power supply is
connected to the power supply unit. Note that an unlit LED does not guarantee
that the device is free of voltage. To ensure that the device is completely
disconnected from mains voltage, the power chords must be disconnected.
Global Control
The control on the right of the front panel indicates the power supply. Power
switches are on the back panel:
PSU 1 & PSU 2 (rear) 2 Switches
Enable / disable power supply.
PSU 1 & PSU 2 (rear) C13 socket
Connect the power supply here (84- 264 V AC).
PSU 1 & PSU 2 (front) 2 LEDs (green): indicate the status of both
power supply units
LED OFF =Power supply inactive
LED ON =Power supply active
NOTE

page 19 of 44MADI.SRC Manual - Version 2.0
Chapter 4: Operation
Device Lock
The device can be locked against to prevent from accidental modification of the
settings.
LOCK KEYS LED (red): indicates state of Keys Lock
LED OFF =keys lock not activated
LED ON =keys lock activated
LOCK KEYS Push button
Press and hold the LOCK KEYS button for more than
2 seconds to change the key lock status.
With lock activated, the device cannot be controlled
locally from the front panel.
LOCK REMOTE* LED (red): indicates state of Remote Lock
LED OFF =remote lock not activated
LED ON =remote lock activated
LOCK REMOTE* Push button
Press and hold the LOCK REMOTE button for more
than 2 seconds to change the remote lock status.
With lock activated, the device cannot be controlled
via remote control
* not implemented
Firmware Update
The firmware can be updated via a USB connection. The software and the update
instructions are available at www.directout.eu.
USB USB socket (type B)
Connect for firmware updates here.

page 20 of 44 MADI.SRC Manual - Version 2.0
Chapter 4: Operation
Input Section
These controls select the operating mode and MADI input, and indicate the sample
rate and format of the MADI input signal.
Two operating modes are provided:
• Normal Mode = either MADI input may be selected.
• Split Mode = both MADI inputs can be used depending on the
combination of the input and output SRC selections.
INPUT Push button
Press short to select either input 1 or input 2 for conversion (in
normal mode).
Press and hold longer than 2 seconds to toggle between normal
mode and split mode.
INPUT
SPLIT I/O
LED (yellow): indicates the operating mode
LED OFF = normal mode active
LED ON = split mode active
INPUT
1
LED (green): indicates the selection of MADI input 1
LED ON* = input 1 selected
LED blinking = input selected but no signal detected
INPUT
2
LED (green): indicates the selection of MADI input 2
LED ON* = input 2 selected
LED blinking = input selected but no signal detected
INPUT
44.1
LED (green): indicates the use of 44.1 kHz as base
sample rate
LED ON = Base sample rate 44.1 kHz
INPUT
48
LED (green): indicates the use of 48 kHz as base
sample rate
LED ON = Base sample rate 48 kHz
* in split mode both input leds are lit
