DirectOut Technologies MADI.9648 User manual

MADI.9648
User‘s Manual
Version 1.2

page 2 of 32 MADI.9648 Manual - Version 1.2
Copyright
All rights reserved. Permission to reprint or electronically reproduce any document or
graphic in whole or in part for any reason is expressly prohibited, unless prior written
consent is obtained from the DirectOut GmbH.
All trademarks and registered trademarks belong to their respective owners. It cannot
be guaranteed that all product names, products, trademarks, requisitions, regulations,
guidelines, specifications and norms are free from trade mark rights of third parties.
All entries in this document have been thoroughly checked; however no guarantee for
correctness can be given.
DirectOut GmbH cannot be held responsible for any misleading or incorrect
information provided throughout this manual.
DirectOut GmbH reserves the right to change specifications at any time without notice.
DirectOut Technologies® is a registered trademark of the DirectOut GmbH.
© DirectOut GmbH, 2018

page 3 of 32MADI.9648 Manual - Version 1.2
Table of contents
About This Manual 5
How to Use This Manual............................................................................... 5
Conventions .................................................................................................. 5
CHAPTER 1: Overview 6
Introduction ................................................................................................... 6
Feature Summary.......................................................................................... 6
How it works................................................................................................. 6
Applications................................................................................................... 7
CHAPTER 2: Legal issues & facts 8
Before Installing This Device......................................................................... 8
Defective Parts/Modules ............................................................................. 8
First Aid (in case of electric shock)................................................................ 9
Updates ....................................................................................................... 10
Conditions of Warranty ............................................................................... 10
Intended Operation .................................................................................... 10
Conformity & Certificates ........................................................................... 11
Contact........................................................................................................ 11
Contents...................................................................................................... 12
CHAPTER 3: Installation 14
Installing the Device .................................................................................... 14
CHAPTER 4: Operation 17
Global Control.............................................................................................. 17
Introduction ................................................................................................. 17
Signal Input / Output ................................................................................... 18
Sample Rate Conversion ............................................................................. 20
Servicing...................................................................................................... 23
CHAPTER 5: Troubleshooting and Maintenance 24
Troubleshooting........................................................................................... 24
Maintenance................................................................................................ 24
CHAPTER 6: Technical Data 26
Index 27

page 4 of 32 MADI.9648 Manual - Version 1.2
This page is left blank intentionally.

page 5 of 32MADI.9648 Manual - Version 1.2
About This Manual
About This Manual
How to Use This Manual
This manual guides you through the installation and operation of the device.
Use the Table of Contents at the beginning of the manual or Index Directory at the
end of the document to locate help on a particular topic. You can access more
information and latest news by visiting on the DirectOut website at
www.directout.eu.
Conventions
The following symbols are used to draw your attention to:
TIPS
indicate useful hints and shortcuts.
NOTES
are used for important points of clarification or cross references.
WARNINGS!
alert you when an action should always be observed.

page 6 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 1: Overview
CHAPTER 1: Overview
Introduction
MADI.9648 is a synchronous MADI sample rate converter with four independent
SRC blocks for bidirectional conversion of 128 audio channels. Equipped with eight
MADI ports it features synchronous low latency conversion in a ratio of exactly 1:2
or 2:1 to translate between 2 FS (88.2/96 kHz) and 1 FS (44.1/48 kHz).
Feature Summary
MADI Ports 2 x SC multi-mode connectors
6 x coaxial BNC connectors
MADI Formats 56/64 channel, 48k/96k Frame
Sample Rates 44.1, 48, 88.2, 96 +/-12.5%
Sample Rate Conversion 128 audio channels, bidirectional
Low Latency 8 samples (round-trip 48-96-48)
16 samples (round-trip 96-48-96)
USB Port USB 2.0 port for firmware updates.
Power Supply This device is equipped with two wide range power
supplies (84 V to 264 V AC / 47 Hz to 63 Hz / safety
class 1)
How it works
A 1 FS MADI stream with 64 audio channels is converted into two 2 FS MADI
streams with 32 channels each of. Vice versa two 2 FS streams are converted and
combined into a single 1 FS stream.
MADI.9648 provides:
• 2 x conversion from 1 FS to 2 FS
• 2 x conversion from 2 FS to 1 FS
No settings are required:
• Fixed signal routing
• Automatic signal detection of frame format (48k/96k Frame)
and channel mode (56/64 ch).
• Frame format of 2 FS output is set following the input of the same port
• The output of each SRC block is clocked by it’s corresponding MADI input.

page 7 of 32MADI.9648 Manual - Version 1.2
CHAPTER 1: Overview
Applications
MADI.9648 enables an easy-to-handle integration of external equipment with most
recent live consoles with 96 kHz processing.
Typical applications include:
• monitoring
• external effects
• ...
Scheme
The ports underlined are used as clock (and signal source for 1 FS to 2 FS) once
both input ports detect signal.
DOWN
SRC 7
5
2
1
SRC
UP
2
1
5 or 7
SRC
DOWN
8
6
4
3
SRC
UP
4
3
6 or 8

page 8 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
CHAPTER 2: Legal issues & facts
Before Installing This Device
WARNING!
Please read and observe all of the following notes before installing
this product:
• Check the hardware device for transport damage.
• Any devices showing signs of mechanical damage or damage from the
spillage of liquids must not be connected to the mains supply, or
disconnected from the mains immediately by pulling out the power lead.
• All devices must be grounded. The device is grounded through its
IEC power connections.
• All devices must be connected to the mains using the three-cord power
leads supplied with the system. Only supply electrical interfaces with the
voltages and signals described in these instructions.
• Do not use the device at extreme temperatures. Proper operation can
only be guaranteed between temperatures of 5ºC and 45ºC and a
maximum relative humidity of 80%, non-condensing.
• The cabinet of the device will heat up. Do not place the device close
to heating sources (e.g. heaters). Observe the environmental conditions.
Defective Parts/Modules
WARNING!
This device contains no user-serviceable parts. Therefore do not open the device.
In the event of a hardware defect, please send the device to your DirectOut
representative together with a detailed description of the fault.
We would like to remind you to please check carefully whether the failure is
caused by erroneous configuration, operation or connection before sending parts
for repair.

page 9 of 32MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
First Aid (in case of electric shock)
WARNING!
• Do not touch the person or his/her clothing before power is turned off,
otherwise you risk sustaining an electric shock yourself.
• Separate the person as quickly as possible from the electric power source
as follows:
- Switch off the equipment.
- Unplug or disconnect the mains cable.
• Move the person away from the power source by using dry insulating
material (such as wood or plastic).
• If the person is unconscious:
- Check their pulse and reanimate if their respiration is poor.
- Lay the body down and turn it to one side. Call for a doctor immediately.
• Having sustained an electric shock, always consult a doctor.

page 10 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
Updates
DirectOut products are continually in development, and therefore the information
in this manual may be superseded by new releases. To access the latest
documentation, please visit the DirectOut website:
www.directout.eu.
WARNING!
No compensation can be claimed for damages caused by operation of this unit
other than for the intended use described above. Consecutive damages are also
excluded explicitly. The general terms and conditions of business of DirectOut
GmbH are applied.
Conditions of Warranty
This unit has been designed and examined carefully by the manufacturer and
complies with actual norms and directives.
Warranty is granted by DirectOut GmbH over the period of 36 months for all
components that are essential for proper and intended operation of the device. The
date of purchase is applied for this period.
Consumable parts (e.g. battery) are excluded from warranty claims.
WARNING!
All claims of warranty will expire once the device has been opened or modified, or
if instructions and warnings were ignored.
For warranty claims please contact the dealer where your device was acquired.
This guide refers to firmware version 1.3.
Intended Operation
MADI.9648 is designed for sample rate conversion of digital audio signals. In this
context digital audio refers to a MADI signal (AES10).

page 11 of 32MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
Conformity & Certificates
CE
This device complies with the basic requests of applicable EU guidelines. The
appropriate procedure for approval has been carried out.
RoHS
(Restriction of the use of certain Hazardous Substances)
This device was constructed fulfilling the directive on the restriction of the use of
certain hazardous substances in electrical and electronic equipment 2002/95/EC.
WEEE
(Directive on Waste Electrical and Electronic Equipment)
Due to the directive 2002/96/EC for waste disposal this device must be recycled.
For correct recycling please dispatch the device to:
DirectOut GmbH,
Leipziger Str. 32
09648 Mittweida
Germany
Only stamped parcels will be accepted!
WEEE-Reg.-No. DE 64879540
Contact
DirectOut GmbH
Leipziger Str. 32, 09648 Mittweida, Germany
Phone: [phone]
Fax: [phone]
Mail: [email protected]
www.directout.eu

page 12 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
Contents
The contents of your MADI.9648 package should include:
• 1 x MADI.9648 (19’’, 1 RU)
• 2 x power chord
• 1 x fixing unit for power plug
• 1 x Manual
To complete the delivery please download from the
DirectOut website: www.directout.eu
• USB Serial driver

page 13 of 32MADI.9648 Manual - Version 1.2
CHAPTER 2: Legal issues & facts
This page is left blank intentionally.

page 14 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 3: Installation
Retain the protective cap if the optical port is unused. This will protect against
soiling which can lead to malfunction.
Avoid damage from condensation by waiting for the device to adapt to the
environmental temperature. Proper operation can only be guaranteed between
temperatures of 5ºC and 45ºC and a maximum relative humidity of 80%, non-
condensing.
Ensure that the unit has sufficient air circulation for cooling.
CHAPTER 3: Installation
Installing the Device
1. Open the packaging and check that the contents have been delivered
complete and undamaged.
2. Fix the device in a 19’’ frame with four screws, or place it on a non-slip
horizontal surface.
WARNING!
3. Remove the protective cap from the optical MADI port(s) before use.

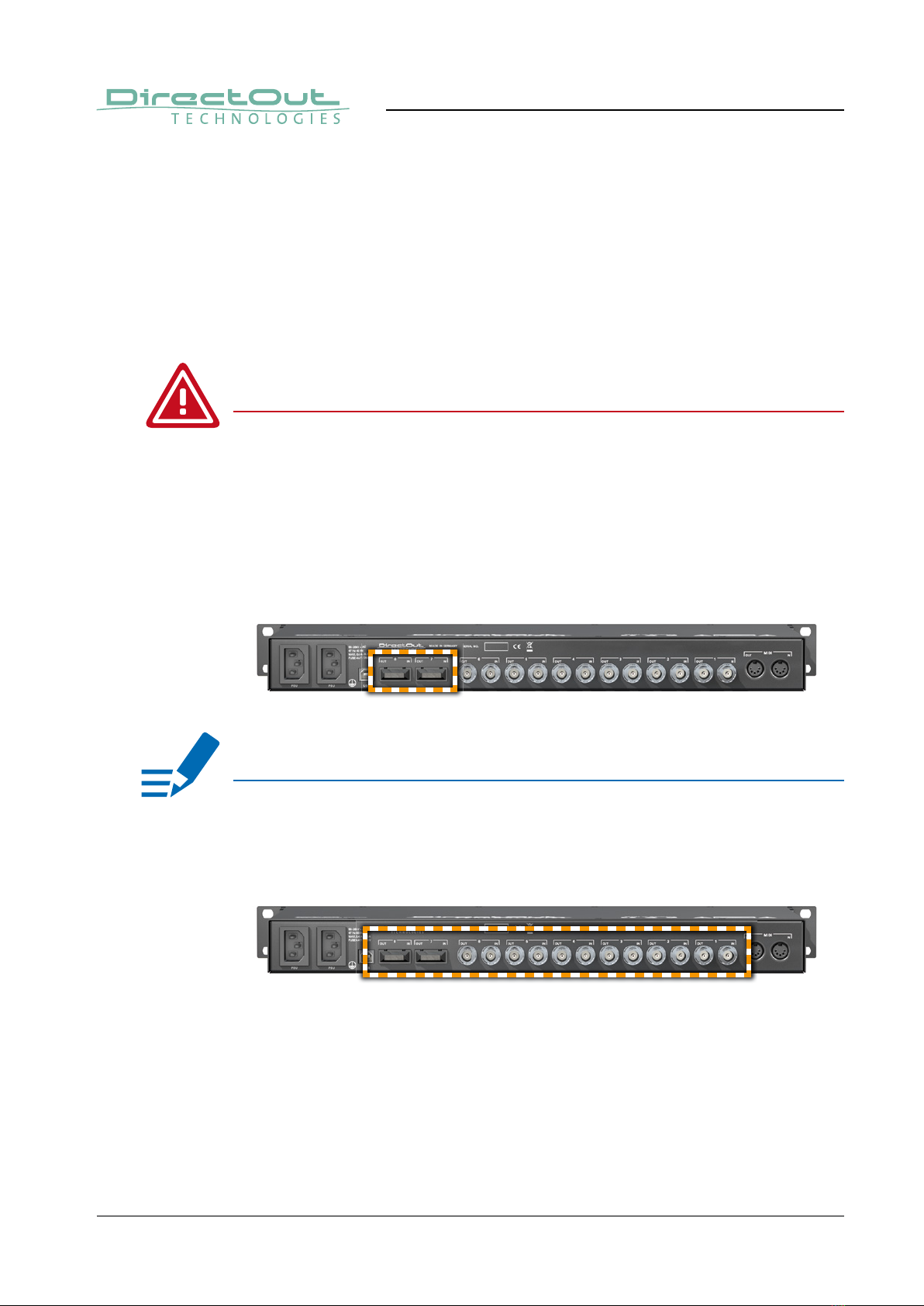

NOTE!
4. Connect signal cable(s) for the MADI signals.

page 15 of 32MADI.9648 Manual - Version 1.2
CHAPTER 3: Installation
5. Optional: Connect an USB cable to the USB port for firmware updates.
This requires the USB Serial driver (Windows) being installed first.
The driver and the installation instructions are available at
www.directout.eu.
6. Using the power cord provided connect the PSUs to a matching power
supply:
The left socket is switched by the power supply switch. The right socket will
power up the device immediately when connected to the mains.
WARNING!
This device must be connected to the mains using the three-cord power leads
supplied with the system. Only supply the voltages and signals indicated (84 V –
264V).

page 16 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 3: Installation
Keep any packaging in order to protect the device should it need to be dispatched
for service.
7. Turn on the power switch:
While the device is booting the currently installed firmware is indicated in the front
panel displays - e.g. firmware version 1.1.
8. Check if the latest firmware is installed on the device. It is recommended to
use the latest version that is available on the product page at
www.directout.eu.
9. Optional: Connect an USB cable to the USB port for firmware updates. This
requires the USB Serial driver (Windows®) being installed first. The driver and
the installation instructions are available at www.directout.eu.
10. Installation of USB Serial driver
• download the USB Serial driver
• download the ‘Installation Guide for USB Control’
• follow the installation instructions in the ‘Installation Guide for USB Control’
TIP!

page 17 of 32MADI.9648 Manual - Version 1.2
CHAPTER 4: Operation
Introduction
This chapter describes the basic operation of the device.
Note that throughout this manual, the abbreviation FS refers to sample rate or
sample frequency. So, when dealing with scaling factors, the following sample
rates can be written as:
• 44.1 kHz or 48 kHz = 1 FS
• 88.2 kHz or 96 kHz = 2 FS
• 176.4 kHz or 192 kHz = 4 FS
The display indicates that a working power supply is connected to the power
supply unit. Note that an unlit display does not guarantee that the device is free of
voltage. To ensure that the device is completely disconnected from mains voltage,
the power chord(s) must be disconnected.
CHAPTER 4: Operation
Global Control
An LED on the front panel indicates the power supply.
Power 1 Switch*
Enable / disable power supply.
ON LED (green) indicates state of power supply
ON = at least one power supply is active
Power 2 x C13 socket*
Connect the power supply here (84- 264 V AC).
* The left socket is switched by the power supply switch. The right socket will
power up the device immediately when connected to the mains.
NOTE

page 18 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 4: Operation
Signal Input / Output
The device is equipped with six BNC coaxial (75 Ω) and two SC optical MADI ports.
1
OUT / IN*
2 x BNC socket (coaxial)
O UT: MADI output (2 FS), connect for MADI output signal
here.
IN: MADI input (2 FS), connect MADI input signal here.
2
OUT / IN
2 x BNC socket (coaxial)
O UT: MADI output (2 FS), connect for MADI output signal
here.
IN: MADI input (2 FS), connect MADI input signal here.
3
OUT / IN*
2 x BNC socket (coaxial)
O UT: MADI output (2 FS), connect for MADI output signal
here.
IN: MADI input (2 FS), connect MADI input signal here.
4
OUT / IN
2 x BNC socket (coaxial)
O UT: MADI output (2 FS), connect for MADI output signal
here.
IN: MADI input (2 FS), connect MADI input signal here.
5
OUT / IN
2 x BNC socket (coaxial)
O UT: MADI output (1 FS), connect for MADI output signal
here.
IN: MADI input (1 FS), connect MADI input signal here.
6
OUT / IN
2 x BNC socket (coaxial)
O UT: MADI output (1 FS), connect for MADI output signal
here.
IN: MADI input (1 FS), connect MADI input signal here.
7
OUT / IN**
1 x SC socket (optical)
O UT: MADI output (1 FS), connect for MADI output signal
here.
IN: MADI input (1 FS), connect MADI input signal here.
8
OUT / IN**
1 x SC socket (optical)
O UT: MADI output (1 FS), connect for MADI output signal
here.
IN: MADI input (1 FS), connect MADI input signal here.

page 19 of 32MADI.9648 Manual - Version 1.2
CHAPTER 4: Operation
* port 1 & 3 are used as clock master and define the channel mode for its
particular block.
** port 7 respective port 8 is selected as clock and input source, if both inputs of
the particular SRC block detect a valid signal.
NOTE
Mixed conversion of 28 ch and 32 ch is not possible. Either 2 x 28 ch or 2 x 32 ch.
The signal routing and the sample rate conversion is fixed for each signal path.
SRC mode UP means from 1 FS to 2 FS, while DOWN means from 2 FS to 1 FS.
• UP : one stream is distributed into two streams
• DOWN : two streams are combined into one stream
Scheme
DOWN
SRC 7
5
2
1
SRC
UP
2
1
5 or 7
SRC
DOWN
8
6
4
3
SRC
UP
4
3
6 or 8

page 20 of 32 MADI.9648 Manual - Version 1.2
CHAPTER 4: Operation
Sample Rate Conversion
There are two SRC Groups featuring each of an 1 FS to 2 FS block and vice versa
a 2 FS to 1 FS block. Each block provides LEDs monitoring for input sync, sample
rate and signal format.
2 FS
SYNC (1, 2, 3, 4)
LED (green) indicates the lock / sync state of
the MADI input signal
ON = signal present, in sync
blinking = signal present, not in sync*
OFF = no signal detected
2 FS
SR (96)
LED (yellow) indicates the sample rate
96kHz of the input signal
ON = 96 kHz detected
blinking = 96 kHz detected, S/MUX
2 FS
SR (88.2)
LED (yellow) indicates the sample rate
88.2kHz of the input signal
ON = 88.2 kHz detected
blinking = 88.2 kHz detected, S/MUX
2 FS
FORMAT (32ch)
LED (green) indicates the use of channel
mode 32 ch in the input signal
ON = 32 ch detected
blinking = 32 ch detected, S/MUX
2 FS
FORMAT (28ch)
LED (green) indicates the use of channel
mode 28 ch in the input signal
ON = 28 ch detected
blinking = 28 ch detected, S/MUX
* port 1 & 3 are used as clock master and define the channel mode for its
particular block.
NOTE
The 2 FS inputs accept both 96k Frame and 48k Frame (S/MUX). The 2 FS outputs
are set to 96k frame or 48k frame (S/MUX) following the input of the same port.
The output of each SRC block is clocked by it’s corresponding MADI input.
Synchronous conversion in a ratio of exactly 1:2 or 2:1 to translate between 2 FS
(88.2/96 kHz) and 1 FS (44.1/48 kHz).
