DirecTV HR10-250 User manual

Quick Start Guide
Network Your
DIRECTV Plus®
HD DVR

Network Your DIRECTV Plus HD DVR QUICK-START GUIDE
®
Your DIRECTV Plus HD DVR is network-capable, meaning it can connect to your home network and the internet.
And, with the proper equipment (as outlined below), your DIRECTV Plus HD DVR can access Media Share, the
exciting new service that allows you to stream pictures and music from your home computer!
Intel Viiv™ Processor Technology-based PC
(look for the Intel Viiv™ sticker on the computer).
Before You Begin Requirements:
Router (Intel Viiv™ Technology - compliant router
preferred. Look for the "Enjoy with Viiv" sticker on
the router).
Broadband internet connection
The latest version of the Intel Viiv™ Media Share
Software
- Windows XP systems require Version 1.5 or higher
- Windows Vista systems require Version 1.6 or higher
If you don't have this software, go to
www.directv.com/mediashare to download it.
This Quick-Start Guide will show you how to connect your DIRECTV Plus HD DVR to your home network and use
Intel Viiv™ Processor Technology-based PC to use Media Share. Installation is quick and easy, just follow the
steps!
There are three (3) ways to connect your DIRECTV Plus HD DVR to your home network:
1. Wired Connection
2. Powerline Connection
3. Wireless Connection
®
®
CONNECT YOUR DIRECTV Plus HD DVR TO YOUR HOME NETWORK
Wired Connection
Powerline Connection
Wirelless Connection
®
®
™
USE MEDIA SHARE
SET UP YOUR IntelViiv™MEDIA SERVER
®
®
®
®
®
®
®
3
4
6
7
9
®

Connect Your DIRECTV Plus HD DVR To Your Home Network
®
WIRED CONNECTION
A wired connection is a direct or indirect connection between your DSL/cable router and your DIRECTV Plus HD DVR via an
Ethernet cable. Note that your equipment may look different.
Router
Ethernet Cable
HD DVR
Direct Connection
Indirect Connection
HD DVR
Ethernet Cable
®
If you can access your router, make sure that that it is providing Broadband to the Ethernet jack
that you are connecting your HD DVR to.
Step 1
Plug one end of the Ethernet cable into the Ethernet port located on the back of your HD DVR.
(Note: You may have one or two Ethernet ports, depending on your model. If you have 2, use the
TOP Ethernet port.)
Ethernet cable
plugs into HD DVR.
Step 2
3
Step 3
Go to your DIRECTV Plus HD DVR:
Press Menu On Your DIRECTV Remote>
Select Help & Settings>
Select Setup>
Select Network>
Choose Connect Now

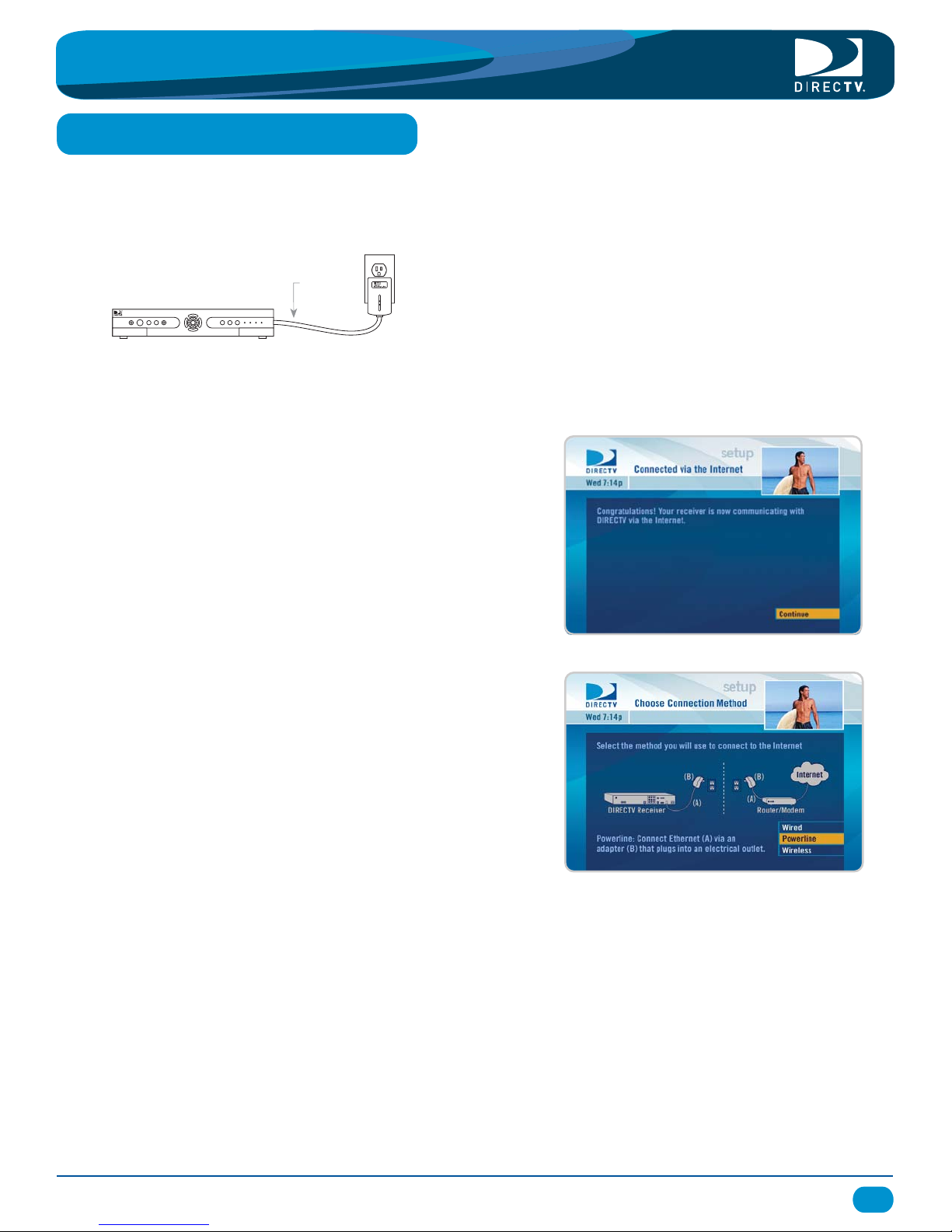

If your HD DVR immediately recognizes the network connection
you will receive this Congratulations screen.
(See Figure A.)
Verify that You are Connected!
®
Figure A
Figure B
If your HD DVR does not immediately recognize the network
connection, you will get the option to choose your
Connection method. You should choose Wired.
(See Figure B.)
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
Ethernet cable
connects to an unused
port on the router.
Along with the requirements listed on page 2, you will need:
Cat5 Wiring in your home.
This means that you have Broadband ready Ethernet jacks that
you can plug into in different areas of your home
Connect the other end of the Ethernet cable into an Ethernet Adapter device
(Wall Mount or Power Strip), and plug the Ethernet Adapter device into a wall outlet.

Connect Your DIRECTV Plus HD DVR To Your Home Network
®
POWERLINE CONNECTION
Ethernet cable
connects to an unused
port on the router.
4
A powerline connection uses your home’s existing power lines to connect your DSL/cable router to your DIRECTV Plus HD
DVR via an Ethernet Adapter that uses HomePlug(R) or a similar power line technology.
Two Ethernet Adapters are needed: one to connect to the router and one to connect to the DIRECTV Plus HD DVR.
Along with the requirements listed on page 2, you will need:
Note: If you live in an apartment or condo, you may have to adjust the security settings on your Ethernet Adapter to
ensure that your neighbors with similar adapters do not intercept your data. Refer to the manufacturer’s instructions for your
Ethernet Adapter.
2 Ethernet Adapter Devices
®
®
IMPORTANT: Please be advised that your Ethernet Adapters must be plugged directly into a wall. However, if you have power
strip that is certified to work with your Ethernet Adapter, you may use it. If you do not have a certified power strip,
you must plug your Ethernet Adapter directly into an electrical outlet.
Step 1
Connect one end of an Ethernet cable to an unused port on the back of your router.
Step 2
Router
Ethernet
Cable
Ethernet Adapter
Connect the other end of the Ethernet cable to the Ethernet jack on the Ethernet Adapter. If your Ethernet Adapter is combined
with your power strip, then plug your power strip into the wall and connect the Ethernet cable to the jack on the power strip.
Power Strip Configuration
Step 3
At the back of the DIRECTV Plus HD DVR, connect another Ethernet cable into the back
of your DIRECTV Plus HD DVR.
®
Ethernet cable
plugs into HD DVR.
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
2 Ethernet Cables
Wall Mount Plugged
into Wall Outlet
(Note: You may have one or two Ethernet ports, depending on your model. If you have 2, use the
TOP Ethernet port.)
®

Connect Your DIRECTV Plus HD DVR To Your Home Network
®
POWERLINE CONNECTION
5
Ethernet
Cable
Ethernet
Adapter
Wall Mount
Plugged into
Wall Outlet
HD DVR
Connect the other end of the Ethernet cable to the other Ethernet Adapter.
Step 4
Wall Mount Configuration
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
Step 5
Go to your DIRECTV Plus HD DVR:
Press Menu On Your DIRECTV Remote>
Select Help & Settings>
Select Setup>
Select Network>
Choose Connect Now
If your HD DVR immediately recognizes the network connection
you will receive this Congratulations screen.
(See Figure A.)
Verify that You are Connected!
®
Figure A
Figure B
If your HD DVR does not immediately recognize the network
connection, you will get the option to choose your
Connection method. You should choose Powerline.
(See Figure B.)

Connect Your DIRECTV Plus HD DVR To Your Home Network
®
WIRELESS CONNECTION
Step 1
Ethernet cable
plugs into HD DVR.
Step 2
6
Step 3
Go to your DIRECTV Plus HD DVR:
Press Menu On Your DIRECTV Remote>
Select Help & Settings>
Select Setup>
Select Network>
Choose Connect Now
If your HD DVR immediately recognizes the network connection
you will receive this Congratulations screen.
(See Figure A.)
Verify that You are Connected!
®
Figure A
Figure B
If your HD DVR does not immediately recognize the network
connection, you will get the option to choose your
Connection method. You should choose Wireless.
(See Figure B.)
A Wireless Transceiver that uses an Ethernet Port to
connect to a media device.
Wireless
Ethernet Cable
HD DVR
A wireless connection uses your own wireless router and a wireless transceiver to send data from your DSL/cable router to the
DIRECTV Plus HD DVR. Please be advised that DIRECTV does not recommend using a wireless device, because it may not
provide the best experience. For the best digital entertainment experience, the better options are Wired and
Powerline. However if you prefer to use Wireless, you must follow the manufacturer's directions on configuring your Wireless
device. These instructions will help you to make the right connections to your DIRECTV Plus HD DVR.
®
®
connects to the LAN port
of the wireless transceiver.
Connect one end of an Ethernet cable to the LAN port on the back of the wireless transceiver.
Connect the other end of the Ethernet cable to the DIRECTV Plus HD DVR jack
labeled ETHERNET.
®
Ethernet cable
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
Along with the requirements listed on page 2, you will need:
A Wireless Router (in place of a regular router).
(Note: You may have one or two Ethernet ports, depending on your model.
If you have 2, use the TOP Ethernet port.)
Transceiver

Set Up Your Intel Viiv Media Server
®
7
™
Once you've successfully connected your hardware, you can verify that your DIRECTV Plus HD DVR is connected at any time.
At this point your DIRECTV Plus HD DVR should now be connected to your home network. You can take advantage of your new
networking capabilities by using your Intel Viiv™ - capable to stream music and photos to your DIRECTV Plus HD DVR. This
section describes the steps.
Intel Viiv™ is a technology developed by Intel to transform your home computer into a digital entertainment center. DIRECTV
Plus HD DVR takes advantage of Intel Viiv™ Technology to stream music and photos from an Intel Viiv™ Processor
Technology-based PC.
®
®
®
®
®®
®
®
The first step in preparing your home computer for the Intel Viiv™
experience is to set up the Intel Viiv™ Technology.
Double-click on the Intel Viiv™ icon at the bottom-right corner
of the screen to display the Intel Viiv™ settings screen.
Step 1
®
®
®
®
Click on View Network Map to display the getting started screen.
Step 2
"Actual screen may appear different."
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
®

Set Up Your Intel Viiv Media Server
®
8
™
Follow the steps to approve the device and grant it access to
the Intel Viiv™ Media Server. Verify that the status is “approved”
and that the DIRECTV Plus HD DVR has access to the
Intel Viiv™ Media Server.
Step 4
®
®
®
The final step in this process is to add your music and
photos to your Intel Viiv™ Media Library. Return to the
main menu, select Media Library and follow the
instructions to build your library.
You're finished! The Intel Viiv™ settings are now set.
In the next section we’ll show you how to play music
and view photos on your DIRECTV Plus HD DVR.
Step 5
®
®
®
Step 3
After a few minutes, the network map is displayed. If everything
is set up correctly, you should see the internet icon, your computer
(labeled “INTEL-PC” in this example), your router
(labeled with the IP address), and and a device with an IP address
that has a question mark denoting that it is Unknown.
You can confirm that it is your DIRECTV Plus HD DVR by comparing
the IP Address on the screen with the IP Address that is displayed
in the "Advanced Setup" screen in your DIRECTV Plus HD DVR
"Network Setup" menu.
®
®
Select the "Unknown" device.
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®

Use Media Share
9
Step 2
Step 3
Step 1
After setting up the Intel Viiv™ Technology on the PC in the
previous section, the next step is to start the media server.
Right-click on the Intel Viiv™ Technology icon at the lower
right corner and select Start Media Server.
®
®

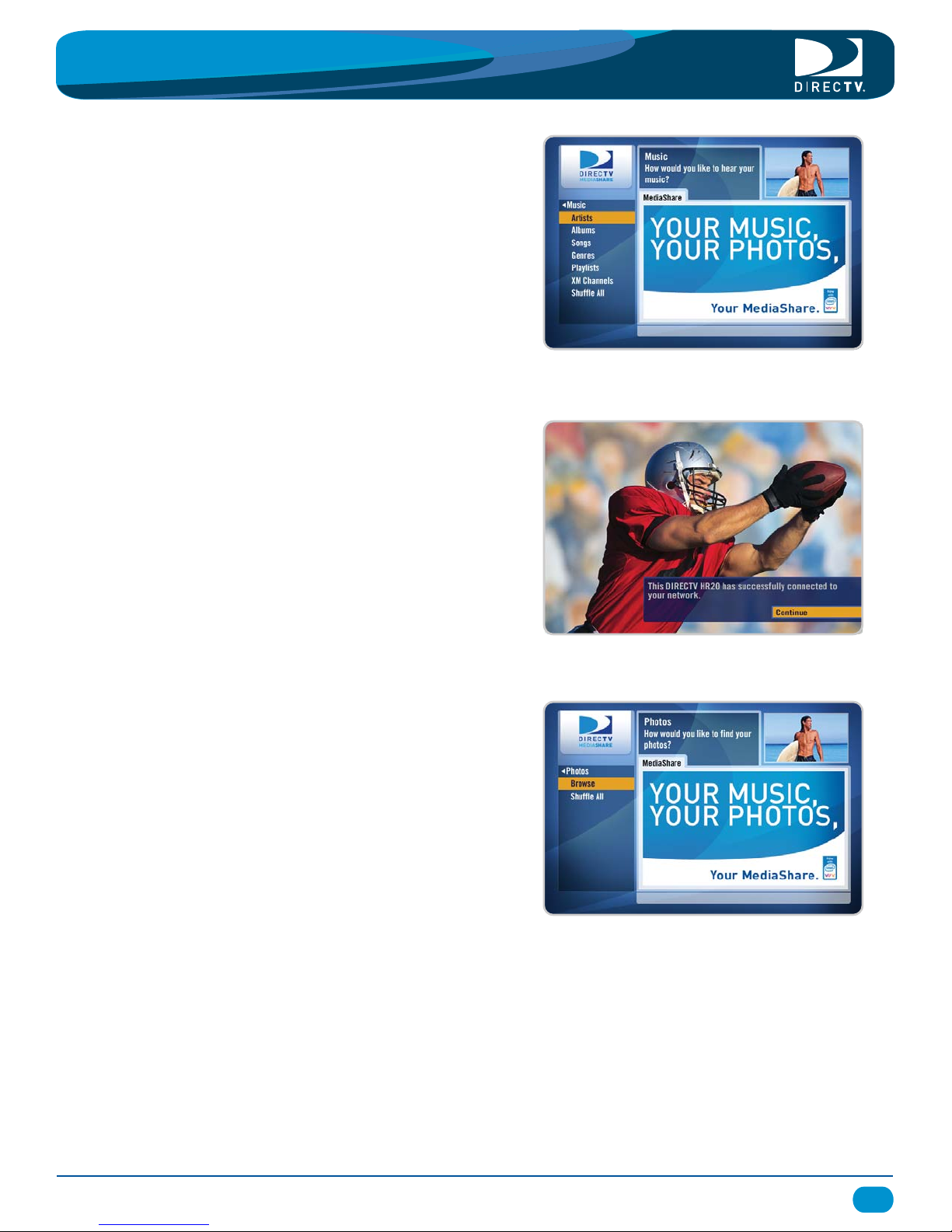

After a few moments, an on-screen message will display
on your TV screen to confirm the connection. Press the
SELECT button on the remote to select CONTINUE.
Press the MENU button on the remote control again to
display the MENU, then select “Music & Photos".
The Media Share screen will display.
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®

Use Media Share
Step 5
Step 6
Step 4
Select Music to go to the Music Submenu. Access music by Artist,
Album, Song and even Playlists! You can also select your favorite
XM Music Channel.
Your favorite music will play as you watch your TV
or view photos from your Intel Viiv™ Processor Technology-based PC.
®
Once the desired songs are selected from the Music Submenu,
the song's information will display on the Trick Play bar.
If you want to view photos, go to the Photos Submenu.
Select Browse and you can see several photos at once!
10
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®

Use Media Share
Step 8
Step 7
You can listen to music and display photos at the same time.
Host a party and show your friends your favorite digital photos
on the big screen!
11
Pressing the yellow button on your remote control toggles
control between music and photos or video.
Pressing the stop button while in music control stops the
music from playing and the audio from the current
channel is then heard.
Pressing the stop button while in photo control stops
the display of photos and displays the video from
the current channel.
Network Your DIRECTV Plus HD DVR - QUICK START GUIDE
®
