Dirt Devil CY08 User manual

ULTRA
LIGHTWEIGHT
COMPACT
CYLINDER
CY08
USER
MANUAL
USER MANUAL
DIRTDEVIL.CO.UK
0333 400 0653

DIRTDEVIL.CO.UK2
CONTENTS
Safety instructions ........................................................................................ 3
Getting to know your Dirt Devil vacuum cleaner ...................................... 7
Assembling your vacuum cleaner ............................................................... 8
Using your vacuum cleaner ..........................................................................9
Maintaining your vacuum cleaner .............................................................. 10
Cleaning the dust bin
Removing the HEPA pre-motor lter
Removing the HEPA post-motor lter
Cleaning the HEPA pre-motor and post-motor lters
Removing obstructions
Troubleshooting ............................................................................................12
Specication ..................................................................................................13
Parts list and contact details .......................................................................16
WELCOME!
Congratulations on your purchase. Use this instruction manual to learn about your
new vacuum’s great features. Find out how to assemble, use and maintain your
vacuum cleaner in this easy to follow manual.
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
If you have any questions, please email [email protected] to get in contact.

USER MANUAL 3
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
WARNING
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury.
USING THE VACUUM CLEANER
•DO NOT use the vacuum
cleaner outdoors. For
household use only. Store
indoors.
•DO NOT vacuum up hard or
sharp objects such as glass,
nails, screws or coins that
could damage the vacuum
cleaner.
•DO NOT vacuum liquids, use
on wet surfaces or immerse
in water as this could cause
damage to the vacuum
cleaner.
•DO NOT vacuum anything
ammable, burning or
smoking such as cigarette
ends, matchsticks or ashes.
•DO NOT use the vacuum
cleaner to clean your pets or
any animal.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
•Keep the vacuum cleaner
moving over the carpet
surface at all times to avoid
damaging the carpet bres.
•Keep the vacuum cleaner and
accessories away from hot
surfaces like hobs, cookers or
microwave ovens.
•Always unplug the vacuum
cleaner immediately if it
malfunctions.
•DO NOT use this vacuum
cleaner if it has been dropped,
damaged, left outdoors,
submerged in water or is not
working as it should.
•DO NOT use the vacuum
cleaner in an enclosed space
lled with explosive, toxic or
ammable vapours.

DIRTDEVIL.CO.UK4
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
PLUG AND CORD
•DO NOT use with a damaged
cord or plug.
•DO NOT pick up or pull the
vacuum cleaner by the cord.
•Take care that the cord is
not kinked, pinched, pulled
around sharp corners or run
over.
•Ensure the cord does not
come into contact with heat
sources or become a trip
hazard.
•When unplugging the vacuum
cleaner from the wall socket,
pull by the plug, not the cord,
holding the socket with your
other hand.
AIRFLOW, FILTERS AND
ATTACHMENTS
•DO NOT use without lters
and bin in place.
•Always turn o and
unplug the vacuum cleaner
before changing lters or
attachments.
•If when using, suction
appears to be reduced, turn
o and unplug the vacuum
cleaner and clean all of the
lters.
•DO NOT use if the airow
is restricted. If the air paths
or the oor nozzle become
blocked, turn o and unplug
the vacuum cleaner. Clear all
obstructions before powering
on again.
•Use genuine Dirt Devil lters
and attachments only. Using
non-genuine accessories may
cause damage to the vacuum
cleaner.
•When cleaning lters, ensure
that they are completely
dry and undamaged before
replacing them back into the
vacuum cleaner.
PERSONAL SAFETY
•This machine is not intended
to be used or cleaned by
persons with reduced physical,
sensory or mental capabilities,
or lack of experience or
knowledge, unless they
have been given instructions
concerning the machine by
a person legally responsible
for their safety. They should
be supervised whilst using
the machine. Children shall
not use, clean or play with
this machine, which when
not in use should be secured
out of their reach. Keep the
vacuum cleaner out of reach
of children.

USER MANUAL 5
•Packing material must not
be used for playing. There is a
danger of suocation.
•Never leave the vacuum
cleaner connected to the
mains without supervision.
•Keep the oor nozzle away
from hair, face, ngers,
uncovered feet or loose
clothing when the vacuum
cleaner is working or plugged
in.
•DO NOT use with wet hands.
USER MANUAL GUIDANCE
•Keep this user manual in a
safe place.
•Failure to comply with this
user manual can lead to
serious injuries or damage to
the vacuum cleaner. We take
no responsibility for damage
due to failure to comply with
this user manual.
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
WARNING
Hold the plug when rewinding the cord. Do not allow the
cord to whip when rewinding.

DIRTDEVIL.CO.UK6
WHAT TO EXPECT FROM YOUR
USER MANUAL
Your user manual contains lots of handy information about your Dirt Devil appliance. Please have a read and
keep it somewhere safe for future reference. Here’s what you can expect from the dierent user manual
sections.
GETTING TO KNOW YOUR
DIRT DEVIL APPLIANCE
The diagrams of your appliance on this page
allow you to familiarise yourself with your
machine. Doing so will make the information in
the rest of the user manual clearer and help you
to source the right replacement spare parts or
accessories.
ASSEMBLING YOUR
APPLIANCE
When you rst take your appliance out of its box,
there will be some simple setup required to get it
ready to use. The information in this section tells
you the steps you need to take before using your
new machine for the rst time.
USING YOUR
APPLIANCE
It’s important to use your machine correctly to
avoid any damage to either the appliance itself
or your oors. Get to know features, settings and
the dos and don’ts of using your machine so it’s
cleaning to its maximum potential.
MAINTAINING YOUR
APPLIANCE
Every appliance needs a bit of routine
maintenance from time to time. Learning how to
recognise the dierent parts of your machine to
maintain and how to look after them will enable
your appliance to last longer.
TROUBLESHOOTING
If you encounter any issues with your appliance,
the troubleshooting section in this user manual
is the rst place you can turn. Here you will nd
information about potential problems as well as
the solutions to resolve them.
SPECIFICATION
If you want to know any of the specics about
your machine including model number, weight,
capacity and input voltage, head over to the
specication page in this user manual for a
full list.
PARTS LIST AND CONTACT DETAILS
Need a replacement part for your machine? The list on this page shows you all of the spare parts
available for your model. You’ll also nd our full contact information here in case you need to get in
touch for any reason.
3.3

USER MANUAL 7
GETTING TO KNOW YOUR VACUUM
CLEANER
FEATURES
SPARE PARTS
Floor tool
Part no. DVLS00052
Metal telescopic tool
Part no. DVLS00053
2-in-1 tool
Part no. DVLS00058
Hose
Part no. DVLS00078
HEPA post-motor lter
Part no. DVLS00081
HEPA pre-motor lter
Part no. DVLS00083
Visit dirtdevil.co.uk to order

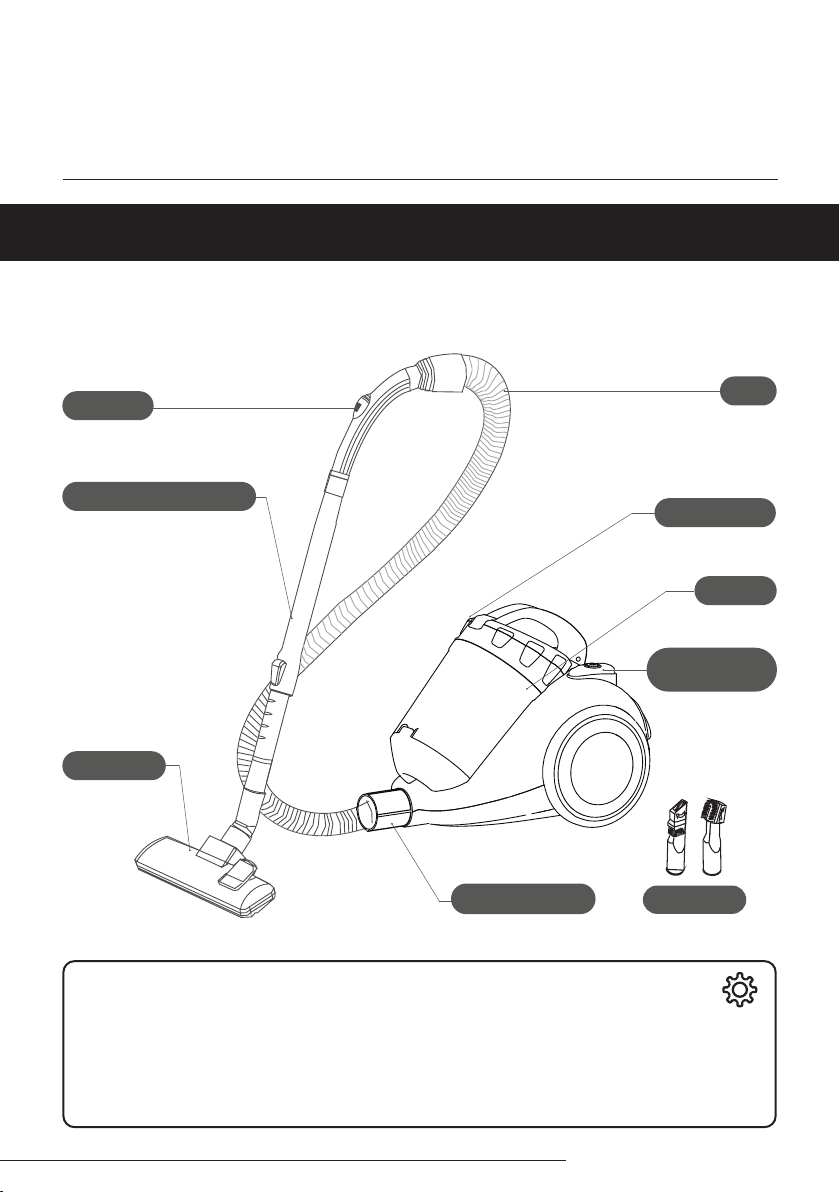

Hose
Telescopic Metal Tube
Floor Tool
Dust Bin
Automatic
Cord Rewind
Air Slide
Hose Connection
Power Button
2-in-1 Tool

DIRTDEVIL.CO.UK8
ASSEMBLING YOUR VACUUM
CLEANER
ASSEMBLING YOUR VACUUM CLEANER
Always unplug your appliance from the wall socket before assembling or removing accessories.

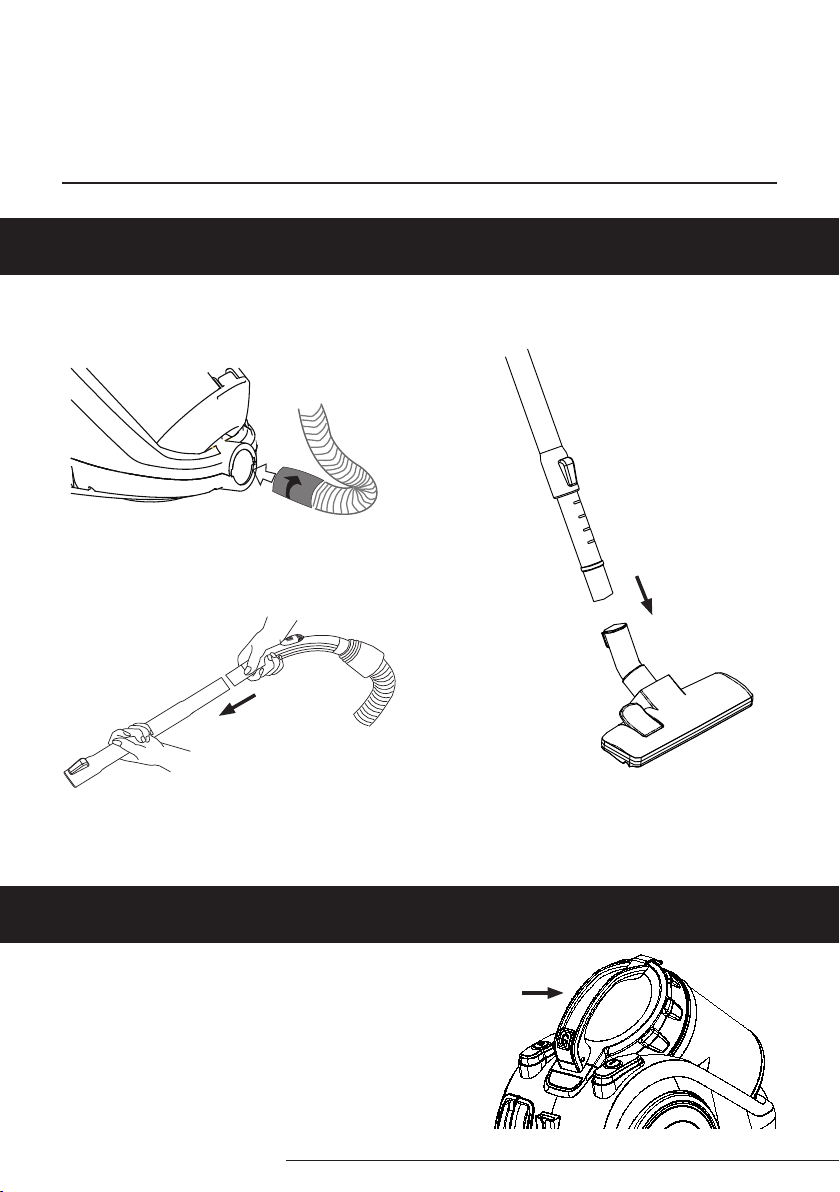

2. Fit the telescopic tube to the curved hose
extension.
3. Push the other end of the telescopic tube into
the oor tool. Adjust the telescopic tube to the
desired length.
There is a handle on the top of the vacuum cleaner
which you can use to conveniently carry it.
CARRYING AND MOVING THE APPLIANCE
1. Attach the hose into the hose connection.
HANDLE

USER MANUAL 9
USING YOUR VACUUM
CLEANER
USING YOUR VACUUM CLEANER

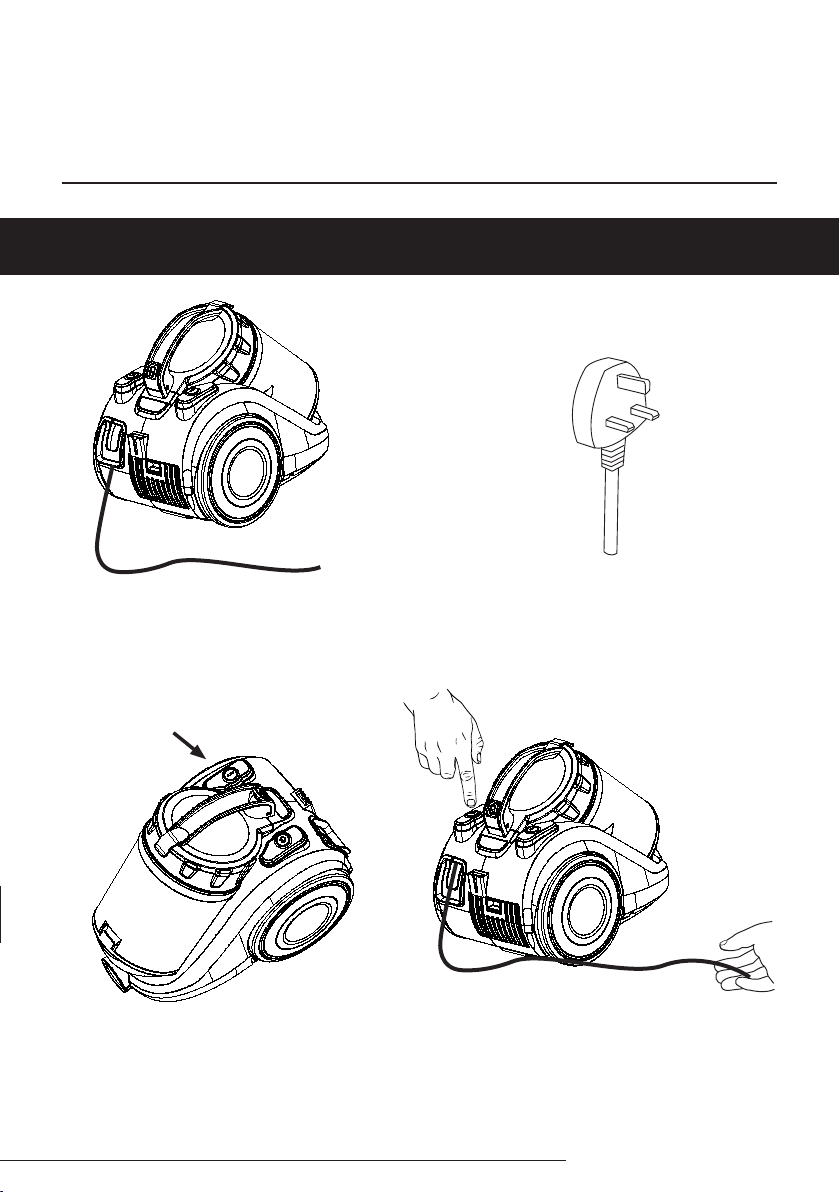

1. Once all attachments are in place, unwind a
sucient length of cable. A yellow mark on the
cord shows the ideal cable length. Do not pull
the cord beyond the red mark.
2. Insert the power plug into the wall outlet.
3. Press the power button located on the main
body of the appliance to turn the vacuum
cleaner on.
4. To rewind the power cord once you have nished
cleaning, press the cord rewind button with one hand
and guide the power cord with the other hand to ensure
that it does not whip causing damage or injury.
ON

DIRTDEVIL.CO.UK10
WARNING
Always unplug the appliance from the wall socket before removing the dust bin or cleaning the lters.
MAINTAINING YOUR VACUUM
CLEANER

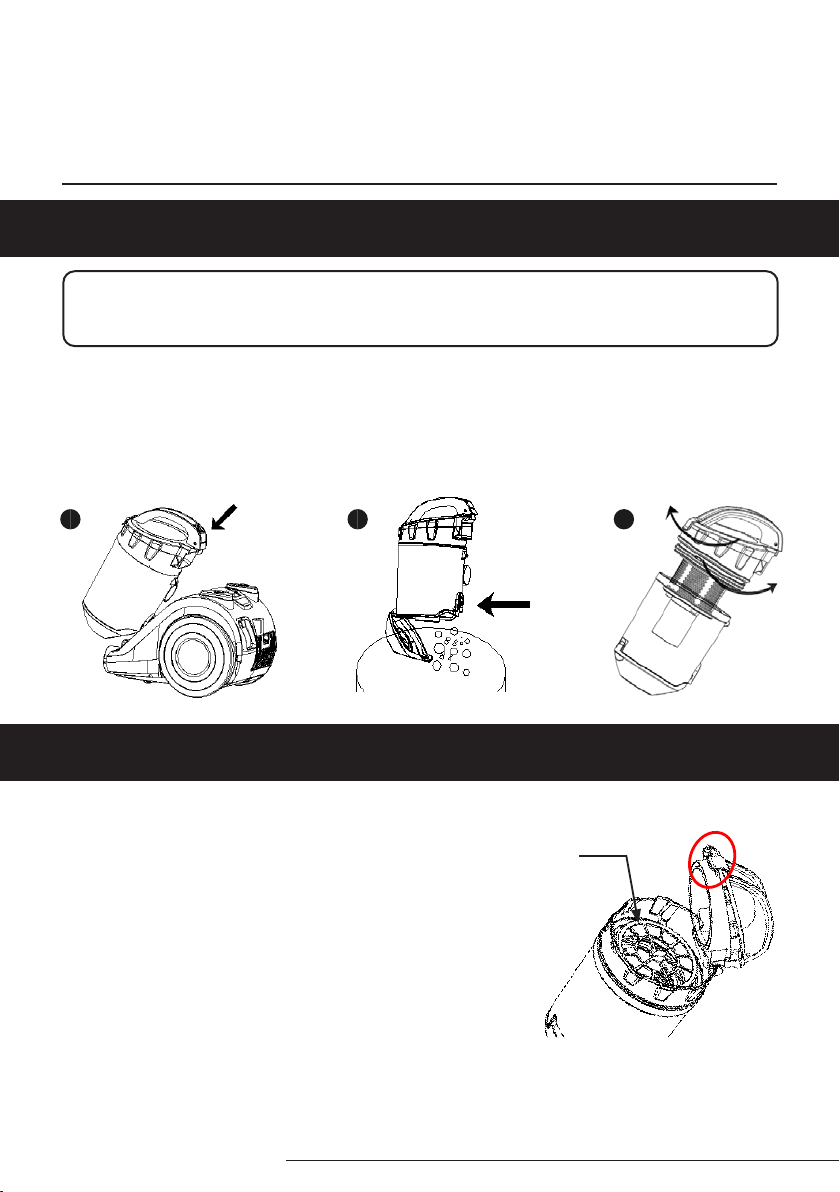

CLEANING THE DUST BIN
1. Press the knob on the dust bin handle.
2. Lift the dust bin up and out as shown in gure 1.
3. Press the knob on the lower end of the dust bin to open
the bottom cover as shown in gure 2. Empty the dirt.
1 2 3
REMOVING THE HEPA PRE-MOTOR FILTER
4. Twist the dust cup and dust bin cover to open
it as shown in gure 3.
5. Clean the plastic parts of the dust bin with a
damp soft cloth if necessary. Wait until fully dry
to reassemble the vacuum cleaner.
1. Remove the dust bin from the vacuum cleaner.
2. Press the knob on the dust bin handle.
3. Lift up the dust bin up and out.
4. Lift up the dust bin upper cover button.
5. Open the dust bin upper cover.
6. Remove the lter located behind the bin to clean or
change it. The HEPA pre-motor lter comes in two parts.
Follow the cleaning instructions on page 9 to clean the
lters.
NOTE: Pay attention to where each part of the lter is situated in the dust bin so you can replace both parts
correctly.
HEPA

USER MANUAL 11
1. Press the air outlet grid knob to open. 2. Remove the HEPA post-motor lter to clean or change
it. Follow the cleaning instructions below to clean the lter.
PUSH
DOWN
MAINTAINING YOUR VACUUM
CLEANER
CLEANING THE HEPA PRE-MOTOR AND POST-MOTOR
FILTERS
The lters in the vacuum cleaner will become dusty over time. This is normal and will not aect their
performance. However, if the lters become so dusty that suction power is reduced:
1. Remove the lters.
2. Rinse the lters under the tap.
3. Allow the lters to air dry for 24 hours. (Do not use
a heater, re, hairdryer or other high-temperature
appliance to dry the lters.)
4. Ret the lters into the vacuum.
This should be done once every six months or
when suction appears to be reduced.
IMPORTANT
All lters should be checked regularly for signs of damage, preferably after each cleaning task. The
lters must be replaced immediately if they become damaged.
REMOVING OBSTRUCTIONS
IMPORTANT
Please note that there is a safety valve inside the vacuum to prevent the unit from being run with a high
vacuum rate. If the vacuum rate is too high, the safety valve will be turned on to protect the motor from
being broken.
The suction hole must be open and free of any obstructions at all times. Otherwise, the motor will overheat
and could become damaged.
REMOVING THE HEPA POST-MOTOR FILTER

DIRTDEVIL.CO.UK12
TROUBLESHOOTING
WARNING: To reduce the risk of shock and unintended operation, turn o and unplug before
servicing.
Problem Possible Issue Solution
Loss of suction Dust bin full Empty the dust bin. See “Cleaning the dust bin”
section for more information.
Loss of suction Dirty lters or
blockage
1. Empty the dust bin and clean the lters.
See “Removing the HEPA pre-motor lter”,
“Removing the centric HEPA lter”, “Removing
the HEPA post-motor lter” and “Cleaning the
lter” sections for more information.
2.Check for blockages in the oor tool, hose,
metal telescopic tube and connectors.
3. Remove any blockages before restarting the
vacuum cleaner.
DISPOSAL
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your local authority for recycling advice.
UNBOXING
During transportation, packaging was used to protect the appliance against any damage. After unboxing,
please dispose of all packaging in a way that will not cause damage to the environment.
IMPORTANT! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out
of reach of children.
CONTACT US
In any other case or if the solution explained above did not solve the problem, please contact us at
[email protected]

USER MANUAL 13
SPECIFICATIONSPECIFICATION
Model CY08
Power 700W
Capacity 1.2L
Weight 3.3kg
Hose length 1.5m
Cord length 4.5m
Sound 79dB
Dimensions (LxWxH) 32 x 22 x 27cm
Filter type HEPA
Input voltage 220-240V
Current 50Hz
WARNING: The above data has been supplied by the manufacturing plant and tested in laboratory conditions.
The actual situation may vary according to the use environment. All product specications are subject to change
without notice.
This appliance complies with the following UK & European Directives:
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility Directive (EMCD) 2014/30/EU

DIRTDEVIL.CO.UK14
NOTES

USER MANUAL 15
NOTES

DIRTDEVIL.CO.UK16
Floor tool
- Part no. DVLS00052
Metal telescopic tool
- Part no. DVLS00053
2-in-1 tool
- Part no. DVLS00058
Hose (grey)
- Part no. DVLS00078
Motor lter cover
- Part no. DVLS00080
HEPA post-motor lter
- Part no. DVLS00081
Cable with plug
- Part no. DVLS00082
HEPA pre-motor lter
- Part no. DVLS00083
Front wheel
- Part no. DVLS00084
Wheel (pair)
-Part no. DVLS00085
SPARE PARTS
Replacement parts below are available for your appliance model.
Please visit dirtdevil.co.uk to place your order.
Dust bin 
- Part no. DVLS00086
Cyclone
- Part no. DVLS00087
This appliance has a 1-year warranty as standard. To extend your warranty
for 1 additional year, please visit dirtdevil.co.uk and register your appliance.
VISIT DIRT DEVIL WEBSITE
www.dirtdevil.co.uk
CONTACT US
0333 400 0653
[email protected]
Connect House,
Small Heath Business Park, Talbot Way,
Small Heath, Birmingham,
B10 0HJ
United Kingdom
Pictures are for illustration purposes only and may dier from the actual product. We are constantly striving to improve
our products and the specications contained herein are subject to change without notice. Made in China. DIRT DEVIL is a
registered trademark of Techtronic Cordless GP and is used under licence by Connect Distribution Services Ltd.
Dirt Devil shall not be held liable for any damage caused by improper use of the product.
