Amibot Animal XL User manual

EN
Robot vacuum
User Manual
XL

EN
User Manual
Thank you for choosing AMIBOT! We hope you are fully satised
using your robot as part of your cleaning routine.
If you should encounter situations that have not been properly
addressed in this User Manual or were to have any queries, do not
hesitate to contact us and a member of our Technical Customer
Service Department will be more than happy to answer your
questions.
For more information, you can visit the ocial AMIBOT website:
www.amibot.tech
We reserve the right to make technical alterations to the appliance
without prior notice with the objective of continually improving our
products and customer satisfaction.
Please carefully read all instructions in this manual before using this
appliance. AMIBOT will not be liable for damage due to incorrect use.

1
Contents
EN
Recommendations ............................................................. 3
Product overview................................................................ 4
Product contents..................................................................................... 4
Product diagram ..................................................................................... 5
Operating the appliance ................................................. 10
Charging the robot ............................................................................... 10
Vacuum mode (dust bin)...................................................................... 12
Mopping mode (H2O tank) .................................................................. 12
Starting the appliance .......................................................................... 14
Scheduling the robot............................................................................ 15
Cleaning routes................................................................................18
Pausing the appliance .......................................................................... 26
Stopping the appliance ........................................................................ 26
Maintenance......................................................................27
Side brushes.......................................................................................... 27
Side wheels and castor ........................................................................ 27
Compartments and lters.................................................................... 28
Gap and power sensors ....................................................................... 30
Vacuum nozzle ...................................................................................... 30
Microbre cleaning pads ..................................................................... 31
Indicator lights ..................................................................32
Troubleshooting................................................................ 34
Table: Malfunctions and possible causes .......................................... 34
Warranty and after-sales service.................................. 38
Technical specications ..................................................39

2
Contents
EN
Safety instructions and precautions............................40
Operating conditions............................................................................ 40
Recycling instructions .....................................................42

3
Recommendations
EN
• AMIBOT Animal XL is designed to be used inside.
• AMIBOT Animal XL is designed for a maximum surface area of
200m2.
• AMIBOT Animal XL is designed for routine oor cleaning. It is not
intended to replace heavy-duty cleaning.
• AMIBOT Animal XL needs a headway of at least 8cm so that it can
go under furniture.
• AMIBOT Animal XL cannot go over thresholds over 1 cm thick,
otherwise it automatically stops or reverses.
• AMIBOT Animal XL must be used on at surfaces.
• If the robot could come across a gap while cleaning, please check
that the gap sensors are clean.
• AMIBOT Animal XL is not designed to vacuum water or other
liquid products.
• Do not use the appliance on damp oors.
• Please switch the appliance o before handling it (manually
moving it, maintenance, storing it away).
• The remote control requires 2 x LR03-type batteries (AAA). They
are not supplied with the robot.

4
Product overview
EN
Product contents
1
2 3
6
1312
87 10
5
9
4
11
1. AMIBOT Animal XL robot
2. Dust bin
3. H2O tank
4. 2 x microbre cleaning pads
5. 4 x HEPA lters
6. 4 x side brushes
7. 1 x Virtual Wall (batteries not
included)
8. Remote control (batteries
not included)
9. Home base
10. Power adapter
11. Cleaning tool
12. 9 x oor detergents
13. User manual

5
Product overview
EN
Product diagram
Robot top view
1. Bumper
2. LCD display screen
3. Integrated gyroscope
4. Dust bin/H20 tank
5. HOME button / Up arrow
6. CLOCK button
7. SPOT Mode button / Down
arrow
8. AUTO button
9. Mapping Mode button
11
2
6
5
4
3
7
8
9
1. Battery level
2. EDGE Mode
3. HOME Mode
4. SPOT Mode
5. Problem with side brushes
6. Day of the week
7. Scheduling and/or setting
the time
8. Real time
9. Errors
10. Bin full
LCD display screen
1 2 3 4 5
6 7 8 9 10

6
Operating the appliance
EN
1. Power sensors
2. Side brushes
3. Gap sensors
4. Side wheels
5. Castor
1 5
4
6
7
8
9
2
3
Robot bottom view
6. Battery case
7. Vacuum nozzle
8. Vacuum nozzle cover
9. Dust bin/H20 tank
LR
1
2
1. Power socket
2. ON/OFF button
Robot side view

7
Product overview
EN
Dust bin
1
2
3 5
4 6
7
8
1. Dust bin cover
2. Access to empty the dust bin
3. Vacuum motor
4. Filter housing
5. Dust bin release button
6. HEPA lter
7. Protection lter
8. Prelter

8
Product overview
EN
1. H2O tank release button
2. Rell cap
3. H2O tank sensor
4. Water pump
5. Cleaning pad Velcros
H2O tank
Home base
1
4
5
7
8
6
2
3
6. Cleaning pad support
7. Drip nozzles
8. Cleaning pad
1. Power indicator light
2. Charging poles
3. Power adapter
4. Power socket
1
2
3
4

9
Product overview
EN
Remote control
Virtual wall
1
2
3
4
5
6 7
1. Home base button
2. Directional arrows
3. AUTO Mode button
a. Pause/Resume
4. MAX button
5. Mapping Mode button
6. SPOT Mode button
7. EDGE Mode button
1. ON/OFF button
2. Power indicator light
3. Infrared beam
1
2
3

10
Operating the appliance
EN
Charging
Switching the robot on
Assembling the home base
1 m 1 m
2 m
Plug in the home base using the power cable.
Place the home base on a level surface next to a wall, at a right angle
to the oor. Keep a distance of at least 2m in front of the base and
1m at either side.
NOTE: When your AMIBOT Animal XL robot is on its home base, make sure that
your robot is switched on and the home base power light is on.
Turn the power switch to ON.
"I" is ON and "O" is OFF. The robot is ready to be charged.

11
Operating the appliance
EN
Charging the robot
Figure 1
There are two ways to charge the battery:
• using the home base (Figure 1).
• using the power adapter (Figure 2).
NOTES:
• Before using the robot for the rst time, you must charge it for at least 12 hours.
It will only need to be charged for between 300 and 350 minutes thereafter.
• The robot must be switched on while it is being charged.
• Do not place a mirror or other highly reective object within a distance of at
least 15cm from the home base.
• The robot is charging when the orange AUTO light ashes slowly. Once charged,
the AUTO light turns green.
• When the battery is charged, the robot switches to stand-by after a few min-
utes. The green light turns o.
• If the battery is weak while the robot is cleaning, it returns to its home base. The
home base must therefore be switched on.
• If the robot is not used for a long period of time, you are recommended to fully
charge the battery, switch o the robot and store it in a cool, dry place.
Figure 2

12
Operating the appliance
EN
Vacuum mode (dust bin)
Mopping mode (H2O tank)
Attaching the cleaning pad
To use the vacuum mode, attach
the dust bin to the back of the
appliance.
Note: The dust bin has a maximum
capacity of 750ml.
Figure 1
Figure 2
Figure 3
Attach the cleaning pad (Figure 1)
to the H20 tank using the Velcros
on the underneath (Figure 2)
then attach each side to the
cleaning pad supports (Figure 3).

13
Operating the appliance
EN

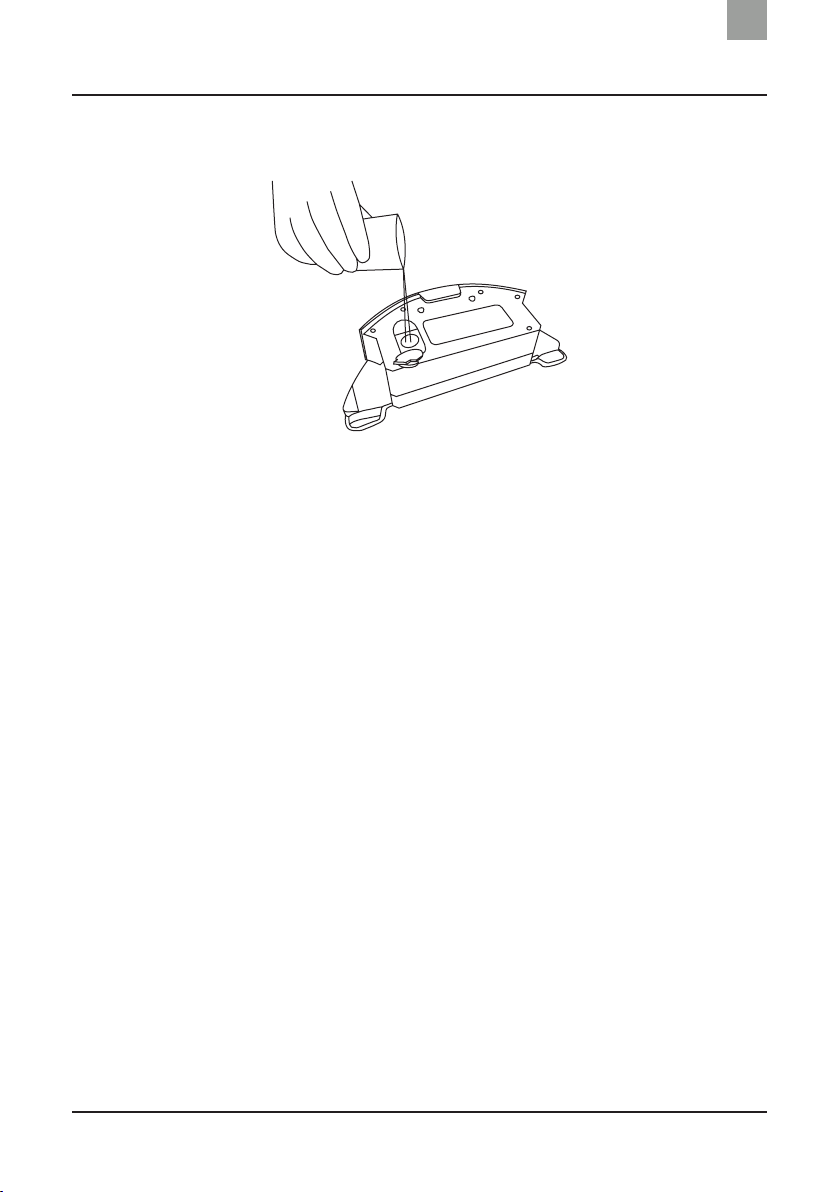

Preparing the H2O tank
Open the H2O tank's rell nozzle and carefully pour in clean water
with some oor cleaner.
NOTES:
• The H2O tank has a maximum capacity of 300ml. For optimum performance, it
must have at least 50ml of liquid.
• For optimum cleaning, check the dilution ratio indicated on the detergent bottle.
• Only use oor cleaner products. Prolonged use of any other product, such as
white vinegar or bleach, could damage the H2O tank.

14
Operating the appliance
EN
Inserting the H2O tank
The vacuum mode stops when the cleaning mode is selected; the
vacuum stops when the robot detects the water tank.
Clip it to the back of the robot. The robot automatically detects the
water tank thanks to its tank sensor. The robot is ready to start its
cleaning cycle.
NOTES:
• You can regulate the H2O tank's water ow intensity by pressing the MAX
button and selecting the desired intensity from 1 to 3.
• Do not use the H2O tank to clean rugs or carpets.
• The water tank must be removed from the robot before it is charged.
Starting the appliance
After attaching the dust bin or H2O tank, switch the robot on. Press
the AUTO button on the robot or on the Remote Control. The robot
starts its cleaning cycle in AUTO Mode.

15
Maintenance
EN
NOTES:
•When the robot leaves the home base, it beeps 5 times. The AUTO light ashes
quickly, then the robot starts. The light turns steady and the Mode in use
appears on the display screen.
•If the robot is on standby, press the AUTO button on the robot or on the Remote
Control to start a cleaning cycle.
•The robot's cycle can be interrupted and it can be manually controlled using
the remote control. When you reactivate automatic cleaning, the robot starts
a new path.
Scheduling
With the daily schedule feature, the robot can start a cleaning cycle
at the time and on the days you choose. You can reset the time and
scheduled times whenever you want via the button on robot.
NOTE: All settings are lost when the robot is switched o via the ON/OFF button.
Reset the time and scheduled cleaning time as above.

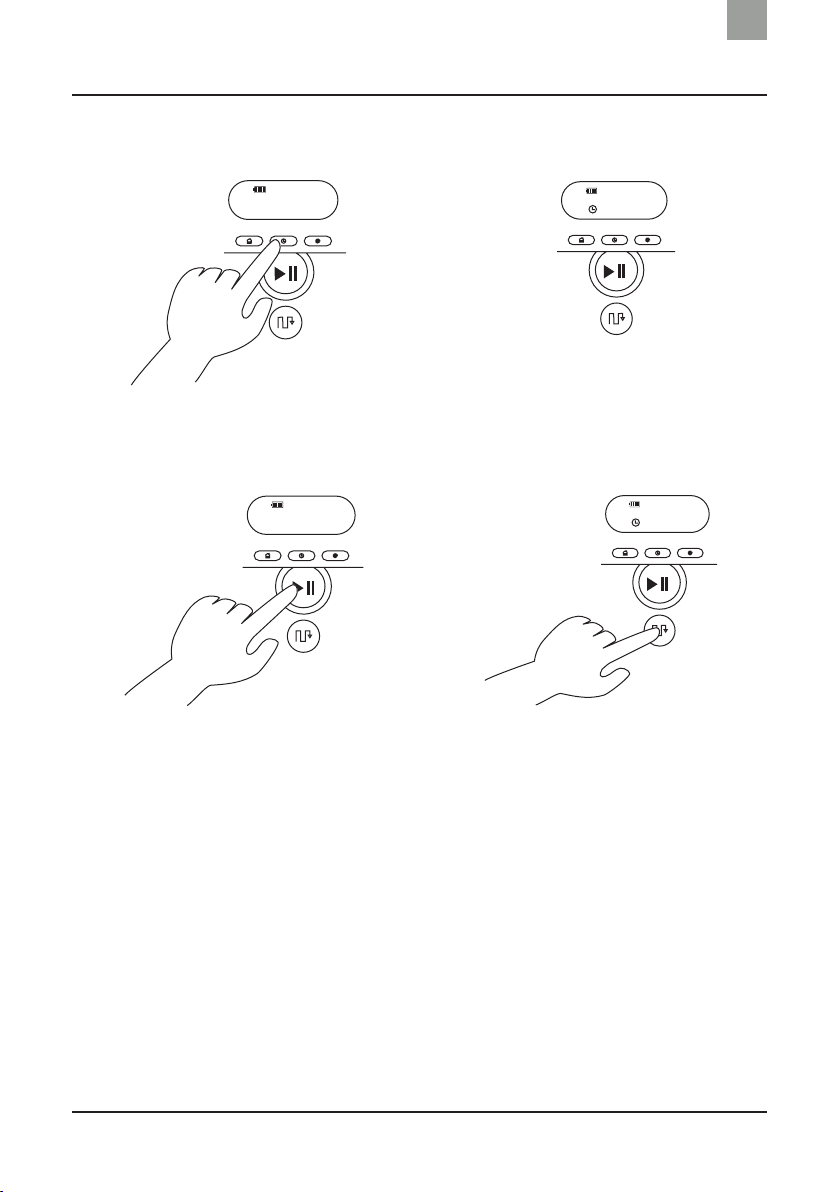

Setting the time
The robot must not be on standby to set the time. Press the AUTO
button on the robot or on the Remote Control.

16
Operating the appliance
EN
MON 11:45
Figure 3
To switch from 24hr to 12hr display, press the CLOCK button until
"AM" and "OFF" ash on the display screen. Press the up or down
button once to set the 12hr display; "ON" appears on the screen.
Press one of the arrow buttons again to switch back to 24hr mode;
"OFF" appears on the screen and press CLOCK to conrm.
Press the AUTO button to validate the time (Figure 3). A beep
indicates that the time is set.
NOTES:
• If no action is performed for more than 15 seconds when setting the time, the
robot leaves the setting mode.
• Press the AUTO button to conrm the time, otherwise it will not be set.
SUN 0:00
Figure 1
OR
SUN
11:00
SUN
11:00
Figure 2
Press the CLOCK button on the
top of the appliance for around 3
seconds (Figure 1). The robot beeps
and the display screen ashes.
Use the up and down arrows to
modify the hour and minutes
(Figure 2). Press the CLOCK button
to switch from hours to minutes,
then the day of the week and
12/24hr display.

17
Operating the appliance
EN
Setting a schedule
MON 11:45 --:--
TUE 10:00
MON
10:00
Figure 1
Figure 3 Figure 4
Figure 2
Press the CLOCK button on the appliance (Figure 1). You will hear a
beep and a clock symbol and "MON" will ash on the display screen
(Figure 2).
Use the up and down buttons to choose the schedule day: MON,
TUE, WED, THU, FRI, SAT, SUN. Press the CLOCK button again to set
the hour and minutes of the day selected.
MON

18
Operating the appliance
EN
You can schedule several cleaning times by repeating the operation
as many times as necessary (you can schedule up to 7 days).
Press the AUTO button to validate the week's schedule (Figure 3).
The robot will start its cleaning cycle as scheduled.
To cancel a schedule, go back to the scheduling settings. To do so,
press the CLOCK button. You will hear a beep and a clock symbol and
"MON" will ash on the display screen. Press on the Mapping Mode
button to reset the scheduled time to 0 (Figure 4). Press this button
again to see the most recent settings. Repeat the same process for
all scheduled times.
NOTES:
• If no action is performed for more than 15 seconds when setting a scheduled
cleaning time, the robot leaves the setting mode.
• Press the AUTO button to conrm the scheduled cleaning time or it will not be
set.
• For scheduled cleaning, the robot must be on its home base. If the robot is
plugged in via its power cable, it cannot start a scheduled cleaning cycle.
Cleaning routes
The robot has 6 cleaning modes. These modes can be selected
using the Remote Control. You can also select the following 4 modes
directly using the buttons on the robot: AUTO, Mapping, SPOT and
HOME.
NOTE: The robot can be manually guided using the arrow buttons. This function is
only accessible when the robot is paused.
