TABLE OF CONTENTS
Remote Control Basics....................................... 2
Models Supported by this Guide ......................... 2
UHF and IR Signals ............................................ 3
Installing Batteries............................................... 3
Converting the 6.0 Remote Control ................... 4
Setting Up to Control the Satellite Receiver ..... 5
Checking the Remote Address .......................... 8
Setting Up to Control Other Devices ................. 8
Combination Devices .......................................... 8
Limited Mode....................................................... 8
Setting Up Using Device Code Tables ................ 9
Setting Up Using Device Codes Scan............... 10
Checking the Device Codes...............................11
Switching Between TV and Device
Volume Control...................................................11
Remote Control Operation ............................... 13
Operating Modes............................................... 13
Controlling the Satellite Receiver ...................... 13
Controlling a TV (or a Second TV) .................... 23
Controlling a VCR
(Second VCR or a DVD Player) ........................ 25
Controlling a Tuner or Amplifier......................... 27
Device Codes .................................................... 29
TV Codes .......................................................... 29
VCR Codes ....................................................... 33
TV/VCR Combo Codes ..................................... 35
DVD Player Codes ............................................ 35
Tuner/Amplifier Codes....................................... 36
DVD/VCR Combo Codes .................................. 37
TV/DVD Combo Codes ..................................... 37
Troubleshooting ............................................... 38
Limited Warranty ............................................... 40
If You Need Help ................................................ 43
text_dishpvr.fm Page 1 Tuesday, March 2, 2004 12:35 PM

2
REMOTE CONTROL BASICS
This remote control gives you easy access to all the features of a DISH
Network satellite TV receiver. You can set up the remote to control the
satellite TV receiver and up to three other devices. These devices can
be a TV, a VCR or DVD player, and a third device.
MODELS SUPPORTED BY THIS GUIDE
This user’s guide supports the following remote control models as
shown on the label on the back of the remote:
•5.0 - Infrared (IR) only. For use with appropriate IR-controlled
DISH Network receivers.
•6.0 - Infrared/Ultra-High Frequency Pro (IR/UHF Pro). For use
with appropriate UHF Pro-controlled DISH Network receivers.
The 6.0 remote can be converted to one of three different remote
types used on a DISH Player-DVR 522 receiver:
With the blue 2 UHF Pro key installed, this remote
will operate the UHF Pro side of the DISH
Player-DVR 522 receiver. The remote comes with
this key already installed.
With the green 1 key installed (no UHF Pro
marking), this remote will operate the IR side
of the DISH Player-DVR 522 receiver. This remote
will look and work exactly like a 5.0 IR remote.
See instructions in Converting the 6.0 Remote.
With the green 1 UHF Pro key installed, this
remote will operate the side of the DISH
Player-DVR 522 receiver from a distance using
UHF Pro. See instructions in Converting the 6.0
Remote.
If you set up your DISH Player-DVR 522 to operate the
side using UHF Pro, the two UHF Pro remotes for
this receiver will interfere with each other when
operated at the same time. This may prevent the
remotes from operating the receiver momentarily.
•8.0 - Infrared/Ultra-High Frequency Pro (IR/UHF Pro). For use
with appropriate UHF Pro-controlled DISH Network receivers.
text_dishpvr.fm Page 2 Tuesday, March 2, 2004 12:35 PM

3
INSTALLING BATTERIES
The remote control requires AAA batteries. When
you replace old batteries, you should replace all of the
batteries. Use batteries of the same kind, for example,
alkaline or carbon zinc, and don’t mix batteries of
different kinds. Alkaline batteries last longer.
1. Press down on the battery cover and slide the
cover off.
2. If you are replacing batteries, take out all of
the old batteries.
3. Put the new batteries in. Make sure
you match the plus (“+”) ends with the
plus markings on the battery case.
4. Slide the cover back into place.
UHF AND IR SIGNALS
The remote control may use either UHF radio signals or IR light
signals to control the receiver but uses only IR signals to control other
devices.
•IR signals travel only short distances (up to 40 feet),
and cannot go through walls or other solid objects.
You must point the remote control right at the device
you want to control, with no objects to block the signal path.
•UHF signals travel long distances (up to 200 feet) and can
go through walls and other solid objects. Because UHF signals
travel so far, the receiver may respond to signals from other
nearby remote controls. To handle this problem, you may want to
change the remote and receiver addresses. See Setting Up to
Control the Satellite Receiver on page 4.
•Confirm that the UHF remote antenna is attached to the receiver’s
back panel UHF REMOTE ANTENNA input so you can use
your UHF Pro remote.
text_dishpvr.fm Page 3 Tuesday, March 2, 2004 12:35 PM

4
CONVERTING THE 6.0 REMOTE CONTROL
By replacing the key at the bottom of the 6.0 remote, this remote can be
converted to look and work like a 5.0 IR or to operate like a second
UHF Pro remote to control the side of the DISH Player-DVR 522
receiver. The instructions that follow show you how to replace this key.
After replacing the key, follow the instructions in Setting Up to Control
the Satellite Receiver.
Note: If you do not need to replace the key, you do not need to
complete the instructions that follow. Go to Setting Up to Control the
Satellite Receiver.
1. Slide the battery cover off.
2. Insert your thumbnail in the
seam between the remote
control and the blue 2 key to
separate the key from the
remote control.
3. Grasp the key at the bottom and pull down firmly to remove.
4. If you are converting the remote
to look and work like a 5.0 IR
remote, then turn the removed
key over with the green 1 side
up (this key should not have a
UHF Pro marking). Reinstall
the key with the green side
showing. Make sure the key
snaps in place.
Note: Key
has no UHF
Pro marking.
text_dishpvr.fm Page 4 Tuesday, March 2, 2004 12:35 PM

5
SETTING UPTO CONTROL THE SATELLITE
RECEIVER
The remote and the receiver must be set up on the same address so that
the remote can control the receiver. When you get the remote, it's
already set up to control the receiver on address 1. However, your
receiver may be set to a different address or, in the case of the DISH
Player-DVR 522, may need some additional setup. To set up the
remote and receiver to work together on the same address, use the
following instructions.
5. If you are converting the remote
to operate like a second UHF
Pro remote to control the
side of the DISH Player-DVR
522 receiver, then get the green
1 UHF Pro key provided
separately. Install this key in the
remote with the UHF Pro
marking showing.
If you set up your DISH Player-DVR 522 to
operate the side using UHF Pro, the two
UHF Pro remotes for this receiver will interfere
with each other when operated at the same time.
This may prevent the remotes from operating
the receiver momentarily.
6. If you have not already installed batteries, install them now.
See Installing Batteries for further details.
7. Slide the battery cover back into place.
Note: Key has the
UHF Pro marking.
text_dishpvr.fm Page 5 Tuesday, March 2, 2004 12:35 PM

6
1. For DISH Player-DVR 522 receivers only: If you are using a 6.0
remote control with the green 1 UHF Pro key installed, perform
the steps a. through e. below. If not, then go to step 2.
a. Open the TV1 UHF Pro Setup screen by pressing
MENU-6-1-6 on the remote control.
b. Select Enable from the TV1 UHF Pro Setup screen.
c. Press the SYS INFO button on the front panel to open the
System Information screen.
d. Move the highlight to the address for the Primary Remote
Address as shown below. This is important - if you do not
do this, your remote will change the receiver's Secondary
Remote Address and cause your Remote Control 1 to
control the side of your receiver.
Do not do this step if you are using 6.0
Remote with blue 2 key. This will cause your
Remote Control 2 to control side of your
receiver.
e. Go to step 3 below.
2. Open the System Information screen. Consult your receiver
user's guide for instructions on how to open this screen without
using the remote control. For most receiver models which use
this remote, press the SYS INFO button on the receiver front
panel. The System Information screen will show either one
Remote Address, or it may show a Primary Remote
Address and a Secondary Remote Address.
Note: On the DISH Player-DVR 522, leave Done highlighted.
3. Press and hold the SAT mode button about three
seconds, until all the mode buttons light up,
and then let go of the SAT button. The SAT mode
button will blink.
Note: Highlight
the Primary
Remote
Address if you
are using a 6.0
remote with a
green 1 UHF Pro
key.
text_dishpvr.fm Page 6 Tuesday, March 2, 2004 12:35 PM

7
4. Use the number buttons to enter any number
from 1 to 16. The SAT mode button goes out after you enter
each digit, and then lights up again.
Write down the number you entered:
5. Press the POUND (#) button.
If you entered the address correctly, the SAT mode
button will flash three times.
6. Press the RECORD button. If you are using a 6.0
remote with the green 1 key (no UHF Pro marking),
you must point the remote control at the receiver
while pressing the RECORD button.
7. Make sure the System Information screen shows the correct
remote address as follows:
•If only one Remote Address is shown, make sure this
address matches the number you entered in step 5.
•If you are using 6.0 remote with the green 1 UHF Pro key,
make sure that the Primary Remote Address shows
UHF Pro and IR and that this address matches the number
you entered in step 4.
•If you are using 6.0 remote with the green 1 key (with no
UHF Pro marking), make sure that the Primary Remote
Address shows IR and that this address matches the
number you entered in step 4.
•If you are using 6.0 remote with the blue 2 UHF Pro key,
make sure that the Secondary Remote Address matches
the number you entered in step 4.
8. Close the System Information screen. On most receivers,
this is done by selecting the Done button. See your receiver
user's guide for more information.
text_dishpvr.fm Page 7 Tuesday, March 2, 2004 12:35 PM

8
CHECKING THE REMOTE ADDRESS
To read out the remote control address setting:
1. Press and hold the SAT mode button for three seconds
until all mode buttons light. Then, let go.
2. Press the POUND (#) button twice while watching
the SAT mode button.
3. Count the number of times the SAT mode button
flashes. This number is the remote address. For
example, if the SAT mode button flashes 6 times, this
indicates the remote address is set to 6.
SETTING UPTO CONTROL OTHER DEVICES
To use the remote to control other devices (such as a TV, VCR, DVD
player, tuner, or amplifier), you must first program it to control these
other devices. You can do this by either following the instructions in
Setting Up Using Device Code Tables on page 9, or the Setting Up
Using Device Codes Scan procedure described on page 10.
COMBINATION DEVICES
If you are programming the remote to control a combination device,
such as a TV/VCR or a TV/DVD, program the remote control in one
mode, and then repeat the procedure in the other mode. For example, to
program the remote to control a TV/VCR using code 748, follow the
instructions to program the remote to control the TV using code 748,
and then repeat the instructions for the VCR using the same code.
LIMITED MODE
You can program your remote control in Limited Mode to keep from
accidentally changing the channel on your TV or VCR. When you use
the remote to control your TV in Limited Mode, you will only be able
to use the POWER, MUTE, and VOLUME buttons to control your TV.
Also, when you use the remote to control your VCR in Limited Mode,
you will only be able to use the POWER and VCR function buttons.
The section Setting Up Using Device Codes Tables has a step that tells
the remote control to go into Limited Mode.
Note: Limited Mode can not be used with audio amplifiers.
text_dishpvr.fm Page 8 Tuesday, March 2, 2004 12:35 PM

9
SETTING UPUSING DEVICE CODE TABLES
You can set up the remote to control other devices using the device
codes listed on page 29.
1. Use the device’s buttons or its remote control to turn on the
device.
2. Find the brand name of the device in the tables starting on
page 29.
If the brand isn’t listed, see Setting Up Using Device Codes
Scan on page 10.
3. Press and hold the mode button for the device you want
the remote to control, for about three seconds. When all the
other mode buttons light up, let go of the mode button - that
mode button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
4. Only for the AUX mode, Use a number button to enter 0 for a
second TV, or 1for a second VCR or DVD player, or 2for a
tuner or amplifier.
5. Use the number buttons to enter one of the
device codes from the table.
6. Only for Limited Mode, Press 1.
Note: Skip this step if you do not want to use
Limited Mode.
7. Press the POUND (#) button. If you entered
the code correctly, the mode button flashes three times.

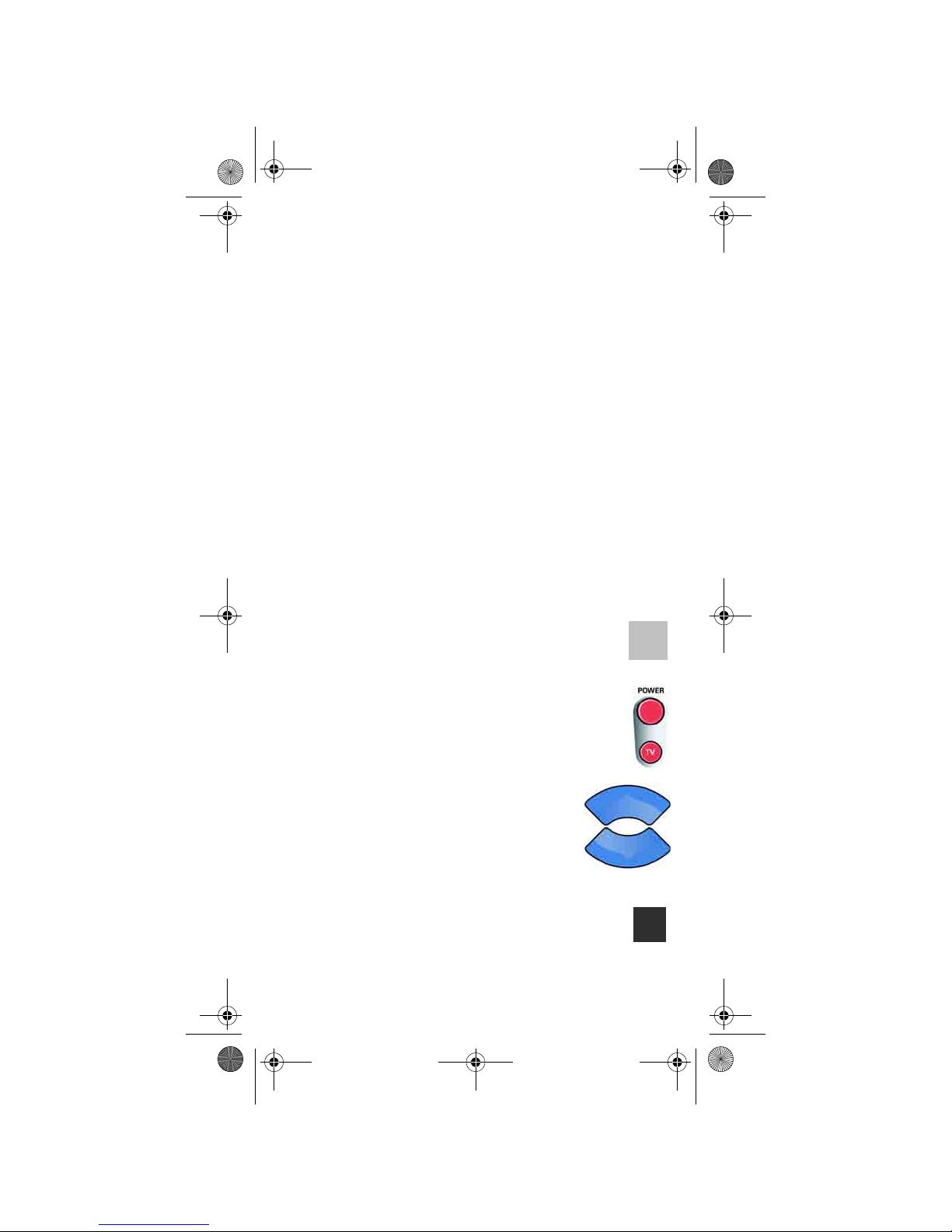

8. Press the blank POWER button to test if the code
works for the device. If it does, the device should
turn off.
9. Turn the device back on and try some other buttons
to make sure they work. Sometimes, the blank POWER button
works when other buttons don’t. If the code works for other
buttons, stop here.
text_dishpvr.fm Page 9 Tuesday, March 2, 2004 12:35 PM

10
10.If the code you entered doesn’t work, do steps 3 through 9 again
with another device code from the tables.
11.If you cannot find a code that works, try Setting Up Using
Device Code Scan.
SETTING UPUSING DEVICE CODE SCAN
If the code for your device is not listed in the tables on starting page 29,
use this procedure to scan the remote control’s memory for the device
code. Here’s what to do:
1. Use the device’s buttons or its remote control to turn the device
on.
2. Press and hold the mode button for the device you want the
remote to control, for about three seconds. When all the other
mode buttons light up, let go of the mode button - that mode
button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
3. Only for the AUX mode, use the number buttons
to enter 0for a second TV, 1 for a second VCR or
DVD player, or 2 for a tuner or amplifier. Then press
the STAR (*) button.
4. Press the blank POWER button.
5. Press the up or down arrow button until the
device turns off. You will have to do this
repeatedly to scan through all codes.
Note: The mode button for the device will
flash rapidly eight times when you’ve
scanned all the codes for that device.
6. If the remote reaches the correct code, the device
turns off. When this happens, press the POUND (#)
button to store the code in the remote.
text_dishpvr.fm Page 10 Tuesday, March 2, 2004 12:35 PM

11
7. Press the blank POWER button to turn the device
back on.
8. Try some other buttons to make sure they work.
Sometimes, the blank POWER button works when
other buttons don’t.
CHECKING THE DEVICE CODES
You can find out what device code you’ve set for each remote control
mode.
1. Press and hold the mode button for the device you want the
remote to control, for about three seconds. When all the other
mode buttons light up, let go of the mode button - that mode
button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
2. Press the POUND (#) button twice. The mode button
flashes the number for each digit of the device code,
with a pause between the groups of flashes. A quick
flash is for zero. For example, if the code is 570, the
mode button flashes five times, pauses, flashes seven times,
pauses, and flashes once quickly.
For AUX mode, the first group of flashes tells you what the
AUX mode controls. A quick flash (zero) before the three-digit
code is for a TV; one regular flash is for a VCR or DVD player;
and two flashes is for a tuner or amplifier. For example, if the
TV code is 570, the AUX mode button flashes once quickly,
pauses, flashes five times, pauses, flashes seven times, pauses,
and flashes once quickly.
SWITCHING BETWEEN TV AND DEVICE VOLUME
CONTROL
When you set up the remote to control a TV, the MUTE and VOLUME
buttons control the TV volume. However, if you want to use the AUX
mode to control a tuner or amplifier and the device has a volume
setting, you can set up the remote to control the device’s volume
instead of the TV volume.
text_dishpvr.fm Page 11 Tuesday, March 2, 2004 12:35 PM

12
To set the remote to control the device’s volume:
1. Press and hold the AUX mode button
for three seconds, and then let go of it. The AUX mode
button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME
button.
4. Press the 0number button.
5. Press the POUND (#) button.
The AUX mode button flashes three times.
6. Press the SAT mode button.
7. Press the plus (+) and minus (-) sides of the
VOLUME button. The device’s volume
changes and the AUX mode button lights
instead of the TV mode button.
To set the remote back to control the TV volume:
1. Press and hold the TV mode button for three seconds,
and then let go of it. The TV mode button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME
button.
4. Press the 0number button.
5. Press the POUND (#) button.
The TV mode button flashes three times.
6. Press the SAT mode button.
text_dishpvr.fm Page 12 Tuesday, March 2, 2004 12:35 PM

13
7. Press the plus (+) and minus (-) sides of the
VOLUME button. The TV’s volume
changes and the TV mode button lights
instead of the AUX mode button.
REMOTE CONTROL OPERATION
OPERATING MODES
You can set the remote to four different modes to control the receiver
or other devices. You may need to change the remote address to operate
the receiver. See Setting Up to Control the Receiver on page 4. You
must set up the remote to control a device like a TV, VCR, or DVD
player. See Setting Up to Control Other Devices on page 8.
Use the remote control’s mode buttons, SAT (satellite receiver), TV
(for a TV), VCR (for a VCR or a DVD player), and AUX (“auxiliary,”
for a second TV, a second VCR, a tuner, or an audio amplifier) to set
the remote to the right mode for the device.
To change the mode, press the button for the device you want the
remote to control. The mode button lights for two seconds to show
you’ve set the remote to that mode.
CONTROLLING THE SATELLITE RECEIVER
SAT MODE BUTTON
Press this button to set the remote to SAT (“satellite”) mode to control
the receiver. The SAT mode button’s back light stays lit for about two
seconds to show you’ve set the remote to SAT mode. Make sure you
keep the remote in SAT mode to use the following buttons.
Note: Your satellite receiver may not provide all of the functions
described as follows. Consult your receiver user’s guide for the
features your receiver provides.
text_dishpvr.fm Page 13 Tuesday, March 2, 2004 12:35 PM

14
TV/VIDEO BUTTON
If you connect the receiver with its back panel TV ANTENNA/CABLE
IN and TV SET OUT ports, use this button to switch the receiver
between the satellite signal (connect it to the SATELLITE IN port) and
another video signal like a cable or broadcast TV antenna input
(connect it to the receiver’s TV ANTENNA/CABLE IN input).
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.
SD/HD INPUT BUTTON
Press the SD/HD INPUT button to toggle between HD Output mode,
where only the HD video outputs are enabled, and SD Output mode,
where only the SD video outputs are enabled. Consult your receiver
user’s guide for other uses of this button.
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.

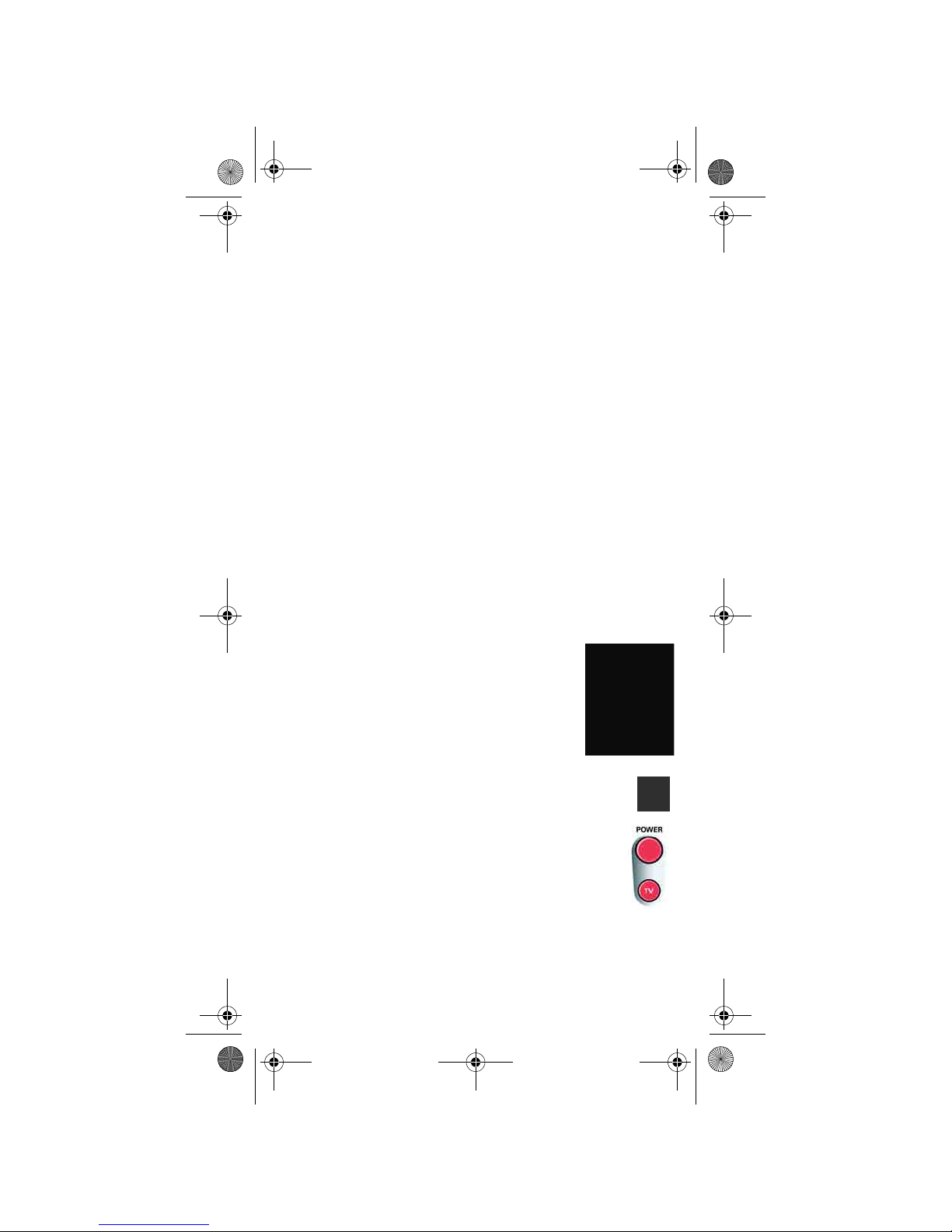

POWER BUTTONS
Press the blank POWER button to turn the receiver on or off.
Press the TV POWER button to turn your TV off and on.
Note: You must set up the remote to control the TV for the TV
POWER button to work. See Setting Up to Control Other Devices on
page 8.
VOLUME BUTTON
Press this button to raise (+) or lower (-) the TV sound volume.
Note: You must set up the remote to control the TV for the VOLUME
button to work. See Setting Up to Control Other Devices on page 8.
text_dishpvr.fm Page 14 Tuesday, March 2, 2004 12:35 PM

15

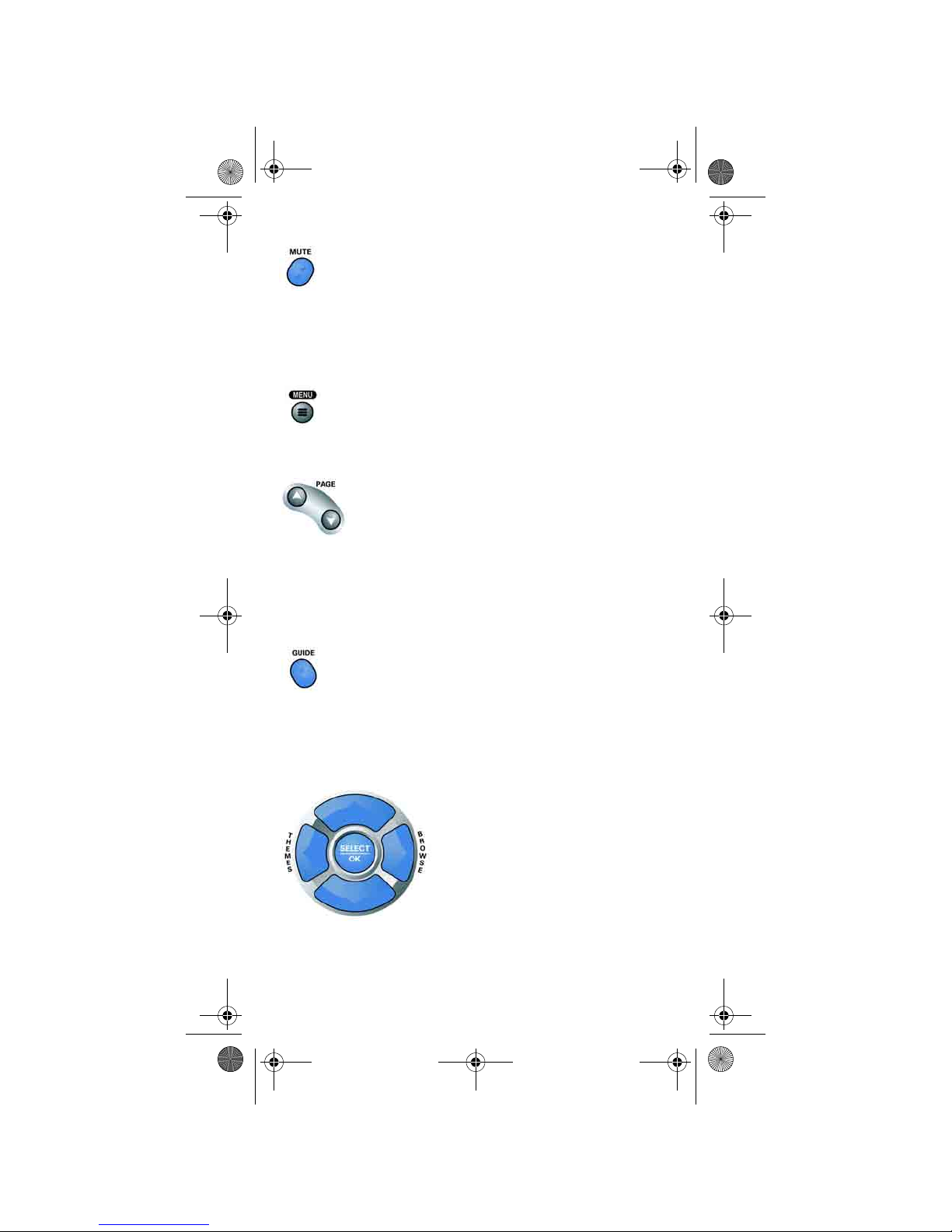

MUTE BUTTON
Press this button to turn the TV sound on or off.
Note: You must set up the remote to control the TV for the MUTE
button to work. See Setting Up to Control Other Devices on page 8.
MENU BUTTON
Press this button to open the Main Menu.
PAGE UPAND PAGE DOWN BUTTONS
Press the PAGE UP button or the PAGE DOWN button to scan, page
by page, through the Program Guide, a Themes list, a Favorite
List, an Event Timers list, or a list of channels.
Note: An “event” is any satellite program.
GUIDE BUTTON
Press this button to open the Program Guide. When you have the
Program Guide open, press this button to change between your
Favorite Lists.
ARROW BUTTONS
•Change channels - Press the UP or DOWN arrow button to
change channels.
•Open the Browse Banner - Press the RIGHT arrow button.
text_dishpvr.fm Page 15 Tuesday, March 2, 2004 12:35 PM

16
•Show Themes - Press the LEFT arrow button.
•Move around within the Program Guide, menus, and Browse
Banner - Press the UP, DOWN, LEFT, and RIGHT arrow
buttons.

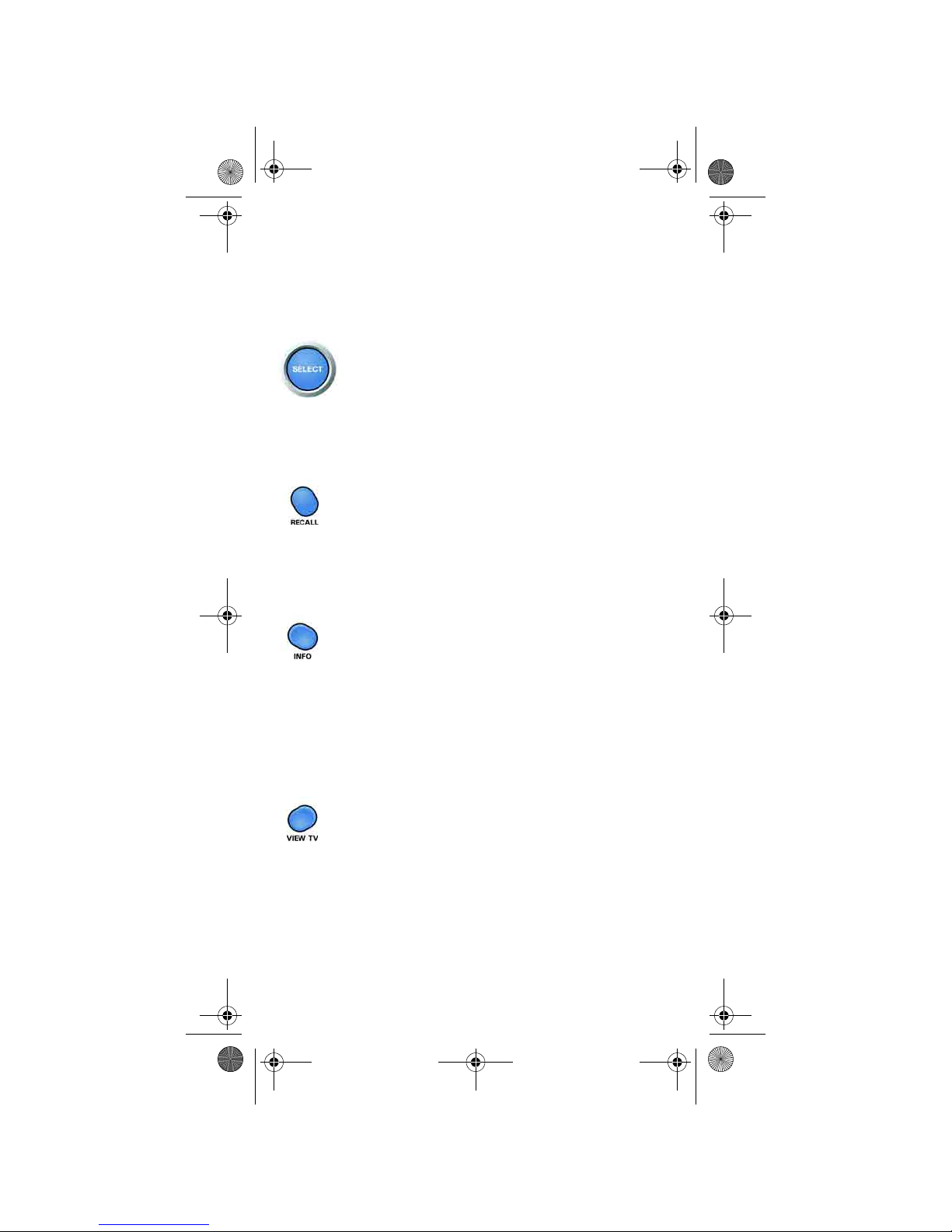

SELECT BUTTON
Press this button to select the option you highlight in a menu.
Note: The SELECT button may also be labeled SELECT/OK.
RECALL BUTTON
Press this button to go back to the last receiver channel you watched.
Press it again to switch between the last two receiver channels you
watched.
INFO BUTTON
•Program information - Press the INFO button for more
information when you watch a program, or when you have the
Program Guide, Browse Banner, or Themes list open.
•Help - Press the INFO button to see help information when a
Help button appears in a menu.
VIEW TV BUTTON
•When you watch a program, press this button to briefly display
the Program Banner.
•When you use a menu, press this button to cancel
and go back to watch a program.
text_dishpvr.fm Page 16 Tuesday, March 2, 2004 12:35 PM

17
CANCEL BUTTON
Press this button to cancel and go back to the previous menu or to
watch a program.
DISH BUTTON
Press the dish button to go to DISH Home Interactive TV for
receivers that support this feature.
NUMBER BUTTONS
•Change the channel - Use the NUMBER buttons to enter a
channel number to change the channel. If you have the Program
Guide open, use the NUMBER buttons to jump to the channel
listing on the Program Guide.
•Scroll through the Program Guide by time - When you have
the Program Guide open, enter a number of hours using these
buttons, and then press the RIGHT or LEFT arrow button to skip
the Program Guide forward or backward that many hours.
Enter menu options - For an option with a number, you can press
the number for that option instead of highlighting and selecting
the option.
•Enter numbers in a blank - Highlight the place where you need to
enter the number. Press a number button(s) (or, you can use the
UP/DOWN arrow buttons to enter the number).
•Search - Use the letters above the NUMBER buttons while in the
Search menu. For example, when looking for the channel and
times to watch Rudy Fremmel Presents, you press 7three times
for an R, 8two times for a U, 3 one time for a D, and 9 three
times for a Yto spell the word “Rudy” (see your receiver’s User
Guide for more information).
text_dishpvr.fm Page 17 Tuesday, March 2, 2004 12:35 PM

18
STAR BUTTON
Press the STAR button to back space while using the search function
of your receiver.
Note: Your remote control will either have the STAR button or the
FORMAT/STAR button, but not both.
FORMAT/STAR BUTTON
Press the FORMAT/STAR button to toggle through the available
display modes (Normal, Zoom) on widescreen displays.
Note: Your remote control will either have the STAR button or the
FORMAT/STAR button, but not both.
POUND (#) BUTTON
Press the POUND button to display the Search screen. Also, you use
this button in several procedures in this User Guide.
DVR BUTTONS
The following button descriptions mainly apply for remote controls
used with DISH Player-DVR receivers. For a description of these
buttons when controlling a VCR or DVD player, see Control a VCR (or
a Second VCR or a DVD Player) on page 25.
DVR BUTTON
Press the DVR button to open the DVR Events menu, which shows all
of the DVR Events recorded on the receiver.
text_dishpvr.fm Page 18 Tuesday, March 2, 2004 12:35 PM

19
PLAY BUTTON
Press the PLAY button to play back a recorded event. Also, press this
button to switch from pause, fast forward, or back to normal play back.
STOP BUTTON
Press the STOP button to stop recording a program or to stop playing a
recorded program.
PAUSE BUTTON
Press the PAUSE button to pause a program. Press this button again to
go back to watching the program.
FWD BUTTON
Press the FWD (“forward”) button to:
•Move ahead through a program four times as fast as normal play.
Press this button a second time to move ahead at 15 times, a third
time to move ahead at 60 times, and a fourth time to move ahead
at 300 times as fast as normal play.
•Move ahead through the program in slow motion. To use this
feature, press the PAUSE button and then press the FWD button.
Each time you press the FWD button, the program advances
faster until it reaches normal speed. If you continue to press the
button, the program will advance as described in the previous
paragraph.
text_dishpvr.fm Page 19 Tuesday, March 2, 2004 12:35 PM

20
SKIP FWD BUTTON
Press the SKIP FWD button to:
•Skip ahead about 30 seconds in a program. Press this button again
to skip ahead again.
•Skip ahead one frame at a time. To use the frame advance feature,
press the PAUSE button and then press the SKIP FWD button.
•Skip ahead one day at a time in the EPG.
BACK BUTTON
Press the BACK button to:
•Move back through a program four times as fast as normal play.
Press this button a second time to move back at 15 times, a third
time to move back at 60 times, and a fourth time to move back at
300 times as fast as normal play.
•Move back through the program in slow motion. To use this
feature, press the PAUSE button and then press the BACK
button. Each time you press the BACK button, the program
reverses faster until it reaches normal speed. If you continue to
press the button, the program will reverse as described in the
previous paragraph.
SKIP BACK BUTTON
Press the SKIP BACK button to:
•Skip back about ten seconds in a program. Press this button again
to skip back again.
•Skip back a few frames at a time. To skip back through a few
frames, press the PAUSE button and then press the SKIP BACK
button.
•Skip back one day at a time in the Electronic Program Guide
(EPG).
Note: The skip back button will not skip back the EPG beyond
the current date and time.
text_dishpvr.fm Page 20 Tuesday, March 2, 2004 12:35 PM
