Disney Minnie Toddler Quad KT1123TR User manual

©Disney
KT1123TR
The owner’s manual contains assembly, use and maintenance instrucons.
The Minnie Quad must be assembled by an adult who has read and understands
the instrucons in this manual. Keep the packaging away from children and dispose
of all packaging before use.
Styles and colors may vary • Made in China

OWNER’S MANUAL


For purchasing this Kid Trax Disney ride-on toy. We hope Your child will have years
of riding enjoyment with our product.
Please call Kid Trax Toys Consumer Relaons at 877-741-6154 with comments
or quesons.

ii


 ............................................1
Baery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
User Requirements and Warnings....................3
Care Warnings ....................................3
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Body Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hardware ........................................4
..........................................5
Aach the Front Axle Assembly . . . . . . . . . . . . . . . . . . . . . 5
Aach the Front Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Aach the Rear axle and Gear Box Pad................7
Aach the Rear Wheels ............................8
Aach the Steering Wheel Assembly . . . . . . . . . . . . . . . . . 9
Connect the Steering Wheel Wires ...................10
Aach the Windshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Aach the Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
 ..............................12
Charge the Baery ................................12
Re-Charge Interval and Time ........................13
Baery Storage ...................................13
Baery Replacement and Disposal . . . . . . . . . . . . . . . . . . . 14
Operang the Controls.............................15
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
 . . . . . . . . . . . . . . . . . . . . . . . . . . 19
..........................................20
 ................................21
iii


• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protecve material
and poly bags before assembly. Be sure to remove all packaging materials and
parts from underneath the vehicle body.
• Riding the vehicle without a helmet. Riders must always wear a ed helmet
that complies with U.S. Consumer Product Safety Commission (CPSC) Standard
CFR 1183.
• Baery posts, terminals and related accessories contain lead and lead
compounds (acids) chemicals known to the state of California to cause cancer,
reproducve harm, and are toxic and corrosive. Never open the baery.
• Body parts such as hands, legs, hair and clothing can get caught in moving parts.
Never place a body part near a moving part or wear loose clothing while using
the vehicle. Always wear shoes when using the vehicle.
• Using the vehicle near streets, motor vehicles, drop-os such as: steps, water
(swimming pools) or other bodies of water, sloped surfaces, hills, wet areas,
ammable vapors, in alleys, at night or in the dark could result in an unexpected
accident. Always use the vehicle in a safe, secure environment with connuous
adult supervision.
• Using the vehicle in unsafe condions such as snow, rain, loose dirt, mud, sand
or ne gravel may result in unexpected acon such as p over and skidding, and
damage to the electrical system and baery.
• Using the vehicle in an unsafe manner. Examples include but are not limited to:
a. Pulling the vehicle with another vehicle or similar device
b. Allowing more than one rider
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe pracces when using the vehicle.
The baery in this product contains or emits chemicals known to the state of
California to cause cancer or birth defects or other reproducve harm.

1
1


• Use of a baery or charger other than the supplied Kid Trax Toys 6V
rechargeable baery and charger may cause a re or explosion. Only
use the supplied Kid Trax Toys 6V rechargeable baery and charger
with the vehicle.
• Using the Kid Trax Toys 6V rechargeable baery and charger for any
other product may result in overheang, re or explosion. Never use
the Kid Trax Toys 6V rechargeable baery and charger with another
product.
• Explosive gases are created during charging. Charge the baery in a
well venlated area. Do not charge the baery near heat or ammable
materials.
• Contact between the posive and negave terminals may result in re
or explosion. Avoid direct contact between the terminals. Picking up
the baery by the wires or charger can cause damage to the baery
and may result in a re. Always pick up the baery by it’s case or
handles.
• Liquids on the baery may cause re or electric shock. Always keep all
liquids away from the baery and keep the baery dry.
• Contact or exposure to baery leakage (lead acid) may cause serious
injury. If contact or exposure occurs immediately call your physician. If
the chemical is on the skin or in the eyes, ush with cool water for 15
minutes. If the chemical was swallowed, immediately give the person
water or milk. Do not give water or milk if the paent is voming or has
a decreased level of alertness. Do not induce voming.
• Baery posts, terminals and related accessories contain lead and lead
compounds (acid), chemicals known to the State of California to cause
cancer, reproducve harm and are toxic and corrosive. Never open the
baery.
• Tampering or modifying the electric circuit system may cause a shock,
re or explosion and permanently damage the system. Exposed wiring,
circuitry in the charger may cause electric shock. Always keep the
charger housing closed.


2

 18 months and up
 No more than 45 lb (20 kg)



• Store the quad indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the quad in the sun for long periods of me or fading may occur.
Store in shade or cover with tarp.
• Do not wash the quad with a hose.
• Wipe with clean damp cloth or use furniture polish to shine the plasc.
• Only use the vehicle when an adult is present to watch (supervise).
• Always sit on the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed at a me.
• Only drive on level ground.
• Do not go near water, drop-os or up and down steep slopes.
• Do not drive the vehicle into loose dirt, mud, sand or ne gravel.
• Do not drive the vehicle on streets or near cars.

Before using the quad the child should understand the vehicle controls and safety
issues. They must also demonstrate the capability to handle the vehicle and operate
its controls. It is the responsibility of the adult to educate the child and supervise the
vehicles use.
Read the following safety warnings to any child using the quad before riding.
3

2
Close
Open




4
Seat
Charger
Wheels (4)
6V 4AH baery
Hubcaps (4)
Spanner
Rear axle
Nut (4) Small washer (4)
Gear box pad
Quad body
Large washer
(4)
Handlebar/steering rod
Front axle assembly
Wheel
cover (4)


3

 Posion the front axle assembly so the at side is facing towards the front
bumper. 
 Slide the front axle assembly over the two tubes coming from underside of the
front body.
 Press the front axle assembly into the tubes unl the tabs on the tubes snap into
the holes on the front axle assembly.
5
2
2
1


Tip! This step may be easier to perform
if the quad is upside down.
ATTACH THE FRONT WHEELS
 Using the spanner, remove the nut from the axle. Then remove the small washer.
 Leave the large washer on the axle.
 Slide the wheel all the way onto the axle unl it meets the large washer.
 All the wheels are idencal and can be placed on any axle.
 Slide the small washer onto the axle.
 Place the nut onto the end of the axle and ghten with the spanner.
 Align the tabs on the hubcap with the slots in the wheel. Press the hubcap into
the wheel unl in snaps into place.
Align the tabs on the wheel cover with the slots in the hubcap. Press the wheel
cover into the hubcap unl in snaps into place.
 Repeat steps 2-6 for the remaining front wheel.
6
Spanner
Front axle
Large washer
1
3
2
5 46
Small
washerNut
Hubcap
Wheel
cover


 Remove the locknut and small washer from the right hand side of the rear axle.
Leave the large washers on the axle. 
 Posion the rear axle so the gear box end is on the side where the gear box is
located.
 Slide the rear axle through the holes in the rear of the quad body.
 Posion the at side of the gear box pad facing towards the gear box, and insert
the gear box pad over the protrusions on the gear box.

Tip! If the gear box
has slipped out of place
during shipping, you will
need to re-insert the
gear box as shown
7
Large washer
1
2
3
4
Gear box pad


ATTACH THE REAR WHEELS
 Slide the wheel all the way onto the axle unl it meets the large washer.  All
the wheels are idencal and can be placed on any axle. 
 Slide the small washer onto the end of rear axle.
 Place the nut onto the end of the front axle and ghten with the spanner.
 Align the tabs on the hubcap with the slots in the wheel. Press the hubcap into
the wheel unl in snaps into place.
Align the tabs on the wheel cover with the slots in the hubcap. Press the wheel
cover into the hubcap unl in snaps into place.
 Repeat steps 1-5 for the remaining front wheel.Repeat steps 2-5 for the
remaining rear wheel.
8
Spanner
Wheel
Rear axle
Large washer
1
32456
Wheel
cover
Small
washer
NutHubcap



 Posion the steering wheel so the Minnie Mouse ears are facing up. 
Place the steering rod and wire connector through the opening located on the
front panel. Be sure the end of the steering rod is fully inserted through the hole
in the front axle assembly.
 Press the steering wheel down into the body until the tabs on the base of the
steering wheel snap into place.
Check the steering wheel is securely attached and turns freely.
9
2
1
3
2



 Carefully turn the quad over.
 Aach the wire connector coming
from the boom of the steering
wheel assembly to wire connector
aached to the underside of the
quad body. 


 Align the six tabs on the boom of
the windshield with the six slots on
the top of the quad. 
Press the windshield down into the
slots until they snap into place.
10
2
2
1


Close
Open

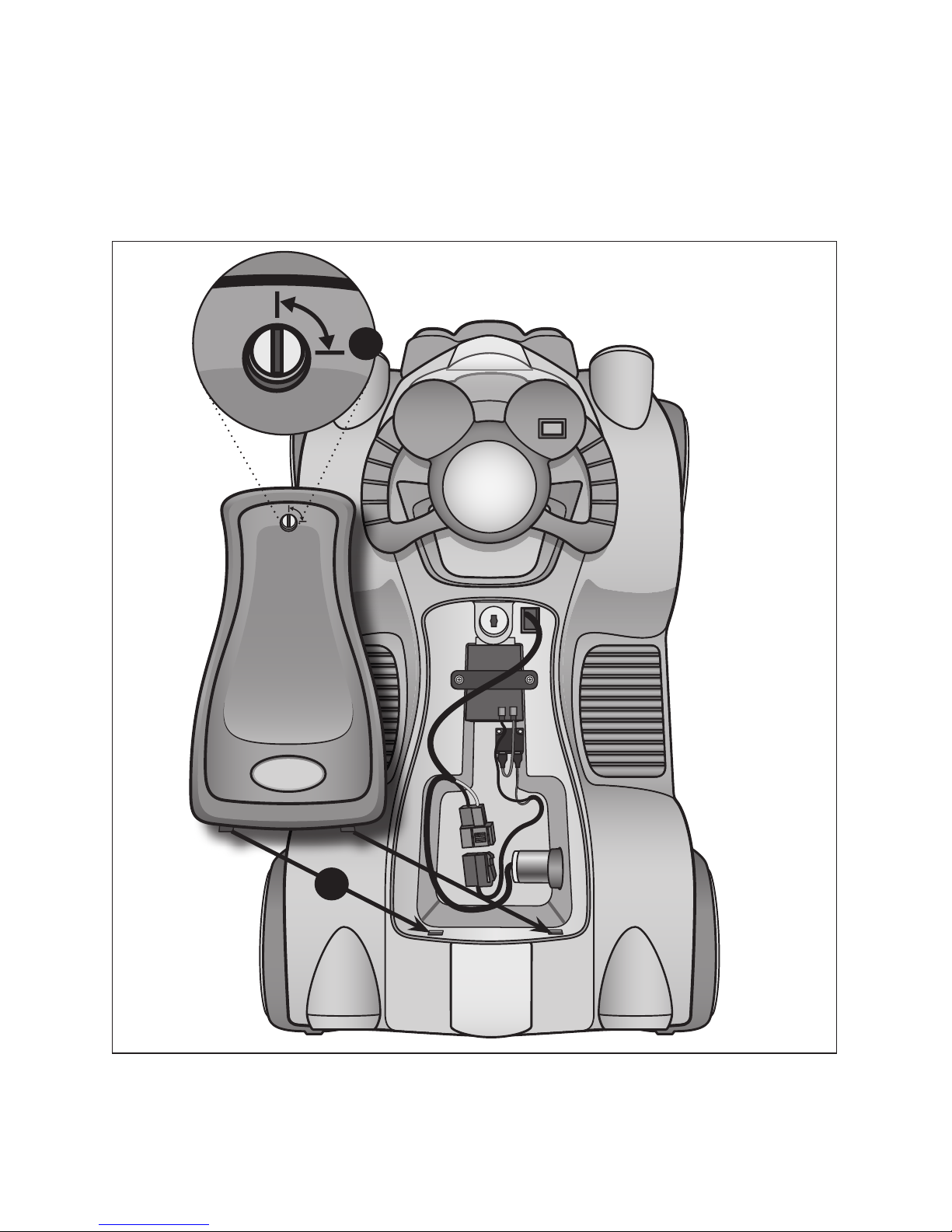

AT TACH THE SEAT
 Insert the seat tabs into the seat slots, located at the back of the seat opening.

 Lower the seat into the quad body. Turn the locking screw clockwise unl the lock
is engaged.
11
Close
Open
2
1

Remove the seat, as described on
page 11. 
 Disconnect the red connectors.
 Plug the charger connector into the
red connector from the baery.
 Only use the Kid Trax
Toys charger included with the Quad
(Input: AC 118V–, 0.5A, 60Hz Output:
DC 6V, 0.6A).
 Plug the charger into a standard
118V wall outlet.  The charger
may feel warm during charging. This
is normal and not a cause for
concern.
 Aer charging is complete (at least
12 hours, but no more than 18)
unplug the charger from the wall
outlet.
 Unplug the charger from the
charging connector and connect the
baery connectors.
 Place the seat back on the vehicle,
and lock into place.
 24 hours. Do not charge more than 30 hours
 8-16 hours. Do not charge for more than 24 hours

 Before using the quad for the rst me the baery needs to be charged
for at least 10 to 12 hours. Only an adult who has read and understands the safety
warnings should handle, charge or recharge of the baery.
12
4

Close
Open
1
4
2
3



• Damage to the baery may occur if it is allowed to drain completely. Do not allow
the baery to drain completely.
• Check the baery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the baery if damage has occurred. Only replace
with a Kid Trax Toys 6V rechargeable baery and charger.
The baery should be charged aer each use, or if not used regularly, once a month
at a minimum. Charge the baery between 8 and 16 hours. Do not charge the baery
for more than 24 hours. Failure to charge the baery as directed would cause
permanent damage to the baery and void the warranty.

Do not leave the baery connected in the vehicle for long period of mes while not
being used. This may drain the baery completely and cause permanent damage.
Disconnect the baery connectors from the baery when the vehicle is not going to
be used for a long period of me.
It is best to leave the baery in the baery compartment when the vehicle is being
stored for long periods. Follow these guidelines if the baery is removed:
• Store the baery where temperatures are between -10° F (-24° C and 75° F (24° C)
• Store the baery on a wood surface. Do not place the baery on cement oors for
extended periods. This will result in baery discharge.
• Wipe the baery clean with a dry cloth prior to storage.
• Charge the baery once every month for eight to sixteen hours.
13

Close
Open
1
4
2


The Kids Trax Toys 6V 4AH baery will
eventually lose the ability to hold a
charge. Depending on the amount of use,
and varying condions, the baery
should operate for one to three years.
Follow these steps to replace and dispose
the baery: 
 Remove the seat.
 Disconnect the baery connectors.
 Remove the baery bracket.
 Carefully li the baery.
• Depending on the condion of
the baery (i.e.: leakage) you
may want to wear protecve
gloves before removal.
• Do not li the baery by its
connectors or cables
 Place the dead baery in a plasc
bag.
 Recycle the dead baery
responsibly. The baery contains lead
acid (electrolyte) and must be disposed
of properly and legally It is illegal in most
areas to incinerate lead acid baeries or
dispose of them in landlls. Take it to a
federal or state-approved lead acid
baery recycler, such as a Kid Trax Toys
authorized service center or your local
automove baery retailer. Do not
throw the baery away with your regular
household trash!
 Replace the baery with a Kid Trax
Toys 6V 4AH baery.
 Reconnect the baery connectors.
 Replace the metal baery bracket.
 Replace the seat.
3
14



 Before using the quad for the rst me the baery needs to be charged
for a full 24 hours. Note: Do not charge more than 30 hours. Only an adult who has
read and understands the safety warnings should handle, charge or recharge of the
baery.
The quad is designed to only move forward at one speed. Do not aempt to move in
reverse.
 Press the power buon to move the quad forward. 
 Release the power buon to stop the quad.
15
Power
buon

5

• Check for damage, missing or badly worn parts before each use.
• Check the ghtness of the fasteners before each use.
• Check the ghtness of the wheels before each use.  If the wheel locknuts are
not ght the drive wheel will not engage and the vehicle will not run.
• Ensure the baery is securely in place before each use.
• Occasionally use lightweight oil to lubricate moving parts such as wheels and
steering linkage. Do not use oil on plasc or nylon parts. No lubricaon is required.
• Store the vehicle indoors or cover it with a tarp to protect it from the wet weather.
Keep it away from sources of heat, such as stoves and heaters.
• Clean the vehicle with a so, dry cloth. To restore shine to plasc parts, use a
non-wax furniture polish. Do not use car wax, abrasive cleaners or wash the vehicle
with soap and water. Water will damage the motor, electrical system and baery.
• Kid Trax Toys recommends that you take the vehicle to an authorized service center
for periodic maintenance and service. Call Kid Trax Toys Consumer Relaons at
877-741-6154 for an authorized service center.
16

6
The following are examples of potenal problems. Completely read through this
manual and the troubleshoong guide table before calling Kid Trax Toys Consumer
Relaons. If you sll need help resolving the problem please call 877-741-6154.
Kid Trax Toys recommends that you take the vehicle to an authorized service center
for periodic maintenance and service. Call the number listed above for the closest
center to you.
  
Vehicle does
not run
Baery low on power Recharge baery
Thermal fuse has
tripped
Let the vehicle rest for 5 to 10 minutes
before connuing normal operaon.
Wheel nuts are loose Tighten wheel nuts
Baery connector or
wires are loose
Check that baery connectors are
rmly plugged into each other. If wires
are loose around the motor call
Consumer Relaons at 877-741-6154
for an authorized service center
Baery is dead Replace baery
Electrical system is
damaged
Call Consumer Relaons at
877-741- 6154 for an authorized service
center
Motor is damaged Call Consumer Relaons at
877-741- 6154 for an authorized service
center
Vehicle does not
run very long
Baery is under
charged
Check that the baery connectors are
rmly plugged into each other when
recharging
Vehicle does not
run very long
Baery is old Replace baery
17
