dj power 102630 User manual

Fog machine DSK-1500V
Users Manual

Fog machine DSK-1500V Art.No.: 102630
2 / 16
Table of contents
1. Safety instructions............................................................................................... 3
1.1. For safe and efficient operation................................................................... 3
2. Intended use of the device.............................................................................. 4
2.1. Overhead installation..................................................................................... 5
2.2. Connections .................................................................................................... 6
2.2.1. Electrical connections............................................................................. 6
2.2.2. DMX connections..................................................................................... 7
2.3. DMX connection with terminator................................................................. 7
3. Introduction......................................................................................................... 8
3.1. Item delivered ................................................................................................. 8
3.2. Product description ........................................................................................ 8
4. Start-up ................................................................................................................ 9
4.1. Operation......................................................................................................... 9
4.1.1. Structure of the menu ........................................................................... 10
4.1.2. DMX chart ............................................................................................... 11
4.1.3. Remote .................................................................................................... 12
4.2. Fluid sensor..................................................................................................... 12
5. Technical data ................................................................................................. 13

Fog machine DSK-1500V Art.No.: 102630
3 / 16
1. Safety instructions
•This device is suitable for indoor use (not outdoors) only.
•Unauthorized modifications will invalidate the warranty.
•Repairs are to carry out by skilled workers only.
•Use only fuses of the same type and original parts as spare parts.
•To avoid fire and electric shocks protect the unit from rain and humidity.
1.1.For safe and efficient operation
Be careful with heat and extreme temperatures!
Do not place the device in a location where it is exposed to extreme
temperatures.
Operate the device only in an ambient temperature between 0°C (32°F) -
40°C (104°F). Do not expose the device to direct sunlight or heat sources.
Keep away from humidity, water and dust!
Avoid placing the device in a location with high humidity or excessive
dust. Place no liquids on or near the system.
Place the device on a firm ground!
To avoid vibrations always place the device on a firm ground.
Do not use chemicals for cleaning!
Use a clean and dry cleaning rag to remove dust. Metal parts can be
cleaned with a damped cleaning rag. Before cleaning always unplug the
device from the power supply.
If the device is not working properly!
If problems occur unplug the device from the power supply. The user should
not try to service the device independently. All repairs and service must be
performed by a qualified technician.
Take proper care with the power cord!
Never pull the power cord to disconnect the device from the power
supply, but remove the plug with plug housing in the hand. If you do not
use the device for an extended period, unplug the device from the power
supply.
ATTENTION!
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any consequent secondary
failures. Only skilled workers are allowed to carry out the electrical
connections. All electrical and mechanical connections have to be carried
out according to the European safety standards.

Fog machine DSK-1500V Art.No.: 102630
4 / 16
2. Intended use of the device
This device was developed for professional use on stages, in discos, theatres
etc. The device is only approved for a connection up to 230 V 50/60 Hz
alternating current and only for indoor use.
Regular breaks during operation increase the lifetime of your device.
Avoid convulsions or any form of forceful impact during the installation or the
start up of the device.
Take care that no cables are lying around. You would endanger your own
safety and also the safety of a third party.
It is not allowed to operate or store the device in an environment in which
spray water or rain is expected. Humidity or very high atmospheric humidity
could reduce the isolation of the device and could cause deathly electric
shocks.
If using fog machine you have to ensure that the fog saturation of the room
must allow a good visibility of at least 10m.
Operate the device not during thunderstorms. Surge voltages could destroy
the device. Unplug the power supply during thunderstorms.
Surrounding objects or surfaces should not be in contact with the device.
Make sure that during the installation and removal of the device the area
below the place of installation is basically cordoned off. This also applies to
implementation of service.
Make familiar yourself with the functions of the device before start-up. People
without the experience should not handle with the device. The most cause of
functional disorder is inappropriate handling.
Keep the device away from children and never operate it unattended.
Never aim the nozzle on people a keep a distance from 50 cm to the nozzle.
ATTENTION. The ejected fog is very hot!
Keep a minimum distance of 50 cm to other objects.
Use only the recommended, high quality water-based fluid from your dealer.
Other fluids may cause damages. Do not use flammable additives, such as
oil, gas, perfumes, etc. in your fluid.
Never aim the nozzle on open fire or flammable objects.
Make sure to top off the fluid in time. If the machine operated without fluid it
can cause damages to the pump or the heating block. Before top off the
fluid please unplug the device from the power supply.
Never drink the fluid. I fit does happen, please contact a doctor. If the fluid
had contact with the eyes or mucous membranes, rinse immediately with
water bodies.
Operate the unit only in a horizontal position.

Fog machine DSK-1500V Art.No.: 102630
5 / 16
Never use solvents or aggressive detergents for cleaning. Use instead of this a
damped cleaning rag.
To prevent damages during transport use for transport the original packing or
provided accessories.
For reasons of safety unauthorized changes are forbidden!
A usage of the device which differs from usages which are described in this
manual can cause damages of the device. In this case the warranty expires.
Additional you should notice that every different usage is related with
dangers and can cause e.g. an electrical short, fire, electric shock or crash.
2.1. Overhead installation
Danger of life!
You have to observe the regulations of BGV C1 (formerly VBG
70) and EN60598-2-17 Installations are to carry out by skilled
personnel only.
The suspension devices have to be build and measured so they can
withstand for an hour the tenfold of the payload without suffering a
permanent detrimental deformation.
Basically installation has to be made by using a second separate suspension.
This can be e.g. a suitable net. The second suspension must be designed and
attached so no part of the installation can fall down in case of failure.
During construction, reconstruction and deconstruction unnecessary stay in
the range of moving areas, on lightning bridges, under elevated work stations
or any other danger zones is forbidden.
The operator is obliged to following safety-related and mechanical facilities:
•Before the first start-up or after critical changes before restarting it has
to be checked by an expert.
•Review in the frame of the inspection test at least all four years by an
expert. .
•Review by a qualified person at least once a year.
How to carry out the overhead installation:
Ideally the device should be installed outside lounge areas of people.
IMPORTANT! Overhead installation requires a high level of experience. This
includes knowledge of calculating the payload, used installation material
and safety inspections of the used material and the projector whereas the
required experience is not limited to this. Do not try to carry out installation
yourself under any circumstances if you are not qualified. Contact a
professional installer. An inappropriate installation can lead to injuries and/or
damaged properties.

Fog machine DSK-1500V Art.No.: 102630
6 / 16
It is not allowed to install the device in the grip area of people.
If the device may hang from the ceiling or from high beams, the use of truss
systems is mandatory. The device may not be installed so it can swing freely in
the room.
Please note: Crashing down items can cause serious injuries! Do not install the
projector, if you doubt the safety of a possible installation form!
Before installation make sure that the mounting surface has the ability to carry
the tenfold point load of the own weight of the device.
Mount the device with the mounting-bracket to your trussing system using an
appropriate clamp.
During overhead installation the device must be always secured by a safety
rope which is designed to hold the twelvefold weight of device. Only safety
ropes with quick-release safety fastener elements may be used. Hang up the
safety rope in the hole of the mounting bracket. Direct the rope over the truss
or an appropriate fastening point. Hang up the end in the fastening element
and tie up the locking nut. A safety rope once exposed to failing load or
damaged may not be used furthermore.
The maximum drop exceed must not exceed 20cm.
A safety rope once exposed to failing load or damaged may not be used
furthermore. Adjust the desired inclination angle via the mounting bracket
and tighten the screw.
2.2.Connections
2.2.1. Electrical connections
Connect the fixture to the mains with the enclosed power cable and plug.
The earth has to be connected.
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth

Fog machine DSK-1500V Art.No.: 102630
7 / 16

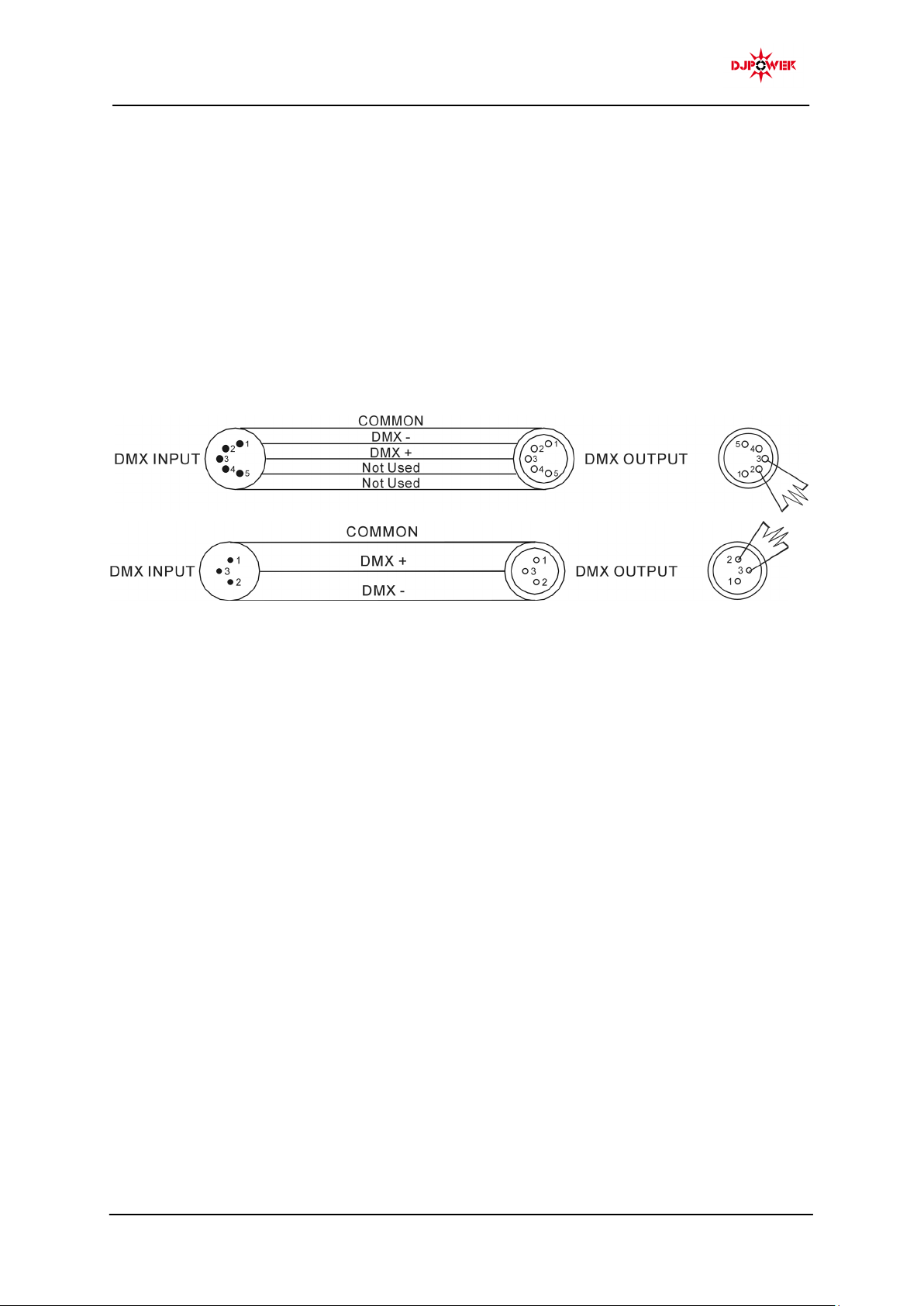

2.2.2. DMX connections
Make sure that you use shielded cable. 3pol or 5pol XLR cables are suitable.
2.3. DMX connection with terminator
Where the DMX cable has to run a long distance or the equipment is
operated in an electrically noisy environment like a disco for installations, we
recommend using a DMX terminator. This prevents corruption of the digital
control signal by electrical noise. The DMX terminator is simply an XLR
connector with a 120 Ωresistor between pins 2 and 3, which is then plugged
into the XLR output socket of the last device in the series. Please look to the
bottom drawings.

Fog machine DSK-1500V Art.No.: 102630
8 / 16
3. Introduction
Thank you for choosing a device from DJPower. Before usage please read this
manual carefully.
3.1.Item delivered
-1x Fog machine DSK-1500V
-1x Power cord IEC

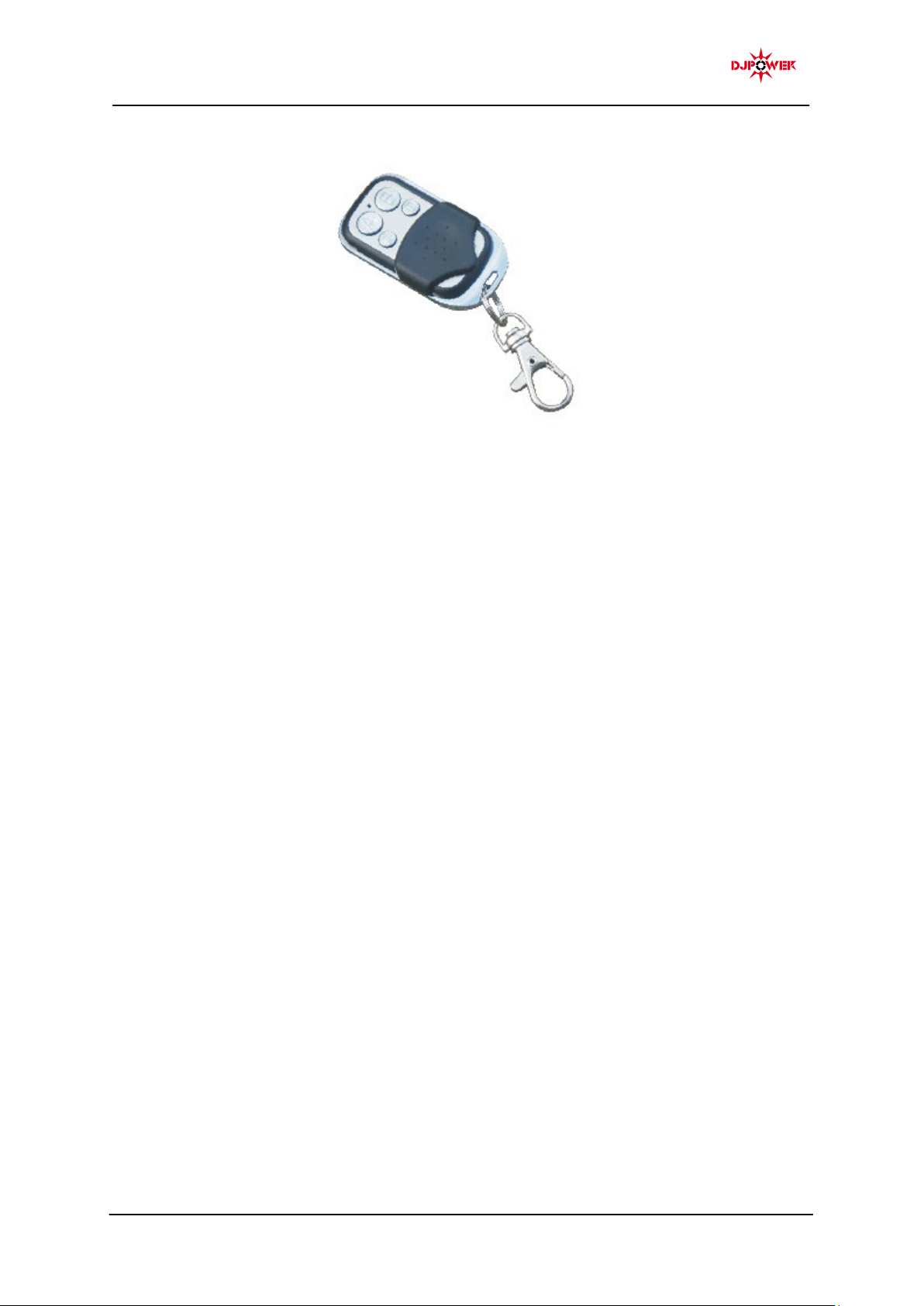

-1x Remote W5
-Manual (German / English)
3.2.Product description
1. 21x 3 W LEDs
2. Nozzle
3. Handle
4. XLR 3pol
INPUT / OUTPUT
5. Display
6. Safety eye
7. Fog button
8. XLR 5pol
INPUT / OUTPUT
9. Power supply
IEC
10. On/ Off switch
11. Tank baffle
12. Fluid tube
13. Tank
14. Fan

Fog machine DSK-1500V Art.No.: 102630
9 / 16
4. Start-up
Attention!
Remove before start-up every packing material.
1. Fill the tank with fluid (Please use fog fluid CO2). Make sure that there is
always enough fluid in the tank.
2. Connect the device to the power supply.
3. The device starts to heat up. This process needs 4 min, meanwhile the
display shows „WARMING UP“.
4. The heating process is finished. The display shows „Addr“.
4.1.Operation
The operation can be made by the display, manual by using the fog button
or with the remote.
MENU For call-up the structure of menu to make
individual settings.
UP To select a point of menu or increase a value.
DOWN To select a point of menu or decrease a value.
ENTER Confirm the selection or setting.

Fog machine DSK-1500V Art.No.: 102630
10 / 16
4.1.1. Structure of the menu
Menu Settings Function
Addr 0 – 512 Setting the DMX address.
CH-1 – CH-4
Advising the color settings for the single channels. Every
button on the remote represents a channel: A = CH-1,
B = CH-2, C = CH3 und D = CH4.
Co 1 Red
Co 2 Green
Co 3 Blue
Co 4 Pink
Co 5 Purple
CO 6 Orange
Co 7 Yellow
Co 8 Sky blue
Co 9 White
Random Color change
remo On / Off (De-)Activates the remote.
orL On / Off (De-)Activates the fluid sensor.

Fog machine DSK-1500V Art.No.: 102630
11 / 16
4.1.2. DMX chart
If the device is controlled by DMX the display shows the set DMX address.
Channel Value from Value to Function
1
0 9 No function
10 255 Fog output
2
0 9 No function
10 255 Dimmer red 0 – 100%.
3
0 9 No function
10 255 Dimmer green 0 - 100%
4
0 9 No function
10 255 Dimmer blue 0 – 100%
5
0 9 No function
10 255 Color mixing
6
0 9 No function
10 255 Color change slow – fast
7
0 9 No function
10 255 Strobe slow – fast
8
0 9 No function
10 255 Dimmer 0 – 100%

Fog machine DSK-1500V Art.No.: 102630
12 / 16
4.1.3. Remote
1. Activate the remote. (Cf. chapter 4.1.1).
2. Power off the device.
3. Power on the device again. The display shows a bar diagram. Press,
while the bar diagram is shown in the display, any key on the remote.
This process needs 12s.
4. The display blinks two times. The remote is connected successfully with
the device.
5. With the buttons A, B, C and D the fog output and the corresponding
color are activated (Cf. chapter 4.1.1).
Overall it is possible to assign up to five remotes to a device.
4.2.Fluid sensor
1. Activate the fluid sensor (Cf. chapter 4.1.1).
2. Once the fluid is empty the pump is deactivated. The display blinks.
3. Refill the fluid. To reset the fluid sensor there are three possibilities:
a. Press the fog button until the fluid tube is completely filled with
fluid.
b. Press any key on the remote until the fluid tube is completely filled
with fluid.
c. At first set the DMX value of channel 1 to 0 and then to 255.

Fog machine DSK-1500V Art.No.: 102630
13 / 16
5. Technical data
Voltage AC 220 V – 240 V; 50/60 Hz
Power consumption max. 1500 W
Fuse 8 A/250 V
LM type LED single color
(7x red, 7x green and 7x blue)
Power 441 W
Number x Power 21x 3 W
Heating Power 1100 W
Heating time 4 minutes
Tank volume 2,5 Liter
Output volume 906 m³/min
Fluid consumption @100% 159 ml/min
DMX 512 Yes
Number of DMX channels 8
Remote Yes
Frequency of the remote 433 MHz
Power in IEC
XLR in/out 3pol/5pol
Dimensions 475 x 314 x 205 mm
Weight 8,7 kg

Fog machine DSK-1500V Art.No.: 102630
14 / 16
For your notes:

Fog machine DSK-1500V Art.No.: 102630
15 / 16
For your notes:

Fog machine DSK-1500V Art.No.: 102630
16 / 16
B&K LUMITEC
2 rue Alfred Kastler
Zone Industrielle
67850 Herrlisheim - France
+33 (0) 3.88.96.80.90
+33 (0) 3.88.96.48.46
[e-mail]
www.bklumitec.com
