Nebelmaschine DF-V6C Art.No.: 115297
3 / 13
1. Safety instructions
•This device is suitable for indoor use (not outdoors) only.
•Unauthorized modifications will invalidate the warranty.
•Repairs are to carry out by skilled workers only.
•Use only fuses of the same type and original parts as spare parts.
•To avoid fire and electric shocks protect the unit from rain and humidity.
1.1.For safe and efficient operation
Be careful with heat and extreme temperatures!
Do not place the device in a location where it is exposed to extreme
temperatures.
Operate the device only in an ambient temperature between 0°C (32°F) -
40°C (104°F). Do not expose the device to direct sunlight or heat sources.
Keep away from humidity, water and dust!
Avoid placing the device in a location with high humidity or excessive
dust. Place no liquids on or near the system.
Place the device on a firm ground!
To avoid vibrations always place the device on a firm ground.
Do not use chemicals for cleaning!
Use a clean and dry cleaning rag to remove dust. Metal parts can be
cleaned with a damped cleaning rag. Before cleaning always unplug the
device from the power supply.
If the device is not working properly!
If problems occur unplug the device from the power supply. The user should
not try to service the device independently. All repairs and service must be
performed by a qualified technician.
Take proper care with the power cord!
Never pull the power cord to disconnect the device from the power
supply, but remove the plug with plug housing in the hand. If you do not
use the device for an extended period, unplug the device from the power
supply.
ATTENTION!
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any consequent secondary
failures. Only skilled workers are allowed to carry out the electrical
connections. All electrical and mechanical connections have to be carried
out according to the European safety standards.

Nebelmaschine DF-V6C Art.No.: 115297
4 / 13
2. Intended use of the device
This device was developed for professional use on stages, in discos, theatres
etc. The device is only approved for a connection up to 230 V 50/60 Hz
alternating current and only for indoor use.
Regular breaks during operation increase the lifetime of your device.
Avoid convulsions or any form of forceful impact during the installation or the
start up of the device.
Take care that no cables are lying around. You would endanger your own
safety and also the safety of a third party.
It is not allowed to operate or store the device in an environment in which
spray water or rain is expected. Humidity or very high atmospheric humidity
could reduce the isolation of the device and could cause deathly electric
shocks.
If using fog machine you have to ensure that the fog saturation of the room
must allow a good visibility of at least 10m.
Operate the device not during thunderstorms. Surge voltages could destroy
the device. Unplug the power supply during thunderstorms.
Surrounding objects or surfaces should not be in contact with the device.
Make sure that during the installation and removal of the device the area
below the place of installation is basically cordoned off. This also applies to
implementation of service.
Make familiar yourself with the functions of the device before start-up. People
without the experience should not handle with the device. The most cause of
functional disorder is inappropriate handling.
Keep the device away from children and never operate it unattended.
Never aim the nozzle on people a keep a distance from 50 cm to the nozzle.
ATTENTION. The ejected fog is very hot!
Keep a minimum distance of 50 cm to other objects.
Use only the recommended, high quality water-based fluid from your dealer.
Other fluids may cause damages. Do not use flammable additives, such as
oil, gas, perfumes, etc. in your fluid.
Never aim the nozzle on open fire or flammable objects.
Make sure to top off the fluid in time. If the machine operated without fluid it
can cause damages to the pump or the heating block. Before top off the
fluid please unplug the device from the power supply.
Never drink the fluid. I fit does happen, please contact a doctor. If the fluid
had contact with the eyes or mucous membranes, rinse immediately with
water bodies.
Operate the unit only in a horizontal position.

Nebelmaschine DF-V6C Art.No.: 115297
5 / 13
Never use solvents or aggressive detergents for cleaning. Use instead of this a
damped cleaning rag.
To prevent damages during transport use for transport the original packing or
provided accessories.
For reasons of safety unauthorized changes are forbidden!
A usage of the device which differs from usages which are described in this
manual can cause damages of the device. In this case the warranty expires.
Additional you should notice that every different usage is related with
dangers and can cause e.g. an electrical short, fire, electric shock or crash.
2.1. Electrical connections
Connect the fixture to the mains with the enclosed power cable and plug.
The earth has to be connected.
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth

Nebelmaschine DF-V6C Art.No.: 115297
6 / 13
3. Introduction
Thank you for choosing a device from DJPower. Before usage please read this
manual carefully.
3.1.Item deliverd
-1x Fog machine DF-V6C
-1x Power cord IEC
-1x Remote W-2
-1x Receiver KT-1
-Manual (German / English)

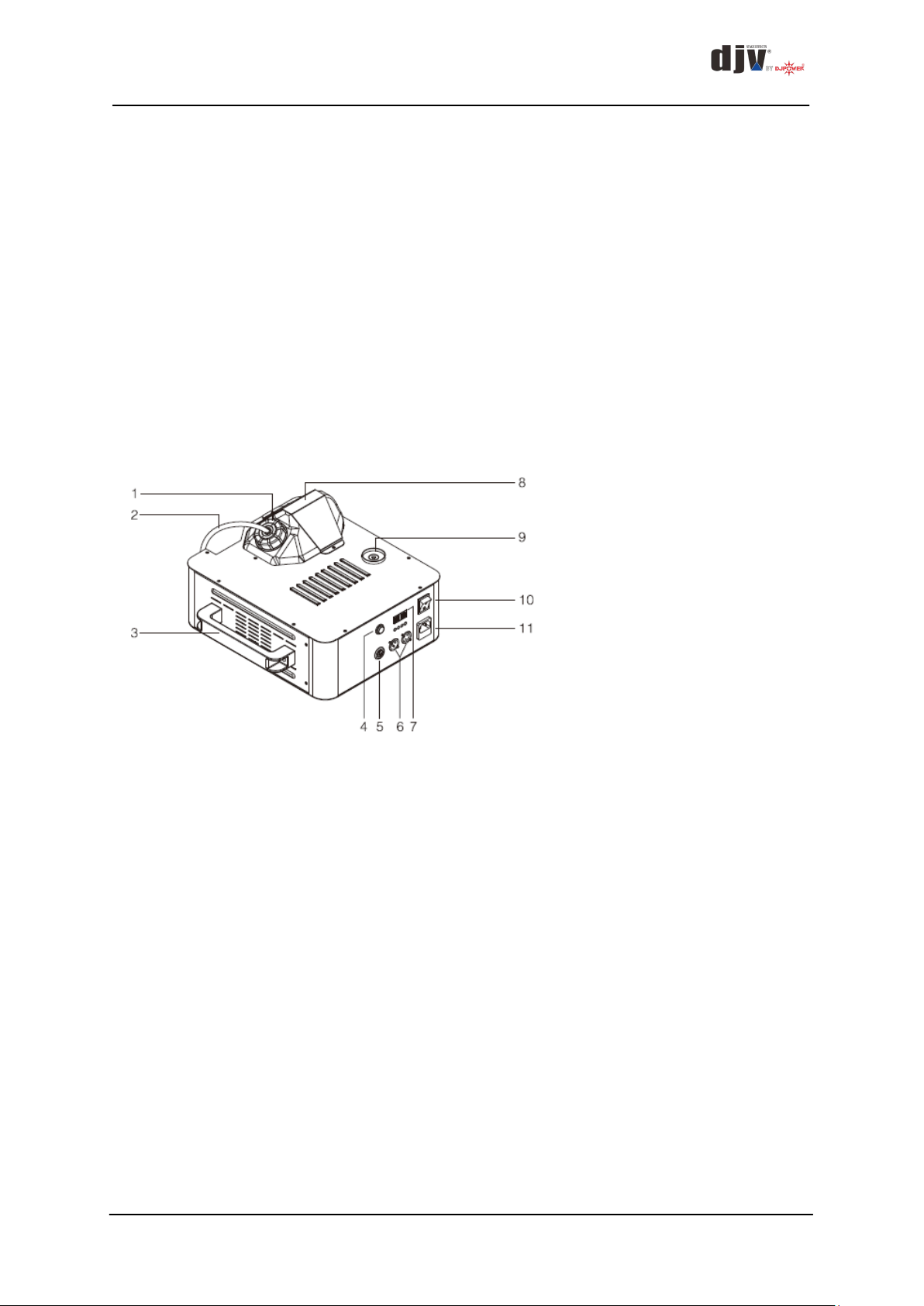

3.2.Product description
1. Tank
2. Fluid tube
3. Handle
4. Fog button
5. Remote Wireless
INPUT
6. XLR 3pol
INPUT / OUTPUT
7. Display
Tank baffle
8. Nozzle
9. On / Off Switch
10.Power supply IEC

Nebelmaschine DF-V6C Art.No.: 115297
7 / 13
4. Start-up
Attention!
Remove before start-up every packing material.
1. Fill the tank with fluid. Make sure that there is always enough fluid in the
tank.
2. Connect the device to the power supply and switch it on.
3. The device starts to heat up. This process needs 4 min, meanwhile the
display shows „HEAT“.
4. The heating process is finished. The display shows „Addr“.
4.1.Bedienung
The operation can be made by the display, manual by using the fog button
or with remote.
MENU For call-up the structure of the menu and set
the DMX value.
UP Increase a value.
DOWN Dicrease a value.
ENTER / STOP Confirm the setting.
4.1.1. Structure oft he menu
Menu Setting Function
Addr 0 – 512 Setting the DMX address.

Nebelmaschine DF-V6C Art.No.: 115297
8 / 13
4.1.2. DMX chart
If the device is controlled by DMX the display shows the set DMX address.
Channel Value from Value to Function
1
0 9 No function
10 255 Output volume low - high

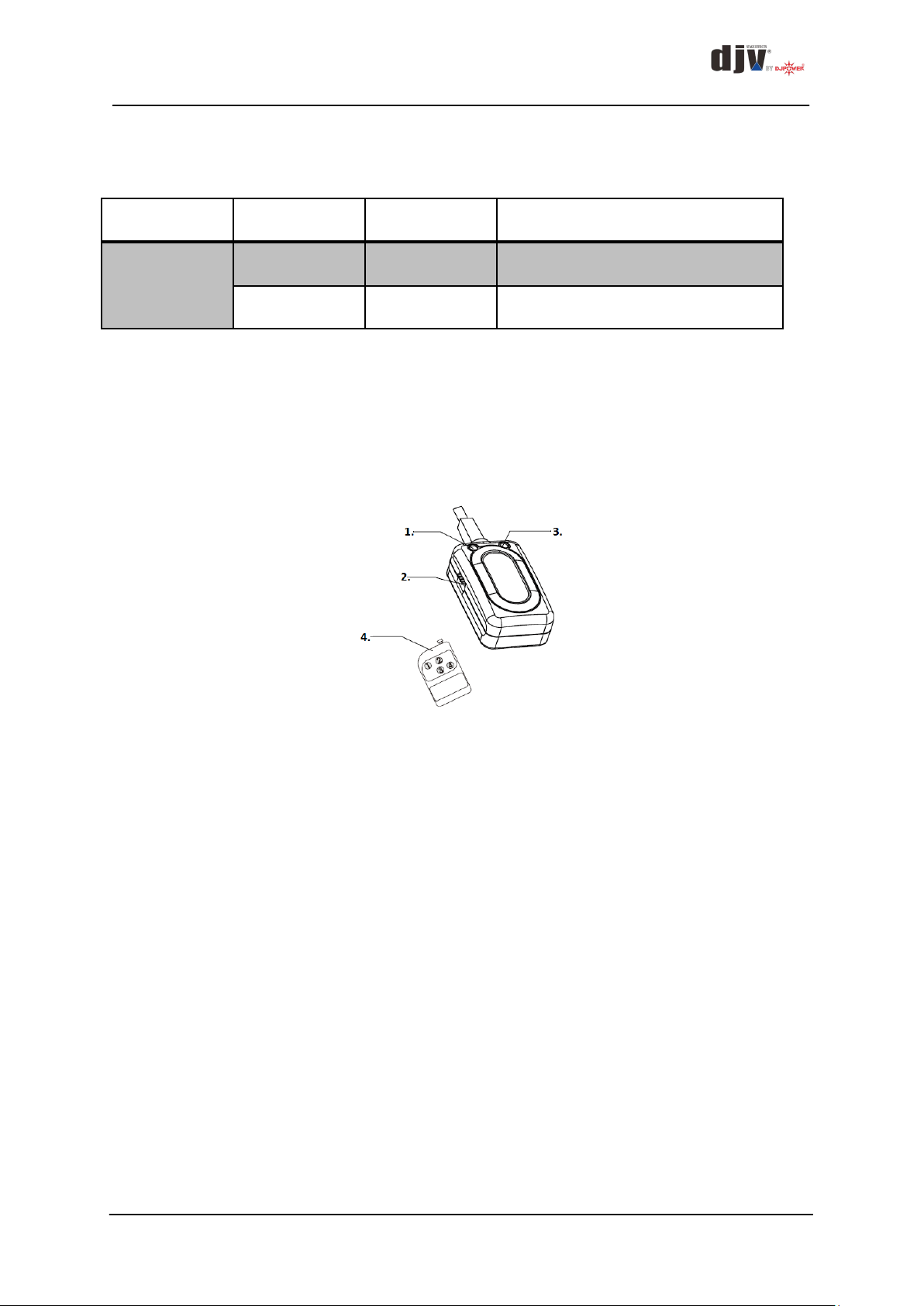

4.1.3. Wireless Remote
Connect the receiver with the device by using the INPUT “Wireless Controller“.
If you want to use several devices you can assign up to 4 devices to one
remote, by using the receivers.
2. Dipswitches You can assign the receiver to different buttons
or channels of the remote. CH1 (Dipswitch 1:
On; Dipswitch 2 -4: Off); CH2 (Dipswitch 2: On,
Dipswitch 1, 3 – 4: Off); CH3 (Dipswitch 3: On,
Dipswitch 1 – 2,4: Off); CH4 (Dipswitch 4: On,
Dipswitch 1- 3: Off).
2. Fog button 1- 4 With the buttons CH1 – CH4 you can activate
the fog output. Before this you have to assign
the receivers to the different buttons.

Nebelmaschine DF-V6C Art.No.: 115297
9 / 13
5. Technical data
Voltage AC 220 V – 240 V; 50/60 Hz
Power consumption max. 1350W
Fuse 8A/250 V
Heating power 1350 W
Heating time 4 min
Tank volume 2,5 Liter
Output volume 850 m³/min
Fluid consumption @100% 149 ml/min
DMX512 Yes
Number of DMX channels 1
Remote Yes
Frequency oft he remote 433 MHz
Power in IEC
Dimensions 366 x 340 x 195 mm
Weight 7 kg
