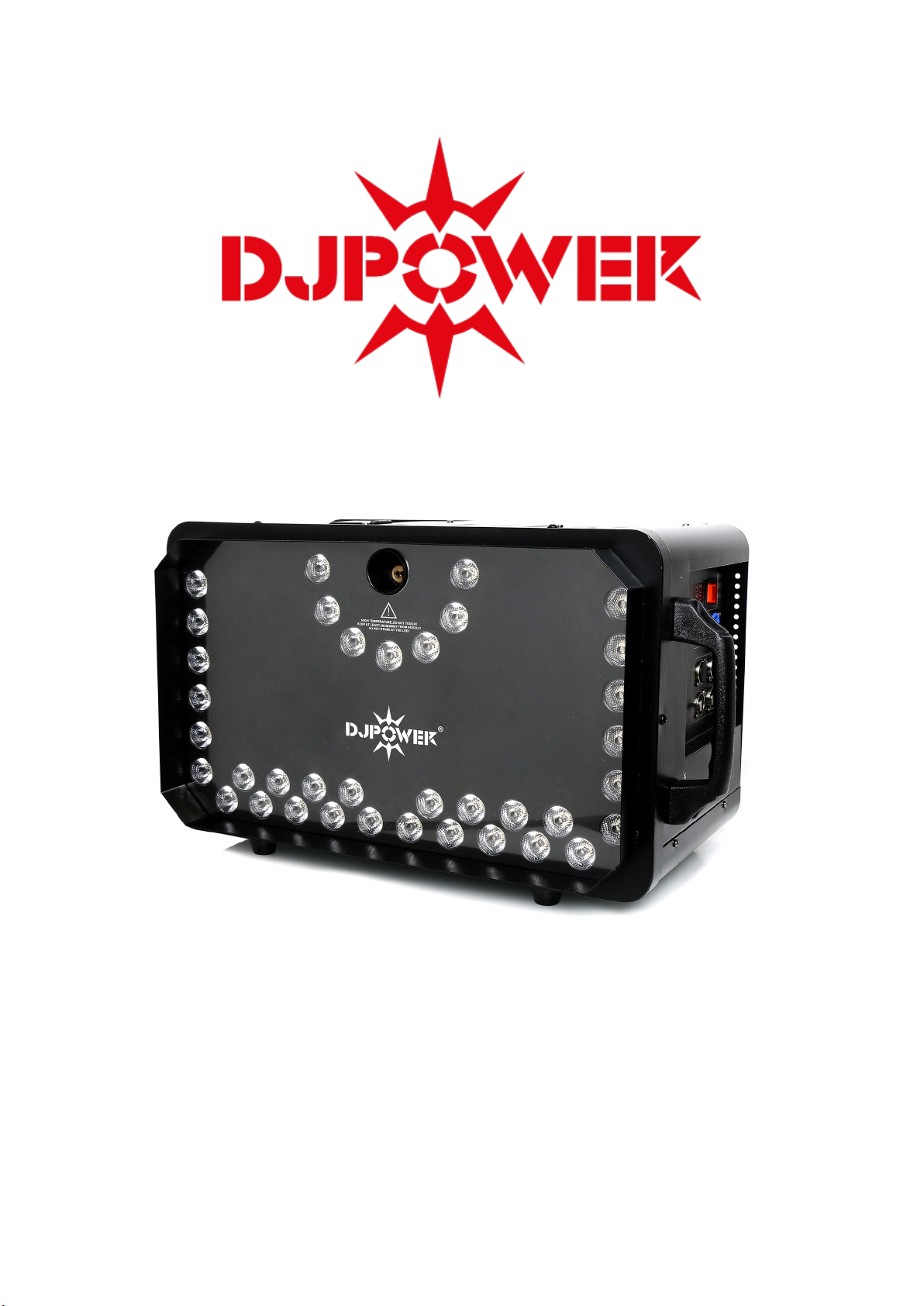

dj power H-2VSD User manual

Fog machine H-2VSD
USER MANUAL

Fog machine H-2VSD
2 / 19
1. Safety Instructions
•This device is only for use in
•closed rooms (not outdoors).
•The warranty claim expires if the device is modified by the user.
•The device may only be repaired by trained specialists.
•Only use fuses of the same type and only original parts as spare parts.
•To prevent fire and electric shock, protect the device from rain and
moisture..
1.1.Hinweise für den sicheren und einwandfreien Gebrauch
Beware of heat and extreme temperatures!
Do not place the device in a location subject to extreme temperatures. Only
operate the device in an ambient temperature between 0°C (32°F) - 40°C
(104°F). Do not expose the device to direct sunlight or heat sources.
Protect the device from moisture, water and dust!
When setting up the device, avoid locations with high humidity or
excessive dust. Do not place liquids on or near the system.
Always place the device on solid ground!
Place the device on a solid surface to avoid vibrations.
Do not use chemical agents for cleaning!
Use a clean, dry cloth to remove dust. Metal parts can be cleaned with a
slightly damp cloth. Before cleaning the device, always pull out the mains
plug!
If the device does not work properly!
If problems arise, unplug the power cord. The user should not attempt to
service the device on their own. All repairs and service must be performed by
a qualified technician.
Be careful with the power cord!
Never pull the mains cable to disconnect the device from the power supply,
but hold the plug housing in your hand. If you do not use the device for a long
period of time, pull out the mains plug
CAUTION!
The warranty claim expires in the event of damage caused by non-
observance of the instructions. The manufacturer and importer assumes no
liability whatsoever for consequential damage. Only qualified specialists may
establish the correct electrical connection. All electrical and mechanical
connections must be installed in accordance with European safety standards

Fog machine H-2VSD
3 / 19
1.1. Intended use of the device
This device is a device that was developed for professional use on stages, in
discotheques, theaters, etc. The device is only approved for connection to a
maximum of 230V, 50/60 Hz AC voltage and is only intended for indoor use.
Regular breaks in use increase the service life of your device.
Avoid physical shock or any form of violence when installing or starting up the
device.
Make sure that cables are not lying around freely. This would endanger your
own safety and the safety of third parties.
The device must not be operated or stored in an environment in which
splashing water, rain or moisture is to be expected. Moisture or high humidity
can reduce the insulation of the device and lead to fatal electric shocks.
When using fog machines, it must be ensured that the fog saturation of the
room must allow a good visibility of at least 10 m.
Do not operate the device during thunderstorms. Overvoltage could destroy
the device. In the event of a thunderstorm, completely disconnect the
device from the mains by pulling out the mains plug.
Surrounding objects or surfaces must not be touched by the housing.
Make sure that when assembling and dismantling the device, the area below
the assembly site is cordoned off. This also applies to the performance of
service work.
Familiarize yourself with the functions of the device before putting it into
operation. Do not allow the device to be operated by persons who have no
experience in it. The most common cause of malfunctions is improper
operation of the device.
Keep the device away from children and never operate it unsupervised.
Never aim the nozzle at people and keep 50cm away from the nozzle.
ATTENTION! The emitted mist is very hot.
Keep a minimum distance of 50cm to other objects.
Use only the recommended high quality water-based fluid from your dealer.
Other fluids can cause damage. Do not use flammable additives such as oil,
gas, perfumes, etc. in your fluid.
Never point the nozzle at an open flame or flammable objects.
Make sure to fill up the fluid in time. Running the machine without fluid can
damage the pump and heater block. Unplug the power cord when topping
up the fluid.
Never drink the fog fluid. If it did happen, contact a doctor immediately. If the
fluid comes into contact with the eyes and mucous membranes, rinse the
areas immediately with water.
Only operate the device in a horizontal position.

Fog machine H-2VSD
4 / 19
Never use solvents or aggressive cleaning agents to clean the device.
Instead, use a soft, slightly damp cloth.
When transporting the device, please use the original packaging or the
accessories provided to prevent transport damage.
Unauthorized changes to the device are prohibited for safety reasons!
1.2.Any use of the device that deviates from the use described in these
operating instructions can lead to damage to the device. In this case,
the warranty claim expires. In addition, it should be noted that any
other use is associated with dangers and can lead to short circuits, fire,
electric shock and falls, for example.
Over head mounting
Risk of death!
During installation, the provisions of BGV C1 (formerly VBG 70)
and EN 60598-2-17 must be observed! The installation is to be
carried out exclusively by authorized specialist personnel.
The suspension devices of the device must be constructed and dimensioned
in such a way that they can carry ten times the payload for one hour without
causing permanent damaging deformation.
The installation must always be carried out with the help of a second,
independent suspension. This can, for example, be a suitable safety net. The
secondary suspension must be designed and installed in such a way that in
the event of a failure of the main suspension, no part of the installation can
fall.
During assembly, conversion and dismantling, staying unnecessarily in the
area of movement areas, on lighting bridges, under high workplaces or in
other hazardous areas is prohibited.
The commercial user has the following responsibilities for safety-related and
mechanical equipment:
•Check by an expert before the first start-up or after decisive changes
before the start-up again.
•Review in the scope of the acceptance test at least every four years by
an expert.
•Inspection by an expert at least once a year
How to proceed with overhead attachment:
Ideally, the device should be installed outside of the area where people are.

Fog machine H-2VSD
5 / 19
IMPORTANT! A high level of experience is required for overhead mounting. This
includes knowledge of working load calculations, knowledge of the
installation material used and knowledge of safety inspections of the material
used and the equipment, but the experience required is not limited to this
alone. Under no circumstances should you attempt the installation yourself
unless you are suitably qualified. Instead, hire a professional installer. Please
note that improper installation may result in personal injury and/or property
damage.
The device must not be installed within the reach of persons.
If the device is to be suspended from the ceiling or from high supports, work
must be carried out with truss systems. The device must never be installed in
such a way that it can swing freely in space.
Please note: Devices can cause serious injuries if they fall! If you have doubts
about the safety of a possible form of installation, then do NOT install the
device!
Before mounting the device, ensure that the mounting surface is capable of
supporting at least ten times the point load of the device's own weight.
Mount the device with the mounting bracket on a truss system using suitable
lifting gear.
When installing overhead, ensure that the device is always secured with a
safety rope that can carry twelve times the weight of the device. Only safety
arrester ropes with screw links are to be used. Hang the safety catch rope in
the catch rope hole in the mounting bracket or on the device. Route the
rope over the truss or other secure attachment point. Hook the end into the
screw link and tighten the locking nut securely.
The maximum fall distance of 20 cm must not be exceeded!
A safety arrester rope that has been subjected to the stress of a fall or that has
been damaged must no longer be used as a safety arrester rope. Adjust the
angle of inclination using the mounting bracket and tighten the locking
screws.

Fog machine H-2VSD
6 / 19
2. Connection
2.1.1. Electrical Connection
Connect the device to the mains using the supplied power cable! The
protective earth must always be connected!
Cable (EU) Cable (US) Pin International
Brown Black Live L
Blue White Neutral N
Green/ Yellow Green Earth
2.1.2. DMX connection
Make sure you always use shielded cables. 3pin or 5pin XLR cables are
suitable for this.
2.1.3. DMX connection with terminator
For installations where the DMX signal has to bridge a large distance or where
the device is to be operated in an environment with increased
electromagnetic radiation, such as a discotheque, we recommend using a
DMX terminator. This prevents the digital control signal from being corrupted
by electrical noise. The DMX terminator is simply an XLR connector with a
120Ωresistor between pins 2 and 3, which is then plugged into the XLR output
jack of the last fixture in the chain. Please see the drawings below.

Fog machine H-2VSD
7 / 19
3. Introduction
Thank you for purchasing the H-2VSD Fog Machine.
We recommend reading these operating instructions carefully before using
the device. Please follow the instructions in this user manual. This is the only
way to ensure safe operation, proper use and a long service life for the
device.
The H-2VSD is the world's first LED dual output super jet fog machine. This
device has been specially developed for professional use. With the unique &
patented Super-Jet technology, the strength of the output is comparable to
that of Co2 jets.
3.1.Features
•Dual output for powerful fog output
•Patented Super-Jet Technology
•Stable and durable.
•"NO FLUID" protection
•Patented Immediate Stop Technology
•Built-in control LCD
•37x 8W RGBA LEDs
•3 + 5 pin DMX
•Please only use fog fluids from DJPower.
3.2.Scope of delivery
-1x Fog Machine H-2VSD
-1x power cable
-2x Omega brackets
-Operating instructions

Fog machine H-2VSD
8 / 19
3.3.Product description

Fog machine H-2VSD
9 / 19
4. First use
ATTENTION!
Before using the device for the first time, remove all packaging materials.
1. After checking that the device is intact and complete, please place it
on a flat surface.
2. Fill the tank with fluid! Please only use the recommended fluid,
otherwise the device may be damaged and the guarantee will be
void. Make sure that there is always enough fluid in the tank.
3. Connect the device to the mains.
4. The device starts to heat up. This process takes 9 minutes, during which
time the display shows "Warming up".
5. The heating process is complete. "Ready TO Fog" appears on the
display.

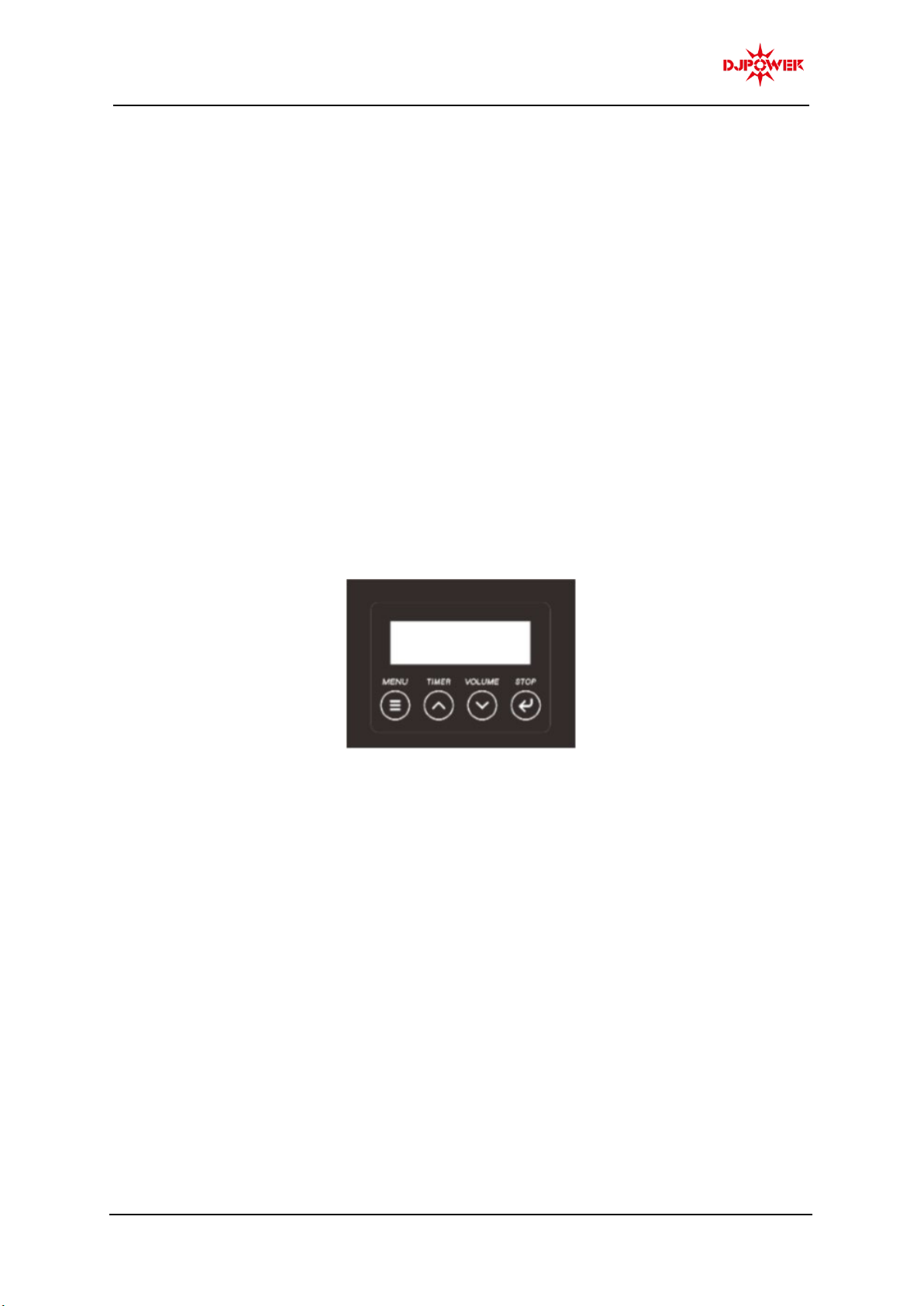

4.1.Control
It is operated via the display or via DMX.
MENU Calling up the menu structure to make
individual settings.
UP / TIMER Select a menu item or increase a value.
Activate the timer.
DOWN / VOLUME Select a menu item or decrease a value. Start
manual ejection.
ENTER / STOP Confirm the selection or the setting made. Stop
manual ejection.

Fog machine H-2VSD
10 / 19
4.1.1. Menu

Fog machine H-2VSD
11 / 19

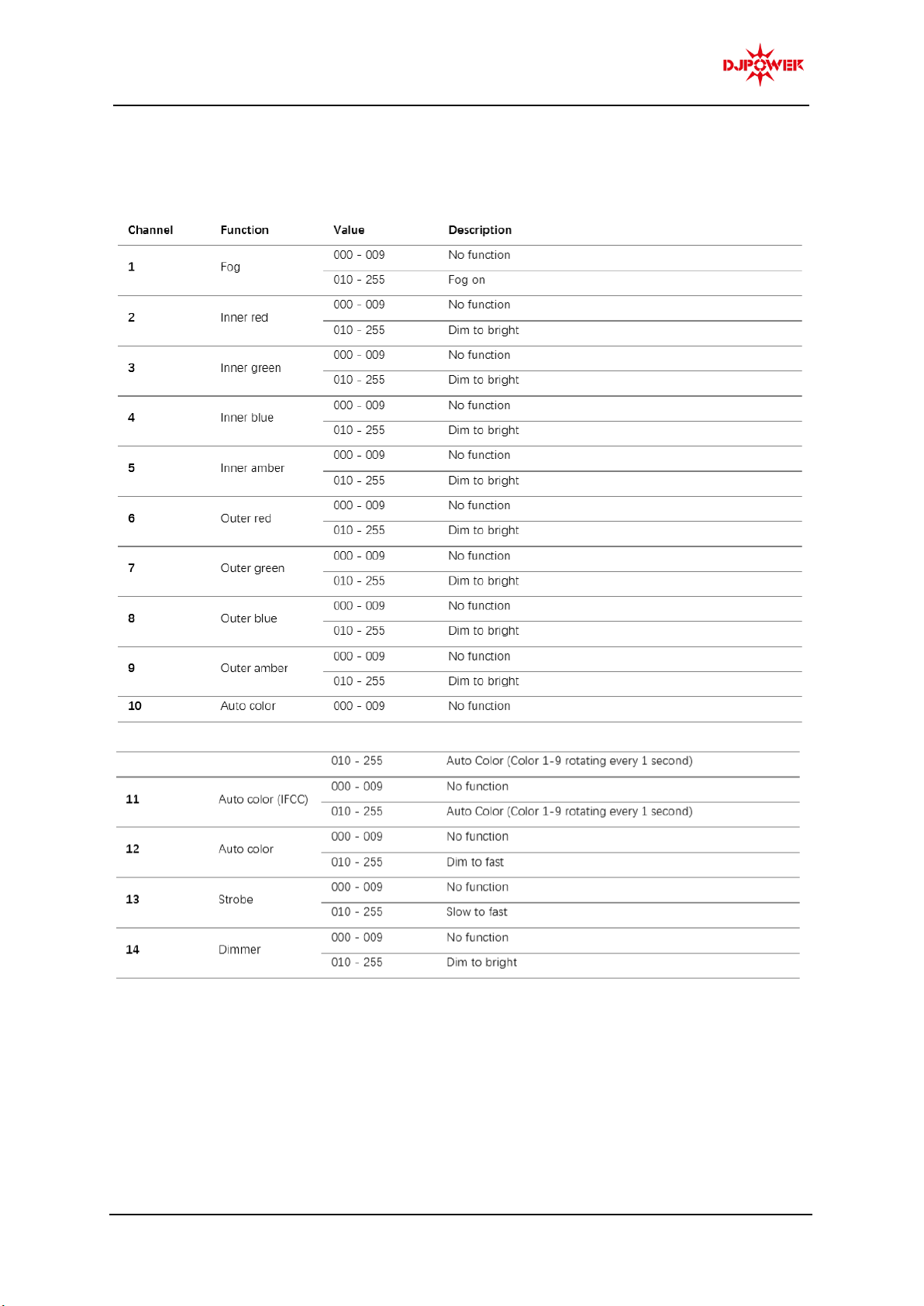

4.1.2. DMX Table
If the device is controlled with a DMX signal, the display shows the set DMX
address.

Fog machine H-2VSD
12 / 19
4.1.3. Fluid Sensor
This machine has a software-based fluid sensor that is designed to protect the
pump from damage. Turn on the “Fluid Sensor” to activate the “NO FLUID”
protection function.
4.1.4. Auslösen des Fluid Sensors
As soon as the Fluid Sensor is switched ON, the software based “NO FLUID”
protection function is activated. If the program detects that the pump is no
longer pumping fluid, the pump switches off automatically and draws
attention to the problem with a warning message on the display.
4.1.5. Zurücksetzen der “NO FLUID” Warnung
After the machine initiated the “NO FLUID” protection function, after refilling
the fluid, there are three ways to reset the warning.
•Hold down the “Enter” key until the pump is again supplied with fluid. In
this case, the machine starts to emit fog again.
•In DMX mode, drag the DMX channel assigned to the machine on the
lighting console down to the value 0. Then drag the channel to the
highest value (255).
•Turn off the “FLUID SENSOR” in the menu.

Fog machine H-2VSD
13 / 19
5. Technical data
Voltage AC 220V-240V; 50/60Hz
power consumption max. 3100W
fuse 15A/250V
warm-up time 10 mins
LED color RGBA
LED type Quad Color
Power per LED 8w
number of LEDs 37 pieces
Number of inner LEDs 7 pieces
Number of outer LEDs 30 pieces
Total power of the inner LEDs 56 w
Total power of the outer LEDs 240W
tank volume 3.5 liters
range with one filling Approximately 10 minutes
output volume 2209 m³/min
discharge height 12m
fluid consumption 400ml/min
Maximum Ejection Duration 10 sec
Continuous fog output -
Horizontal orientation YES
Inclined Orientation YES (ensure no fluid leaks)
Vertical Alignment YES
upside down YES
Rigging & Trussing YES
DMX 512 YES
Number of DMX channels 1

Fog machine H-2VSD
14 / 19
remote control NO
frequency of the remote control -
current in P con
XLR in/out 3-pin/5-pin
Dimensions 610x315x325mm
shipping dimensions 670x410x425mm
net weight 27.5kg
shipping weight 29.5kg

Fog machine H-2VSD
15 / 19
6. Upside-Down mounting
•Before installation, make sure that the machine is easily accessible
for maintenance work.
•Make sure the machine is installed on a structure designed for the
weight.
6.1. Tank Inversion
To prevent fluid from leaking out, the tank must be turned before the
upside-down assembly.
•Loosen the screws of the tank bracket
•Turn the tank holder and screw it back to the housing with the
previously loosened screws.

Fog machine H-2VSD
16 / 19
Notes:

Fog machine H-2VSD
17 / 19
Notes:

Fog machine H-2VSD
18 / 19

Fog machine H-2VSD
19 / 19
B&K LUMITEC
2 rue Alfred Kastler
Zone Industrielle
67850 Herrlisheim - France
+33 (0) 3.88.96.80.90
+33 (0) 3.88.96.48.46
[e-mail]
www.bklumitec.com
