dji MAVIC PRO User manual
2
©2016 DJI All Rights Reserved.
Using this manual
Legends
Warning Important Hints and Tips Reference
Read Before the First Flight
Read the following documents before using the MAVICTM Pro:
1. In the Box
2. Mavic Pro User Manual
3. Mavic Pro Quick Start Guide
4. Mavic Pro Disclaimer and Safety Guidelines
5. Mavic Pro Intelligent Flight Battery Safety Guidelines
TM website and read the Disclaimer
User Manual for more details.
Video Tutorials
Please watch the tutorial videos at the link below, which demonstrates how to use Mavic Pro safely:
http://www.dji.com/mavic
Download the DJI GO App
Download and install the DJI GOTM app before using the aircraft. Scan the QR code to
the right to download the latest version.
The Android version of the DJI GO app is compatible with Android 4.1.2 or later.
The iOS version of the DJI GO app is compatible with iOS 8.0 or later.
Download the DJI Assistant 2
Download the DJI Assistant 2 at http://www.dji.com/mavic/download
Searching for Keywords
Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.
Navigating to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to that section.
Printing this Document
This document supports high resolution printing.
©2016 DJI All Rights Reserved.
3
Contents
Using this manual 2
Legends 2
Read Before the First Flight 2
Video Tutorials 2
Download the DJI GO App 2
Download the DJI Assistant 2 2
Product Proile 6
Introduction 6
Features Highlights 6
Preparing the Mavic Pro 6
Aircraft Diagram 8
Remote Controller Diagram 8
Aircraft 11
11
Flight Mode 11
Flight Status Indicator 12
Return-to-Home (RTH) 13
TapFly 17
ActiveTrack 19
Gesture Mode 21
Forward and Downward Vision System 22
Flight Recorder 25
Attaching and Detaching the Propellers 25
Intelligent Flight Battery 26
Remote Controller 31
31
Using the Remote Controller 31
Linking the Remote Controller 36
Camera and Gimbal 38
38
Gimbal 39
4
©2016 DJI All Rights Reserved.
DJI GO App 41
Equipment 41
Editor 46
SkyPixel 46
Me 46
Flight 48
Flight Environment Requirements 48
Flight Limits and No-Fly Zones 48
49
Calibrating the Compass 50
Auto Takeoff and Auto Landing 51
Starting/Stopping the Motors 52
Flight Test 52
Appendix 55
55
Firmwares Update 56
Intelligent Flight Mode 57
Remote Controller LCD Screen Menu Information 58
After-Sales Information 59
Compliance Information 59
©2016 DJI All Rights Reserved.
5
Product Proile
This section introduces the Mavic Pro
and lists the components of the aircraft
and remote controller.

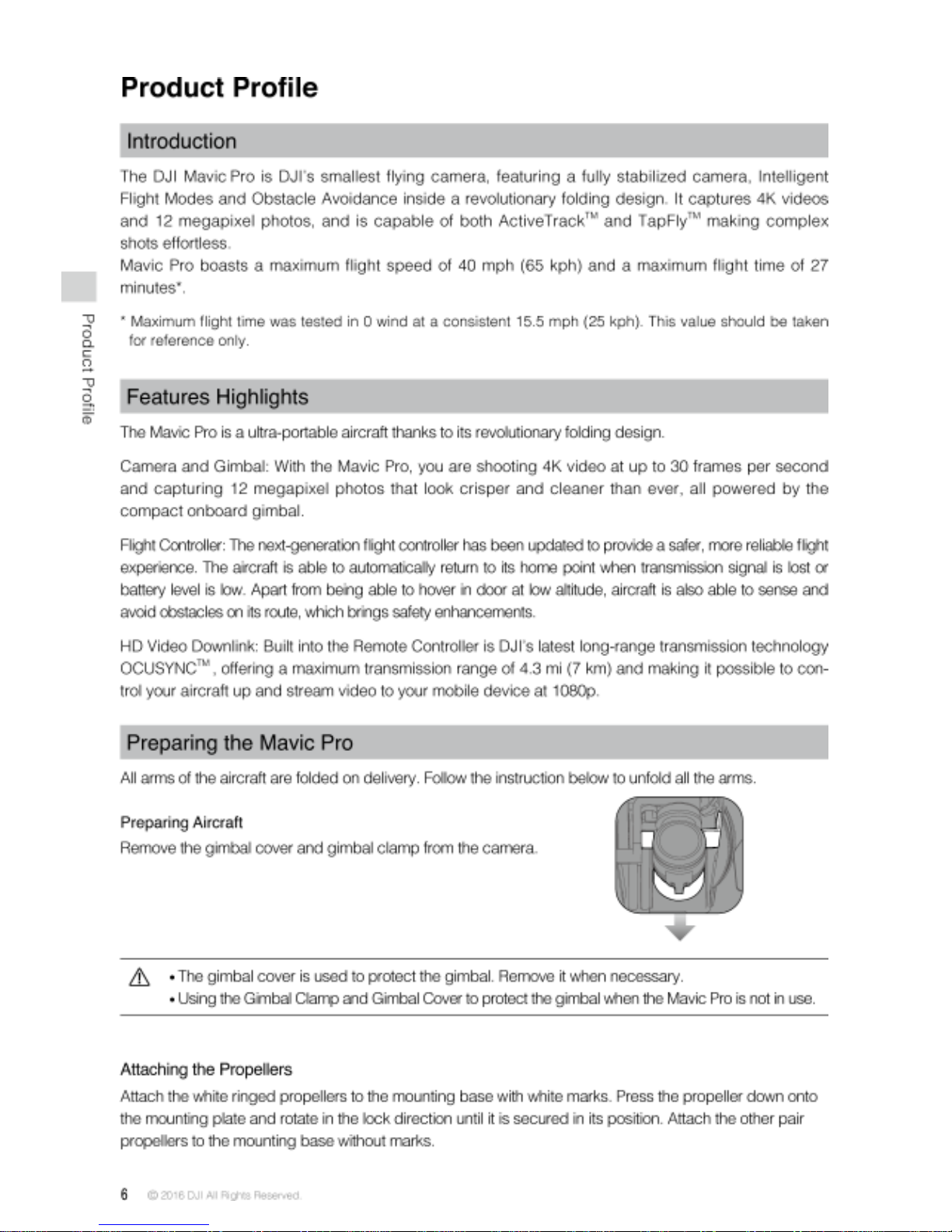

Product Profile

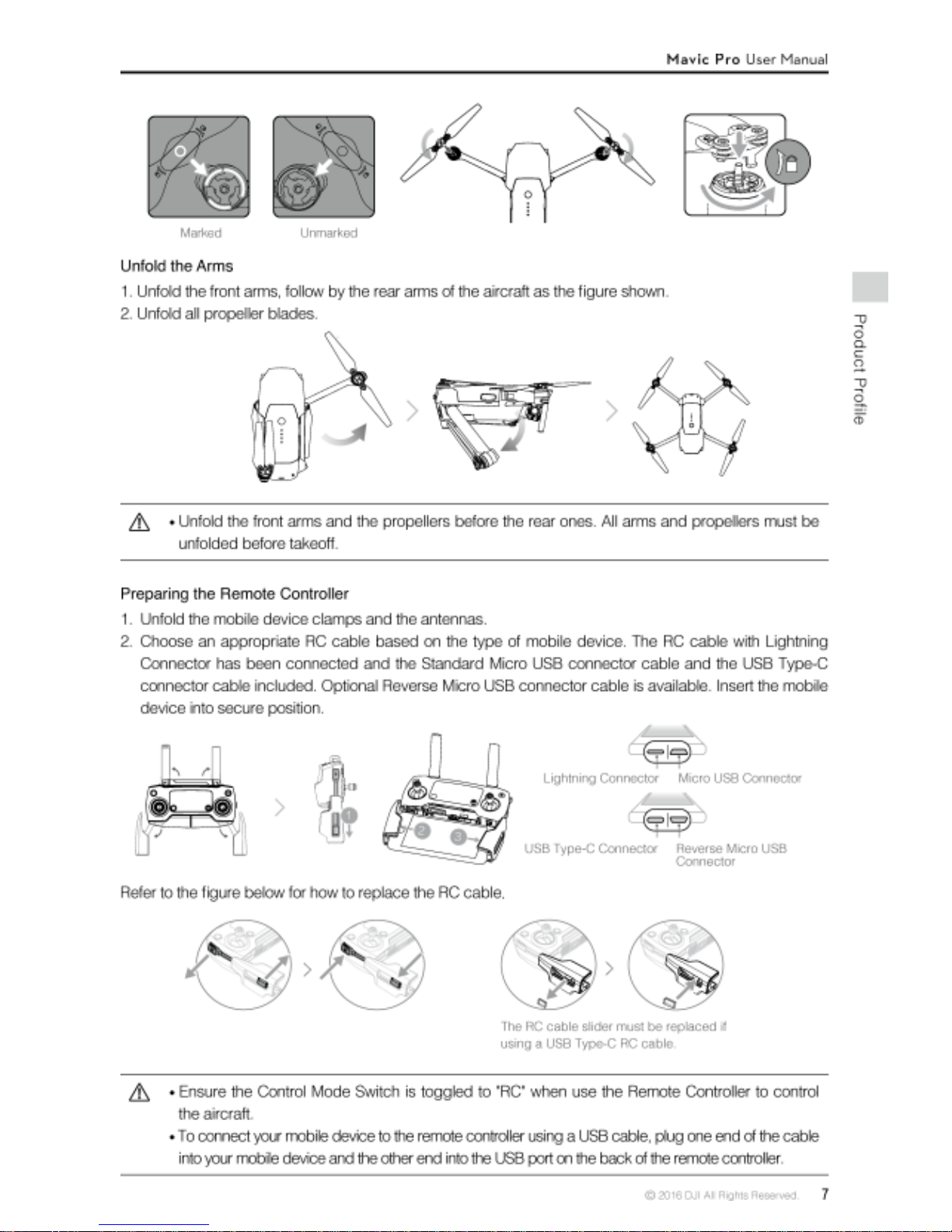

Mavic Pro User Manual
8
©2016 DJI All Rights Reserved.
Aircraft Diagram
Remote Controller Diagram
1.Propeller
2.Motor
3.Front LED Indicator
4.Forward Vision System
5.Landing Gear
6.Gimbal and Camera
.Intelligent Flight Battery
8.Link Button
9.Linking Status Indicator
10.Camera Micro SD Card Slot
11.Control Mode Switch
12.Micro USB Port
13.Aircraft Status Indicator
14.Downward Vision System
1
3
5
4
2
8
9
67
1. Antennas
Relays aircraft control and video
signal.
2. Return to Home (RTH) Button
Press and hold the button to initiate
again to cancel RTH.
3. Power Button
Used to turn the remote controller on
and off.
4. Control Stick
Controls the orientation and
movement of the aircraft.
1
2
3
4
5
6
7
11
10
12
1413
9
8
Product Profile
Mavic Pro User Manual ©2016 DJI All Rights Reserved.
9
11
13
15
14
10
12
1716
10. C1 Button
Set these values based on your preference
in the DJI GO app.
Press once to focus on the center or add a
waypoint when using Waypoints.
11. C2 Button
Set these values based on your preference
in the DJI GO app.
Press once to playback / or delete a
waypoint when using Waypoints.
12. Gimbal Dial
Control the camera's tilt.
13. Camera Settings Dial
Turn the dial to adjust camera settings.
is connected to a mobile device running
14. Record Button
Press to start recording video. Press again
to stop recording.
5. LCD Screen
Displays the aircraft and Remote Controller's
system status.
6. Flight Pause Button
Press once for emergency breaking.
7. 5D Button
these values based on your preference in
the DJI GO app.
Left: Zoom In
Right: Zoom Out
Up: Camera Forward
Down: Gimbal Downward
Press inward: Call out Intelligent Flight menu
in DJI GO app.
8. Mobile Device Clamp
Securely mounts your mobile device onto
the remote controller.
9. USB Port
Connect to mobile device for running the DJI
GO app.
15. Shutter Button
Press to take a photo. If burst mode is
selected, the set number of photos will be
taken with one press.
16. Power Port
Connect to the Charger to charge the
battery of the remote controller. Connect
this port to your mobile device using the RC
cable.
17. Flight Mode Switch
Switch between P-mode, S-mode.
10
©2016 DJI All Rights Reserved.
Aircraft
This section introduces the features of
the Flight Controller, Forward and Down-
ward Vision System, and the Intelligent
Flight Battery.
Aircraft
©2016 DJI All Rights Reserved.
11
Aircraft
the component of the aircraft.
Flight Mode
P-mode (Positioning):
between obstacles or track a moving object. Advanced features such as Tap-
Fly and ActiveTrack are enabled in this mode. Note that handling gain values
are reduced in P-mode.
S-mode(Sport): The aircraft is using GPS for positioning. Handling gain values of the aircraft are
speed. Since Forward and Downward Vision System is disabled, the aircraft will not
be able to sense and avoid obstacle in S-mode. Ground Station and the Intelligent
Flight functions are not available in Sport Mode.
The aircraft will automatically switch to P-ATTI mode when the GPS signal is weak and lighting conditions
are too dark for the Forward and Downward Vision System. The aircraft will only use its barometer for
positioning to control the altitude.
The Forward Vision System is disabled in S-mode (Sport), which means the aircraft will not
be able to automatically avoid obstacles on its route.
stick movement on the remote controller will translate into a large travel distance of the aircraft.
Aircraft
Mavic Pro User Manual
12
©2016 DJI All Rights Reserved.
Flight Status Indicator
The Mavic Pro has Front LEDs and Aircraft Status Indicator. The positions of these LEDs are shown in the
The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is
-
low for more information about the Aircraft Status Indicator.
Aircraft Status Indicator Description
Normal
Red, Green and Yellow Flash
Alternatively Turning On and Self Diagnostic Testing
Yellow and Green Flash Alternatively Warming Up
Green Flashes Slowly P-mode or S-mode with GPS
X2 Green Flashes Twice P-mode or S-mode with Forward and Downward
Vision System
Yellow Flashes Slowly No GPS and Forward and Downward Vision
System
Fast Green Flashing Breaking
Warning
Fast Yellow Flashing Remote Controller's Signal Lost
Slow Red Flashing Low Battery Warning
Fast Red Flashing Critical Battery Warning
Red Flashing Alternatively IMU Error
—
Solid Red Critical Error
Red and Yellow Flash Alternatively
Front LED
Front LED
Aircraft Status Indicator
Aircraft
Mavic Pro User Manual ©2016 DJI All Rights Reserved.
13
Return-to-Home (RTH)
three types of RTH procedures: Smart RTH, Low Battery RTH, and Failsafe RTH. This section describes
these three scenarios in detail.
GPS Description
Home Point
is the location from which the aircraft was launched. The GPS signal
indicator will blink rapidly when the home point is recorded.
Failsafe RTH
If the Home Point was successfully recorded and the compass is functioning normally, Failsafe RTH will
the operator may regain control of the aircraft if the remote controller signal connection is re-established.
Failsafe Illustration
1 Record Home Point 3 Remote Controller Signal Lost
4 Signal Lost Lasts
×
×
5
Height over HP<=Failsafe Altitude
Height over HP>Failsafe Altitude
Elevate to Failsafe Altitude
Failsafe Altitude
××
unavailable.
The aircraft cannot avoid obstruction during the Failsafe RTH when Forward Vision System is
the DJI GO app and enter “Camera” and tap to set the Failsafe Altitude.
User cannot control the aircraft while the aircraft is ascending to its failsafe altitude. However,
user can press RTH button once to exit ascending and regain control.
Aircraft can sense and avoid obstacles when Forward Vision System is enabled and the lighting
Home Point at the new altitude.
Hovering at 2 meters above
the Home Point
Aircraft
Mavic Pro User Manual ©2016 DJI All Rights Reserved.
15

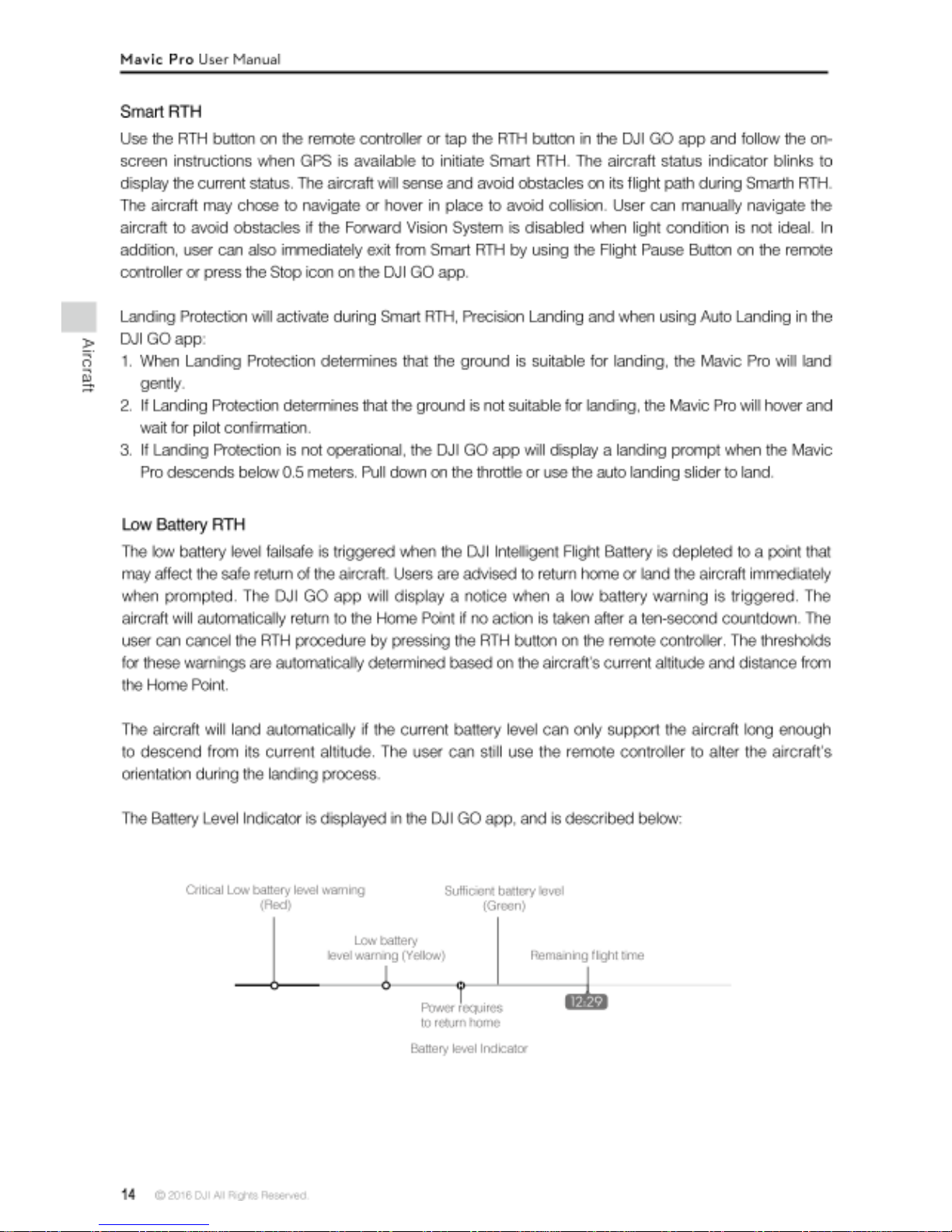

Battery Level
Warning Remark Aircraft Status
Indicator DJI GO App Flight Instructions
Low battery
level warning
The battery
power is low.
Please land the
aircraft.
Aircraft status
indicator blinks
RED slowly.
Tap “Go-home” to have the
aircraft return to the Home
point automatically, or
“Cancel” to resume normal
the aircraft will automatically
go home after 10 seconds.
Remote controller will sound
an alarm.
Fly the aircraft
back and land
it as soon as
possible, then
stop the motors
and replace the
battery.
Critical Low
battery level
warning
The aircraft
must land
immediately.
Aircraft status
indicator blinks
The DJI GO app display will
start to descend. The remote
controller will sound an alarm.
Allow the aircraft to
descend and land
automatically.
Estimated
remaining
Estimated
based on current
battery level.
N/A N/A N/A
When Critical battery level warning is triggered and the aircraft begins to land automatically,
you may push the left stick upward to make the aircraft hover at its current altitude, giving you
an opportunity to navigate to a more appropriate landing location.
location and status.
Precision Landing
The Mavic Pro automatically scans and attempts to match the terrain features underneath during Return
to Home. When current terrain matches home point terrain, the Mavic will start landing immediately to
achieve precision landing. The DJI GO app will show a terrain feature mismatch prompt if matching fails.
Precision Landing performance is subject to the following conditions:
b. Aircraft must take off vertically. Take off altitude must be greater than 10 meters.
c. Home point terrain features remain largely unchanged.
d. Home point terrain with no distinctive features will affect the performance.
e. Lighting condition cannot be too light nor too dark.
The following actions are available during landing:
a. Pull throttle down to accelerate landing.
b. Moving the control sticks in any directions will stop Precision Landing, causing the Mavic
Pro to descend vertically. Landing Protection will remain active.
Aircraft
Mavic Pro User Manual
16
©2016 DJI All Rights Reserved.

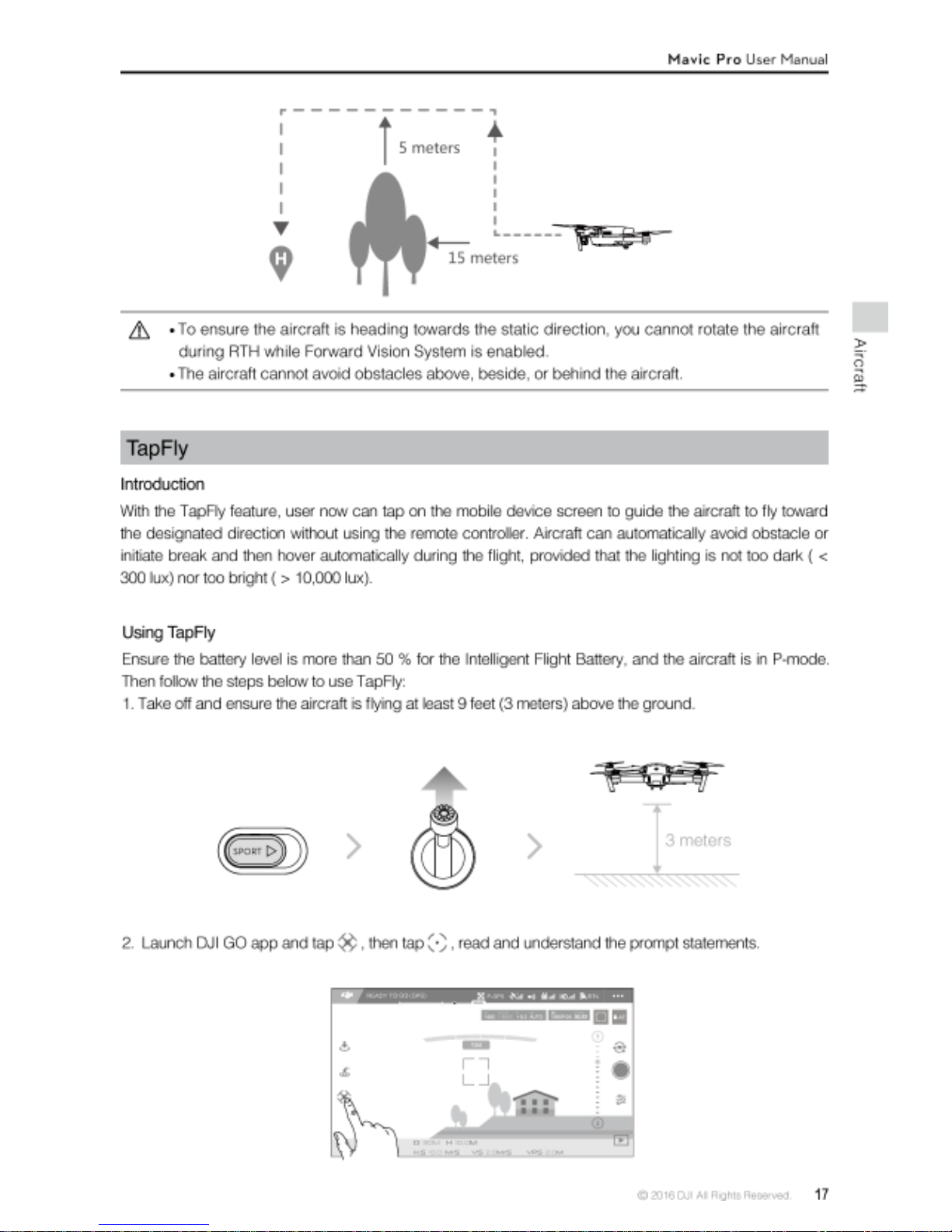

Obstacle Avoidance During RTH
Aircraft can now sense and actively attempt to avoid obstacle during RTH, provided that the light
condition is ideal for the Forward Vision System. The details on how the aircraft will behave during
obstacle avoid is listed below:
2. Aircraft stops and hover then start ascending vertically to avoid the obstacle. Eventually, the aircraft will
10 m 5 m
RTH Altitude
The aircraft cannot avoid obstruction during the RTH when the Forward Vision
System is disabled. Therefore, it is important to set an suitable Failsafe altitude
to
set the Failsafe altitude.
10 m 5 m
RTH Altitude
triggered and the aircraft is further than 20 meters from the home point:
1. It will return to home at the current altitude if flying at or above the RTH
altitude.
10 m
5 m
RTH Altitude
If RTH, including Smart RTH and Low Battery RTH, is triggered between 16 and
activated:
return to the home point at the current altitude.
landing immediately if the Forward Vision System is deactivated. Note that the
Forward Vision System status is determined when Failsafe RTH is triggered.
10 m
5 m
H
RTH Altitude
Aircraft automatically descends and lands if RTH is triggered when the aircraft
5
10
]
20 20
Press the Flight Pause button once to allow the aircraft to exit from RTH.
The aircraft will stop the current ascending process and hovers.
RTH Safety Notices
Other manuals for MAVIC PRO
11
Table of contents
Other dji Quadcopter manuals
dji
dji Phantom 2 Vision + User manual
dji
dji Inspire 1 Pro User manual
dji
dji MATRICE 600 User manual
dji
dji Matrice 200 Series V2 Instruction Manual
dji
dji MAVIC 2 PRO User manual
dji
dji Phantom 2 Vision + User manual
dji
dji MATRICE 200 series Operating manual
dji
dji INSPIRE 2 User manual
dji
dji PHANTOM Instruction manual
dji
dji MAVIC AIR 2 Instruction Manual
dji
dji Inspire 1 V2.0 User manual
dji
dji MATRICE 200 series Instruction Manual
dji
dji MAVIC 2 ZOOM Installation guide
dji
dji mavic User manual
dji
dji Phantom 3 SE User manual
dji
dji Phantom 2 Vision + User manual
dji
dji Phantom 3 Advanced User manual
dji
dji MAVIC PRO User manual
dji
dji AGRAS T10 User manual
dji
dji MATRICE 300 RTK User manual
