dji Phantom 2 Vision + User manual

©2013 DJI Innovations. All Rights Reserved.
PHANTOM 2 VISION
User Manual V1.06
December 12, 2013 Revision
Congratulations on purchasing your new DJI product. Please thoroughly read the entire contents of this manual to
fully use and understand the product.
It is advised that you regularly check the PHANTOM 2 VISION’s product page at www.dji.com which is
updated on a regular basis. This will provide services such as product information, technical updates and manual
corrections. Due to any unforeseen changes or product upgrades, the information contained within this manual is
subject to change without notice.
If you have any questions or concerns regarding your product, please contact your dealer or DJI Customer Service.

©2013 DJI Innovations. All Rights Reserved.
Index
INDEX........................................................................................................................................................................................................2
IN THE BOX............................................................................................................................................................................................ 4
REQUIRED ITEMS................................................................................................................................................................................. 4
SYMBOL LEGEND.................................................................................................................................................................................5
WATCH THE QUICK START VIDEOS..............................................................................................................................................5
DOWNLOADING THE DJI VISION APP .........................................................................................................................................5
1 ATTACHING THE PROPELLERS ....................................................................................................................................................6
1.1 INTRODUCTION .............................................................................................................................................................................................. 6
1.2 ASSEMBLY ...................................................................................................................................................................................................... 6
1.3 REMOVING THE PROPELLERS..................................................................................................................................................................... 6
1.4 NOTES ............................................................................................................................................................................................................ 6
2 INSTALLING THE RANGE EXTENDER AND MOBILE DEVICE HOLDER..........................................................................7
2.1 INSTALLING THE RANGE EXTENDER ......................................................................................................................................................... 7
2.2 INSTALLING THE MOBILE DEVICE HOLDER............................................................................................................................................ 7
3 PREPARING THE REMOTE CONTROLLER...............................................................................................................................8
3.1 THE REMOTE CONTROLLER....................................................................................................................................................................... 8
3.2 POWER ON THE REMOTE CONTROLLER ................................................................................................................................................ 8
3.3 REMOTE CONTROLLER POWER INDICATOR STATUS INFORMATION ............................................................................................... 9
3.4 ANTENNA ORIENTATION ........................................................................................................................................................................... 9
3.5 REMOTE CONTROLLER OPERATION..................................................................................................................................................... 10
3.6 LINK BETWEEN THE REMOTE CONTROLLER AND RECEIVER..............................................................................................................11
Link Procedures .........................................................................................................................................................................................12
Link Indicator ..............................................................................................................................................................................................12
3.7 COMPLIANCE VERSION CONFIGURATION............................................................................................................................................12
4 PREPARING THE RANGE EXTENDER.......................................................................................................................................14
4.1 THE RANGE EXTENDER..............................................................................................................................................................................14
4.2 FUNCTION DESCRIPTION..........................................................................................................................................................................14
4.3 POWERING ON THE RANGE EXTENDER.................................................................................................................................................15
4.4 HOW TO BIND THE CAMERA &RANGE EXTENDER ............................................................................................................................15
5 PREPARING THE CAMERA........................................................................................................................................................... 18
5.1 THE BUILT-IN CAMERA ................................................................................................................................................................................18
5.2 MAIN FUNCTIONS ......................................................................................................................................................................................18
5.3 UPGRADING THE FIRMWARE OF CAMERA........................................................................................................................................... 20
6 DOWNLOADING AND INSTALLING THE DJI VISION APP................................................................................................ 21
6.1 DOWNLOAD AND INSTALL.........................................................................................................................................................................21
6.2 REGISTER &LOGIN ....................................................................................................................................................................................21
7 PREPARING THE FLIGHT BATTERY ......................................................................................................................................... 23
7.1 INTELLIGENT BATTERY AND CHARGER INSTRUCTIONS ......................................................................................................................23
7.2 CHARGING PROCEDURES ........................................................................................................................................................................23
7.3 INSTALL THE BATTERY ..............................................................................................................................................................................24

©2013 DJI Innovations. All Rights Reserved. 3 |
7.4 BATTERY USAGE........................................................................................................................................................................................24
Description of the Battery Level Indicator......................................................................................................................................25
7.5 CORRECT BATTERY USAGE NOTES.......................................................................................................................................................25
8 PHANTOM 2 AIRCRAFT ............................................................................................................................................................... 26
8.1 THE AIRCRAFT ............................................................................................................................................................................................26
8.2 BUILT-IN FLIGHT CONTROL SYSTEM INSTRUCTIONS .........................................................................................................................26
8.3 LED FLIGHT INDICATORS DESCRIPTION..............................................................................................................................................26
9 CONNECTING TO THE CAMERA............................................................................................................................................. 28
9.1 CAMERA CONNECTION PROCEDURES ..................................................................................................................................................28
10 CALIBRATING THE COMPASS.................................................................................................................................................30
10.1 CALIBRATION WARNINGS ..................................................................................................................................................................... 30
10.2 CALIBRATION PROCEDURES ................................................................................................................................................................ 30
10.3 WHEN RECALIBRATION IS REQUIRED................................................................................................................................................. 30
11 FLIGHT................................................................................................................................................................................................ 31
11.1 FLYING ENVIRONMENT REQUIREMENTS ................................................................................................................................................31
11.2 STARTING THE MOTORS...........................................................................................................................................................................31
11.3 TAKEOFF/LANDING PROCEDURES.........................................................................................................................................................31
11.4 FAILSAFE FUNCTION................................................................................................................................................................................32
Home Point.................................................................................................................................................................................................33
Go Home Procedures .............................................................................................................................................................................33
Regaining Control During Failsafe Procedure ..............................................................................................................................33
Failsafe on the DJI VISION App.........................................................................................................................................................33
11.5 LOW BATTERY CAPACITY WARNING FUNCTION...............................................................................................................................34
DJI VISION App Low Battery Capacity Warning.........................................................................................................................34
12 DJI VISION APP USAGE .............................................................................................................................................................. 36
12.1 DJI VISION APP MAIN MENU ..............................................................................................................................................................36
12.2 CAMERA PAGE .........................................................................................................................................................................................36
Basic Use...................................................................................................................................................................................................36
Camera Settings ......................................................................................................................................................................................40
12.3 ALBUM PAGE ............................................................................................................................................................................................43
Camera SD CARD Album......................................................................................................................................................................43
Mobile Device Album............................................................................................................................................................................. 44
12.4 NEWS PAGE..............................................................................................................................................................................................45
12.5 SETTINGS PAGE....................................................................................................................................................................................... 46
13 ASSISTANT SOFTWARE INSTALLATION AND CONFIGURATION...............................................................................50
13.1 INSTALLING THE DRIVER AND ASSISTANT SOFTWARE...................................................................................................................... 50
13.2 USING THE PHANTOM 2VISION ASSISTANT SOFTWARE ON A PC........................................................................................ 50
13.3 FIRMWARE UPGRADE OF THE PHANTOM 2VISION.....................................................................................................................51
13.4 PHANTOM RC ASSISTANT SOFTWARE DESCRIPTION..................................................................................................................52
14 TROUBLESHOOTING（FAQ）................................................................................................................................................ 53
15 APPENDIX........................................................................................................................................................................................ 56
LED FLIGHT INDICATOR STATUS ..................................................................................................................................................................56
SPECIFICATIONS ...............................................................................................................................................................................................57

©2013 DJI Innovations. All Rights Reserved. 4 |
In the Box
PHANTOM 2 VISION X1
5.8GHz Remote Controller X1
Range Extender X1
Propeller Pair X4
Mobile Device Holder X1
Micro-SD Card X1
Intelligent Battery X1
Charger X1
Cables X1
Plug Set X1
Screw X12
Screwdriver X 1
Assistant Wrench X1
Accessories Box X1
Required Items
AA Battery x4

©2013 DJI Innovations. All Rights Reserved. 5 |
Symbol Legend
Forbidden(Important)
Caution
Tip
Reference
Watch the Quick Start Videos
This user manual details installation and usage procedures of the product. In addition, we provide a range of quick
start videos. It is advised that you watch them fully before attempting to use the product.
Approach 1
Direct link.
www.dji.com/phantom-2-vision/training
Approach 2
Scan the QR code to get the
quick start video link.
Preparing for flight.
How to connect to the DJI VISION App.
The basics of flying, recording and sharing.
Downloading the DJI VISION App
Before attempting to use the product, please download and install the DJI VISION App. Get the DJI VISION App
according to the following methods.
Approach 1
Download from the App store
or Google Play.
iOS user
Search “DJI VISION”from App Store.
Android user
Search “DJI VISION”from Google Play.
Approach 2
Scan the QR code to get the
download link.
Scan and download.

©2013 DJI Innovations. All Rights Reserved. 6 |
1 Attaching the Propellers
Please use the original 9-inch propellers which are classified by the color of each central nut. Damaged propellers
can be replaced by purchasing new ones if necessary.
1.1 Introduction
Propellers
Grey Nut (9443)
Black Nut (9443 R)
Diagram
Assembly Location
Attach to the motor thread that does
not have a black dot.
Attach to the motor thread that has a
black dot.
Fastening/Un-fastening
Instructions
Lock: Tighten the propeller in this direction.
Unlock: Remove the propeller in this direction.
1.2 Assembly
1.
2.
(Fig.1) Remove the four warning cards from the motors after you read them.
(Fig.2) Prepare the two grey nut propellers and two black nut propellers. Make sure to match the black nut
propellers with the correctly marked black dot motors. Tighten the propellers according to the fastening
instructions.
Fig.1 Fig.2 Fig.3
1.3 Removing the Propellers
(Fig.3) Keep the motor deadlocked in place with the assistant wrench (or one hand) and remove the propeller
according to the un-fastening instructions.
1.4 Notes
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Propellers are self tightening during flight. DO NOT use any thread locker on the threads.
Make sure to match the propeller nut colors with the corresponding motors.
It is advised to wear protective gloves during propeller assembly and removal.
Check that the propellers and motors are installed correctly and firmly before every flight.
Check that all propellers are in good condition before flight. DO NOT use any ageing, chipped,
or broken propellers.
To avoid injury, STAND CLEAR of and DO NOT touch the propellers or motors when they are
spinning.
ONLY use original DJI propellers for a better and safer flight experience.

©2013 DJI Innovations. All Rights Reserved. 7 |
2 Installing the Range Extender and Mobile Device Holder
2.1 Installing the Range Extender
1.
2.
Adjust the range extender to align with the mounting bracket installed on the carrying handle.
Tighten the lock-screw to affix the range extender on the right side of the carrying handle.
(1)
(2)
Make sure the assembly orientation is correct with the LED side facing you.
To obtain better communication, try to keep the range extender facing the aircraft during flight.
Lock Screw
2.2 Installing the Mobile Device Holder
1.
2.
Tighten the Philips screws as shown to correctly attach the mobile device holder on the left side of the
carrying handle.
Affix the mobile device sideways within the holder.
(1)
(2)
Make sure the assembly orientation is correct. The mobile device should be facing you when
mounted.
It is recommended not to use oversized mobile devices (e.g. iPad), which cannot be placed into
the Mobile Device Holder.

©2013 DJI Innovations. All Rights Reserved. 8 |
3 Preparing the Remote Controller
The PHANTOM 2 VISION remote control is a wireless communication device that uses the 5.8GHz frequency
band. It is compliant with CE and FCC (see the FCC ID) regulations and is set to Mode 2 and CE compliance
before delivery. If FCC compliance is required, it can be configured by twisting the potentiometer knob on the
back of the remote controller. The stick configuration can also be reset in the PHANTOM RC assistant software.
Please refer to < PHANTOM RC Assistant> and <Compliance Configuration> for details.
(1)
(2)
(3)
CE compliant devices have an effective communication range of 300 meters in open spaces due
to power limitations. Be sure to watch your fight distance as the PHANTOM 2 VISION will enter
Failsafe mode (auto-landing or go home and land) if it flies beyond this range.
FCC compliant devices have an effective range of 500 meters in open spaces. Be sure to watch
your fight distance as the PHANTOM 2 VISION will enter Failsafe mode (auto-landing or go
home and land) if it flies beyond this range.
Pay attention to and follow local laws and regulations.
3.1 The Remote Controller
[1]
[2]
[4] [3]
[8]
[9] [10]
J2
J1
J3
J4 [6]
[7]
[5]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
Antenna
Carrying Handle
Switch S1
Switch S2 (Reserved)
Joystick(J1: Roll [left&right], J2: Pitch [front&back])
Joystick(J3: Throttle [up&down], J4: Yaw [rotation])
Neck Strap Attachment
Power Switch
Power Indicator
Battery Compartment (On the back)
3.2 Power on the Remote Controller
1.
2.
3.
Install the four AA Batteries (not included) into the battery compartment on the back of the remote
controller according to the negative and positive poles.
Set the S1 and S2 switches to the upper most position and all sticks are at mid-point before switching on
the power switch.
There is a power on indicator beep. If the remote controller is set to be CE compliant, then there will be
one beep while the FCC compliant version will emit 2 beeps. The power indicator blinks green quickly
indicating the remote controller and receiver is linking. Once fully linked, the power indicator will change
to a solid green.

©2013 DJI Innovations. All Rights Reserved. 9 |
(1)
(2)
(3)
(4)
If the low voltage warning alert sounds (refer to the <Remote Controller Power Indicator Status
Information>), please replace batteries as soon as possible.
Using the incorrect type of battery may prevent a risk of damage.
Remove the batteries after use and dispose of them safely.
For long term storage, be sure to remove the batteries from the remote controller.
3.3 Remote Controller Power Indicator Status Information
Power indicator
Sound
Remote Controller State
None
Functioning normally.
None
Establishing a link between the remote controller and the receiver.
B-B-B……
Low voltage (at 3.9V-4.5V), should replace the batteries immediately.
BBBB
Low voltage (lower than 3.9V). The remote controller will automatically
power off. Batteries should be replaced immediately.
B-B-B……
The remote controller will give a visual indication of an alarm after 15
minutes of non-operation. The alarm status will disappear once you start
operation of the remote controller.
The remote controller will blink the LED and sound an alert when the voltage drops below 3.9V and
automatically power off after 3 seconds. This process will repeat even if you power cycle the remote
controller. If this low voltage warning occurs during flight, the remote controller will automatically
power off causing the aircraft to enter Failsafe mode which cannot be interrupted (refer to <Failsafe
Function> section for details). It is strongly recommended to replace batteries if the 3.9V-4.5V low
voltage warning occurs.
3.4 Antenna Orientation
Try to keep the antenna pointing skyward, perpendicular to the ground, in order to achieve the maximum
communication range during flight.

©2013 DJI Innovations. All Rights Reserved. 10 |
3.5 Remote Controller Operation
Definitions
The ‘stick neutral’positions and ‘stick released’mean the control sticks of the remote controller are placed at
the central position.
To ‘move the stick’means that the stick of remote controller is pushed away from the central position.
Remote Controller
(Mode 2)
Aircraft
（nose direction）
Operation details
The throttle stick controls the aircraft elevation.
Push the stick up and the aircraft will rise.
Pull the stick down and the aircraft will descend.
The aircraft will automatically hover and hold its height
if the sticks are centered.
Push the throttle stick above the centered (neutral)
position to cause the aircraft to take-off. We suggest
that you push the throttle stick slowly to prevent the
aircraft from sudden and unexpected elevation.
The yaw stick controls the aircraft rudder.
Push the stick left and the aircraft will rotate counter
clock-wise.
Push the stick right and the aircraft will rotate
clock-wise. If the stick is centered, the aircraft will
always fly in the same direction.
The command stick controls the rotating angular
velocity of the aircraft. Increasing movement of the
OFF C AM ON WI FI ON
MICRO S D
The remote controller’s antenna should be
pointing skyward with no obstacles in the way.
Otherwise, the Failsafe function may initialize
prematurely during flight.
The Mobile Device and Range Extender should
not block the antenna.

©2013 DJI Innovations. All Rights Reserved. 11 |
command stick results in faster aircraft rotation
velocity.
The pitch stick controls the aircraft’s front & back tilt.
Push the stick up and the aircraft will tilt and fly
forward.
Pull the stick down and the aircraft will tilt and fly
backward. The aircraft will keep level and straight if the
stick is centered.
Increasing movement of the command stick will result
in a larger tilt angle (maximum is 35˚) and faster flight
velocity.
The roll stick controls the aircraft left & right tilt.
Push the stick left and the aircraft will tilt and fly left.
Push the stick right and the aircraft will tilt and fly right.
The aircraft will keep level and straight if the stick is
centered.
Increasing movement of the command stick will result
in a larger tilt angle (maximum is 35˚) and faster flight
velocity.
Position-1 Position-2 Position-3
S1 is for compass calibration. Toggle the S1 from
position-1 to position-3 and back to position-1 about 5
times or above, which will force the aircraft to enter
into compass calibration mode.
(1)
(2)
For ‘Ready to Fly’ the aircraft will hover (hold a stable horizontal position) when all sticks are
released.
For ‘Ready to Fly (non-GPS)’the aircraft will keep the aircraft level without horizontal
positioning when all sticks are released.

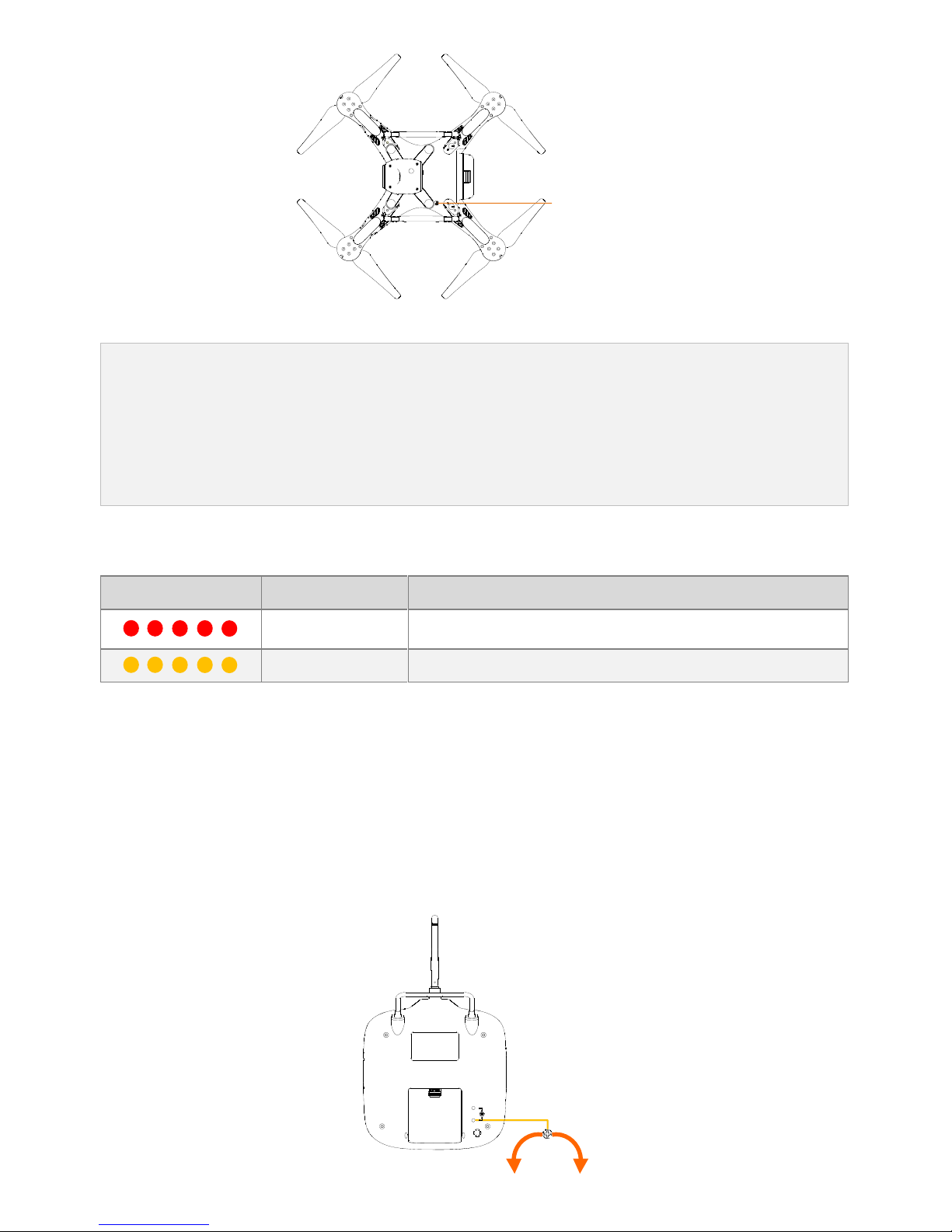

3.6 Link between the Remote Controller and Receiver
There is a 5.8G receiver in the PHANTOM 2 VISION, with the link button and indicator located on the bottom of
the aircraft as illustrated in the following diagram.
The link between the remote controller and aircraft is already established for you so you can initially skip this
procedure. If you ever replace the remote controller, re-establishing the link is required.
OFF CA M ON WIFI ON
MICRO SD

©2013 DJI Innovations. All Rights Reserved. 12 |
Link Procedures
1.
2.
3.
Power off the remote controller, power on the aircraft. You will see the link indicator blinking red.
Press the link button with a thin object and hold until the link indicator blinks yellow. Release the link
button.
Power on the remote controller and the link indicator should switch off. This indicates that the link has
been successfully established.
Link Indicator
Link Indicator
Description
Operation
No signal received.
Switch on the remote controller or perform a link procedure.
In link status.
Switch on the remote controller.
3.7 Compliance Version Configuration
The compliance version can be reconfigured by twisting the potentiometer knob (See the following diagram) on the
back of the remote controller using a flathead screwdriver. For CE compliance, set the remote controller to CE
compliance by carefully turning the potentiometer knob to the full counter clock-wise position. For FCC compliance,
set the remote controller to FCC compliance by carefully turning the potentiometer knob to the full clock-wise
position. Users should follow their local regulations accordingly.
FCCCE
接收机对频按键
&对频指示灯
Link Button &
Link Indicator

©2013 DJI Innovations. All Rights Reserved. 13 |
When adjusting the potentiometer knob to its limit position, be very careful to prevent
damaging the potentiometer knob. Do not apply too much force during this adjustment. Also be
sure to use the correct sized screwdriver.
(1)
(2)
(3)
(4)
The remote controller comes set for CE compliance up delivery as the default setting.
It is recommended to use a flathead screwdriver of Φ2.4mm for adjustment.
You can use the DJI screwdriver with the flathead for adjustment.
There is another potentiometer reserved.

©2013 DJI Innovations. All Rights Reserved. 14 |
4 Preparing the Range Extender
The PHANTOM 2 VISION range extender is a wireless communication device that operates within the 2.4 GHz
frequency band and is used for extending the effective range of communication between a mobile device
(Smartphone) and the PHANTOM 2 VISION. In an open unobstructed area, the transmission distance can reach
up to 300 meters, but is usually affected by the surrounding environment, such as trees, buildings and other
sources of the same frequency. Before every flight, it is suggested that you ensure the range extender functions
properly. Otherwise you may experience a communication issue with the mobile device and the PHANTOM 2
VISION.
Each range extender has a unique MAC address and network name (SSID), details of which are printed on the
back label as ‘Phantom_1xxxxx’. The ‘xxxxx’ represents the last five letters or numbers of the MAC address for
the range extender.
4.1 The Range Extender
[1]
[2]
[3]
[7]
[6]
[5]
[4]
Front View Right View
[1]
[2]
[3]
[4]
[5]
[6]
[7]
Wi-Fi Signal Indicator
Power Indicator
Lock-screw
Reset Button
Power Switch
Micro-USB
Mounting Bracket
4.2 Function Description
[1] Wi-Fi Signal Indicator (SYSTEM)
Tells you the system status of the range extender.
Wi-Fi Signal Indicator
Description
The range extender system is working normally.
Off
The range extender system is working abnormally.
[2] Power Indicator (POWER)
Tells you the power status of the range extender.
Power Indicator
Description
The range extender is working normally or completely charged.
Low voltage alert, a re-charge is required.
The range extender is charging (allow for 3~4 hours, depending on USB power output).

©2013 DJI Innovations. All Rights Reserved. 15 |
(1)
(2)
(3)
(4)
(5)
Make sure to charge the range extender completely before using it for the first time.
If the power indicator is a solid red light, the ranger extender may stop working at any moment.
Recharge it as soon as possible.
It is recommended to charge the range extender completely before each use.
Turn off the range extender after every use.
Keep the range extender facing the aircraft during flight for the best communication link.
[3] Lock-screw
For attaching the range extender on the right side of the remote controller’s carrying handle.
[4] Reset Button:
Press to link the range extender and the camera.
[5] Power Switch:
ON –Power on.
OFF –Power off.
[6] Micro-USB
Used to charge the range extender.
[7] Mounting Bracket
It has been pre-installed on the remote controller’s handle. It is used to attach the range extender.
4.3 Powering on the Range Extender
1.
2.
Toggle the power switch of range extender to ON position.
Wait for approximately 30 seconds. The Wi-Fi signal indicator should blink green indicating the range
extender is communicating properly.
It is advised that you power off the range extender after every flight to avoid discharging the battery.
4.4 How to Bind the Camera & Range Extender
If the camera and range extender connection is lost, or one of them needs to be repaired or replaced, a camera and
range extender binding will need to be performed via the DJI VISION App.

©2013 DJI Innovations. All Rights Reserved. 16 |
1.
2.
3.
4.
5.
Power on the camera and range extender. Note:(Place the camera power switch to the ’WIFI
ON‘position).
Approximately 30 seconds later, press the reset button on the range extender with a thin object until the
Wi-Fi signal indicator turns off. The range extender will then restart automatically.
Approximately 30 seconds later, the Wi-Fi signal indicator should start to blink green, which indicates the
range extender is now ready to be bound.
Find and select the Phantom_1xxxxx via the Wi-Fi list on the mobile device to connect the range extender.
(Fig.1) Run the DJI VISION App->Settings->General->Binding. (Fig.2) Select ’Scan the QR Code’to scan
the camera QR code on the product packaging. (Fig.3) Get the camera SSID (E.g. FC200_0xxxxx) and the
MAC address, select the tick on the top right corner. The range extender should automatically
restart. The binding procedure is now complete.
Fig.1 Fig.2（QR code is only for example.）
Reset Button

©2013 DJI Innovations. All Rights Reserved. 17 |
Fig.3
(1)
(2)
(3)
If both the camera and range extender are powered on and working normally, you will be able to
find the SSID on the Wi-Fi list of the mobile device.
DO NOT push the reset button of the range extender unless you are ready to rebind the range
extender and the camera! This will unbind your camera and you must follow the steps above to
rebind.
The QR code is located on the packaging of the PHANTOM 2 VISION. If you cannot find the QR
code, please contact DJI customer service to receive the QR code related to your camera’s
serial number.

©2013 DJI Innovations. All Rights Reserved. 18 |
5 Preparing the Camera
5.1 The built-in camera
[1]
[2]
[3]
[6]
OFF CA M ON WIFI O N
MICRO S D
[4]
[5]
[1]
[2]
[3]
[4]
[5]
[6]
Lens
Camera Power Switch
Micro-SD Card Slot
Camera Status Indicator
Camera Cable
Capture/Record Button
Camera Features
Specifications
Resolution
14 Megapixels
FOV
140°/ 120° / 90°
Sensor size
1/2.3”
Functions
Supports multi-capture, continuous capture and timed capture
Supports HD Recording (1080p30/1080i60)
Supports both RAW and JPEG photo formats
5.2 Main Functions
[1] Lens
For viewing and photographing, with main parameters of f/2.8，FOV 140°.
Please remove the lens cover when the camera is in use and replace the cover for storage.
[2] Camera Power Switch (on the back of the camera)
Used to power the camera on and off.
OFF –Powered off.
CAM ON –Power on, Wi-Fi off.
WIFI ON –Power and Wi-Fi are both on. Make sure to switch to ‘WIFI ON’and the range extender is powered
on if using the DJI VISION App.

©2013 DJI Innovations. All Rights Reserved. 19 |
[3] Micro-SD Card Slot (on the back of the camera)
Make sure that the Micro-SD card is inserted before you take any photos or record any videos.
(1)
(2)
(3)
Maximum supported Micro-SD card capacity is 32GB.
The DJI VISION App may not be able to read the Micro-SD card prepared by the user. It is
suggested that you use the DJI VISION App to format the Micro-SD card when first used in the
camera.
Refer to the <Camera Settings> for Micro-SD card formatting details.
[4] Camera Indicator (on the back of the camera)
The Camera Indicator is used to inform the user of the working status of the camera.
Camera indicator
Wi-Fi
Camera status
Solid
OFF
Power On; Idle State
Slow Blink (0.2s on, 1.8s off)
ON
Idle State
Fast Blink (0.1s on, 0.3s off)
ON
Synchronizing photos and videos
Solid
OFF
Recording
Blink Once (0.2s on, 0.3s off)
ON/OFF
Taking a single capture
Blink 3 Times(0.1s on, 0.1s off)
ON/OFF
Taking 3 or 5 photos per shot
Fast Blink (0.1s on, 0.3s off)
ON/OFF
Firmware Upgrading
(0.2s green, 1.8s yellow)
ON
Recording
Solid
ON/OFF
Critical error
Slow Blink (0.2s on, 1.8s off)
ON/OFF
CMOS sensor error
Blink Once (0.2s on, 0.3s off)
ON/OFF
Operation failed
Blink 3 Times(0.1s on, 0.1s off)
ON/OFF
Micro-SD Card error
Fast Blink (0.1s on, 0.3s off)
ON/OFF
Upgrade error
(0.5s green, 0.5s yellow, 0.5s red, 0.5s Off)
ON/OFF
Camera has overheated
When camera temperature rises above 80℃, the LED indicator will blink . The camera will
automatically power off if the temperature rises above 85℃.
[5] Camera Cable (on the back of the camera)
Make sure that the camera cable is firmly attached to the camera before powering the camera on.
[6] Capture/Record Button (on the bottom of the camera)
Capture function: Press the button once (less than 2 seconds) to take a single capture.
Record function: Press the button once (greater than 2 seconds) to begin recording. Press once again to stop.

©2013 DJI Innovations. All Rights Reserved. 20 |
5.3 Upgrading the Firmware of Camera
Follow the below instructions to update your firmware.
1.
2.
3.
4.
5.
6.
Download the latest firmware of camera from DJI website.
Copy the “firmware.bin”file to the root folder of your Micro-SD card.
Insert the SD card into the camera before turning it on.
Turn on the camera.
The firmware update will begin automatically. A yellow flashing LED indicates that the camera is updating.
When the yellow flashing disappears, the firmware has been updated. After a successful update, the
“firmware.bin”file’s name will change to “firmware.bin.bak00”. This file can now be deleted.
(1)
(2)
(3)
During the update, do not turn off the camera or take out the Micro-SD card. This may prevent
your camera from switching on and will need a factory reset.
A fast red flashing LED after the update means the update has failed. Please try again.
For the v1.1.8 version of the PHANTOM 2 VISION Camera, PAL support has been added to the
camera including 1080p25 and 960p25.
