Bullbar Installation Guide
TURN OFF PAGE SCALING WHEN PRINTING
Part Number: BU63-3523, BU63-3675, BU63-3680
Fits:
VW Amarok 2011 on
This Bullbar will take approximately 4 hours to install
Tools required are
•Spanners and socket set.
•Pneumatic hacksaw.
•Screwdrivers
•Pliers and side cutters
Dobinsons BULLBARS should be installed by a qualified installer and it is
the installer responsibility to ensure correct fitment.
Fully read and understand the instructions before beginning the installation

Dobinsons Springs and Suspension www.dobinsonsprings.com

Dobinsons Springs and Suspension www.dobinsonsprings.com

Dobinsons Springs and Suspension www.dobinsonsprings.com
Fitting Guide
1. Remove the number plate.
2. Remove all screws and bolts holding the lower
section of the bumper to the vehicle.
3. Align the template on the vehicle as seen
below NOTE: For models without flares fitted
the template will wrap around into the wheel
arch slightly.
4. Mark a line along the template edge on both
sides of the vehicles. The bottom edge will
align with the bottom edge of the bumper bar
grill recess.
5. Mask along the top side of the line marked in
step 4 to prevent scratching to the top side of
the bumper.
6. On flared models it may be easier to remove
the flare sections attached to the bumper
before cutting.
7. Carefully using a pneumatic hacksaw or
equivalent cut along the marked lines in step
4, starting from the wheel arch edge first,
then along the line at the fog light recess,
then along the line at bumper bar grill recess
cutting through the grill vertical columns.
8. Carefully cut the flares if they have been
removed from the bumper, and re install to
vehicle.
9. Removed the burrs from the bumper and
flares and install the rubber pinch edging on
outside edges of the cut bumper.

Dobinsons Springs and Suspension www.dobinsonsprings.com
10. Remove the lower section of the bumper.
11. Remove the foam bumper bar re-
enforcement section, and the plastic centre
cover plate.
12. Loosely fit the “L” shaped brackets (item no.3)
to the left and right side chassis brackets
(item no. 1) using the bolts, nuts and washer
supplied, as per page 3.
13. Loosely Install both chassis & “L” shaped
brackets to the chassis fitting the nuts and
bolts to the front side of the brackets – you
will see that there are 2 holes that need to be
drilled through the chassis.
14. Install the U-bolts from the inside of the
chassis rails through the “L” shaped brackets
as per page 2 and install nuts and washers.
15. Tighten the 2 front bolts on each chassis
bracket.
16. Drill the remaining 2 bolts holes on the front
of each side mounting bracket to 13mm, paint
bare metal and install bolts, nuts and washers.

Dobinsons Springs and Suspension www.dobinsonsprings.com
17. Tighten all nuts and bolts on both sides of the
chassis brackets.
18. The installer may also re-install the plastic
cover plate but enlarging the original front
holes to fit over the bolts and nuts in the
bullbar bracket, this is the installer’s choice
and is recommended.
19. Fit the winch cradle bracket (item no.2) to the
left and right chassis brackets as per page 3
with nuts, bolts and washers supplied.
20. Carefully un-wrap the bulbar taking care not
to scratch it especially on the top loops.
Reinstall the number plate. If installing driving
lights to the bullbar it is easiest to install now.
21. If not installing a winch skip to step 29.
22. See the Installation section of your Dobinsons
4x4 Winch manual for specific detailed fitting
instructions. For a brief overview see the
following steps.
23. Test fit your winch to the mounting bracket
and do up loosely with the clutch handle on
the left hand side of the vehicle.
24. This will require the clutch handle and gear-
box housing to be rotated forward one or 2
bolt holes to allow easy access through the
bulbar holes. See instructions in winch user
manual.
25. Determine where the winch control box will
be located and mount the control box. See
instructions in winch user manual for control
box mounting options. If mounting to the top
of the bullbar using the supplied bracket,
check clearance of control box to grill and also
check where the wires will route as if the
wires are passing through the holes in the top
of the bullbar the control box may not be able
to be wired until the bullbar has been fitted as
below.
26. Wire the winch up as per the winch
instruction manual and bolt the winch to the
mounting bracket, ensure the mounting bolts
are not too long and tighten correctly. Route
the wires and connect to battery and also
route the breather hose.
27. Unwind some cable from the winch, and pass
the cable through the fairlead hole in the
bullbar and through the roller fairlead. This
may require removing a circlip from the
fairlead and re installing once the cable is
passed through.
28. Install the roller fairlead into the bulbar.
29. Check the poly bulbar over riders, fog light
and top loop bolts are tight (Do not over
tighten the stainless steel loop mounting
bolts. Do not over tighten the poly bullbar
over riders as they will pull the over riders out
of shape).
30. Wire up the lights. Using a multimeter or test
light first locate the earth wire, parker positive

Dobinsons Springs and Suspension www.dobinsonsprings.com
and indicator positive wires from the wiring
on the back of the original vehicle lights on
each side.
31. Unclip the wiring from the indicator/parker
lights. Check that the wiring will be long
enough to reach the new bullbar
indicator/parker lights and extend if required.

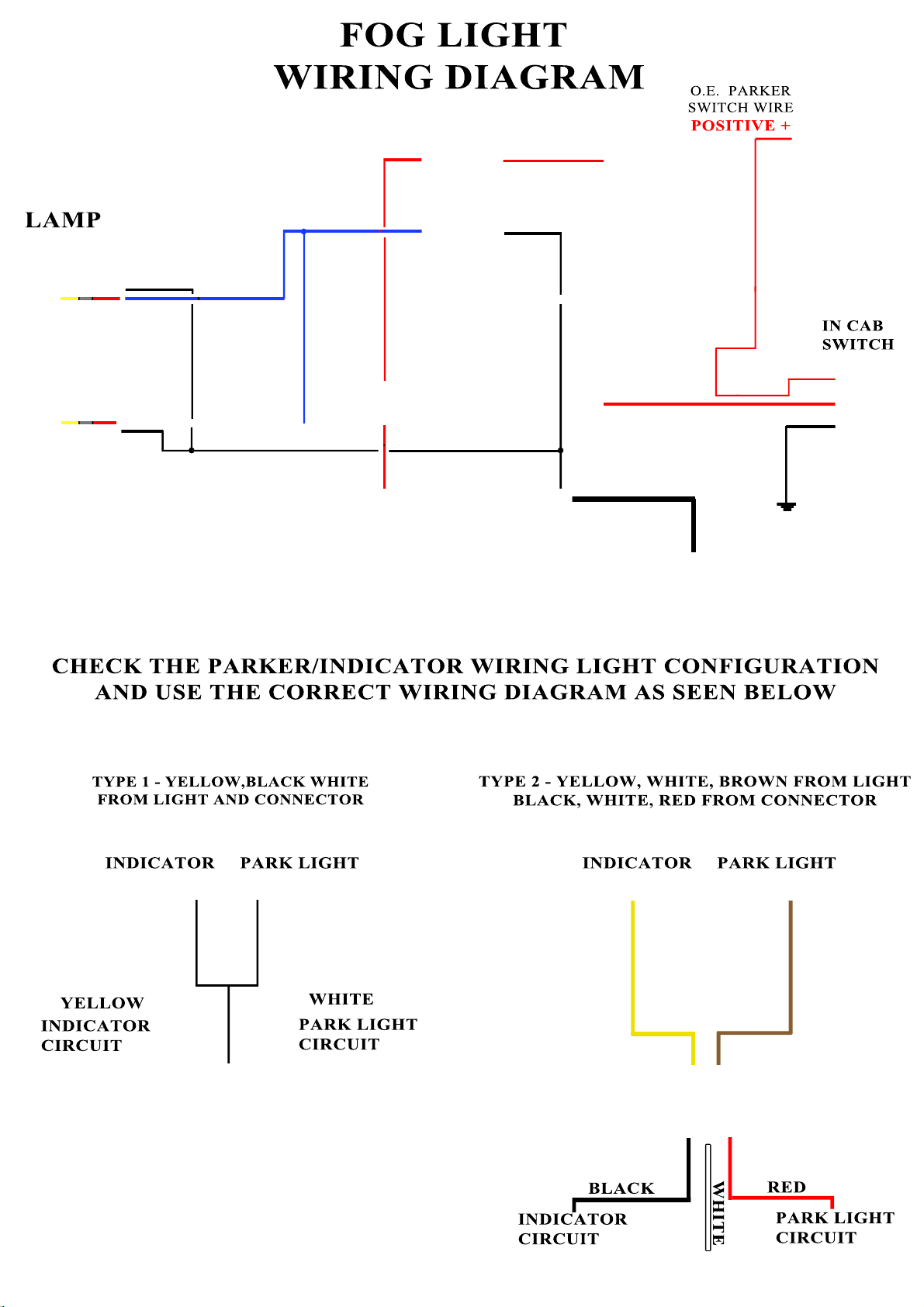

Using the diagram at the end of this manual,
join the corresponding wires to original
vehicle wires located in the previous step. The
wires can be joined by either using good
quality snap lock crimp connectors or by
soldering. Ensure the connection is secure and
is sufficiently insulated.
32. If fitting a bullbar with fog lights, the fog lights
can be connected using the original vehicle
fog light wires if fitted. If required, cut the old
fog light wiring plugs off and cut the new fog
light wiring plugs and join. If the vehicle is not
fitted with OEM fog lights the wiring loom
supplied can be used. Follow the wiring
diagram at the end of this manual.
33. With help, fit the bulbar into position and
install nuts and bolts supplied.
34. Align the bar with the vehicle into its correct
position, this will leave about a small gap on
each side between the top of the bulbar wing
and the pinch well or flare, to allow for
movement between cab and chassis.
35. Once you are happy with the alignment
tighten the nuts and bolts on each side.
36. Once happy with the alignment of the bullbar
drill 2 x 8mm pinning holes on each side of the
bullbar drilling through both the mounting
bracket mounting plate and bullbar mounting
plate. Fix with 8mm bolts and nyloc nuts to
keep the bullbar in its position.
37. Plug the wires into the indicator, parker light
plug and fog lights. Test all lights and adjust
the position of the fog lights if required.
38. Fit the under bar protection kit now with the
bolts supplied.
39. Refit the number plate and check over all
items removed during installation.
40. Remove packaging from upper section of
bulbar.
41. Trim Wheel arch liners level with bottom of
the under protection kit and secure.

Dobinsons Springs and Suspension www.dobinsonsprings.com
42. IMPORTANT NOTES: It is important to inform
the customer that headlight adjustment may
also be required due to the change in ride
height. It is also important to inform the
customer that there will be a change in
vehicle handling characteristics. It is also
important to note that due to their nature fog
lights are required to provide a yellow light to
allow clear fog vision. For this reason
Dobinsons bullbars utilise a Halogen bulb.
Halogen bulbs generate a considerable
amount of heat to achieve the yellow colour
and this causes the air inside the fog light lens
to expand and contract. For this reason the
fog light assembly cannot be sealed and has a
small breather on the back. In some cases this
may cause condensation to form inside the
fog light. The customer may choose to seal
the lens of the fog light but must not seal the
rear breather.

ALIGN WITH BUMPER
TO QUARTER PANEL JOIN
THIS SCALE LINE SHOULD MEASURE
133MM LONG AND SHOULD ALIGN
DIRECTLY ON TOP OF THE SCALE LINE
ON PAGE 2.
CUT
VW AMAROK TEMPLATE. ENSURE
PAGE SCALING IS TURNED OFF AND
PRINT AT FULL SIZE. CHECK THE
SCALE LINE ON BOTH SHEETS AND
ALIGN BOTH SCALE LINES DIRECTLY
ON TOP OF EACH OTHER AND TAPE
TOGETHER. CUT OUT TEMPLATE AND
TOGETHER. CUT OUT TEMPLATE AND
ALIGN AS SHOWN. WITH THIS FACE
OUT THIS WILL SUIT THE LEFT SIDE
OF THE VEHICLE. FLIP OVER TO DO
THE RIGHT SIDE OF THE VEHICLE.
BU63-3523, BU63-3680, BU63-3675

THIS EDGE WILL ALIGN WITH
THE GUARD EDGE ON MODELS
FITTED WITH FLARES AND WILL
WRAP AROUND THE CORNER ON
MODELS WITHOUT FLARES
ALIGN WITH BUMPER
TO QUARTER PANEL JOIN

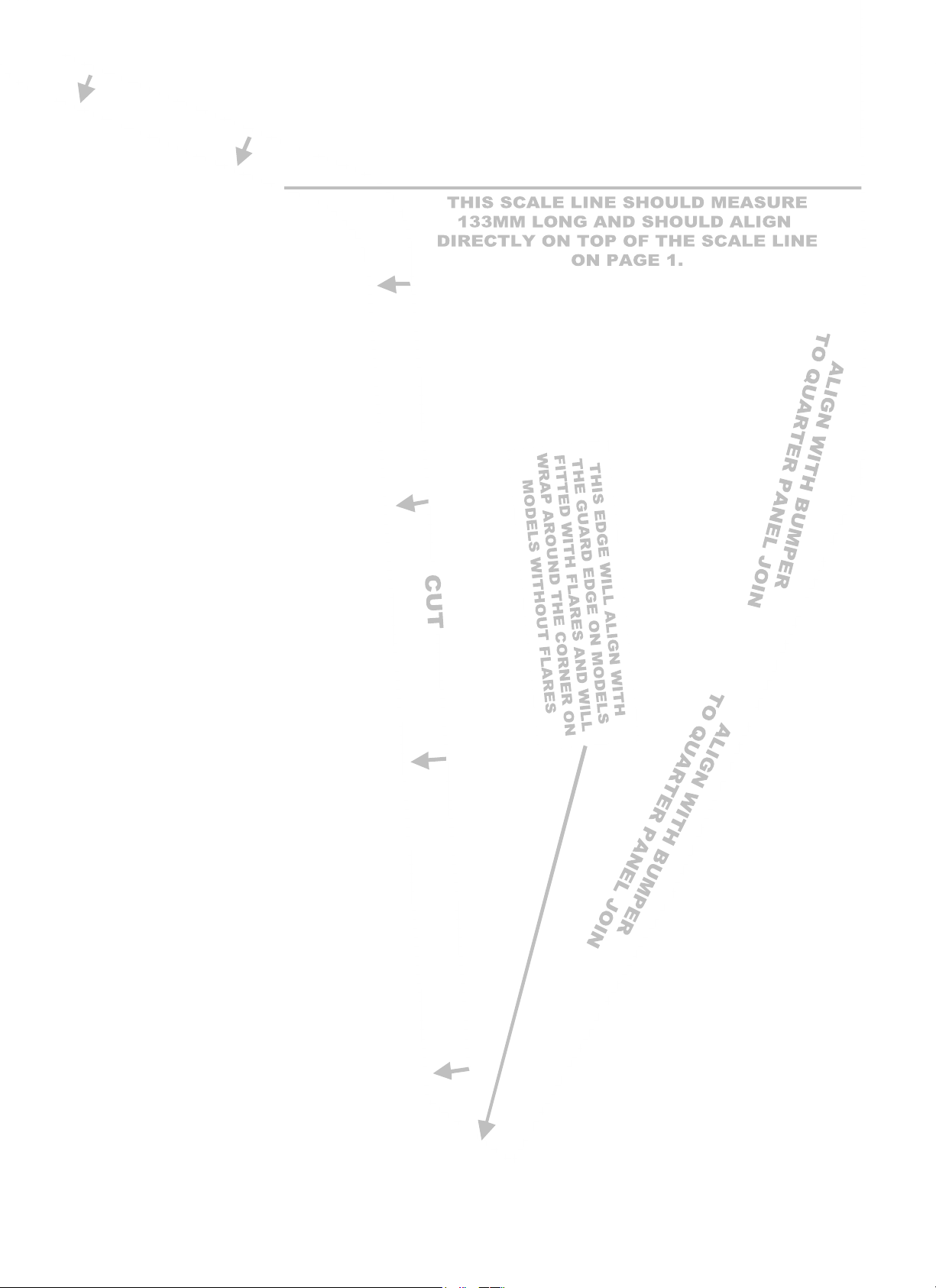

ALIGN WITH BUMPER
TO QUARTER PANEL JOIN
THIS SCALE LINE SHOULD MEASURE
133MM LONG AND SHOULD ALIGN
DIRECTLY ON TOP OF THE SCALE LINE
ON PAGE 1.
CUT

Customer Copy: Bullbar Care Instructions
To ensure the surface finish quality it is recommended that the
bullbar be washed and cleaned regularly to prevent build up of
dirt and contaminants which when exposed to the elements can
degrade the surface finish. It is also recommended that the mounting fasteners on the bullbar be checked after
1000km’s. Winch servicing and care should also be carried out as per the winch instruction manual.
Stainless Loop Deluxe Bullbar Loop Care and Maintenance
(Customers with Stainless Loop Deluxe Models Only)
The top loops on your Dobinsons Stainless Loop Deluxe steel bullbar are manufactured from high quality 304 grade
stainless steel. Once formed and welded it is highly polished to provide a high gloss finish. Whilst the material is a
high quality stainless steel, like any other exterior polished surface, care and some maintenance is required to
ensure the surface finish quality.
It is recommended that the stainless loops be kept as clean as possible and is thoroughly washed and dried regularly
to prevent build up of dust and contaminants. This is especially important in coastal and high dust areas. The loops
can simply be cleaned with most regular car cleaning items like a soft sponge, car wash and a chamois, avoid strong
cleaning chemicals. Like many other highly polished exterior metals, over extended periods of time and heavy
weathering can cause some staining of the surface may occur. If this occurs the surface can be simply polished using
the following methods to remove the stains and restore the high gloss surface using simple tools and cheap readily
available polishing items.
Tools Required:
•Electric buffer or Electric drill (an electric/cordless drill is generally more convenient).
•Polishing compound – This can be supplied by Dobinsons Spring and Suspension. Please contact head office
on the details below for polish, as a specific type is used.
•Soft finishing type buffing wheel – The buffing wheel should be a soft, finishing type/Calico loose leaf style to
allow the surface to be polished to a high gloss without further marking the surface. The 2 types of discs
shown below are readily available from most hardware stores (Australian customers – Bunnings etc). The
brand below is Josco, and if purchasing a twin pack ensure that only the finishing buff is used and not the
cutting buff. DO NOT USE METAL OR HARSH BUFFING PADS.

Method
1. The stainless loops may be removed from the bullbar if this makes it easier to work on, however if using a
cordless drill this is not a necessity. If removing the loops, do not over tighten the loop retaining bolts when
re fitting.
2. Ensure the loops are first completely clean and dry.
3. Fit the polishing buff wheel to the drill or buffing tool –take note of the maximum wheel speed and rotation
direction.
4. It is recommended to follow specific instructions on the packaging of the buffing wheel for best results.
However if no instructions are provided the following guidelines can be used:
A). Carefully dress the buff wheel with the compound across the rotating wheel for a few seconds, taking
care not o apply too much compound, it is better to apply a little compound more frequently than to
overdress the buff.
B). Gently buff the work area with the buffing wheel and with light pressure move back and forth across the
job.
C). After polishing use a soft, clean, dry rag to clean the surface and inspect in the light for an even finish.
D). Once complete clean thoroughly again with a sponge and warm water.
Dobinsons Spring and Suspension
www.dobinsonsprings.com
