Safety Precautions
Product
Do not disassemble, repair, modify your camera or power related accessories. For warranty service,
please contact DOD Tech Support.
Do not adjust camera while driving.
Avoid exposing your camera to extended periods of humidity and/or heat.
Prolonged exposure may reduce the product’s lifespan.
Do not spray water or cleaning agents directly onto the camera.
Fluids may cause fire, electric shocks, or malfunctions.
Avoid installing camera where it may obstruct the driver’s view or airbag deployment.
Car Charger
Use only the power adapter supplied with your unit.
Other power adapters may create a safety hazard or damage the unit.
Do not use damaged power adapters or cords. If damaged, please disconnect the power adapter
and contact DOD Tech Support for assistance.
Do not pull, insert, or bend the power cable using excessive force.
Do not operate or handle power cable with wet hands.
Battery
Keep the device away from heaters or other hot objects.
Store the camera at lower temperatures to reduce the rate of self-discharge and preserves the initial
energy stored in the battery. The battery in the device self discharges over a period of time naturally
whether the battery is used or not.
Charge the dash camera for 5 minutes if you are unable to turn on the camera.
3

Package Contents
1 2
DOD LS470W+ Dash Camera User Manual
3 4
CPL Filter
*
Suction Mount
5 6 7
DOD Player Installation CD Car Charger
Adhesive Tape Mount
*CPL filter will reduce reflections from windshield.
Note: Supplied accessories may vary by region.
4

Camera Controls
5

Camera Controls
●
1
Record/Shutter/Confirm [ ]
Video Recording-Starts/Stops recording.
Photo- Takes a photo.
Video Playback-Plays/Pauses video.
Settings- Selects highlighted item.
●
2Power [ ]
Turn on/off the unit.
●
3A/V Video Out Port
●
4USB Port
●
5Speaker
●
6Operation Status LED
Indicates the device operating status.
Steady Blue-Powered off and charging.
Steady Pink-Powering up while charging or is in
Playback Mode.
Steady Red-In Standby Mode but not charging.
Flashing Red-Recording video, not charging.
Flashing Blue & Pink-Recording video and
charging.
●
7Arrow Key []/[]
Used to navigate through menus and select videos
for playback.
●
8Menu [ ]
While recording the video
Press [ ] to stop recording.
Enter the Standby Mode, and
 Press [ ] once to access the Camera Menu.
 Press [ ]twice to access the
System Menu.
Note: Cannot access menu while recording.
In the Photo Mode
Switch between two menu settings by pressing
[ ].
Camera Menus Settings.
System Menu Settings.
In the Video Playback Mode
Press [ ] to enter the menu settings.
Delete file /protect file/create a slideshow.
●
9Mutes Microphone[ ]
To turn off the audio recording, press [ ] and hold
it until the icon appears.
●
10 Mode[ ]
Press [ ] to stop recording.
Enter the Standby Mode.
Switch between 3 Modes by pressing [ ]:
 Video Recording-Starts/Stops recording.
 Photo-Takes a photo.

Video Playback
-
Plays/Pauses video.
6

Camera Controls
●
11 3”LCD Screen
●
12 SOS Emergency File Lock [ ]
Press[ ] while recording videos to lock the
current file from being overwritten.
●
13 Micro SD Slot
A Micro SDHC card rated at class 10 or above is
required.
Supports up to 32GB.
●
14 HDMI Out Port
Outputs either live or previously recorded video
over the HDMI connection.
The camera is unable to record while HDMI
output is enabled.
●
15 Reset Button/ Microphone
Press to force the device to reboot.
If camera freezes, use a small pin to press button.
7

Getting Started
Setting Up Your Camera
Set up your camera inside your vehicle to ensure easy access to power.

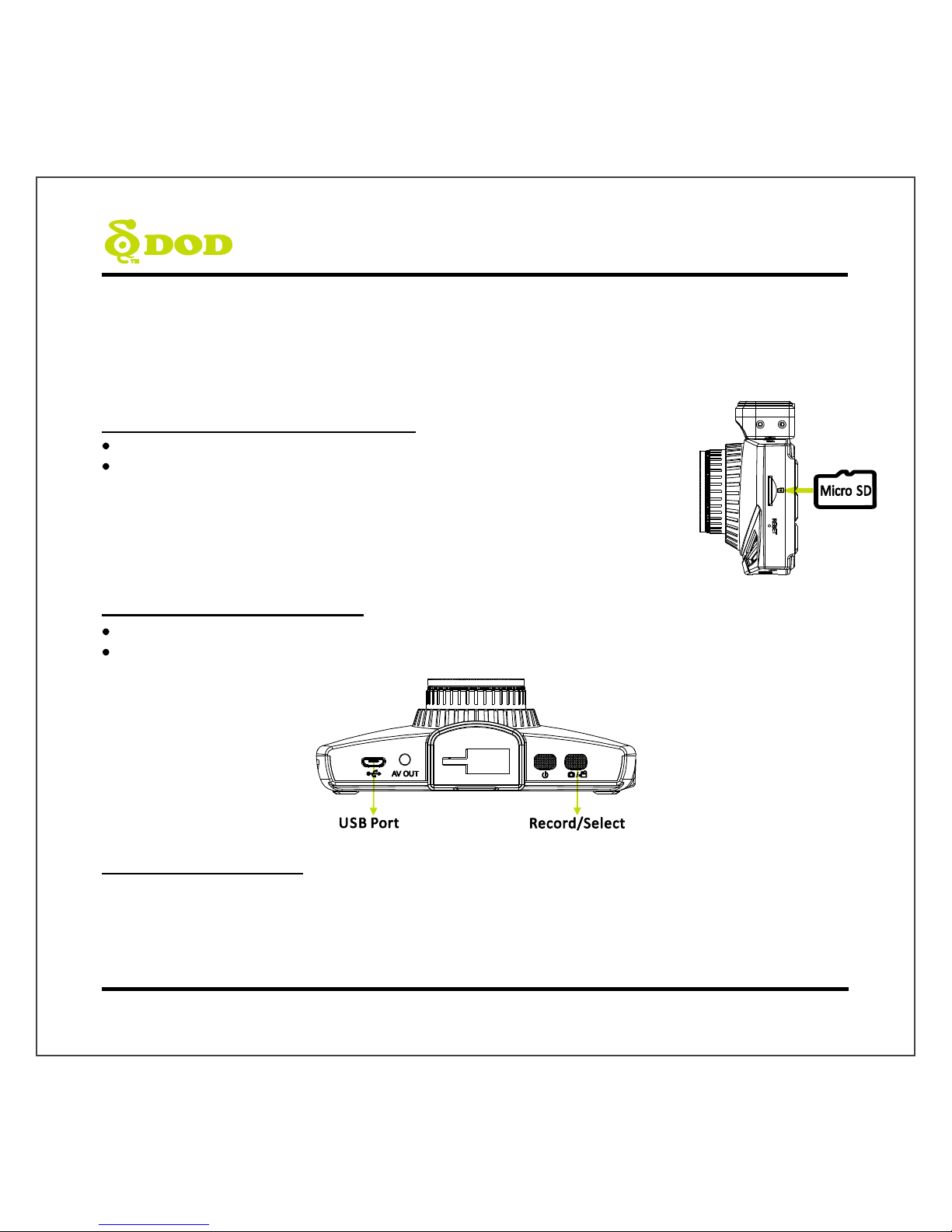

1. Insert the Micro SD Memory Card.
Format the Micro SD card when using the unit for the first time.
To save recorded videos stably, DOD Tech recommends formatting your SD
card every two weeks.
Note: Please purchase a micro SD card for use with this unit.
Note: After formatting the SD card, all of your data will be lost. Be sure that you have
backed up the important files.
2. Connect the Power Adapter.
Plug the DOD power adapter into your vehicle’s power outlet.
Insert the USB plug into the USB port.
3. Turn on Your Vehicle.
Power from your vehicle through the outlet will automatically turn on your camera and when power
is turned off your camera will shut off automatically. The camera automatically begins recording
every time it is turned on and stops recording when it is turned off.
Note: In some vehicles, the power outlet is continuously providing power, even when the vehicle is turned off.
