DOGA GXA-H Series User manual

GX-H Screwdrivers
GXA-H Screwdrivers
(40 Volts)
INSTRUCTIONS MANUAL
INSTRUCTIONS MANUAL

IMPORTANT
The tool delivered with this manual may have been modified for specific needs.
In that case, please give us the tool code number written on our shipping note or the approximate tool delivery
date when you place an order for a new similar tool or for spare parts.
In that way, you will be sure to get the required tool and/or spare part.
WARNING
This information has to be kept in a location know by all users.
Each operator has to read carefully this manual before installing, using, and
mending the product.
Be sure that the operator has understood using recommendations and the meaning of signs put on the product.
Most accidents could be avoided respecting this Manual Instructions. As a matter of fact, they were created
according to European laws and norms regarding products.
In each case, please respect and follow safety national norms. Do not take off nor damage the stickers or advise
put on the product and above all the details imposed by the law.

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
3
SUMMARY
1. GENERAL SAFETY RULES....................................................................................................... 4
2. SPECIFIC SAFETY RULES........................................................................................................ 5
3. Electric specification................................................................................................................. 6
4. Mechanical specification of XS-40D......................................................................................... 6
5. Input Power select..................................................................................................................... 6
6. Screwdriver Specification......................................................................................................... 7
7. Torque curve (No load - Max. speed)....................................................................................... 8
8. Panel of each model.................................................................................................................. 8
9. Alarm display by LED................................................................................................................ 8
10. Operation ............................................................................................................................... 9
10.1 Speed & Soft Start setting (GX-H) (GXS-H) (GXA-H) ............................................................................9
10.2 Speed/Angle control & Auto reverse (GXT-H).....................................................................................10

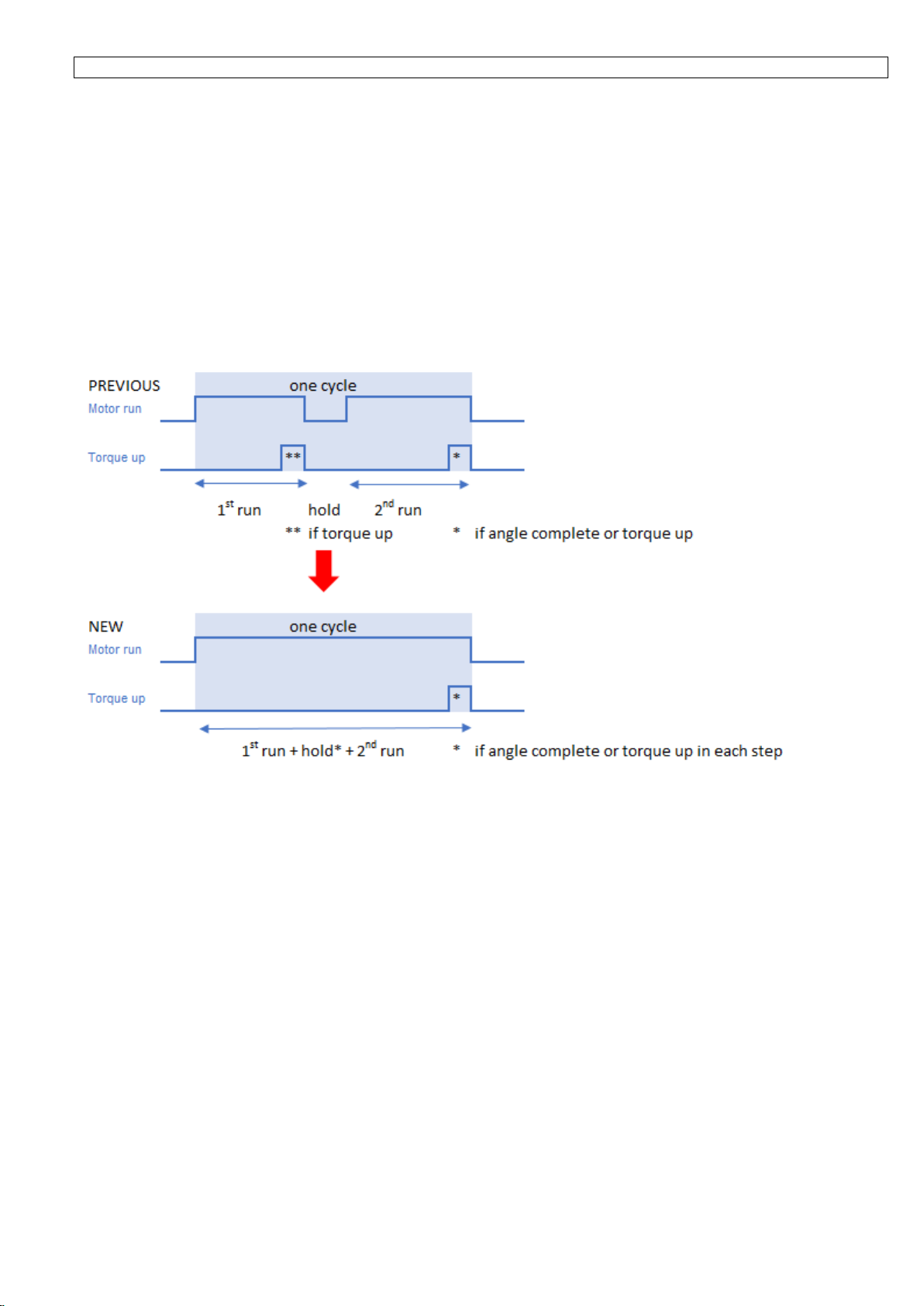

11. GXT output signals timing.................................................................................................. 14
12. Dimensions drawings.......................................................................................................... 15
12.1 GX150/220-H + GXS150/220-H...............................................................................................................15
12.2 GX150/220P-H + GXS150/220P-H..........................................................................................................15
12.3 GX450-H ..................................................................................................................................................16
12.4 GX450P-H (R00 2019.02.01....................................................................................................................16
12.5 GXA150/220/450(P) -H............................................................................................................................17

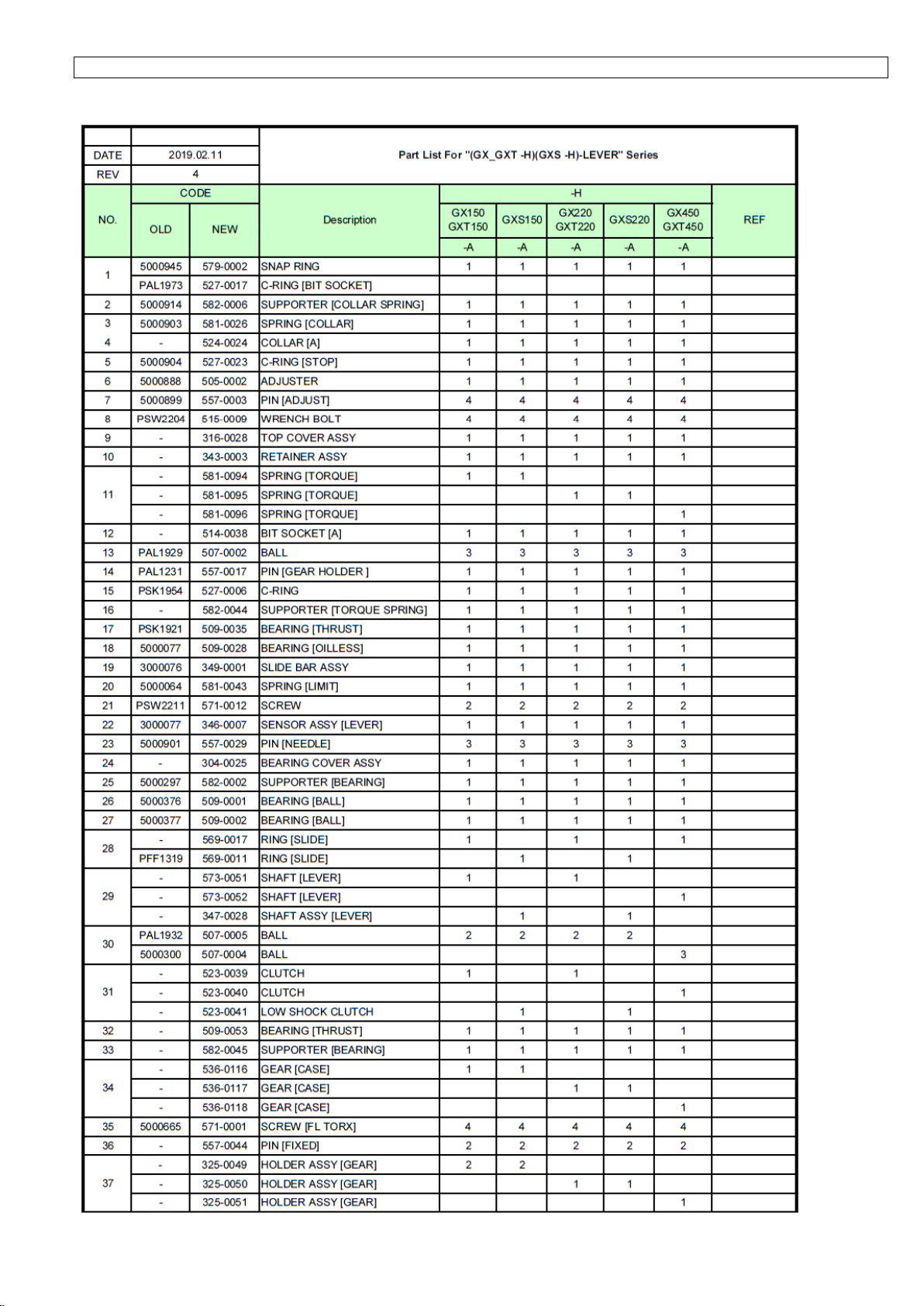

13. Exploded views and part list............................................................................................... 18
13.1 GX150/220/450-H + GXT150/220/450-H + GXS150/220/450-H.............................................................18
13.2 GX150/220/450P-H..................................................................................................................................21
13.3 GXA 150/220/450-H.................................................................................................................................24
13.4 GXA150/220/450P-H ...............................................................................................................................27

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
4
1. GENERAL SAFETY RULES
WARNING! Read and understand all instructions. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious personal injury
SAVE THESE INSTRUCTIONS
1.1 Work Area
- Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep bystanders, children, and visitors away while operating a power tool. Distractions can
cause you to lose control.
1.2 Electrical Safety
- Grounded tools must be plugged into an outlet properly installed and grounded in accordance
with all codes and ordinances. Never remove the grounding prong or modify the plug in any
way. Do not use any plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or break down, grounding
provides a low resistance path to carry electricity away from the user.
- Avoid body contact with grounded surface ad pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is grounded.
- Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock
- Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords
immediately. Damaged cords increase the risk of electric shock.
- When operating a power tool outside, use an outdoor extension cord marked W-A or W.
These cords are rated for outdoor use and reduce the risk of electric shock.
1.3 Personal Safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inflation while operating power tools may result in serious personal injury.
- Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in
moving parts.
- Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger
on the switch or plugging in tools may result in personal injury.
- Remove adjusting keys or switches before turning the tool on. A wrench or a key that is left
attached to a rotating part of the tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
- Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat,
or hearing protection must be used for appropriate conditions.
1.4 Tool use and Care
- Use clamps or other practical way to secure and support the workplace to a stable platform.
Holding the work by hand or against your body is unstable and may lead to loss of control.
- Do not force tool. Use the correct tool for your application. The correct tool will do the job better
and safer at the rate for which it is designed.
- Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
- Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing the tool. Such preventive safety

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
5
- Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
-Maintain toolswith care. Keep cuttingtools sharp and clean. Properlymaintained tools, with sharp
cutting edges are less likely to bind and are easier to control.
- Check for misalignment or binding of moving parts, breakage of parts, and any other condition
that may affect the tools operation. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
- Use only accessories that are recommended by the manufacturer for your model. Accessories
that may be suitable for one tool, may become hazardous when used on another tool.
1.5 SERVICE
- Tool service must be performed only by qualified personnel. Service or maintenance performed
by unqualified personnel could result in a risk of injury
- When servicing a tool, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance
instructions may create a risk of electric shock or injury.
2. SPECIFIC SAFETY RULES
2.1 Hold tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
2.2 Never lubricate aerosol oil on to the electrical part.

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
6
3. Electric specification
Items
Power controller
Screwdriver
Model
XS-40D (same as GX-G)
GX150-H, GX220-H, GX450-H,
GX150P-H, GX220P-H,
GX450P-H
Input
110 / 230VAC (selectable)
DC40V
Output
30/40VDC ( selectable )
Rated power
2.5A 95W
Maximum output current
8 A
Intermittent operation
10s On / 30s Off
Safety system
CE certified ( Class I )
Class III
4. Mechanical specification of XS-40D
Size: 98 x 158 x 55H (mm)
Weight: 850gr
Power cord: 1.5 m
Fuse: 10 A 250V
5. Input Power select
By replacing the position of cover as below, the input power can be selected for 110V or 230V.

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
7

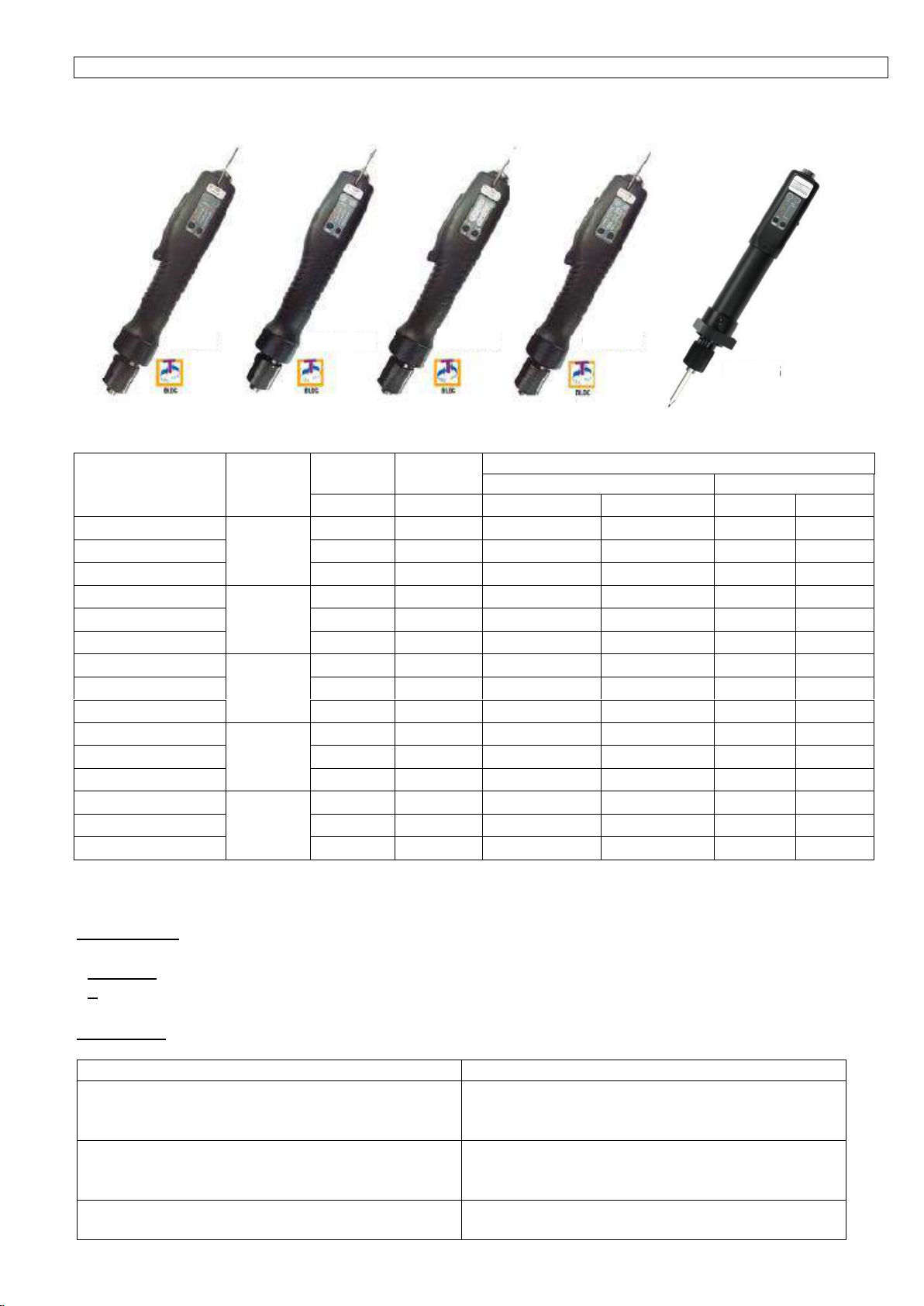

6. Screwdriver Specification
■ Specification
Modèle
Démarra
ge
Torque
Rotation
Speed
Options
Clutch**
Software*
(Kgf.cm)
(Rpm)
Standard
Soft Stop
Standard
T
GX 150/ESD-H
LEVER
3~15
800~1700
○
○
GX 220/ESD-H
6~22
600~1200
○
○
GX 450/ESD-H
10~45
300~600
○
○
GX 150P/ESD-H
PUSH
3~15
800~1700
○
○
GX 220P/ESD-H
6~22
600~1200
○
○
GX 450P/ESD-H
10~45
300~600
○
○
GXS 150/ESD-H
LEVER
3~15
800~1700
○
○
GXS 220/ESD-H
6~22
600~1200
○
○
GXS 450/ESD-H
10~45
300~600
○
○
GXT 150/ESD-H
LEVER
3~15
800~1700
○
○
GXT 220/ESD-H
6~22
600~1200
○
○
GXT 450/ESD-H
10~45
300~600
○
○
GXA 150-H
REMOTE
3~15
800~1700
○
○
GXA 220-H
6~22
600~1200
○
○
GXA 450-H
10~45
300~600
○
○
GX-H main specifications are identical to GX-G.
Total length is different from previous version.(refer chapter 12 for dimensions)
* Software :
- Standard = Speed Control + Soft Start (soft start not available on GXA models)
- T = Speed & Angle Control + Auto Reverse
** Clutch :
Clutch type
Models
Clutch mechanism is symmetric
(torque is equal in forward and reverse modes)
GX_450-H
GXT_450-H
GXA_450-H
Clutch mechanism is asymmetric
(higher torque on reverse ~+20%)
GX_150-H / GX_220-H
GXT_150-H / GXT_220-H
GXA_150-H / GXA_220-H
Clutch mechanism is asymmetric
(motor full power on reverse)
GXS 150-H / GXS 220-H/GXS 450-H
GX-H
GXA-H
GXS-H
GX-P-H
GXT-H

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
8

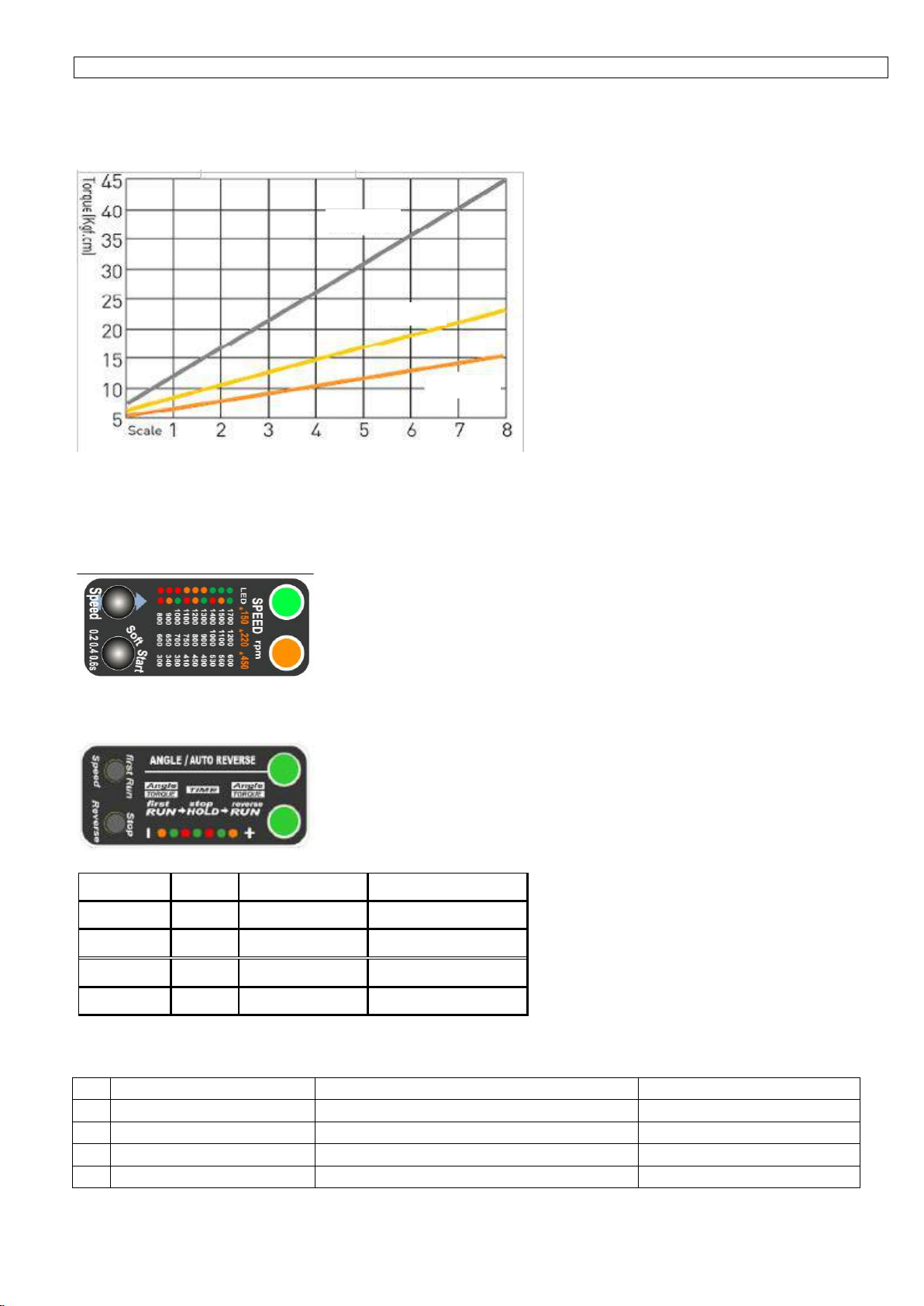

7. Torque curve (No load - Max. speed)
Scale on screwdriver
8. Panel of each model
GX-H / GXS-H /GXA-H
Standard (Speed control & Soft Start)
GXT-H
Speed & Angle control & Auto reverse
Model
LED
Description
Color
GX-H
Left
Motor run
● Green continous
GX-H
Left
Torque up
● Orange continous
GXT-H
Right
Motor run
● Green continous
GXT-H
Left
Torque up
● Green continous
9. Alarm display by LED
no
Alarm
Description
Reset
1
Over Voltage (over 44V)
●●↔●● Green & Red lights blinks
Auto reset under 44V
2
Overload (4A/0.5s)
●● Two Red lights blinks.
Auto reset after 5s
3
Overheat(over 80℃_motor)
●● Two Orange light blinks
Auto reset lower than 80℃
4
Driver Lock by ext. signal
●● Two Green lights blinks
Auto reset by signal off
GX 450
GX 150
GX 220

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
9
10.Operation
Functions remain same as GX-G version

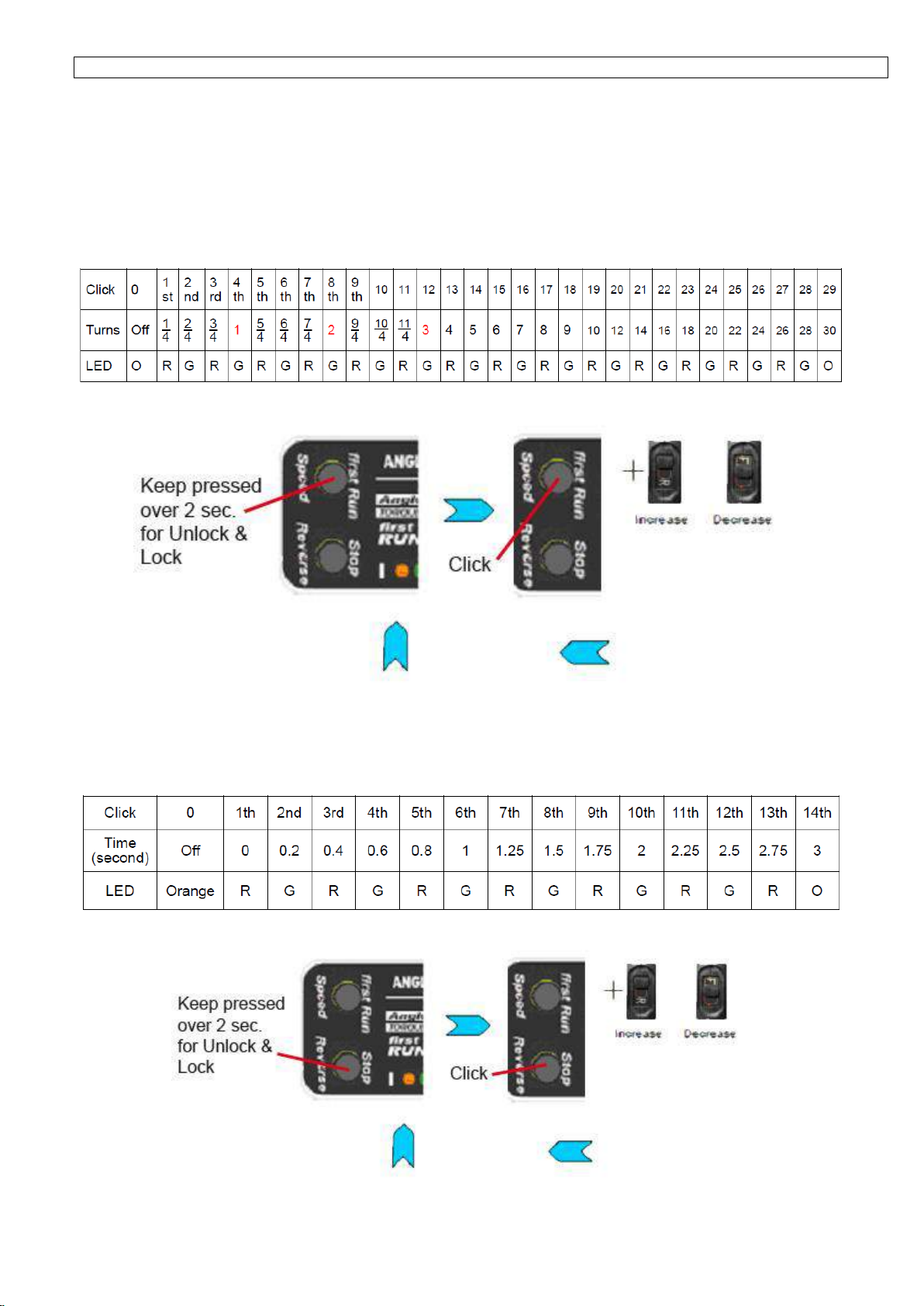

10.1 Speed & Soft Start setting (GX-H) (GXS-H) (GXA-H)
Speed Selection:
1) Press the Speed button for 2 seconds to visit to
PROGRAM mode. Then the two LED lights will
display colours depending on the set speed.
2) Select "Reverse" on F/R switch for increasing
speed or select "Forward" on F/R switch for
increasing speed.
3) Press the Speed button and select the target
speed.
The set speed can be recognized by the colors of
two LED as below.
4) Press the Speed button for 2 seconds to go
back to operating (work) mode.
■Speed display by two LED color (Standard model)
Model
LED
● ●
●●
●●
●●
●●
●●
●●
●●
●●
Button
1th
2nd
3rd
4th
5th
6th
7th
8th
9th
GX150-H
RPM
800
900
1000
1100
1200
1300
1400
1500
1700
GX220-H
RPM
600
650
700
750
800
900
1000
1100
1200
GX450-H
RPM
300
340
380
410
450
490
530
560
600
GXA150-H
RPM
800
900
1000
1100
1200
1300
1400
1500
1700
GXA220-H
RPM
600
650
700
750
800
900
1000
1100
1200
GXA450-H
RPM
300
340
380
410
450
490
530
560
600
Soft Start Setting:
1) Press the Soft Start button for 2 seconds to enter setting mode.
2) Press and hold the Soft Start button to increase the Soft Start duration.
As shown below, 3 steps are available. Selected color will remain lighten.
●Green: 0.2 second
●Red: 0.4 second
●Orange: 0.6 second

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
10

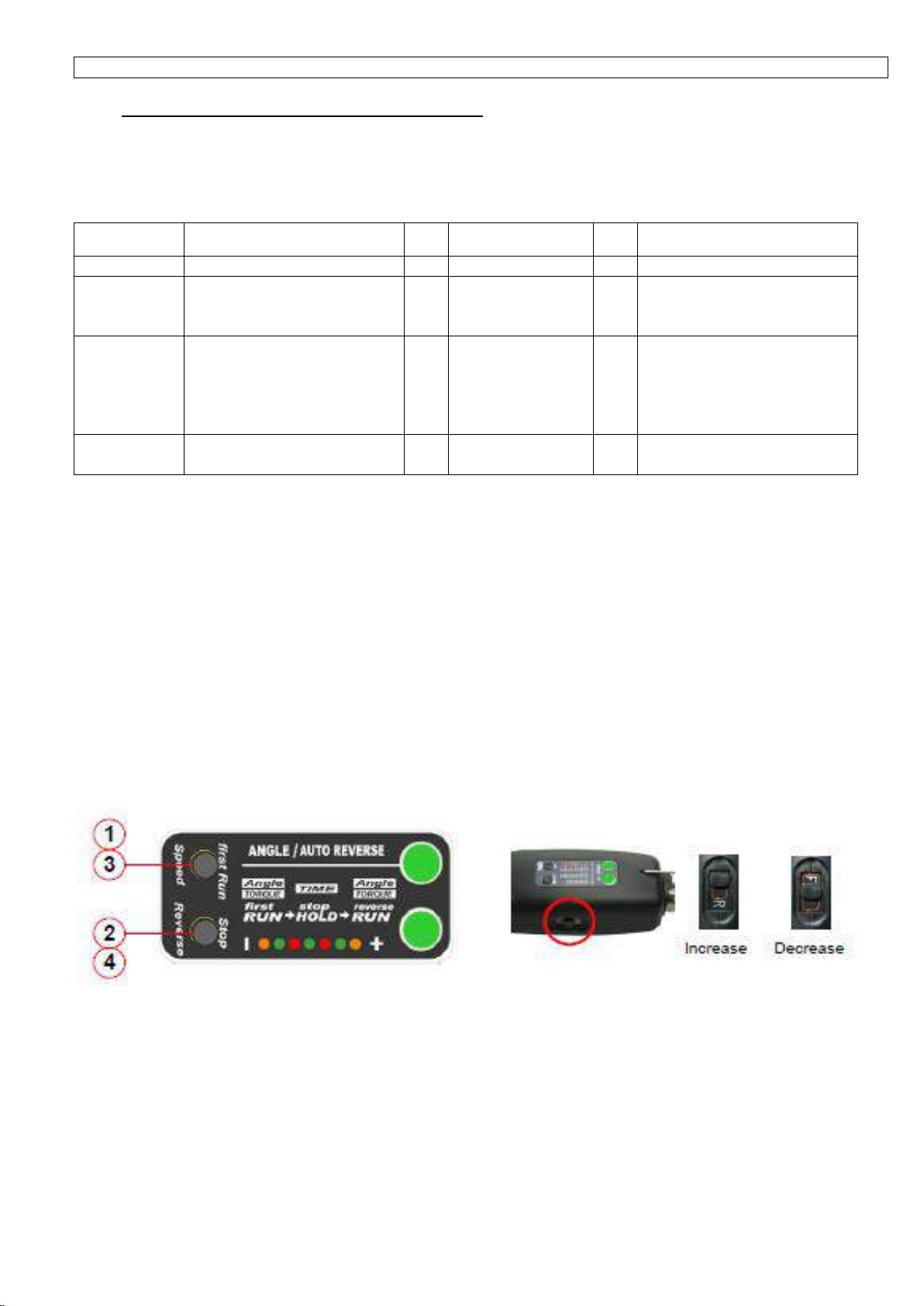

10.2 Speed/Angle control & Auto reverse (GXT-H)
Model: GXT150-H, GXT220-H, GXT450-H
One triggering by the lever can make 3 steps operation sequence in a cycle
■Start, Stop and Direction in a cycle
Step
1
→
2
→
3
Sequence
first RUN
stop HOLD
reverse RUN
Rotating
direction
Clockwise or
Counterclockwise by
F/R switch
Reverse
Activating
Screwdriver run to the
target angle and stops. It
always stops at the set
torque, even it does not
reach the target angle.
delay for
set time
Screwdriver run reverse to
the target angle and stops.
It always stops at the set
torque, even it does not
reach the target angle.
Angle run &
Time delay
29 steps
1/4 to 30 turns
14 steps
0.2 to 3 sec
29 steps
1/4 to 30 turns
- Screwdriver stops Immediately when the lever is released in any sequence.
- Sliding F/R switch works for increasing or decreasing of setting
■Operating (Work) mode
①Rotating direction (FOR-REV)
■PROGRAM mode
①First run angle (Increase / Decrease) together with "First Run(Speed)" button
②Time (Increase / Decrease) together with "Stop(Reverse)" button
③Rotation speed (Increase / Decrease) together with "Speed(First Run)" button
④Reverse run angle (Increase / Decrease) together with "Reverse(Stop)" button

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
11
■Angle setting for first RUN
①Keep the first Run button pressed over 2 sec. for angle setting. Then press one by one for the
desired rotating angle
②Select the R position of F/R switch for increasing set angle or F position for decreasing set angle
③Keep the first Run button pressed over 2 sec. for Lock & operating mode.
Off : stops on torque up without angle control
■Time setting for stop HOLD
①Keep the stop time button pressed over 2 sec. Then click the stop time button one by one for
desired stop holding time
②Select the R position of F/R switch for increasing set time or F position for decreasing set time
③Keep the stop time button pressed over 2 sec. for Lock & operating mode.
Off : no Reverse RUN

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
12
■Rotating speed setting
①Keep both first Run & stop time buttons pressed over 2 sec. to unlock. Then click one by one for
the desired rotating speed.
②Select the R position of F/R switch for increasing speed or F position for decreasing speed
③Keep the first Run button pressed over 2 sec. to Lock & operating mode.
Model
LED
● ●
●●
●●
●●
●●
●●
●●
●●
●●
Button
1th
2nd
3rd
4th
5th
6th
7th
8th
9th
GXT150-H
RPM
800
900
1000
1100
1200
1300
1400
1500
1700
GXT220-H
RPM
600
650
700
750
800
900
1000
1100
1200
GXT450-H
RPM
300
340
380
410
450
490
530
560
600
Off : stops on torque up without angle control
■Angle setting for Reverse RUN
①Keep both first Run & stop time buttons pressed over 2 sec. to unlock. Then click stop time button
one by one for the desired angle
②Select the R position of F/R switch for increasing set angle or F position for decreasing set angle
③Keep the stop time button pressed over 2 sec. to Lock & operating mode.

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
13
■Application Example
First
RUN
Angle
Stop
HOLD
Time
Auto
Reverse
Angle
Applications with different
sequence in a cycle
Normal
screwdriver
(F/R)
off
off
off
Normal screwdriver
It stops at the set torque
Angle
control
(F or R)
ON(1)
off
off
It stops at set angle(1)
Insert
fastening
(F/R)
Off(1)
ON(2)
ON(3)
It stops at set torque(1) and waits
for set time(2), and makes reverse
rotation to the set angle(3)
Tapper
(F/R)
ON(1)
ON(2)
ON(3)
or
off
It stops at set angle(1) and waits
for set time(2), and makes reverse
rotation to the set angle(3) or until
the lever is released
Wire
inserting on
terminal
block
(F/R)
ON(1)
ON(2)
off
It stops at set angle(1) and waits
for set time(2), and makes reverse
rotation and stops at set torque

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
14
11.GXT output signals timing
Effective from GXT-G, S/N: 1805080168.
Concerns feature of out signals : run and torque up
- Complete Motor Run Signal Out During One Cycle
If the user set 1st run-stop-reverse turn as a complete cycle, motor run signal will last for a cycle.
In the same way, if just 1st run is set, motor run signal comes out just once.
- One Torque-up Count for One Complete T Cycle with SCOUTII
1st and 2nd run are either torque or angle control
Torque up signal means complete cycle Ok

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
15
12.Dimensions drawings
12.1 GX150/220-H + GXS150/220-H
(R00 2019.02.01)
12.2 GX150/220P-H + GXS150/220P-H
(R00 2019.02.01)
GX-H : silver color
GX-H : silver color
Bit is not provided
Bit is not provided

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
16
12.3 GX450-H
(R00 2019.02.01)
12.4 GX450P-H (R00 2019.02.01
Bit is not provided
Bit is not provided
GX-H : silver color
GX-H : silver color

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
17
12.5 GXA150/220/450(P) -H
(R00 2019.02.01)
GXA 40V - PUSHING FORCE MAX. 25KG
Min center to center distance : 46 mm
Centering diameter : 42mm +/-0.15mm
Bit is not
provided

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
18
13.Exploded views and part list
13.1 GX150/220/450-H + GXT150/220/450-H + GXS150/220/450-H
•Exploded view

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
19
•Part list

Instructions manual / GX-H & GXA-H 40 Volts Screwdrivers
20
