Dometic PERFECTWALL PW3800 User manual

PW3800
Awning
Operating manual . . . . . . . . . . . . . . . . . . . . .9
Markise
Bedienungsanleitung . . . . . . . . . . . . . . . . .23
Store extérieuru
Notice d’utilisation . . . . . . . . . . . . . . . . . . .38
Toldo
Instrucciones de uso . . . . . . . . . . . . . . . . . .53
Toldo
Manual de instruções . . . . . . . . . . . . . . . . .68
Tenda da s o le
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .83
Zonnescherm
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .98
Markise
Betjeningsvejledning . . . . . . . . . . . . . . . . 113
Markis
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 127
Markise
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 141
Markiisi
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 155
Синусоидальный инвертор
Инструкция по эксплуатации . . . . . . . . . 169
Markiza
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 184
Markýza
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 199
Markiza
Navodilo za uporabo . . . . . . . . . . . . . . . . 213
ȉȑȞIJĮ
ȅįȘȖȓİȢ ȤİȚȡȚıȝȠȪ . . . . . . . . . . . . . . . . 227
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
CS
SL
EL
AWNINGS
PERFECTWALL
PW3800-O-16s.book Seite 1 Donnerstag, 12. April 2018 3:13 15

PW3800-O-16s.book Seite 2 Donnerstag, 12. April 2018 3:13 15

PW3800
3
3
1
2
1
2
3
44
1
1. 3.2.
2
PW3800-O-16s.book Seite 3 Donnerstag, 12. April 2018 3:13 15

PW3800
4
3
1
4
PW3800-O-16s.book Seite 4 Donnerstag, 12. April 2018 3:13 15

PW3800
5
2.
1.
5
6
PW3800-O-16s.book Seite 5 Donnerstag, 12. April 2018 3:13 15

PW3800
6
7
3.
2.
1.
8
9
PW3800-O-16s.book Seite 6 Donnerstag, 12. April 2018 3:13 15

PW3800
7
0
1.
2.
3.
a
b
PW3800-O-16s.book Seite 7 Donnerstag, 12. April 2018 3:13 15

PW3800
8
AB
C
DA
B
CD
e
2
1
1
f
15 – 20 Nm
g
PW3800-O-16s.book Seite 8 Donnerstag, 12. April 2018 3:13 15

EN
PW3800
9
!
Table of contents
1 Notes on using the instruction manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Operating the awning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WARNING!
•This operating manual must be read and understood before the
device is operated, cleaned or serviced.
•This product must be mounted by a specialist. Improper assembly
can lead to serious injury. Alterations to the product can be
extremely dangerous and lead to serious injury or damage to the
device.
•Keep this instruction manual with the product. The owner must read
it carefully.
PW3800-O-16s.book Seite 9 Donnerstag, 12. April 2018 3:13 15

EN
Notes on using the instruction manual PW3800
10
1 Notes on using the instruction manual
!
A
I
2 Safety instructions
Pleaseobserve the prescribedsafetyinstructionsandstipulations from the
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please note the following warnings:
!WARNING!
•Before starting your journey, check that the awning is fully retracted.
Never move the vehicle when the awning is open.
•Never drive with the crank inserted. Remove the crank before starting
your journey.
•Do not drive the vehicle if the fabric is damaged or torn, even if the
awning has been properly retracted. The awning arms are held in
place by the fabric. If the fabric rips while driving, the awning will
suddenly shoot out. This can lead to serious injury. Secure the awning
so that it cannot extend suddenly and unexpectedly while driving.
•Do not open the awning while driving.
•Do not open the awning in strong winds or snowfall.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
PW3800-O-16s.book Seite 10 Donnerstag, 12. April 2018 3:13 15

EN
PW3800 Safety instructions
11
•Retract the awning if strong winds, heavy rain or snowfall are
imminent.
•Make sure that water or snow does not accumulate on the fabric.
Otherwise this could damage the awning or the awning arms could
collapse and cause severe or fatal injury.
•Do not approach the awning
– if it was left open during heavy winds
– if pools of water have formed on it
– if snow has accumulated on it
– if any debris is on the awning fabric.
The awning may move unexpectedly, become unstable and bend or
break off.
•With optional motor: If the connection cable of the awning is
damaged, it must be replaced by an expert.
•With optional motor: Disconnect the power supply by means of the
on/off switch before you clean the vehicle in the vicinity of the awning
or the awning itself.
•Do not leave the extended awning unattended. Retract the awning
before leaving your site.
•Keep a safe distance away from the awning when having barbecues or
open fires. The fabric can be damaged by heat or catch fire.
•This device can be used by children aged 8 years or over, as wellas by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised or
have been taught how to use the device safely and are aware of the
resulting risks.
•With optional motor: Electrical devices are not toys.
Keep the remote control out of the reach of children. Prevent children
from playing with the wall switch (accessory).
•Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
•Park the motor home or caravan at a site where debris (branches,
leaves or similar) cannot fall onto the fabric.
•The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against
the arms and become damaged.
The fabric used for long awnings should not sag in the middle.
PW3800-O-16s.book Seite 11 Donnerstag, 12. April 2018 3:13 15

EN
Scope of delivery PW3800
12
•Only retract the awning when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning may be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•Only retract the awning if it is wet for safety reasons. Extend it again as
soon as possible. Otherwise, mildew or stains can form or the colour
may fade.
•Never bend down an awning arm or the cover to drain water off the
awning. This can bend the awning and impair its function.
•Do not hang any objects on the awning, on the front cover or the
awning arms.
•Do not use any sprays (e. g. insect repellent, hairspray) near the
awning. This will soil the fabric or the water-repellent effect of the
fabric will be lost.
•If there is insufficient space above the door after the awning is
mounted, the door must remained closed when retracting or
extending to avoid the door making contact with the arms or the lead
rail.
The required space depends on the design of the door (door width,
swing or sliding door) as well as the set awning angle of inclination.
3Scopeofdelivery
Quantity Description
1 Awning
1 Hand crank (only awnings without motor)
Emergency crank (only awnings with motor)
1 Remote control (only awnings with motor)
4Pegs
1 Operating manual
1 Installation manual
PW3800-O-16s.book Seite 12 Donnerstag, 12. April 2018 3:13 15

EN
PW3800 Accessories
13
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The PerfectWall PW3800 awning is suitable for installation on motor homes or
caravans.
The awning may be only be used while the vehicle is stationary.
6 Technical description
PerfectWall PW3800 awnings can be extended and retracted with a 12 V motor that
is controlled by remote control or wall switch (accessory).
PerfectWall PW3800 awnings can further be extended and retracted using a hand
crank.
The awning is self-supporting.The integrated struts can be mounted on the side of
the vehicle or on the ground to support the height of the lead rail.
Description
TieDown Kit
Straps for anchoring the awning
Dometic Light LK120
LED light kit with remote control for installation on the awning arms
LED LightStrip
LED strip available in different lengths for installation on the underside of the awning
LED Profile
LED lighting available in different lengths for installation on the underside of wall-mounted
awnings
Awning cleaner
Special awning cleaner
Repair Kit
Awning repair patch
Wall switch
PW3800-O-16s.book Seite 13 Donnerstag, 12. April 2018 3:13 15

EN
Operating the awning PW3800
14
Controls of the remote control (only awnings with motor)
Controls of the wall switch (accessory)
7 Operating the awning
Observe the safety instructions in chapter “Safety instructions” on page 10.
7.1 Note on the vehicle location
!
A
No. in
fig. 1, page 3 Description
1 Retract awning
2 Stop
3 Extend awning
4 Switch LED lighting on/off (accessory)
No. in
fig. 1, page 3 Description
1 Retract awning
2 Stop
3 Extend awning
4 Switch LED lighting on/off (accessory)
WARNING! Beware of injury.
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
NOTICE!
•Park the vehicle so that no debris (branches, leaves or similar) gets on
to the fabric.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
PW3800-O-16s.book Seite 14 Donnerstag, 12. April 2018 3:13 15

EN
PW3800 Operating the awning
15
7.2 Extending the awning
Extending the awning using a hand crank

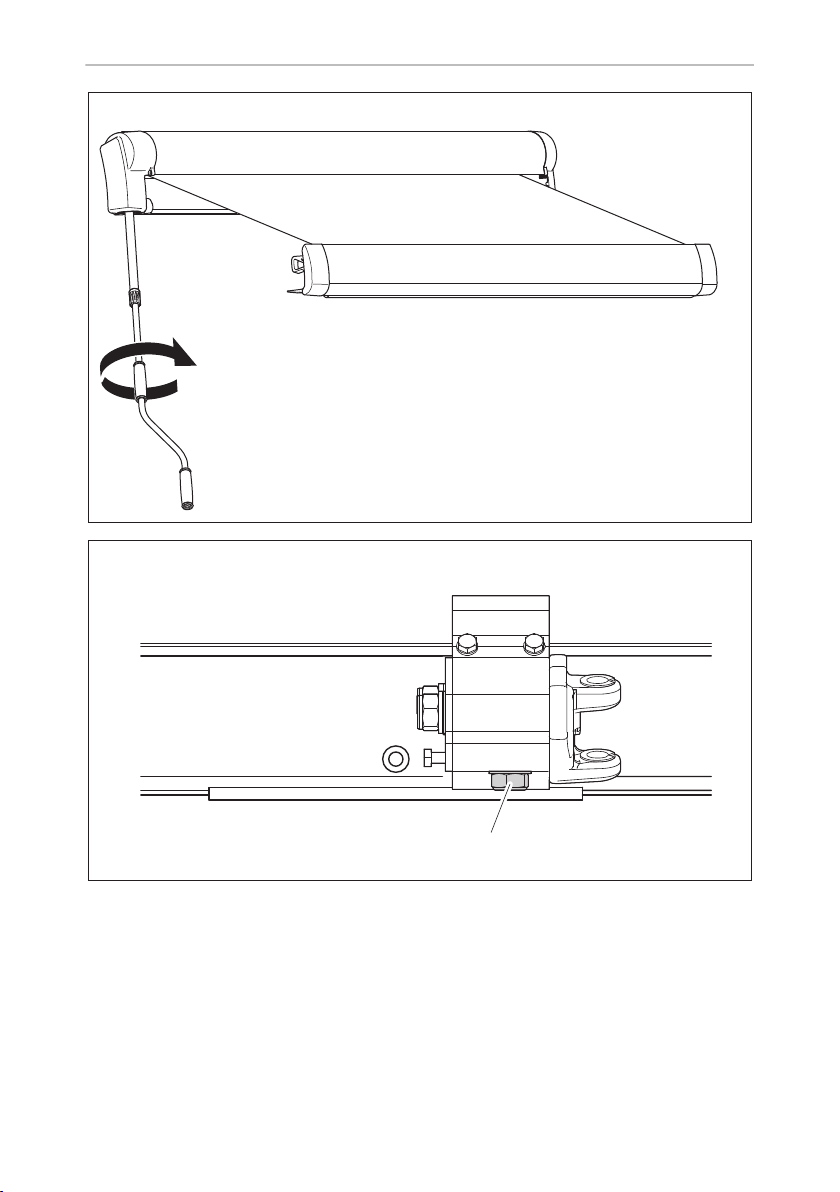

➤Click the hand crank into the holder in the awning (fig. 2, page 3).
➤Turn the hand crank until the awning is extended to the required position
(fig. 3, page 4).
➤Turn the hand crank approx. a quarter of the way back to tighten the fabric.
A
➤Remove the hand crank from the holder on the awning.
Extending the awning using a motor (optional)
I
➤Press the button until the awning is extended to the required position.
A
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
NOTE
Only for operation with the remote control:
•When the vehicle is started, the awning retracts automatically. While
the vehicle is running, the awning is blocked and can not be
extended.
•The receiver beeps once when it is switched on.
•Operation of the remote control can be affected by interference if
another device is being used nearby on the same frequency.
•Keep the remote control in a safe place while you are driving. The
magnet in the holder is not designed for strong vibrations, such as
sudden braking.
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
PW3800-O-16s.book Seite 15 Donnerstag, 12. April 2018 3:13 15

EN
Operating the awning PW3800
16
7.3 Retracting the awning
A
➤Remove any debris (branches, leaves or similar) lying on the fabric.
Retracting the awning using a hand crank
➤Click the top end of the hand crank into the holder in the awning.
➤Turn the hand crank until the awning is fully retracted.
➤Double-check that the awning is fully retracted before starting your journey.
The lead rail should be right up against the housing.
➤Remove the hand crank from the holder on the awning.
Retracting the awning using a motor (optional)
➤Press the button until the awning has been completely retracted.
➤Double-check that the awning is fully retracted before starting your journey. The
lead rail should be right up against the housing.
7.4 Setting the inclination angle
I
➤Adjust the nut until the awning is in the desired inclination angle (fig. 41,
page 4).
NOTICE!
•Only retract the awning when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning may be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•When retracting the awning, make sure that no branches or other
objects are trapped in it.
•If the awning is retracted when wet, extend it again and let the fabric
dry out at the next opportunity. If the wet fabric stays rolled up for a
long time, mildew will form and the fabric can fade.
NOTE
When setting up the struts the inclination angle can be reduced, see
chapter “Setting up the struts” on page 17.
PW3800-O-16s.book Seite 16 Donnerstag, 12. April 2018 3:13 15

EN
PW3800 Operating the awning
17
7.5 Setting up the struts
Putting up the struts
➤Push the right strut in the front cover together so that you can move it freely
(fig. 5, page 5).
➤Turn the right strut to the side (fig. 5, page 5).
➤Fold the right strut down and set it on the ground (fig. 6, page 5).
➤Adjust the strut to the required height (fig. 7, page 6).
➤Fold the lever for the strut up to secure the struts (fig. 8, page 6).
➤Extend the other strut in the same way.
Positioning the struts on the ground
!
➤Position the struts vertically underneath the lead rail.
➤Secure the struts with pegs (fig. 9, page 6).
➤Position one of the struts slightly lower so that thelead rail hangs at an angle. This
allows rain to run off more easily (fig. 0, page 7).
Securing the struts on the vehicle
You can secure the awning on your vehicle directly if you have already mounted the
latches for the struts.
➤Slide the cover of the latch up (fig. a, page 7).
➤Fit the struts into the latch (fig. a, page 7).
➤Slide the cover of the latch down (fig. a, page 7).
➤Position one of the struts slightly lower so that thelead rail hangs at an angle. This
allows rain to run off more easily (fig. b, page 7).
Putting in the struts
➤Loosen the struts from the fastenings (pegs or latches on the vehicle).
➤Fold the lever of the right strut down to loosen the struts.
WARNING! Beware of injury
•Only position the struts on solid ground.
•Secure the struts from slipping.
PW3800-O-16s.book Seite 17 Donnerstag, 12. April 2018 3:13 15

EN
Operating the awning PW3800
18
➤Slide the struts together completely.
➤Fold the right strut up.
➤Turn the right strut into the lead rail.
➤Slide the bottom part of the right strut into the latch of the lead rail.
➤Retract the other strut in the same way.
7.6 Adjusting the motor (optional)
I
➤If the awning no longer fully closes or opens, then adjust the 12 V motor (fig. e,
page 8).
7.7 Replacing the batteries of the remote control and the
wall switch (accessory) (optional)
I
➤Open the housing (fig. f1, page 8).
➤Remove the old battery from the holder.
➤Insert a new battery (type CR2450 for remote control, type CR2430 for wall
switch, fig. f2, page 8) into the holder with the positive terminal facing
upwards.
➤Reassemble the remote control or wall switch.
BProtect the environment!
Do not dispose of any batteries with general household waste.
Return defective or used batteries to your retailer or dispose of them at
collection points.
NOTE
The 12 V motor is pre-assembled in the roller tube.
NOTE
If the LED of the remote control does not light up after pressing one of
the buttons, the remote control battery is flat.
PW3800-O-16s.book Seite 18 Donnerstag, 12. April 2018 3:13 15

EN
PW3800 Cleaning and maintenance
19
8 Cleaning and maintenance
8.1 Cleaning
A
➤Remove any debris (twigs, leaves or similar) lying on the awning fabric to prevent
abrasions, stains and mildew. The awning can also be damaged when it is
retracted.
➤Clean the awning fabric regularly to remove any dirt and dust:
– To do this, use water with 30 ml detergent and 30 ml bleach for 10 litres of
water.
– Soap down the fabric and leave the liquid to soak in for five minutes.
– Rinse thoroughly with clean water.
Make sure that the detergent with the bleach is completely washed off.
Otherwise it can damage the fabric.
– Leave the fabric to dry.
I
8.2 Lubricating
➤If required, lubricate the joints of the awning with paraffin wax, teflon oil or
silicone oil.
8.3 Checking
!
NOTICE! Beware of damage.
•Never clean the awning with a high-pressure cleaner.
•Do not use abrasive cleaning agents or hard objects during cleaning,
as these can damage the product.
NOTE
The manufacturer recommends:
To clean the cloth, use the Dometic awning cleaner
(ref. no. 9600000165, available from your service partner).
WARNING!
Do not use the awning if any settings or maintenance work are required.
If you discover any damage, please contact a service partner in the
respective country (see addresses on the back of the manual).
PW3800-O-16s.book Seite 19 Donnerstag, 12. April 2018 3:13 15

EN
Cleaning and maintenance PW3800
20
➤Check the awning regularly for any imbalance and wear, as well as damage to
major parts.
➤Check the awning regularly:
– Is the fabric free of damage?
– Are the arms and lead rail free of damage with no signs of wear?
– Does the awning close properly?
8.4 Tighten up the screws on the rear hinge
The screws on the rear hinge must be re-tightened after being subjected to a load for
the first time:
•after the first holiday using the awning
•after driving 20,000 km or six months after the awning was installed
(whichever occurs first)
The screws on the rear hinge must be checked during the routine vehicle inspection.
Contact your service partner to re-tighten the screws.
Instructions for servicing (fig. g, page 8)
A
➤Lift up the lead rail slightly so that the hinge is not bearing any load.
➤Tighten the screws with 15 – 25 Nm.
8.5 Patching small holes in the fabric
You can patch any small holes in the fabric or parts where the coating has come off:
➤Use a cotton cloth to rub around the damaged area with a small amount of liquid
vinyl plaster (ref. no. 9103104018, available from your service partner).
✓The liquid vinyl plaster dissolves the coating. The coating seals the hole when it
dries.
➤Wait until the area is dry before you retract the awning again.
NOTICE!
The awning arms must not bear any load. This is to prevent the fastening
torque of the screws from being distorted.
PW3800-O-16s.book Seite 20 Donnerstag, 12. April 2018 3:13 15
