Dometic ORIGO 1500 User manual

Alcohol stoves
Operating manual . . . . . . . . . . . . . . . 8
Spirituskocher
Bedienungsanleitung . . . . . . . . . . . . 24
Cuisinières à alcool
Notice d’utilisation . . . . . . . . . . . . . . 41
Hornillos de alcohol
Instrucciones de uso . . . . . . . . . . . . 58
Spirituskooktoestellen
Gebruiksaanwijzing . . . . . . . . . . . . . 76
Fornelli ad alcool
Istruzioni per I’uso . . . . . . . . . . . . . . 92
Spriikeitin
Käyttöohje . . . . . . . . . . . . . . . . . . . 108
Spritkök
Bruksanvisning . . . . . . . . . . . . . . . 124
EN
DE
FR
ES
NL
IT
FI
SV
ORIGO 1500, 3000
ORIGO 6000, 6100, 6200
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
CC
0
1
2
3
4
CC
0
1
2
3
4
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
_Origo_1500_3000_6000.book Seite 1 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
2
ORIGO
3000
0
1
2
3
4
1
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
0
1
2
3
4
2
1
2
_Origo_1500_3000_6000.book Seite 2 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
3
6000
CC
0
1
2
3
4
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
1
2
3
4
5
6
3
6100
CC
0
1
2
3
4
1
2
4
_Origo_1500_3000_6000.book Seite 3 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
4
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
4
1
2
3
5
6
5
CC
0
1
2
3
4
ORIGO
3000
0
1
2
3
4
0
1
2
3
4
3
14
5
6
2
6
_Origo_1500_3000_6000.book Seite 4 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
5
0
1
2
3
4
0
1
2
3
4
1.
2.
7
8
9
_Origo_1500_3000_6000.book Seite 5 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
6
2
1
6000,
6100,
6200
0
ORIGO
3000
0
1
2
3
4
a
6000,
6100,
6200
0
1
2
3
4
CC
0
1
2
3
4
1.
2.
b
_Origo_1500_3000_6000.book Seite 6 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
7
1.
2.
c
_Origo_1500_3000_6000.book Seite 7 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO
8
Please read this manual carefully before installing and starting up the
device, and store it in a safe place. If the device is passed on to another
person, this manual must also be handed over with it.
Table of contents
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Mounting the stove. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Using the stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 Cleaning and maintaining the stove. . . . . . . . . . . . . . . . . . . . . . . . . 21
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
_Origo_1500_3000_6000.book Seite 8 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Notes on using the manual
9
1 Notes on using the manual
dWarning!
Safety instruction: failure to observe this instruction can cause
material damage or personal injury.
aCaution!
Safety instruction: Failure to observe this instruction can cause
material damage and impair the function of the device.
INote
Supplementary information for operating the device.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from
the following:
zFaulty assembly or connection
zDamage to the appliance resulting from mechanical influences and
excess voltage
zAlterations to the device without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
_Origo_1500_3000_6000.book Seite 9 Freitag, 29. Januar 2010 4:09 16

General safety instructions Dometic ORIGO
10
2.1 General safety
dzUse denatured alcohol only. Do not use other fuels such as
gasoline, diesel, methanol, propane or charcoal lighter.
zDanger of asphyxiation!
Before starting the device, ensure that the area is sufficiently
ventilated.
zPlace a class A fire extinguisher (for alcohol fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
zPersons whose physical, sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
azUse the stove only as intended.
2.2 Safety precautions when handling denatured
alcohol
dzKeep inflammable substances apart from heating and cooking
devices and other light and heat sources.
zStore alcohol in suitable containers only and in sufficient
distance from the stove.
zEliminate all sources of sparks or flames where the alcohol is
stored or filled-in.

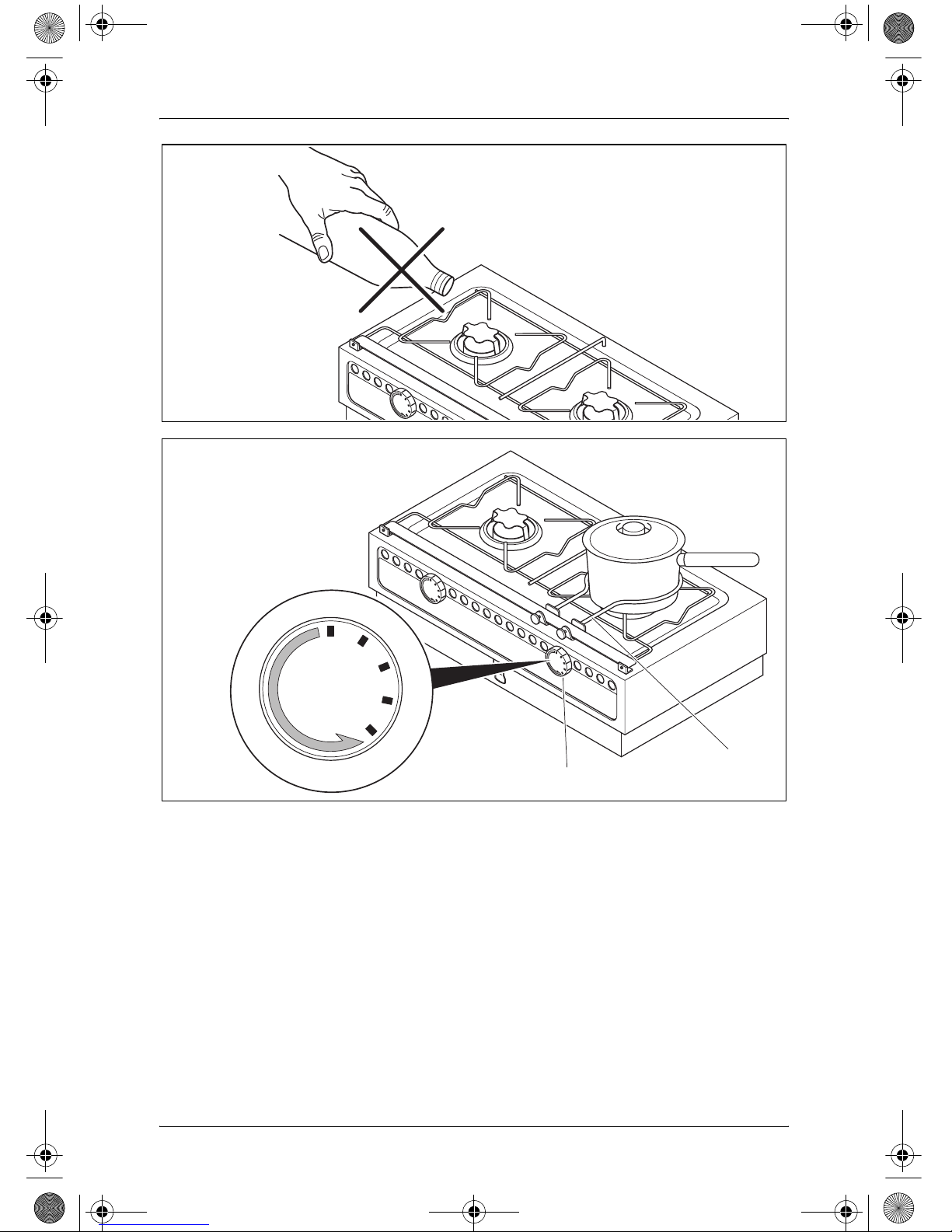

zNever fill the canisters while still in the stove. Never pour fuel
through the burner openings in top of the stove (fig. 1, page 2).
zOverfilling, spilt alcohol and hot objects can cause severe
burns.
zDenatured alcohol burns with almost invisible flame, so great
damage can arise before you notice the danger.
azMop up any spilt alcohol immediately to prevent uncontrollable
burning.
zDo not smoke when handling alcohol or when operating the
stove.
_Origo_1500_3000_6000.book Seite 10 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Scope of delivery
11
zFill the canister to the maximum capacity only. Alcohol expands
in the canister when heated. Overfilled alcohol can cause un-
controllable burning inside the stove.
2.3 Operating the device safely
dzUse long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
zWear proper clothing when operating the stove.
Do not wear hanging garments which can catch fire.
azLet the stove cool down to ambient temperature before you
touch it with bare hands.
zKeep the area surrounding the stove and interior parts free of
grease, fat, alcoholic substances, plastic or inflammable cloths
(for instance curtains, towels, kitchen utensils).
zUse only pots and pans with a maximum diameter of 23 cm.
zWhen cooking ensure that pans and pots are securely in posi-
tion. Recommended is the use of pot holders (fig. 22, page 2,
accessory).
zBe careful when heating grease or oil. Grease and oil catch fire
when exposed to great heat.
zUse only dry pot cloths to prevent the formation of steam. Do not
use towels or the like instead of pot cloths as these can catch
fire.
zNever leave the stove unattended when cooking. Pots boiling
over can cause smoke and fires.
zMove the burner control (fig. 21, page 2) to the off position
before removing the pot.
zDo not use the stove to heat the environment.
3 Scope of delivery
zStove
zGasket per canister
z6000, 6200 only: Gimbals
_Origo_1500_3000_6000.book Seite 11 Freitag, 29. Januar 2010 4:09 16

Accessories Dometic ORIGO
12
4 Accessories
5 Intended use
The Dometic ORIGO stoves are designed for use in vehicles or boats.
6 Technical description
6.1 Function
Stoves and ovens are made of stainless steel and use the absorption
principle. The canister has a capacity of 1.2 l. Denatured alcohol is used as
fuel.
Alcohol is absorbed into a non-flammable material in the canister. They are
not equipped with fuel valve or fuel lines, which can develop leaks, or with
other such components requiring regular service.
6.2 Specifications for the device variants
Various stove versions are available.
z1500: single-burner unit
z3000: double-burner unit
z6000: double-burner unit with additional oven
z6100: oven without cooktop for build-in mounting
z6200: oven without cooktop, can be combined with 3000
To define your device see the item number on the type plate.
Description Art.-Nr.
1500 3000 6000
Gimbals 9103303983 –
Pot Holder 9103303980 9103303980
Cutting Board 9103303988 9103303985 9103303985
Canister 9103303993 9103303993
_Origo_1500_3000_6000.book Seite 12 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Technical description
13
6.3 Operating elements
Operating elements for operation with denatured alcohol (fig. 2,
page 2):
Operating elements of Origo 6000 and 6200 (fig. 3, page 3):
Operating elements of Origo 6100 (fig. 4, page 3):
No. Description
1 Control knob
– “0”: burner closed
– “4”: burner open
2 Pot holder (accessory)
No. Description
1 Burner opening of stove
2 Knob for regulating the stove
3 Swing locking device
4 Oven knob for regulating the oven
– “0”: burner closed
– “4”: burner open
5 Oven thermometer
6 Catch of stove top
No. Description
1 Oven knob for regulating the oven
– “0”: burner closed
– “4”: burner open
2 Oven thermometer
_Origo_1500_3000_6000.book Seite 13 Freitag, 29. Januar 2010 4:09 16

Mounting the stove Dometic ORIGO
14
7 Mounting the stove
You can fit the stove (1500/3000) into the countertop of your kitchen. Place
Origo 6000 – 6200 into your kitchen.
7.1 Selecting the installation location
When selecting the installation location, observe the following instructions:
zSelect a well-ventilated location for the device.
zAvoid draft at the installation location.
If you fit the stove in an open cockpit or other open areas mount an
additional wind protection.
zDo not operate the device in spaces where danger of explosion is
present.
zLeave a clearance of at least 50 mm to the side walls and 750 mm to
uninsulated surface above the stove.
zIf gimbals are used (accessory for 1500 and 3000), ensure that the stove
can swing freely.
z6000, 6200: Leave at least 100 mm to the back wall and 750 mm to
uninsulated surface above the oven.
z6000, 6200: Ensure you have ample room to swing the gimballed range.

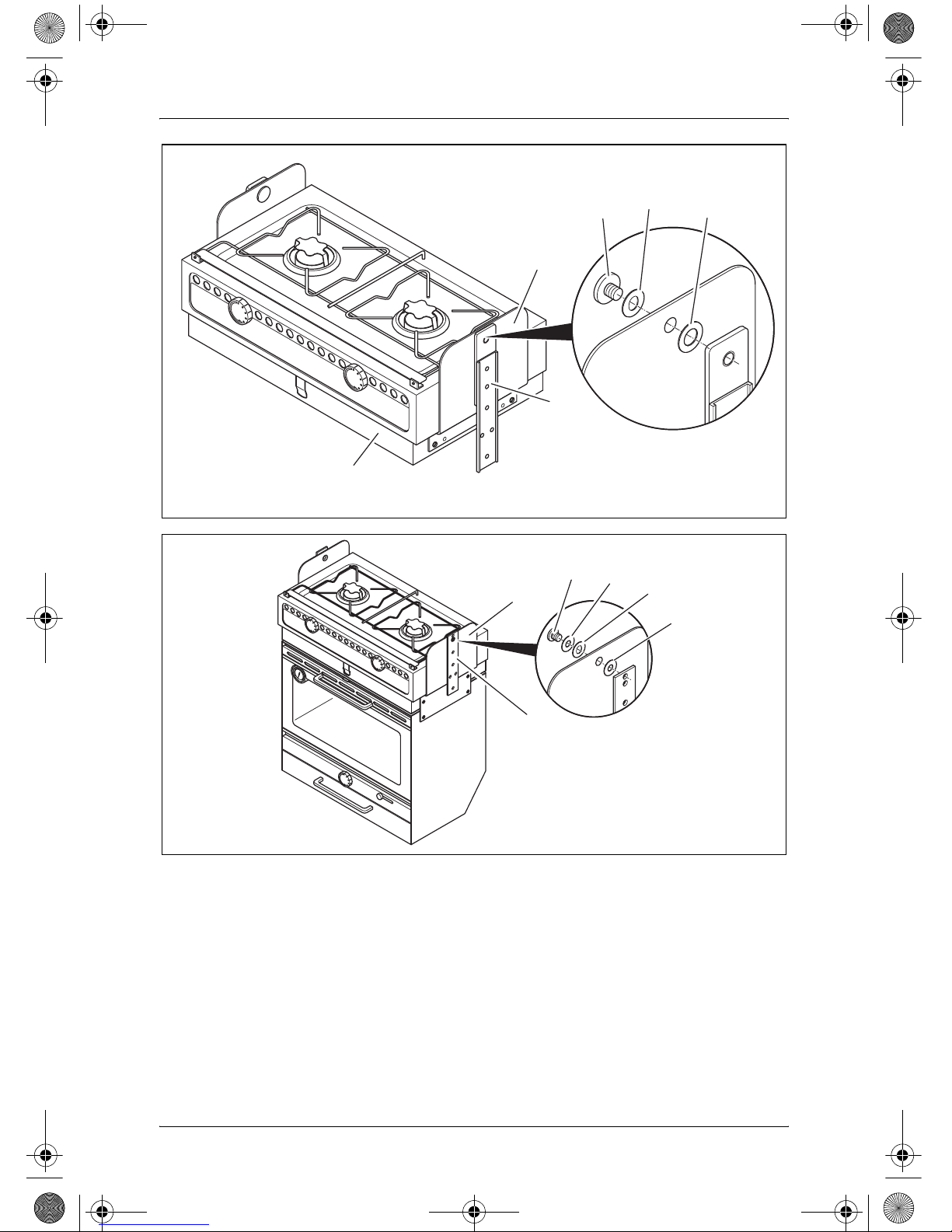

7.2 Installing the stove (fig. 5, page 4)
aCaution – Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or
other parts of the vehicle can be damaged by drilling, sawing and
filing.
If you don’t use gimbals, mount the stove as follows:
➤Drill through the markings in the stove bottom.
➤Fasten the stove through the holes in place.
_Origo_1500_3000_6000.book Seite 14 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Mounting the stove
15
The manufacturer recommends the use of gimbals to mount ORIGO 1500 or
3000 (accessory). Mount the gimbals as follows:
➤Fasten the gimbal sideplates (1) to the lower body of the stove (3) using
the enclosed nuts and bolts.
INote
The gimbal arms (2) can be turned to enable the stove (3) to be
lowered forwards or backwards.
➤Before mounting the gimbal arms (2), make a test by attaching them to
the gimbal sideplates (1) in order to determine which alternative is right
for your boat.
Remember, when the gimbals are in down position, the stovetop must be
raised to full upright position in order to remove the fuel canisters for fill-
ing.
Ensure the installation is done according to fig. 5, page 4.
➤Place the fibre washers (4) with round holes on the gimbal arms (2).
➤Lift the stove into position.
➤Place the fibre washers (5) with oblong holes on the gimbal sidearms (2).
➤Fasten the screws (6).
➤Adjust the tension of the screws to the desired friction.
➤Place a class B-1 fire extinguisher in reaching distance.
_Origo_1500_3000_6000.book Seite 15 Freitag, 29. Januar 2010 4:09 16

Mounting the stove Dometic ORIGO
16
7.3 Installing Origo 6000 and 6200 (fig. 6, page 4)
aCaution – Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
➤Determine the best position for the pivot points by placing the range in the
desired position.
➤Open the stovetop.
➤Mark the fixing points through the holes in the gimbal sideplates (1).
➤Remove the range.
➤Fasten the gimbal arms (2) with fibre washers and screws removed.
➤Fit one fibre washer with round hole (3) on each gimbal arm (2).
➤Lift the range in-between gimbal arms (2) so that the gimbal sideplates will
spring into place on the gimbal arms (2).
➤With open stovetop fit the fibre washers with oblong holes (4) to the
gimbal arm (2).
Ensure they fit properly on the gimbal arms (2) so they can't rotate.
➤Fit steel washers (5), screws (6) and tighten.
➤Adjust the tension of the screws to desired friction.
➤Place a class B-1 fire extinguisher in reaching distance.
7.4 Installing Origo 6100
aCaution – Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
➤Make a cutout with the following dimensions (W x H x D):
490 x 530 x 400 mm.
➤Place the oven into the cutout.
➤Fix the oven.
➤Place a class B-1 fire extinguisher in reaching distance.
_Origo_1500_3000_6000.book Seite 16 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Using the stove
17
8 Using the stove
8.1 Filling-in denatured alcohol
dCaution! Danger of injury!
Never pour fuel through the burner openings in top of the stove
(fig. 1, page 2).
Overfilling, spilt alcohol and hot objects can cause severe burns.
INote
If the stove is mounted with gimbals located in down position, the
stovetop must be raised to full upright position in order to remove
the fuel tanks for filling.
➤Ensure all burners are turned off: turn the knob to “0”.
Otherwise the stove top cannot be opened.
➤Ensure the stove is cooled down to room temperature.
➤Pull the lower edge of the stovetop slightly forward while simultaneously
pressing the catch (fig. 7, page 5).
➤Lift the stovetop.
➤Check canister opening ensuring there’s neither fire nor glow.
➤Take out the canister.
➤Hold the canister tilted down (fig. 8, page 5).
➤Fill the denatured alcohol through the wire mesh into the opening of the
canisters.
The maximum capacity per canister must not exceed 1.2 l.
➤Check the fuel level by tilting the canister vertically (fig. 9, page 5).
Keep it in this position for 20 s, to make sure it's not overfilled. In addi-
tion, in the case of accidental overfilling you can get rid of the surplus
fuel.
✓The maximum fuel level is reached when the fuel is visible at the bottom
of the opening.
INote
The stove will operate even if the canister isn’t filled with the
maximum capacity.
_Origo_1500_3000_6000.book Seite 17 Freitag, 29. Januar 2010 4:09 16

Using the stove Dometic ORIGO
18
➤Wipe possible spilt alcohol off the outside of the canister.
➤Replace the canister.
➤Close the stovetop.
The knobs must be in “0”-position; otherwise the stove top will not fold.
✓The catch locks.
➤Ensure the regulating plates cover the burner openings so that stovetop
is level.
8.2 Filling-in denatured alcohol for the oven
(6000 – 6200 only)
dCaution! Danger of injury!
Never pour fuel through the burner opening in top of the oven.
Overfilling, spilt alcohol and hot objects can cause severe burns.
➤Ensure the burner is turned off: turn the oven knob to “0”.
➤Ensure the oven is cooled down to room temperature.
➤Open the burner lid.

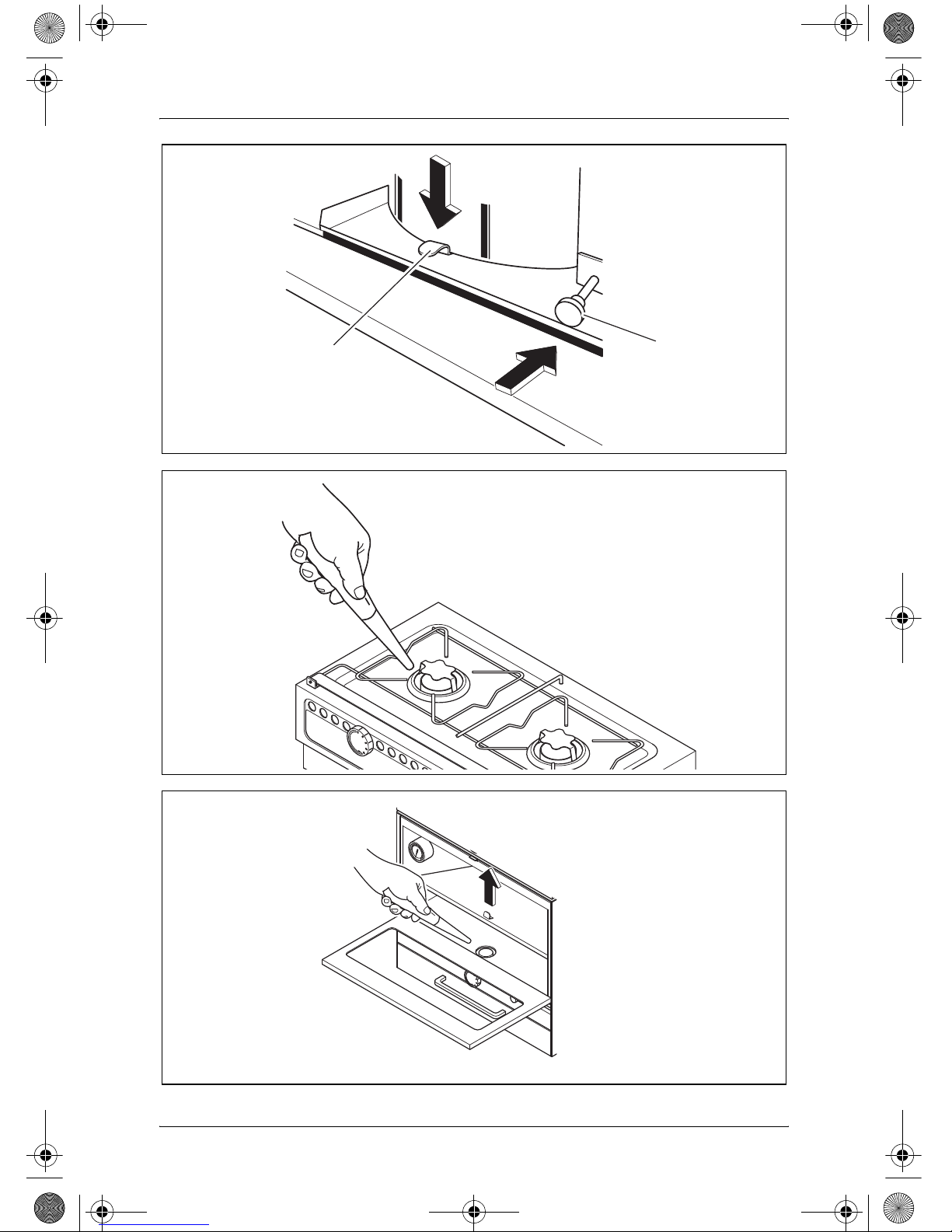

➤Push the knob (fig. 02, page 6) while simultaneously pressing the catch
(fig. 01, page 6).
➤Take out the canister.
➤Check canister opening ensuring there’s neither fire nor glow.
➤Hold the canister tilted down (fig. 8, page 5).
➤Fill the denatured alcohol through the wire mesh into the opening of the
canisters.
The maximum capacity per canister must not exceed 1.2 l.
➤Check the fuel level by tilting the canister vertically (fig. 9, page 5).
Keep it in this position for 20 s, to make sure it's not overfilled. In addi-
tion, in the case of accidental overfilling you can get rid of the surplus
fuel.
✓The maximum fuel level is reached when the fuel is visible at the bottom
of the opening.
_Origo_1500_3000_6000.book Seite 18 Freitag, 29. Januar 2010 4:09 16

Dometic ORIGO Using the stove
19
INote
The oven will operate even if the canister isn’t filled with the
maximum capacity.
➤Wipe possible spilt alcohol off the outside of the canister.
➤Replace the canister into the compartment.
✓The catch locks.
8.3 Lighting the stove
dCaution! Danger of injury!
Use long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
➤Turn the knob to “4”.
✓The burner is open.
➤Light the stove by placing a long match or a long lighter to the burner
opening (fig. a, page 6).
➤Adjust the flame so it does not extend beyond the edge of the pot.
➤Choose the desired power setting via knob.
INote
If the stove hasn’t cooled down from previous use, the burner may
ignite but immediately extinguish. In this case blow air into the
burner opening to dissipate vapour.
Afterwards light the stove as described above.
_Origo_1500_3000_6000.book Seite 19 Freitag, 29. Januar 2010 4:09 16

Using the stove Dometic ORIGO
20
8.4 Lighting the oven
dCaution! Danger of injury!
Use long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
➤Turn the oven knob to “4”.
✓The burner is open.
✓Open the oven door.
➤Lift the burner lid (fig. b1, page 6).
➤Light the oven by placing a long match or a long lighter to the burner open-
ing (fig. b2, page 6).
➤Choose the desired power setting via oven knob.
INote
If the oven hasn’t cooled down from previous use, the burner may
ignite but immediately extinguish. In this case blow air into the
burner opening to dissipate vapour.
Afterwards light the oven as described above.
8.5 Extinguish the flame
➤Turn the knob to “0”.
✓The burned is closed.
➤Wait about five seconds.
➤Turn the knob to “4” to make sure the flame is extinguished.
✓The burner is open.
➤Turn the knob to “0”.
✓The burner is closed.
_Origo_1500_3000_6000.book Seite 20 Freitag, 29. Januar 2010 4:09 16
