Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Using the cooker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8 Maintaining and cleaning the cooker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

EN
Origo Explanation of symbols
9
1 Explanation of symbols
!
!
A
I
2 General safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Operate the cooker only with denatured alcohol. Do not use other
fuels such as gasoline and diesel, methanol, propane or charcoal
lighter.
•Beware of suffocation!
Ensure proper ventilation before putting the cooker into operation.
•Keep a suitable fire extinguisher in the immediate vicinity. Ensure that
the fire extinguisher is regularly checked by a specialist.
•People (including children) whose physical, sensory or mental capac-
ities or whose lack of experience or knowledge prevent them from
using this product safely should not use it without the supervision or
instruction of a responsible person.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.

EN
General safety instructions Origo
10
•During and immediately after use, some accessible elements can be
very hot. Do not touch and keep children away from the device.
•Ensure after cooking that all controls are placed in the neutral position
(0).
ANOTICE!
•Use the stove only as intended.
2.2 Safety precautions when handling denatured alcohol
!WARNING!
•Keep inflammable substances away from heating and cooking devices
and other light and heat sources.
•Only store denatured alcohol in appropriate containers and well away
from the stove.
•Ensure that there is no danger of sparksand flames in the storage place
or filling location for denatured alcohol.
•Never fill the canisters in the cooker. Never pour alcohol through the
burner openings in the cover (fig. 1, page 3).
•Fill the canister only to the maximum capacity (see chapter “Fill the
cooker with denatured alcohol” on page 14). Heated denatured alco-
hol expands in the canister. Overflowing denatured alcohol causes
uncontrolled burning in the cooker.
•Overfilled canisters, spilled denatured alcohol and hot surfaces can
cause severe burns.
•Wipe away any denatured alcohol to prevent uncontrolled burning.
ANOTICE!
•Mop up any spilt alcohol immediately to prevent uncontrollable burn-
ing.
•Do not smoke when handling alcohol or when operating the stove.
•Fill the canister to the maximum capacity only. Alcohol expands in the
canister when heated. Overfilled alcohol can cause uncontrollable
burning inside the stove.

EN
Origo General safety instructions
11
2.3 Operating the device safely
!WARNING!
•Use long matches or an extended lighter to light the burner.
Quickly remove your hand as soon as the burner ignites.
•Wear proper clothing when operating the device.
Do not wear loose hanging clothing which might catch fire.
•Let the device cool down to ambient temperature before you touch it
with bare hands.
!CAUTION!
•Keep the area surrounding the device and interior parts free of grease,
fat, alcoholic substances, plastic or inflammable cloths (for instance
curtains, towels, kitchen utensils).
•Use only pots and pans with a maximum diameter of 23 cm (20 cm
with optional potholder).
•When cooking ensure that pans and pots are securely in position. It is

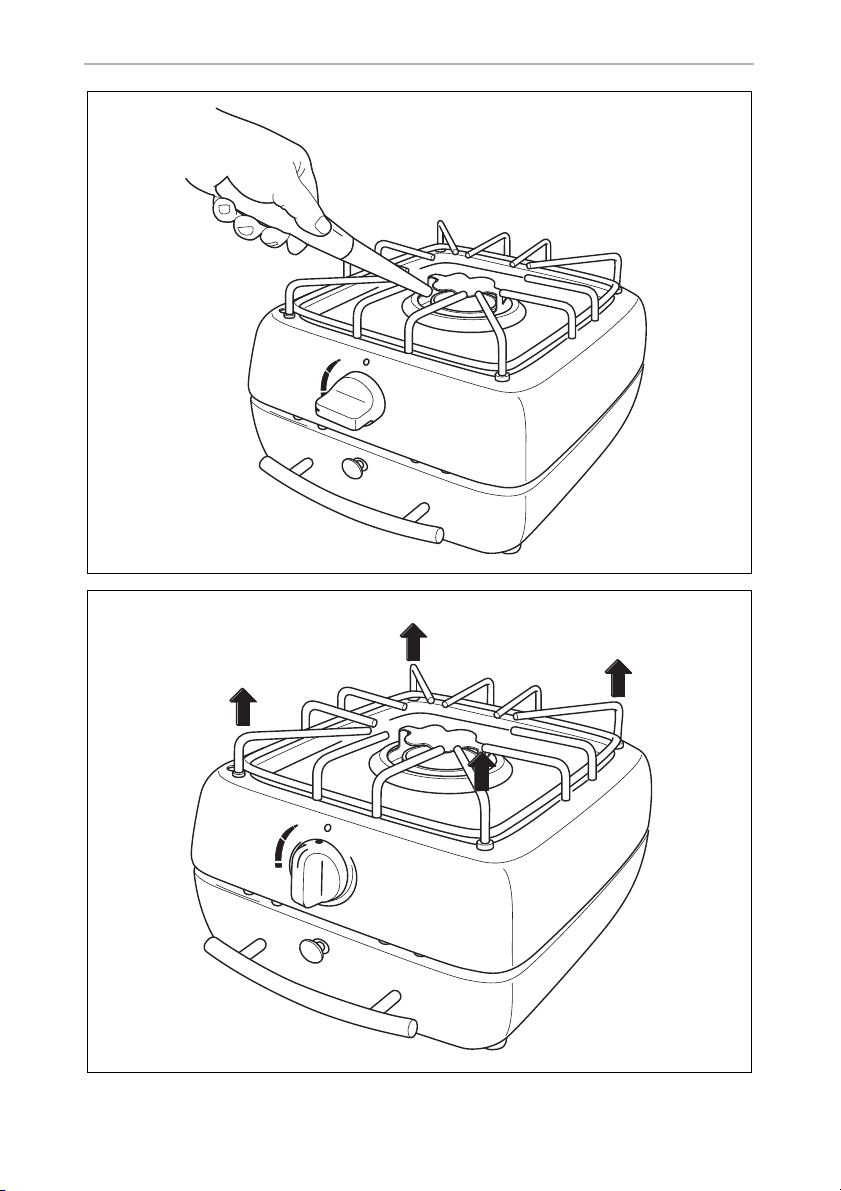

advisable to use potholders (accessory, fig. 41, page 4).
•Never allow pot handles to extend beyond the edge of the stove. Turn
pot handles inward, but not extending over other burners. This will
minimize the possibility of spillage, ignition of flammable materials
and/or serious burns.
•Be careful when heating grease or oil. Grease and oil catch fire when
exposed to great heat.
•Use only dry pot cloths to prevent the formation of steam. Do not use
towels or similar materials, as these can catch fire.
•Only operate the device when you or another person can attend to it.
Pots boiling over can cause smoke and fires.
•Set the control knob to the neutral setting (0) (fig. 23, page 3)
before removing the pot or pan from the hob.
•Do not use the stove to heat the room.
•Hot parts should not be allowed to come into contact with grease,
water or any other liquids.

EN
Scope of delivery Origo
12
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The devices ORIGO ONE and ORIGO TWO are unpressurized alcohol stoves for use
in vehicles and boats. The cooker may only be used for cooking foods.
The stove is installed on a freestanding basis. For use on boats, the cooker can be fit-
ted with a gimbal mounting (accessory).
The cooker cannot be operated in enclosed spaces (e.g. tents or awnings). Let the
cooker cool completely before transporting it.
No. in
fig. 3, page 4
Quantity
Description
ORIGO ONE ORIGO TWO
1 1x – Cooker with 1 burner
2 – 1x Cooker with 2 burners
3 1x 2x Sealing washer
4 1x 2x Canister
No. in
fig. 4, page 4 Description Item no.
1 Pot Holder 9103303828
2 Gimbal 9103303827
- Cutting board 9103303829

EN
Origo Technical description
13
6 Technical description
6.1 Function description
The stove is made of stainless steel and operates according to the absorption
principle.
The denatured alcohol is absorbed in the canister of a non-combustible material. The
canisters are maintenance-free.
6.2 Control elements
7 Using the cooker
7.1 Setting up the cooker
When selecting the installation location, observe the following instructions:
•Select a well-ventilated location for the device.
•Ensure that there are no drafts in the installation location.
•Do not operate the device in areas that are potentially explosive.
•Ensure the following minimum clearances
– 50 mm to side and back walls
– 750 mm to the ceiling
No. in
fig. 2, page 3 Description

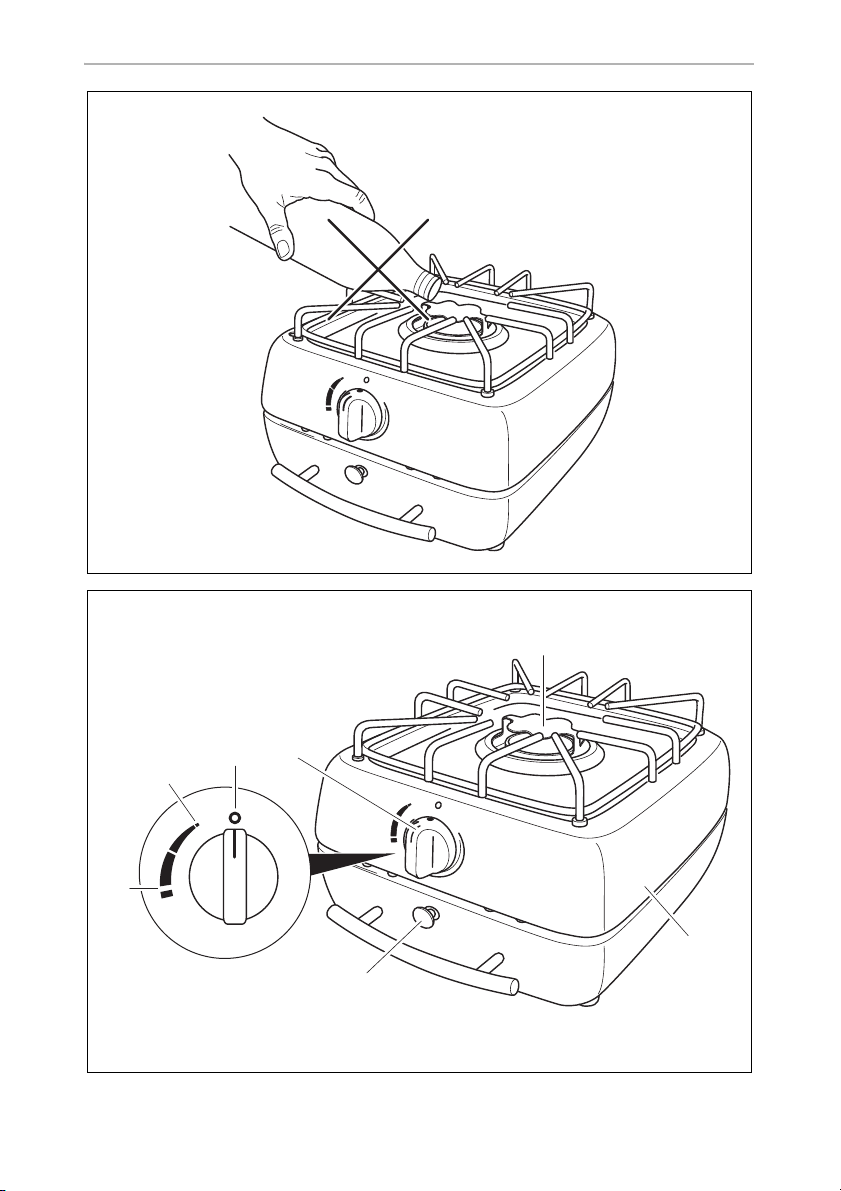

1 “Large flame” setting
2 “Small flame” setting
3 Zero setting (0)
4 Controller for hob
5 Burner opening
6Hob
7 Button for opening the cooker

EN
Using the cooker Origo
14
•If you are using gimbal mountings (accessory), make sure that the cooker can
swing freely.
•Leave sufficient space for the vibration of the gimbal mounting.
7.2 Fill the cooker with denatured alcohol
!
➤Turn all controls to the zero position (0) (fig. 23, page 3). Otherwise the stove
top cannot be opened.
➤Ensure the stove is cooled down to ambient temperature.

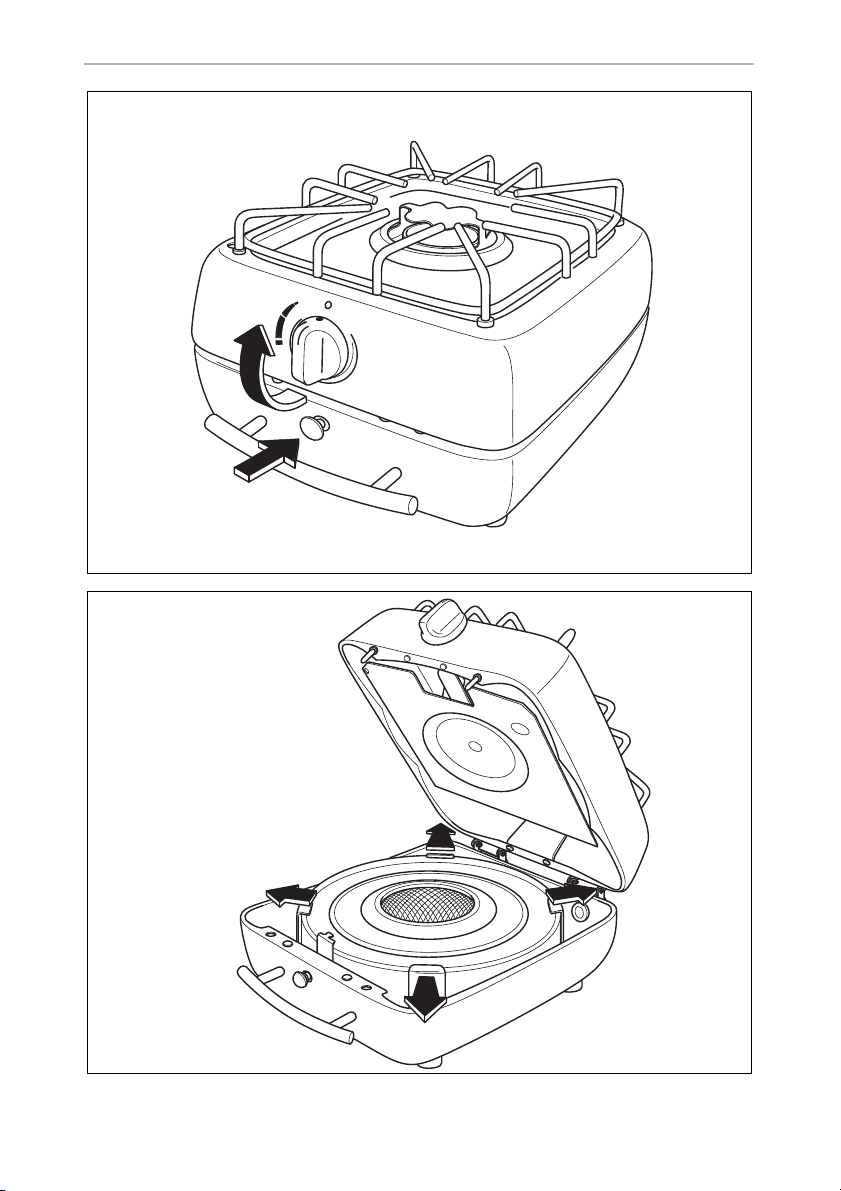

➤Hold down the button on the front of the cooker (fig. 5, page 5).
➤Lift the stovetop (fig. 5, page 5).
➤Check the opening of the canister to ensure that there are neither fire nor embers.
➤Loosen the retaining clips and remove the canister (fig. 6, page 5).
➤Hold the canister obliquely downward (fig. 7, page 6).
➤Fill denatured alcohol into the mouth of the canister.
The maximum capacity of 1.2 litres per canister must not be exceeded.
✓The maximum fuel level is reached when the fuel is visible at the bottom of the
opening (fig. 8, page 6).
I
➤Check the permissible load capacity by holding the canister vertically down-
wards.
Keep it in this position for 20 seconds, to make sure it’s not overfilled. The excess
fuel can escape in this way.
➤Clean the outside of the canister of any remaining denatured alcohol.
➤Put in the canister so that all retaining clips lock in.
WARNING! Beware of injury.
•Never fill the canisters in the cooker. Never pour alcohol through the
burner openings in the cover (fig. 1, page 3).
•Overfilled canisters, spilled denatured alcohol and hot surfaces can
cause severe burns.
NOTE
The cooker also works when the canister is not filled to maximum
capacity.

EN
Origo Using the cooker
15
➤Close the stovetop (fig. 26, page 3). The stovetop can only fold when the
regulator is in the zero position (0) are.
✓The catch locks.
➤Make sure that the unit is properly closed and that the cooker ports are fully
closed.
7.3 Turn on the cooker
!
➤Turn the knob all the way up (fig. 21, page 3).
✓The burner is open.
➤Light the burner by placing a long match or a long lighter to the burner opening
(fig. 9, page 7).
➤Choose the desired power setting via knob. The flame must not extend beyond
the edge of the pot.
I
7.4 Switching off the hob
➤Turn the respective controls to the zero position (0) (fig. 23, page 3).
➤Wait about five seconds.
➤Turn the knob all the way up (fig. 21, page 3) to check whether the flame is
extinguished.
➤Turn the knob to the zero position (0) (fig. 23, page 3).
WARNING! Beware of injury.
•Use long matches or long lighters to light the burner.
•Quickly remove your hand as soon as the burner ignites.
NOTE
If the flame immediately goes out after ignition, blow air into the burner
opening.
Then ignite the cooker as described.

EN
Maintaining and cleaning the cooker Origo
16
7.5 Seal the canister with the sealing washer
Seal each canister with the gasket made of rubber (fig. 33, page 4) if you do not
wish to use the cooker for an extended period. In this way you prevent the evapora-
tion of alcohol.
➤Turn all controls to the zero position (0) (fig. 23, page 3). Otherwise the stove
top cannot be opened.
➤Ensure the stove is cooled down to ambient temperature.
➤Hold down the button on the front of the cooker (fig. 5, page 5).
➤Lift the stovetop (fig. 5, page 5).
➤Close the opening of the canister with the gaskets.
➤Close the stovetop.
✓The catch locks.
➤Make sure that the unit is properly closed and that the cooker ports are fully
closed.
I
8 Maintaining and cleaning the cooker
A
➤Occasionally clean the product with a damp cloth.
➤Remove the grate from the top of the device by gently pulling it up (fig. 0,
page 7).
➤Clean the hob (fig. 26, page 3). Carefully remove stubborn grease and oil
stains.
NOTE
Remove the rubber seals before reusing.
NOTICE!
Do not use sharp or hard objects or cleaning agents for cleaning as these
may damage the product.

EN
Origo Guarantee
17
9Guarantee
The statutory warranty period applies. If the product is defective, please contact your
retailer or the manufacturer's branch in your country (see the back of the instruction
manual for the addresses).
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
11 Technical data
ORIGO ONE ORIGO TWO
Item no.: 9103303977 9103303978
Number of burners: 1 2
Burning duration: Approx. 4.5 h
Power of burner: 2000 W
Cooking time for 1 litre of water: 10 mins
Max. load capacity per canister: 1.2 l
Dimensions (W x D x H)/mm: 237 x 301 x 157 464 x 303 x 157
Dimensions with accessories
(W x D x H)/mm: 295 x 301 x 266 522 x 303 x 266
Weight: 2.9 kg 5.6 kg

DE
Origo
18
Bitte lesen Sie diese Anleitung vor der Inbetriebnahme sorgfältig durch
und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des
Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2 Allgemeine Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Zubehör. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Kocher verwenden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8 Kocher pflegen und reinigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Garantie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DE
Origo Erklärung der Symbole
19
1 Erklärung der Symbole
!
!
A
I
2 Allgemeine Sicherheitshinweise
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Beschädigungen am Produkt durch mechanische Einflüsse
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
2.1 Allgemeine Sicherheit
!WARNUNG!
•Betreiben Sie den Kocher nur mit Brennspiritus. Verwenden Sie keine
anderen Brennstoffe wie zum Beispiel Benzin- oder Dieselkraftstoffe,
Methylalkohol, Propangas oder Grillkohleanzünder.
•Erstickungsgefahr!
Sorgen Sie vor der Inbetriebnahme des Kochers für ausreichende
Belüftung.
•Montieren Sie in Greifnähe einen Feuerlöscher der Klasse A
(für Spiritusflammen).
Lassen Sie den Feuerlöscher regelmäßig von zugelassenem Fach-
personal prüfen.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.

DE
Allgemeine Sicherheitshinweise Origo
20
•Personen (einschließlich Kinder), die aufgrund ihrer physischen, sen-
sorischen oder geistigen Fähigkeiten oder ihrer Unerfahrenheit oder
Unkenntnis nicht in der Lage sind, das Produkt sicher zu benutzen,
sollten dieses Produkt nicht ohne Aufsicht oder Anweisung durch eine
verantwortliche Person nutzen.
•Während und sofort nach dem Gebrauch können einige zugängliche
Elemente sehr heiß sein. Nicht berühren und Kinder vom Gerät fern-
halten.
•Stellen Sie nach dem Kochen sicher, dass alle Regler in Nullstellung (0)
gestellt sind.
AACHTUNG!
•Benutzen Sie den Kocher nur zu seinem bestimmungsgemäßen
Gebrauch.
2.2 Sicherheit im Umgang mit Brennspiritus
!WARNUNG!
•Halten Sie brennbare Substanzen fern von Heiz- und Kochgeräten
und anderen Licht- und Wärmequellen.
•Lagern Sie Brennspiritus nur in geeigneten Behältnissen und in aus-
reichender Entfernung vom Kocher.
•Sorgen Sie dafür, dass am Aufbewahrungsort für Brennspiritus oder
am Auffüllort keine Gefahr von Funken- und Flammenbildung besteht.
•Befüllen Sie die Brennertöpfe niemals im Kocher. Füllen Sie niemals
Spiritus durch die Brenneröffnungen in der Abdeckung ein (Abb. 1,
Seite 3).
•Befüllen Sie den Brennertopf nur mit der maximalen Füllmenge (siehe
Kapitel „Kocher mit Brennspiritus befüllen“ auf Seite 24). Erwärmter
Brennspiritus dehnt sich im Brennertopf aus. Überlaufender Brenn-
spiritus verursacht unkontrolliertes Verbrennen im Kocher.
•Überfüllte Brennertöpfe, verschütteter Brennspiritus und heiße Ober-
flächen können zu schweren Verbrennungen führen.
•Brennspiritus brennt mit fast unsichtbarer Flamme, so dass ein großer
Schaden bereits entstanden sein kann, bevor Sie die Gefahr bemerkt
haben.
AACHTUNG!
•Wischen Sie verschütteten Brennspiritus immer sofort auf, um ein
unkontrolliertes Verbrennen zu verhindern.
