Dometic ORIGO A100 User manual

Alcohol and alcohol/electric stoves
Operating manual . . . . . . . . . . . . . . . 7
Spirituskocher und Spiritus-/
Elektrokocher
Bedienungsanleitung . . . . . . . . . . . . 21
Cuisinières à alcool et à alcool/
électriques
Notice d’utilisation . . . . . . . . . . . . . . 37
Hornillos de alcohol y de alcohol/
eléctricos
Instrucciones de uso . . . . . . . . . . . . 53
Spiritus- en spiritus-/elektrische
kooktoestellen
Gebruiksaanwijzing . . . . . . . . . . . . . 69
Fornelli ad alcool e alcool/elettrici
Istruzioni per I’uso . . . . . . . . . . . . . . 84
Sprii- ja sprii-/sähkökeitin
Käyttöohje . . . . . . . . . . . . . . . . . . . 100
Spritkök och sprit-/elkök
Bruksanvisning . . . . . . . . . . . . . . . 114
EN
DE
FR
ES
NL
IT
FI
SV
ORIGO A100
ORIGO A200
ORIGO C100
ORIGO C200
i
ORGIO A200
i
ORGIO A200
_Origo_A100_A200_C100_C200.book Seite 1 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
2
i
1
i
ORGIO A200
2
1
1
2
_Origo_A100_A200_C100_C200.book Seite 2 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
3
i
ORGIO C200
1 1 2 32 3
3
1
4
_Origo_A100_A200_C100_C200.book Seite 3 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
4
1
2
5
> 50 mm (2")
> 750 mm
(30")
> 50 mm (2")
i
ORGIO A200
6
_Origo_A100_A200_C100_C200.book Seite 4 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
5
ORGIO A200
7
8
9
_Origo_A100_A200_C100_C200.book Seite 5 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
6
0
_Origo_A100_A200_C100_C200.book Seite 6 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO
7
Please read this manual carefully before installing and starting up the
device, and store it in a safe place. If the device is passed on to another
person, this manual must also be handed over with it.
Table of contents
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Mounting the stove. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Using the stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Cleaning and maintaining the stove. . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
_Origo_A100_A200_C100_C200.book Seite 7 Freitag, 13. Februar 2009 7:33 19

Notes on using the manual Dometic ORIGO
8
1 Notes on using the manual
dWarning!
Safety instruction: failure to observe this instruction can cause
material damage or personal injury.
aCaution!
Safety instruction: Failure to observe this instruction can cause
material damage and impair the function of the device.
eWarning!
Safety instruction relating to a danger from an electrical current or
voltage. Failure to observe this instruction can cause material
damage or personal injury and impair the function of the device.
INote
Supplementary information for operating the device.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from
the following:
zFaulty assembly or connection
zDamage to the appliance resulting from mechanical influences and
excess voltage
zAlterations to the device without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
_Origo_A100_A200_C100_C200.book Seite 8 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO General safety instructions
9
Please observe the following basic safety information when using electrical
devices to protect against:
zElectric shock
zFire hazards
zInjury
2.1 General safety
dzUse denatured alcohol only. Do not use other fuels such as
gasoline, diesel, methanol, propane or charcoal lighter.
zDanger of asphyxiation!
Before starting the device, ensure that the area is sufficiently
ventilated.
zPlace a class A fire extinguisher (for alcohol fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
zPersons whose physical, sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
zElectric devices are not toys
Keep electrical appliances out of reach of children or infirm
persons. Do not let them use the appliances without super-
vision.
azUse the stove only as intended.
Dometic ORIGO alcohol/electric stoves C100 and C200 only
ezPlace a class B-1 fire extinguisher (for electric fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
zAlways disconnect the power supply when working on the
device.
zMaintenance and repair work may only be carried out by
qualified personnel who are familiar with the risks involved and
the relevant regulations.
_Origo_A100_A200_C100_C200.book Seite 9 Freitag, 13. Februar 2009 7:33 19

General safety instructions Dometic ORIGO
10
zIf the connection cable is damaged, it must be replaced by
qualified personnel.
Inadequate repairs can lead to considerable hazards.
zIf the stove is not fitted with an accessible plug, all pole dis-
connection must be incorporated in the fixed wiring.
zInform yourself how to power-off the circuit breaker or the fuse
in the event of an emergency.
2.2 Safety precautions when handling denatured
alcohol
dzKeep inflammable substances apart from heating and cooking
devices and other light and heat sources.
zStore alcohol in suitable containers only and in sufficient
distance from the stove.
zEliminate all sources of sparks or flames where the alcohol is
stored or filled-in.
zNever fill the canisters while still in the stove. Never pour fuel
through the burner openings in top of the stove (fig. 1, page 2).
zOverfilling, spilt alcohol and hot objects can cause severe
burns.
zDenatured alcohol burns with almost invisible flame, so great
damage can arise before you notice the danger.
azMop up any spilt alcohol immediately to prevent uncontrollable
burning.
zDo not smoke when handling alcohol or when operating the
stove.
zFill the canister to the maximum capacity only. Alcohol expands
in the canister when heated. Overfilled alcohol can cause un-
controllable burning inside the stove.
_Origo_A100_A200_C100_C200.book Seite 10 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO General safety instructions
11
2.3 Operating the device safely
dzIf the voltage of the built-in 12 V lighter is insufficient, use long
matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
zWear proper clothing when operating the stove.
Do not wear hanging garments which can catch fire.
azLet the stove cool down to ambient temperature before you
touch it with bare hands.
zKeep the area surrounding the stove and interior parts free of
grease, fat, alcoholic substances, plastic or inflammable cloths
(for instance curtains, towels, kitchen utensils).
zUse only pots and pans with flat bottoms and with a maximum
diameter of 23 cm (9"). The pots and pans should be large
enough to cover the heating element. The use of undersized
utensils will expose a portion of the heating element to direct
contact and may result in ignition of clothing.
Proper sized utensils will also improve efficiency.
zWhen cooking ensure that pans and pots are securely in posi-
tion. Recommended is the use of pot holders (fig. 22, page 2,
accessory).
zNever allow pot handles to extend beyond the edge of the stove.
Turn pot handles inward, but not extending over other burners.
This will minimize the possibility of spillage, ignition of flamma-
ble materials and/or serious burns.
zBe careful when heating grease or oil. Grease and oil catch fire
when exposed to great heat.
zUse only dry pot cloths to prevent the formation of steam. Do not
use towels or the like instead of pot cloths as these can catch
fire.
zNever leave the stove unattended when cooking. Pots boiling
over can cause smoke and fires.
zMove the burner control (fig. 21, page 2) to the off position
before removing the pot.
zDo not use the stove to heat the environment.
zDometic Origo C100 and C200 only: Never use alcohol and
electrical burners simultaneously to prevent overheating which
can destroy the heating element.
_Origo_A100_A200_C100_C200.book Seite 11 Freitag, 13. Februar 2009 7:33 19

Scope of delivery Dometic ORIGO
12
zDometic Origo C100 and C200 only: Operating electrical
burners at a high setting without a filled pot can damage the
stove.
3 Scope of delivery
zStove
zOperating Manual
4 Accessories
5 Intended use
The Dometic ORIGO stoves are designed for use in vehicles or boats.
6 Technical description
6.1 Function
The stove is made of stainless steel and uses the absorption principle. The
canister has a capacity of 1.2 l. Denatured alcohol is used as fuel. The burner
is ignited by a built-in 12 V lighter.
Alcohol is absorbed into a non-flammable material in the canister. It is not
equipped with fuel valve or fuel lines, which can develop leaks, or with other
such components requiring regular service.
The Dometic ORIGO alcohol/electric stoves C100 and C200 are equipped
with a 1200 W (EU) or 1100 W (US) element. They can alternatively be
operated with alcohol or 120 V or 220–240 V.
Description Item no.
A100 A200 C100 C200
Pot Holder 958148110 958148110
_Origo_A100_A200_C100_C200.book Seite 12 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO Technical description
13
6.2 Specifications for the device variants
Various stove versions are available.
zA100 and C100: single-burner unit
zA200 and C200: double-burner unit
zC100 and C200: additional heating element for alternative operation at
the 120 V or 220–240 V mains
Each version is available with and without glass lid.
To define your device see the item number on the type plate located on the
right side of the stove.
6.3 Operating elements
Operating elements for operation with denatured alcohol (fig. 2,
page 2):
Operating elements for operation at 120 V or 220–240 V mains (fig. 3,
page 3) (Dometic ORIGO C100 and C200)
No. Description
1 Control knob, continuously adjustable
Turn counter-clockwise to increase the burner’s flame
2 Pot holder (accessory)
No. Description
1 Status LED
The LED is lit when the electrical power is turned on.
2 Power setting knob
Turn clockwise to increase the heating element’s power setting
_Origo_A100_A200_C100_C200.book Seite 13 Freitag, 13. Februar 2009 7:33 19

Mounting the stove Dometic ORIGO
14
7 Mounting the stove
You can fit the stove into the countertop of your kitchen.
7.1 Selecting the installation location
When selecting the installation location, observe the following instructions:
zSelect a well-ventilated location for the device.
zEnsure a minimum distance (fig. 6, page 4) of
– 50 mm (2") to side and back walls
– 750 mm (30") between stove coil element and horizontal surface
above the stove
zAvoid draft at the installation location.
If you fit the stove in an open cockpit or other open areas mount an
additional wind protection.
zAvoid cabinet storage space above the stove.
Otherwise you risk burns and fire when reaching over the stove.
zDo not operate the device in spaces where danger of explosion is
present.
7.2 Installing the stove
aCaution – Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
➤Cut a rectangular hole into the countertop (dimensions see following
table):
➤Open the top and remove the canisters.
➤Open up the hinge part in the back of the stove.
➤Place the stove according to fig. 4, page 3.
Model Dimensions W x D x H
A100 255 x 150 x 340 mm 10“ x 6” x 13 3/8"
A200 485 x 150 x 340 mm 19 1/8“ x 6” x 13 3/8"
C100 255 x 150 x 340 mm 10“ x 6” x 13 3/8"
C200 485 x 150 x 340 mm 19 1/8“ x 6” x 13 3/8"
_Origo_A100_A200_C100_C200.book Seite 14 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO Mounting the stove
15
➤Mark the drill holes.
Use the fastening holes in the hinge as a template.
➤Pre-drill the holes into the countertop where marked.
➤Fasten the stove by screwing flat head screws through each drill hole in
the hinge (fig. 52, page 4).
➤Install the magnetic locker in the front of the cutout (fig. 41, page 3).
➤Connect the built-in lighter’s terminal connection (fig. 51, page 4) to
12Vg.
➤Place a class B-1 fire extinguisher in reaching distance.
7.3 Connecting the stove electrically
(Dometic ORIGO C100 and C200 only)
eWarning! Danger of injury!
The stove may only be connected by a qualified specialist.
The following information is intended for technicians who are
familiar with the guidelines and safety precautions to be applied.
Observe the following safety instructions for the electrical connections:
ezWarning, risk of short circuit!
Always use sockets which are grounded and secured by
residual current circuit breakers.
zIf you have to feed cables through metal walls or other walls with
sharp edges, use ducts or tubes to prevent damage.
zDo not lay cables which are loose or bent next to electrically
conductive material (metal).
zFasten the cables securely.
zDo not pull on the cables.
zLay the cables so that they cannot be tripped over or damaged.
➤Check the type plate on the right side of the stove to ensure that the volt-
age of the unit matches the voltage of the source.
➤Connect the three conductors of the connection cable to the AC mains.
➤Secure the cable with a clamp.
_Origo_A100_A200_C100_C200.book Seite 15 Freitag, 13. Februar 2009 7:33 19

Using the stove Dometic ORIGO
16
8 Using the stove
8.1 Filling-in denatured alcohol
dWarning! Danger of injury!
Never pour fuel through the burner openings in top of the stove
(fig. 1, page 2).
Overfilling, spilt alcohol and hot objects can cause severe burns.
➤Ensure all burners are turned off:
– operation with denatured alcohol: turn the control knob to the Off
position
– operation at the 120 V or 220–240 V mains (C100 and C200 only):
switch heating elements off
➤Ensure the stove is cooled down to room temperature.

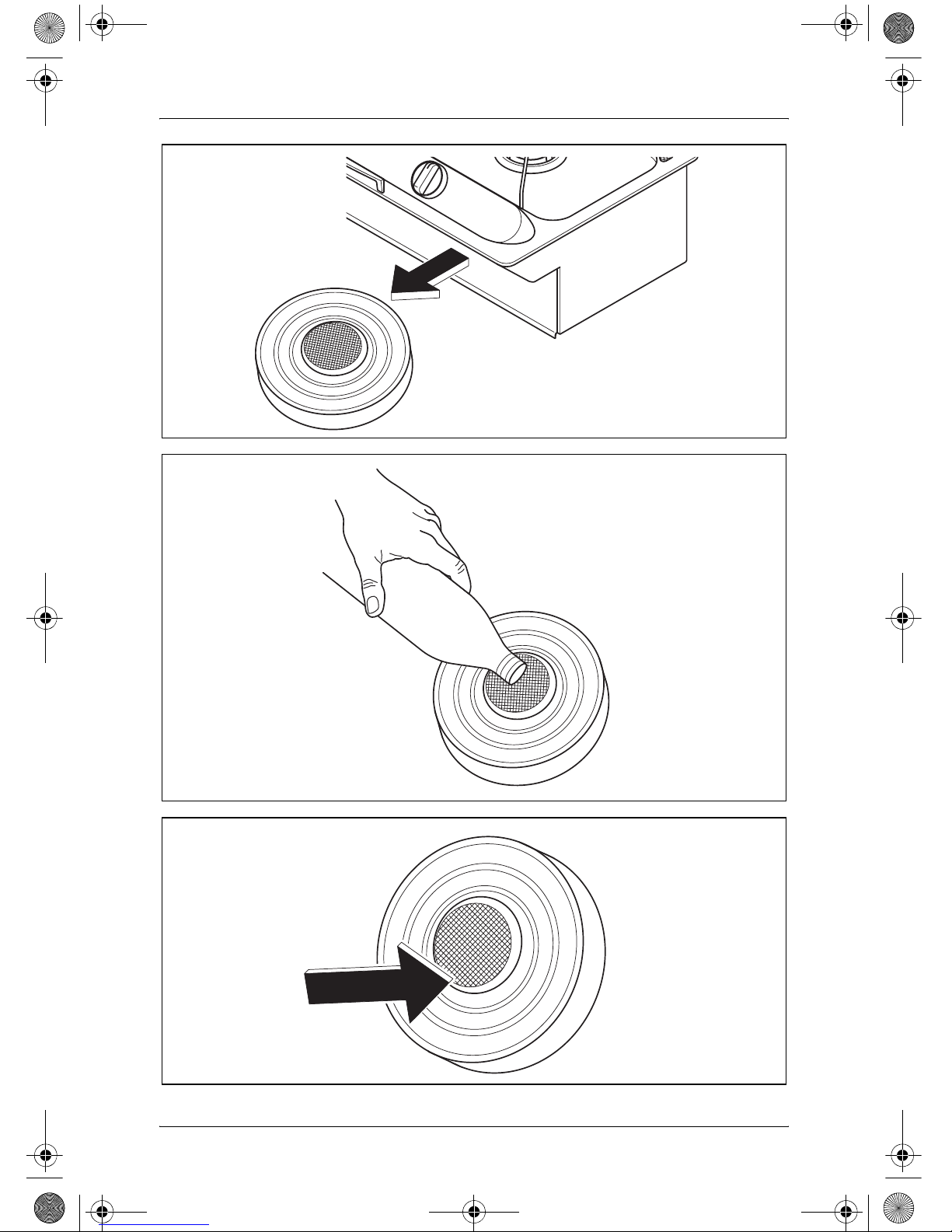

➤Open the stovetop (fig. 7, page 5).
➤Take out the canister.
➤Check canister opening ensuring there’s neither fire nor glow.
➤Make sure the canister is cool enough to be held in your bare hand before
filling.
➤Hold the canister tilted down (fig. 8, page 5).
➤Fill the denatured alcohol through the wire mesh into the opening of the
canisters.
The maximum capacity per canister must not exceed 1.2 l.
➤Check the fuel level by tilting the canister vertically (fig. 9, page 5).
Keep it in this position for 20 s, to make sure it's not overfilled. In addi-
tion, in the case of accidental overfilling you can get rid of the surplus
fuel.
✓The maximum fuel level is reached when the fuel is visible at the bottom
of the opening.
INote
The stove will operate even if the canister isn’t filled with the
maximum capacity.
➤Wipe possible spilt alcohol off the outside of the canister.
_Origo_A100_A200_C100_C200.book Seite 16 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO Using the stove
17
➤Replace the canister.
Check that the stovetop gets level and is not blocked in any way.
➤Close the stovetop until the magnetic lock engages.
8.2 Lighting the stove
➤Turn the control knob counter-clockwise to the ignition position.
✓The built-in 12 V lighter is activated and the burner is ignited. Depending
on temperature and the canister filling level, the time required may vary.
INote
If the voltage of the built-in 12 V lighter is insufficient, light the stove
by placing a long match or a long lighter to the burner opening
(fig. 0, page 6).
Quickly remove your hand as soon as the burner ignites.
➤Adjust the flame so it does not extend beyond the edge of the pot.
➤Choose the desired power setting via control knob.
INote
If the stove hasn’t cooled down from previous use, the burner may
ignite but immediately extinguish. In this case blow air into the
burner opening to dissipate vapour.
Afterwards light the stove as described above.
8.3 Extinguish the flame
➤Turn the control knob to the Off position.
✓The burned is closed.
➤Wait about five seconds.
➤Turn the control knob to the Maximum position to make sure the flame is
extinguished.
✓The burner is open.
➤Turn the control knob to the Off position.
✓The burner is closed.
➤If applicable, wait until the stove has cooled down completely before re-
placing the glass lid.
_Origo_A100_A200_C100_C200.book Seite 17 Freitag, 13. Februar 2009 7:33 19

Cleaning and maintaining the stove Dometic ORIGO
18
8.4 Using the heating element
(Dometic ORIGO C100 and C200 only)
aCaution!
Never use alcohol and electrical burners simultaneously to prevent
overheating which can destroy the heating element.
➤If applicable, lift the glass lid.
➤To switch on the heating element push and turn the power setting knob
clockwise.
➤Choose the desired power.
➤To switch off the heating element turn the power setting knob to the Off
position.
➤Let the element cool down completely, before you close the glass lid or
touch the stove top or let flammable material contact the stove top.
9 Cleaning and maintaining the stove
aCaution!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
➤Remove the grate from the stovetop.
➤Clean the stovetop. In particular remove carefully sticky grease and oil.
➤C100 and C200 only: Lift the heating element until you feel a resistance.
Clean the stove underneath the heating element.
➤Never use a steam cleaner for cleaning the stove.
_Origo_A100_A200_C100_C200.book Seite 18 Freitag, 13. Februar 2009 7:33 19

Dometic ORIGO Guarantee
19
10 Guarantee
The statutory warranty period applies. If the product is defective, please
contact the manufacturer's branch in your country (see the back of the
instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following docu-
ments when you send in the device:
zA copy of the receipt with purchasing date
zA reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the device, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
12 Technical data
Dometic ORIGO stove
A100 A100 GL A200 A200 GL
Item no.: 958147000 958147001 958147010 958147011
Number of burners: 1 2
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Lighter voltage: 12 Vg
Lighter current: 1 – 2.4 A
Cooking time for 1 l water: 10 min
Canister capacity: 1.2 l
Dimensions (W x H x D): 270 x 190 x 365 mm
(10 5/8"x71/2”x 14 3/8")
500 x 190 x 365 mm
(19 11/8" x 7 1/2"x143/8")
Weight: 3.5 kg 4.5 kg 6.5 kg 8 kg
_Origo_A100_A200_C100_C200.book Seite 19 Freitag, 13. Februar 2009 7:33 19

Technical data Dometic ORIGO
20
Variations, technical improvements and delivery options reserved.
Dometic ORIGO stove
C100 C100 GL C200 C200 GL
Item no.: 958147021 958147030 958147040 958147041
Number of burners: 1 2
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Lighter voltage: 12 Vg
Lighter current: 1 – 2.4 A
Input voltage: 120 V or 220–240 V
Power of heating element: EU: 1200 W/element
US: 1100 W/element
Cooking time for 1 l water: 10 min
Canister capacity: 1,2 l
Dimensions (W x H x D): 270 x 190 x 365 mm
(10 5/8"x71/2”x 14 3/8")
500 x 190 x 365 mm
(19 11/8" x 7 1/2"x143/8")
Weight: 4 kg 5 kg 7.5 kg 9 kg
_Origo_A100_A200_C100_C200.book Seite 20 Freitag, 13. Februar 2009 7:33 19
