Dometic ORIGO 2000 User manual

Alcohol and alcohol/electric stoves
Operating manual . . . . . . . . . . . . . . . 5
Spirituskocher und Spiritus-/
Elektrokocher
Bedienungsanleitung . . . . . . . . . . . . 20
Cuisinières à alcool et à alcool/
électriques
Notice d’utilisation . . . . . . . . . . . . . . 36
Hornillos de alcohol y de alcohol/
eléctricos
Instrucciones de uso . . . . . . . . . . . . 52
Spiritus- en spiritus-/elektrische
kooktoestellen
Gebruiksaanwijzing . . . . . . . . . . . . . 68
Fornelli ad alcool e alcool/elettrici
Istruzioni per I’uso . . . . . . . . . . . . . . 84
Sprii- ja sprii-/sähkökeitin
Käyttöohje . . . . . . . . . . . . . . . . . . . 101
Spritkök och sprit-/elkök
Bruksanvisning . . . . . . . . . . . . . . . 116
EN
DE
FR
ES
NL
IT
FI
SV
ORIGO 2000
ORIGO 2500
ORIGO 4100
ORIGO 4300
MAX
OFF
MAX
OFF
_Origo_2000_2500_4100_4300.book Seite 1 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO
2
MAX
OFF
MAX
OFF
1
2
1
2
+
-
0
1
2
3
4
5
3
_Origo_2000_2500_4100_4300.book Seite 2 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO
3
MAX
OFF
MAX
OFF
4
5
6
_Origo_2000_2500_4100_4300.book Seite 3 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO
4
MAX
OFF
7
MAX
1.
2.
8
_Origo_2000_2500_4100_4300.book Seite 4 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO
5
Please read this manual carefully before installing and starting up the
device, and store it in a safe place. If the device is passed on to another
person, this manual must also be handed over with it.
Table of contents
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Mounting the stove. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Using the stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Cleaning and maintaining the stove. . . . . . . . . . . . . . . . . . . . . . . . . 17
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
_Origo_2000_2500_4100_4300.book Seite 5 Freitag, 8. Januar 2010 3:35 15

Notes on using the manual Dometic ORIGO
6
1 Notes on using the manual
dWarning!
Safety instruction: failure to observe this instruction can cause
material damage or personal injury.
aCaution!
Safety instruction: Failure to observe this instruction can cause
material damage and impair the function of the device.
eWarning!
Safety instruction relating to a danger from an electrical current or
voltage. Failure to observe this instruction can cause material
damage or personal injury and impair the function of the device.
INote
Supplementary information for operating the device.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from
the following:
zFaulty assembly or connection
zDamage to the appliance resulting from mechanical influences and
excess voltage
zAlterations to the device without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
_Origo_2000_2500_4100_4300.book Seite 6 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO General safety instructions
7
Please observe the following basic safety information when using electrical
devices to protect against:
zElectric shock
zFire hazards
zInjury
2.1 General safety
dzUse denatured alcohol only. Do not use other fuels such as
gasoline, diesel, methanol, propane or charcoal lighter.
zDanger of asphyxiation!
Before starting the device, ensure that the area is sufficiently
ventilated.
zPlace a class A fire extinguisher (for alcohol fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
zPersons whose physical, sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
zElectric devices are not toys
Keep electrical appliances out of reach of children or infirm per-
sons. Do not let them use the appliances without supervision.
azUse the stove only as intended.
Dometic ORIGO alcohol/electric stoves 2500 and 4300 only
ezPlace a class B-1 fire extinguisher (for electric fires) in reaching
distance.
Ensure the fire extinguisher is regularly checked by qualified
personnel.
zAlways disconnect the power supply when working on the
device.
zMaintenance and repair work may only be carried out by quali-
fied personnel who are familiar with the risks involved and the
relevant regulations.
zInform yourself how to power-off the circuit breaker or the fuse
in the event of an emergency.
_Origo_2000_2500_4100_4300.book Seite 7 Freitag, 8. Januar 2010 3:35 15

General safety instructions Dometic ORIGO
8
2.2 Safety precautions when handling denatured
alcohol
dzKeep inflammable substances apart from heating and cooking
devices and other light and heat sources.
zStore alcohol in suitable containers only and in sufficient
distance from the stove.
zEliminate all sources of sparks or flames where the alcohol is
stored or filled-in.
zNever fill the canisters while still in the stove. Never pour fuel
through the burner openings in top of the stove (fig. 1, page 2).
zOverfilling, spilt alcohol and hot objects can cause severe
burns.
zDenatured alcohol burns with almost invisible flame, so great
damage can arise before you notice the danger.
azMop up any spilt alcohol immediately to prevent uncontrollable
burning.
zDo not smoke when handling alcohol or when operating the
stove.
zFill the canister to the maximum capacity only. Alcohol expands
in the canister when heated. Overfilled alcohol can cause un-
controllable burning inside the stove.
2.3 Operating the device safely
dzUse long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
zWear proper clothing when operating the stove.
Do not wear hanging garments which can catch fire.
azLet the stove cool down to ambient temperature before you
touch it with bare hands.
zKeep the area surrounding the stove and interior parts free of
grease, fat, alcoholic substances, plastic or inflammable cloths
(for instance curtains, towels, kitchen utensils).
zUse only pots and pans with a maximum diameter of 23 cm.
_Origo_2000_2500_4100_4300.book Seite 8 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Scope of delivery
9
zWhen cooking ensure that pans and pots are securely in posi-
tion. Recommended is the use of pot holders (fig. 22, page 2,
accessory).
zBe careful when heating grease or oil. Grease and oil catch fire
when exposed to great heat.
zUse only dry pot cloths to prevent the formation of steam. Do not
use towels or the like instead of pot cloths as these can catch
fire.
zNever leave the stove unattended when cooking. Pots boiling
over can cause smoke and fires.
zMove the burner control (fig. 21, page 2) to the off position
before removing the pot.
zDo not use the stove to heat the environment.
zDometic Origo 2500 and 4300 only: Never use alcohol and
electrical burners simultaneously to prevent overheating which
can destroy the heating element.
zDometic Origo 2500 and 4300 only: Operating electrical
burners at a high setting without a filled pot can damage the
stove.
3 Scope of delivery
zStove
zGasket per canister
4 Accessories
Description Item no.
2000 2500 4100 4300
Glass Lid 9103303990 – 9103303989 –
Pot Holder 9103303981 –9103303981 –
Cutting Board 9103303987 – 9103303986 –
_Origo_2000_2500_4100_4300.book Seite 9 Freitag, 8. Januar 2010 3:35 15

Intended use Dometic ORIGO
10
5 Intended use
The Dometic ORIGO stoves are designed for use in vehicles or boats.
6 Technical description
6.1 Function
The stove is made of stainless steel and uses the absorption principle. The
canister has a capacity of 1.2 l. Denatured alcohol is used as fuel.
Alcohol is absorbed into a non-flammable material in the canister. They are
not equipped with fuel valve or fuel lines, which can develop leaks, or with
other such components requiring regular service.
The Dometic ORIGO alcohol/electric stoves 2500 and 4300 are equipped
with a 230 V heating element. They can alternatively be operated with
alcohol or 230 V.
6.2 Specifications for the device variants
Various stove versions are available.
z2000 and 2500: single-burner unit
z4100 and 4300: double-burner unit
z2500 and 4300: additional heating element for alternative operation at the
230 V mains
To define your device see the item number on the type plate.
_Origo_2000_2500_4100_4300.book Seite 10 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Technical description
11
6.3 Operating elements
Operating elements for operation with denatured alcohol (fig. 2,
page 2):
Operating elements for operation at 230 V mains (fig. 3, page 2)
(Dometic ORIGO 2500 and 4300)
No. Description
1 Control, continuously adjustable
– Control set fully to right: burner closed
– Control set fully to left: burner open
2 Pot holder (accessory)
No. Symbol Description
1 Power setting LEDs
2+Increase the heating element’s power setting
In combination with the button “”: Switch on heating
element
3–Decrease the heating element’s power setting
4 Switch on heating element, when button “+” is pressed within
10 s
50Switch off heating element
_Origo_2000_2500_4100_4300.book Seite 11 Freitag, 8. Januar 2010 3:35 15

Mounting the stove Dometic ORIGO
12
7 Mounting the stove
You can fit the stove into the countertop of your kitchen.
7.1 Selecting the installation location
When selecting the installation location, observe the following instructions:
zSelect a well-ventilated location for the device.
zAvoid draft at the installation location.
If you fit the stove in an open cockpit or other open areas mount an
additional wind protection.
zDo not operate the device in spaces where danger of explosion is
present.
7.2 Installing the stove
aCaution – Danger of damaging the device!
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
➤Cut a rectangular hole into the countertop (dimensions see following
table):
➤Open the top and remove the canisters.
➤Place the stove in the middle of the cutout.
➤Mark the drill holes.
Use the drill holes at the rim of the stove as template.
➤Pre-drill the holes into the countertop where marked.
➤Fasten the stove by screwing flat head screws through each drill hole at
the rim.
➤Place a class B-1 fire extinguisher in reaching distance.
Model Dimensions in mm
2000 345 x 320
2500 345 x 320
4100 575 x 320
4300 575 x 320
_Origo_2000_2500_4100_4300.book Seite 12 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Mounting the stove
13
7.3 Connecting the stove electrically
(Dometic ORIGO 2500 and 4300 only)
eCaution! Danger of injury!
The stove may only be connected by a qualified specialist.
The following information is intended for technicians who are
familiar with the guidelines and safety precautions to be applied.
Observe the following safety instructions for the electrical connections:
ezCaution, risk of short circuit!
Always use sockets which are grounded and secured by
residual current circuit breakers.
zIf you have to feed cables through metal walls or other walls with
sharp edges, use ducts or tubes to prevent damage.
zDo not lay cables which are loose or bent next to electrically
conductive material (metal).
zFasten the cables securely.
zDo not pull on the cables.
zLay the cables so that they cannot be tripped over or damaged.
➤Connect the stove to the mains according to the label on the device. The
black L1 wire is the ungrounded conductor.
➤Secure the cable with a clamp.
_Origo_2000_2500_4100_4300.book Seite 13 Freitag, 8. Januar 2010 3:35 15

Using the stove Dometic ORIGO
14
8 Using the stove
8.1 Filling-in denatured alcohol
dCaution! Danger of injury!
Never pour fuel through the burner openings in top of the stove
(fig. 1, page 2).
Overfilling, spilt alcohol and hot objects can cause severe burns.
➤Ensure all burners are turned off:
– operation with denatured alcohol: slide the control fully to right
– operation at the 230 v mains (2500 and 4300 only): switch heating
elements off
➤Ensure the stove is cooled down to room temperature.
➤If applicable, remove the cutting board or lift the glass lid (both
accessory).
➤Pull the latch forward (fig. 4, page 3) and lift the stovetop.
➤Check canister opening ensuring there’s neither fire nor glow.
➤Take out the canister.
➤Hold the canister tilted down (fig. 5, page 3).
➤Fill the denatured alcohol through the wire mesh into the opening of the
canisters.
The maximum capacity per canister must not exceed 1.2 l.
➤Check the fuel level by tilting the canister vertically (fig. 6, page 3).
Keep it in this position for 20 s, to make sure it's not overfilled. In addi-
tion, in the case of accidental overfilling you can get rid of the surplus
fuel.
✓The maximum fuel level is reached when the fuel is visible at the bottom
of the opening.
INote
The stove will operate even if the canister isn’t filled with the
maximum capacity.
➤Wipe possible spilt alcohol off the outside of the canister.
➤Replace the canister.
_Origo_2000_2500_4100_4300.book Seite 14 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Using the stove
15
➤Close the stovetop and secure it with the latch.
8.2 Lighting the stove
dCaution! Danger of injury!
Use long matches or long lighters to light the burner.
Quickly remove your hand as soon as the burner ignites.
➤Slide the control fully to left.
✓The burner is open.

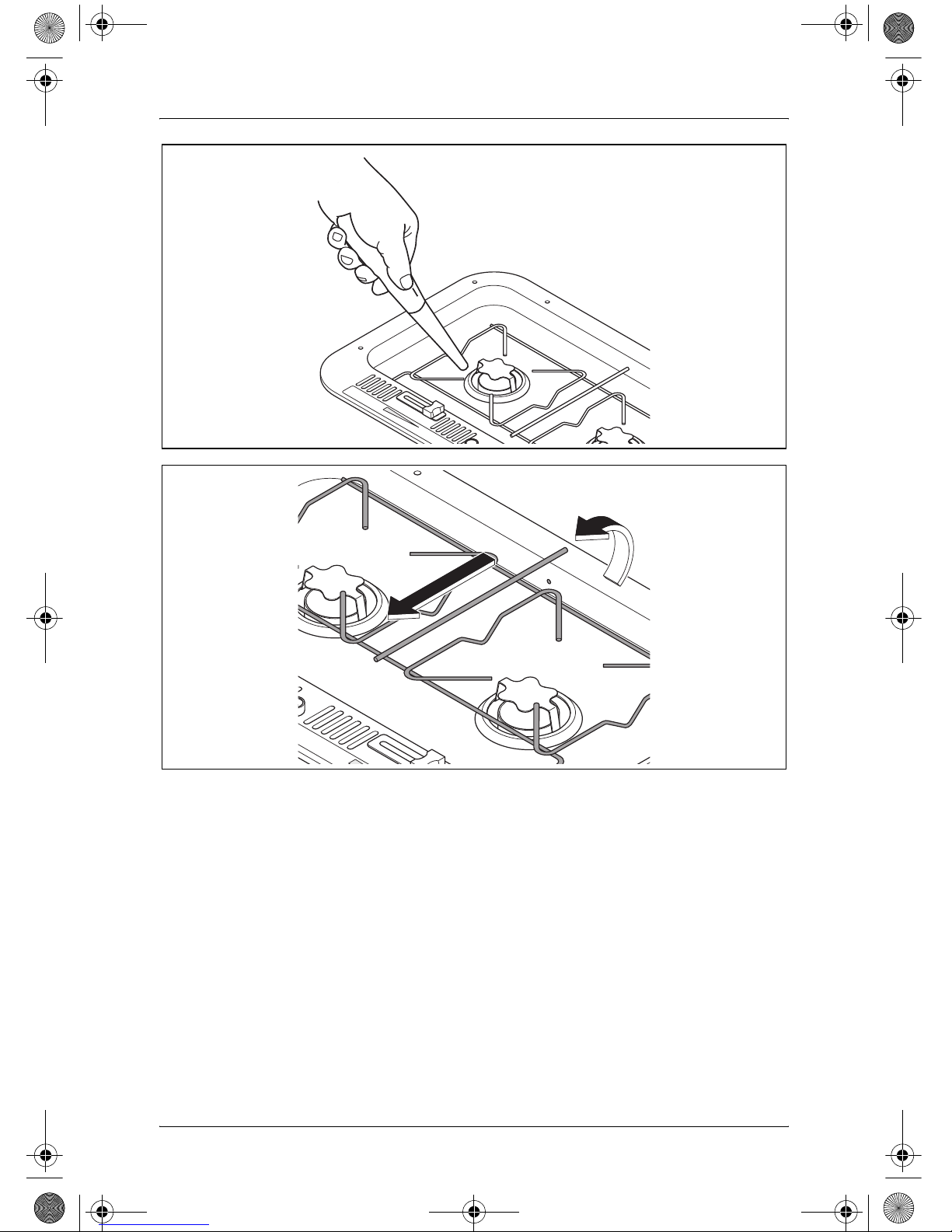

➤Light the stove by placing a long match or a long lighter to the burner
opening (fig. 7, page 4).
➤Adjust the flame so it does not extend beyond the edge of the pot.
➤Choose the desired power setting via control.
INote
If the stove hasn’t cooled down from previous use, the burner may
ignite but immediately extinguish. In this case blow air into the
burner opening to dissipate vapour.
Afterwards light the stove as described above.
8.3 Extinguish the flame
➤Slide the control fully to right.
✓The burned is closed.
➤Wait about five seconds.
➤Slide the control fully to left to make sure the flame is extinguished.
✓The burner is open.
➤Slide the control fully to right.
✓The burner is closed.
_Origo_2000_2500_4100_4300.book Seite 15 Freitag, 8. Januar 2010 3:35 15

Using the stove Dometic ORIGO
16
8.4 Using the heating element
(Dometic ORIGO 2500 and 4300 only)
aCaution!
Never use alcohol and electrical burners simultaneously to prevent
overheating which can destroy the heating element.
➤If applicable, remove the cutting board or lift the glass lid (both
accessory).
INote
For your safety the stove will switch off the mains when you replace
the cutting board or close the glass lid (both accessory).
➤To switch on the heating element push the button “”and within 10 s
the button “+”.
➤Choose the desired power setting via the buttons “+” and “–”.
The power is regulated in five steps and indicated by the LEDs (see table
below).
Pushing the buttons will change the power setting by one step, holding
down the buttons will change the power setting by more than one step.
➤To switch off the heating element push the button “0” symbol.
➤Let the stove cool down to room temperature, before you place the cutting
board or close the glass lid (both accessory).
LED (fig. 31, page 2) Power setting
No LED glows heating element is off
LED 1 glows 20 %
LED 1 and LED 2 glow 40 %
LED 2 glows 60 %
LED 2 and LED 3 glow 80 %
LED 3 glows 100 %
_Origo_2000_2500_4100_4300.book Seite 16 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Cleaning and maintaining the stove
17
8.5 Covering the canister with a gasket
To prevent the evaporation of denatured alcohol the burners are covered
with rubber gaskets, when the stove is not to be used for a long period.
➤Ensure the stove is cooled down to room temperature.
➤If applicable, remove the cutting board or lift the glass lid (both
accessory).
➤Pull the latch forward (fig. 4, page 3) and lift the stovetop.
➤Place the gasket over the canister opening.
➤Close the stovetop and secure it with the latch.
INote
Remove the gaskets before using the stove.
9 Cleaning and maintaining the stove
aCaution
Do not use any sharp or hard objects for cleaning since they may
damage the device.
➤Remove the grate from the stovetop. Therefore slide the retainer off the
hole and lift the grate (fig. 8, page 4).
➤Clean the stovetop. In particular remove carefully sticky grease and oil.
➤2500 and 4300 only: Lift the heating element until you feel a resistance.
Clean the stove underneath the heating element.
_Origo_2000_2500_4100_4300.book Seite 17 Freitag, 8. Januar 2010 3:35 15

Guarantee Dometic ORIGO
18
10 Guarantee
The statutory warranty period applies. If the product is defective, please
contact the manufacturer's branch in your country (see the back of the
instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following docu-
ments when you send in the device:
zA copy of the receipt with purchasing date
zA reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the device, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
_Origo_2000_2500_4100_4300.book Seite 18 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO Technical data
19
12 Technical data
Variations, technical improvements and delivery options reserved.
Dometic ORIGO stove
2000 2500
Item no.: 9103303884 –
Number of burners: 1
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Power of heating element: – 1150 W
Cooking time for 1 l water: 10 min
Canister capacity: 1.2 l
Dimensions (L x W x H): 396 x 377 x 150 mm
Weight: 5.8 kg 6.2 kg
Dometic ORIGO stove
4100 4300
Item no.: 9103303890 –
Number of burners: 2
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Power of heating element: – 1150 W/element
Cooking time for 1 l water: 10 min
Canister capacity: 1,2 l
Dimensions (L x W x H): 623 x 377 x 150 mm
Weight: 8 kg 9.9 kg
_Origo_2000_2500_4100_4300.book Seite 19 Freitag, 8. Januar 2010 3:35 15

Dometic ORIGO
20
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorg-
fältig durch und bewahren Sie sie auf. Geben Sie sie im Falle einer
Weitergabe des Gerätes an den Nutzer weiter.
Inhaltsverzeichnis
1 Hinweise zur Benutzung der Anleitung . . . . . . . . . . . . . . . . . . . . . . 21
2 Allgemeine Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4 Zubehör . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Kocher montieren. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8 Kocher verwenden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Kocher reinigen und warten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Gewährleistung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
11 Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
_Origo_2000_2500_4100_4300.book Seite 20 Freitag, 8. Januar 2010 3:35 15
